Learn more about BougeRV Power Station
HIGHLIGHTS
200W 12V 9BB Portable Solar Panel
200W 12V 9BB Portable Solar Panel is equipped with an MC4 connector that is compatible with various energy storage brands in the market. To connect to different mobile power sources, a converter needs to be prepared separately. With its fast charging speed, it supports multiple solar panels connected in series and parallels, providing a faster charging speed to the power station.
200W 12V 9BB Portable Solar Panel is made of 9BB batteries, which makes it lighter, smaller in size, and more convenient to carry when going out. With its 23% higher efficiency, it can provide more power for your outdoor activities.
The ETEF integrated pressure-bearing shell technology used in 200W 12V 9BB Portable Solar Panel makes it dustproof and dirt-resistant, while its IP67 waterproof function ensures that you don't have to worry about sudden rain or splashing water damaging the product. This solar panel is built to last, even in harsh outdoor conditions.
The 200W 12V 9BB Portable/Foldable Solar Panel is not only lightweight at 18lbs, but also incredibly compact with a folded size of only 25.5*21.9 inches. Its handle design is ergonomically positioned for maximum convenience, while the four-corner hanging hole design offers customers more flexibility for DIY installation options, such as on RVs, yard windows, and roofs.
Product Specifications

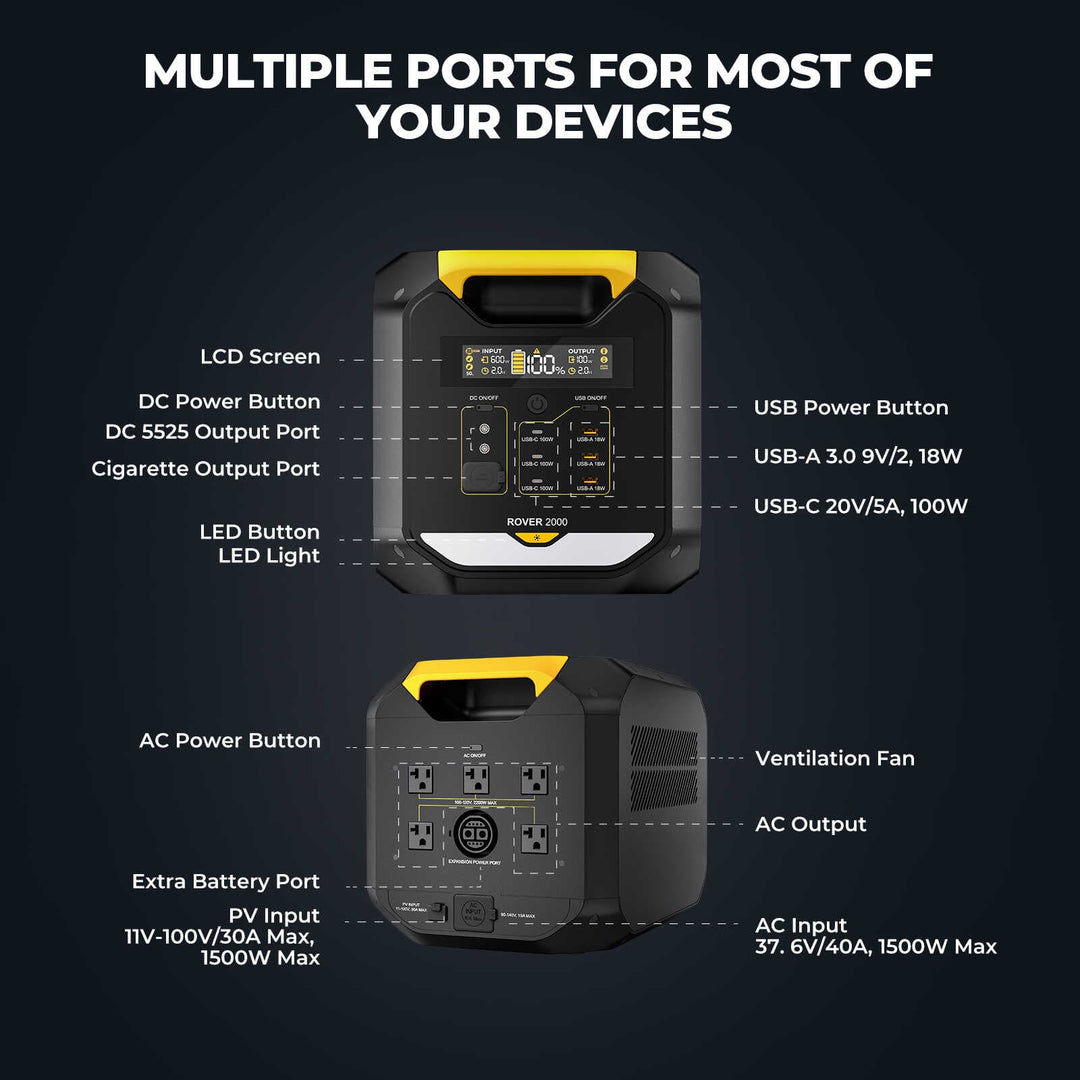

| SKU | ISE166 | |
|---|---|---|
|
2008WH | |
| Product Type | Portable power station | |
| Cycle Life | 3000+ Cycles | |
| PV Solar Recharge | 11-100V , 30A MAX, 1500W MAX | |
| AC Charge | 37.6V/40A, 1500W MAX | |

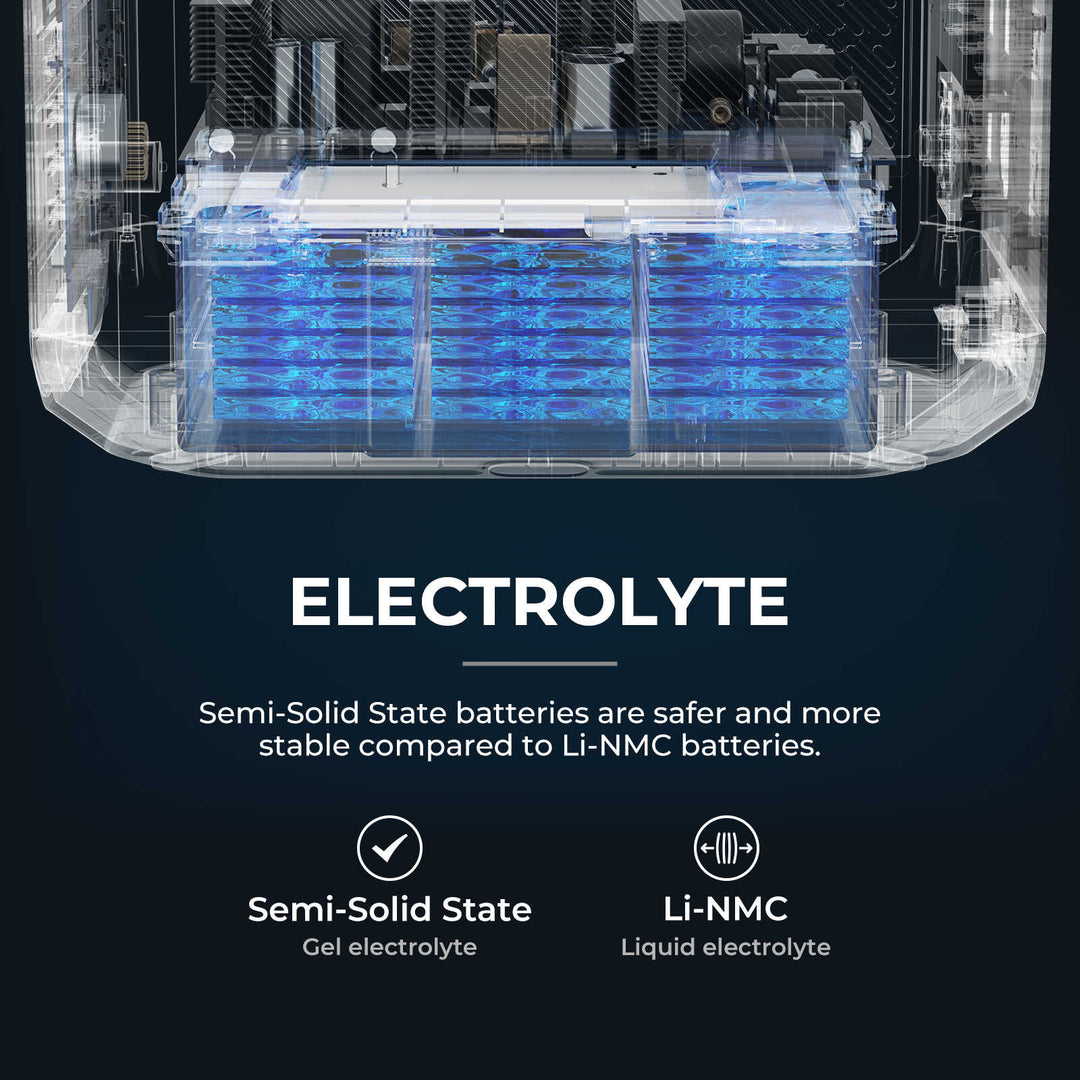

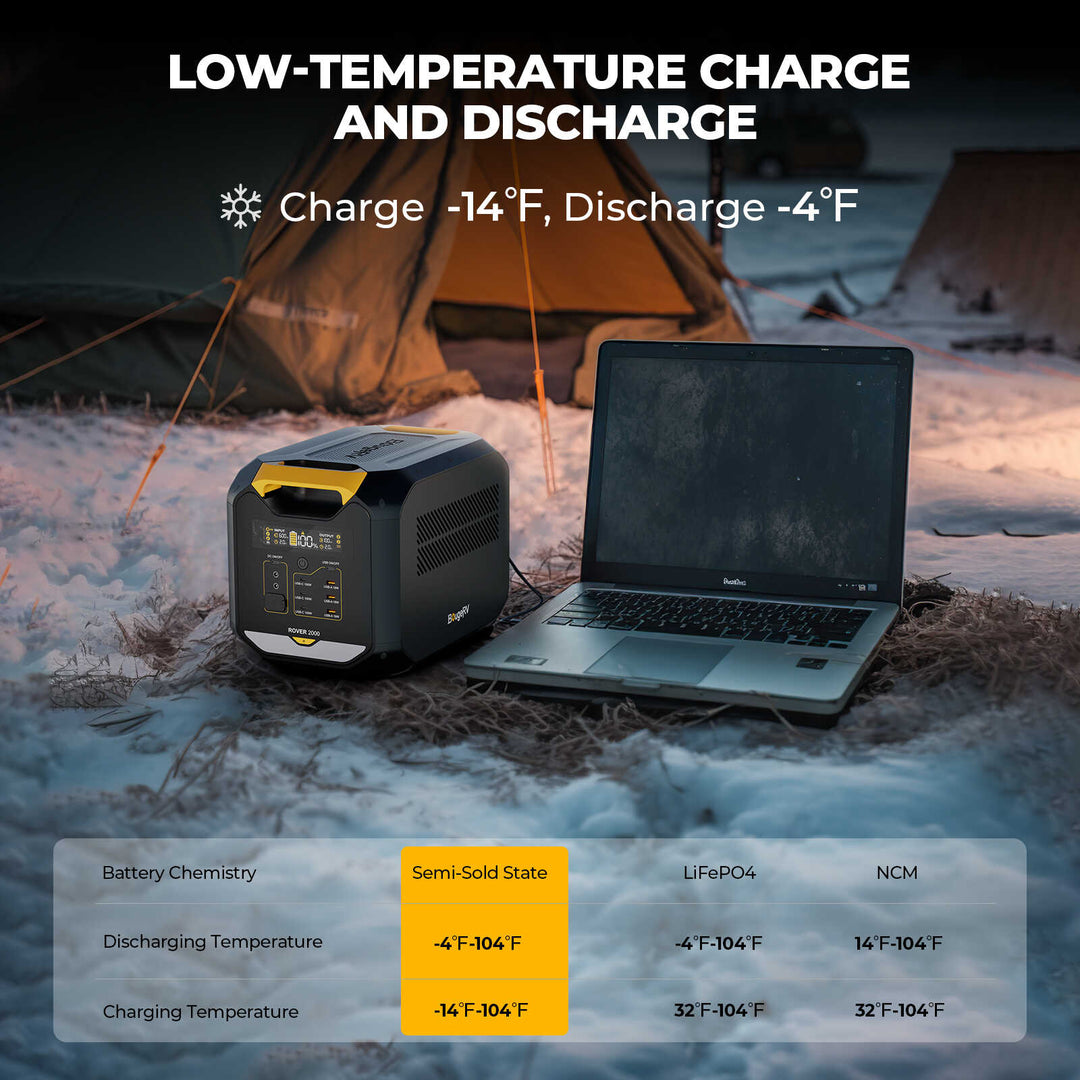

| Battery | Semi-solid State | |
| AC Output (x5) | Pure sine wave,total power 2200W (surge4000W for 3 seconds) 50/60 Hz | |
| Cigarette & DC5525 Output | 13.6V, 10A 136W MAX TOTAL | |
| USB-A QC3.0 Output (x3) | 9V/2A, 18W | |
| USB-C Output (x3) | 20V/5A 100W MAX | |

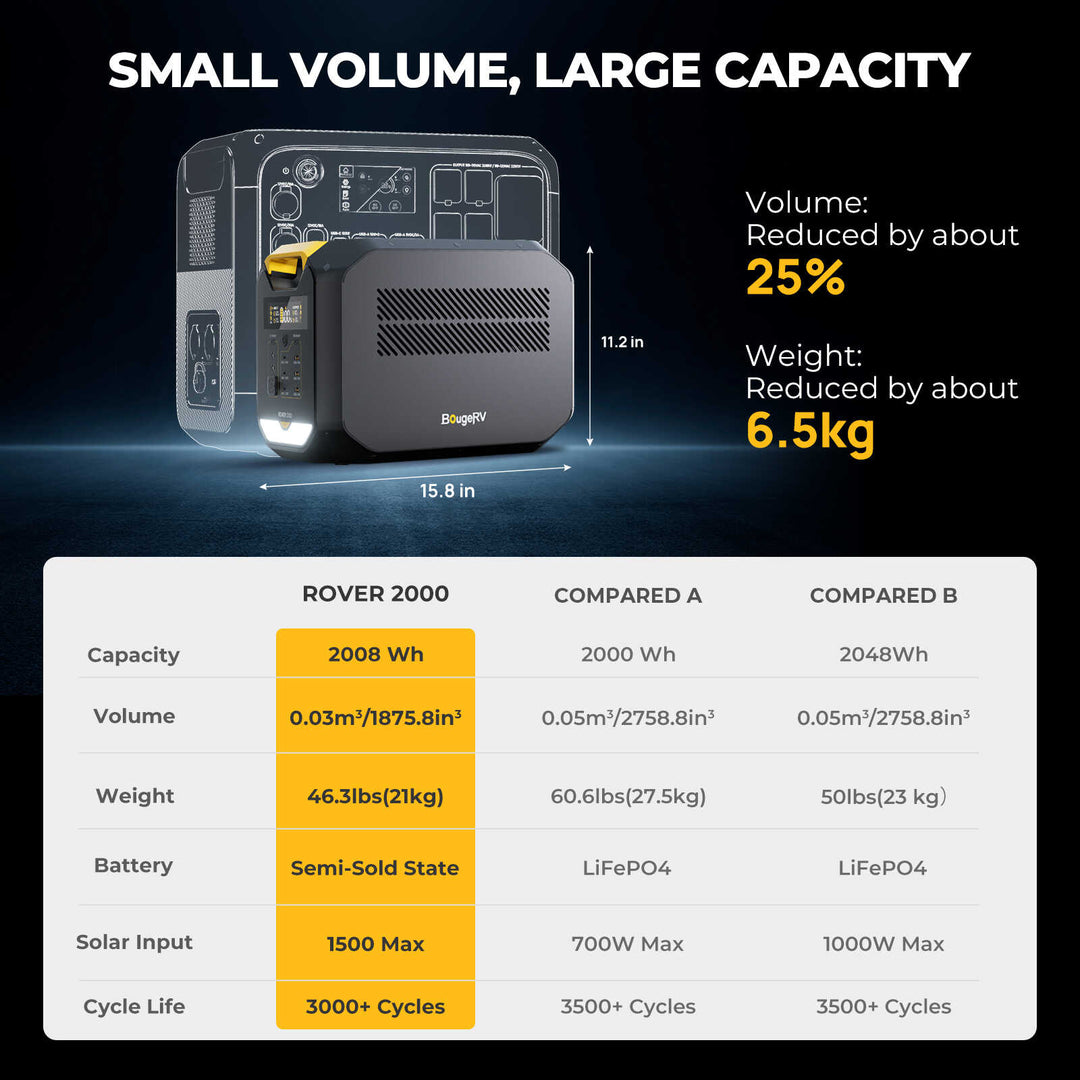

| Product Dimension | 15.7 X 10.6 X11 INCHES(L*W*H) | |
| Weight | 21kg/47Lbs | |
| Product Warranty | 5 Years |
| SKU | ISE166 | |
|---|---|---|
|
2008WH | |
| Product Type | Portable power station | |
| Cycle Life | 3000+ Cycles | |
| PV Solar Recharge | 11-100V , 30A MAX, 1500W MAX | |
| AC Charge | 37.6V/40A, 1500W MAX | |
| Battery | Semi-solid State | |
| AC Output (x5) | Pure sine wave,total power 2200W (surge4000W for 3 seconds) 50/60 Hz | |
| Cigarette & DC5525 Output | 13.6V, 10A 136W MAX TOTAL | |
| USB-A QC3.0 Output (x3) | 9V/2A, 18W | |
| USB-C Output (x3) | 20V/5A 100W MAX | |
| Product Dimension | 15.7 X 10.6 X11 INCHES(L*W*H) | |
| Weight | 21kg/47Lbs | |
| Product Warranty | 5 Years |
| SKU | ISE166 | |
|---|---|---|
|
2008WH | |
| Product Type | Portable power station | |
| Cycle Life | 3000+ Cycles | |
| PV Solar Recharge | 11-100V , 30A MAX, 1500W MAX | |
| AC Charge | 37.6V/40A, 1500W MAX | |
| Battery | Semi-solid State | |
| AC Output (x5) | Pure sine wave,total power 2200W (surge4000W for 3 seconds) 50/60 Hz | |
| Cigarette & DC5525 Output | 13.6V, 10A 136W MAX TOTAL | |
| USB-A QC3.0 Output (x3) | 9V/2A, 18W | |
| USB-C Output (x3) | 20V/5A 100W MAX | |
| Product Dimension | 15.7 X 10.6 X11 INCHES(L*W*H) | |
| Weight | 21kg/47Lbs | |
| Product Warranty | 5 Years |
| SKU | ISE193 | Product Type | Solar Panel |
|---|---|---|---|
| Maximum Power (Pmax） | 200W | Solar cells Effificiency | 23% |
| Max. Power Voltage (Vmp) | 19.8 V | Open Circuit Voltage(Voc) | 23.7 V |
| Max. Power Current (Imp) | 10.1 A | Short Circuit Current(Isc) | 10.6 A |
| Max. System Voltage | 1000V DC | Operating Temperature Limits | -40℉～+185℉ -40℃~+85℃ |
| Dimensions（unfolded） | 86.6x25.5x1.4 inches | Dimensions（folded） | 21.9x25.5x2.75 inches |
| Product Weight | 8.23KG / 18.1 lbs | Product Warranty | 10 Years |
| SKU | ISE193 | Product Type | Solar Panel |
|---|---|---|---|
| Maximum Power (Pmax） | 200W | Solar cells Effificiency | 23% |
| Max. Power Voltage (Vmp) | 19.8 V | Open Circuit Voltage(Voc) | 23.7 V |
| Max. Power Current (Imp) | 10.1 A | Short Circuit Current(Isc) | 10.6 A |
| Max. System Voltage | 1000V DC | Operating Temperature Limits | -40℉～+185℉ -40℃~+85℃ |
| Dimensions（unfolded） | 86.6x25.5x1.4 inches | Dimensions（folded） | 21.9x25.5x2.75 inches |
| Product Weight | 8.23KG / 18.1 lbs | Product Warranty | 10 Years |
| SKU | ISE193 |
|---|---|
| Maximum Power (Pmax） | 200W |
| Max. Power Voltage (Vmp) | 19.8 V |
| Max. Power Current (Imp) | 10.1 A |
| Max. System Voltage | 1000V DC |
| Dimensions（unfolded） | 86.6x25.5x1.4 inches |
| Product Weight | 8.23KG / 18.1 lbs |
| Solar cells Effificiency | 23% |
| Open Circuit Voltage(Voc) | 23.7 V |
| Short Circuit Current(Isc) | 10.6 A |
| Operating Temperature Limits | -40℉～+185℉ -40℃~+85℃ |
| Dimensions（folded） | 21.9x25.5x2.75 inches |
| Product Warranty | 10 Years |
User Manual
Reviews
FAQ
If a low-battery warning appears, charge the product before storing it. Otherwise, long-term storage may cause damage to the batteries in the product. Batteries will enter hibernation mode if they are depleted and stored for a long time.
You can use the formula to calculate: 1456Wh * 0.9/operating power of your device. The duration of our equipment is based on laboratory data, and the duration of specific equipment used may vary.
1. Please keep the power station fully recharged at least once a month, 0%-100%.
2. Please recharge the power station, when the capacity on the display is less than 20%.
