BougeRV Solar Panel Parallel Connectors 1 to 5 Solar Cable Wire

$34.99 Save $-34.99
/

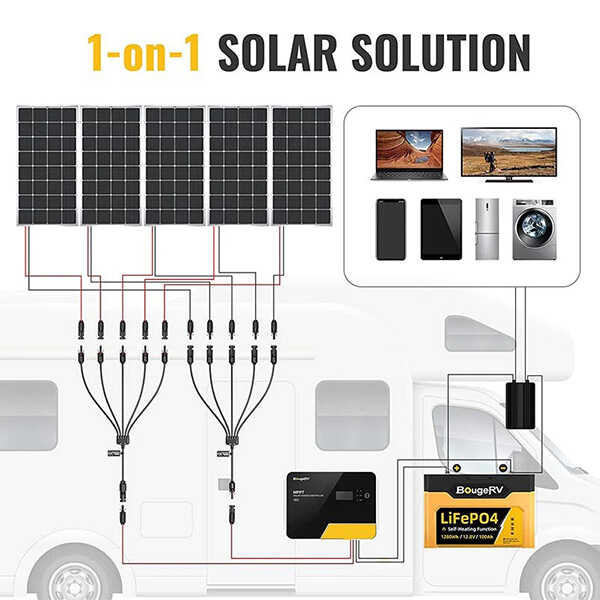

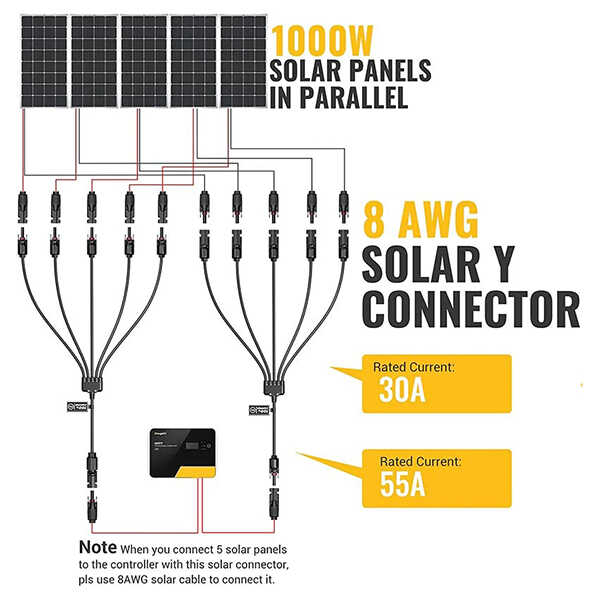

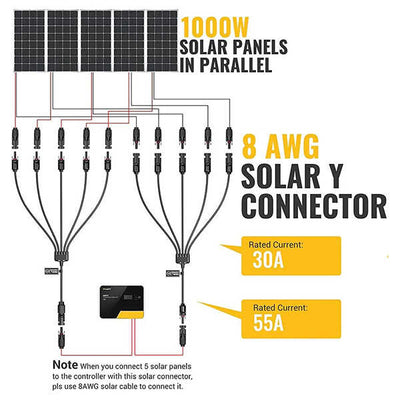

BougeRV provides an exceptional solution for streamlining the wiring process and enhancing the efficiency of solar panel installations with their innovative 5 to 1 MC4 Connector. This connector is specifically designed to seamlessly integrate with MC4 solar cables, ensuring a dependable and secure connection throughout the system. By employing the 5 to 1 configuration, BougeRV's MC4 Connector empowers users to conveniently link up to five solar panels to a single output point. This remarkable feature significantly reduces the number of cables and connections needed, simplifying the overall installation process and optimizing the system's performance.
Read more » Fold up »
10

Pay With Ease:

Payments icons
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews

Features

HIGHLIGHTS

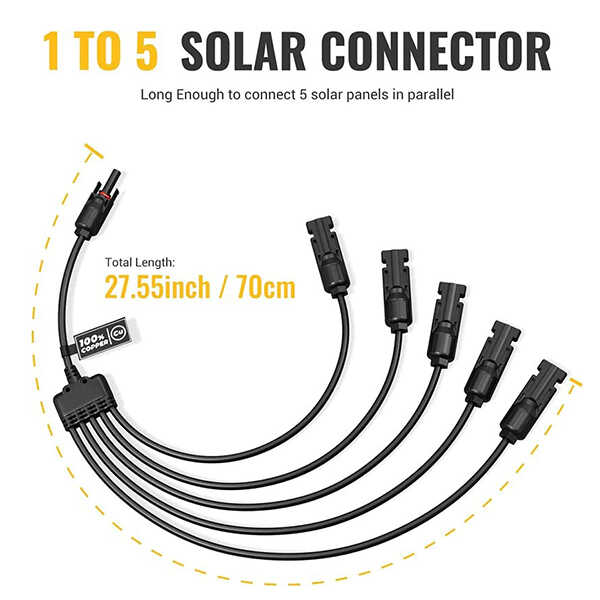

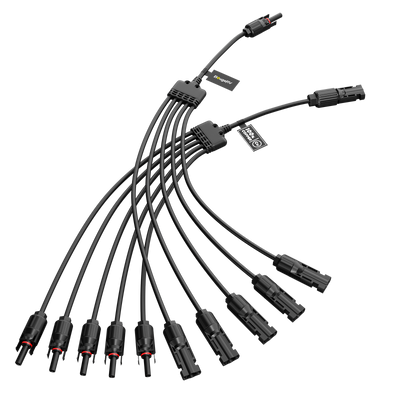

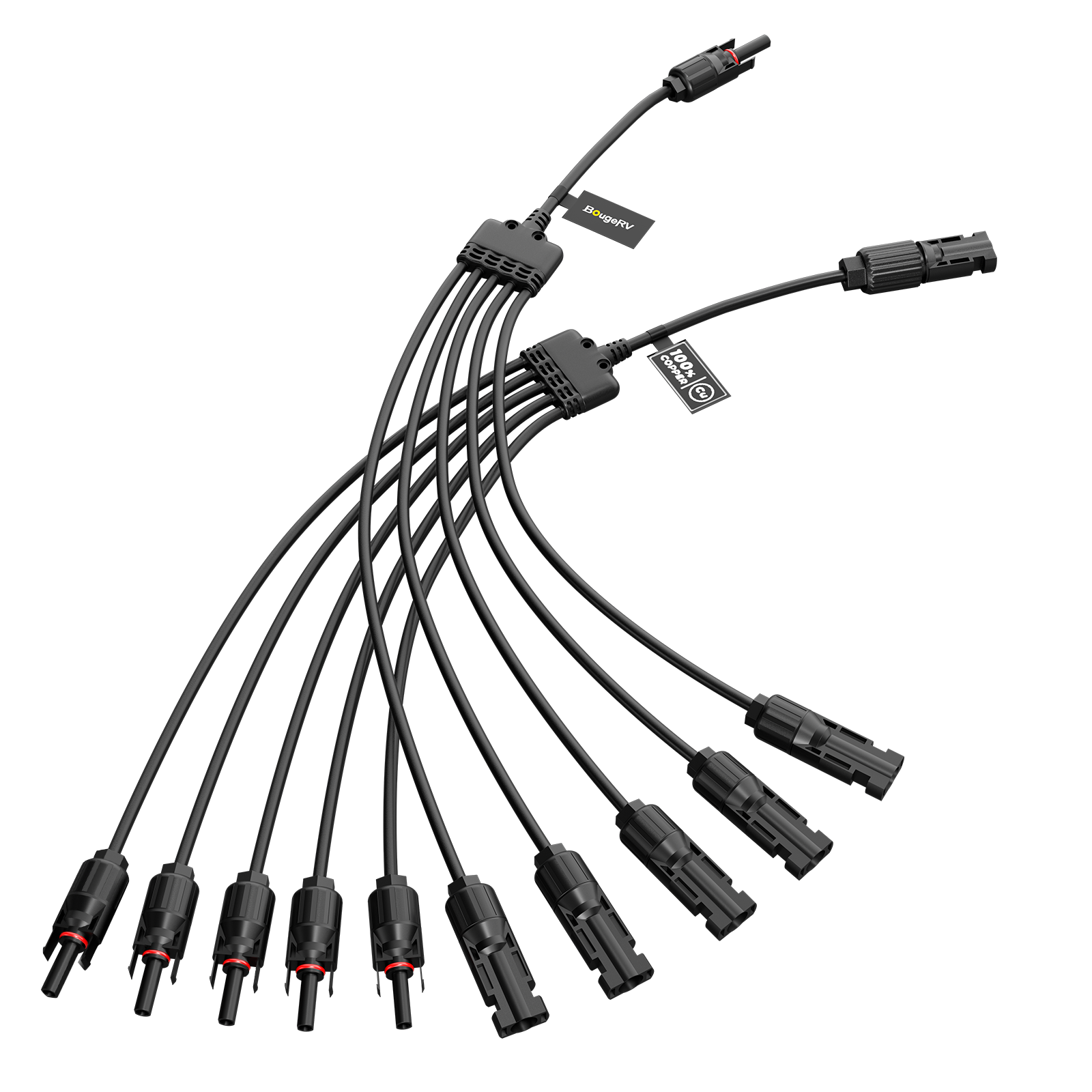

【Solar Y Connectors】Rated Current: 30A, Rated Voltage: DC1000V. It can connect 5 solar panels in parallel, with 1 male to 5 female(M/FFFFF) and 1 female to 5 male(F/MMMMM) solar connectors.

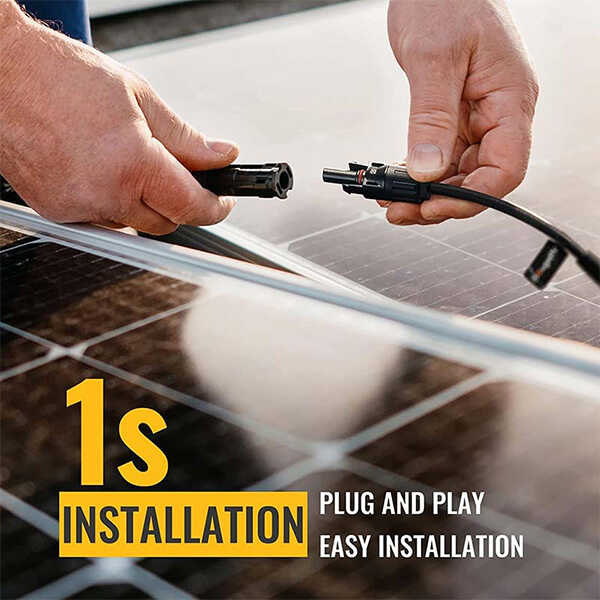

【Easy Installation】There is a built - in lock in each male connector, you just need to press your fingers to the two sides of the built-in lock on the male connector, then you can connect or disconnect the connector easily, without using other tool. The connection will work stably with this built-in lock.
【Wide Compatibility】This solar connector is suitable for most conventional solar connectors, which is also compatible with solar cable from 10AWG to 14AWG.

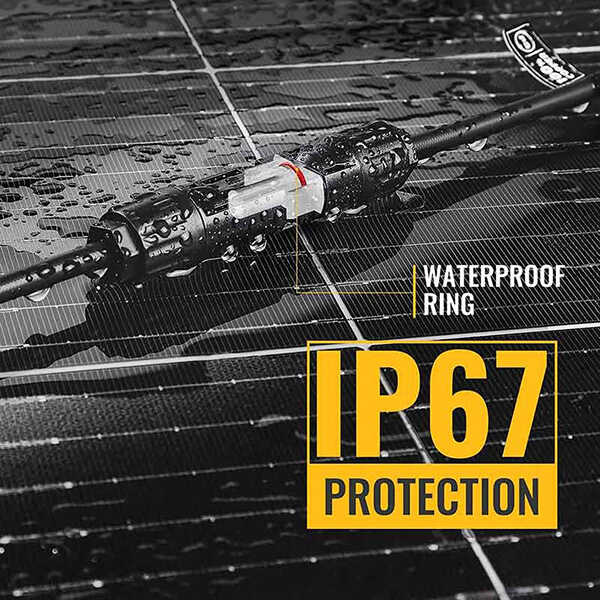

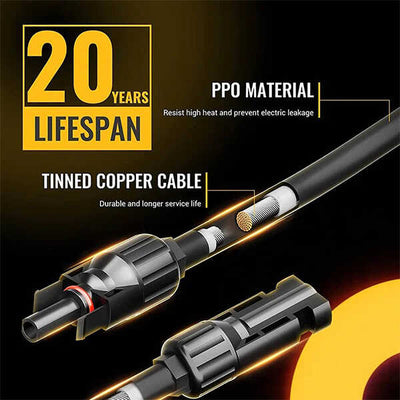

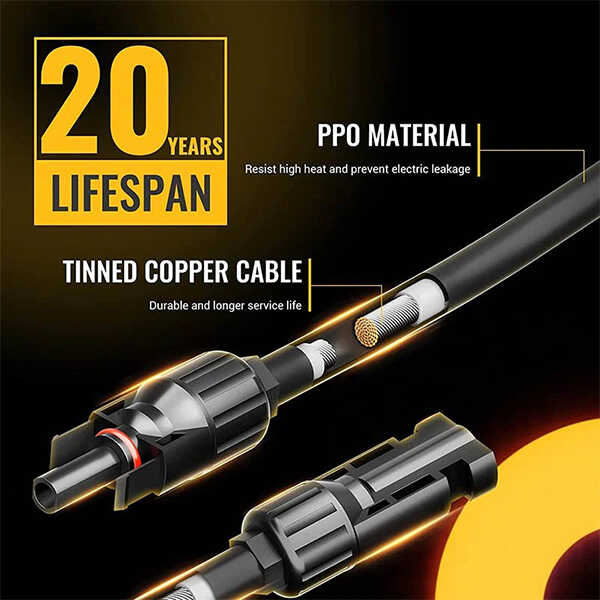

【IP67 Waterproof】The solar panel connector is waterproof and dust-proof with the waterproof ring in the male connector. Made with high-quality PPO material, solar y branch connector is resistant to the aging and UV, which can work stably from -40℉ to 221℉. It is safe and durable to work outdoors.
【Warranty】BougeRV is dedicated to provide customers with high quality product through constantly improvement and also promise an 18 months warranty of each product.

Product Specifications

SKUISE155--
Rated Current30ARated VoltageDC1000V
Contact Resistance≤0.2mΩInsulation Resistance>500mΩ
Operating Temperature range-40℉ until+221℉Degree of ProtectionIP67
Flame ClassUL94-V0Safety DegreeⅡ
Suitable Single Core Cable Section1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
SKU ISE155
Rated Current 30A
Contact Resistance ≤0.2mΩ
Operating Temperature range -40℉ until+221℉
Flame Class UL94-V0
Suitable Single Core Cable Section 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
Rated Voltage DC1000V
Insulation Resistance >500mΩ
Degree of Protection IP67
Safety Degree Ⅱ
