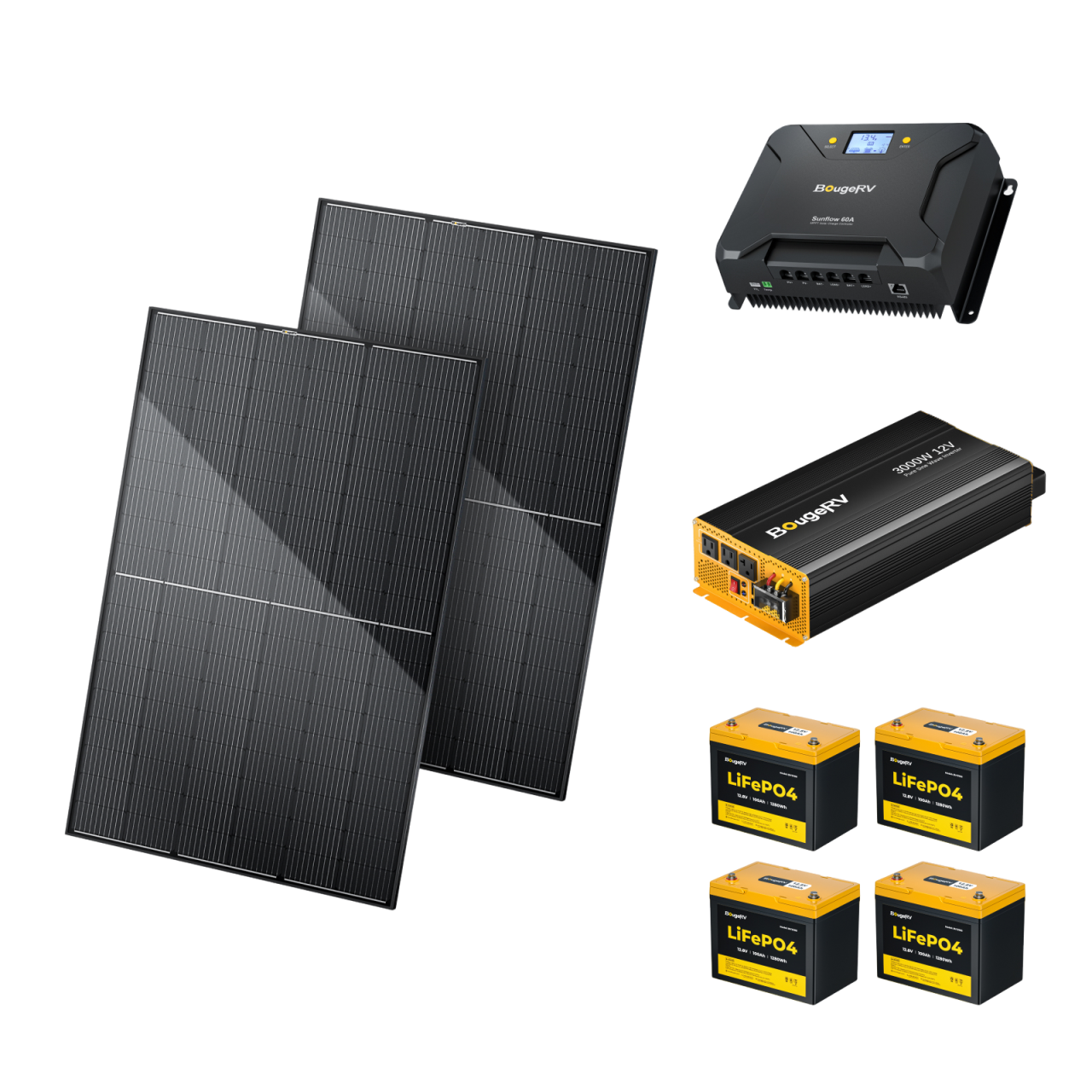

BougeRV 800W 12V Premium Rigid Solar Kit

16BB N-Type High-Efficiency Panels for RV & Off-Grid

RV solar setup van life solar cabin off-grid system N-Type

Spring Refresh Sale

Save $600.00
$2,199.99

Clear the Shade 🧹 | Power Up This Spring

$2,799.99
/

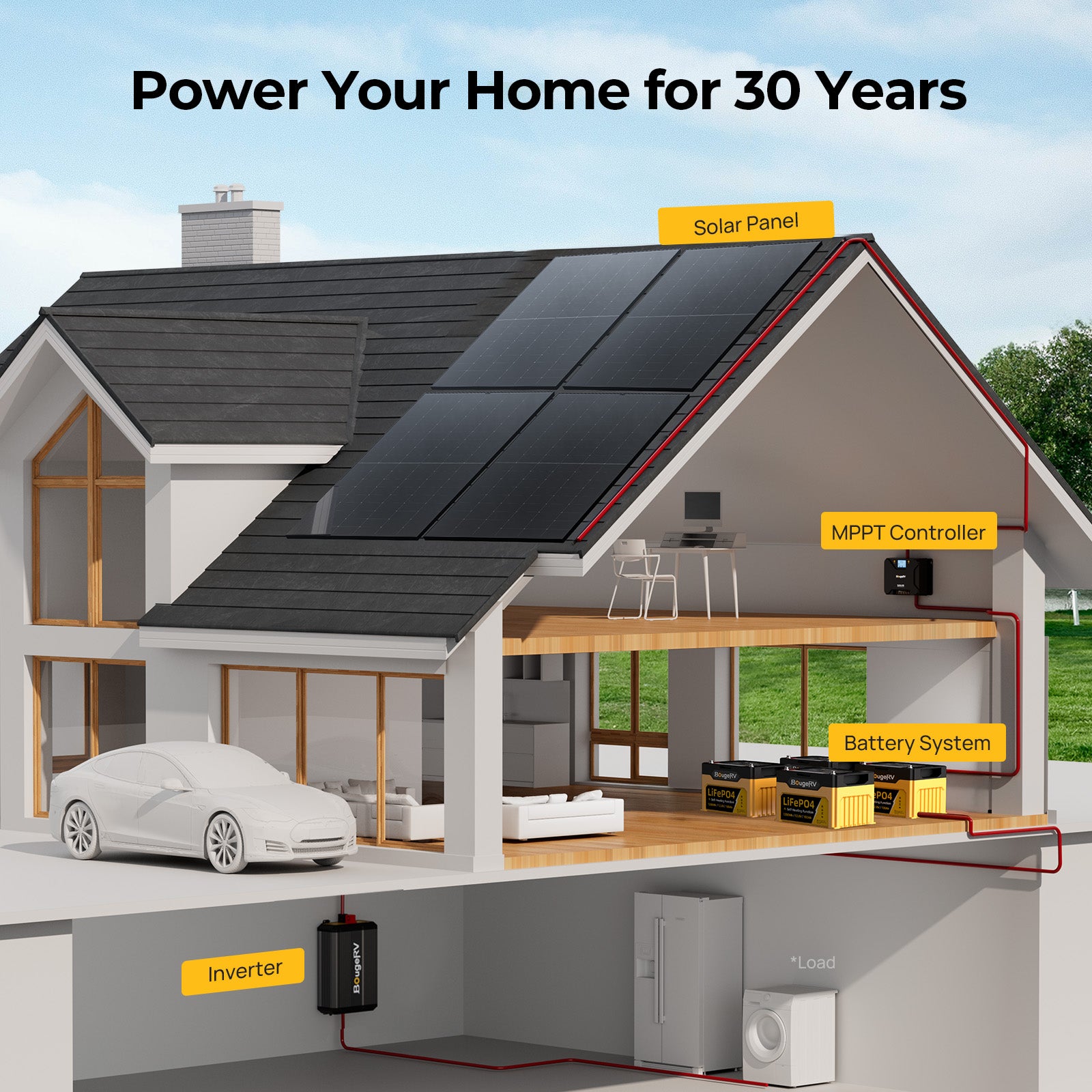

Power your adventures with the BougeRV 800W 12V solar system kit, built for reliable off-grid energy wherever you go. Featuring two 400W rigid solar panels with advanced 16BB N-Type cells, it delivers higher efficiency, better low-light performance, and enhanced durability over traditional panels.

Perfect for RVs, vans, campers, and off-grid cabins , this complete solar kit provides stable 12V power for running essentials, charging batteries, and supporting extended outdoor living. Whether you're overlanding, camping, or seeking energy independence, it’s designed to perform in real-world conditions.

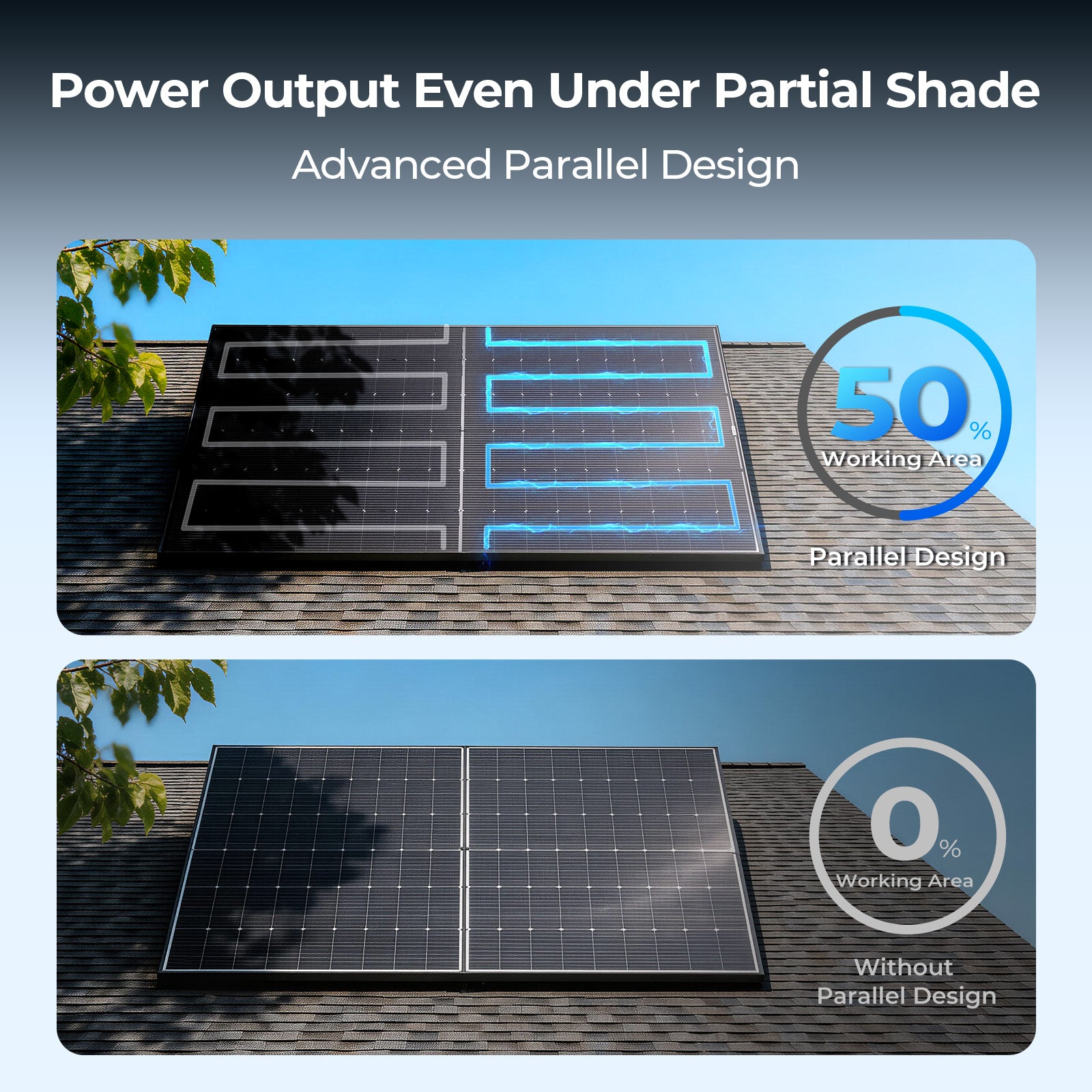

Easy to install and engineered for long-term reliability, the system maximizes energy output—even in partial shading or changing weather. A dependable solution for clean, sustainable power on the road or off the grid .

Upgrade your solar setup today and enjoy efficient, portable power—anytime, anywhere.

Read more » Fold up »

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • In the Box
  • Tech Specs
  • Reviews

Peoduct Features

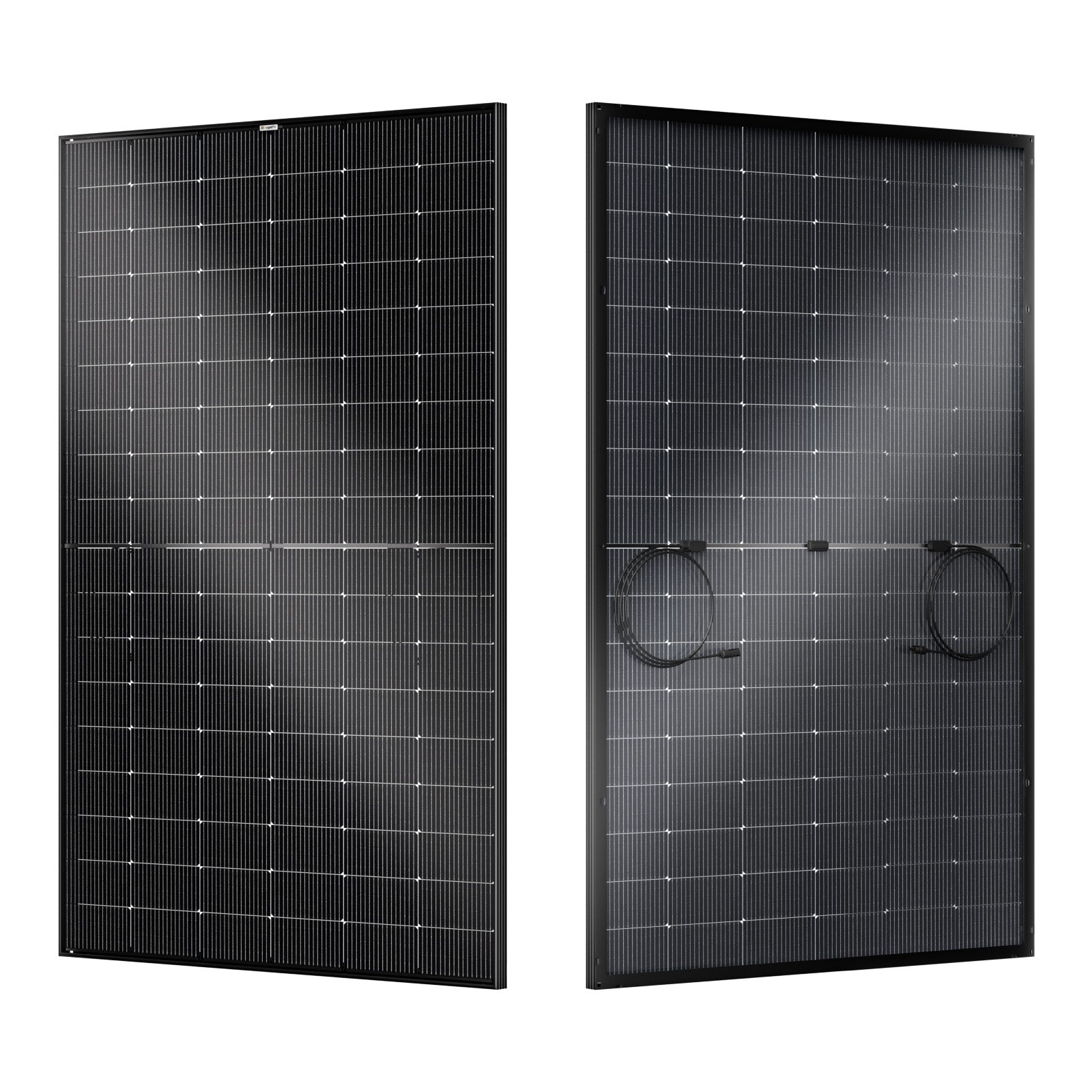

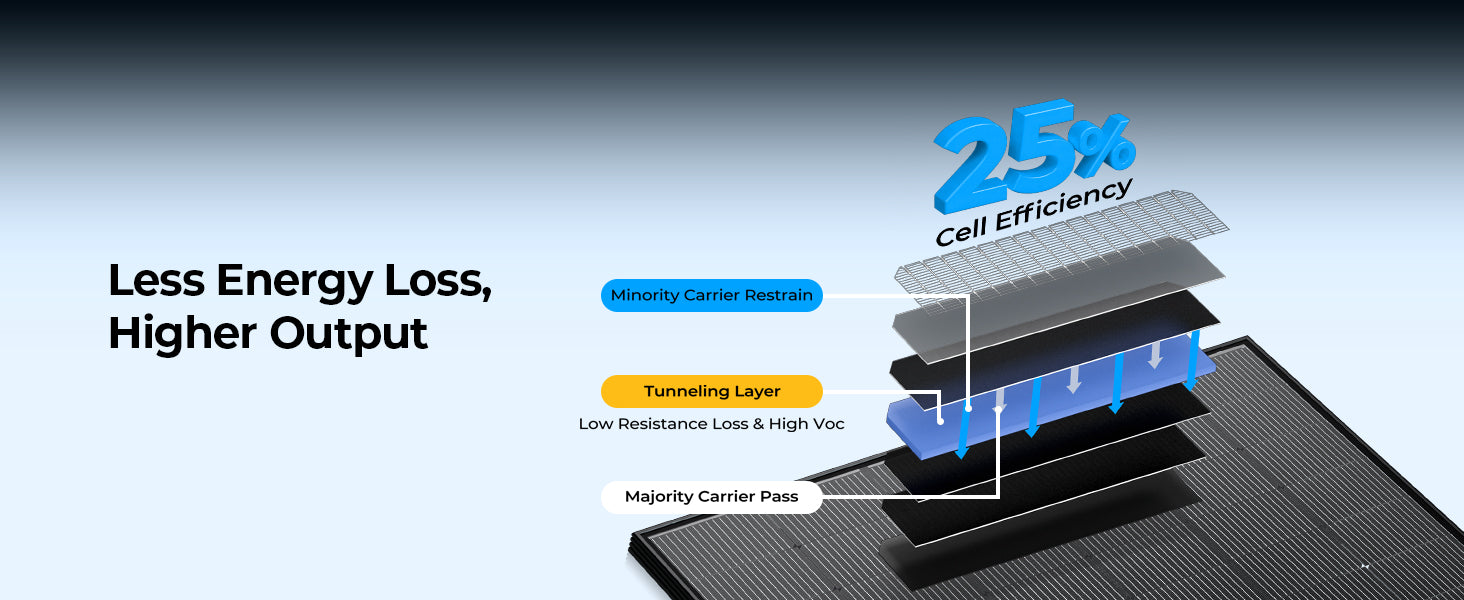

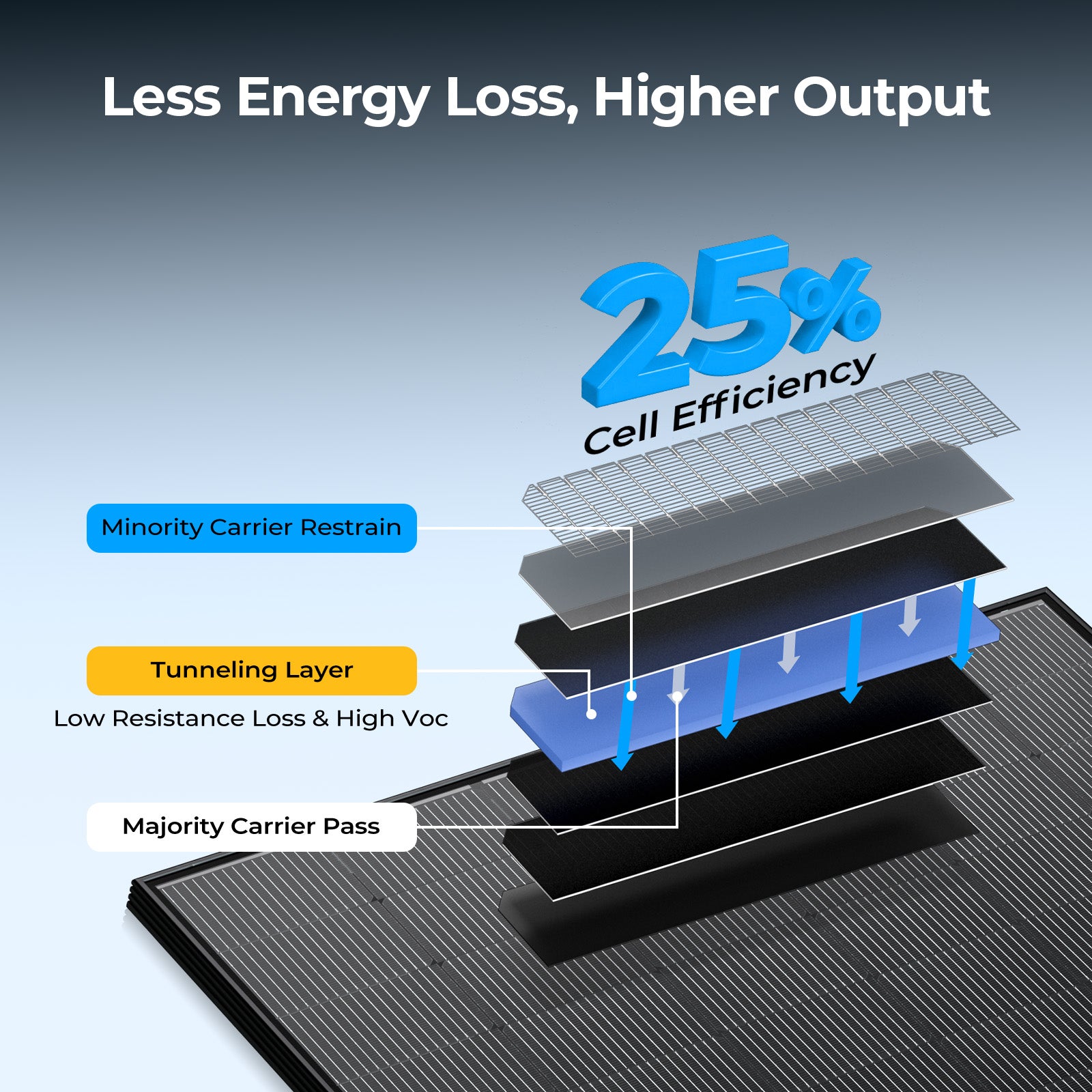

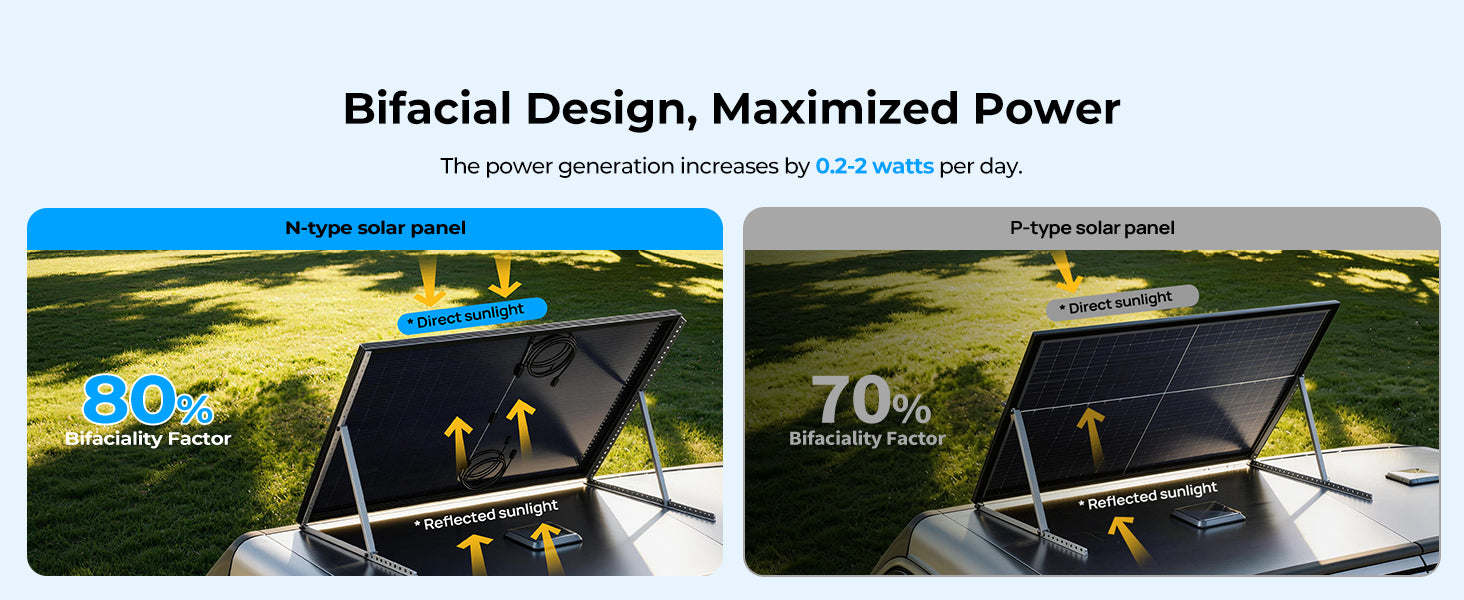

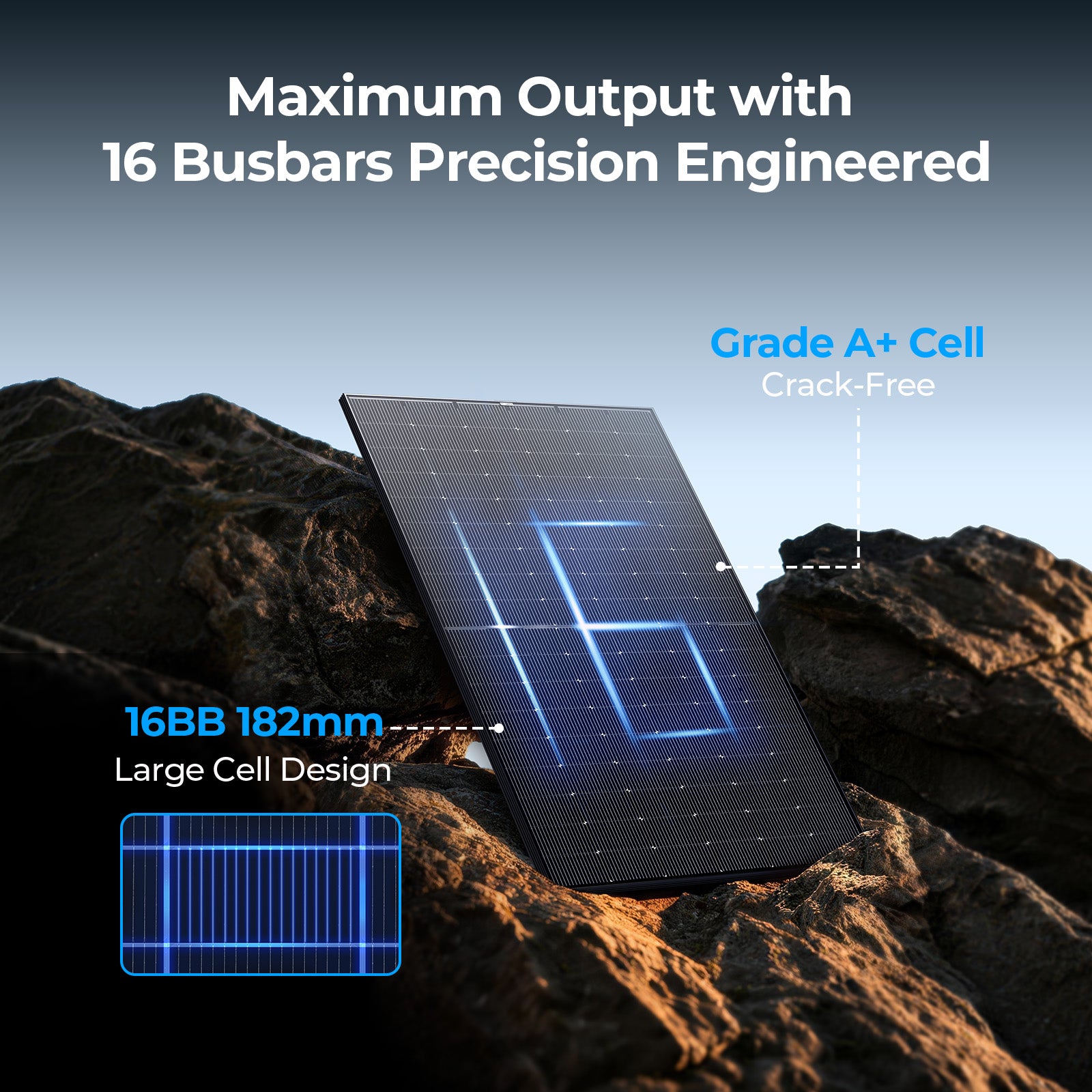

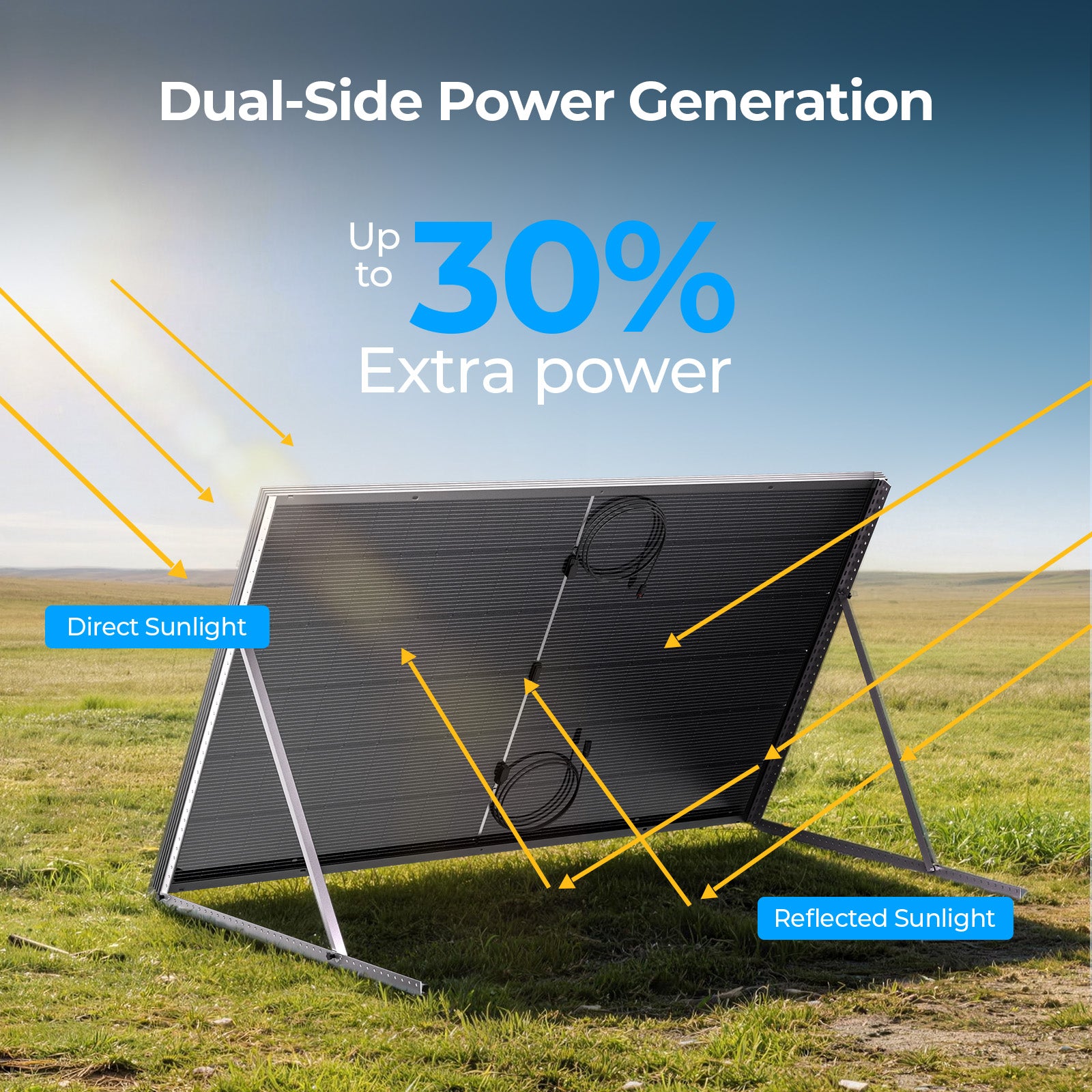

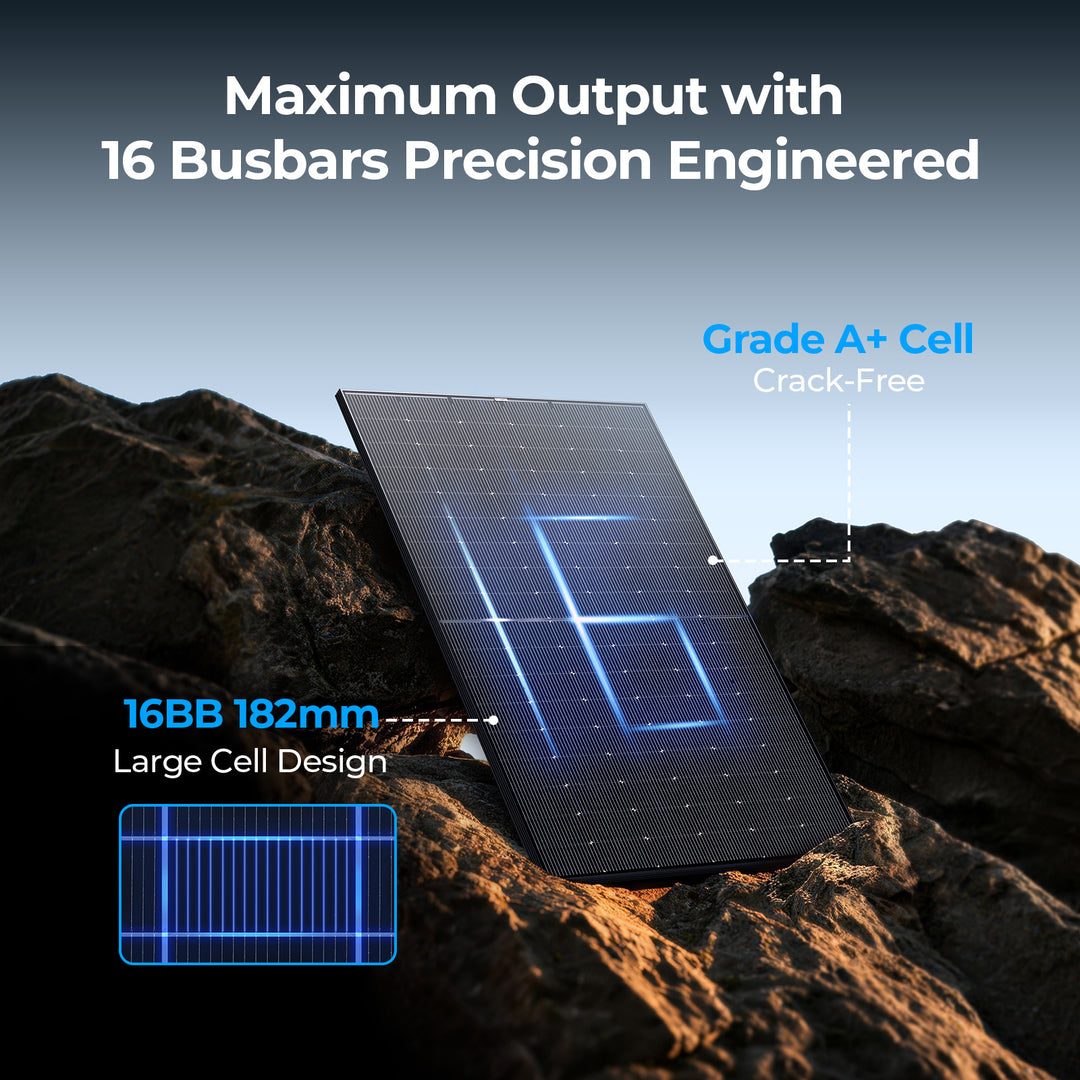

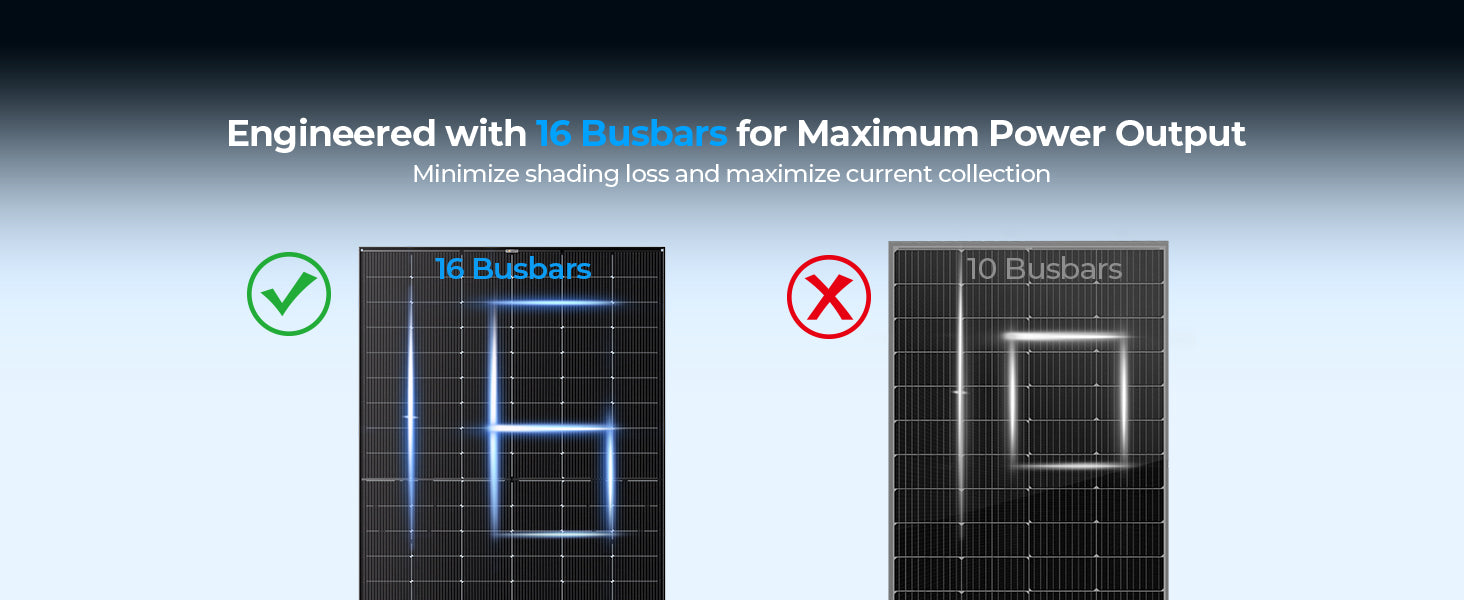

BougeRV 400 Watt N-Type Rigid Bifacial 16BB Mono Solar Panel

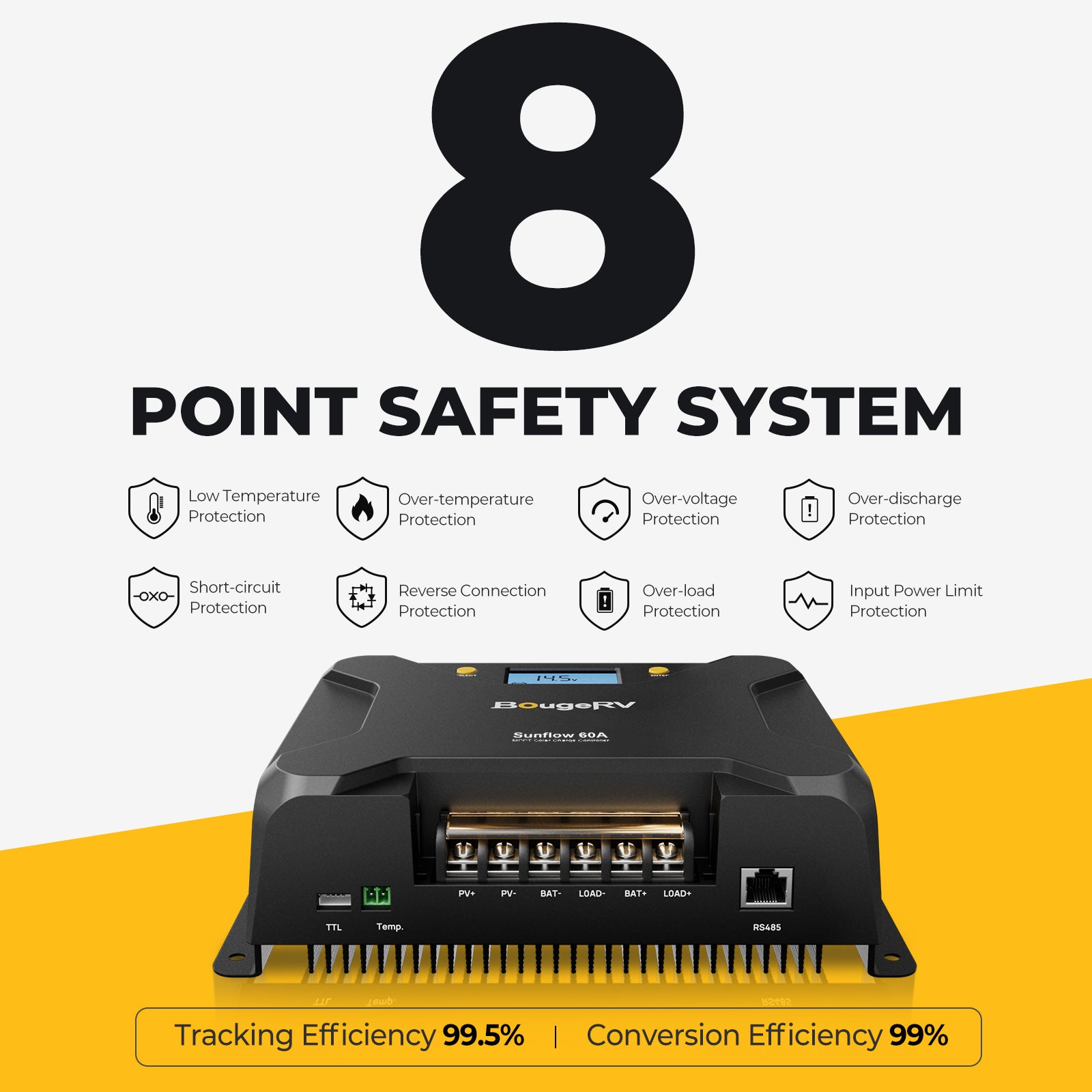

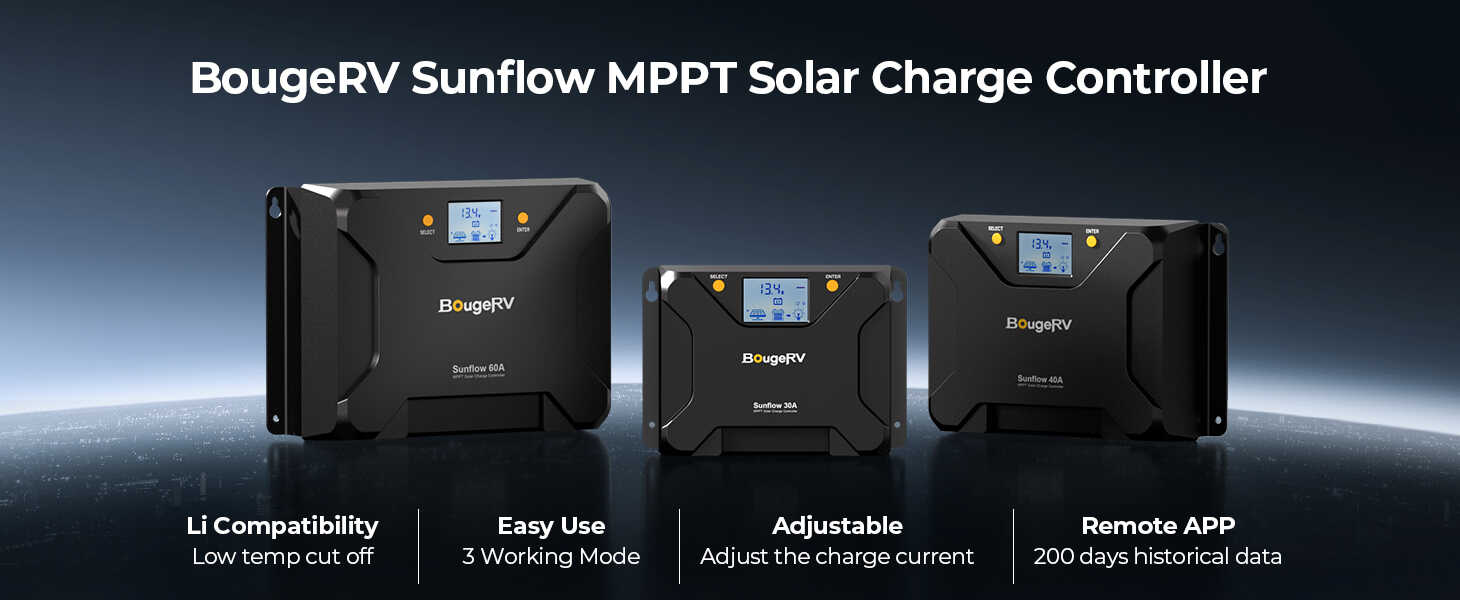

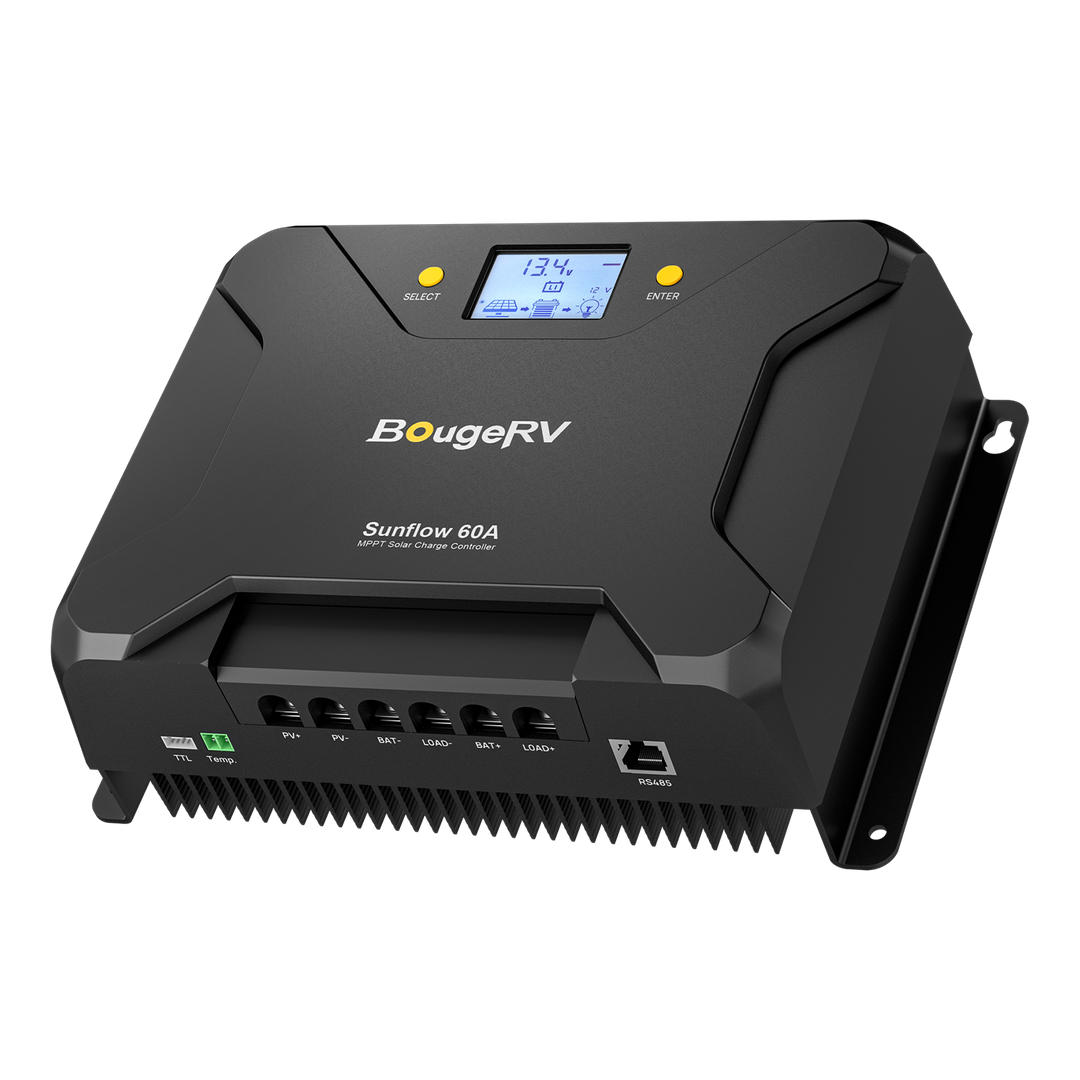

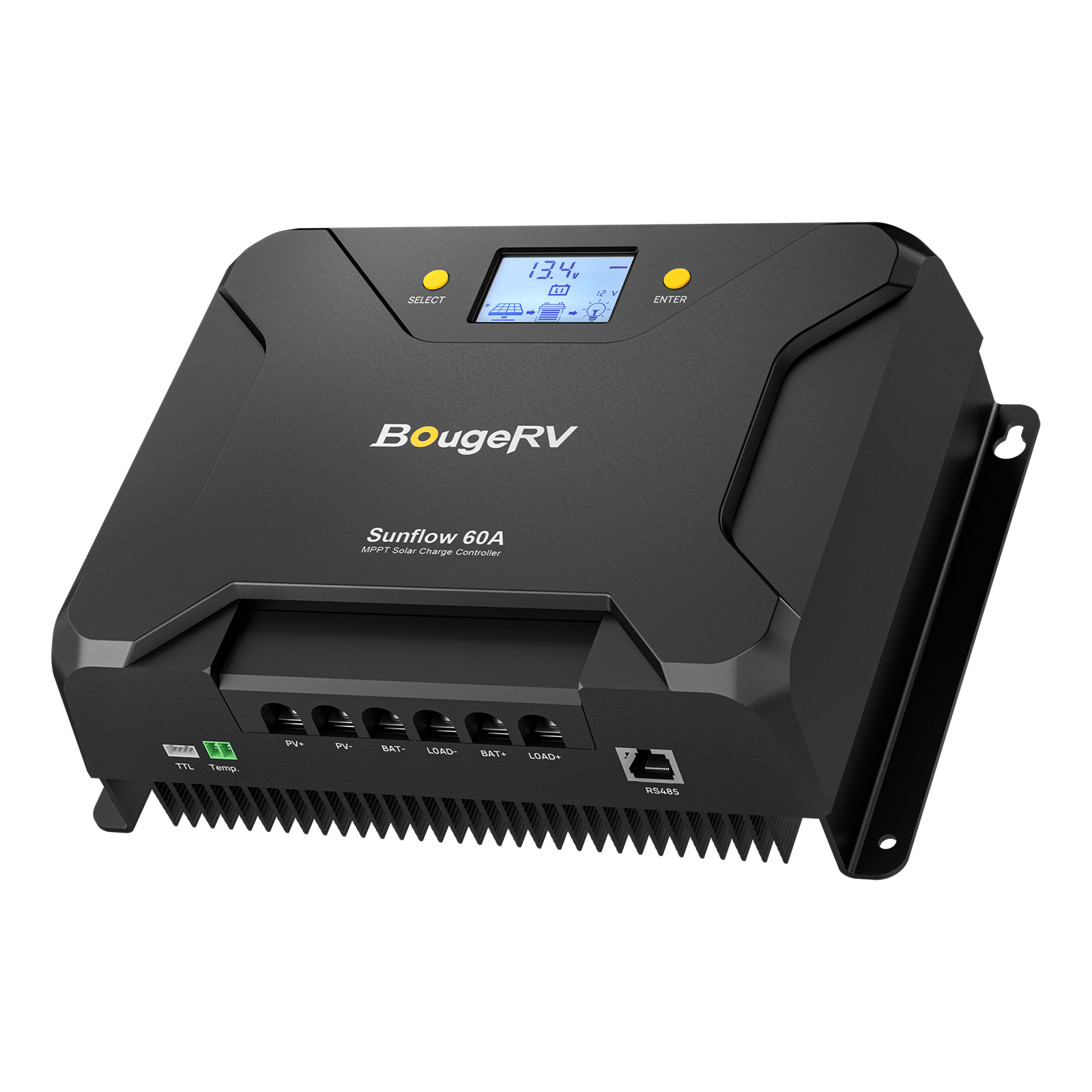

BougeRV Sunflow 60A MPPT Solar Charge Controller 12V/24V

FULLY COMPATIBLE WITH LiFePO4

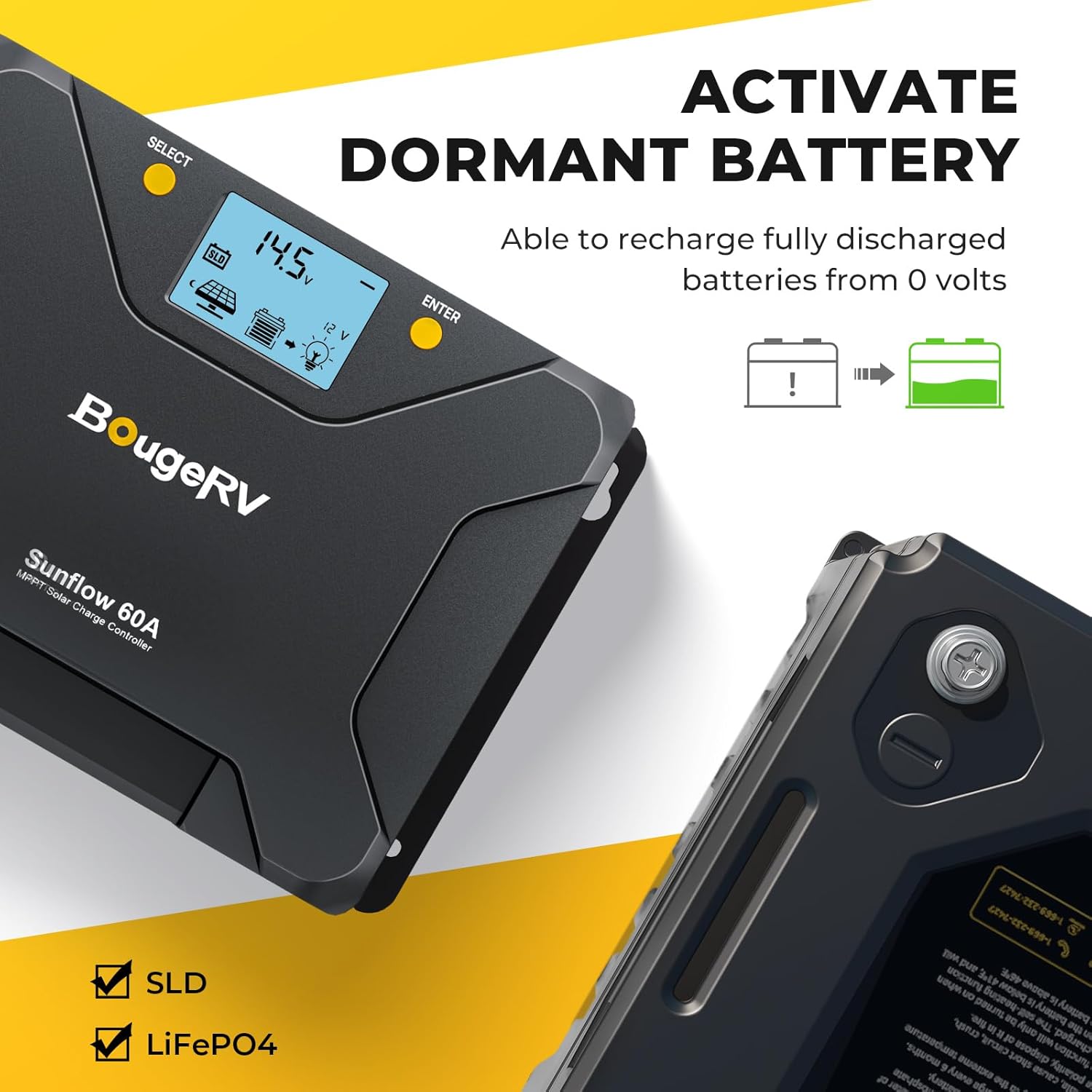

BougeRV Sunflow 60A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

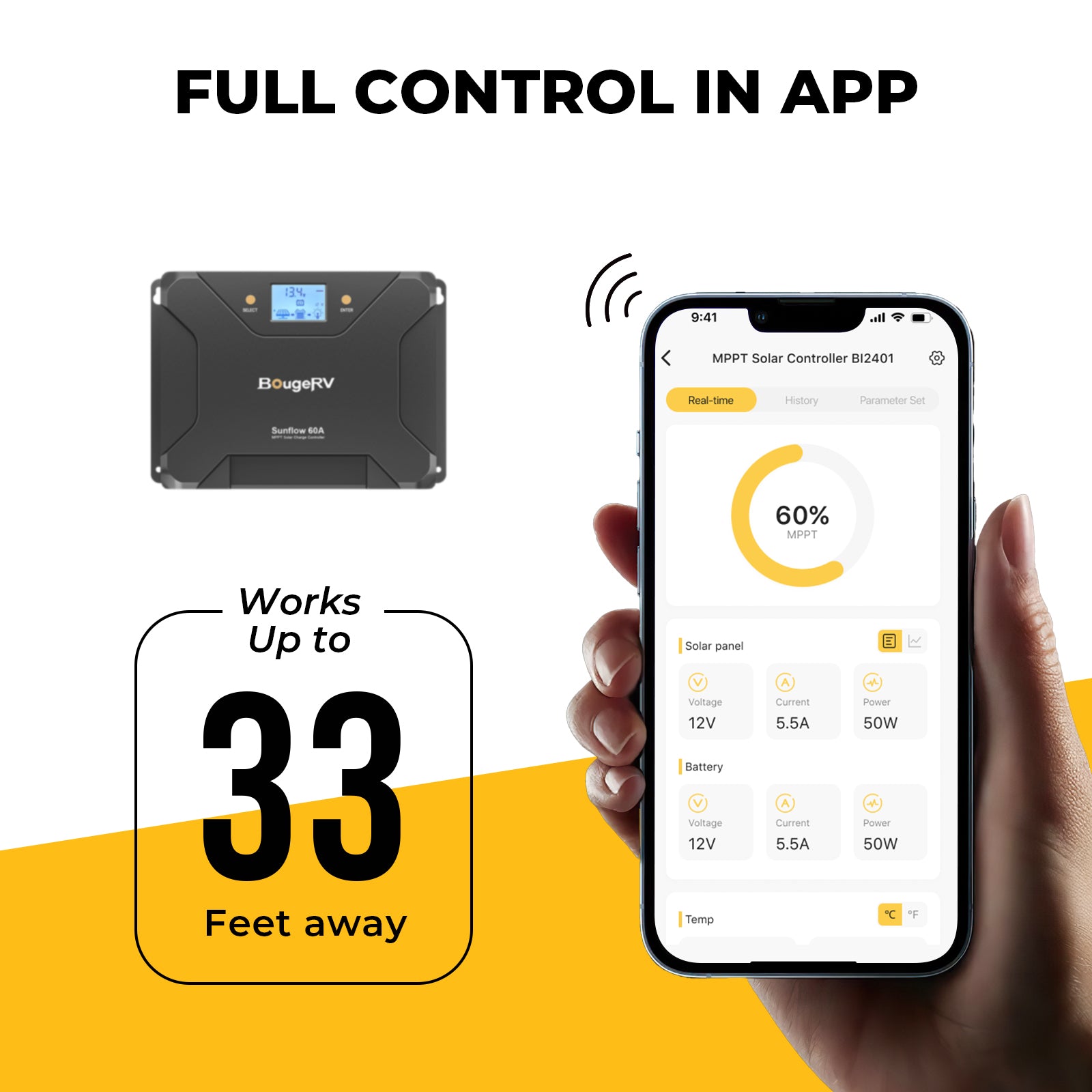

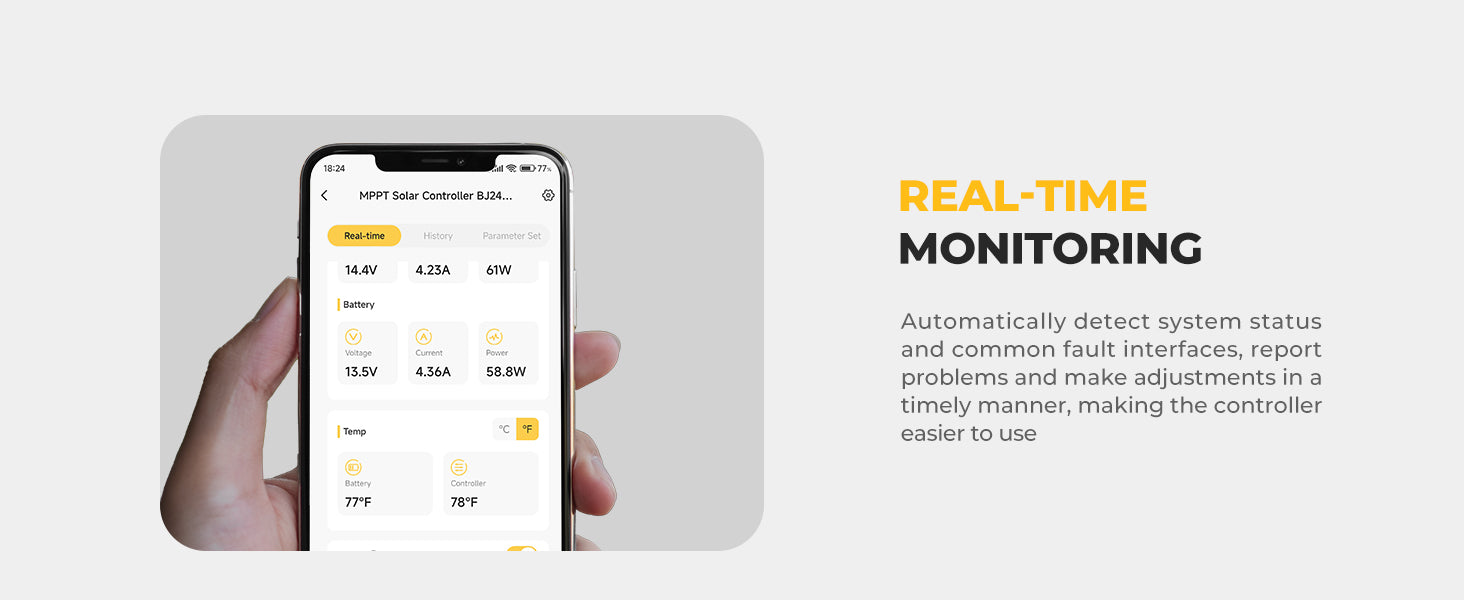

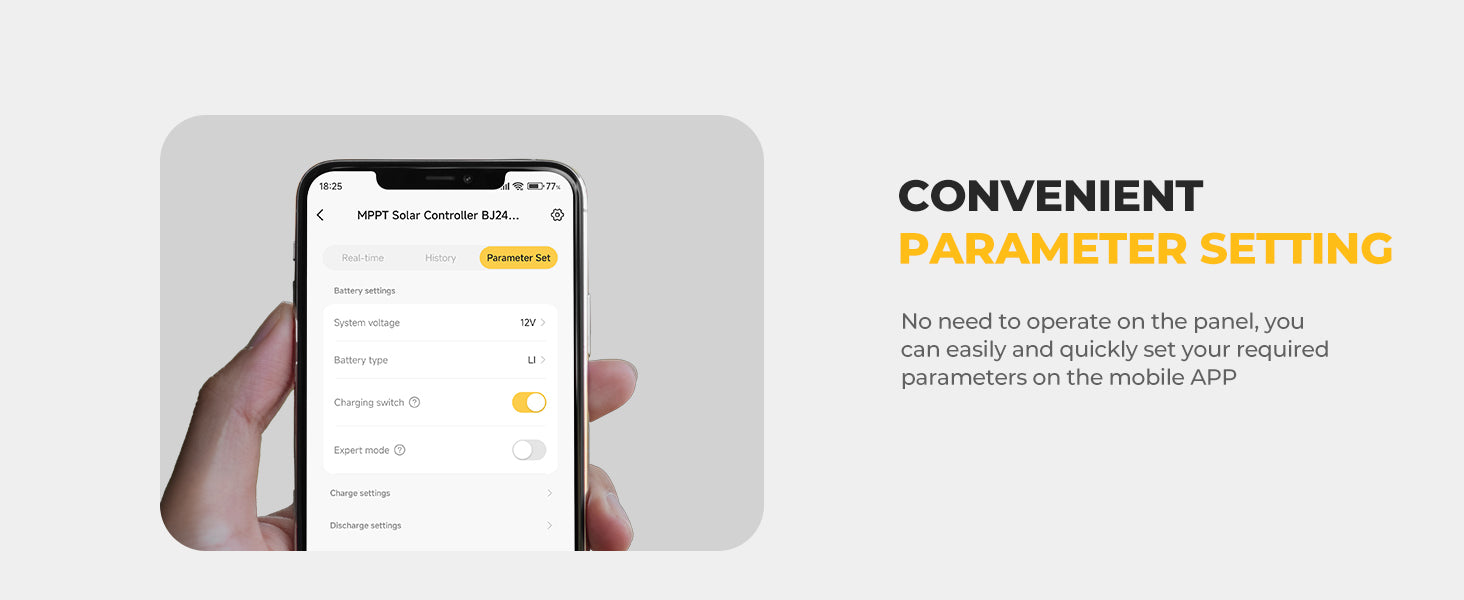

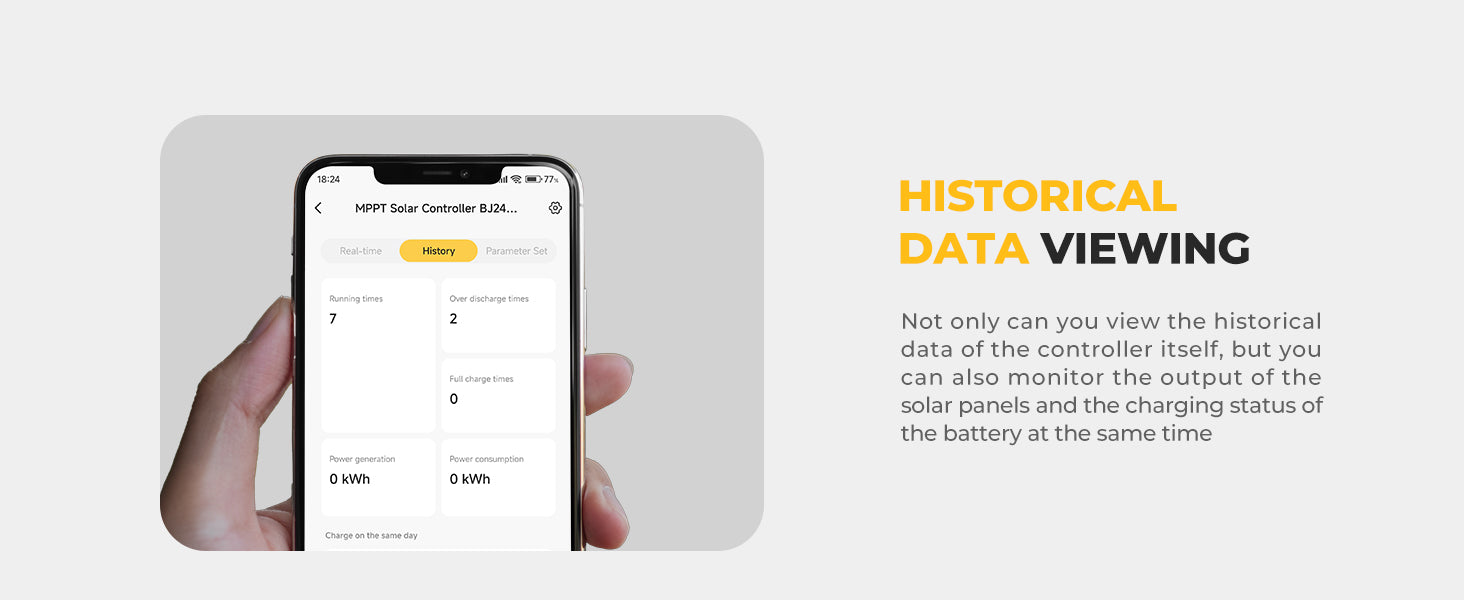

SMART LCD AND APP CONTROL

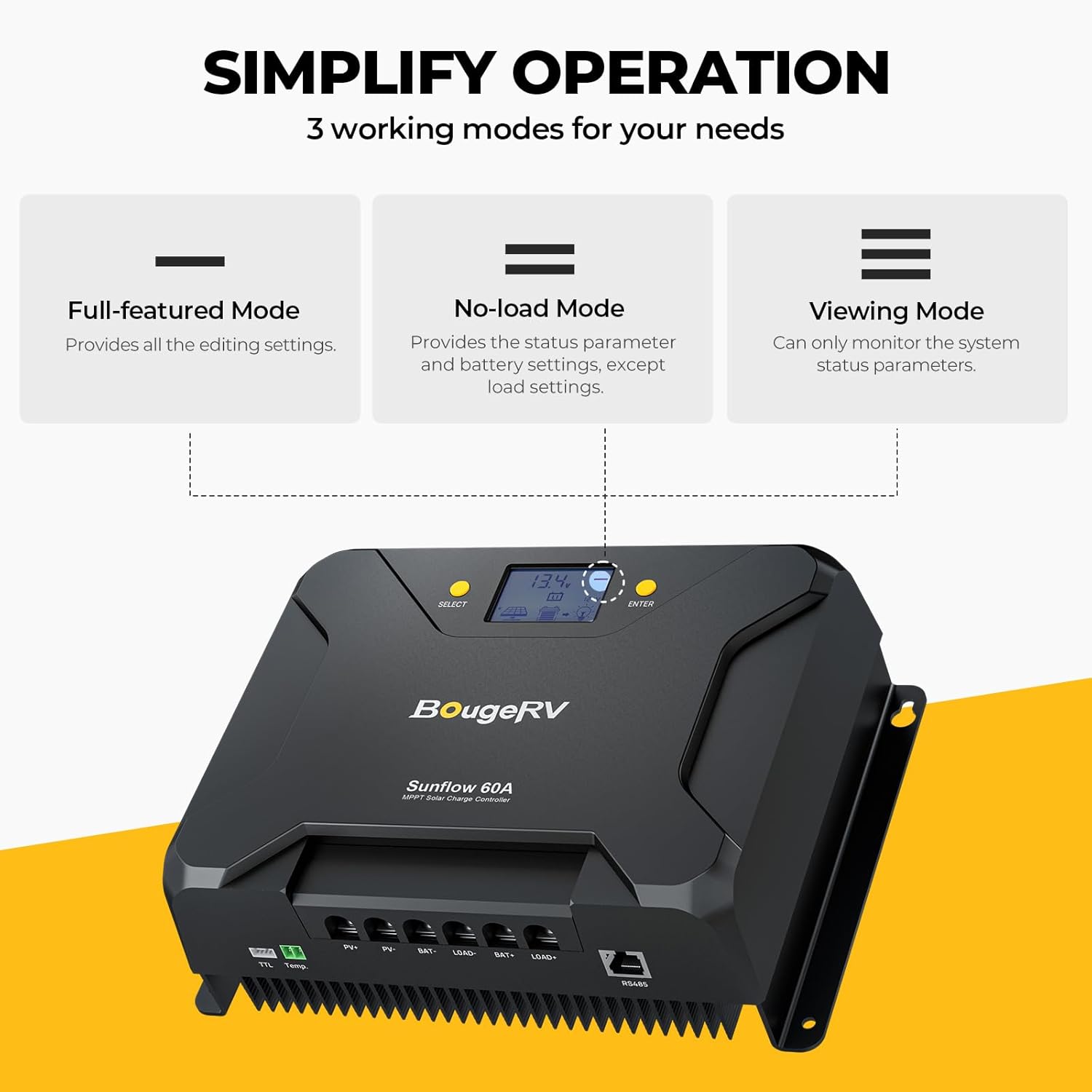

Sunflow 60 amp MPPT controller also features a remote app control, the Bluetooth range is up to 32 feet. Stay informed with the “Solar” APP that provides the solar panel, battery and load status. The controller provides 3 modes for display operation, full-featured mode, no-load mode, and viewing mode, you can select the full-featured mode to modify all adjustable parameters via the screen button if you don't want to download an app.

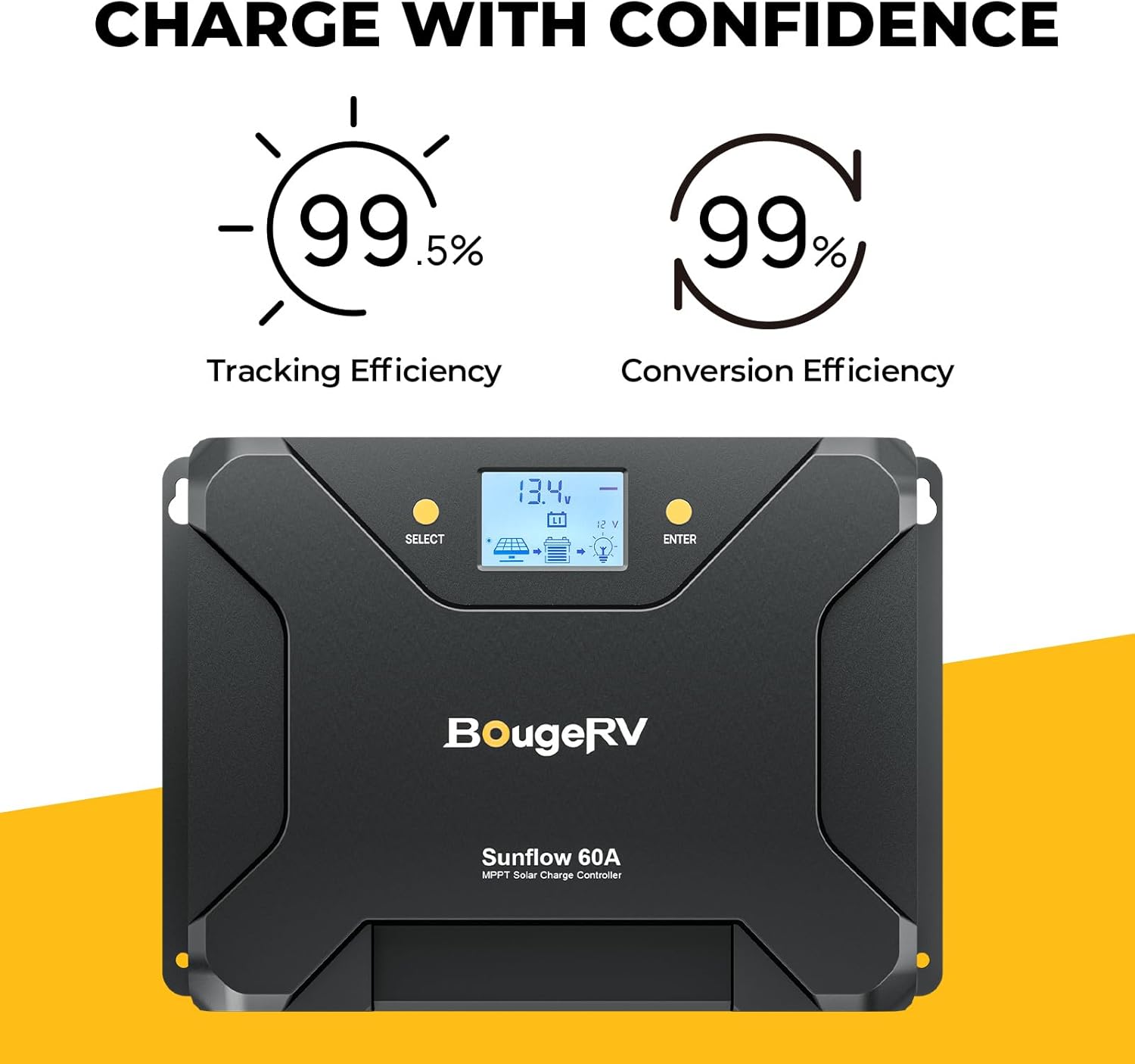

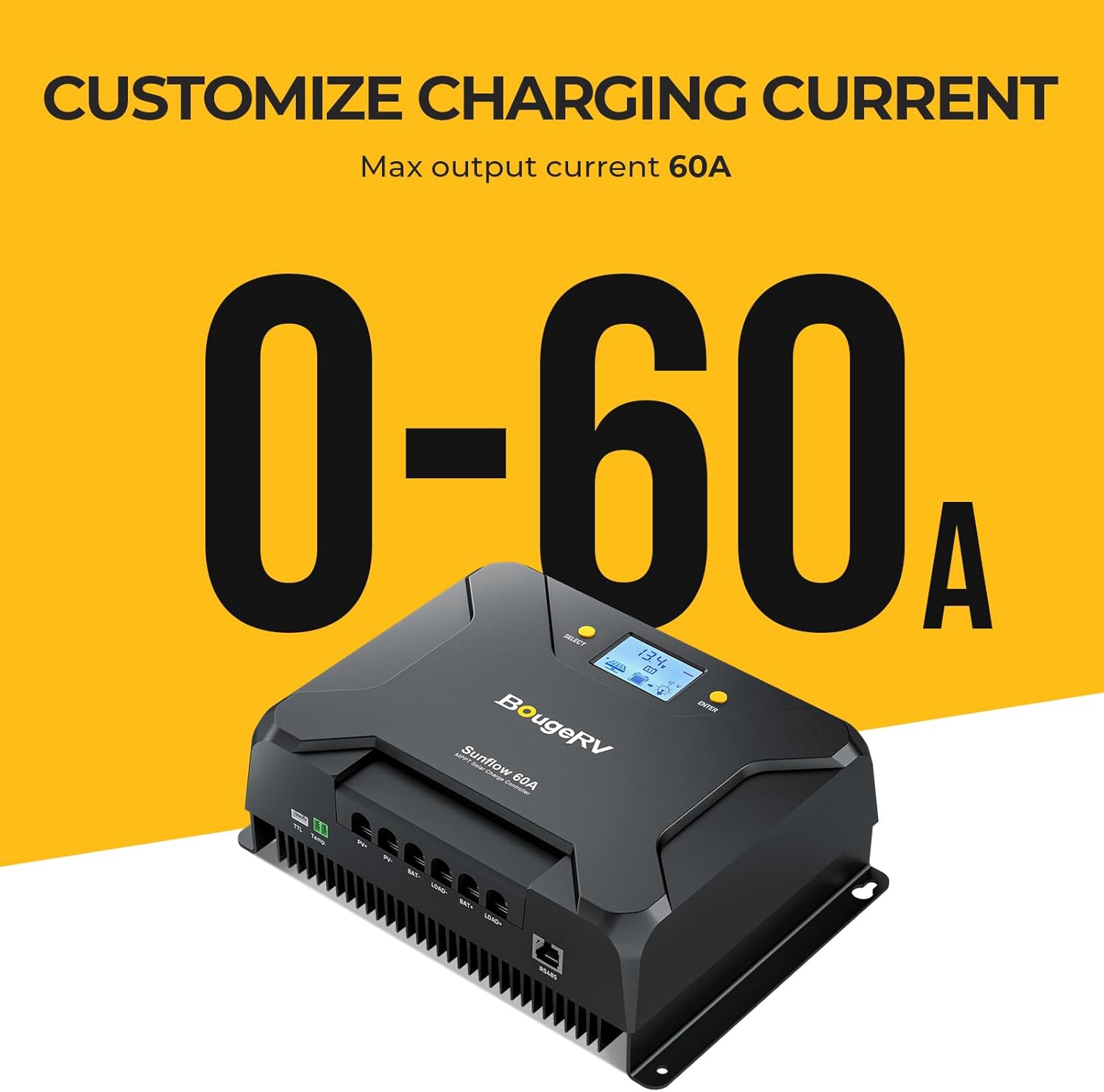

HIGH-EFFICIENCY CHARGE

BougeRV Sunflow 60 Amp MPPT controller can adjust the charge current from 0A to 60A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

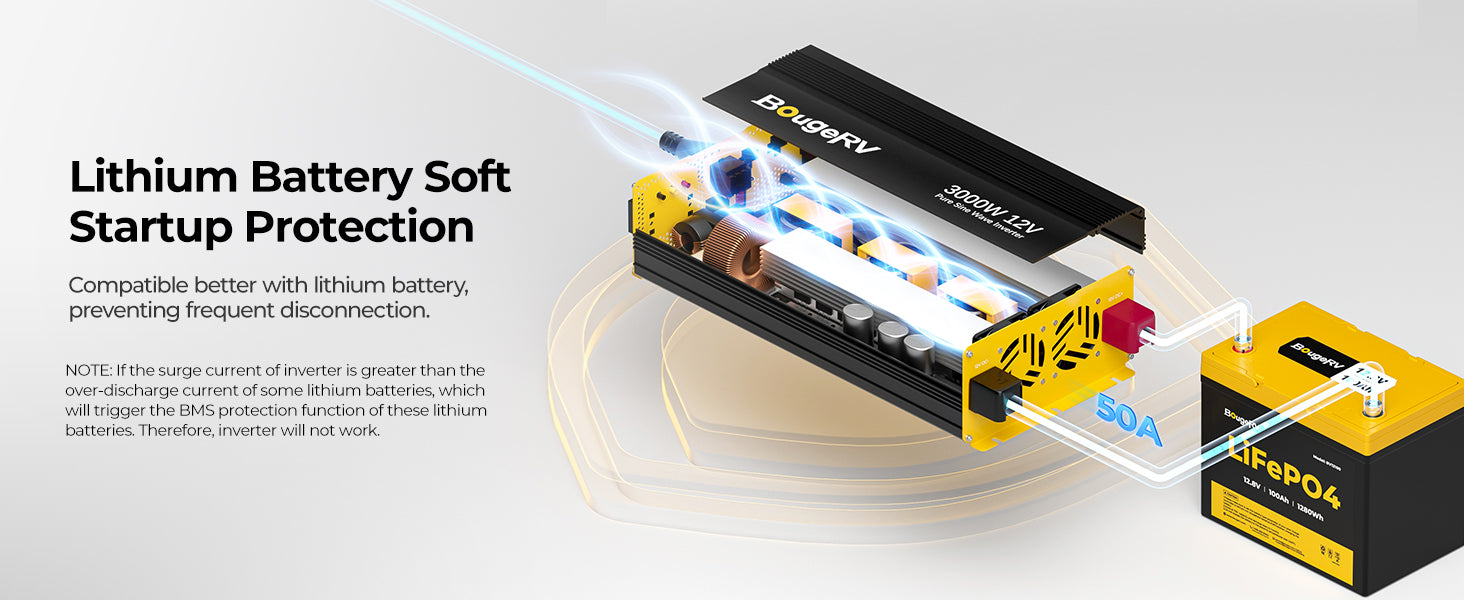

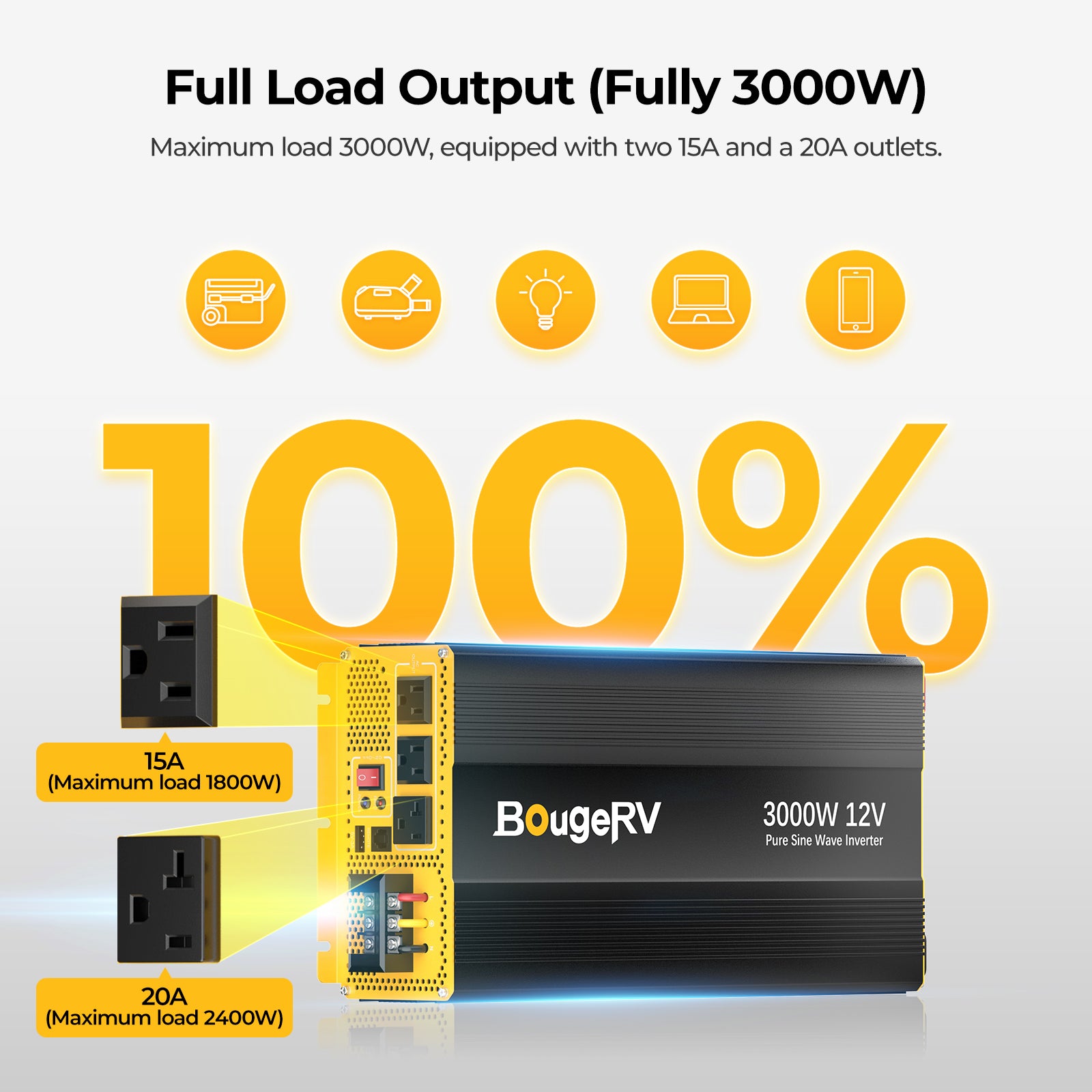

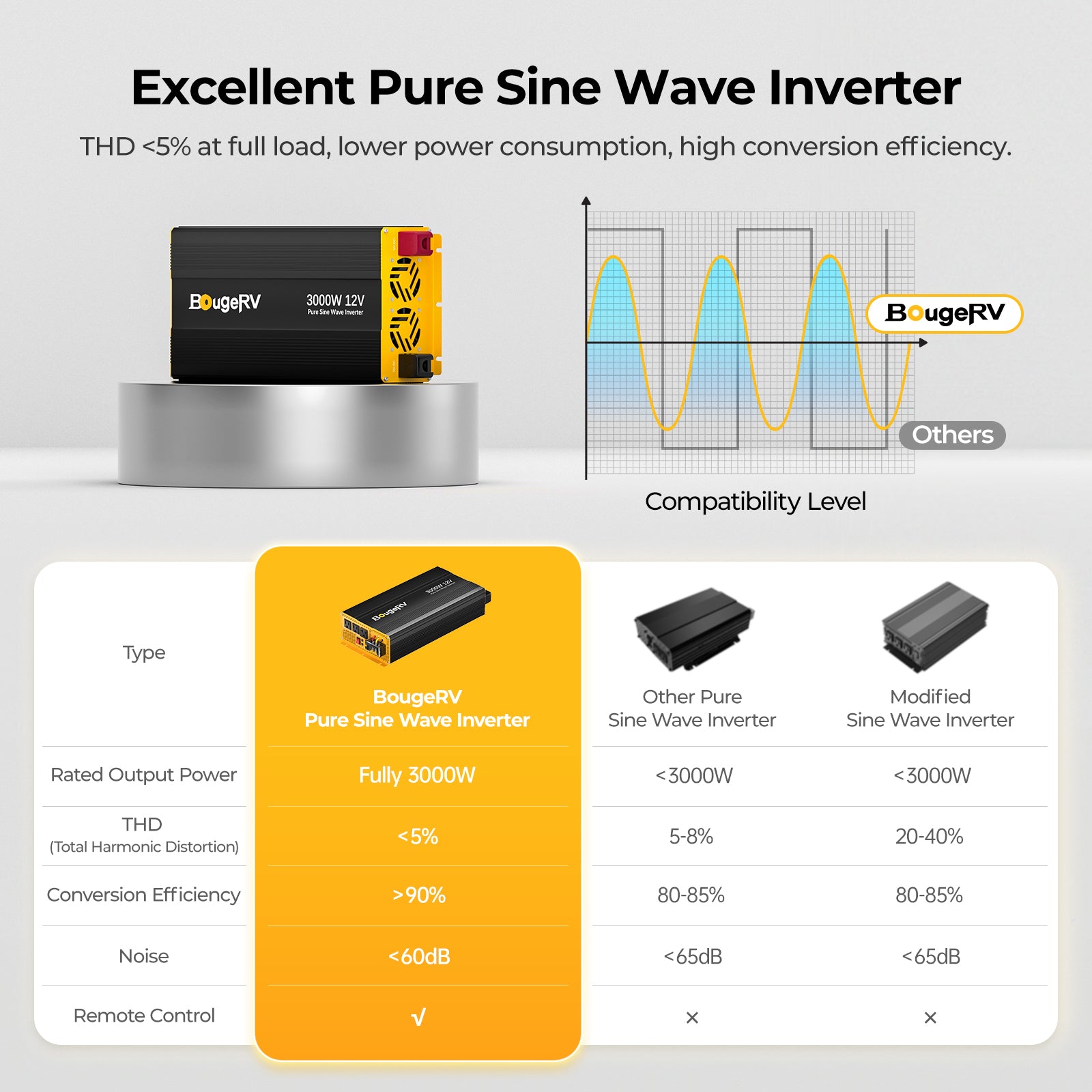

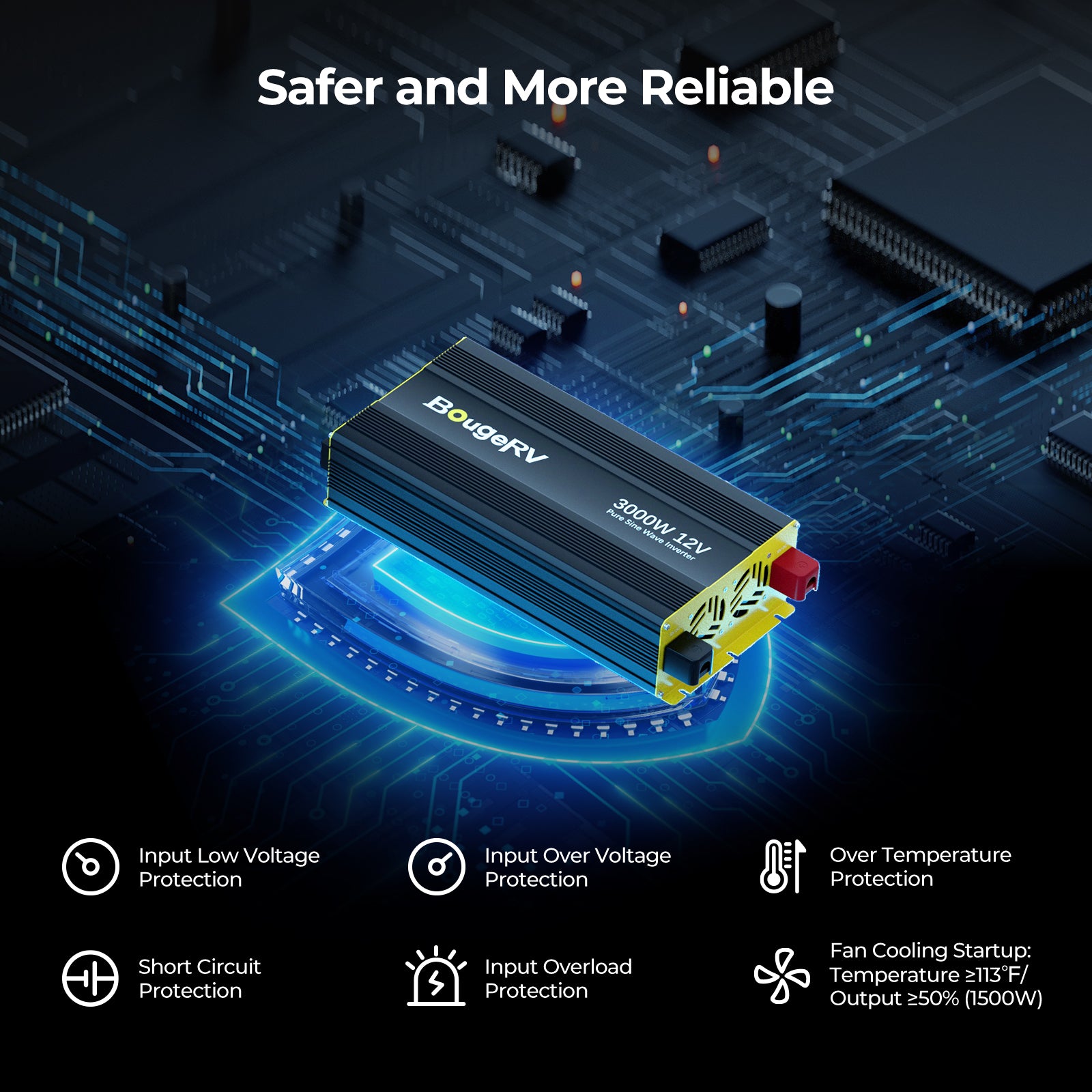

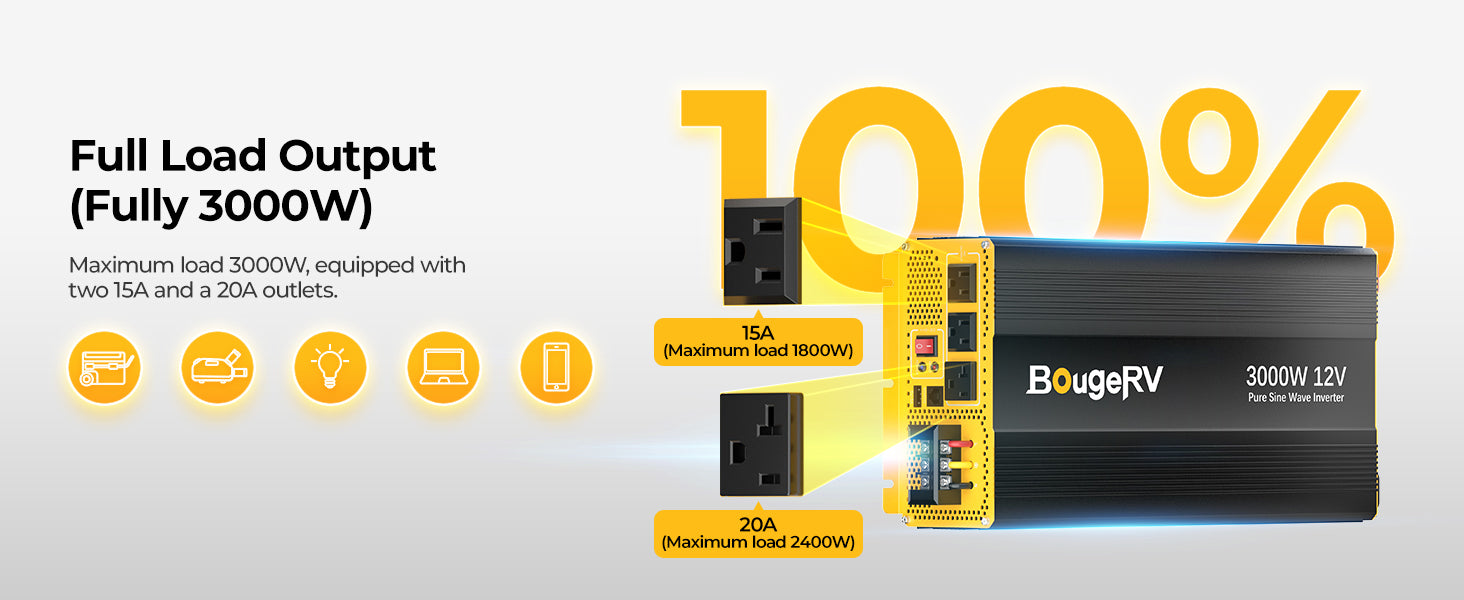

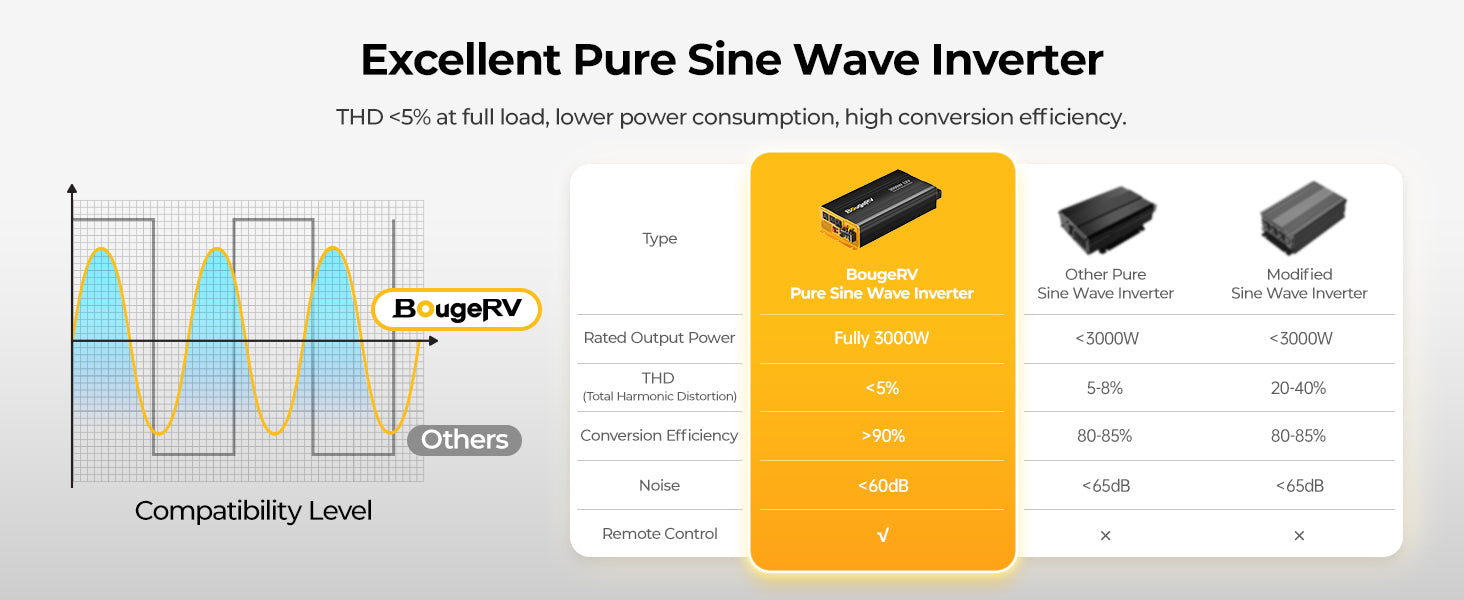

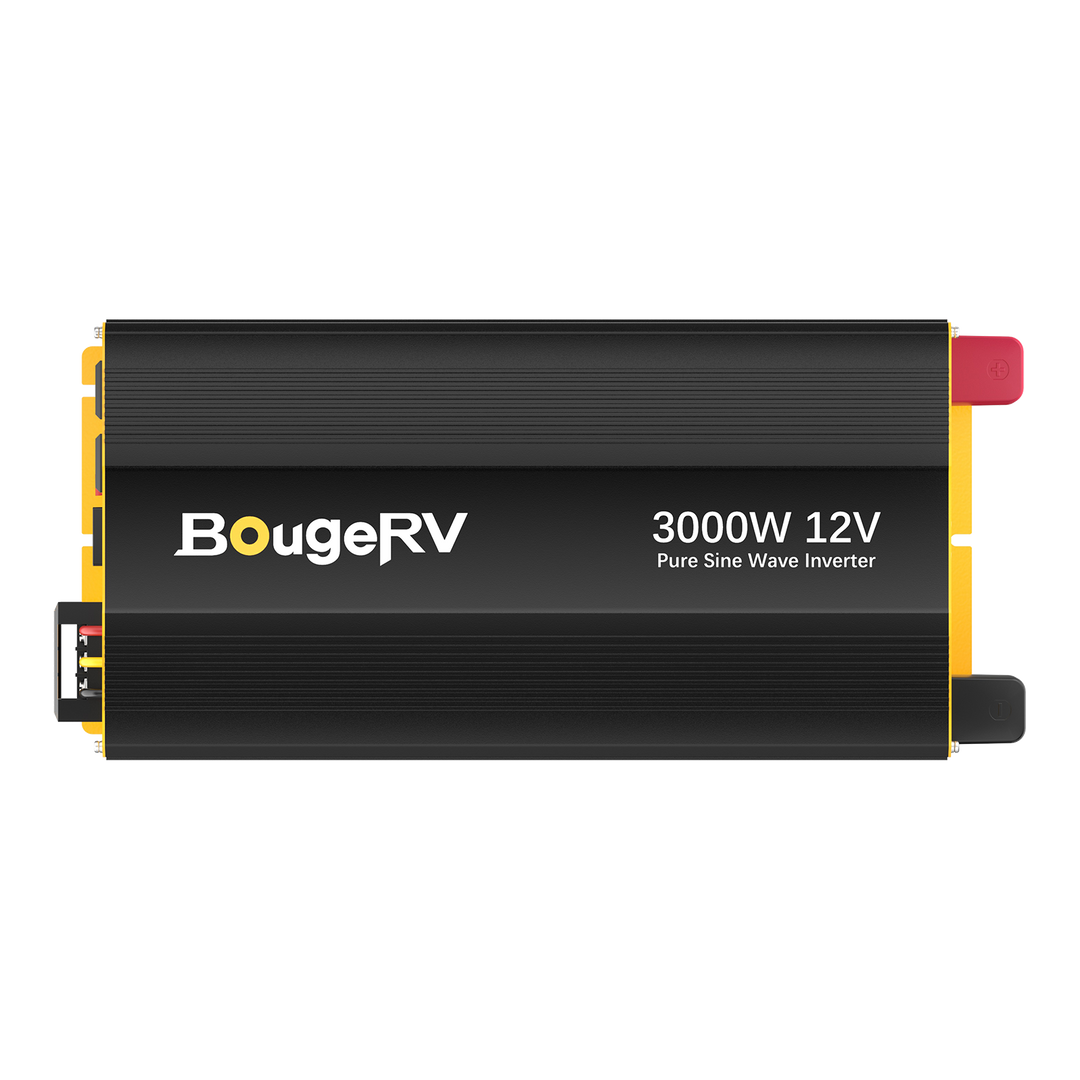

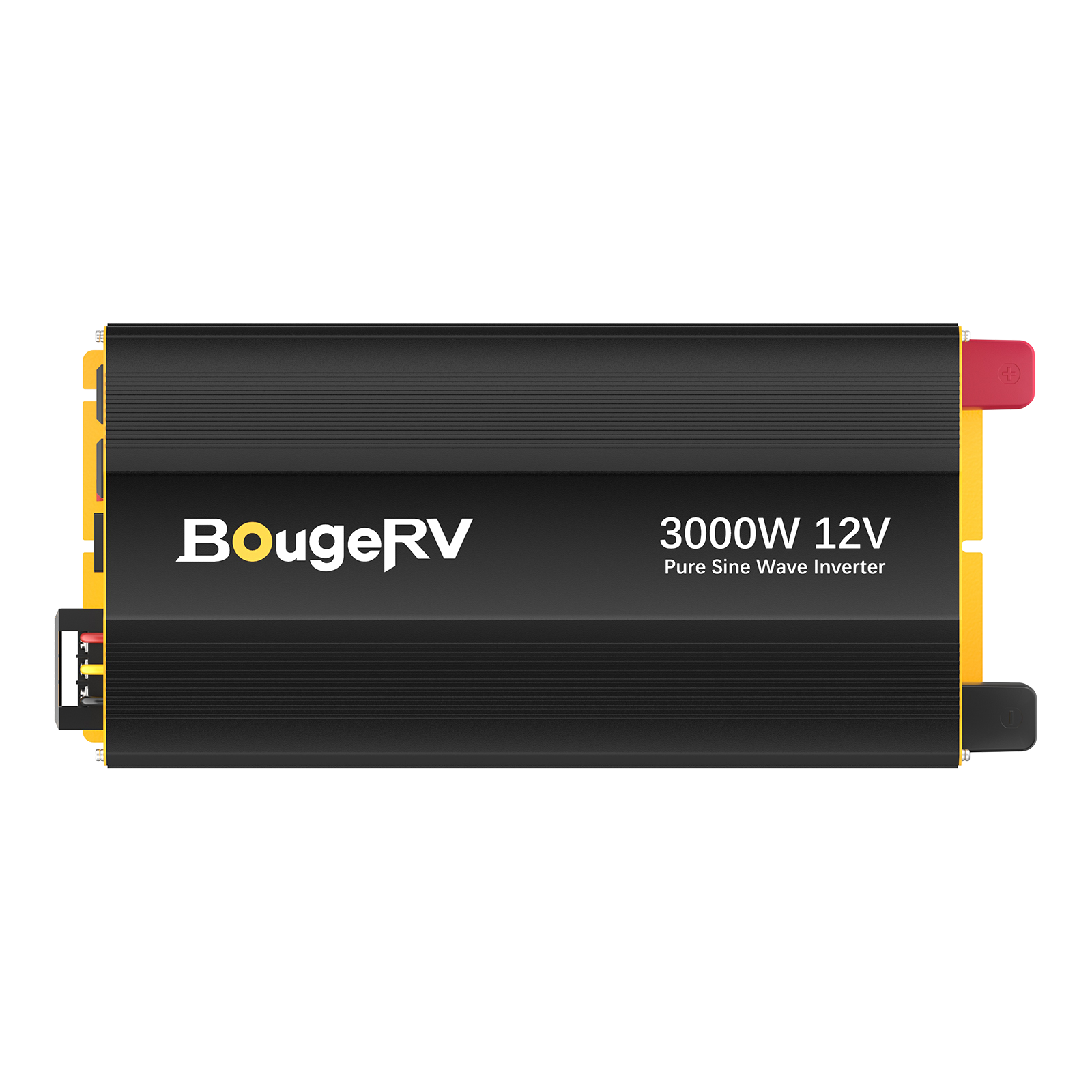

BougeRV 3000W 12V Pure Sine Wave Inverter with Bluetooth

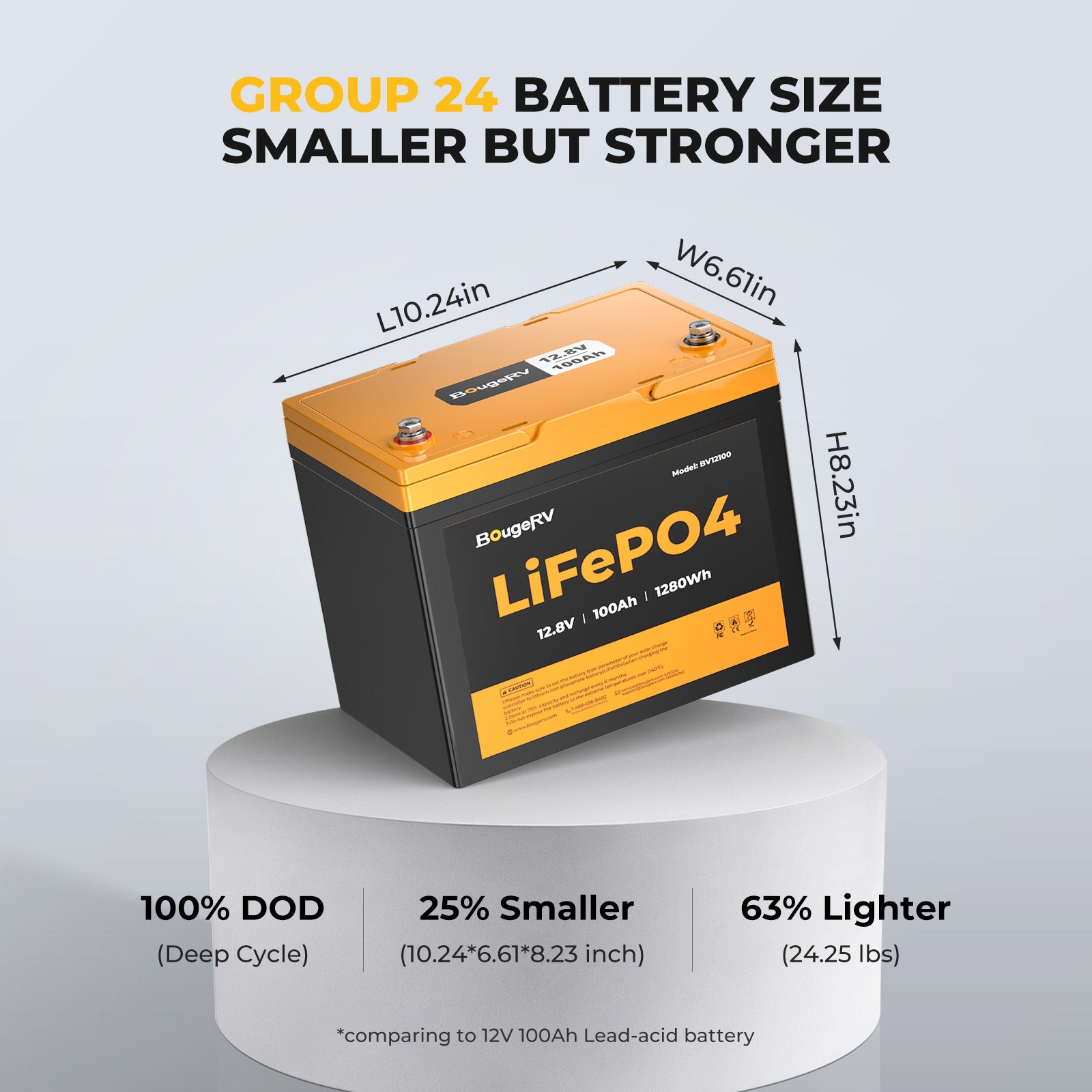

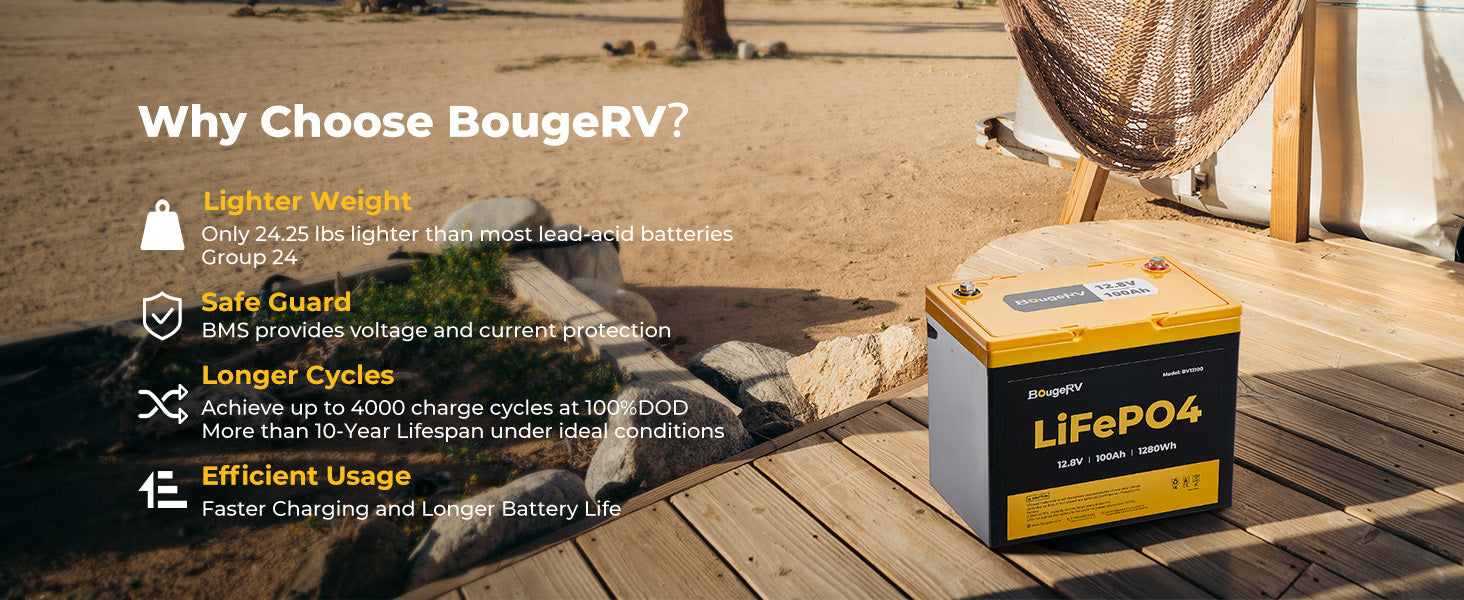

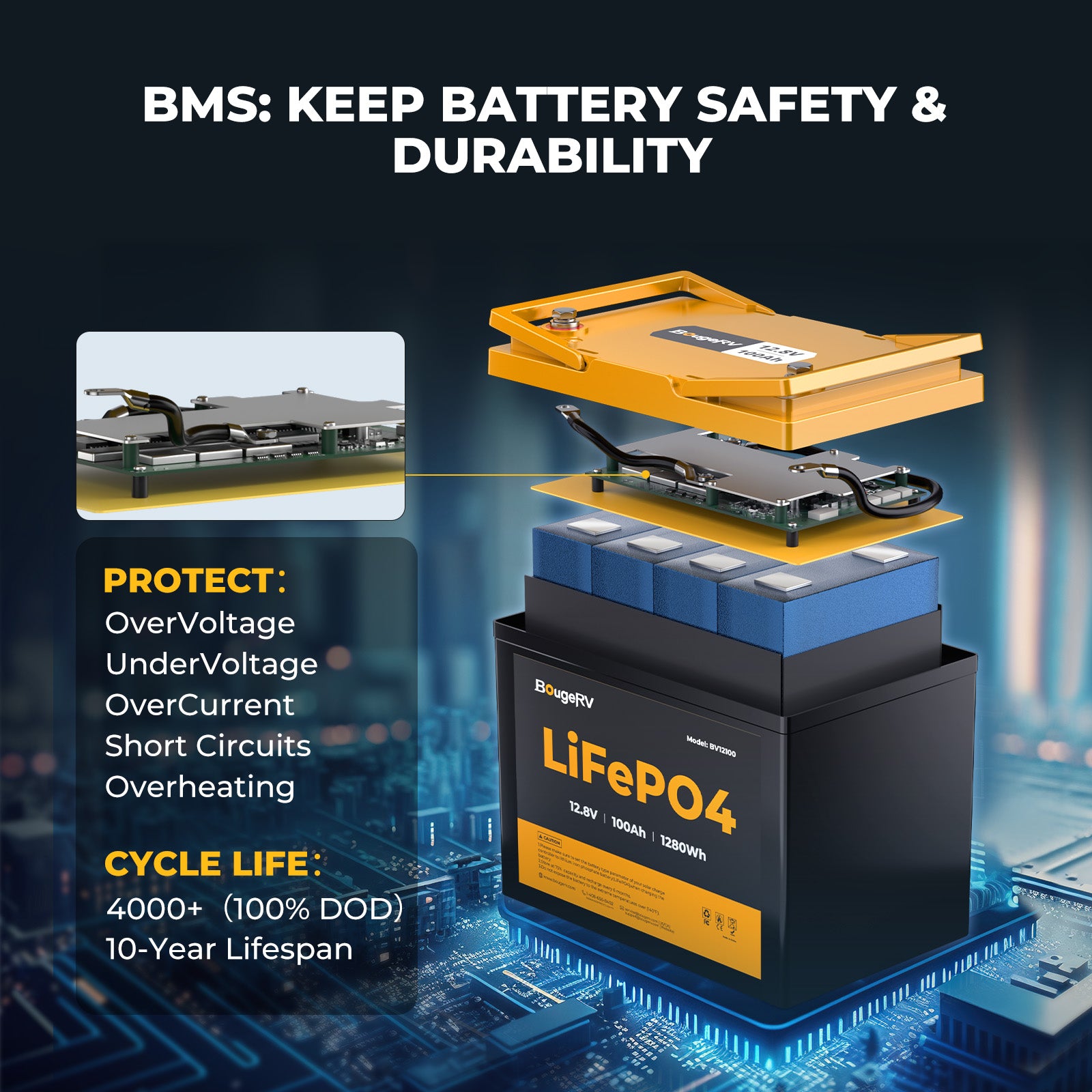

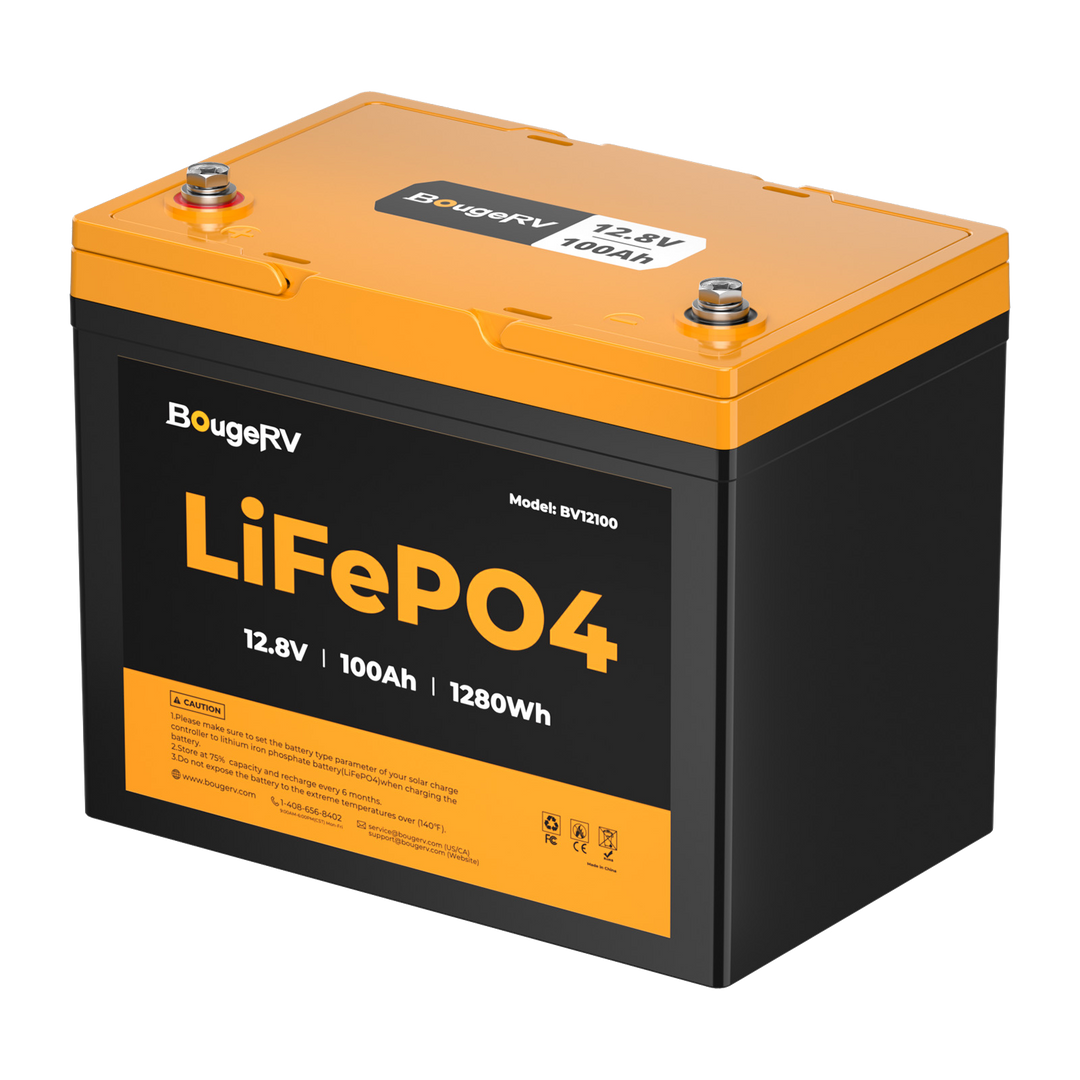

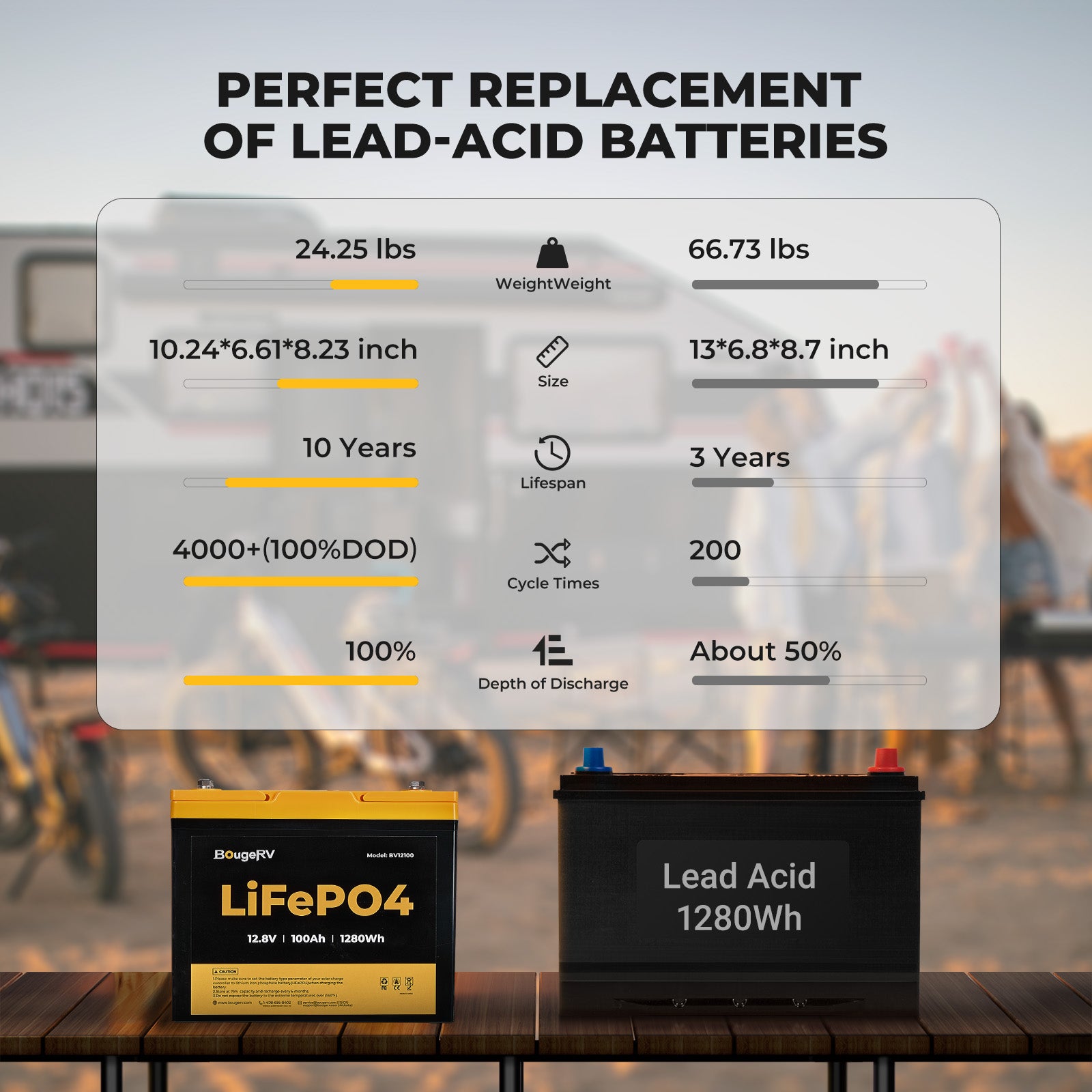

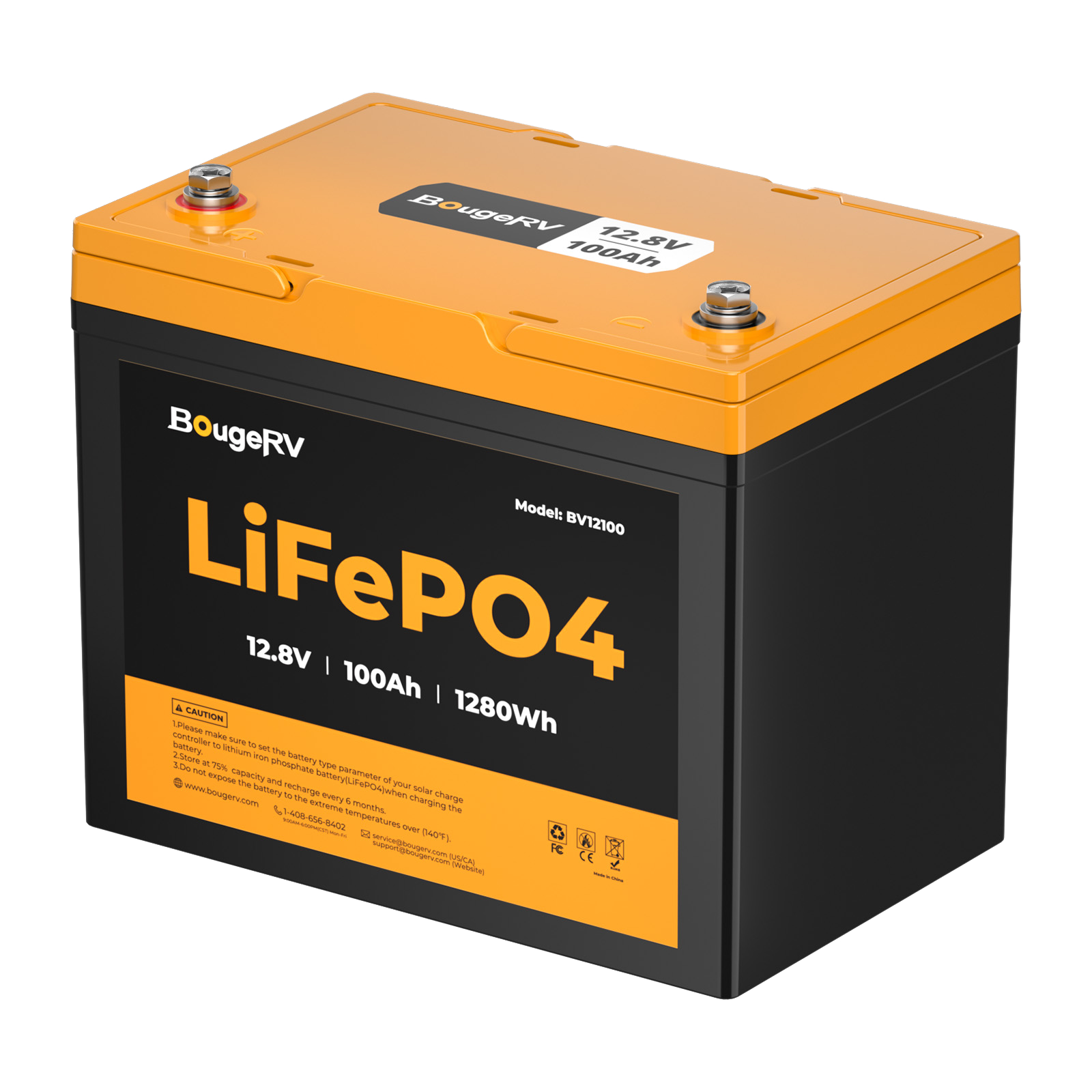

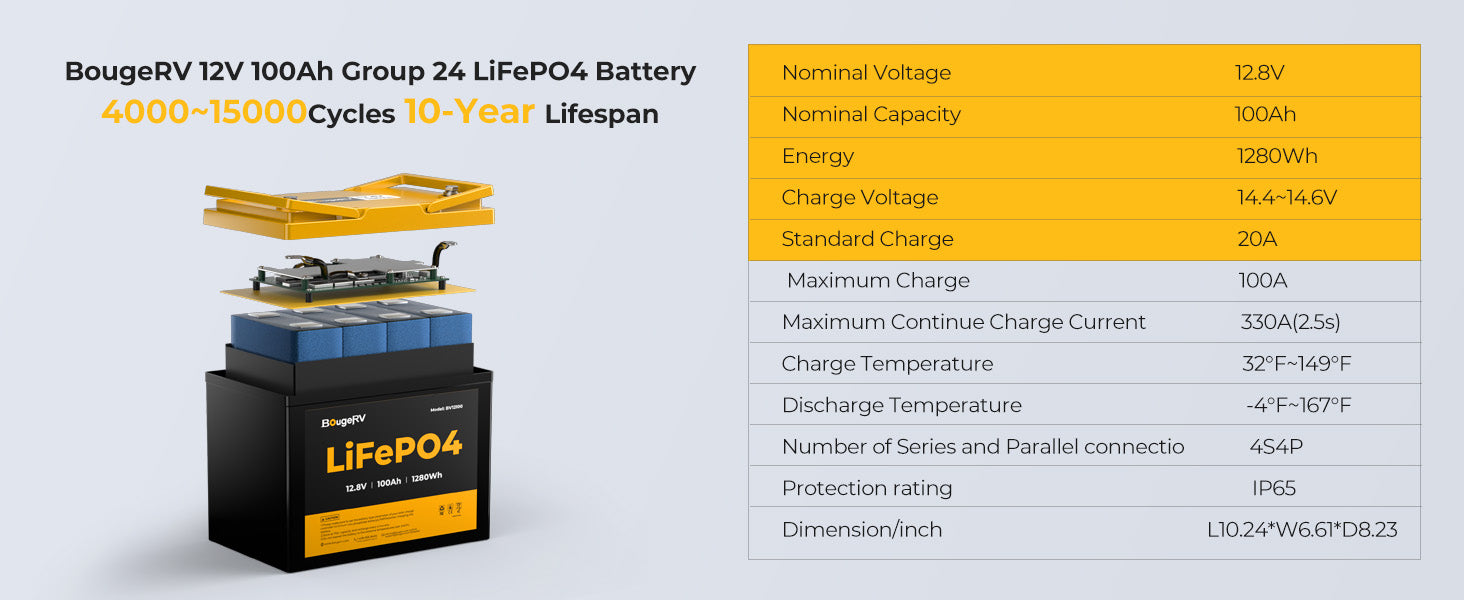

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

Low-Temperature Protection

Provides low-temperature protection for battery charging. If the temperature falls below 32°F, it reduces or turns off current input and resumes charging at 35.6°F to ensure optimal battery health and extend battery life.

User Manual Download

ISE240N*2

User Manual👈

ISE219N

User Manual👈

ISE212N*4

User Manual👈

ISE254

User Manual👈

Product Specifications

SKU ISE240N
Max Power (Pmax) 400±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 20A
Max. Power Voltage Vmp (V) 33.16V+5%
 Temperature Coefficient Pmax -0.32%/K
Max. Power Current Imp (A) 12.36A±5% Temperature Coefficient Voc -0.25%/K
Open Circuit Voltage Voc (V) 39.7V±5% Temperature Coefficient Isc +0.045%/K
Short Circuit Current (Isc) 13.5A±5% Dimensions 67.8x44.6x1.4in
Material & Workmanship Warranty 10 Years Weight 44.4 lb

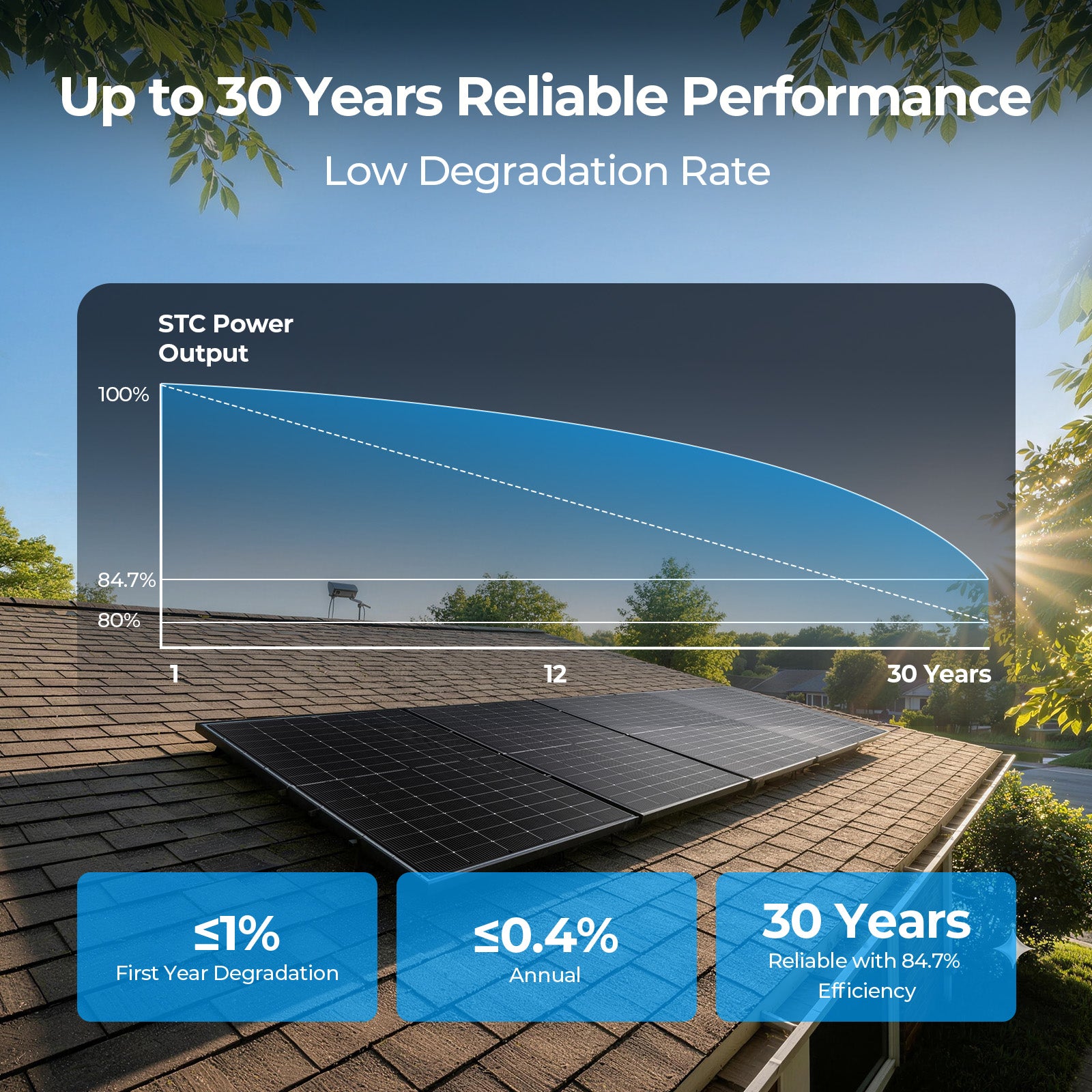

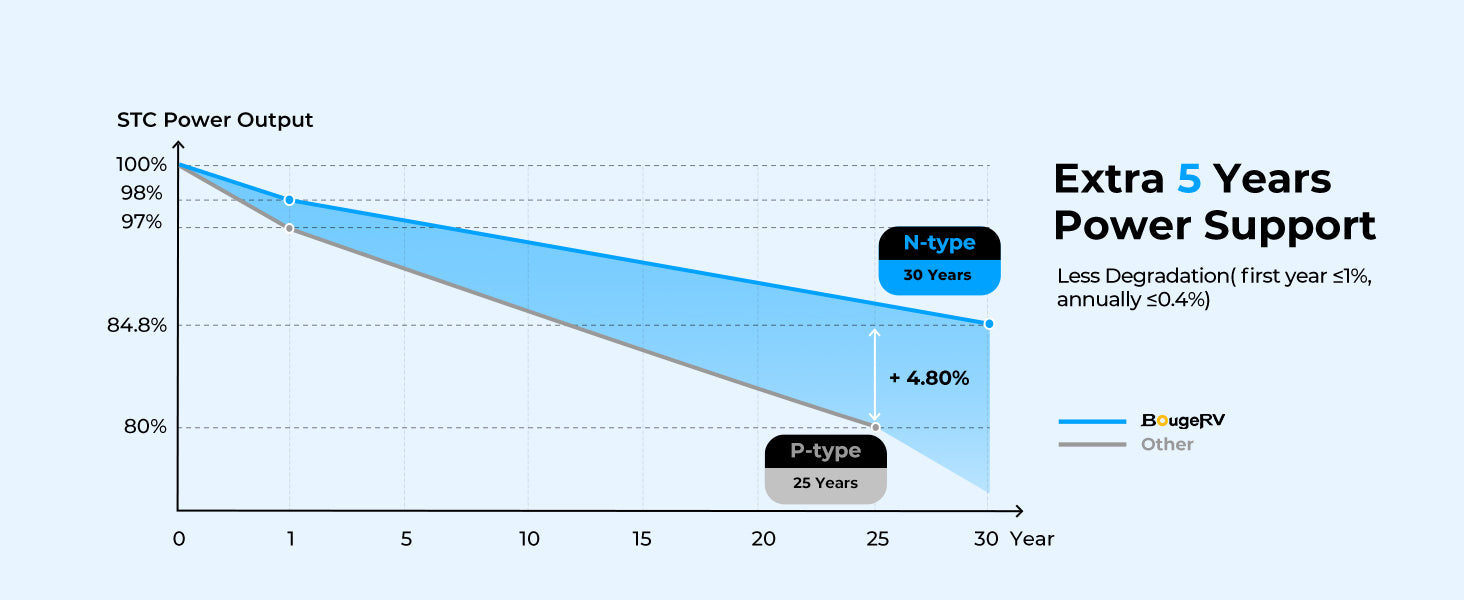

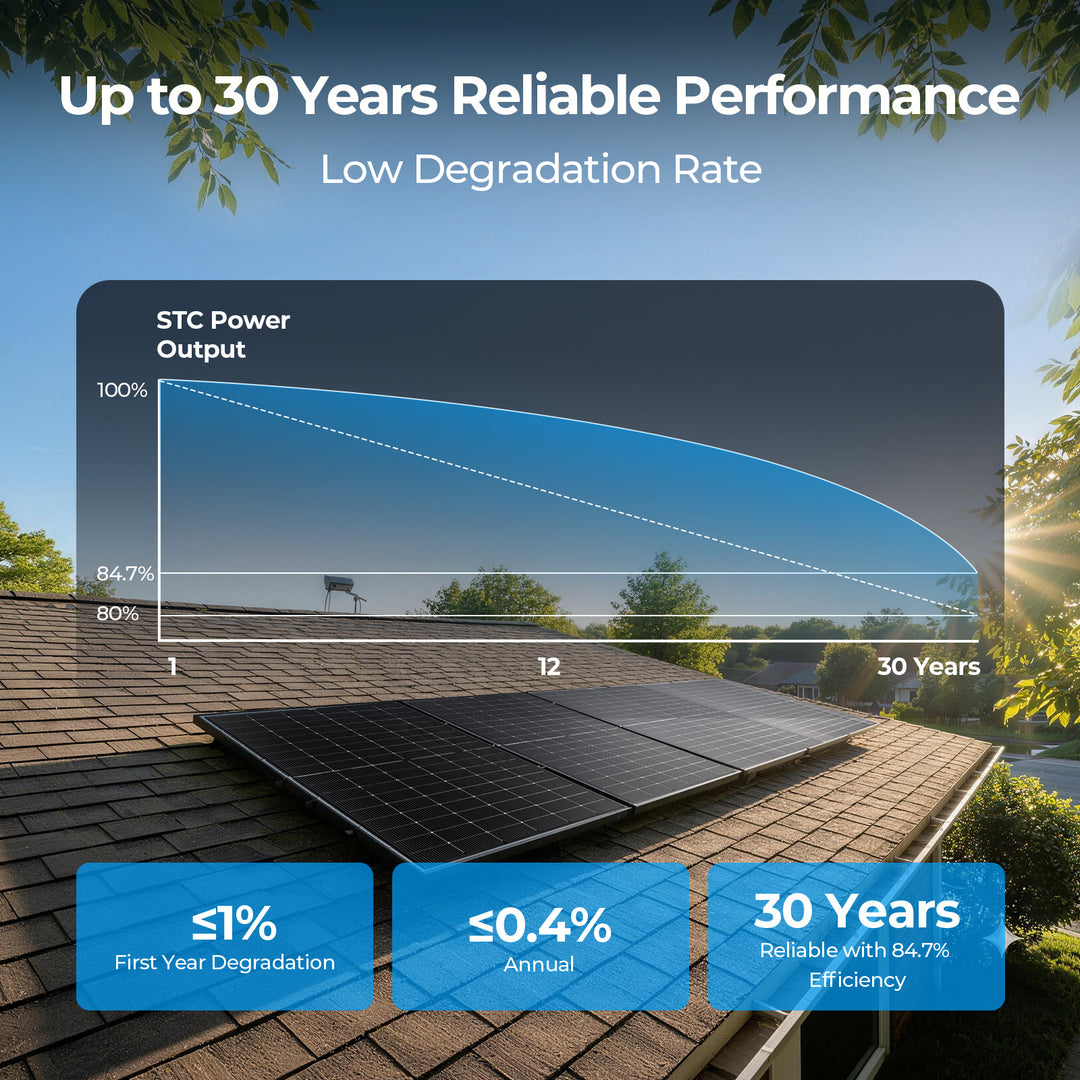

Linear power output warranty 30 Years Product Type N-Type Solar Panels
SKU ISE240N
Max Power (Pmax) 400±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 33.16V+5%
Max. Power Current Imp (A) 12.36A±5%
Open Circuit Voltage Voc (V) 39.7V±5%
Short Circuit Current (Isc) 13.5A±5%
Material & Workmanship Warranty 10 Years
Linear power output warranty 30 Years
Operating Temperature Limits -40℉ ~ +185℉
Series Fuse Rating 20 A

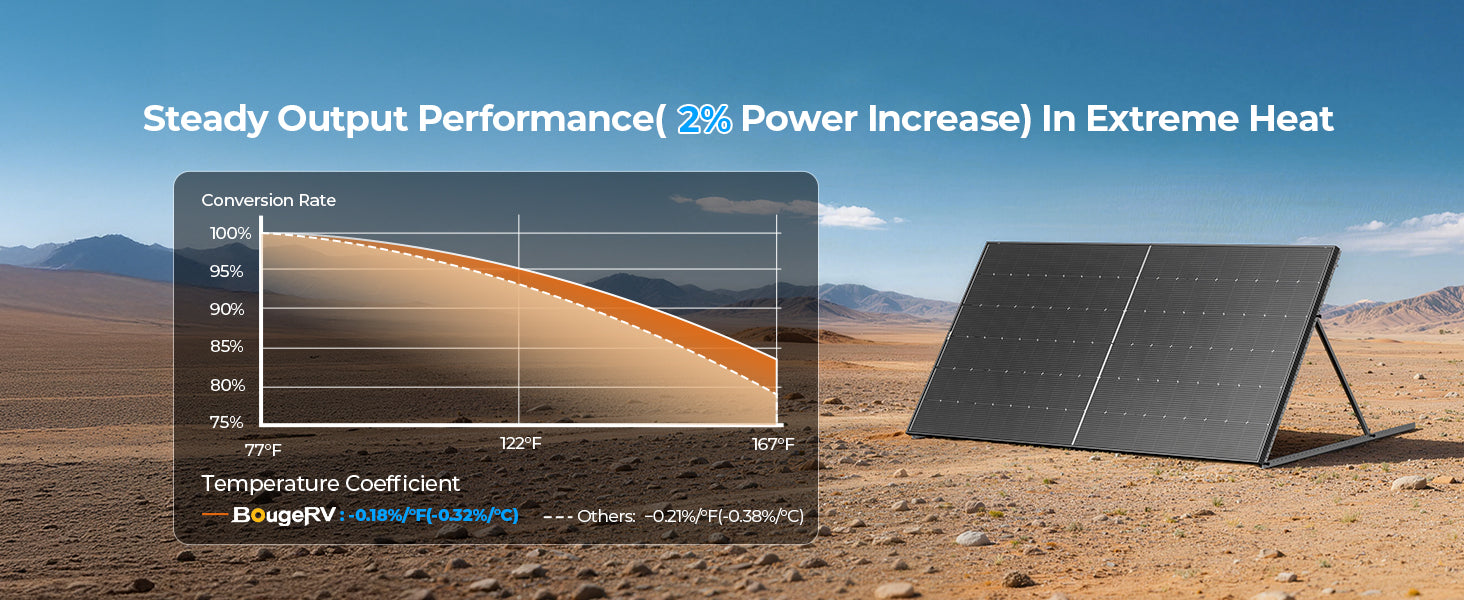

Temperature Coefficient Pmax -0.32%/K
Temperature Coefficient Voc -0.25%/K
Temperature Coefficient Isc +0.045%/℃
Dimensions 67.8x44.6x1.4in
Weight 44.4 lb
SKU ISE219

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 60 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 900W/12V; 1800W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 60 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 10.35L*7.32W*3.35J inches
No Load Loss ≤10mA Weight 5.52 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE219
System Voltage 12V/24V
Rated Charging Current 60 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 900W/12V; 1800W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 60 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 10.35L*7.32W*3.35J inches
Weight 5.52 lbs
Product Warranty 18-month
BougeRV ISE254 Inverter Specifications
SKU ISE254
SKU ISE254 Operating ambient temperature range -40°F~185°F (-40°C~85°C)
Rated Output Power 3000W Storage temperature range -40°F~176°F (-40°C~80°C)
Peak power 6000W (1s) Noise ≤60dB
Output voltage 110VAC/120VAC (default) Communication Port RS485 + Inbuilt Bluetooth
Output frequency 50/60 Hz (default) Fan start-up temp ≥113℉ (45℃) / ≥50% load
Rated input voltage 12VDC USB port 18W*1 (5V-3A, 9V-2A, 12V-1.5A)

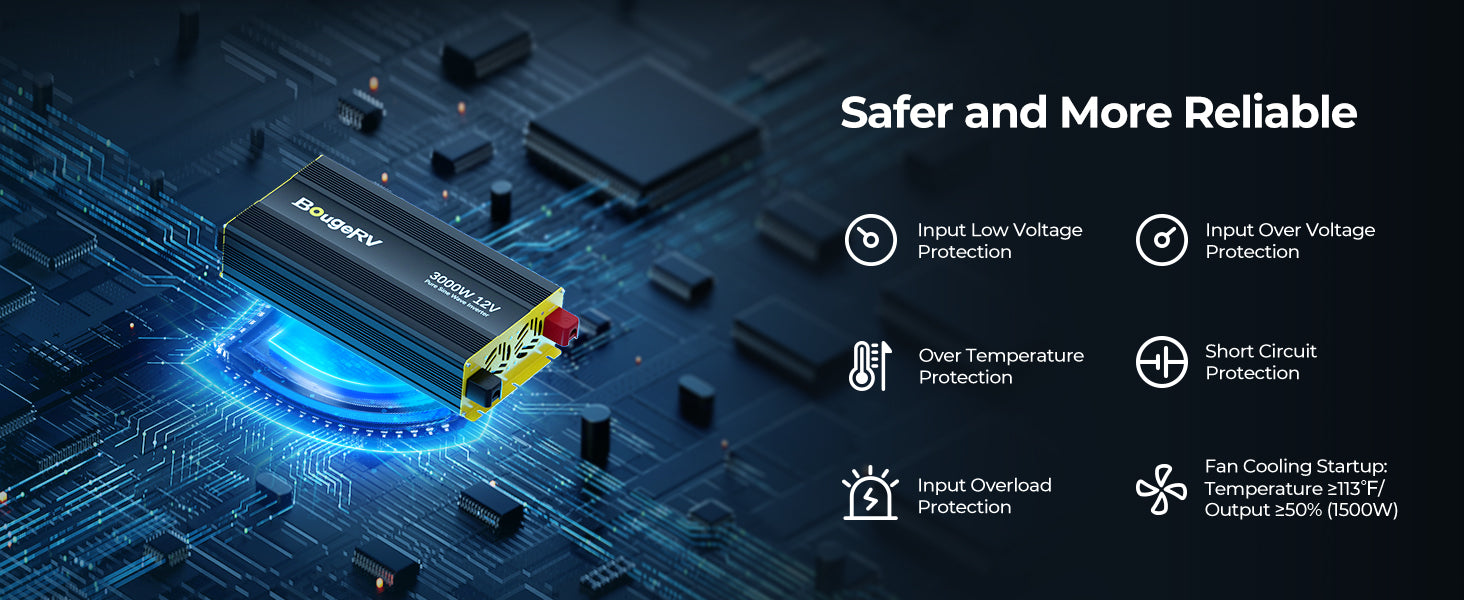

The input voltage ranges 10V-15.5VDC Protection function Input over-voltage / over-discharge protection,
output overload / short-circuit protection,
and inverter overtemperature protection
Output waveform Pure sine wave Output harmonic component (THD) <5%
Maximum output efficiency ＞90% Over-temperature protection recovery ≤176℉ (80℃)
Full Load Efficiency ＞86% No-load Loss ＜0.9A
Battery low voltage alarm 10.5VDC (±0.3V) Over temperature protect ≥203℉ (95℃)
Over-discharge voltage 10VDC (±0.3V) Product size 15.25*7.94*3.83 in
Overvoltage 15.5VDC (±0.3V) Weight 14.3 lb
SKU ISE254
Rated Output Power 3000W
Peak power
6000W（1s）
Output voltage
110VAC/120VAC(default)
Output frequency
50/60 Hz(default)
Rated input voltage
12VDC
The input voltage ranges
10V-15.5VDC
Output waveform
Pure sine wave
Maximun output efficiency
＞90%
Full Load Efficiency
＞86%
Battery low voltage alarm
10.5VDC (±0.3V)
Over-discharge voltage
10VDC (±0.3V)
Overvoltage
15.5VDC (±0.3V)
Operating ambient temperature range
-40°F~185°F（-40°C~85°C）
Storage temperature range
-40°F~176°F（-40°C~80°C）
Noise
≤60dB
Communication Port
RS485+Inbuilt Bluetooth
Fan start-up temp
≥113℉（45℃）/≥50% load
USB port
18W*1（5V-3A,9V-2A,12V-1.5A）
Protection function
Input over-voltage/
over-discharge protection,
output overload/short-circuit protection,
and inverter overtemperature protection
Output harmonic component（THD）
<5%
Over-temperature protection recovery
≤176℉（80℃）
No-load Loss
＜0.9A
Over temperature protect
≥203℉（95℃）
Product size
17.59*7.94*3.84 in
Weight
14.3 lb

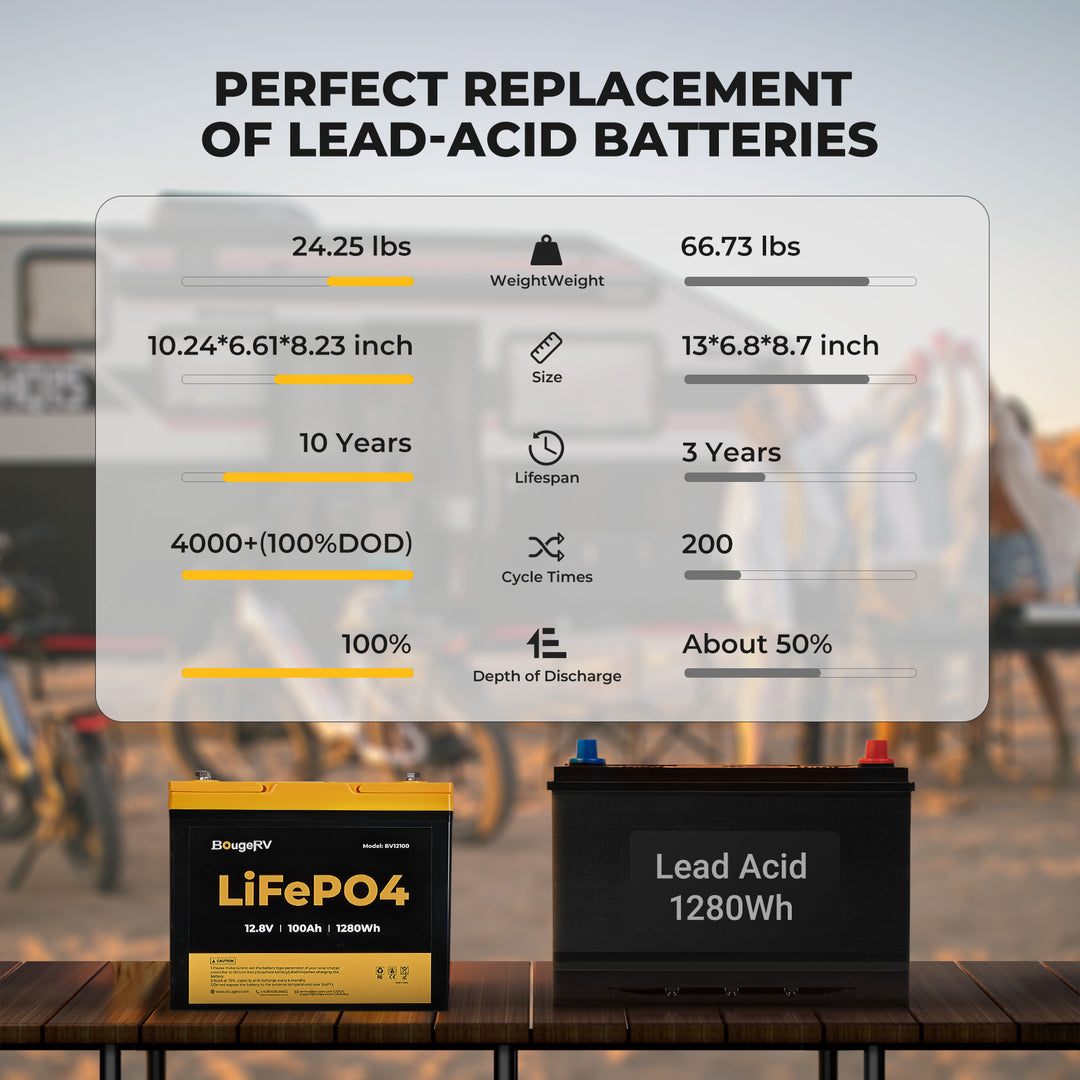

Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)

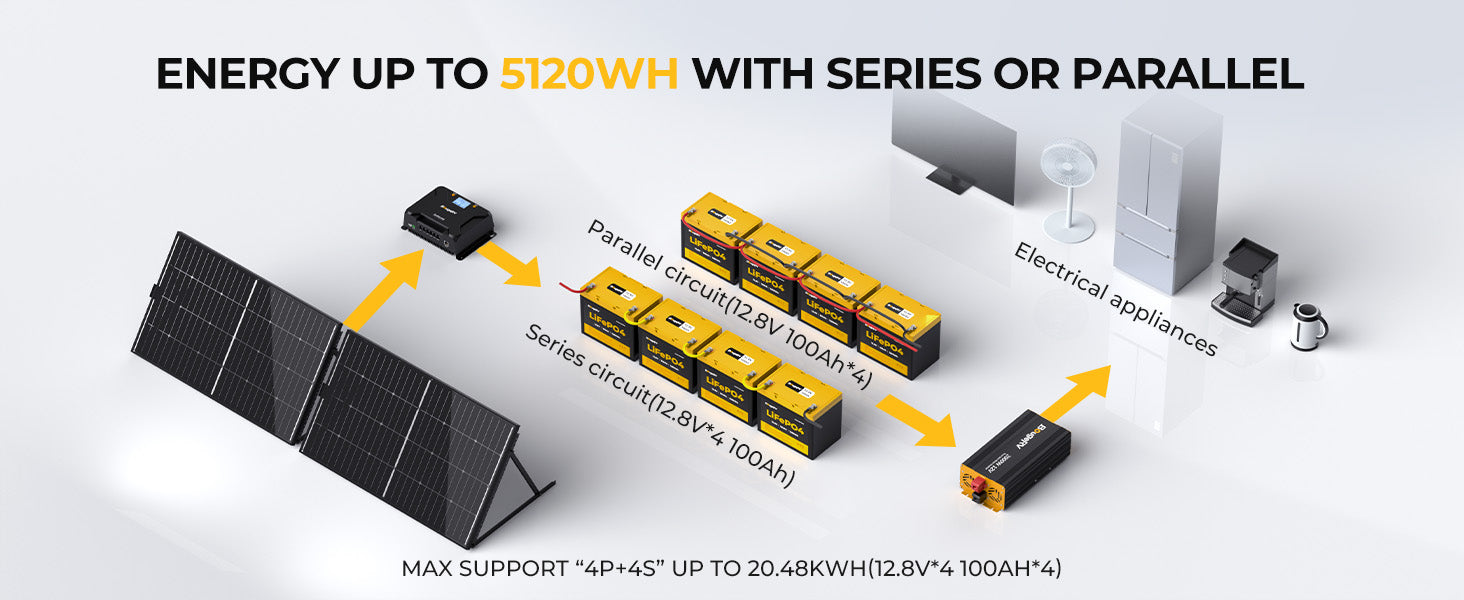

Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)

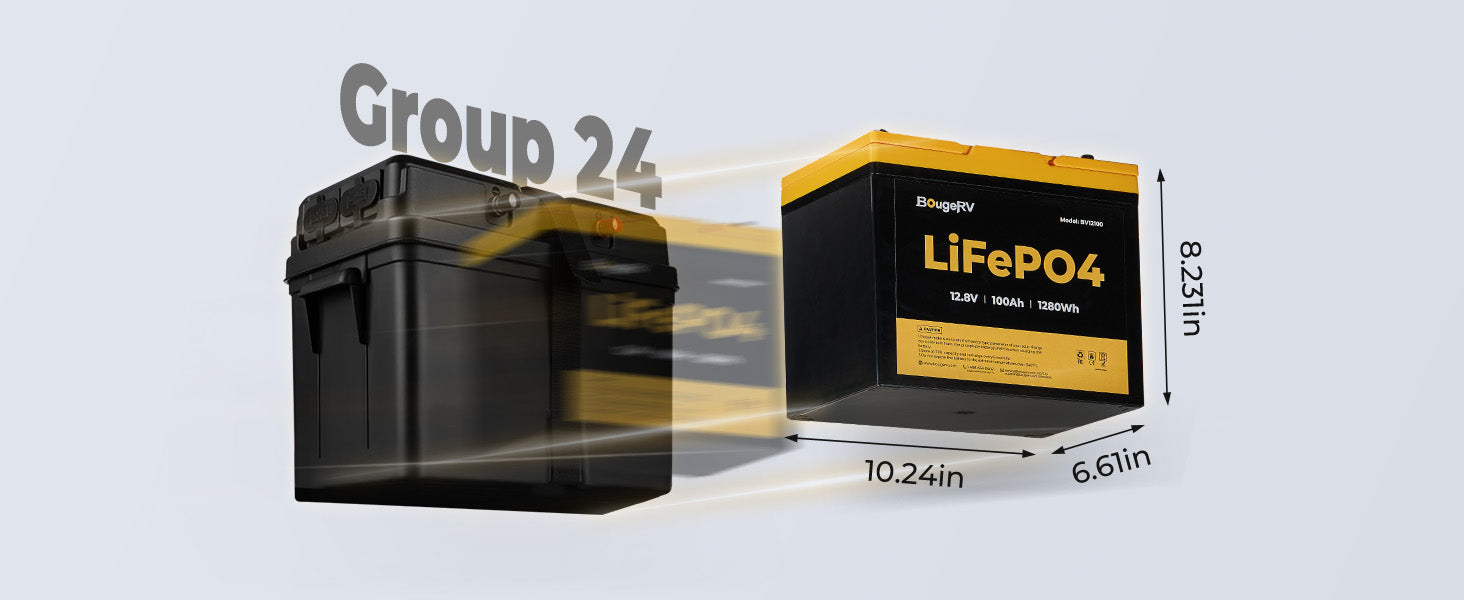

Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1.0C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
