FEATURES PRODUCT

BougeRV 12V 800W ShadePower Rigid Solar System Kit

For Travel Trailer For Tiny House 800 watt Off-Grid Power Cabin Power Solution

🔥Prime Day Encore Sale

Save $870.00
$2,069.99

Limited Time Deal

$2,939.99
/
🌡️ Beat the Summer Heat | Solar Flash Sale 10% Off

--

Days

:

--

Hours

:

--

Minutes

:

--

Seconds

BougeRV 800W N-Type ShadePower Solar Kit is a complete off-grid solar power system designed for RV, camping, cabin, and emergency backup power. It features rigid N-Type ShadePower solar panels, MPPT charge controller, LiFePO4 battery storage, and a 2000W pure sine wave inverter with Bluetooth monitoring for stable and reliable off-grid electricity.

Read more » Fold up »
10

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee

  • Features

  • Tech Specs

  • Package

  • Reviews

All-in-One Solar Battery System Powering RV Fridge, AC, Fan & Lights

Solar
Controller
Battery
Inverter
AC Output
Fridge
Cooling
Air Conditioner
Cooling
Fan
Ventilation
Coffee
Brew
Light
Lighting
Water Heater
Shower

How Much Can a Solar Kit Power?

Choosing the right solar kit depends on your energy needs, appliance usage, and daily sunlight conditions. From lightweight setups to full off-grid systems, understanding wattage and runtime helps you build a more efficient and reliable solar solution.

Step-by-Step Solar System Setup

Follow a clear step-by-step connection process—from solar panels to controller, battery, and inverter—to safely generate and use power. Designed for easy integration and smooth installation.

Product Features

BougeRV 200W N-Type ShadePower Solar Panel

BougeRV Sunflow 60A MPPT Solar Charge Controller 12V/24V

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

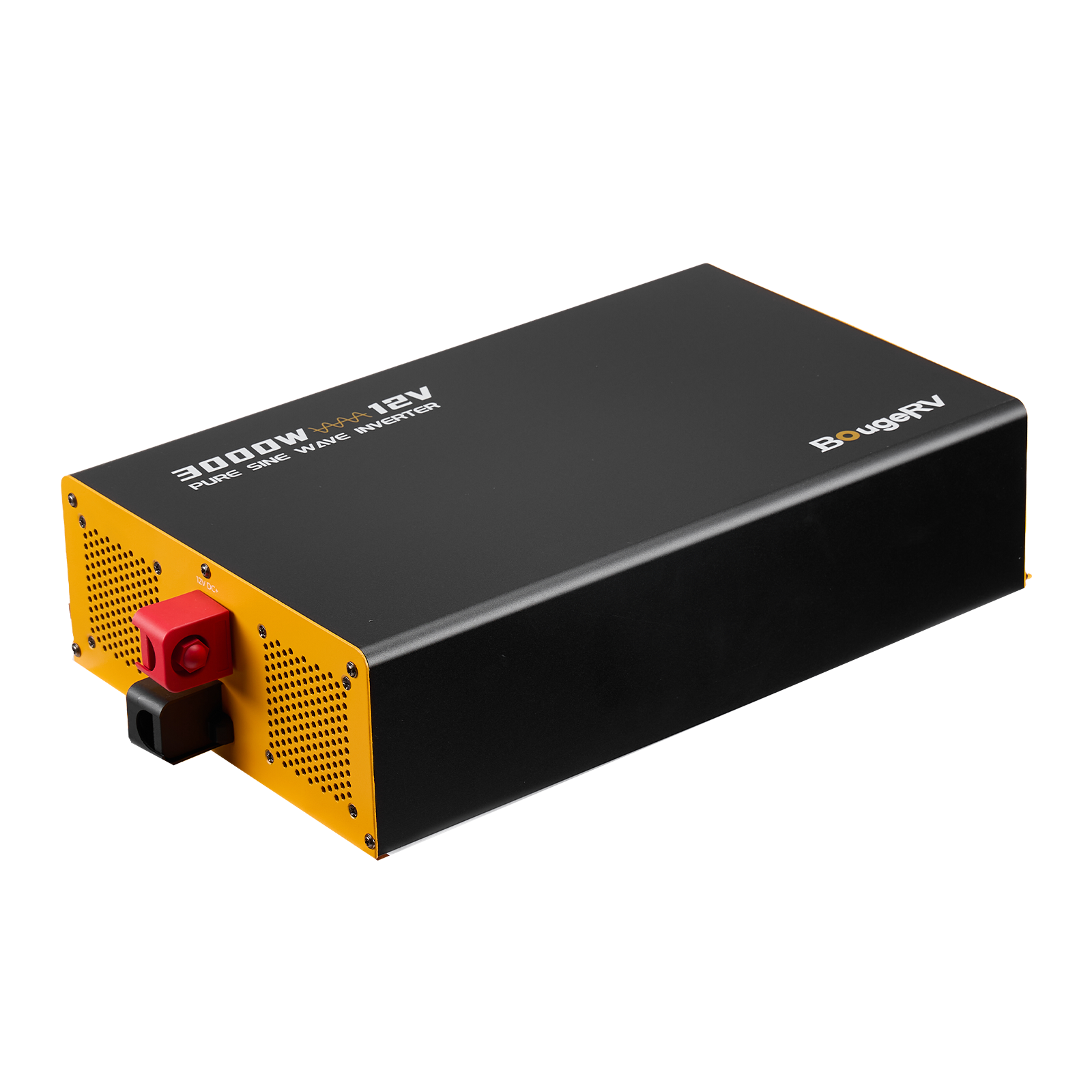

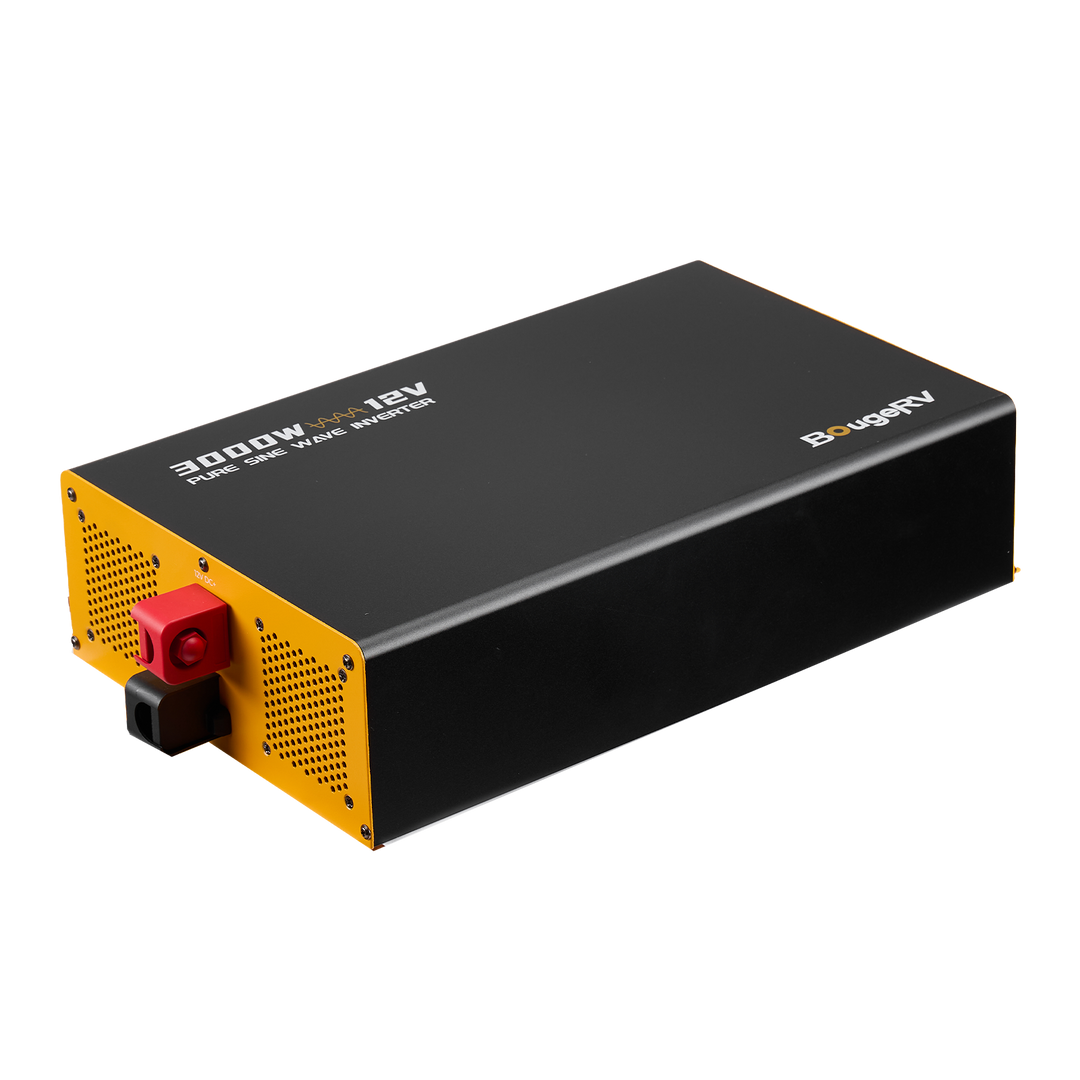

BougeRV 3000W 12V Pure Sine Wave Inverter

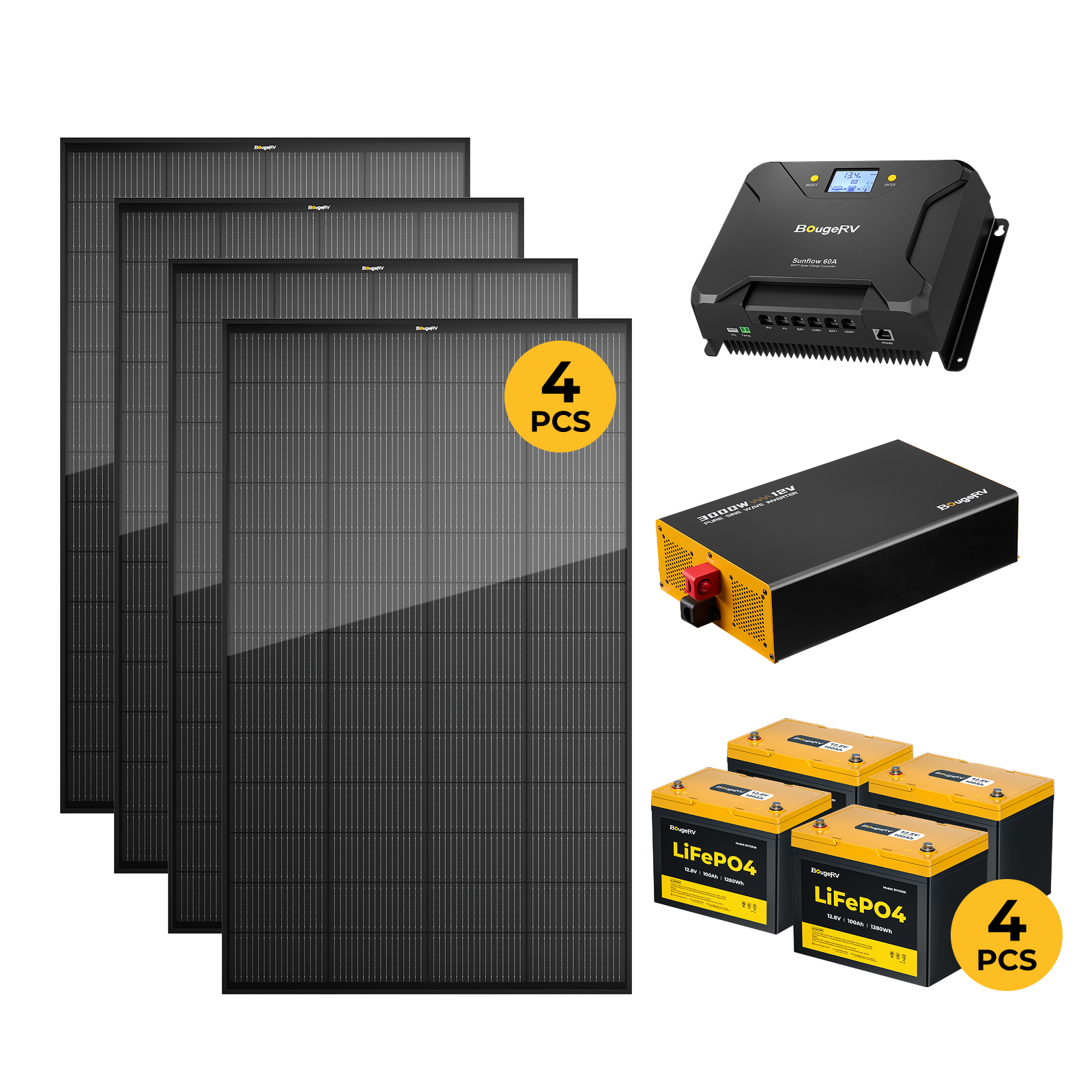

What's in the Box

SP005-BK*4

👉User Manual

ISE219-BK

👉User Manual

ISE212N*4

👉User Manual

SI001-BK-LYTYC1

👉User Manual

Product Specifications

SKU SP005-BK
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V)
31V±5%
 Temperature Coefficient Pmax -0.32%/K
Max. Power Current Imp (A)
6.45A±5%
 Temperature Coefficient Voc -0.25%/K
Open Circuit Voltage Voc (V)
36.4V±5%
 Temperature Coefficient Isc +0.045%/K
Short Circuit Current (Isc)
6.77A±5%
 Dimensions
50.2 x 30.3 x 1.2in
Material & Workmanship Warranty 10 Years Weight
23.4lb
Linear power output warranty 30 Years Product Type N-Type Solar Panels
SKU SP005-BK
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V)
31V±5%
Max. Power Current Imp (A)
6.45A±5%
Open Circuit Voltage Voc (V)
36.4V±5%
Short Circuit Current (Isc)
6.77A±5%
Material & Workmanship Warranty 10 Years
Linear power output warranty 30 Years
Operating Temperature Limits -40℉ ~ +185℉
Series Fuse Rating 15 A
Temperature Coefficient Pmax -0.32%/K
Temperature Coefficient Voc -0.25%/K
Temperature Coefficient Isc +0.045%/℃
Dimensions
50.2 x 30.3 x 1.2in
Weight 23.4 lb
SKU ISE219

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 60 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 900W/12V; 1800W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 60 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 10.35L*7.32W*3.35J inches
No Load Loss ≤10mA Weight 5.52 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE219
System Voltage 12V/24V
Rated Charging Current 60 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 900W/12V; 1800W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 60 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 10.35L*7.32W*3.35J inches
Weight 5.52 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYC1 Model 12V 3000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 17.12 × 9.37 × 3.94 in Weight 12.79 lbs
Rated Power 3000W Overload Power 3200W
Peak Power 6000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss <0.9A
Protection 1. Input Over-voltage
2. Over-discharge Protection
3. Output Overload
4. Short Circuit Protection
5. Over-temperature Protection
6. Ground Fault Protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% Load
Communication RS485 / Bluetooth USB Port 18W (5V/9V/12V)
SKU SI001-BK-LYTYC1 Model 12V 3000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 17.12 × 9.37 × 3.94 in Weight 12.79 lbs
Rated Power 3000W Overload Power 3200W
Peak Power 6000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss <0.9A
Protection 1. Input Over-voltage
2. Over-discharge Protection
3. Output Overload
4. Short Circuit Protection
5. Over-temperature Protection
6. Ground Fault Protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% Load
Communication RS485 / Bluetooth USB Port 18W (5V/9V/12V)

Reviews

You may also like

FAQs

Shading—whether from a leaf, bird droppings, or nearby objects—can drastically reduce the output of traditional solar panels, sometimes bringing power generation close to zero.

Equipped with 24 bypass diodes, the BougeRV 200W N-Type ShadePower solar panel allows electricity to flow around shaded cells, minimizing energy loss and preventing hotspots.

As a result, it can still deliver up to 85% of its output in partial shade, where conventional panels would struggle to produce meaningful power.

Standard panels often experience bottlenecks when even a small section is shaded. ShadePower technology improves current bypass efficiency, reducing overall system degradation under uneven lighting.

No. The panel includes Anti-Hotspot Protection, which prevents localized overheating by bypassing blocked current paths, improving long-term cell safety.

The N-type cells are optimized for high-temperature environments, with a low temperature coefficient of -0.32%/°C, ensuring better wattage retention during heatwaves.

Yes. The system is modular and can be expanded by adding additional compatible panels, depending on your solar controller and setup.

This 800W solar setup is designed to support essential outdoor and RV devices during summer trips, including:

  • F01 Outdoor Fan – up to 10–20 hours
  • CRD2 52QT Portable Fridge – 24-hour continuous operation
  • CL04 Camping Light – 10–15 hours of lighting
  • PC35 Portable AC (600W) – up to 4–6 hours of cooling support
