- Tech Specs
Smart LCD and APP Control

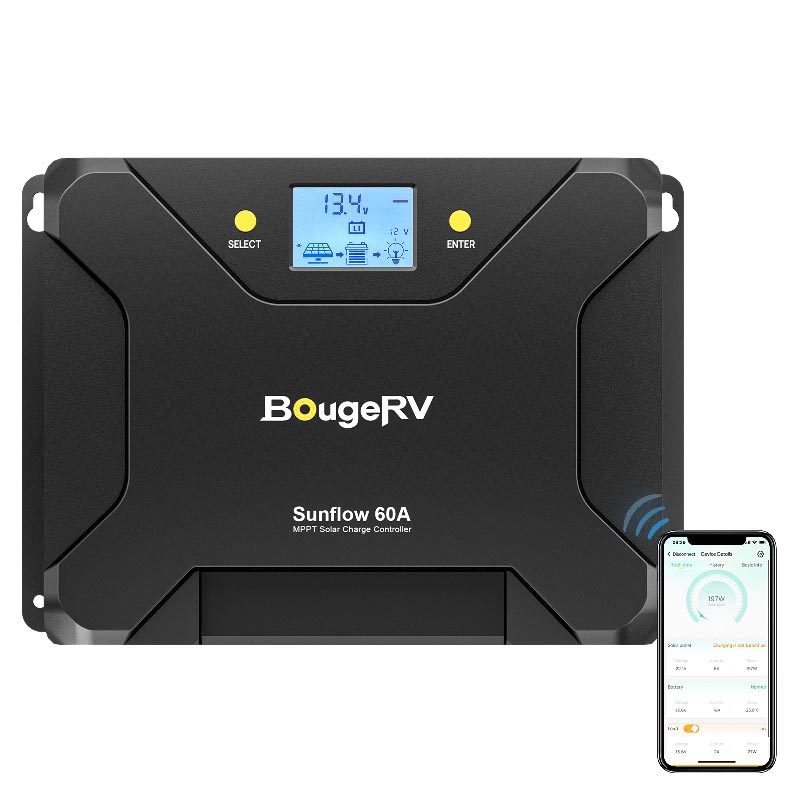

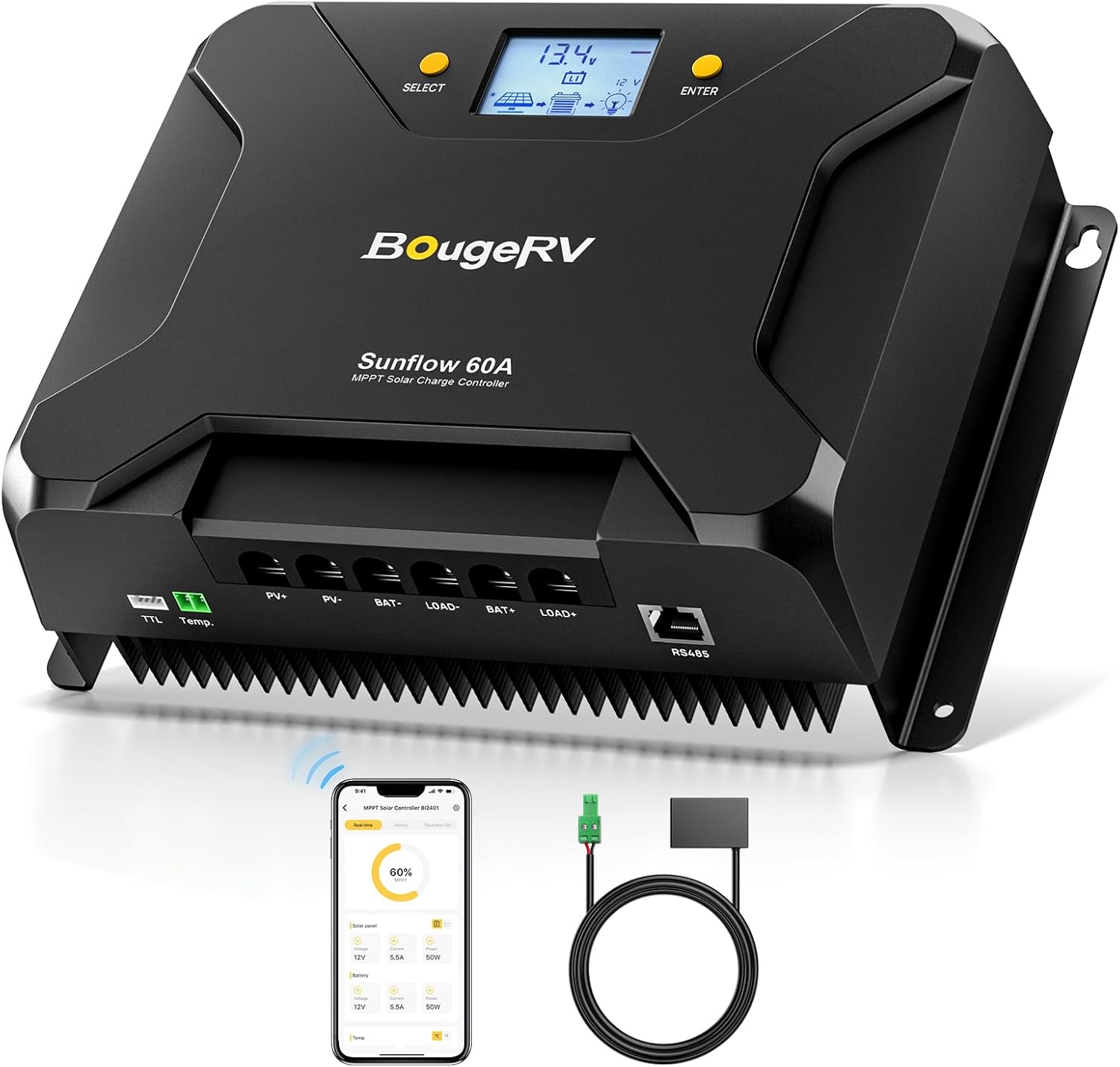

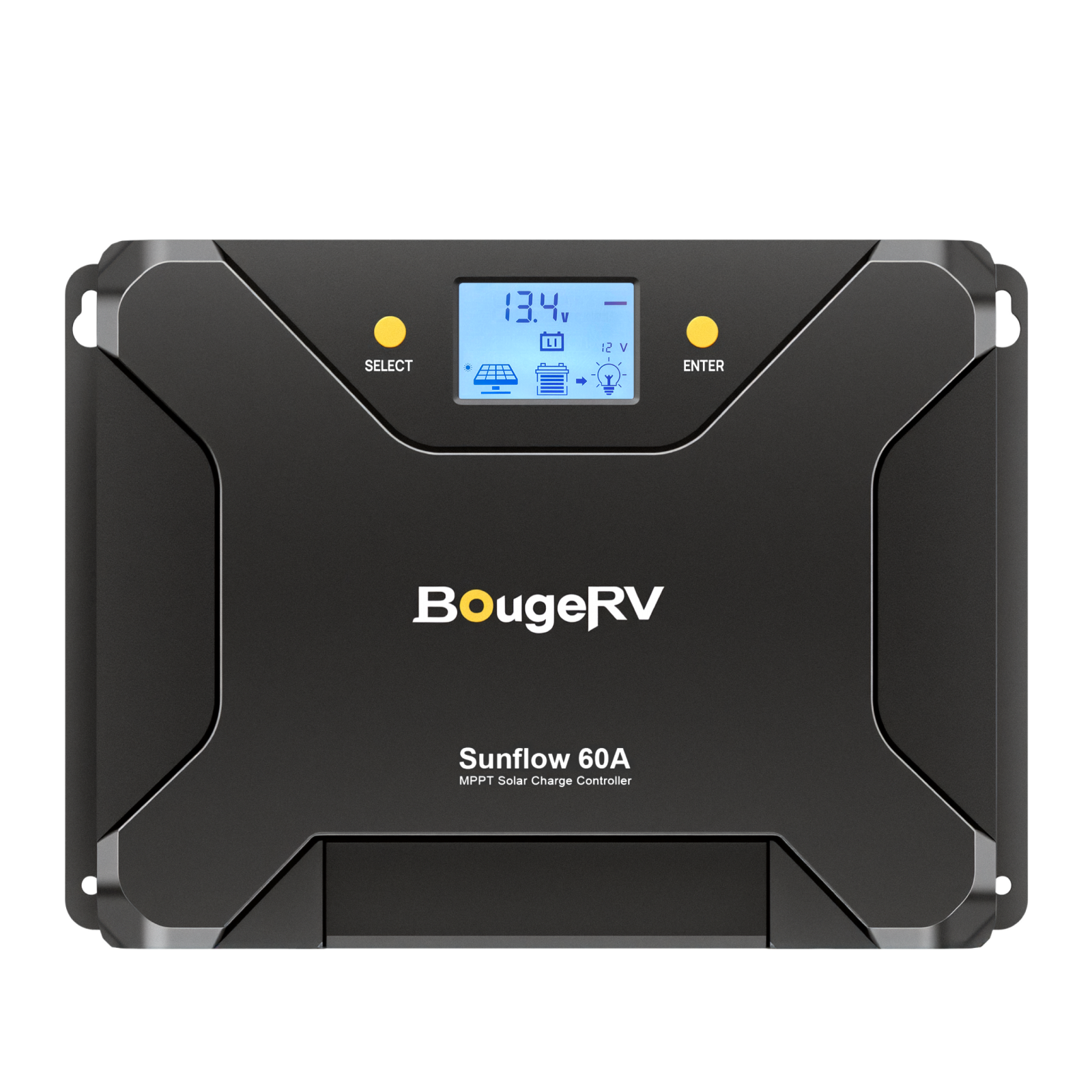

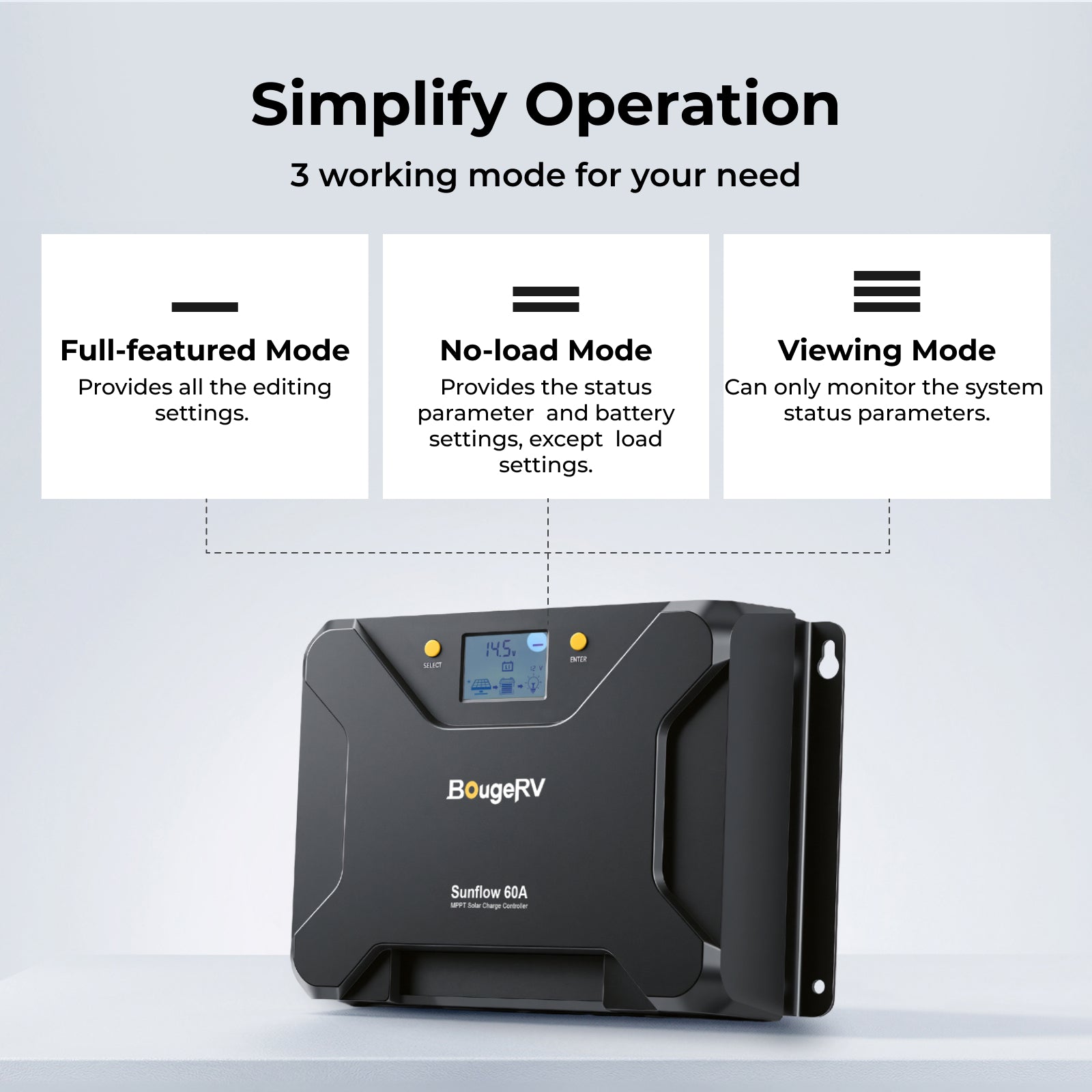

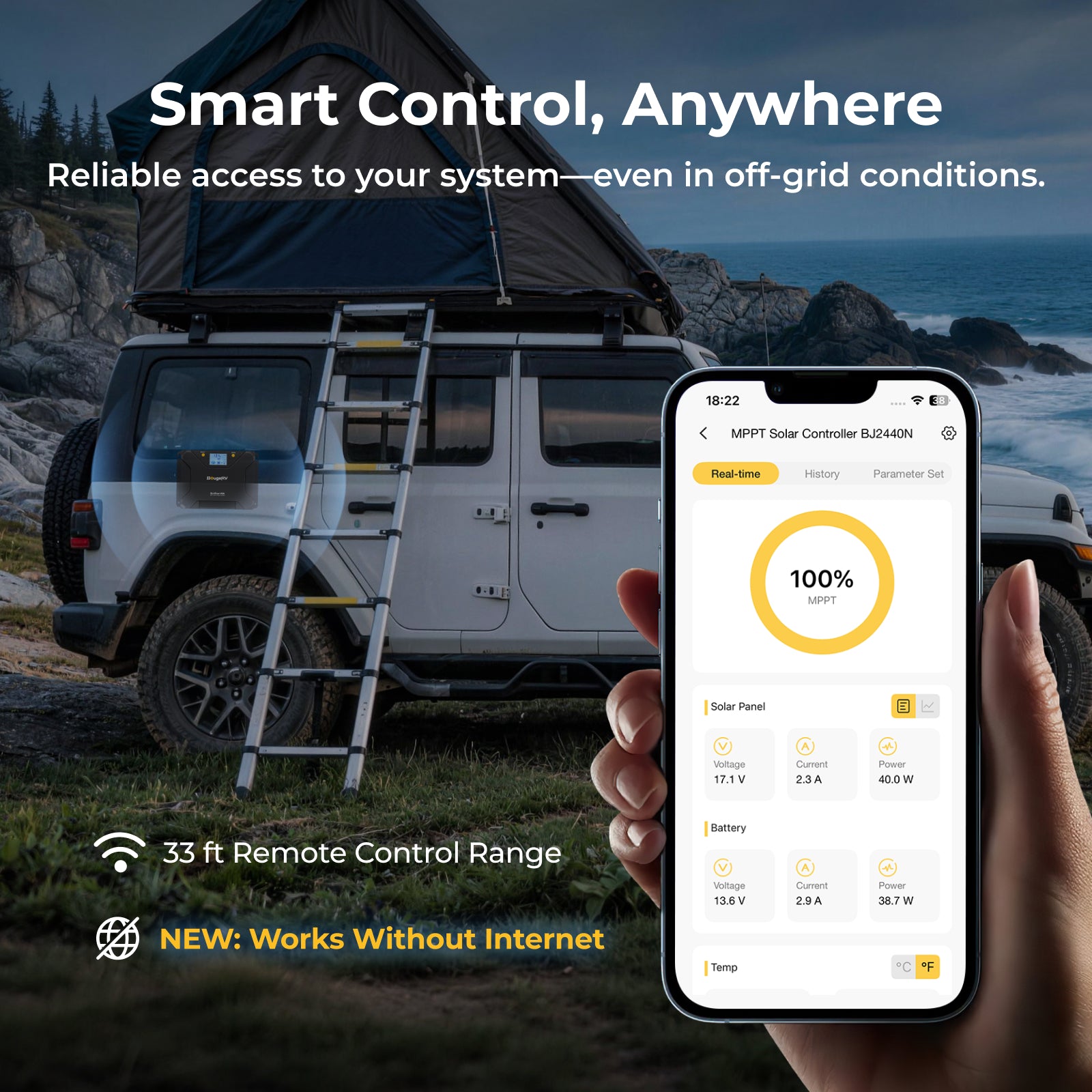

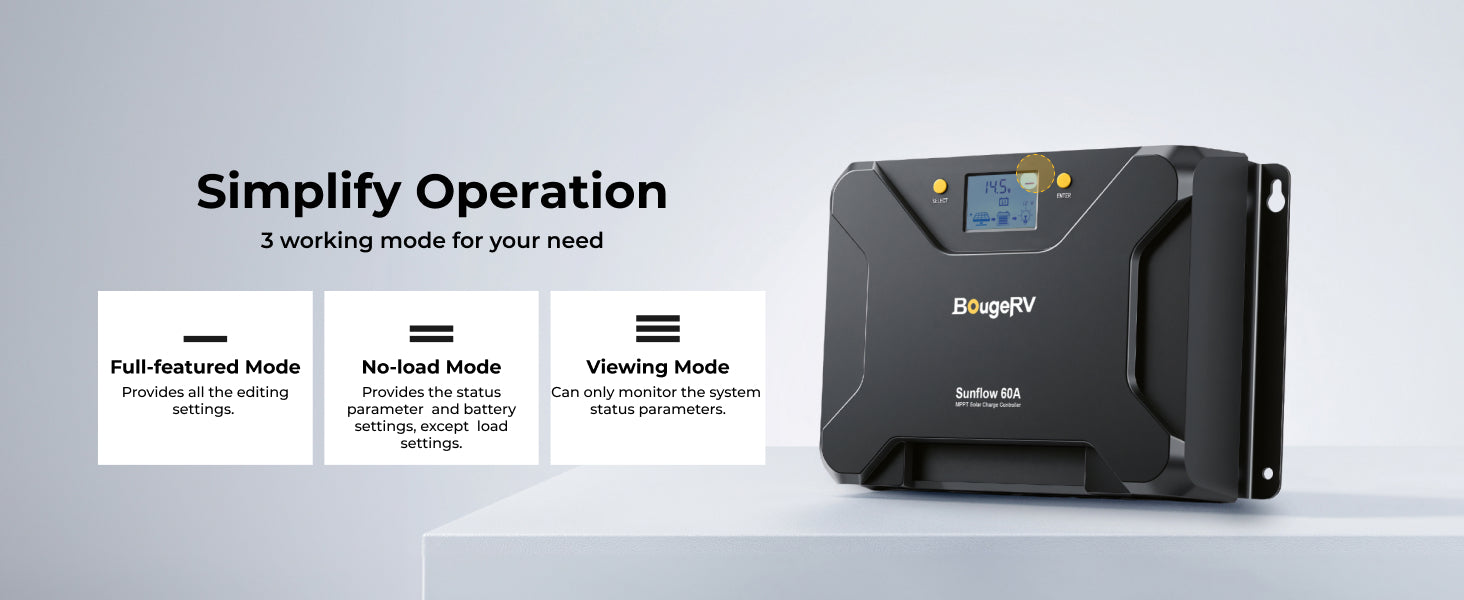

BougeRV Sunflow MPPT provides 3 modes for display operation, full setting mode, no-load mode, and read-only mode, you can choose the appropriate mode to monitor and manage your system easily. The LCD display will automatically loop playback charge current and charge voltage every 5s. Sunflow 60A solar panel regulator also features remote app control, and Bluetooth range up to 32 feet. You can stay informed with the "Solar" APP that provides the solar panel, battery and solar charge controller.

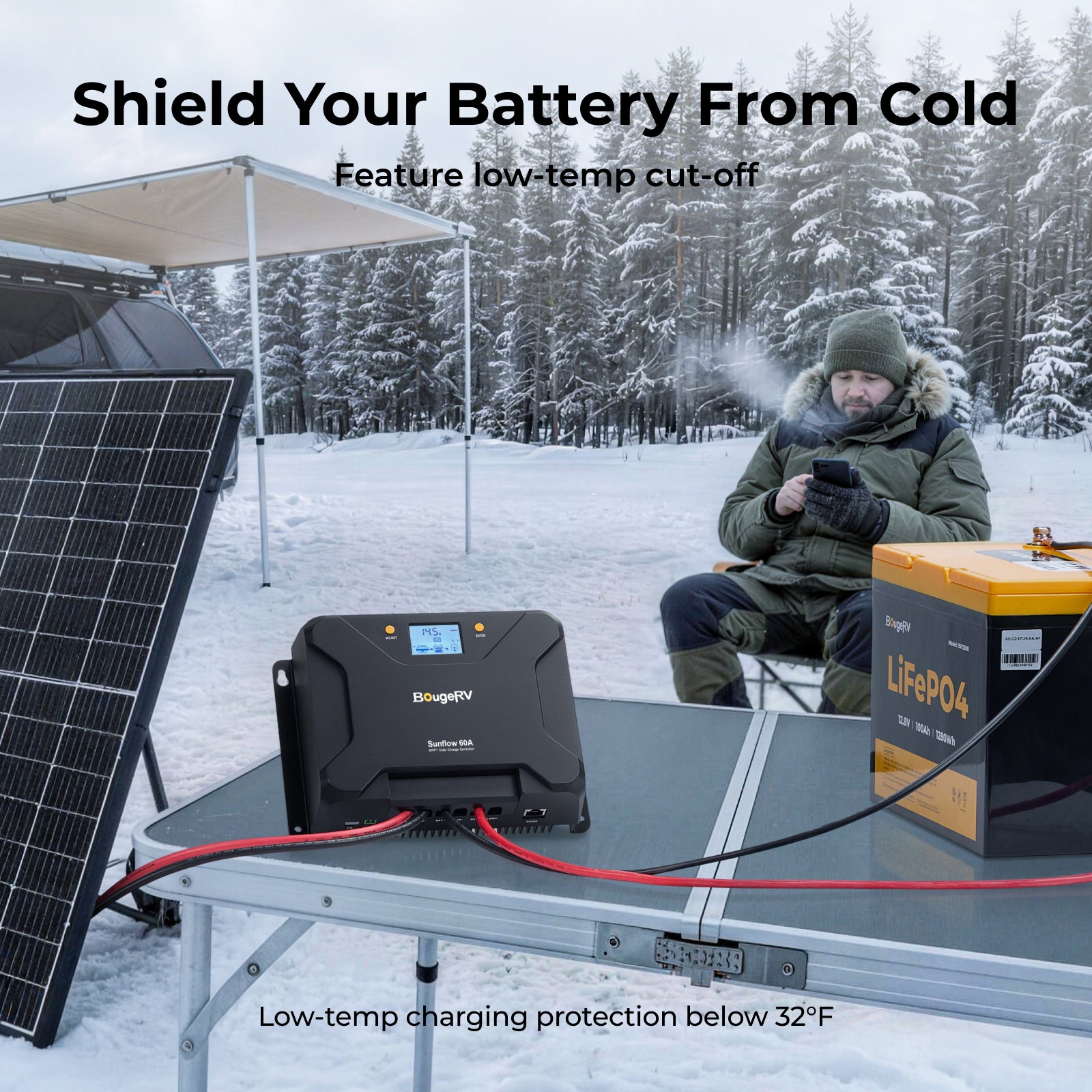

For LiFePO4 batteries, a sub-freezing (32°F) charge will permanently deteriorate performance and safety. BougeRV Sunflow 60A MPPT solar charge controller can protect your lithium batteries for innovatively supporting low-temp cut-off at the solar charge controller end. BougeRV Sunflow MPPT can also restart or activate dormant lithium batteries that are turned off due to short circuits or excessive amp draw.
- For LiFePO4: The controller's lithium battery activation function refers to the specific process of initializing and optimizing the performance of a new or inactive lithium battery. It can effectively extend the lifespan of the lithium battery and maintain its performance stability.
- For SLD: The BougeRV MPPT solar charge controller has the capability to reactivate the active material inside lead-acid batteries through a regulated current and voltage, thereby enabling them to function properly.

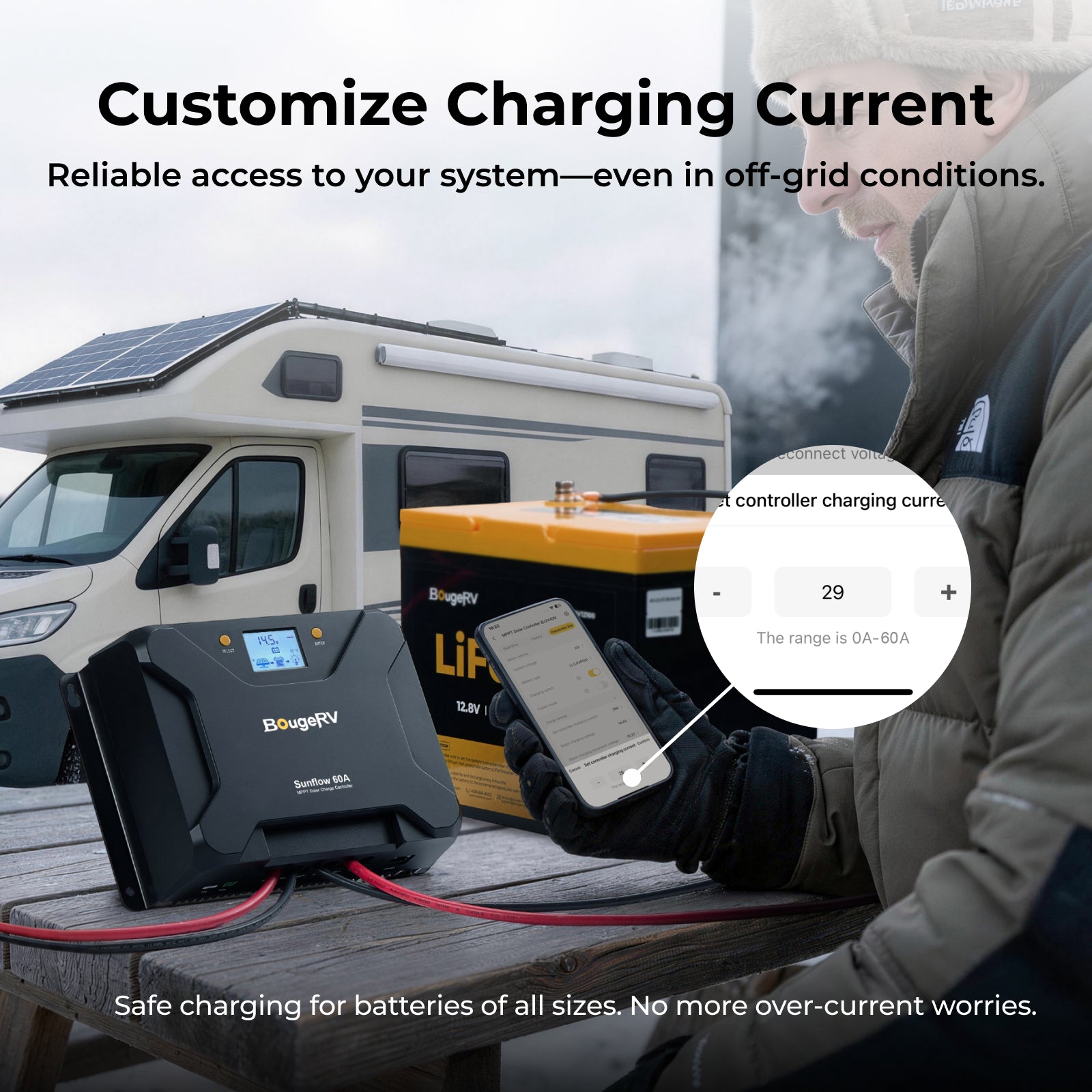

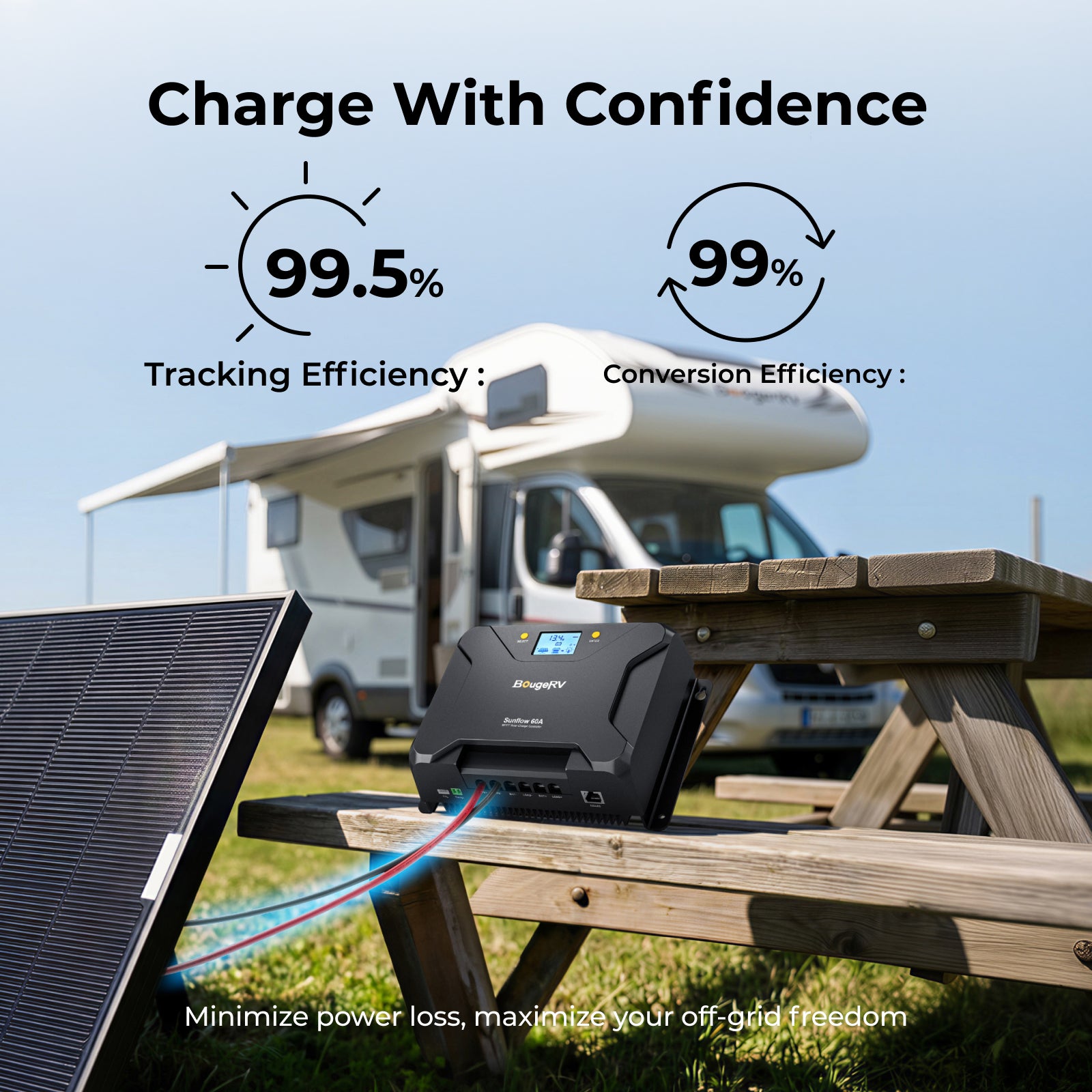

BougeRV Sunflow 60A MPPT controller can adjust the charge current from 0A to 30A. Its high tracking efficiency is up to 99.5%, and its peak conversion efficiency is up to 99%. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

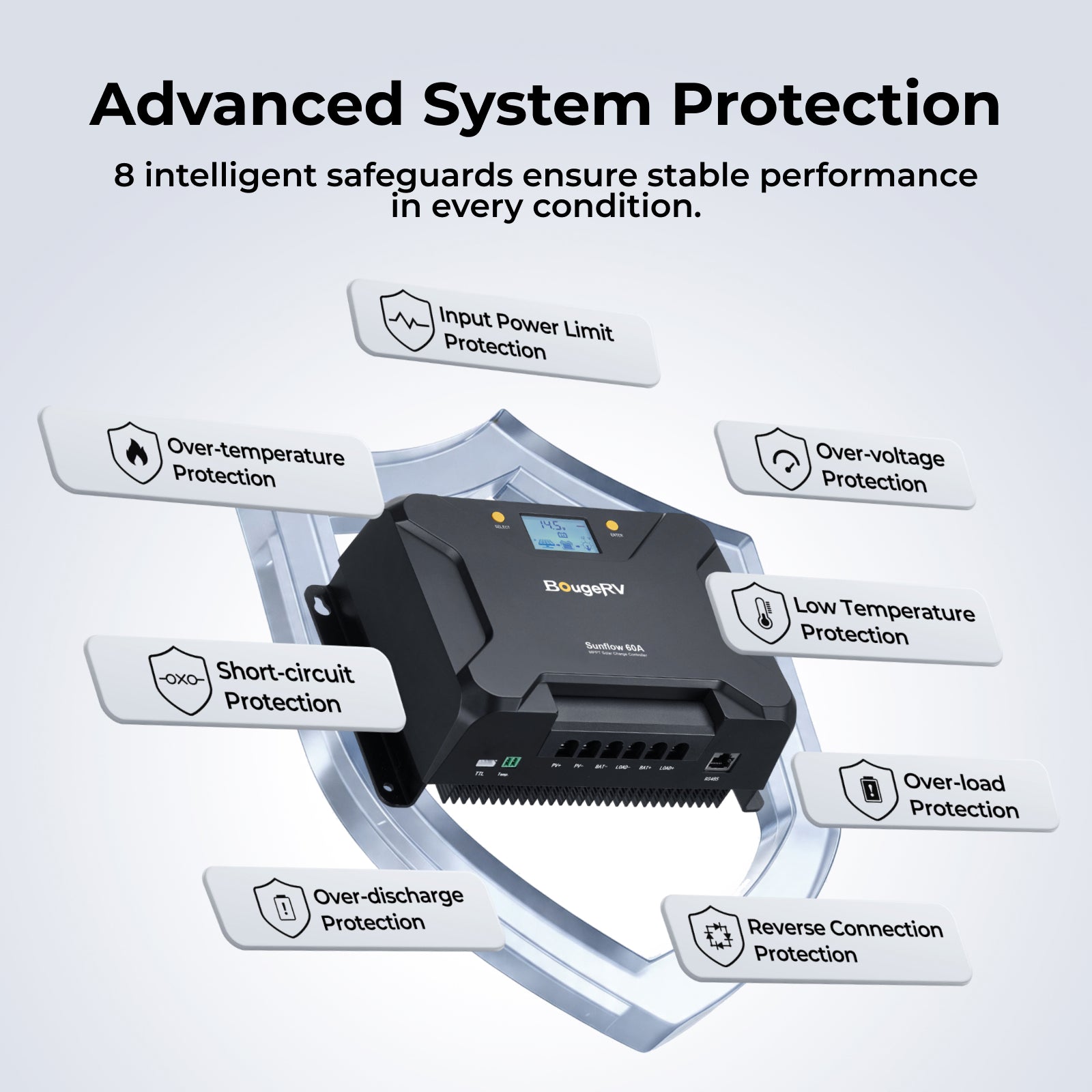

BougeRV 60A MPPT solar charge controller features with dual MOS circuit to prevent the reverse current and to reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

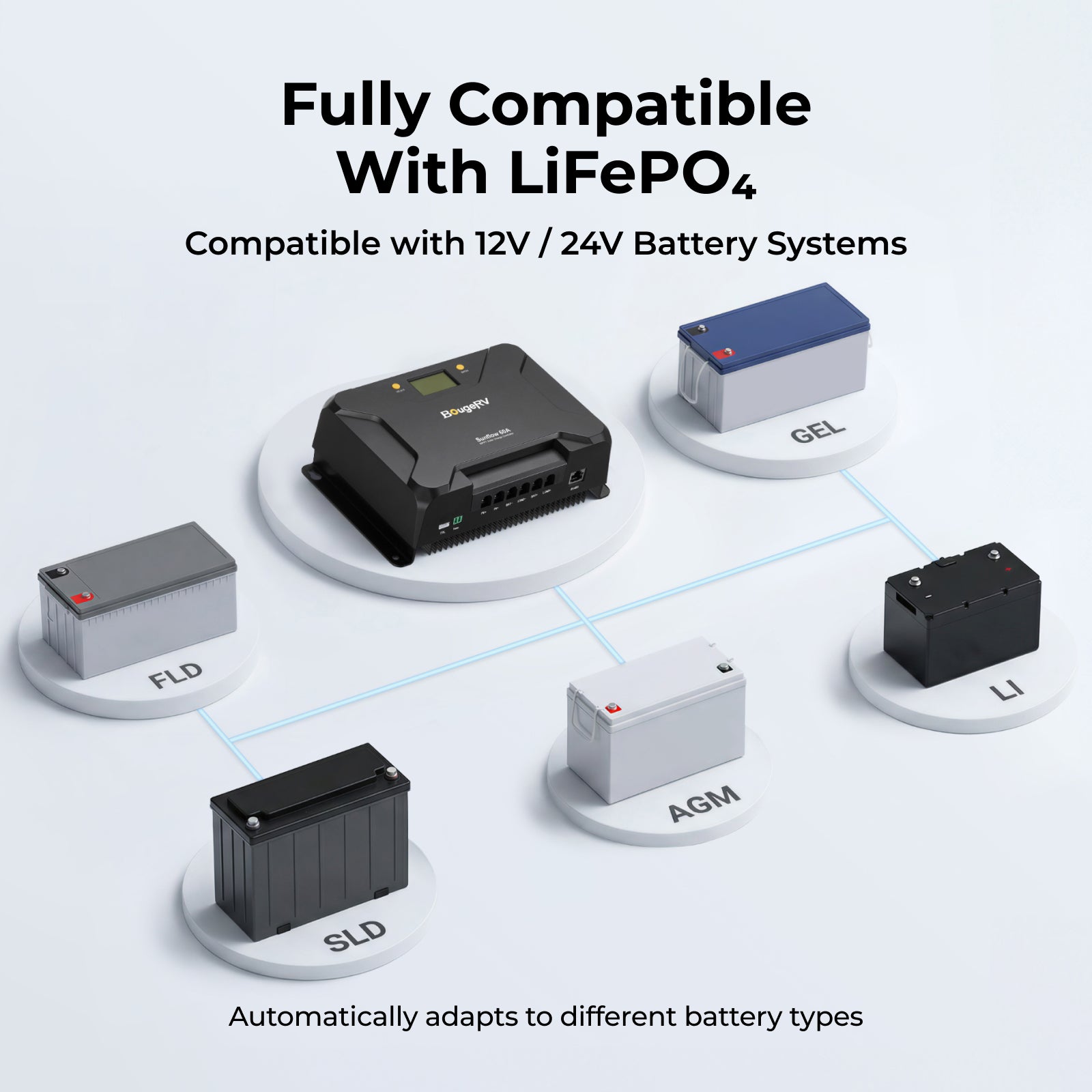

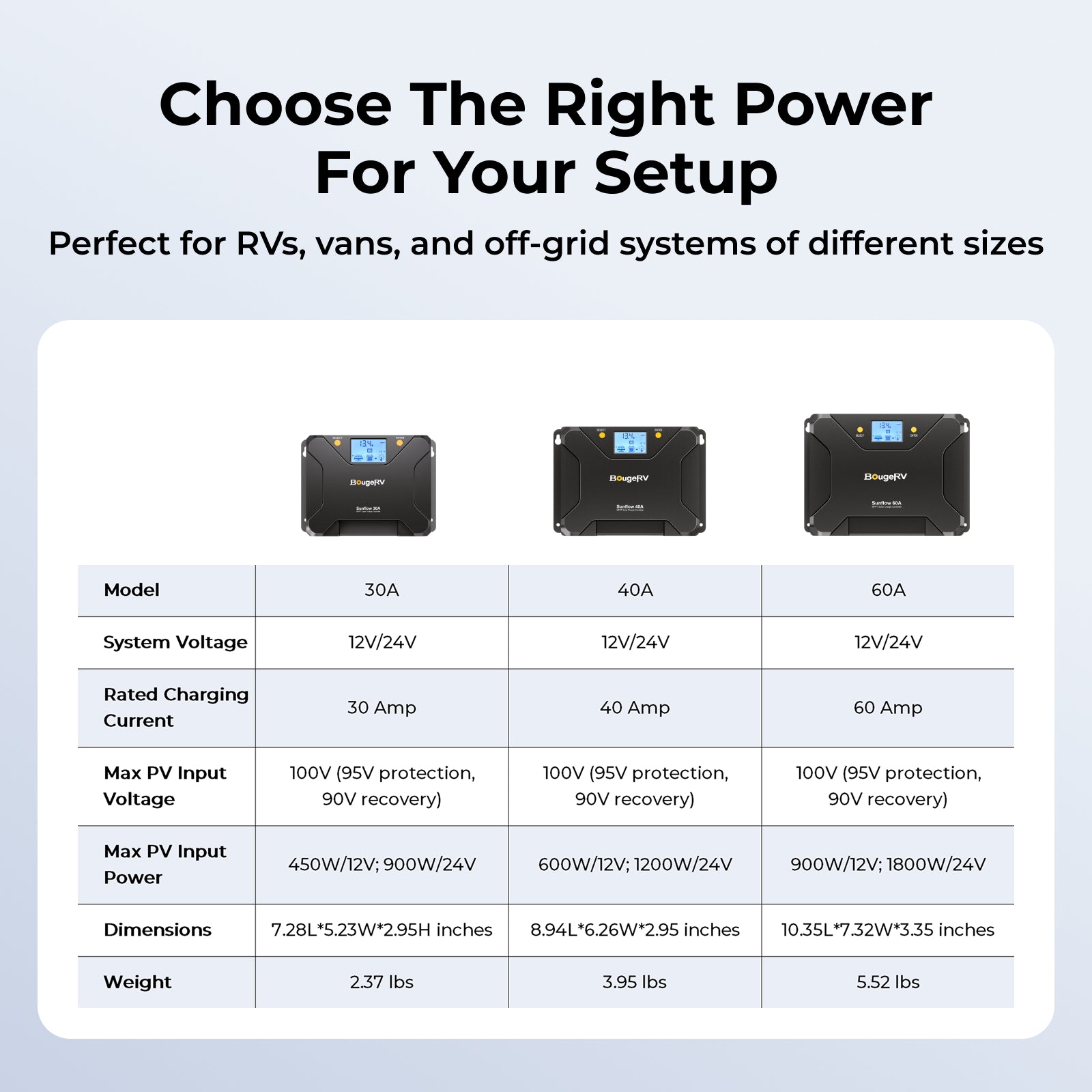

|System Voltage||12V/24V||Battery Type||LiFePO4, SLD, GEL, FLD, AGM, User Defined|
|Rated Charging Current||60 Amp||Grounding Type||Common Negative|
|Maximum PV Input Voltage||100V (95V protection, 90V recovery)||Operating Temperature Range||-31℉ to 149℉ (-35℃ to 65℃)|
|Maximum Input of PV System||900W/12V; 1800W/24V||Protection Grade||IP34|
|Rated Load Current||20 Amp||Bluetooth Communication||built-in bluetooth|
|Charge Current Ajust Range||0 Amp to 60 Amp||Data Storage||Save the last 200 days of historical data|
|Battery Operate Voltage Range||8V to 32V||Dimension||10.35L*7.32W*3.35J inches|
|No Load Loss||≤10mA||Weight||5.52 lbs|
|Rated Charging Current||60 Amp|
|Maximum PV Input Voltage||100V (95V protection, 90V recovery)|
|Maximum Input of PV System||900W/12V; 1800W/24V|
|Rated Load Current||20 Amp|
|Charge Current Ajust Range||0 Amp to 40 Amp|
|Battery Operate Voltage Range||8V to 32V|
|No Load Loss||≤10mA|
|Battery Type||LiFePO4, SLD, GEL, FLD, AGM, User Defined|
|Grounding Type||Common Negative|
|Operating Temperature Range||-31℉ to 149℉ (-35℃ to 65℃)|
|Bluetooth Communication||built-in bluetooth|
|Data Storage||Save the last 200 days of historical data|
