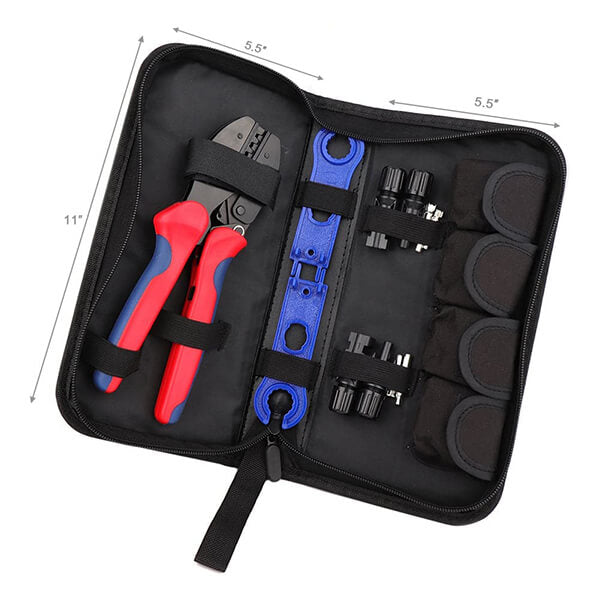

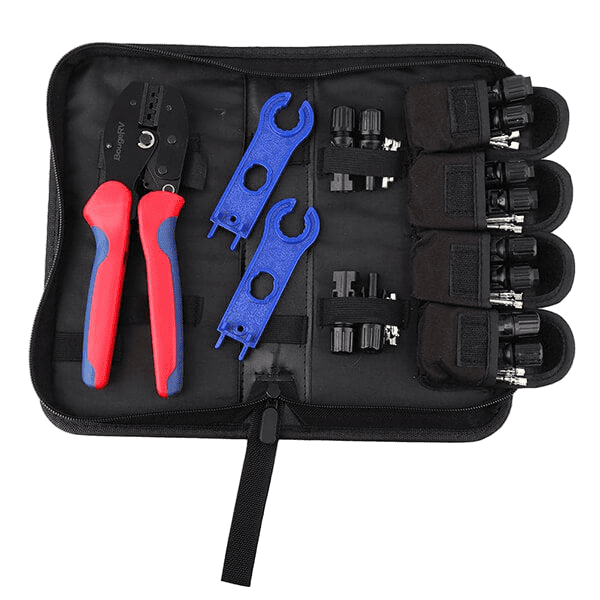

Why would you like to choose BougeRV Tool Kit?
- Most reasonable Tool Kit with logical structure, portable and lightweight.

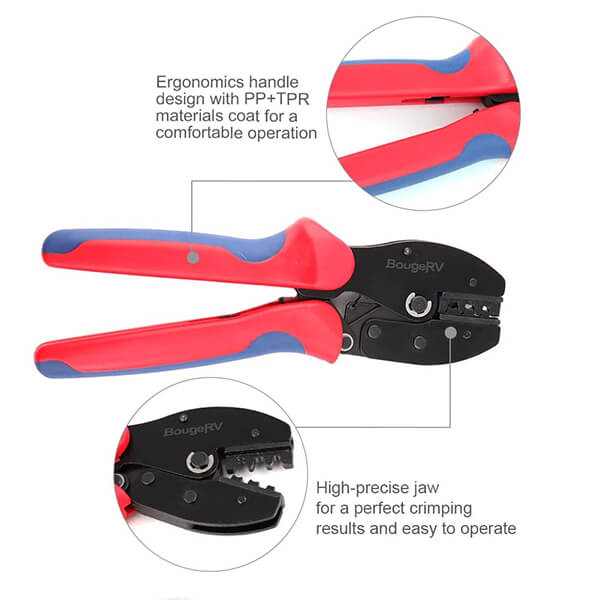

- Excellent handing, easy exchange of crimping insert bits, and the possibility of adding a positioning aid are facts in favor of these crimping pliers
- High-precision ratchet mechanism for complete crimps.

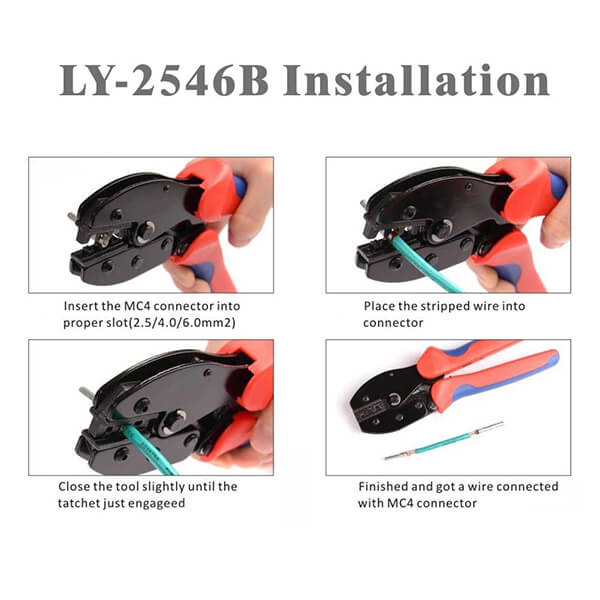

How to use the solar connector crimper tool to complete solar cable?
*The female metalwork is greatly bigger than the male metalwork, it should match the male connector and vice versa.
- Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
- Step B: Lead the red cable through the base, strain relief, and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put it in the male connector.
- Step C: Lead the black cable through the base, strain relief, and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put it in the female connector.

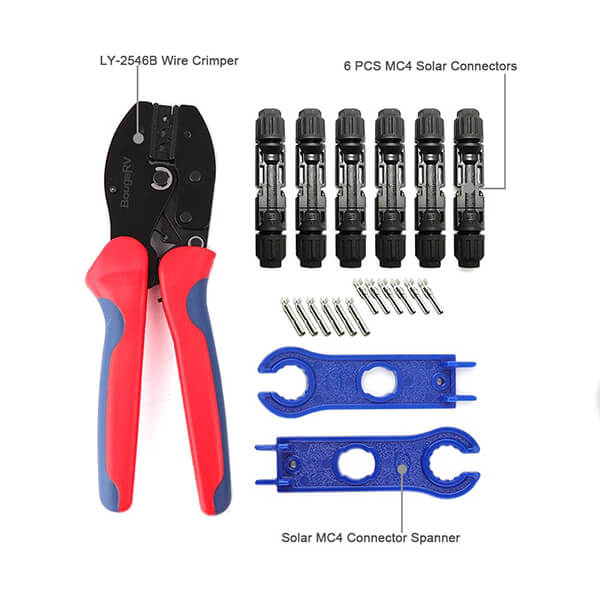

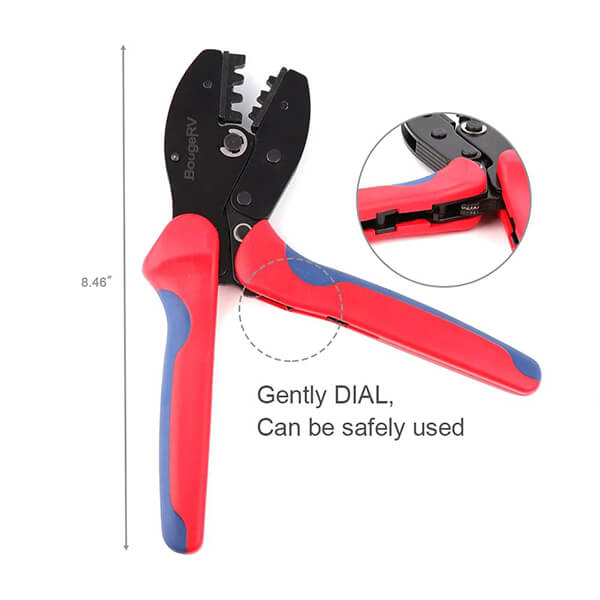

LY-2546B Wie Crimper
AWG: 26-10AWG
Crimping Range: 2.5/4/6mm2
Application: For non-insulated open plug-type connector
Material: High carbon steel
Weight: 0.44kg

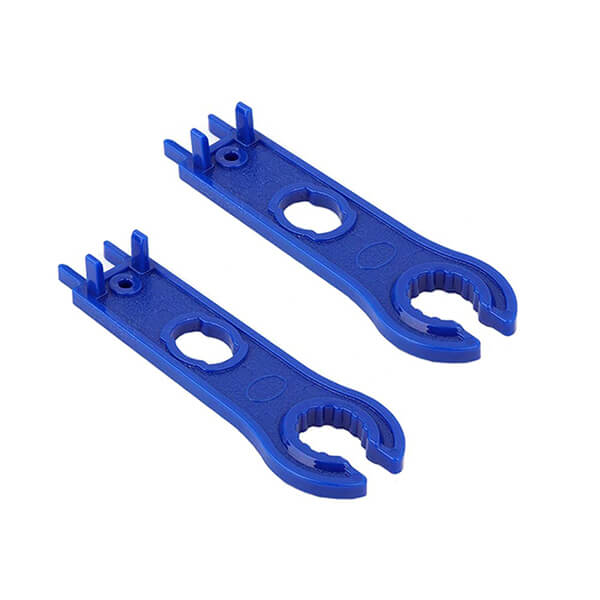

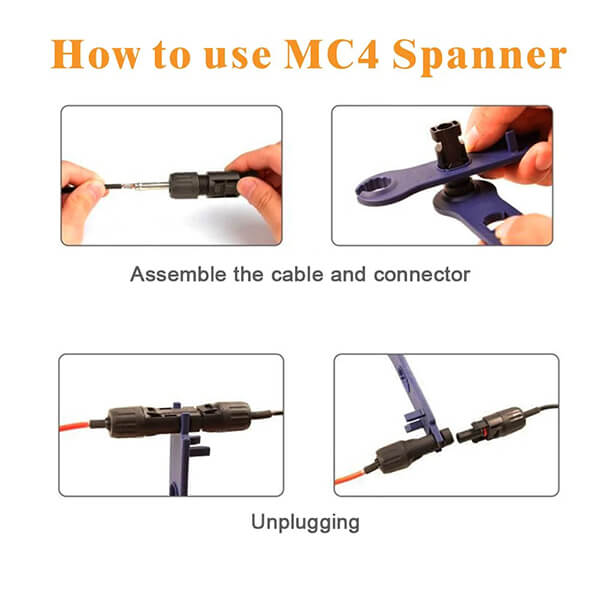

Spanners
The spanners can make you more effortless during installation
LY-2546B Wie Crimper
AWG: 26-10AWG
Crimping Range: 2.5/4/6mm2
Application: For non-insulated open plug-type connector
Material: High carbon steel
Weight: 0.44kg

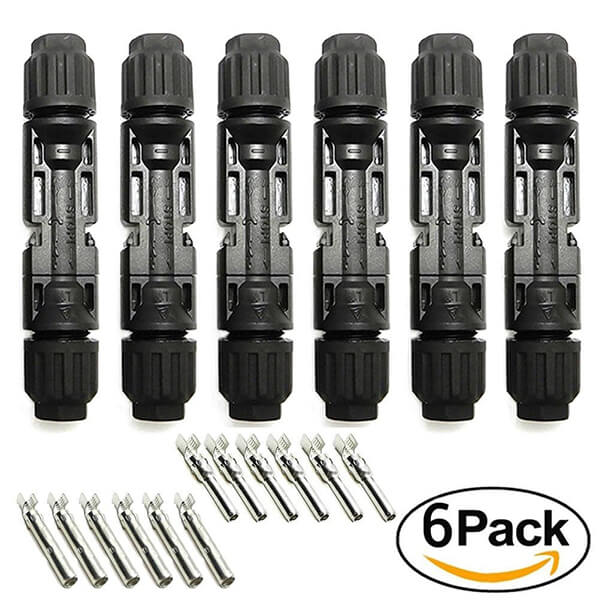

Male Female Solar Panel Connector
Degree of waterproof: IP67
Suitable cable: 1.5mm2-6mm2 ( include AWG14, AWG13, AWG12, AWG11, AWG10 )
Adapter Wire: OD 5mm-7mm
Connector conductor material: copper, Tin
Connector Insulation material: PPO or PBT
