Name: BougeRV Solar Panel Parallel Connectors 1 to 3 Solar Cable Wire
Brand: BougeRV
SKU: ISE075
Price: 15.99 USD
Availability: InStock

BougeRV Solar Panel Parallel Connectors 1 to 3 Solar Cable Wire

(100)

$15.99

The BougeRV 3 to 1 MC4 Connector is designed to simplify and streamline your solar panel connections. With this connector, you can easily combine multiple solar panels into a single connection point, reducing the number of cables and connections required. The high-quality MC4 connectors ensure reliable and secure electrical connections, while the durable construction ensures long-lasting performance in various weather conditions.

Read more » Fold up »

Size

1 Pair M/FFF & F/MMM

2 Pair M/FFF & F/MMM

Quantity

10

[{"id":44708292919512,"title":"1 Pair M\/FFF \u0026 F\/MMM","option1":"1 Pair M\/FFF \u0026 F\/MMM","option2":null,"option3":null,"sku":"ISE075","requires_shipping":true,"taxable":true,"featured_image":{"id":41325808222424,"product_id":6659215786175,"position":1,"created_at":"2024-05-14T18:14:39+08:00","updated_at":"2024-05-14T18:14:44+08:00","alt":null,"width":800,"height":800,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/11_1800x1800_3887c4ef-d57e-4930-97d3-52f69298b114.png?v=1715681684","variant_ids":[44708292919512]},"available":true,"name":"BougeRV Solar Panel Parallel Connectors 1 to 3 Solar Cable Wire - 1 Pair M\/FFF \u0026 F\/MMM","public_title":"1 Pair M\/FFF \u0026 F\/MMM","options":["1 Pair M\/FFF \u0026 F\/MMM"],"price":1599,"weight":185,"compare_at_price":null,"inventory_management":"shopify","barcode":"754003739985","featured_media":{"alt":null,"id":34405465555160,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/11_1800x1800_3887c4ef-d57e-4930-97d3-52f69298b114.png?v=1715681684"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44708292952280,"title":"2 Pair M\/FFF \u0026 F\/MMM","option1":"2 Pair M\/FFF \u0026 F\/MMM","option2":null,"option3":null,"sku":"ISE147","requires_shipping":true,"taxable":true,"featured_image":{"id":41002799005912,"product_id":6659215786175,"position":9,"created_at":"2024-04-12T09:46:52+08:00","updated_at":"2024-05-14T18:14:44+08:00","alt":null,"width":1462,"height":1500,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/1_1800x1800_3b2c7fc9-091d-4fce-8aef-a969d44e678d.png?v=1715681684","variant_ids":[44708292952280]},"available":true,"name":"BougeRV Solar Panel Parallel Connectors 1 to 3 Solar Cable Wire - 2 Pair M\/FFF \u0026 F\/MMM","public_title":"2 Pair M\/FFF \u0026 F\/MMM","options":["2 Pair M\/FFF \u0026 F\/MMM"],"price":2599,"weight":185,"compare_at_price":null,"inventory_management":"shopify","barcode":"6938607465141","featured_media":{"alt":null,"id":34006810591448,"position":9,"preview_image":{"aspect_ratio":0.975,"height":1500,"width":1462,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/1_1800x1800_3b2c7fc9-091d-4fce-8aef-a969d44e678d.png?v=1715681684"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pay With Ease:

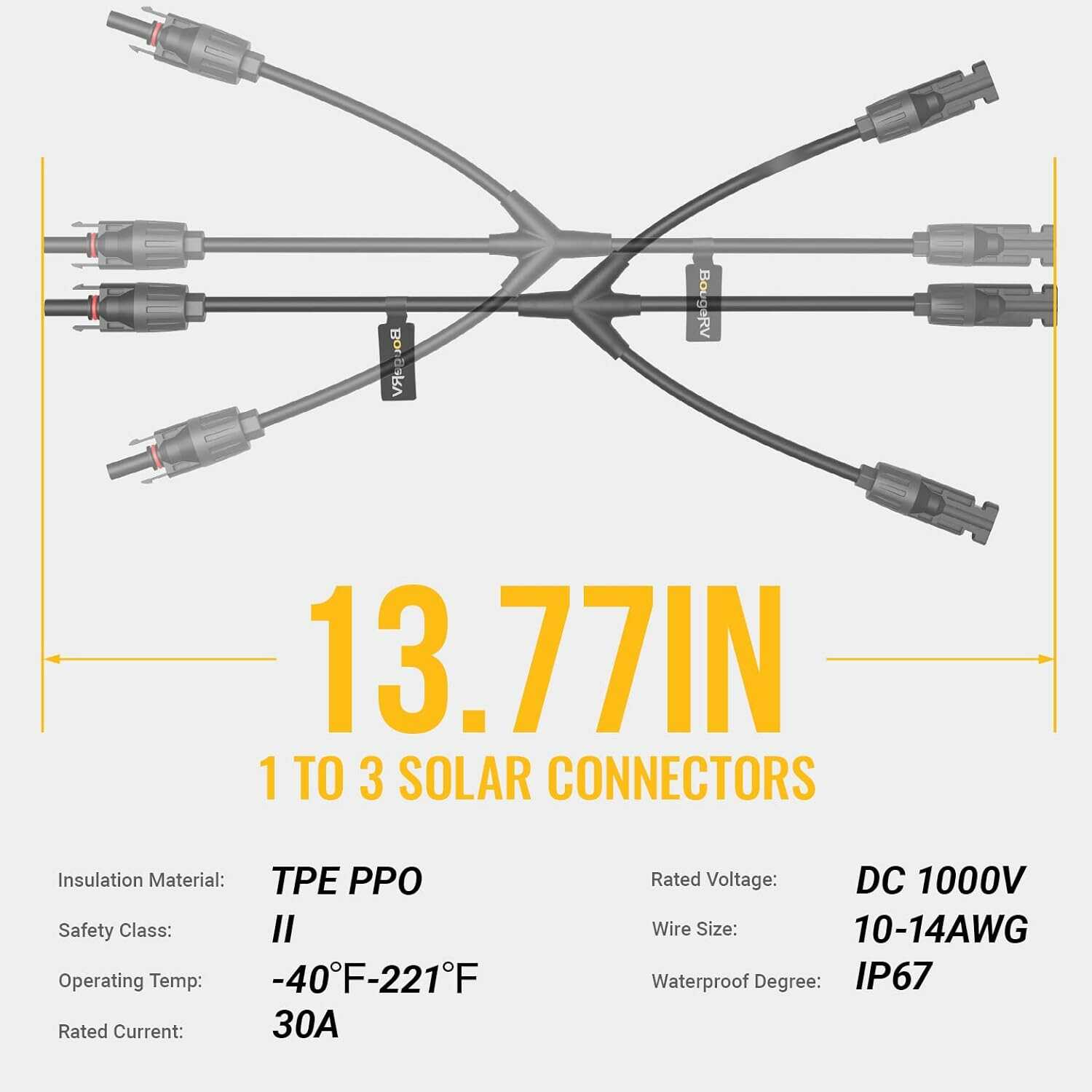

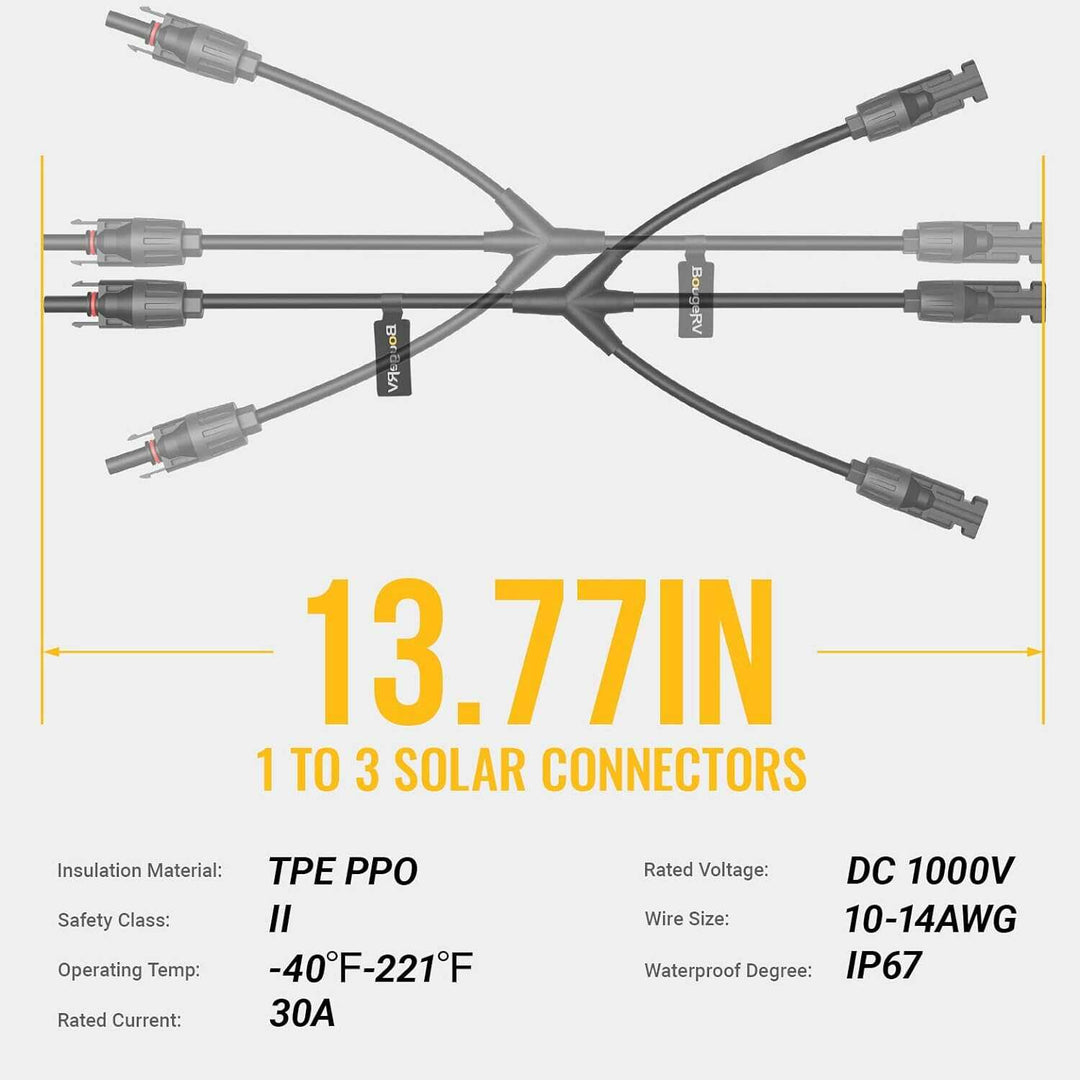

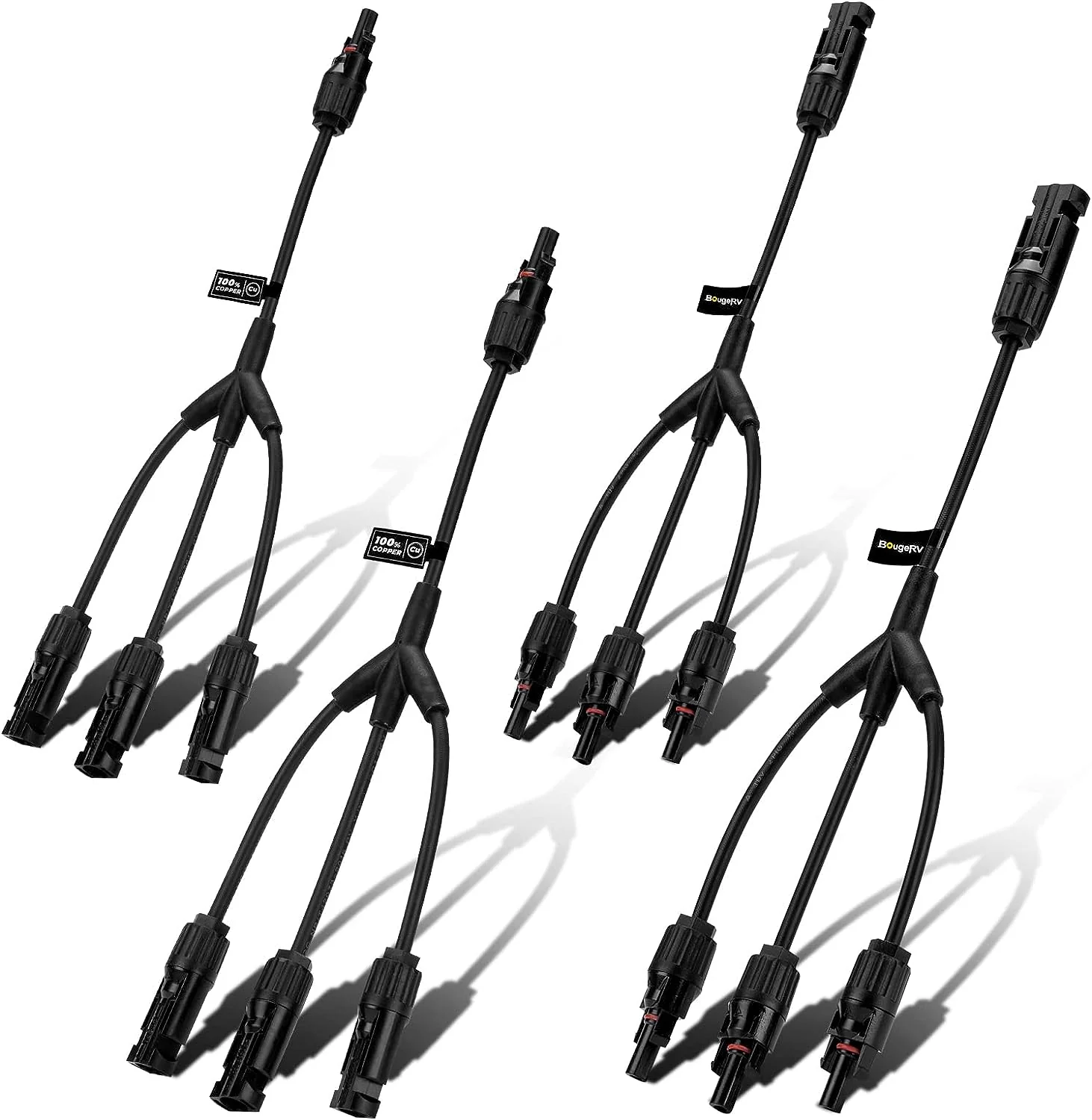

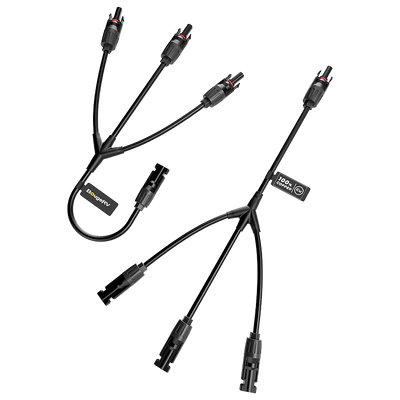

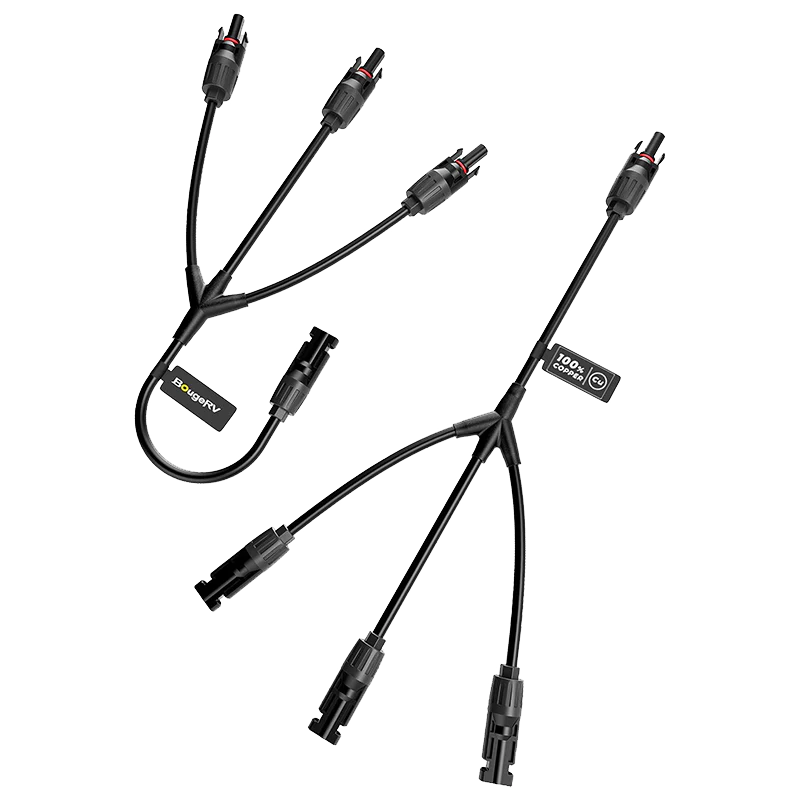

Y Branch parallel Connectors - 1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM), solar triple connector.

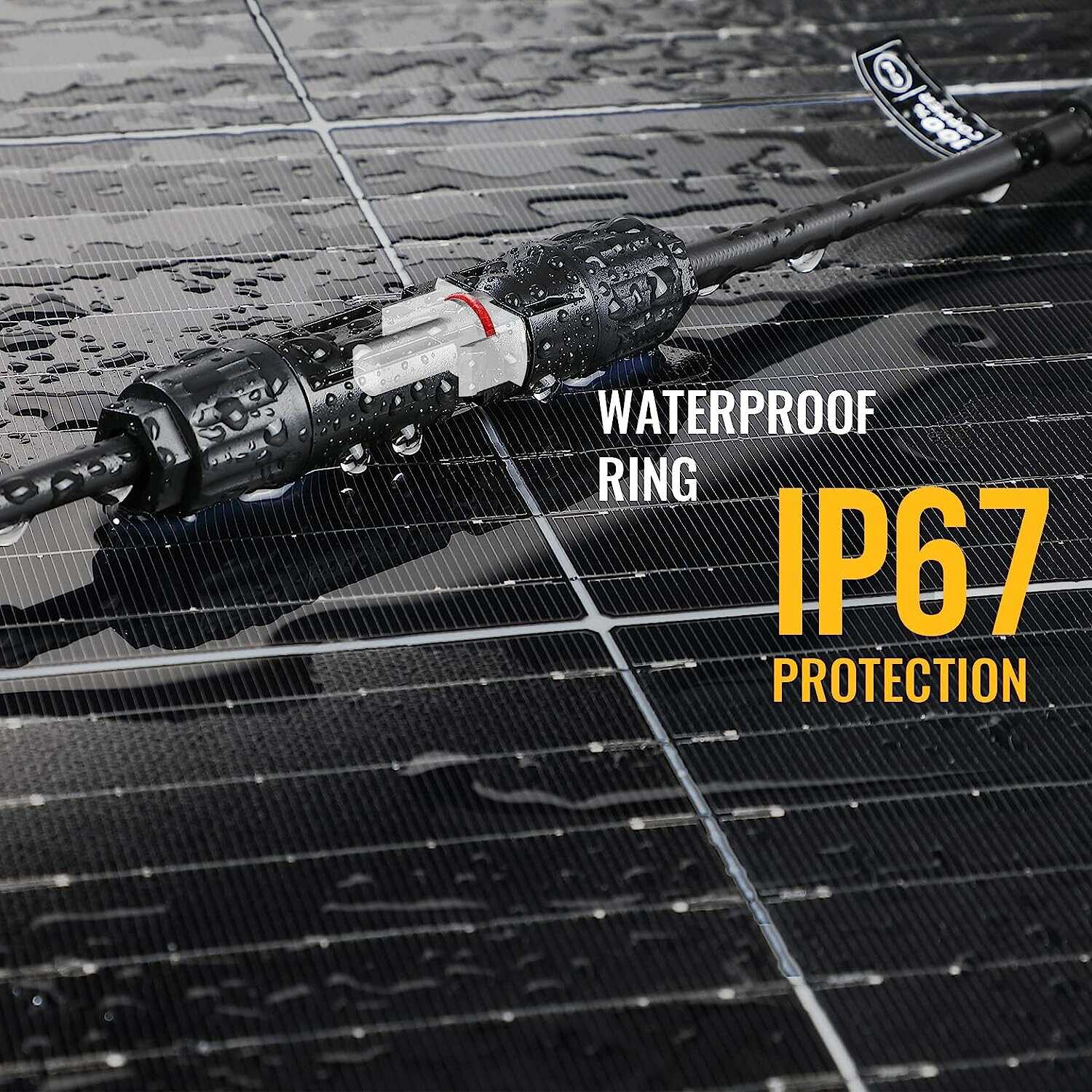

Double seal rings for a better waterproof effect. The solar panel connectors are compatible with PV cables with different insulation diameters (10-14 AWG). It can be used in harsh environments, such as rain, high-force winds, and snow.

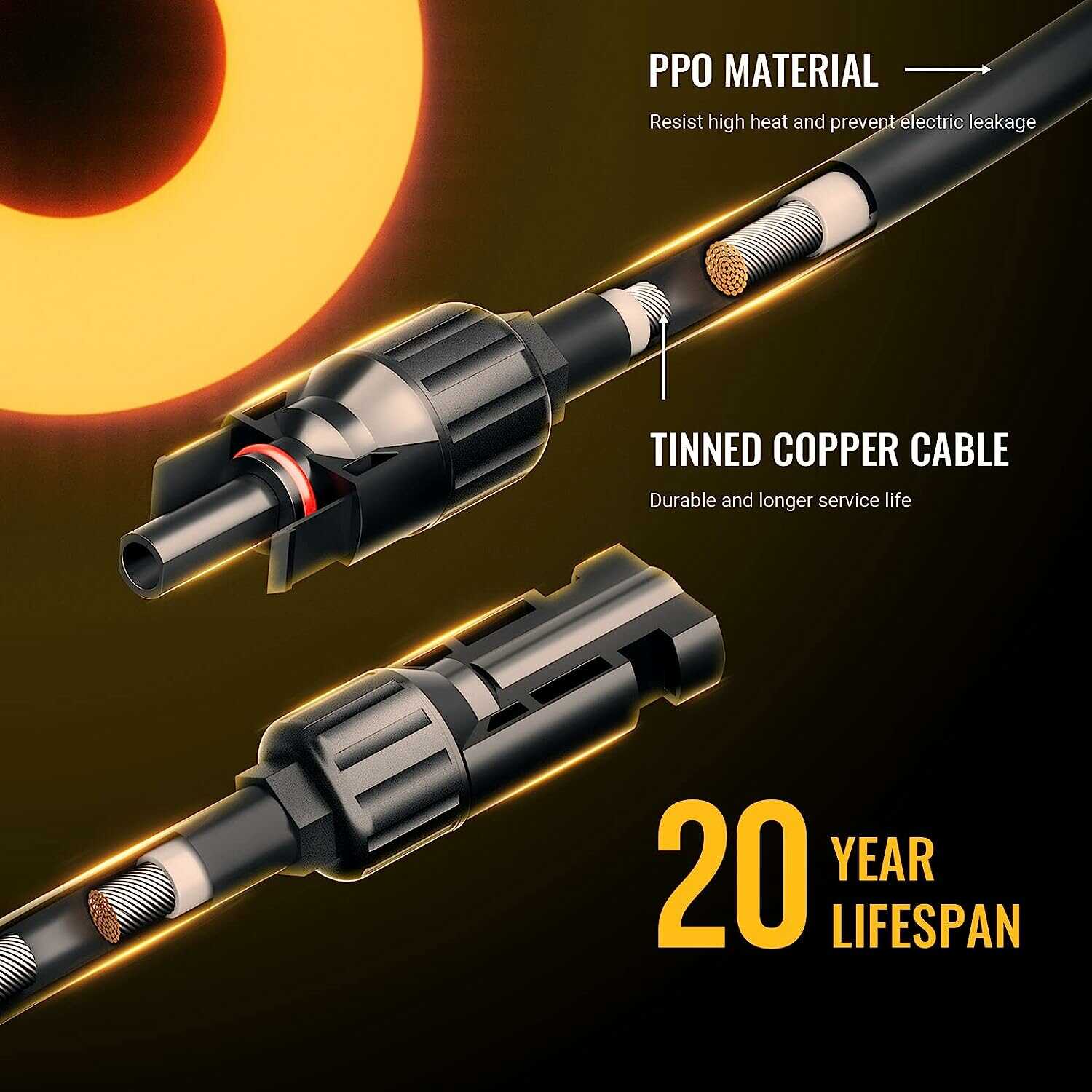

Excellent aging resistance and UV endurance. Sealed and dust-proof design. Load capability with big current and high voltage. Extra high & low temperature and fireproof resistance.

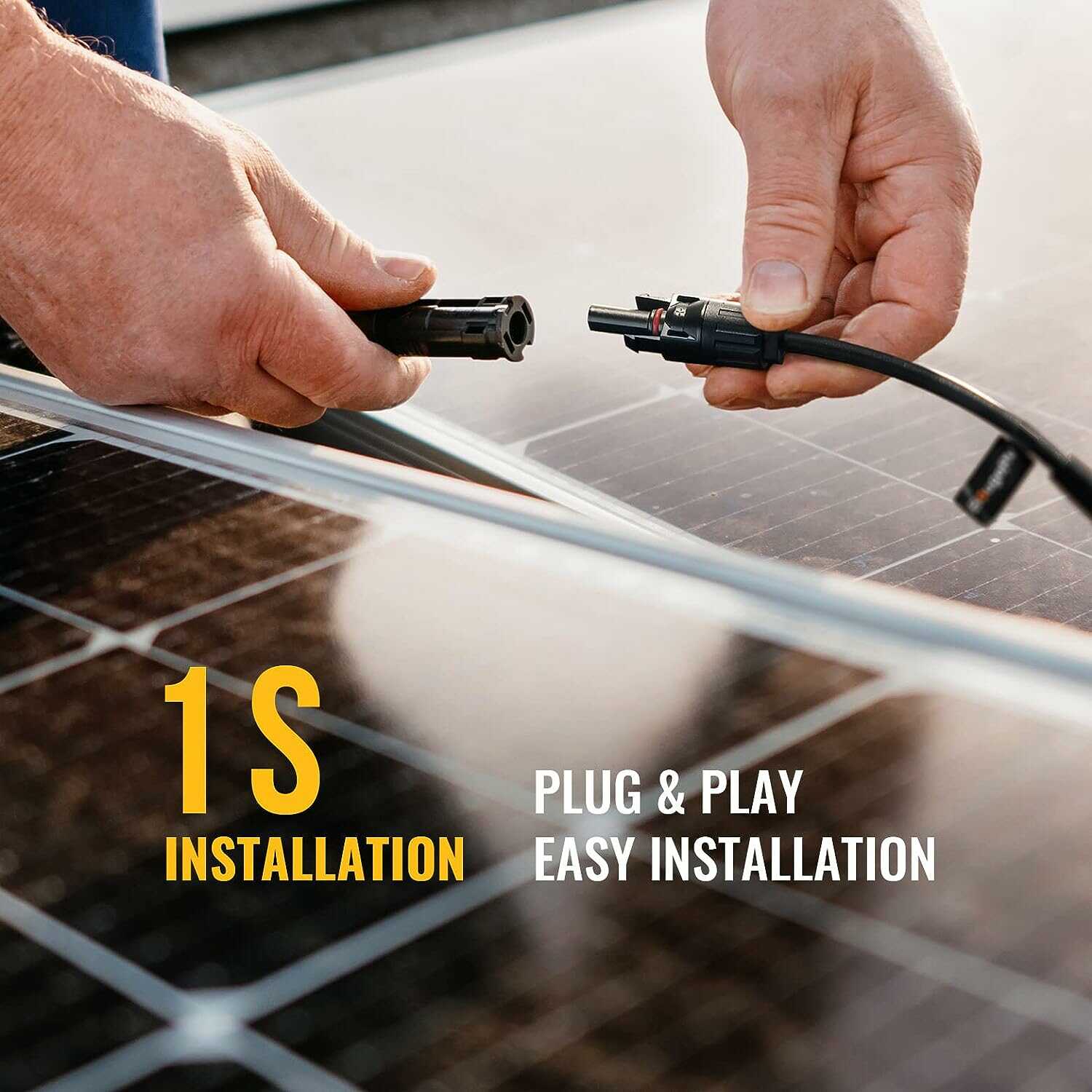

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instruments.
BougeRV provides an 18-month warranty and friendly customer service.

3 to 1 MC4 connectors good quality and 20 years life

SKU	ISE075

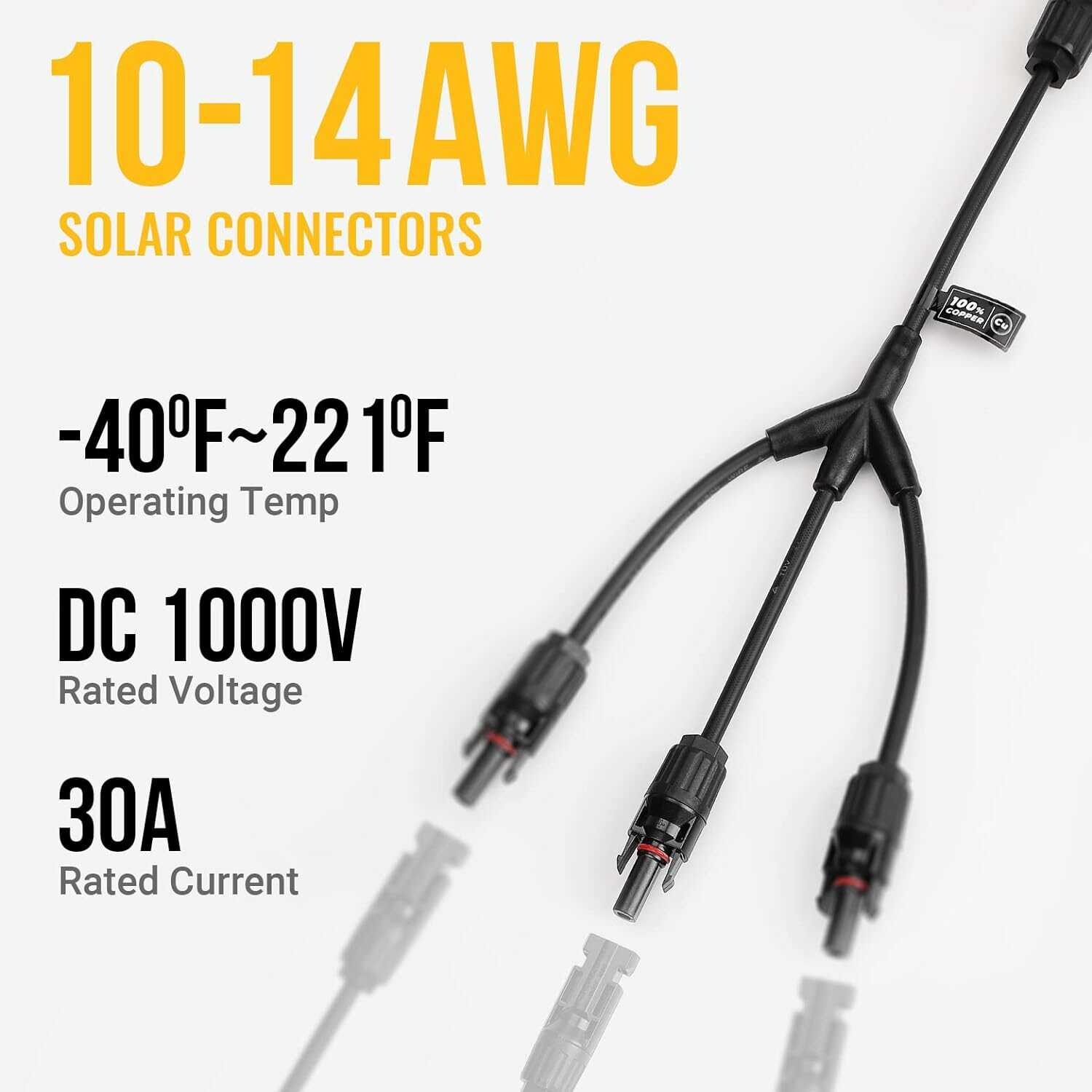

Rated Current	30A	Rated Voltage	DC1000V
Contact Resistance	≤5mΩ	Insulation Resistance	>500mΩ
Operating Temperature range	-40℉ until+194℉	Degree of Protection	IP67
Flame Class	UL94-V0	Safety Degree	Ⅱ
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

SKU	ISE075
Rated Current	30A
Contact Resistance	≤5mΩ
Operating Temperature range	-40℉ until+194℉
Flame Class	UL94-V0
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
Rated Voltage	DC1000V
Insulation Resistance	>500mΩ
Degree of Protection	IP67
Safety Degree	Ⅱ
