BougeRV 400W 12V Arch Pro Solar System Kit

For Travel Trailer For ClassB 400 watt Off-Grid Power Cabin Power Solution

Spring Refresh Sale

Save $390.00
$1,419.99

Clear the Shade 🧹 | Power Up This Spring

$1,809.99
/

The ArchPro 400W Solar Kit is a complete off-grid power solution designed for RVs, campers, cabins, and backup power needs. Built around high-efficiency N-Type TOPCon flexible solar technology, this system delivers reliable energy generation, storage, and conversion in one integrated setup. It is designed for easy installation and strong compatibility across common off-grid setups, making it simple to get started even for first-time users.

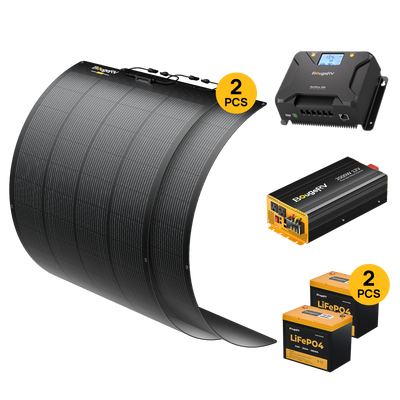

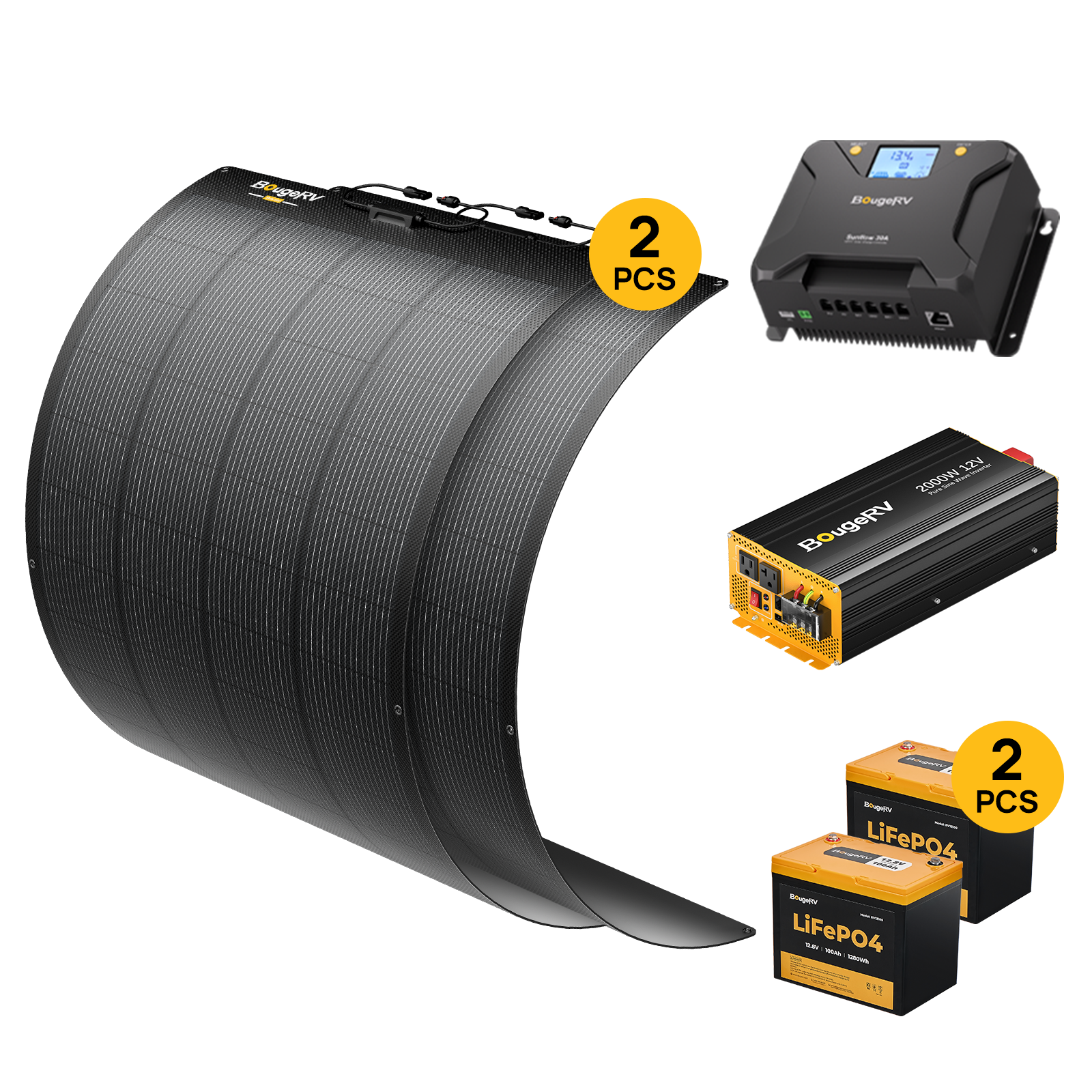

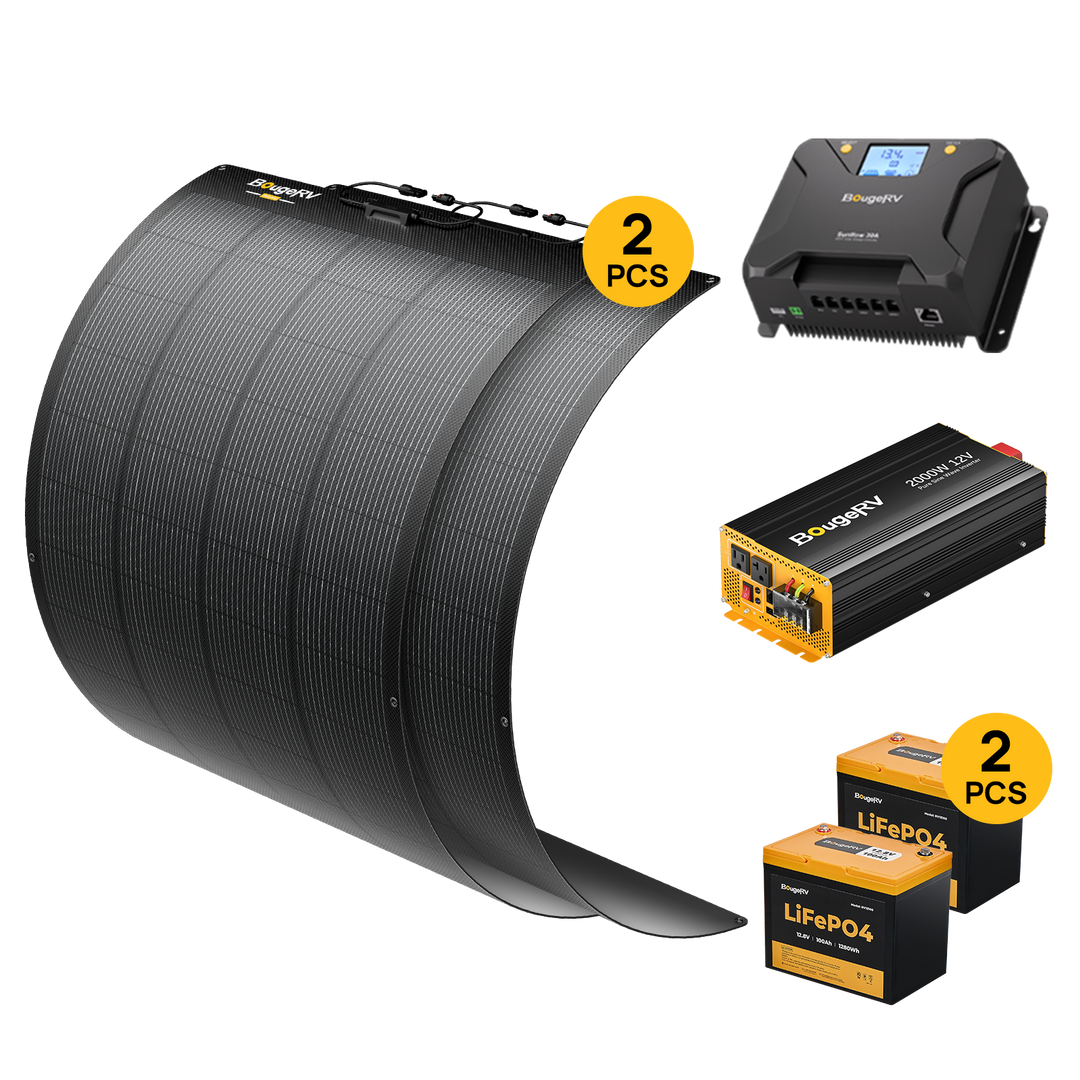

The kit includes two 200W Arch Pro flexible solar panels, a 40A MPPT solar charge controller, two 12V 100Ah LiFePO4 batteries, and a 2000W pure sine wave inverter with Bluetooth monitoring. Together, they form a fully coordinated solar power system that efficiently captures sunlight, stores energy, and provides sufficient power for everyday outdoor use, including lighting, devices, and small appliances during camping or travel.

Engineered for real-world outdoor use, the system supports stable performance across varying conditions while maintaining long-lasting battery life and intelligent energy management. From charging devices to running essential electronics, the ArchPro 400W kit delivers dependable off-grid energy independence wherever you go.

Read more » Fold up »
Bundle Option
15

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews

How Much Can a Solar Kit Power?

Choosing the right solar kit depends on your energy needs, appliance usage, and daily sunlight conditions. From lightweight setups to full off-grid systems, understanding wattage and runtime helps you build a more efficient and reliable solar solution.

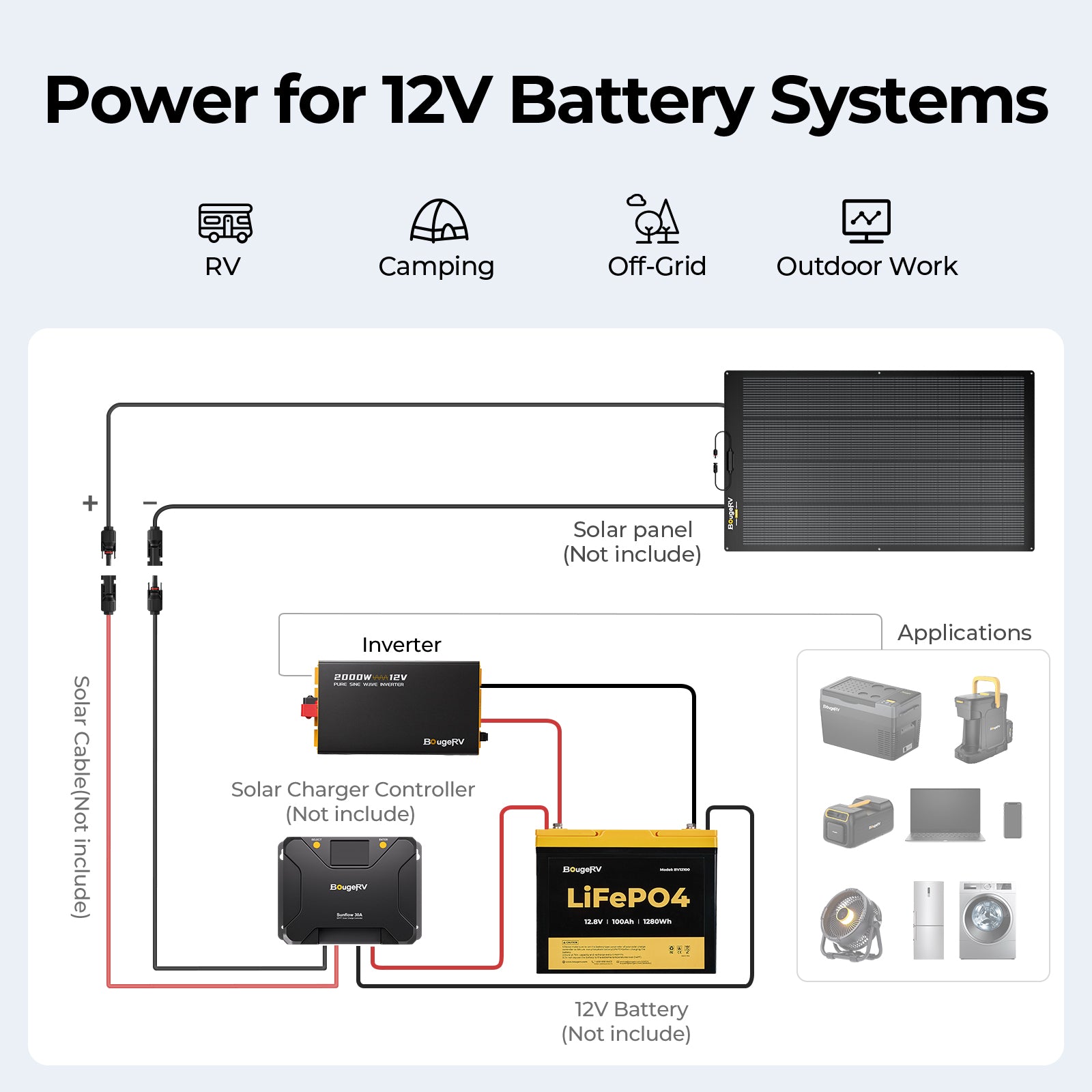

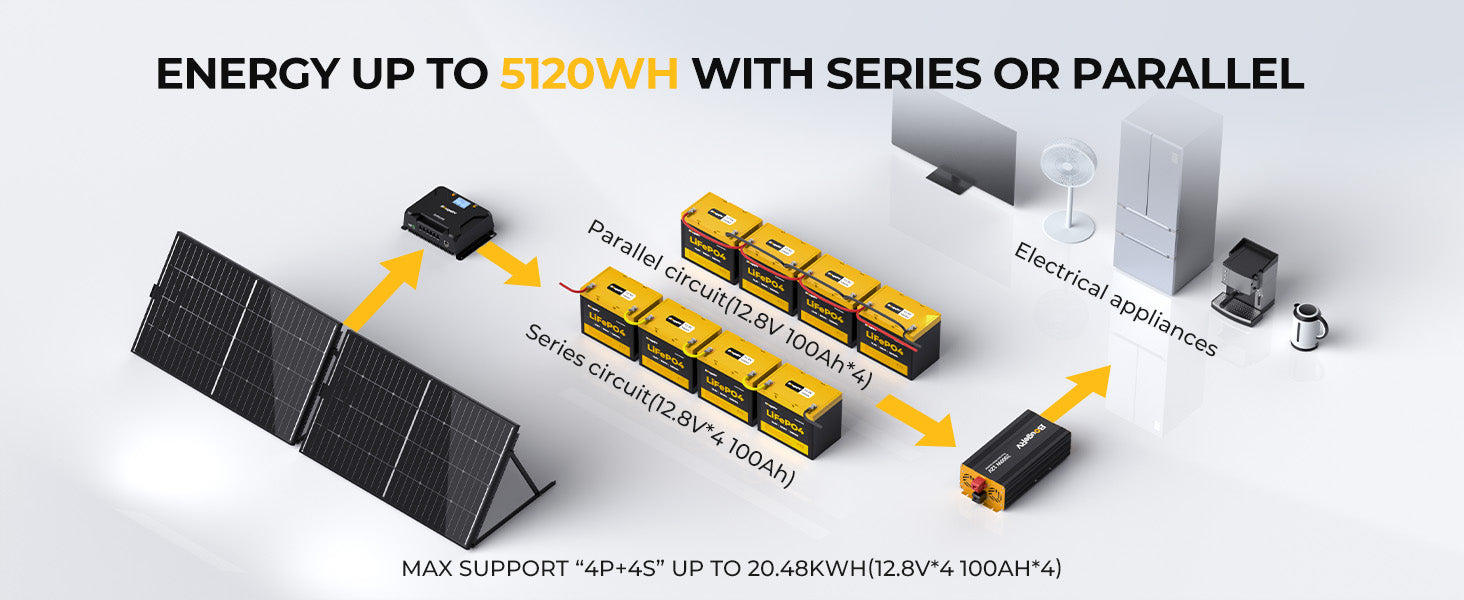

Step-by-Step Solar System Setup

Follow a clear step-by-step connection process—from solar panels to controller, battery, and inverter—to safely generate and use power. Designed for easy integration and smooth installation.

Features

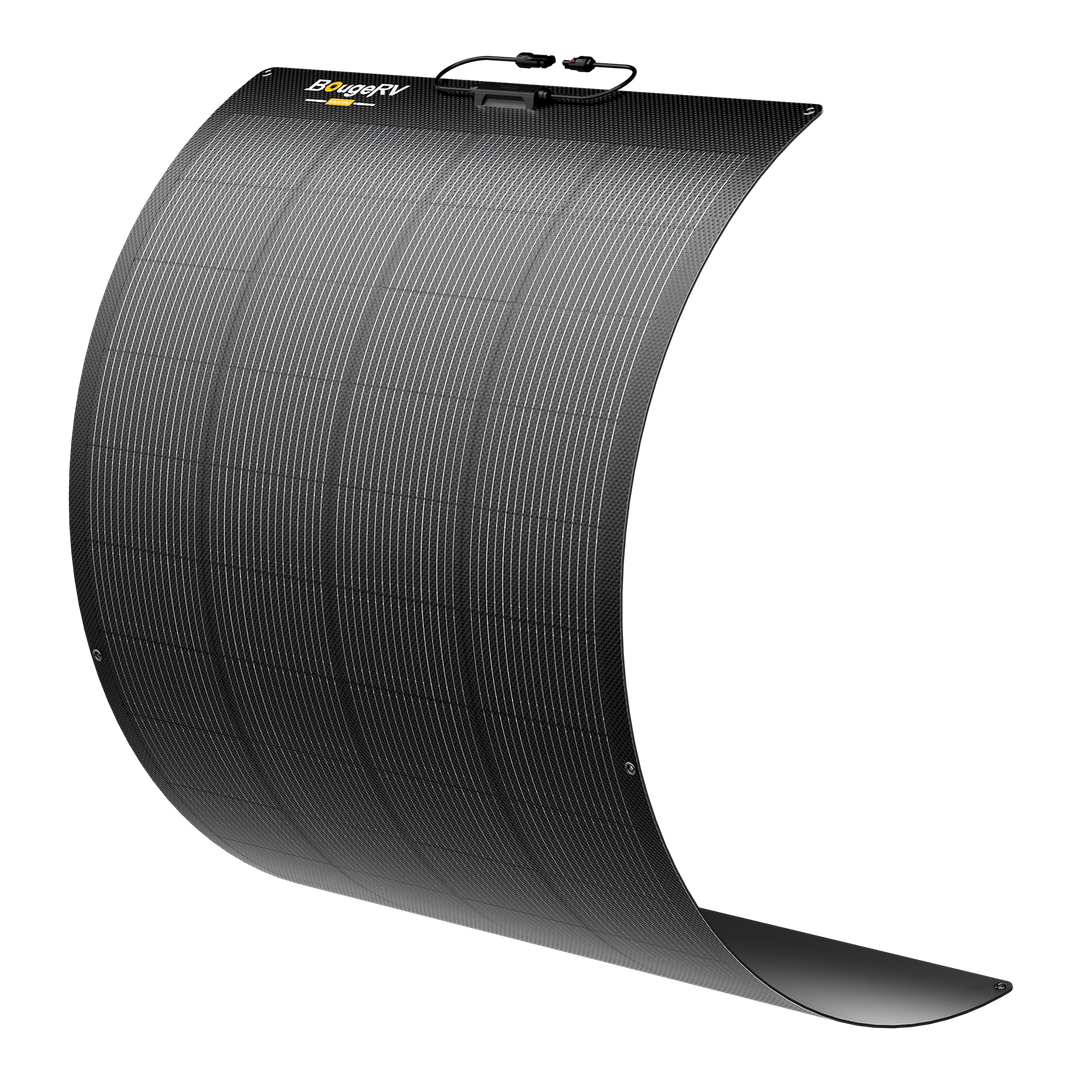

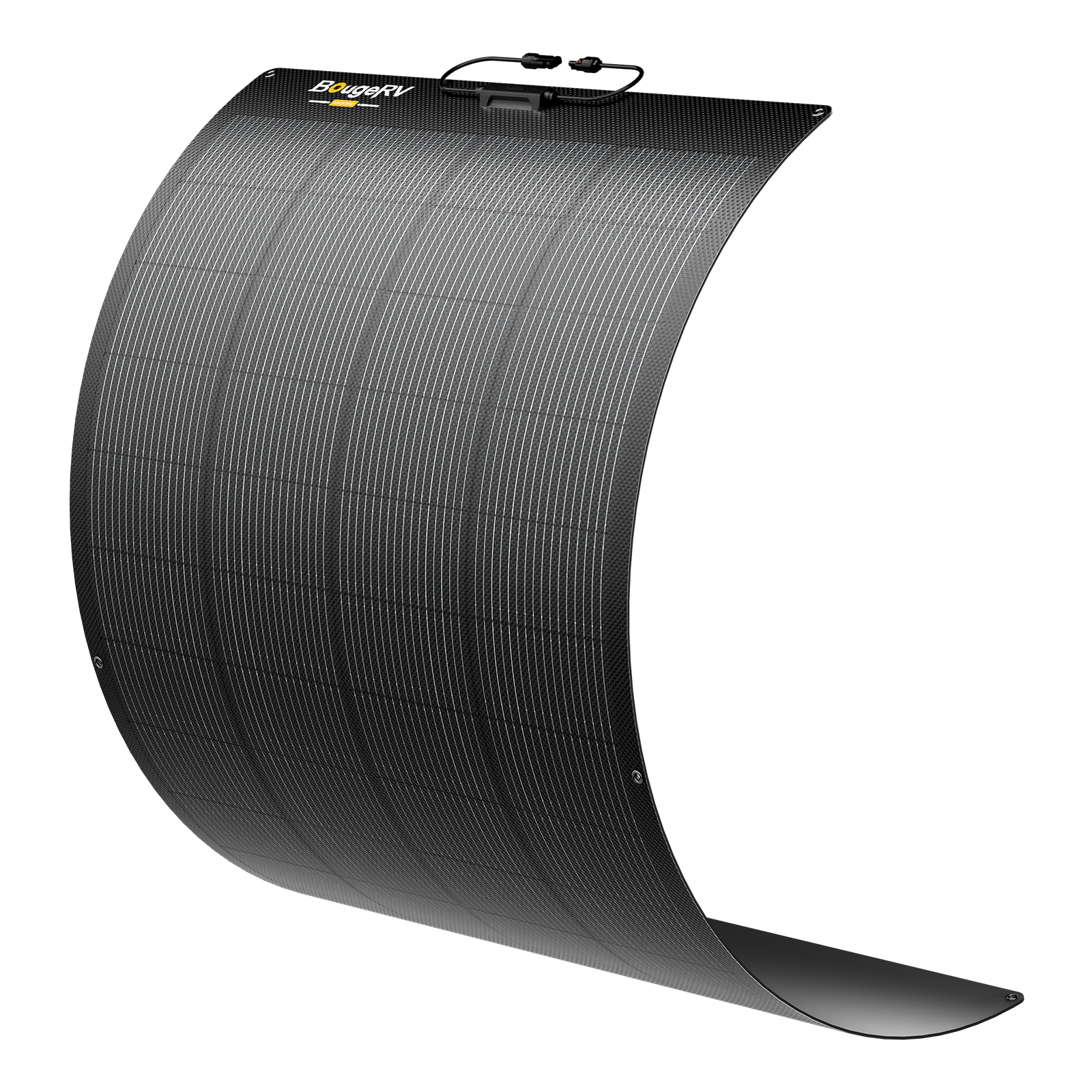

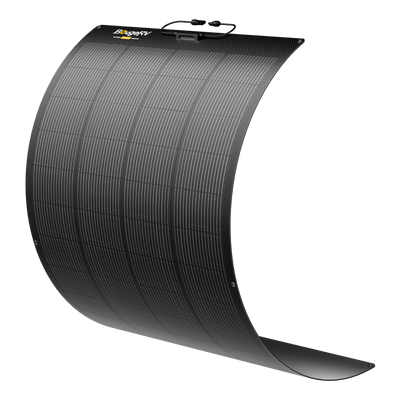

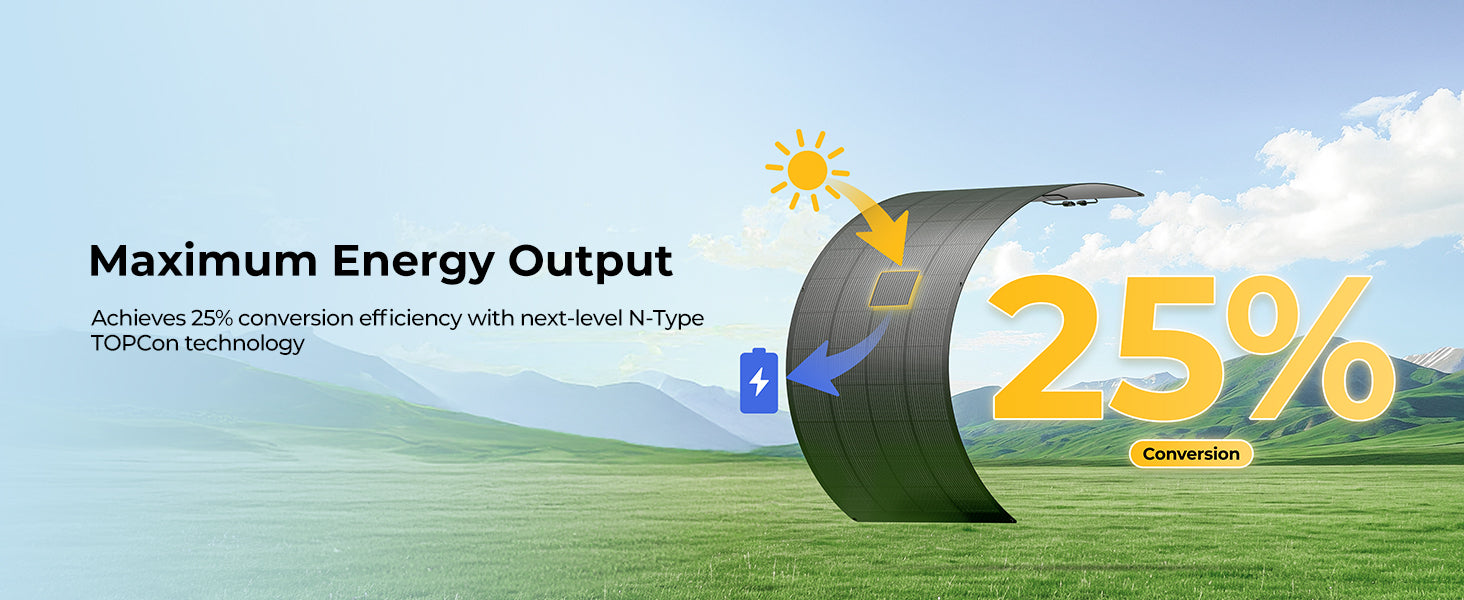

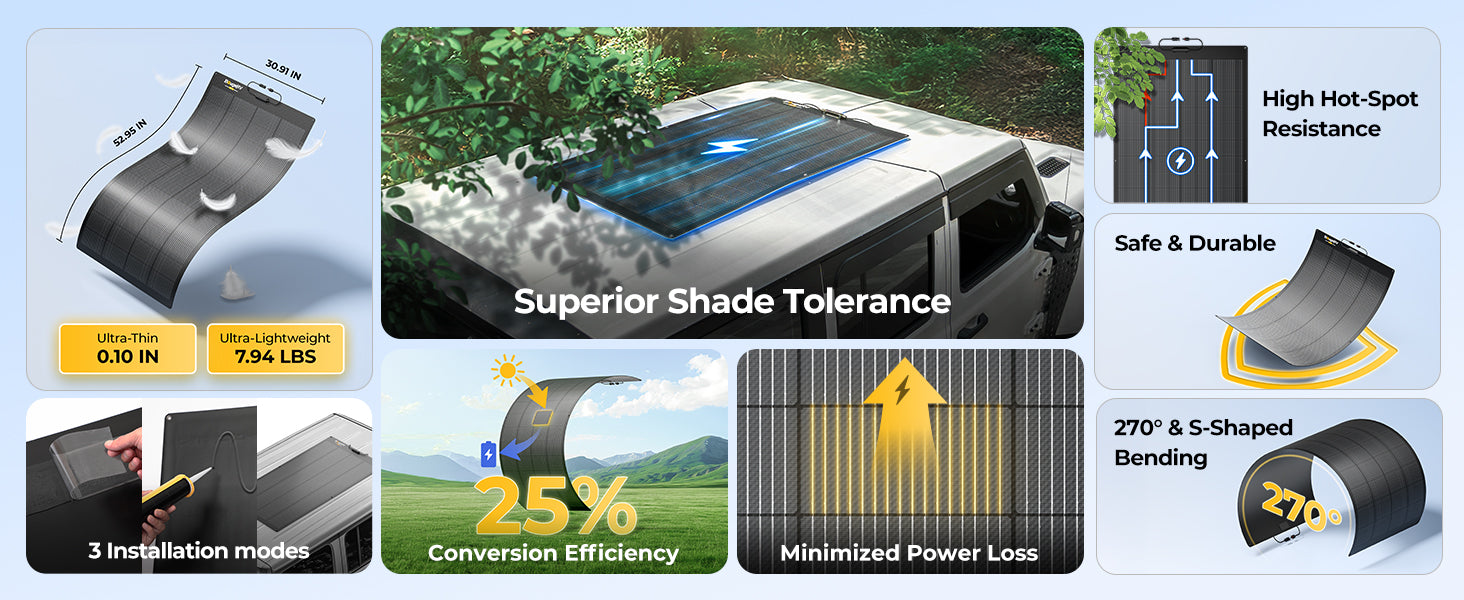

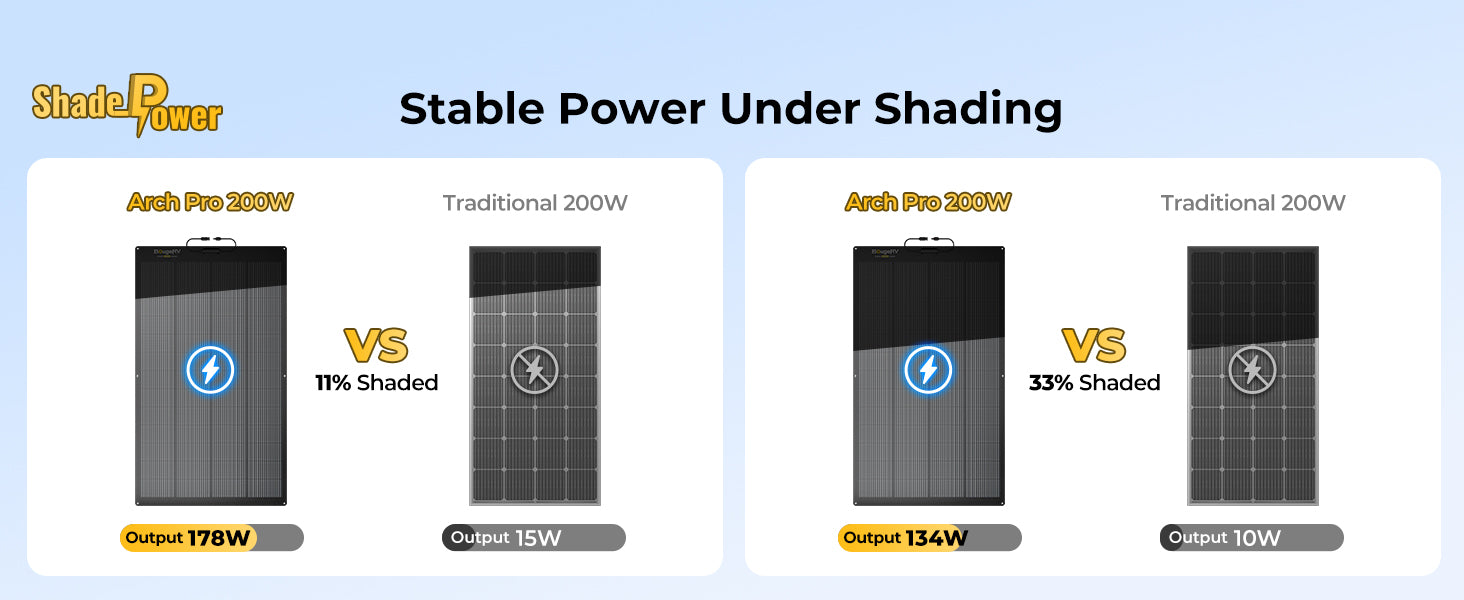

BougeRV Arch Pro 200W N-Type TOPCon Flexible Solar Panel (12V/24V Compatible)

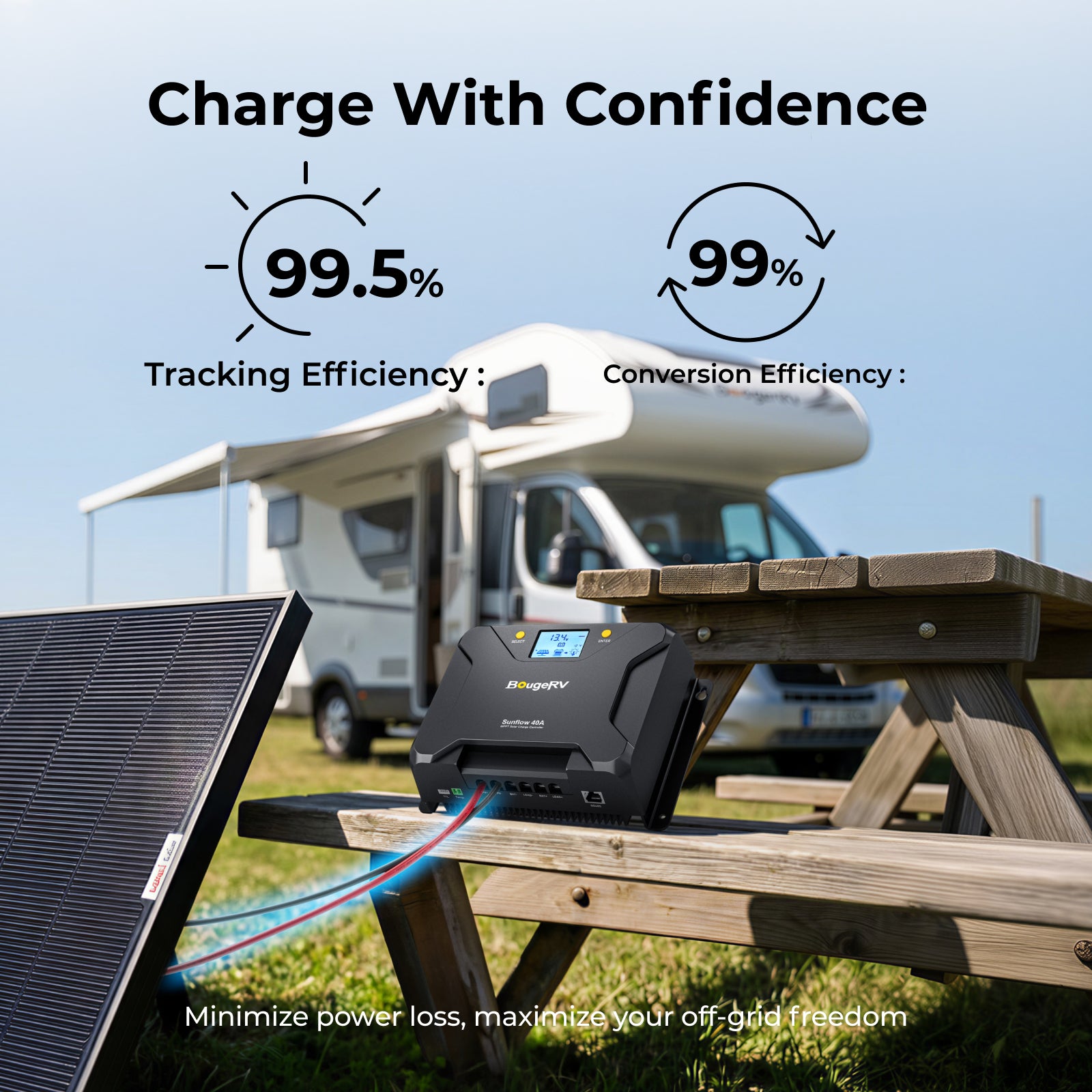

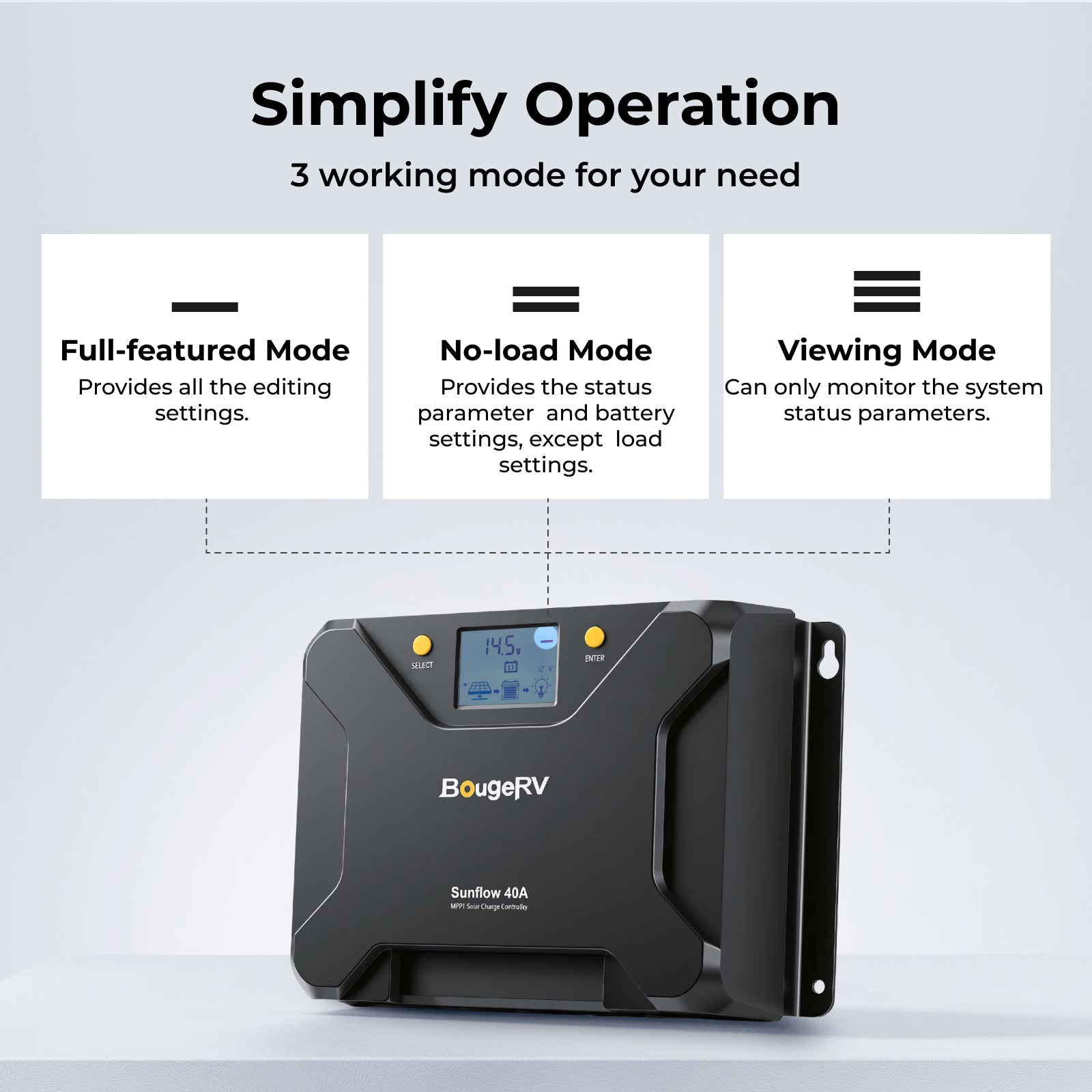

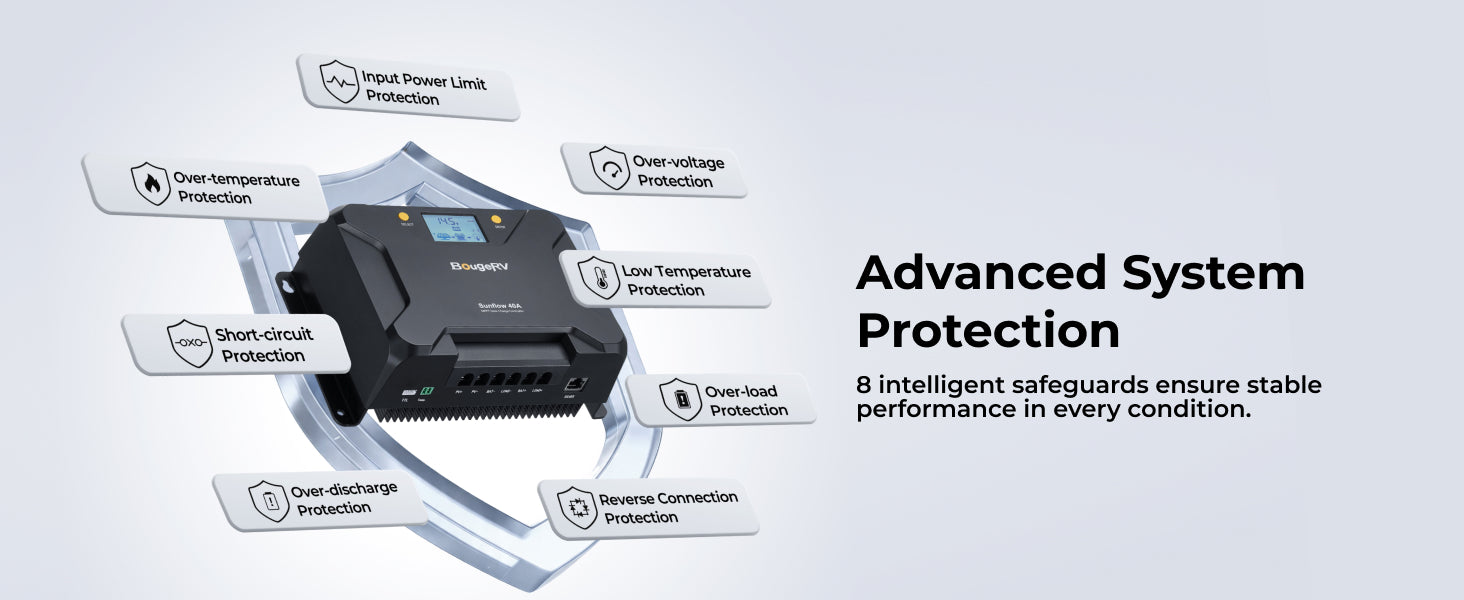

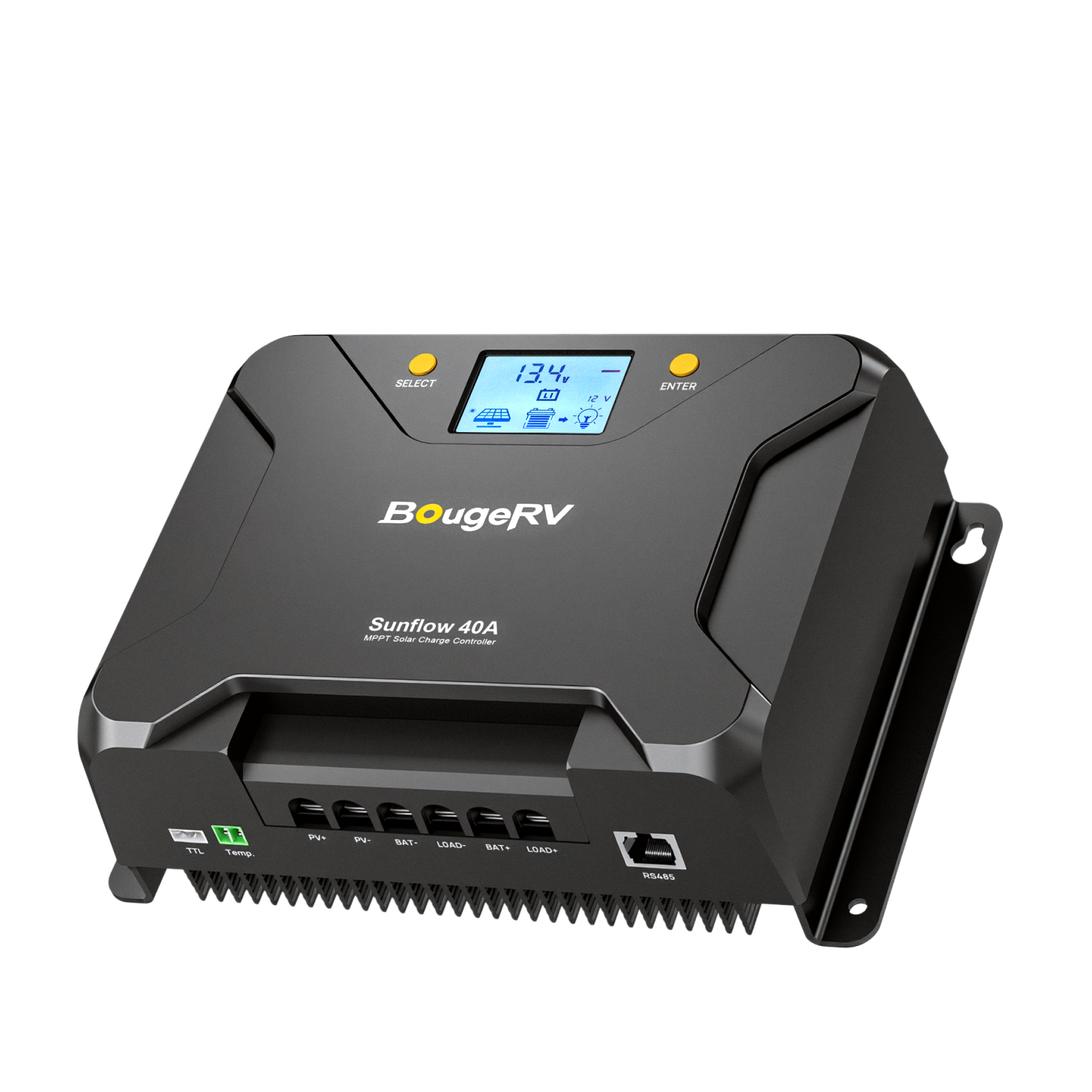

BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V

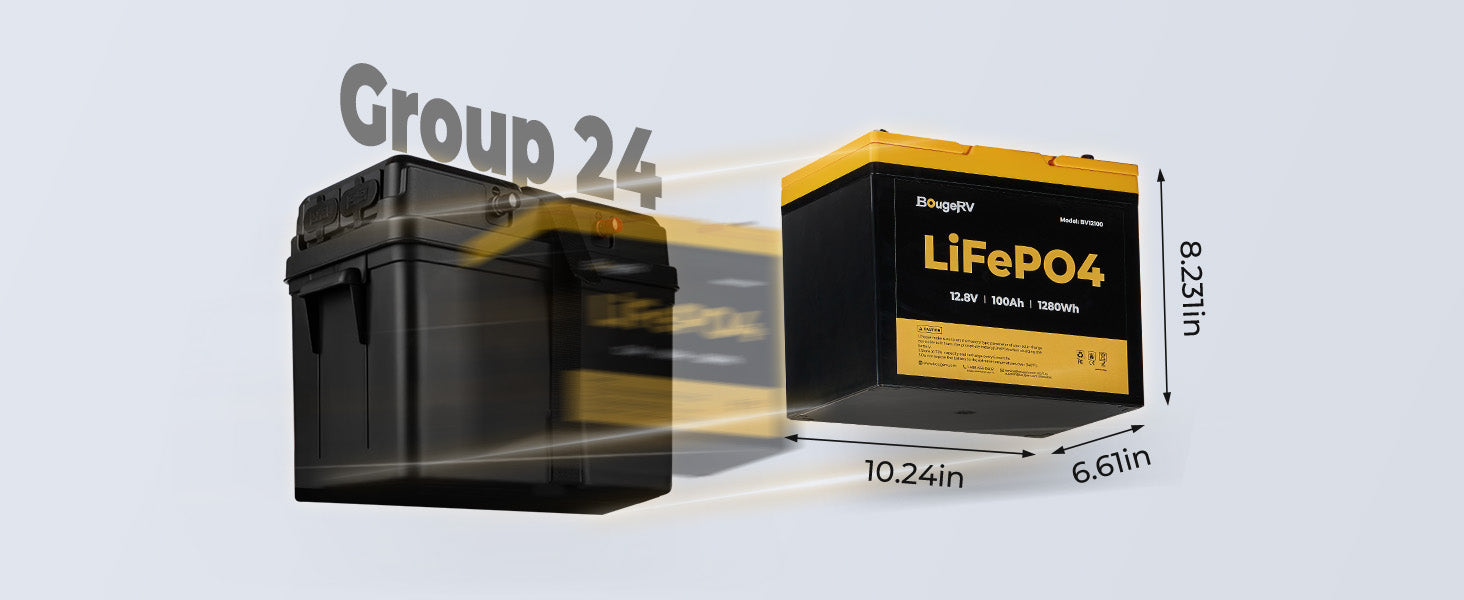

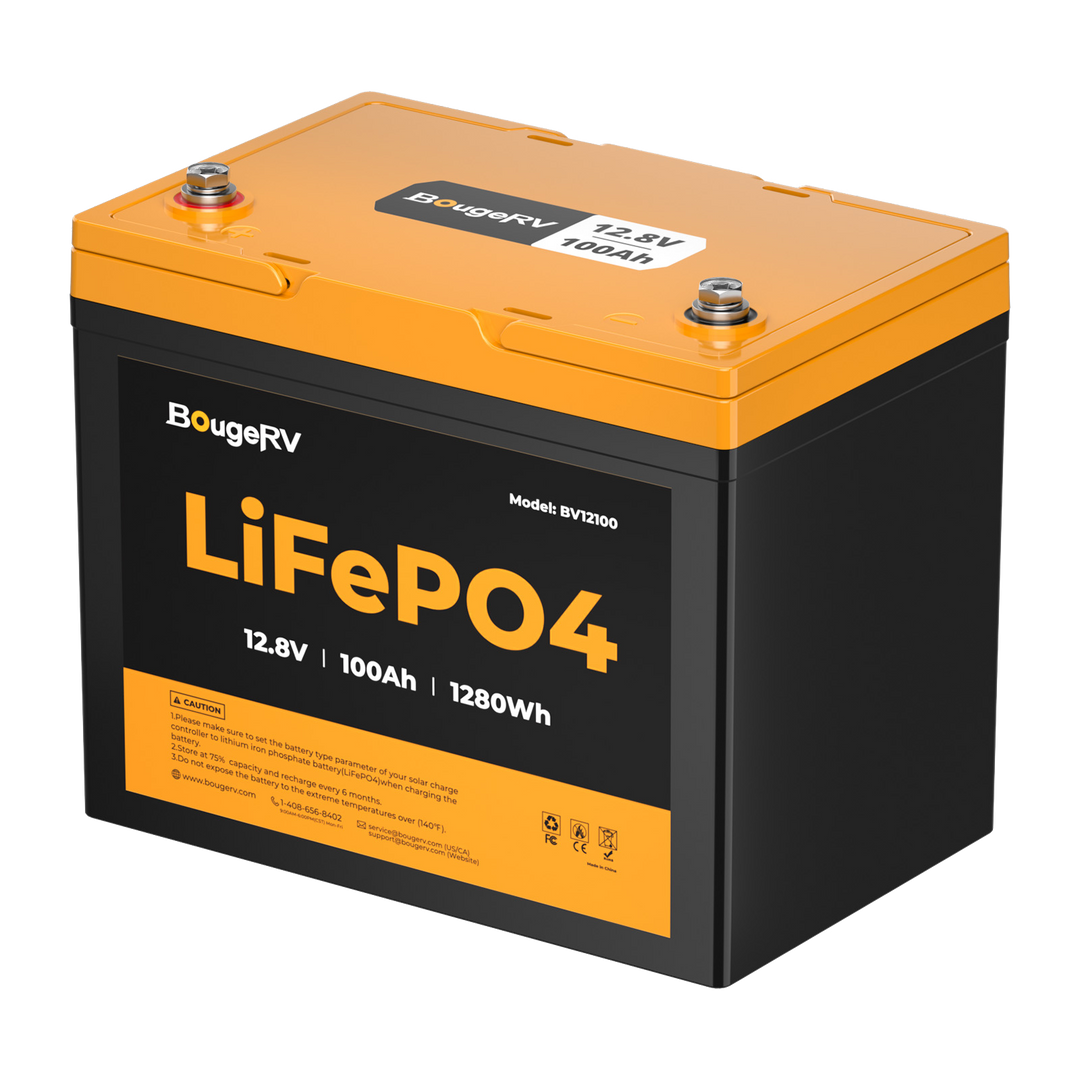

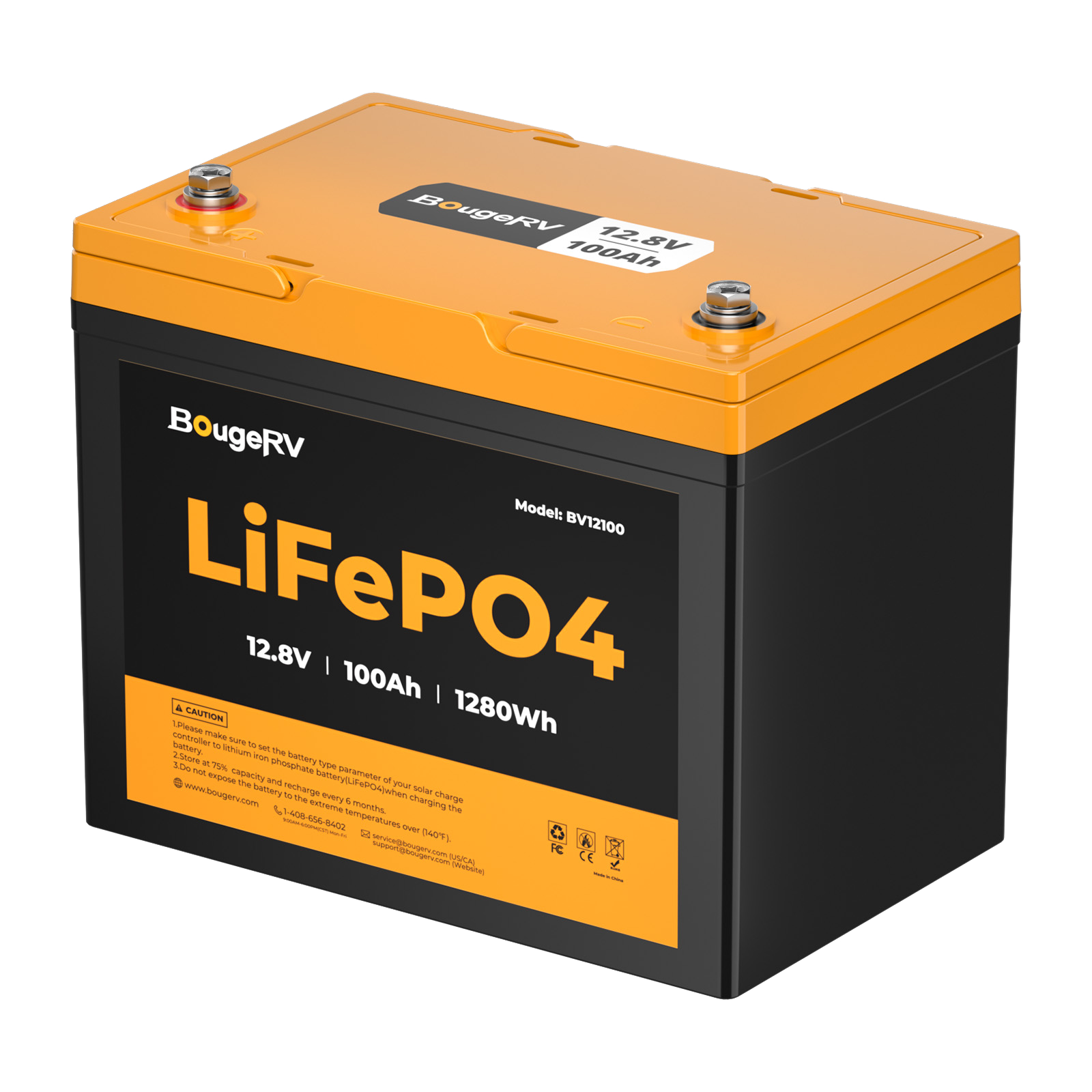

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

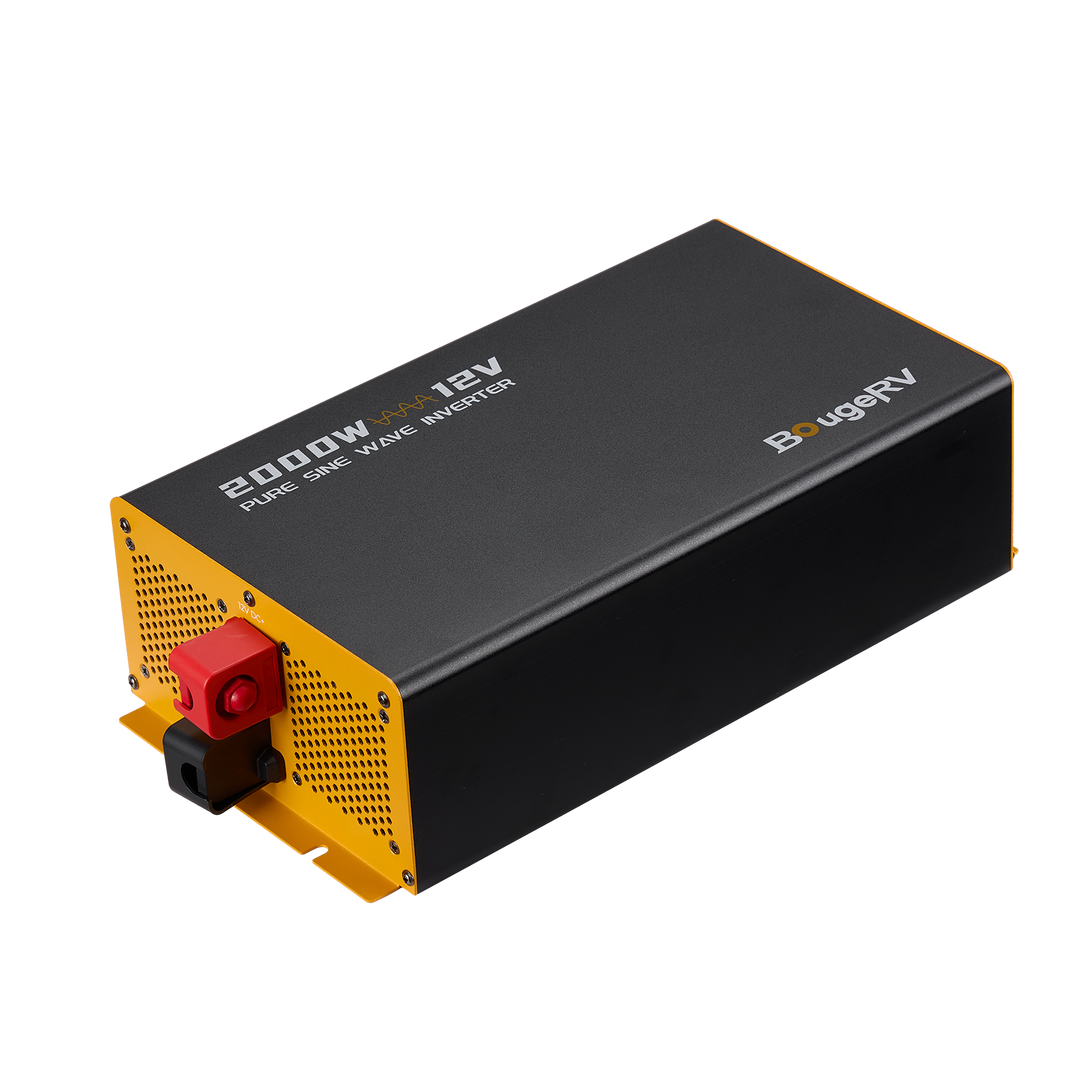

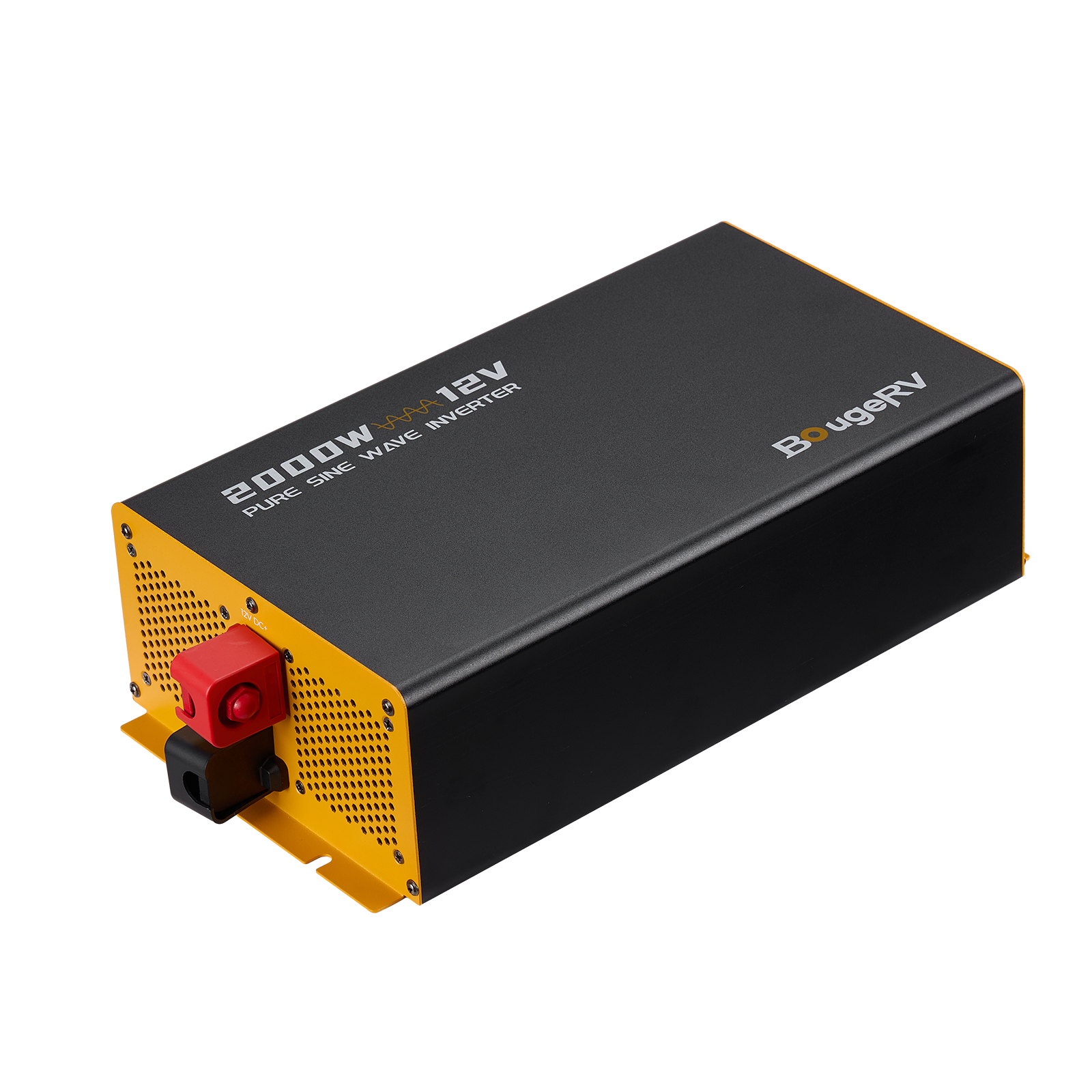

BougeRV 2000W 12V Pure Sine Wave Inverter

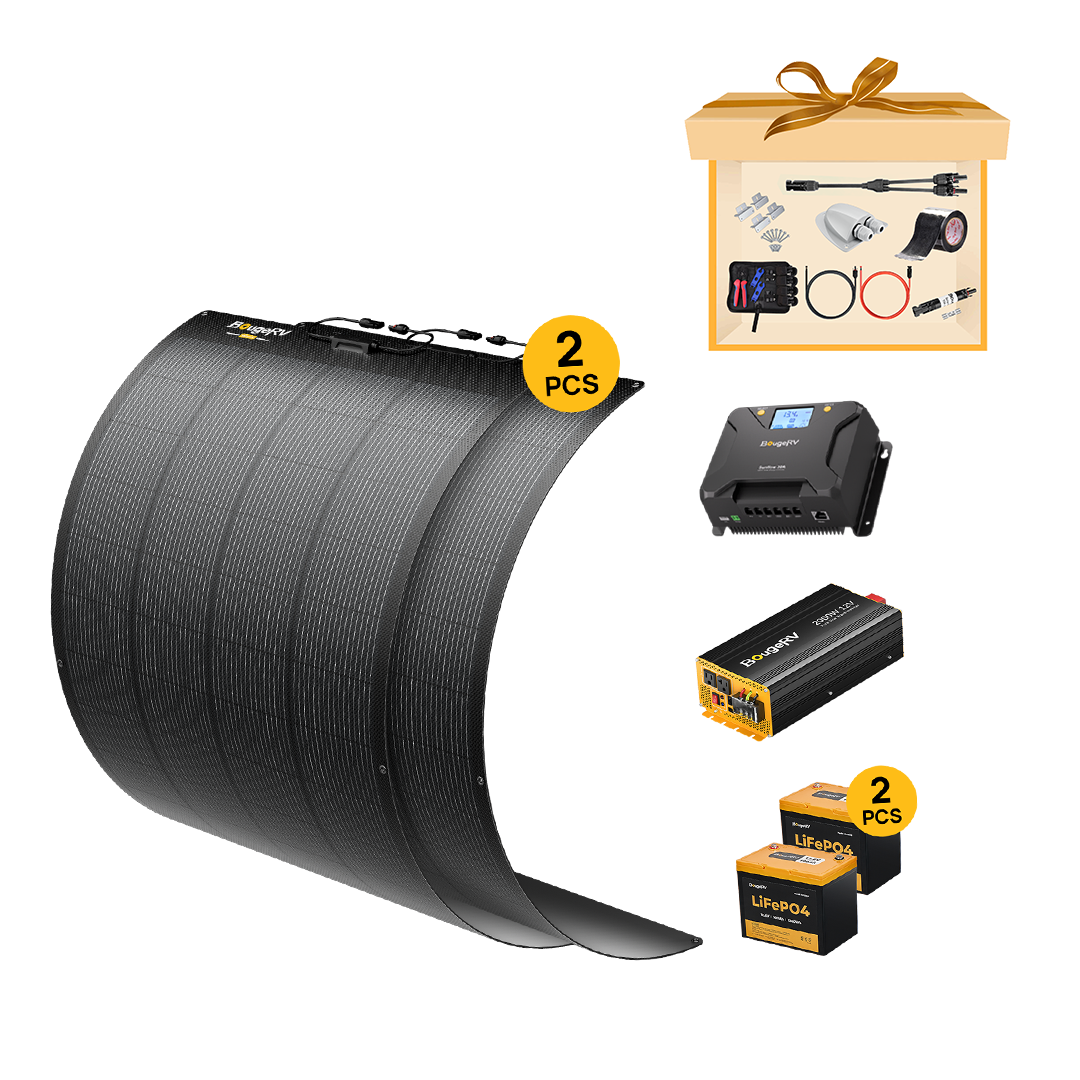

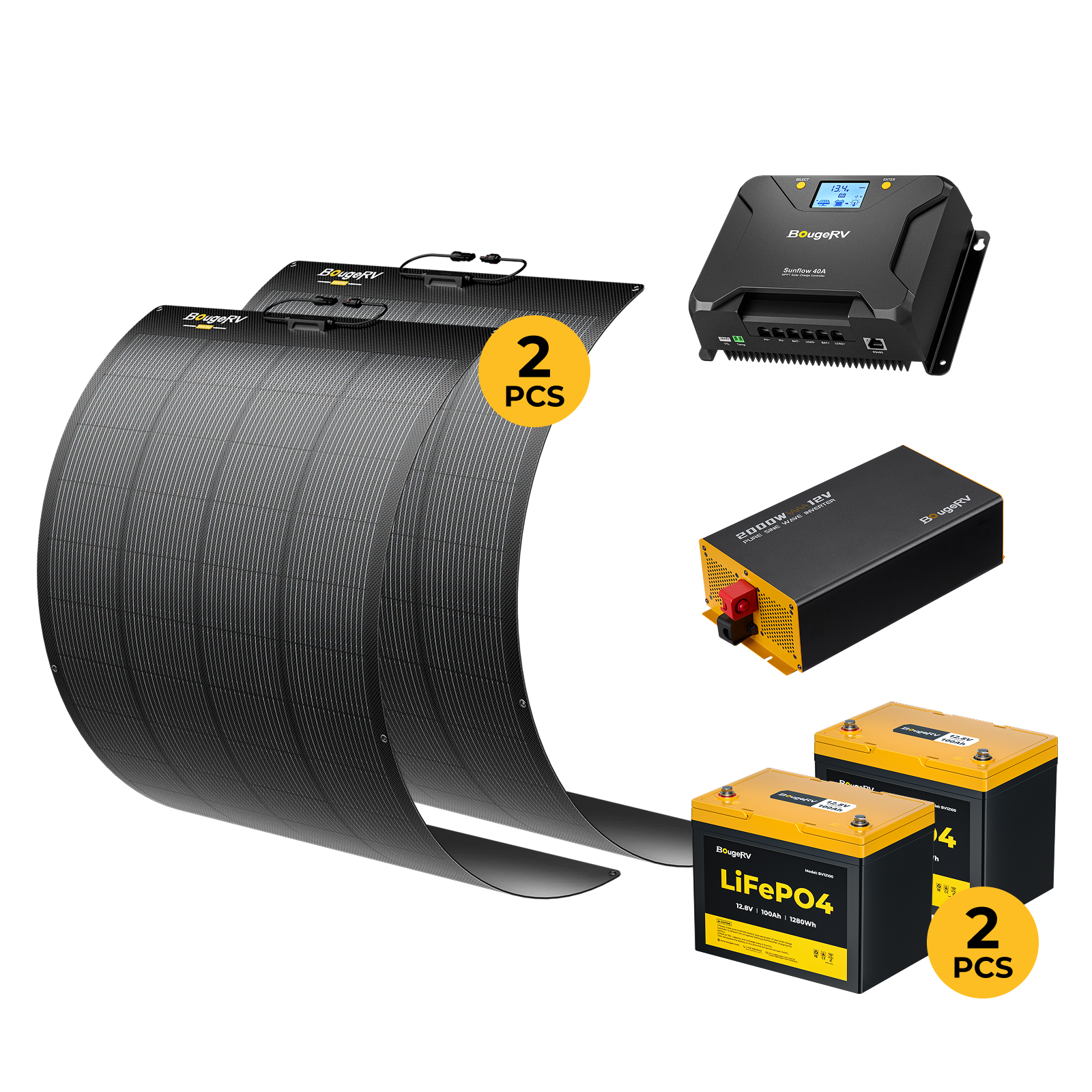

What's in the Box

SP004*2

👉User Manual

ISE218-BK

👉User Manual

ISE212N*2

👉User Manual

SI001-BK-LYTYB1

👉User Manual

Product Specifications

SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K

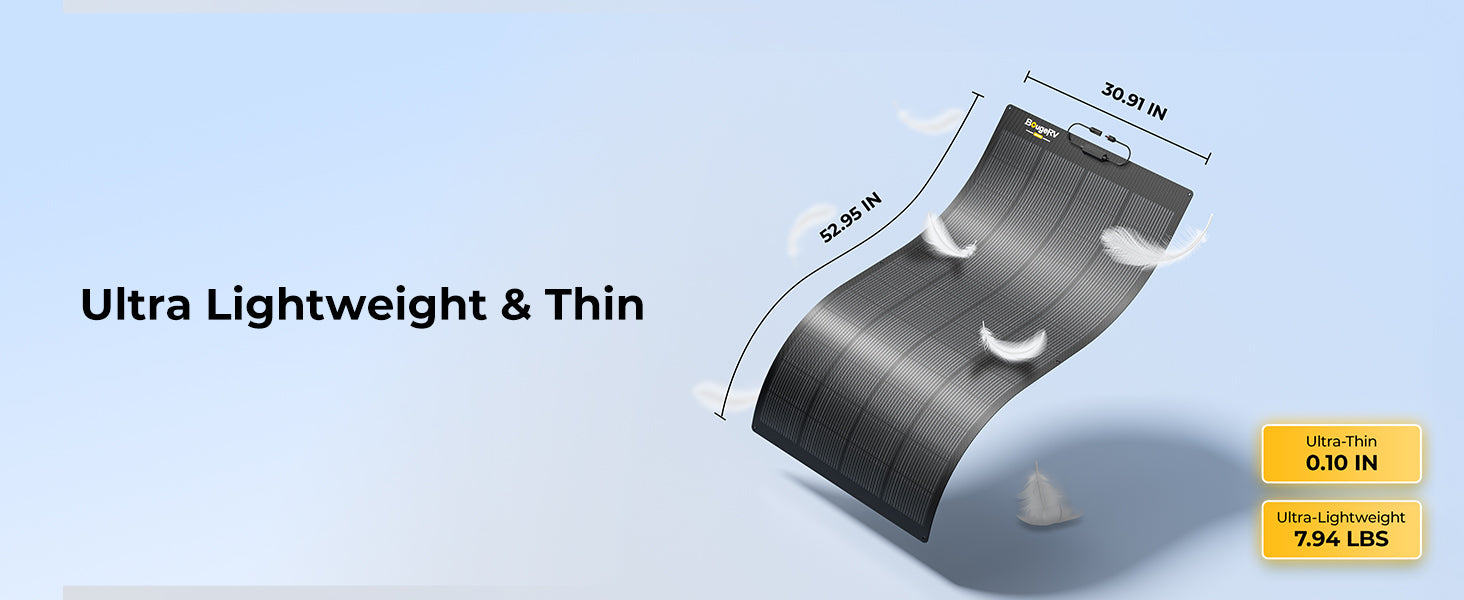

Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 31.1±5%V
Max. Power Current Imp (A) 6.43±5%A
Open Circuit Voltage Voc (V) 36.4±5%V
Short Circuit Current (Isc) 6.7±5%A
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K

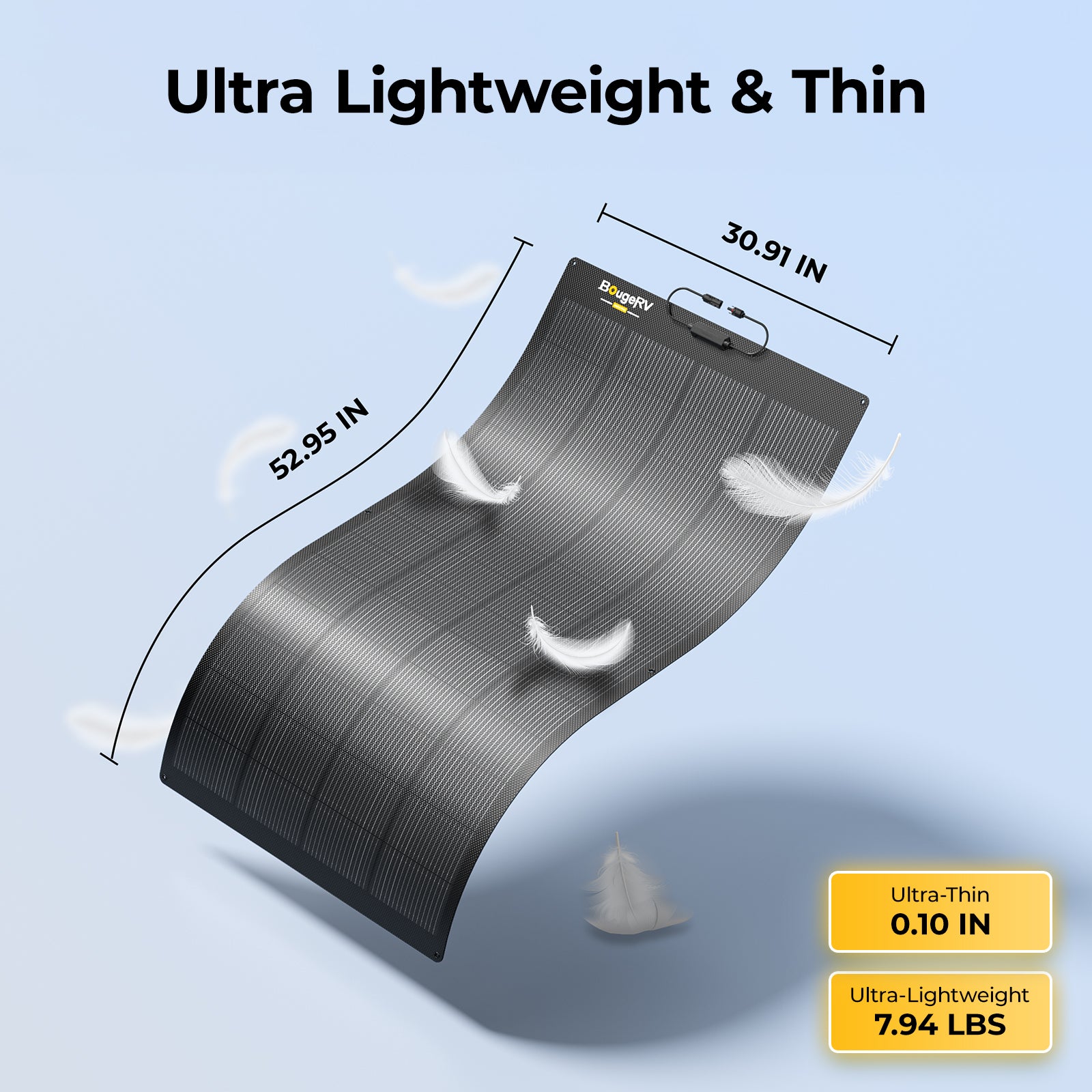

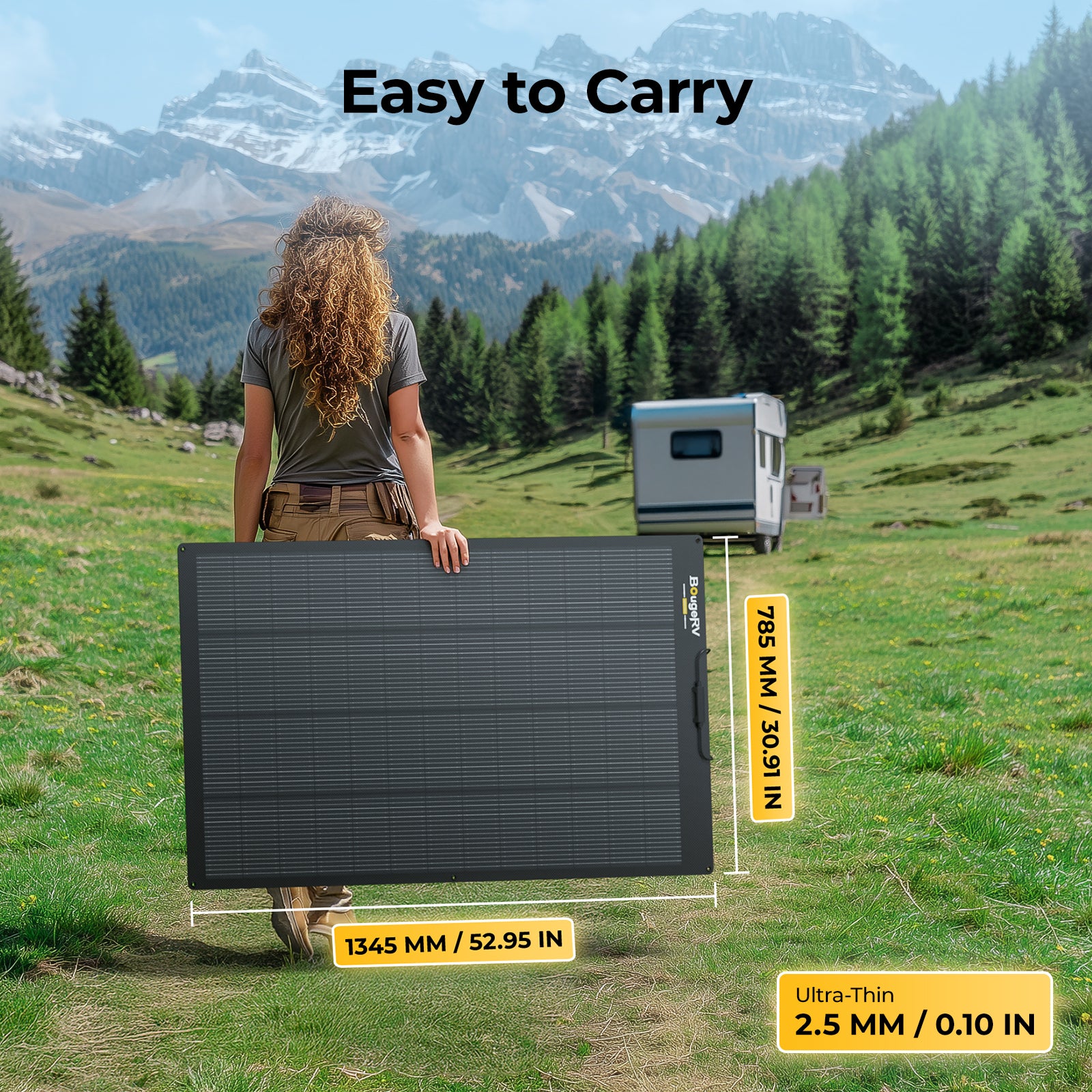

Dimensions 53*31*0.1inches
Weight 7.9 lbs

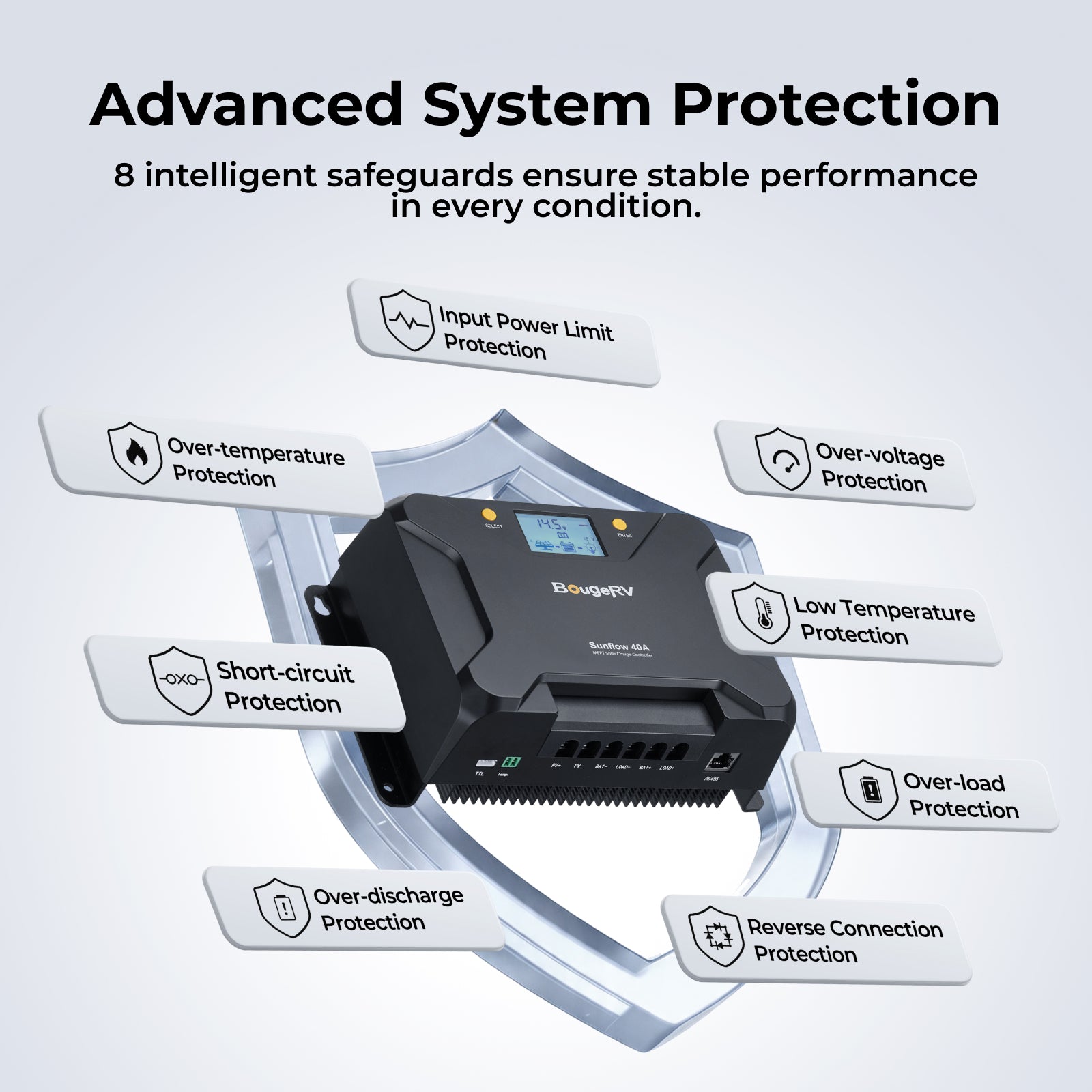

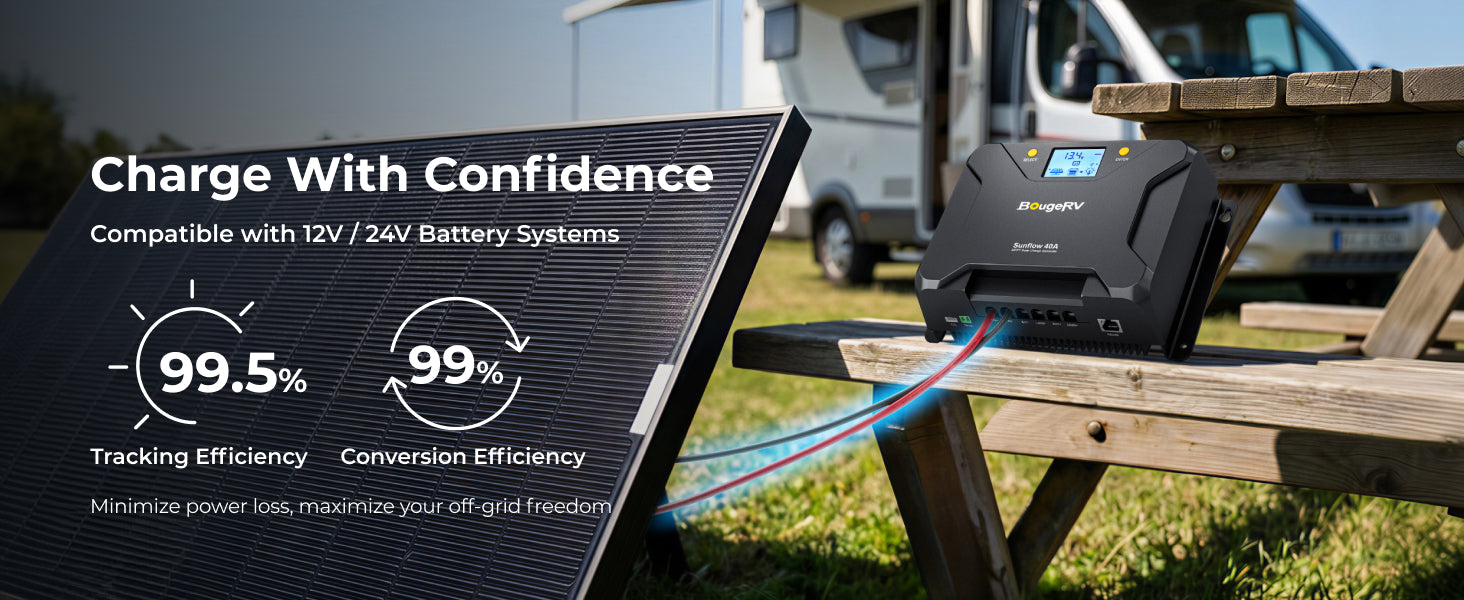

SKU ISE218

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 40 Amp Grounding Type Common Negative

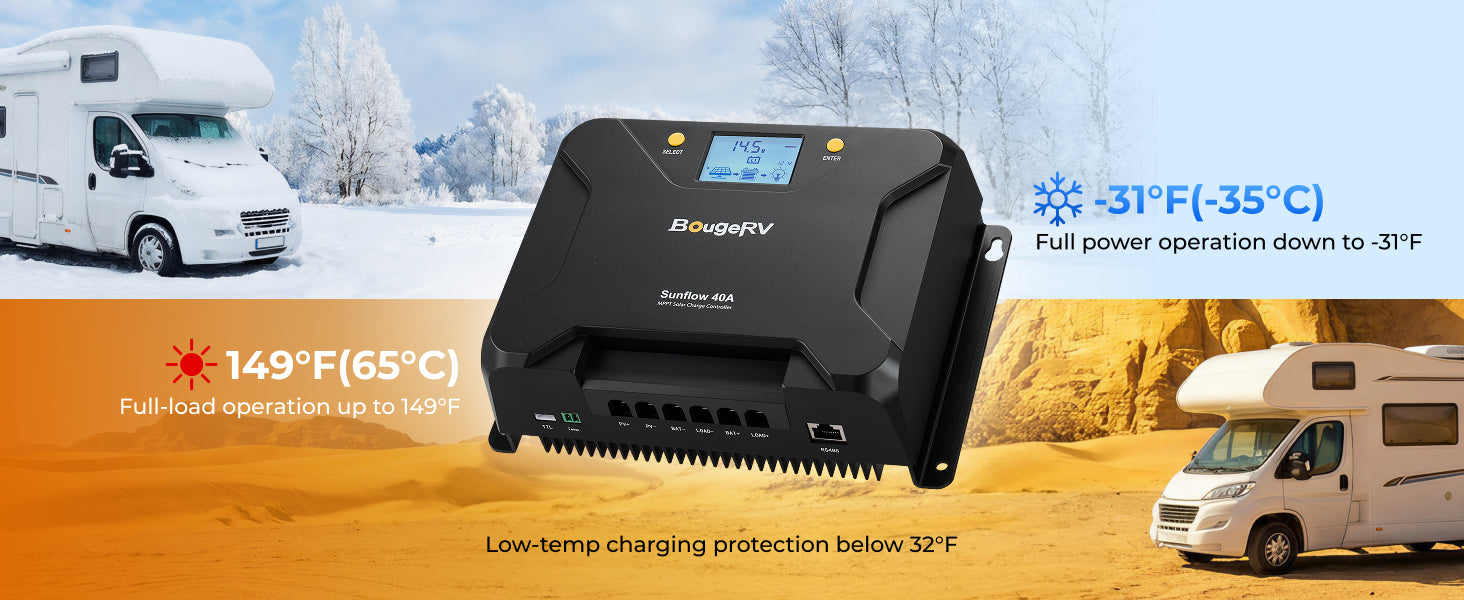

Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 600W/12V; 1200W/24V Protection Grade IP34

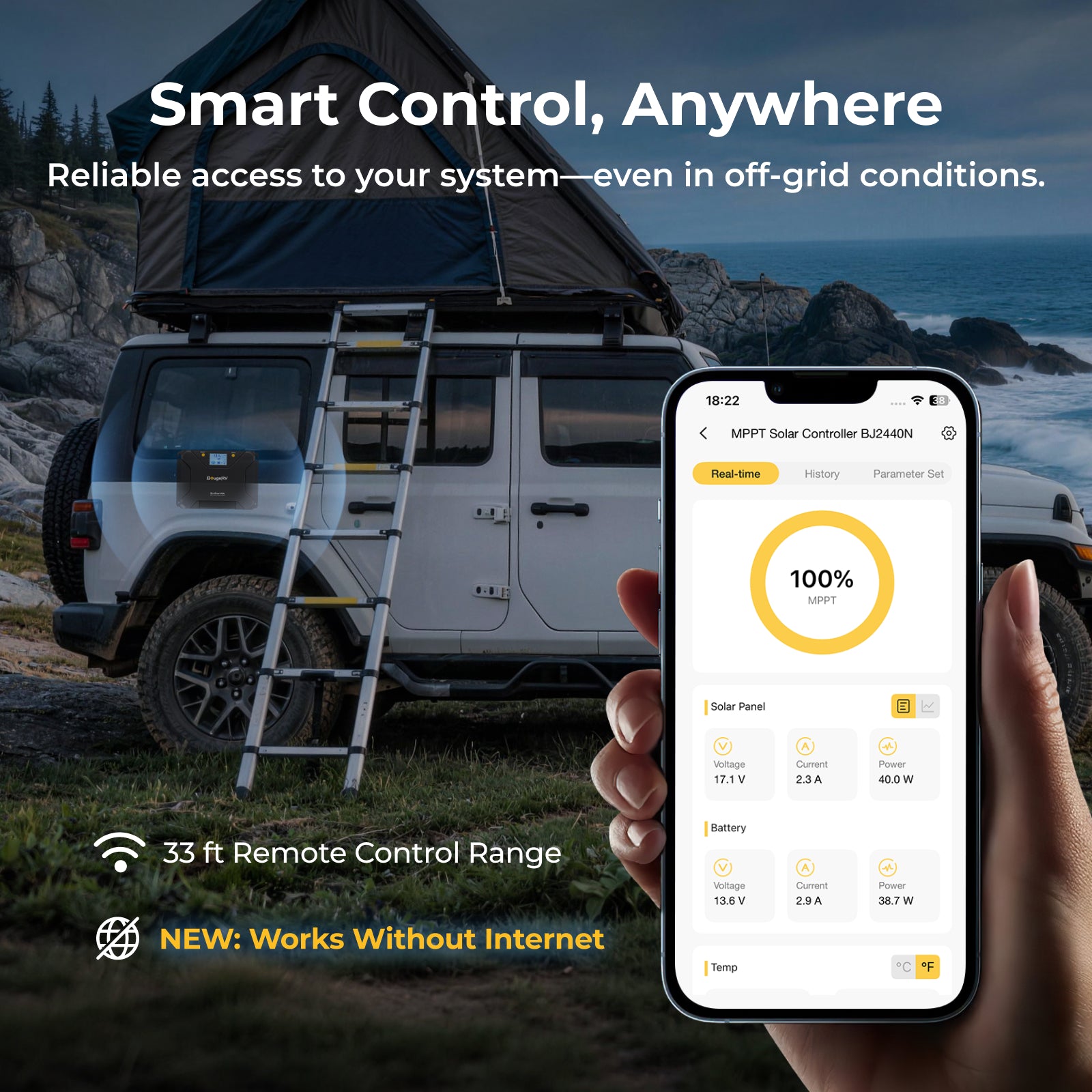

Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth

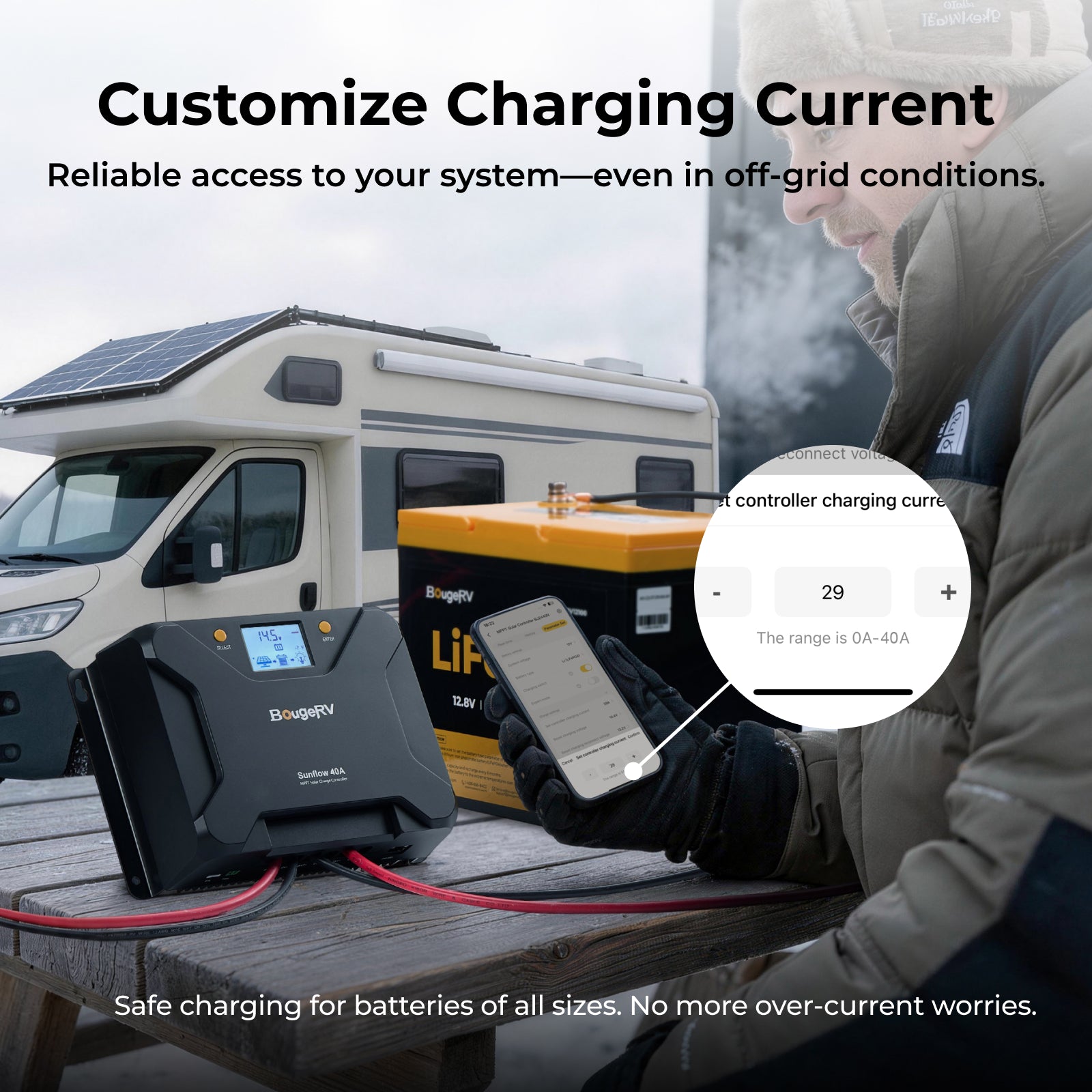

Charge Current Ajust Range 0 Amp to 40 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 8.94L*6.26W*2.95 inches
No Load Loss ≤10mA Weight 3.95 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE218
System Voltage 12V/24V
Rated Charging Current 40 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 600W/12V; 1200W/24V
Rated Load Current 20 Amp

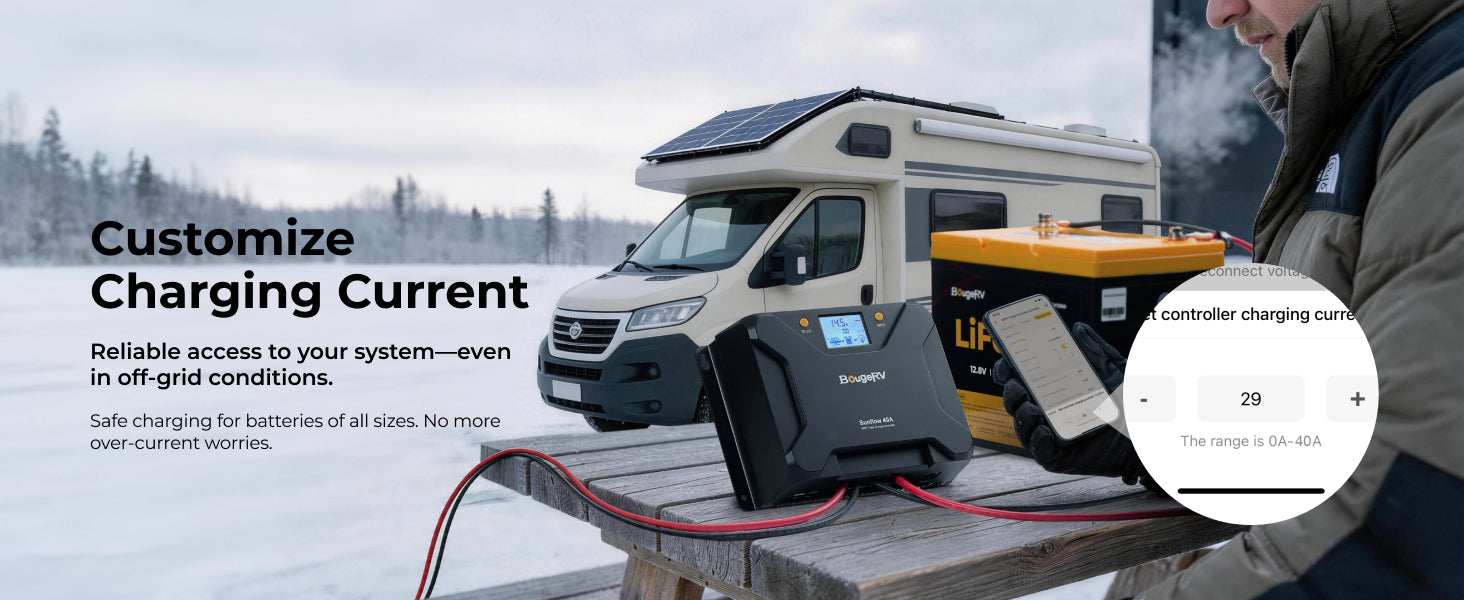

Charge Current Ajust Range 0 Amp to 40 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA

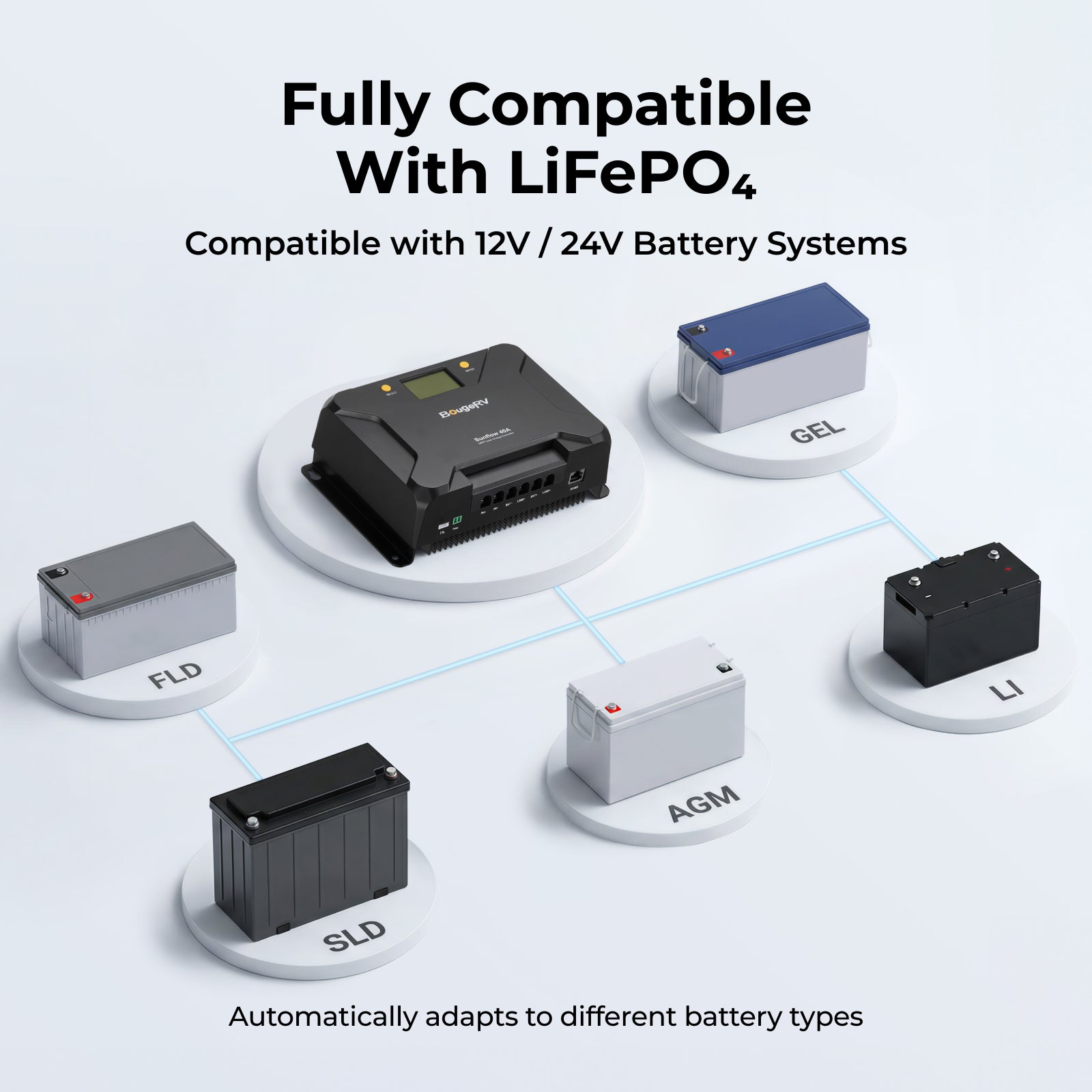

Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34

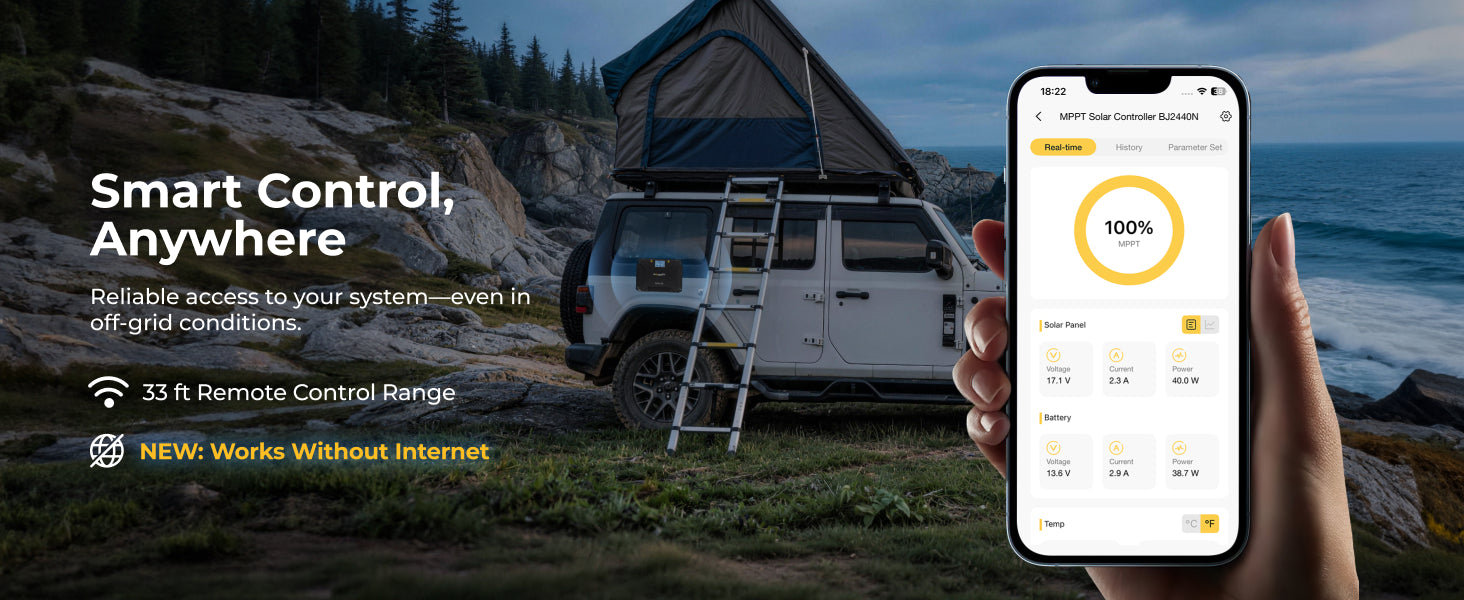

Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 8.94L*6.26W*2.95 inches
Weight 3.95 lbs
Product Warranty 18-month

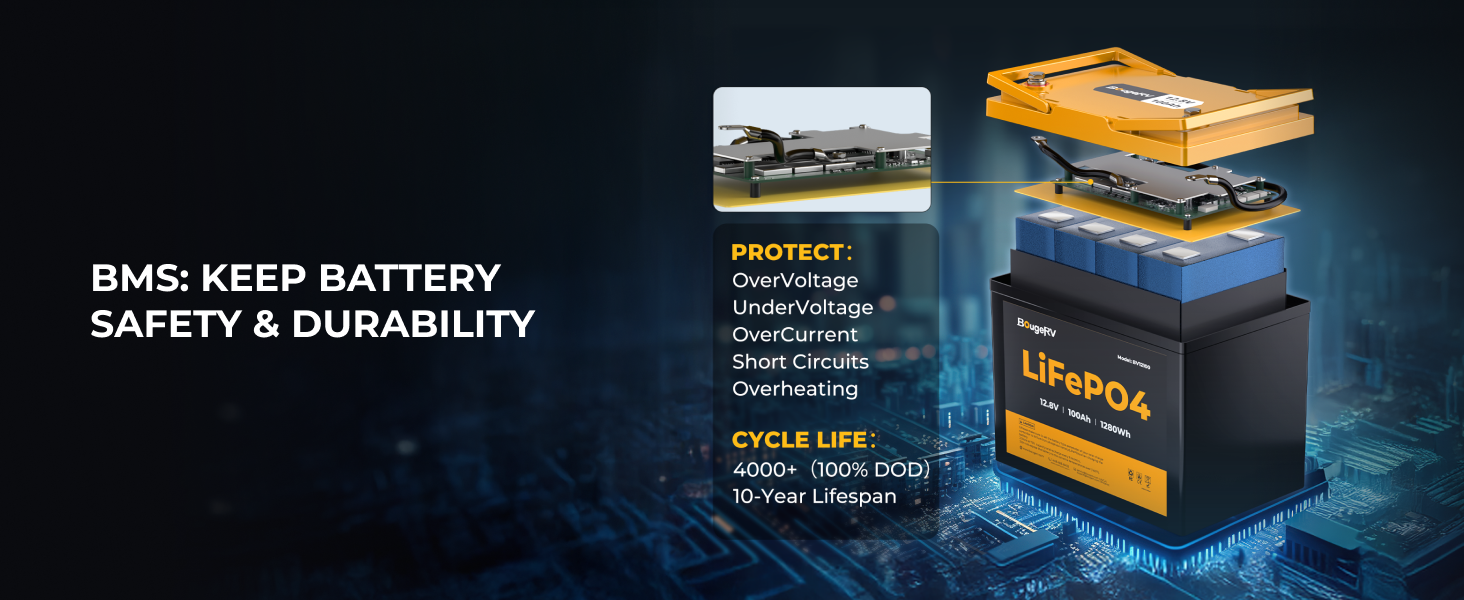

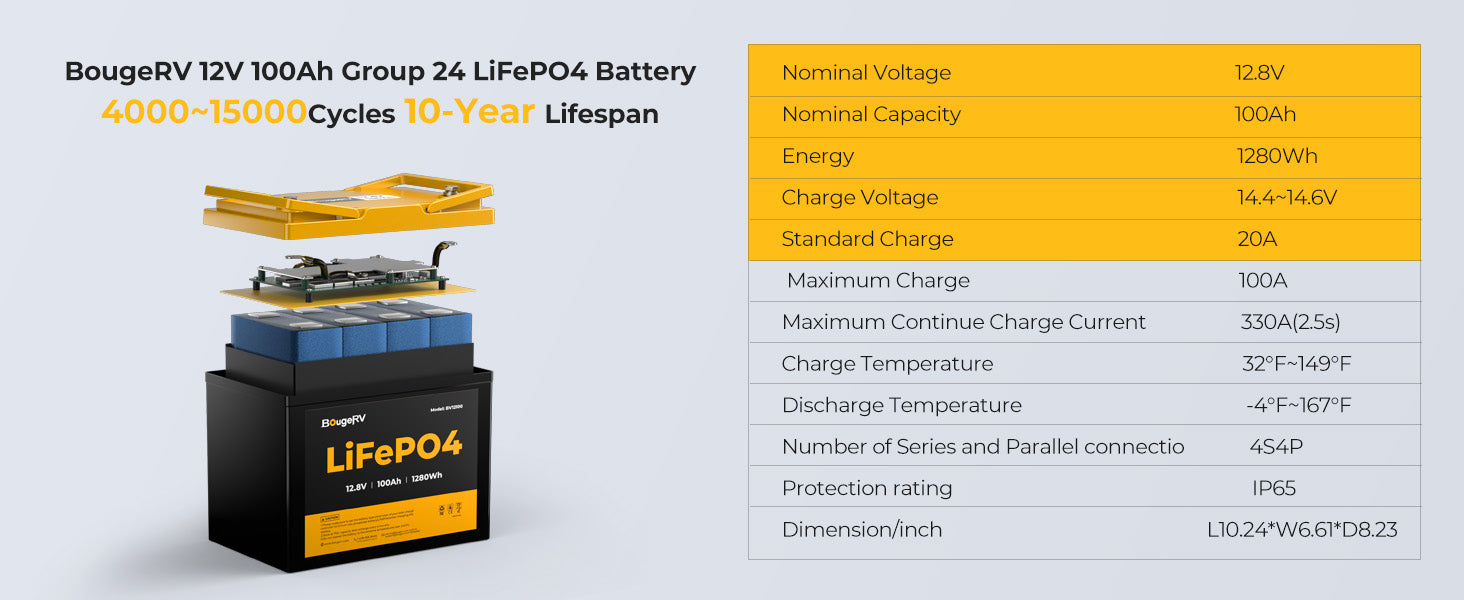

Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)

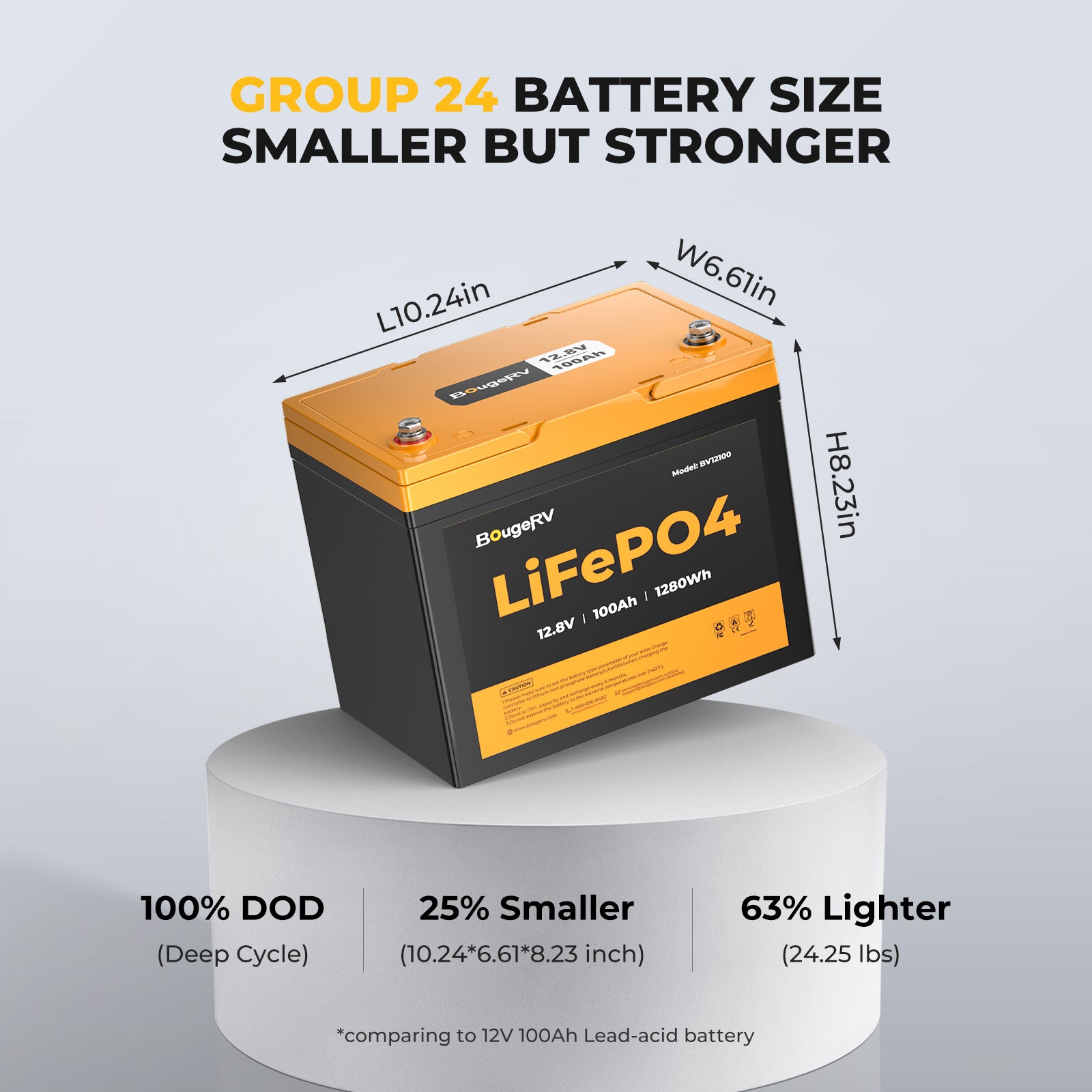

Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs

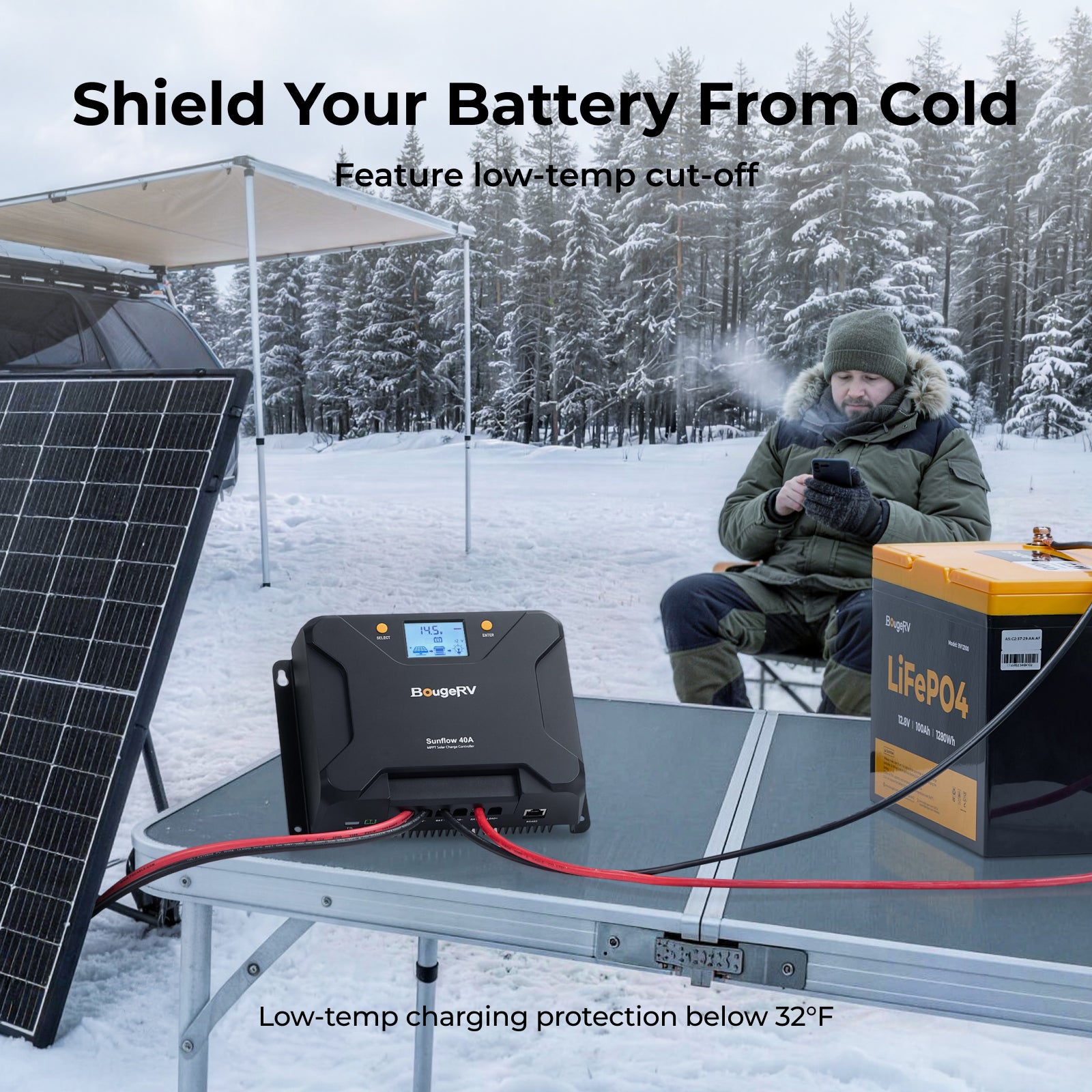

Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years

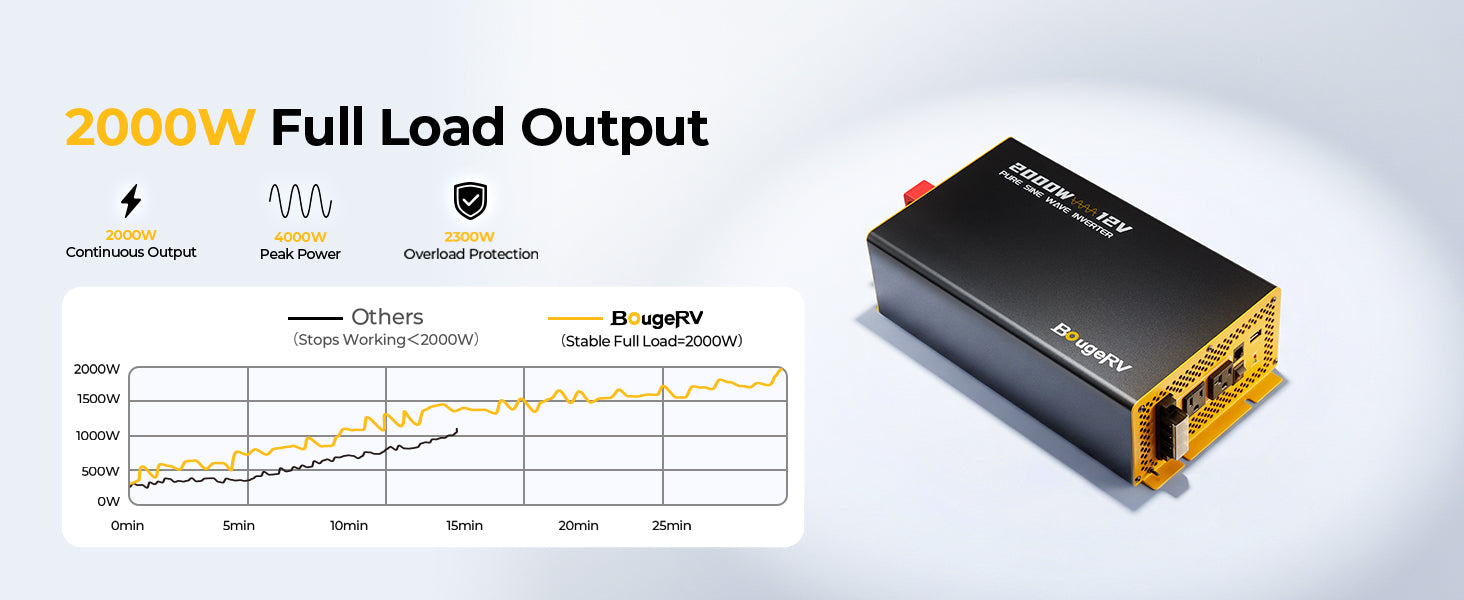

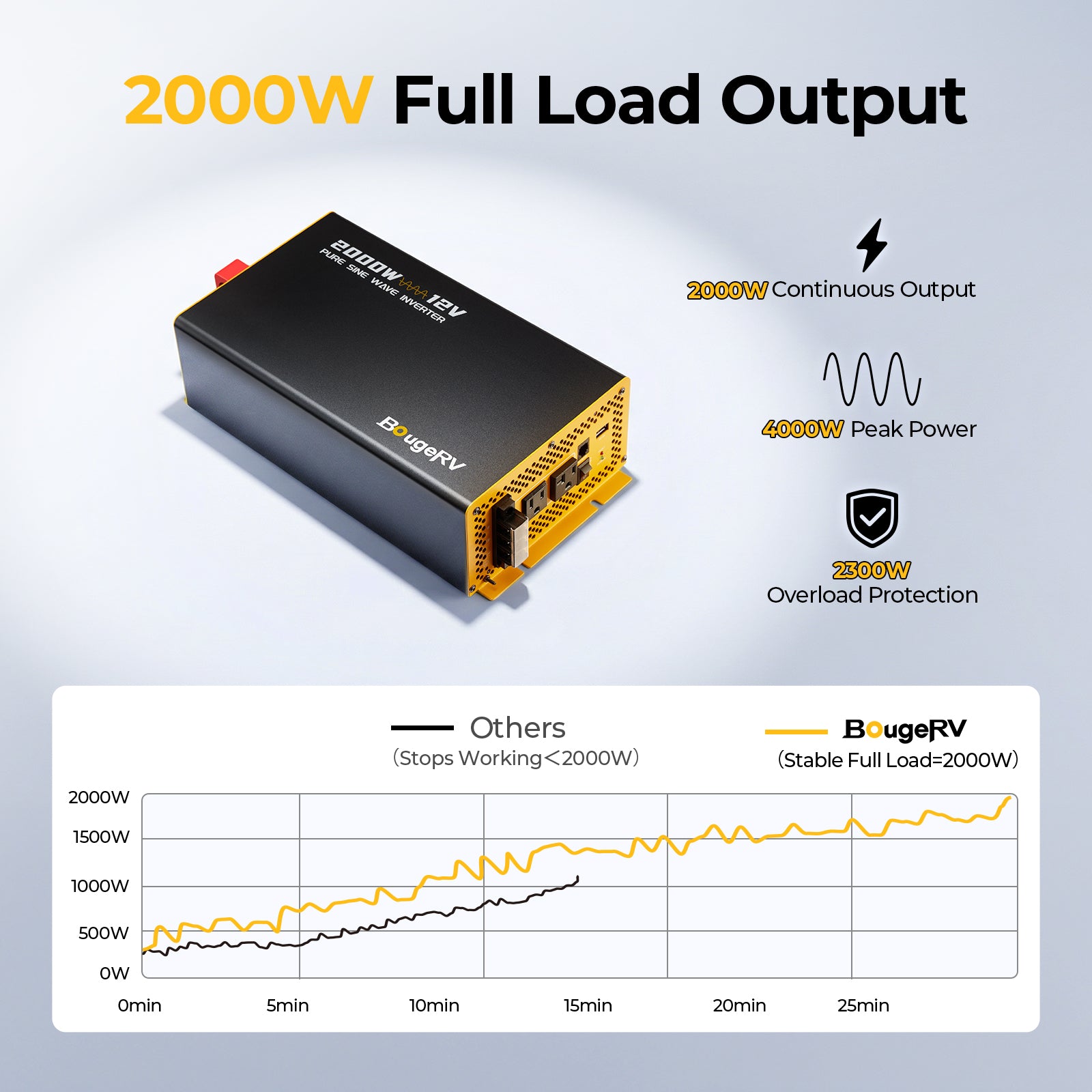

SKU SI001-BK-LYTYB1
Model 12V 2000W Operating ambient temperature range 14°F~104°F（-10°C~40°C）
Product size 14.96*7.4*3.94 in Weight 8.4 lbs
Noise ≤60dB
Rated Output Power 2000W Overload power 2300W
Peak power 4000W (1s)
Output voltage 120VAC (default)
Output frequency 50/60 Hz (default)
Rated input voltage 12VDC
The input voltage ranges 10V-15.5VDC

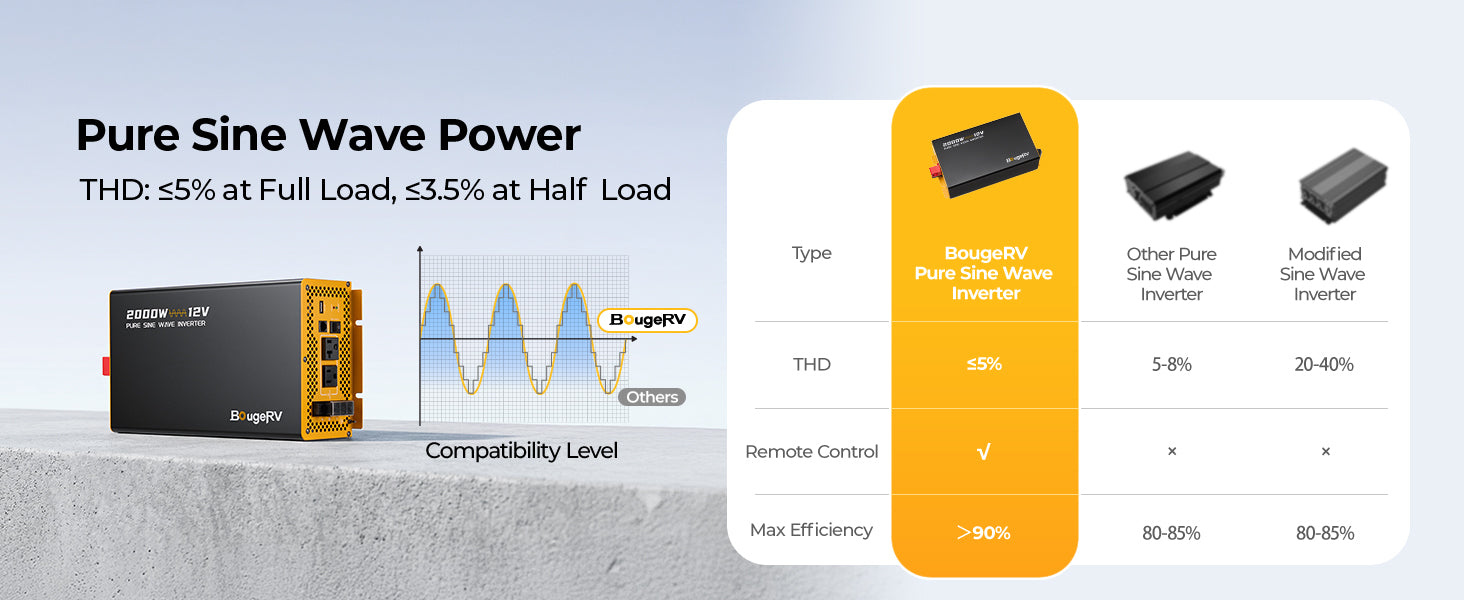

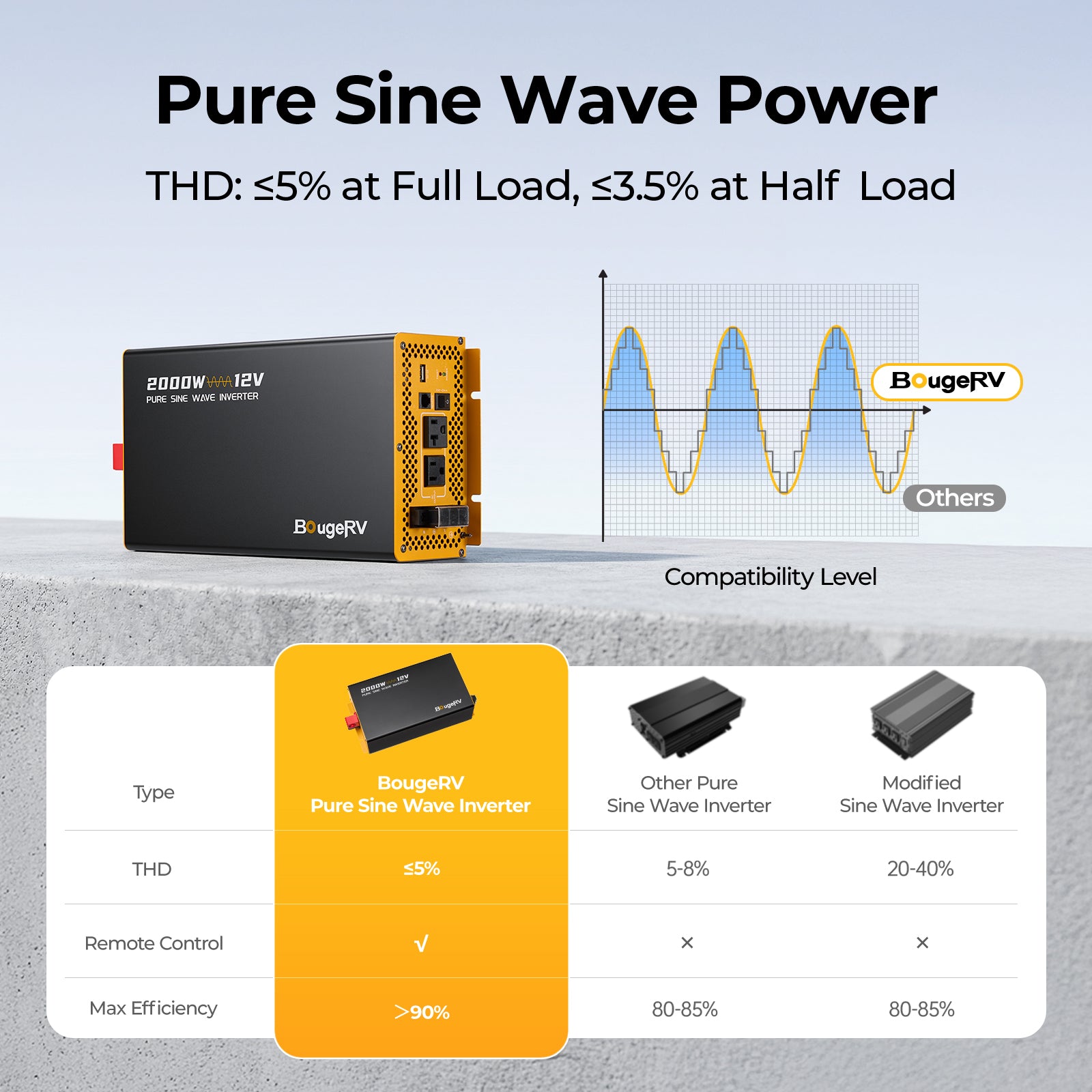

Output waveform Pure sine wave Output harmonic component (THD) <5%
Maximum output efficiency ＞90%
Full Load Efficiency ＞85% No-load Loss ＜0.9A

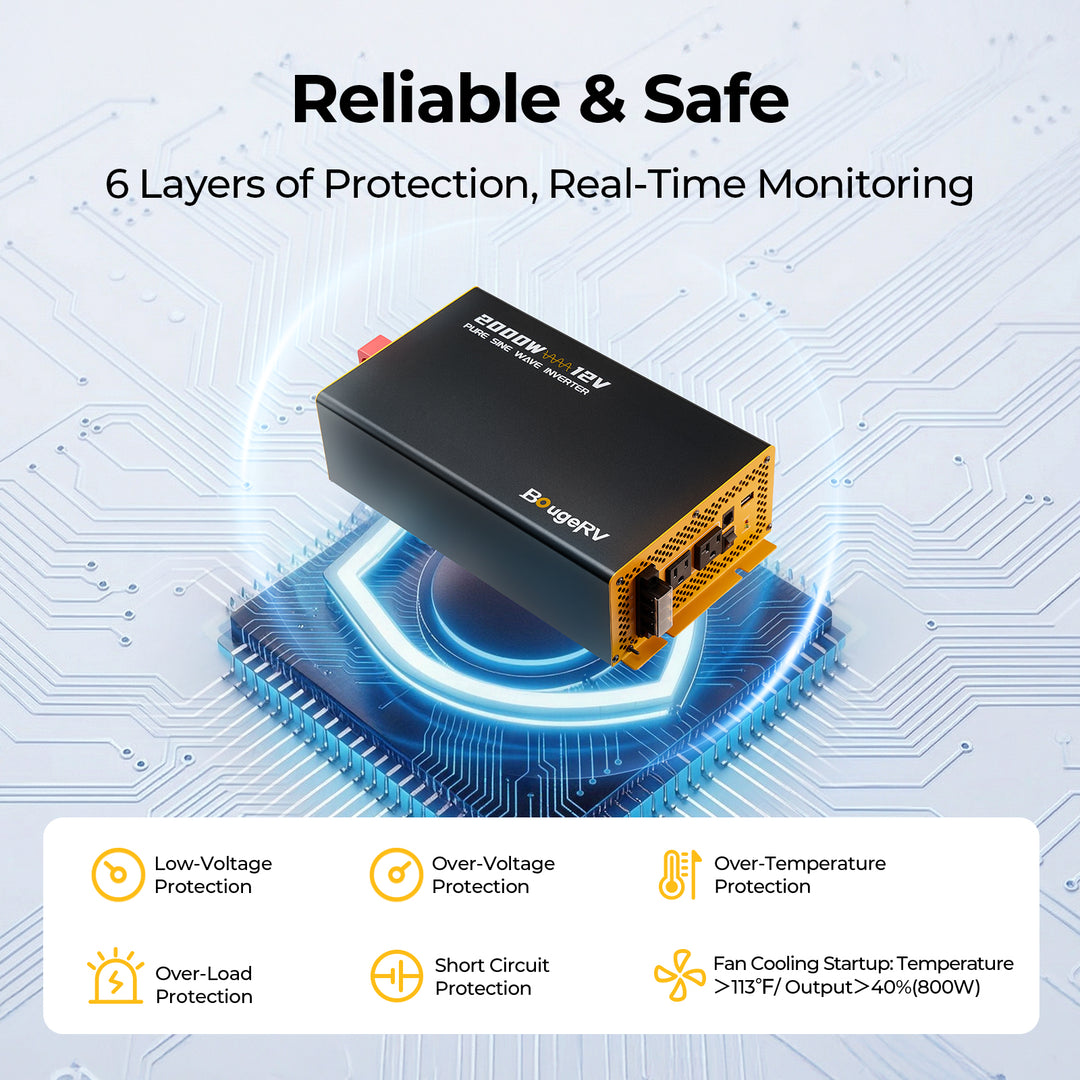

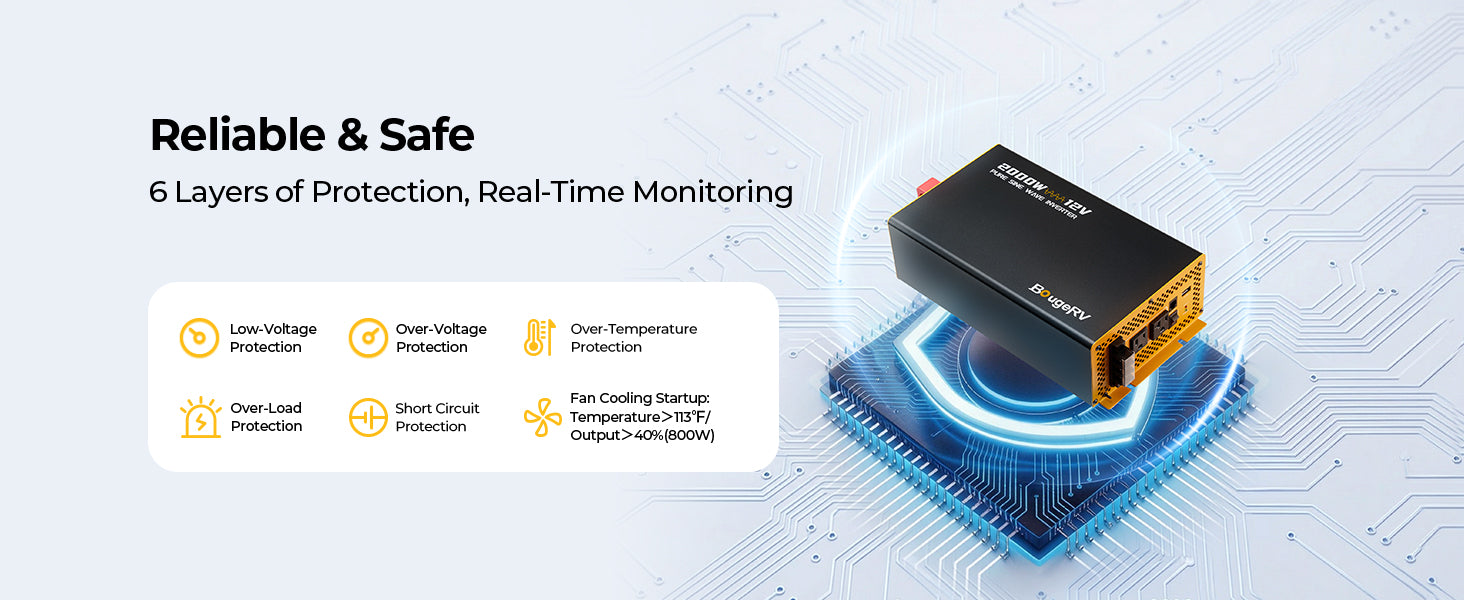

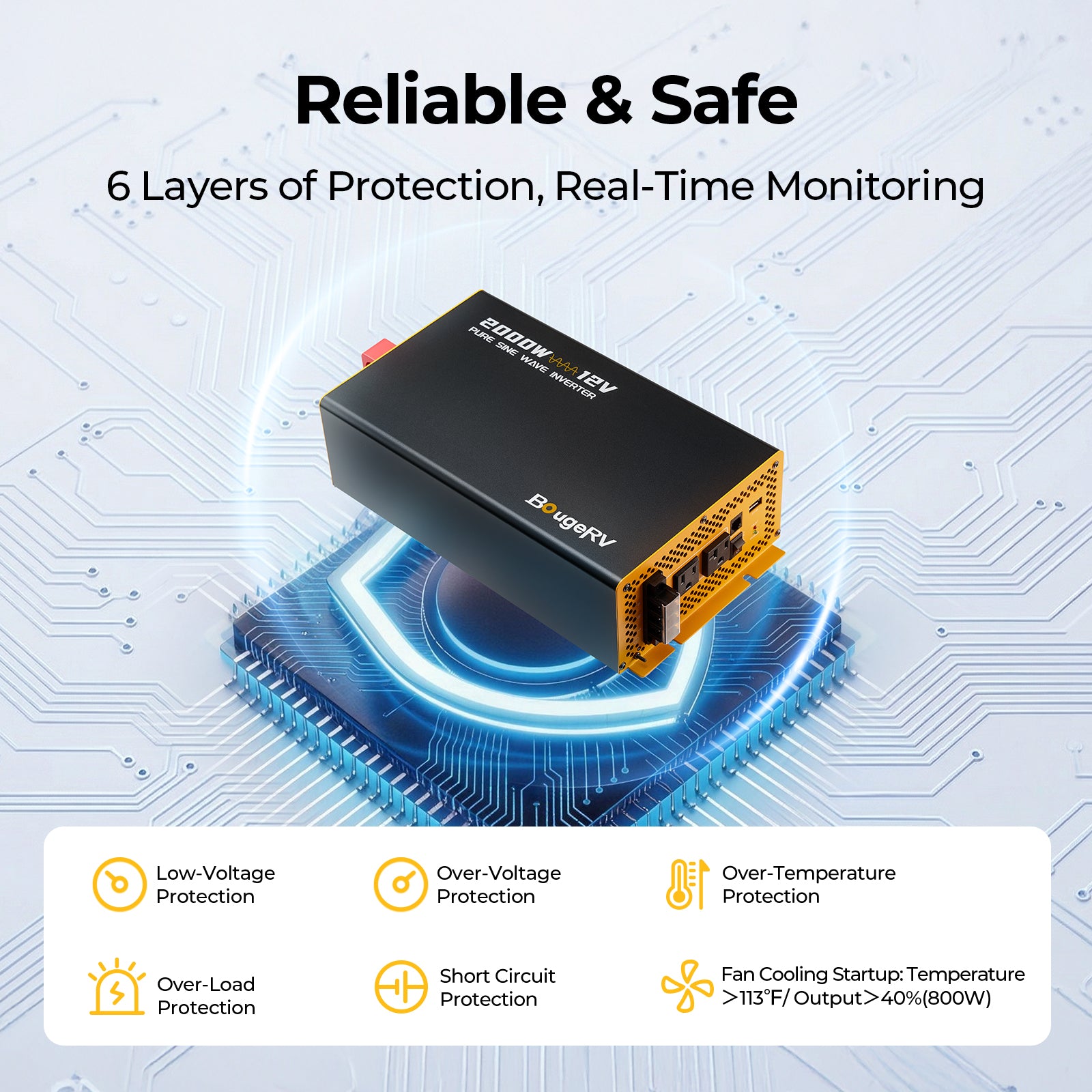

          Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm 10.5VDC (±0.3V) Over-discharge voltage 10VDC (±0.3V)
Overvoltage 15.5VDC (±0.3V) Over temperature protect ≥167°F（75°C）

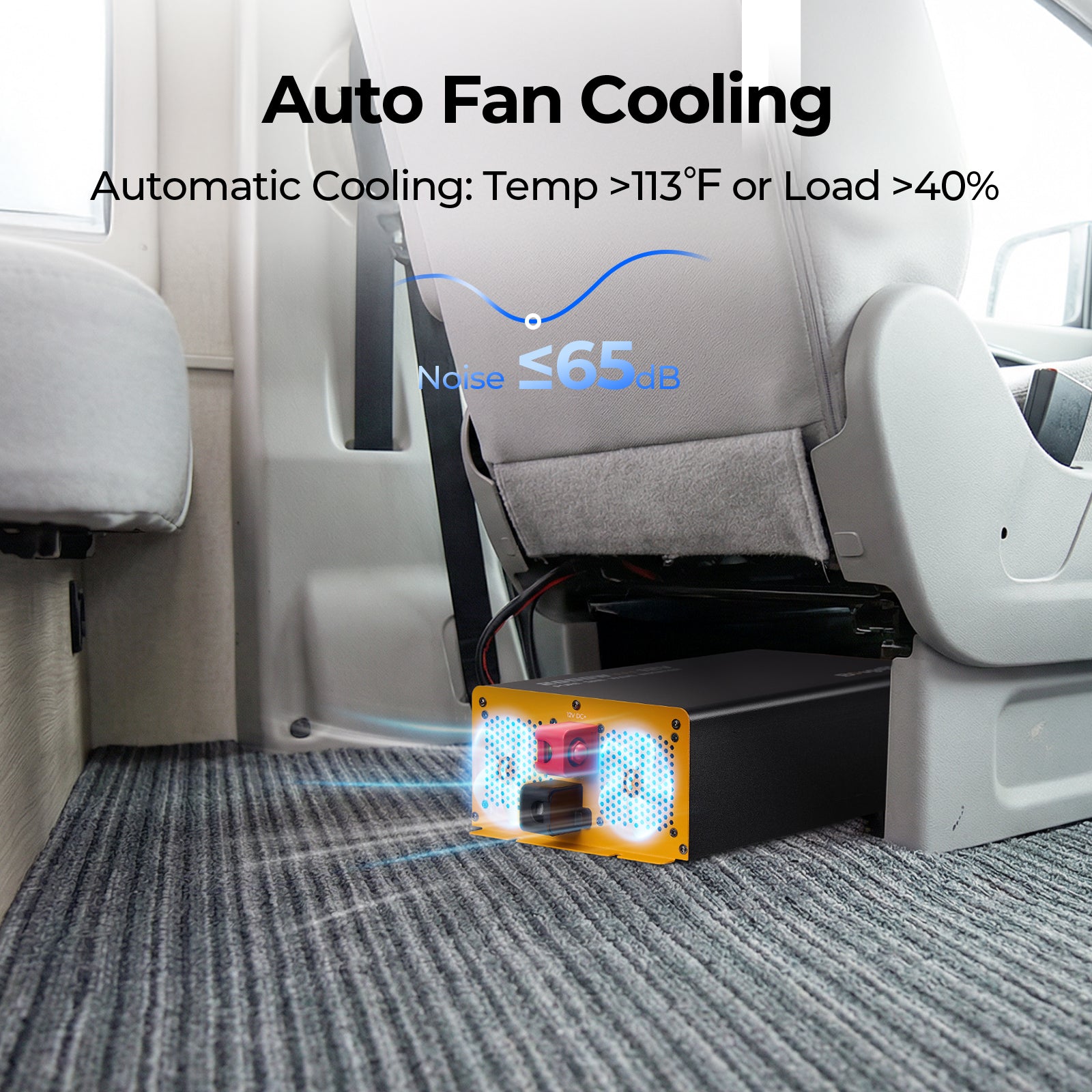

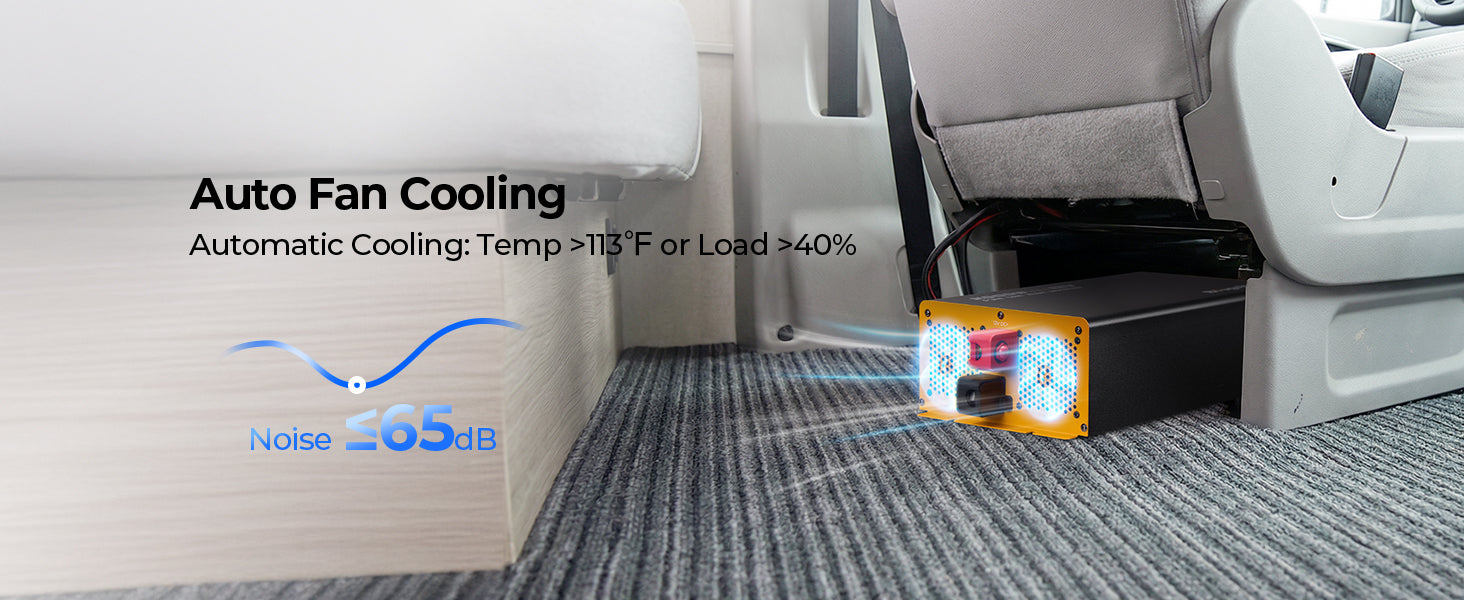

Over-temperature protection recovery ≤131°F（55°C） Fan start-up temp ≥113℉ (45℃) / ≥40% load

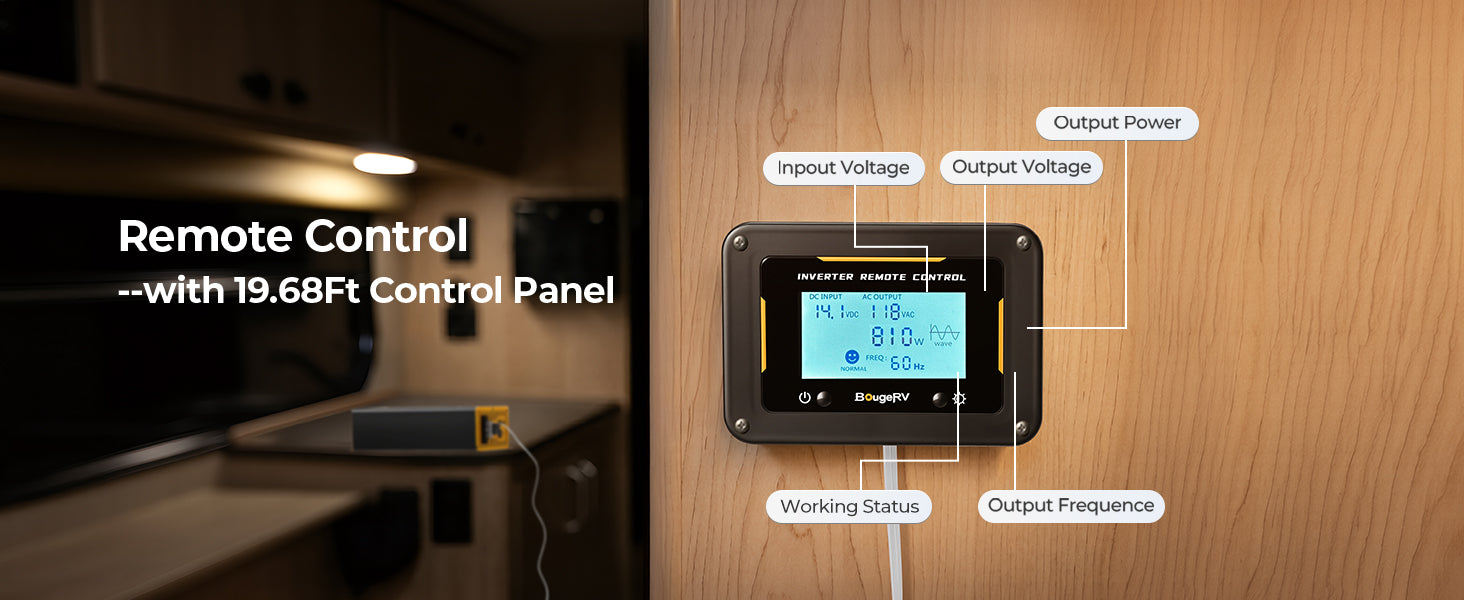

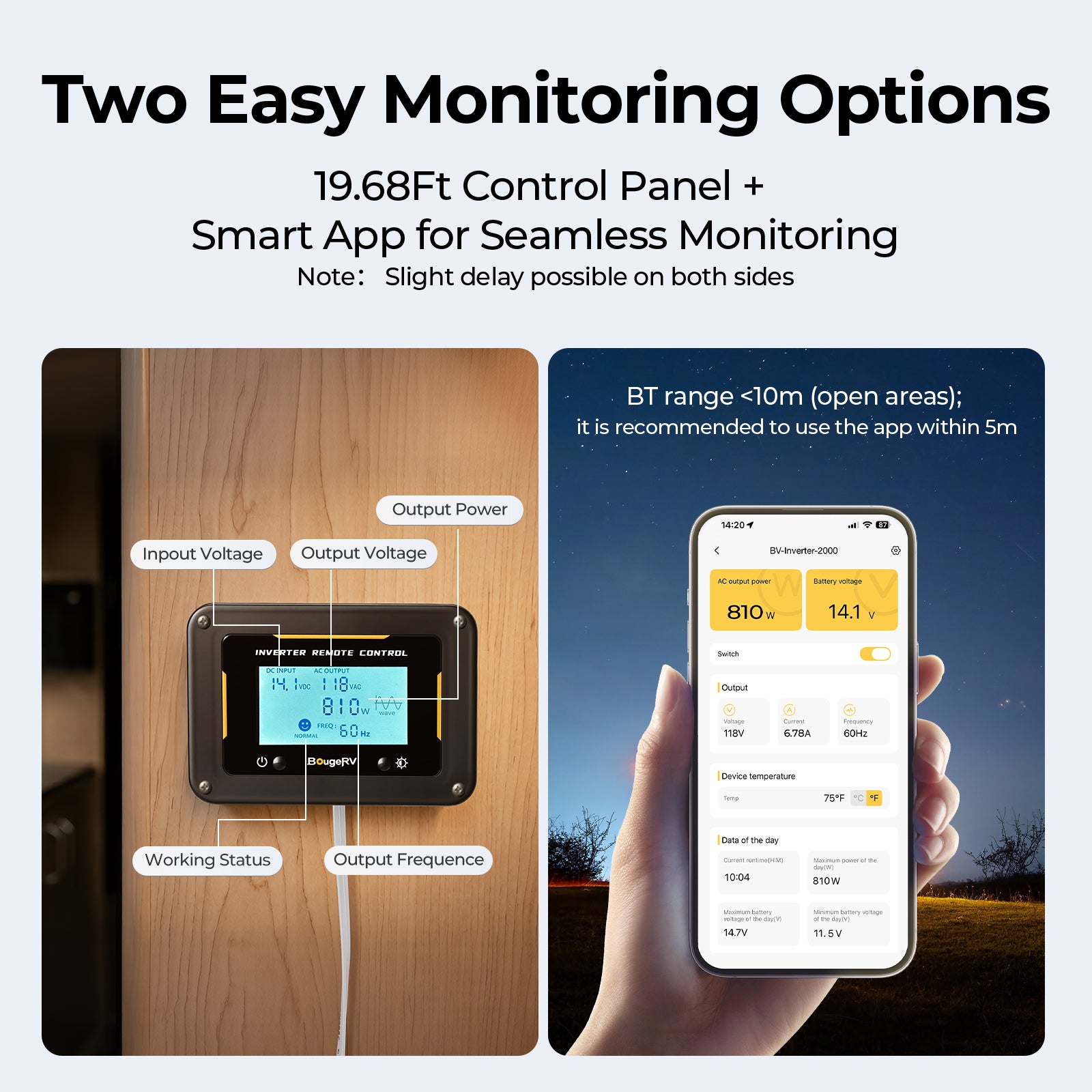

  Communication Port RS485 (Remote Control) Bluetooth (APP)
  USB port 18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
Basic & Physical
SKUSI001-BK-LYTYB1
Model12V 2000W
Operating ambient temperature range14°F~104°F（-10°C~40°C）
Product size14.96*7.4*3.94 in
Weight8.4 lbs
Noise≤60dB
Electrical Specifications
Rated Output Power2000W
Overload power2300W
Peak power4000W (1s)
Output voltage120VAC (default)
Output frequency50/60 Hz (default)
Rated input voltage12VDC
The input voltage ranges10V-15.5VDC
Output waveformPure sine wave
Output harmonic component (THD)<5%
Efficiency & No-load Loss
Maximum output efficiency＞90%
Full Load Efficiency＞85%
No-load Loss＜0.9A
Protection Features
Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm10.5VDC (±0.3V)
Over-discharge voltage10VDC (±0.3V)
Overvoltage15.5VDC (±0.3V)
Over temperature protect≥167°F（75°C）
Over-temperature protection recovery≤131°F（55°C）
Fan start-up temp≥113℉ (45℃) / ≥40% load
Interface & Communication
Communication PortRS485 (Remote Control) Bluetooth (APP)
USB port18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
