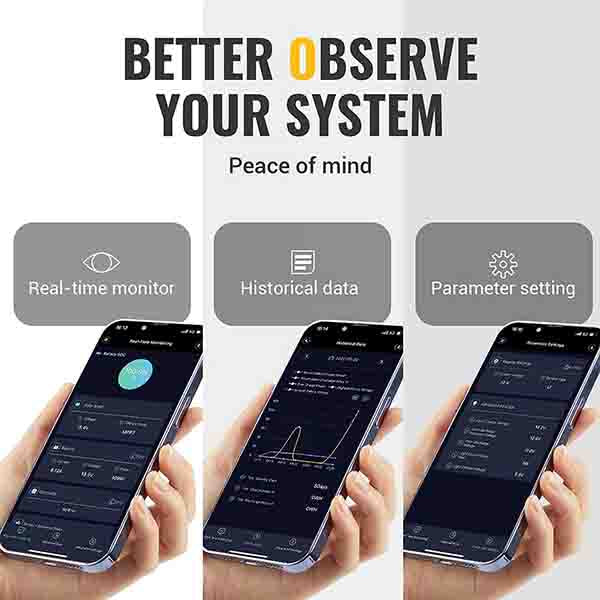

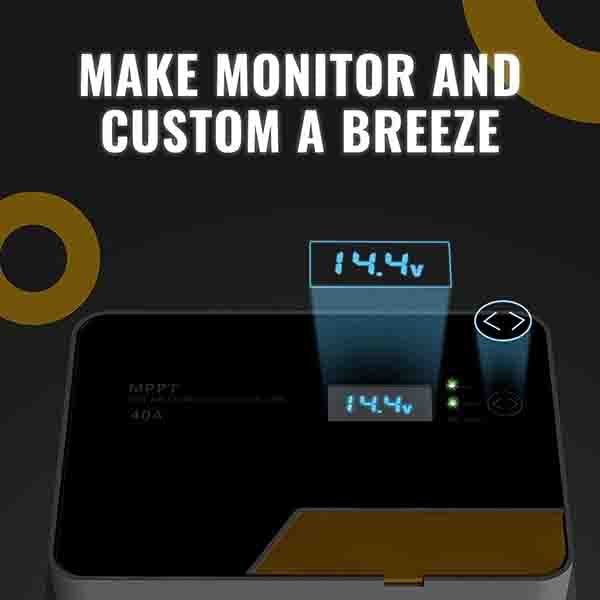

EASY MONITOR: Pairing the solar controller with your phone via ChargePro 2.0, which makes seeing output and history data a breeze, also allows the charge voltage, current, etc. to be set for different types of batteries. The remote app control provides a 15 feet signal.
ACTIVE SHIELD: Certified by CE and RoHS. With 6 protection, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections. Features with dual MOS circuit to prevent the reverse current and to reduce the heat in operation. Maintain your battery all the time. With the heavy-duty heat sink on the back sheet, it can increase the thermal effectiveness of the solar charge controller.

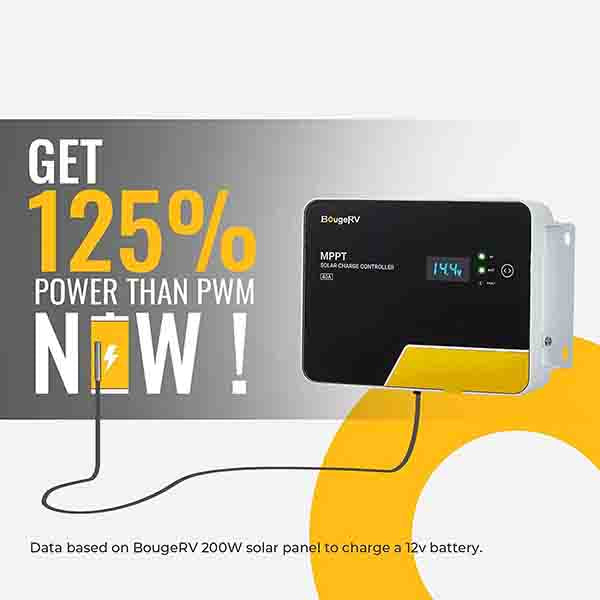

INNOVATIVE AND EFFICIENT: Using the latest, fastest MPPT technology, BougeRV solar controller provides up to a 99% conversion rate. With a temperature sensor, it is able to support lead-acid battery temperature compensation. Feature negative ground design, the solar panel regulator can be compatible with most RV or other vehicle systems.

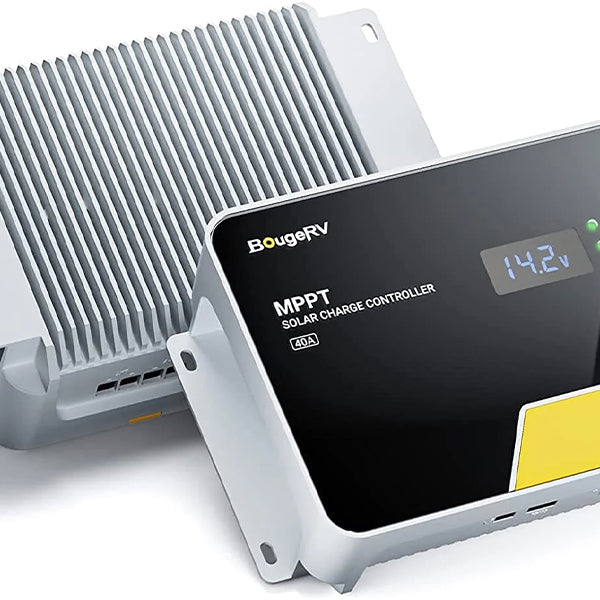

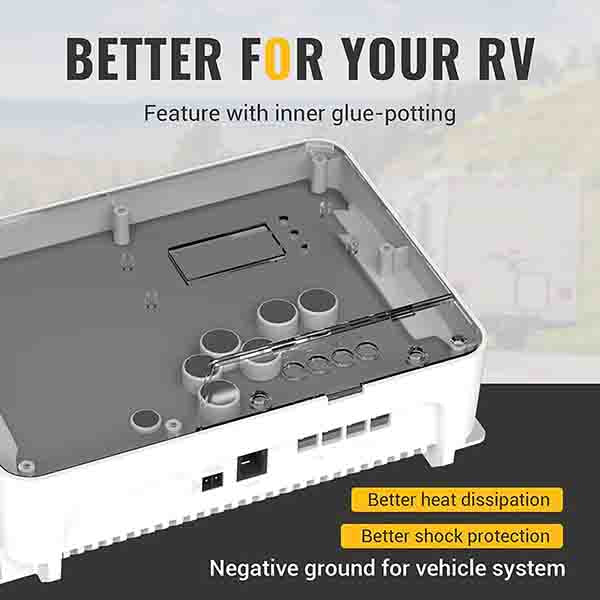

TRIPLE COOLING DESIGNED: Die-cast aluminum case, internal glue filling, glass panel design, better heat dissipation performance, to ensure that the controller maintains a long-time full current output. Heavy duty designed also allows solar charge controllers to keep efficient work.
WARRANTY AND ATTENTIONS: System voltage:12V/24V/36V/48V. Wire specifications:15-8AWG. Max.PV input power:600W/12V, 1200W/24V, 1800W/36V, 2400W/48V. Please connect the battery to the solar charge controller first to complete the recognition process and wake up the display. BougeRV promise an 18 months warranty of the 40 amp MPPT solar charge controller.
BougeRV is dedicated to providing our customers with quality products and superior support service. Please feel free to directly message if you have any problem with our product.

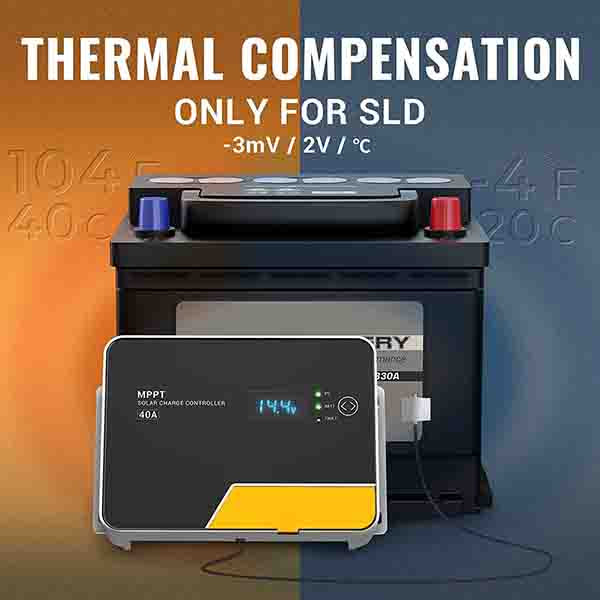

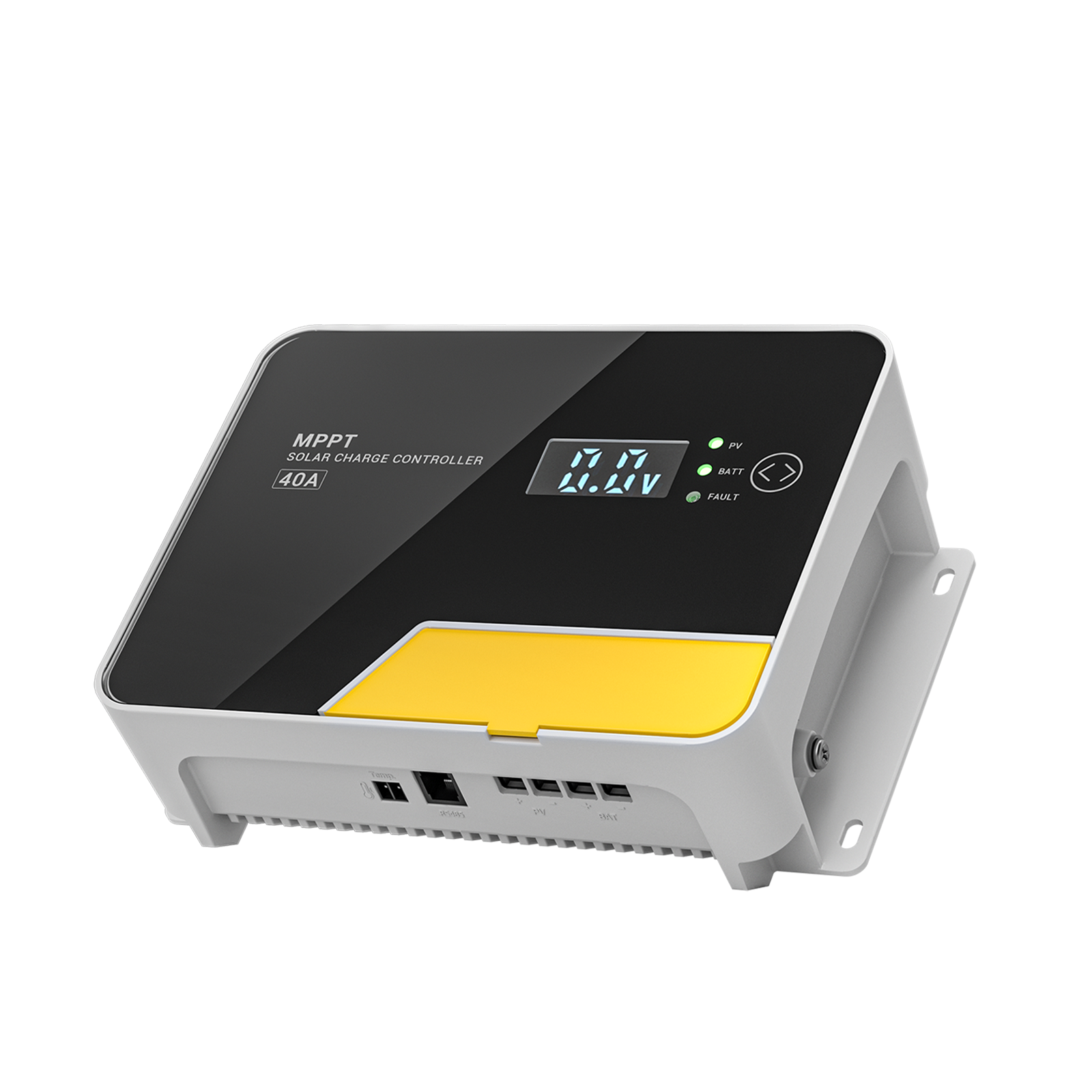

About BougeRV 12V/24V/36V/48V 40Amp MPPT Negative Ground Solar Charge Controller, we also provide the instruction manual electronic version on this page, for customers who want to know about it before purchase. The temperature sensor included in the package supports temperature compensation for SLD.
When installing for the first time, make sure that the battery has enough voltage for the 40Amp MPPT Negative Ground Solar Panel Regulator to recognize the correct battery type.
The controller should be installed near the battery to avoid voltage drop due to excessively long wires and affect normal voltage judgment.
BougeRV 40Amp MPPT Remote APP Control Solar Panel Regulator can only use photovoltaic panels as a charging source, and cannot use a DC power supply as a charging source.
After changing any setting about the battery, please DISCONNECT the solar panel and the battery from the solar charge controller, then reconnect them to activate the modified setting.
Sequence of connecting: Connect the battery to the solar charge controller FIRST, then connect the solar panel to the solar charge controller.
Sequence of disconnecting: Disconnect the solar panel from the solar charge controller FIRST, then disconnect the battery from the solar charge controller.
