Why would you choose the BougeRV Solar Panel Cable Connectors?
*BougeRV Cable Connectors are made of the highest quality materials to ensure the long term durability, heavier and sturdier than other similar products in the market.
*This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
![](http://www.bougerv.com/cdn/shop/files/2_f22d7003-b886-4ffd-9cc1-0dedfd881916_{width}x.png?v=1694411555)
![](http://www.bougerv.com/cdn/shop/files/2_f22d7003-b886-4ffd-9cc1-0dedfd881916_{width}x.png?v=1694411555)
6 Pairs Solar Connectors Kits
- Rated current: 30A (2.5-4.0mm2)
- Rated voltage: 1000V DC
- Connector contact resistance:≤0.5mΩ
- Degree of waterproof: IP67
- Flammability rating: UL94-V0
- Safety: II
- Adapter Wire: OD 5mm-7mm
- Insertion force: less or equal to 50N
- Withdrawal force: over or equal to 50N
- Operating temperature range: -40℉~ 221℉
![](http://www.bougerv.com/cdn/shop/files/3_00646ecf-a96f-4448-b659-7ca0cf722b3b_{width}x.png?v=1694411601)
![](http://www.bougerv.com/cdn/shop/files/3_00646ecf-a96f-4448-b659-7ca0cf722b3b_{width}x.png?v=1694411601)

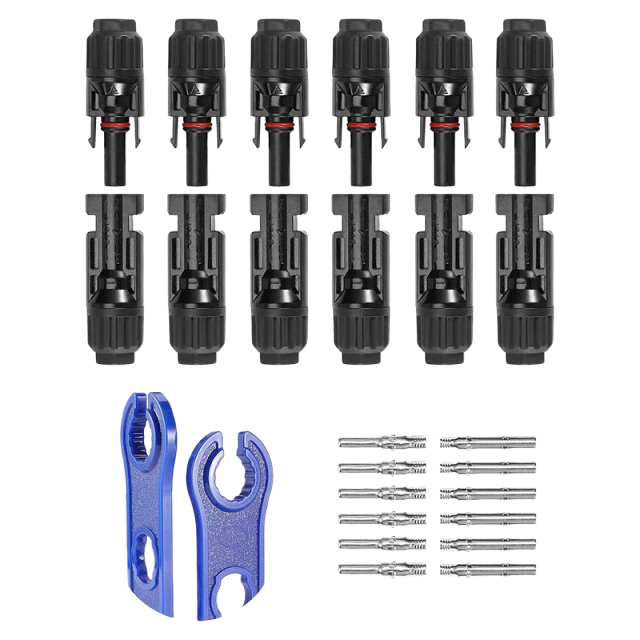

Package Includes:
- 6 × male solar connectors ( with solar connector pins )
- 6 × female solar connectors (with solar connector pins )
- 2 × solar connector spanners
![](http://www.bougerv.com/cdn/shop/files/4_2e2d5fc3-63f0-4f91-a989-55c4e695d4e9_{width}x.png?v=1694411751)
![](http://www.bougerv.com/cdn/shop/files/4_2e2d5fc3-63f0-4f91-a989-55c4e695d4e9_{width}x.png?v=1694411751)
![](http://www.bougerv.com/cdn/shop/files/5_13b36365-c1f7-481d-8239-4ea41e8712bd_{width}x.png?v=1694411647)
![](http://www.bougerv.com/cdn/shop/files/5_13b36365-c1f7-481d-8239-4ea41e8712bd_{width}x.png?v=1694411647)

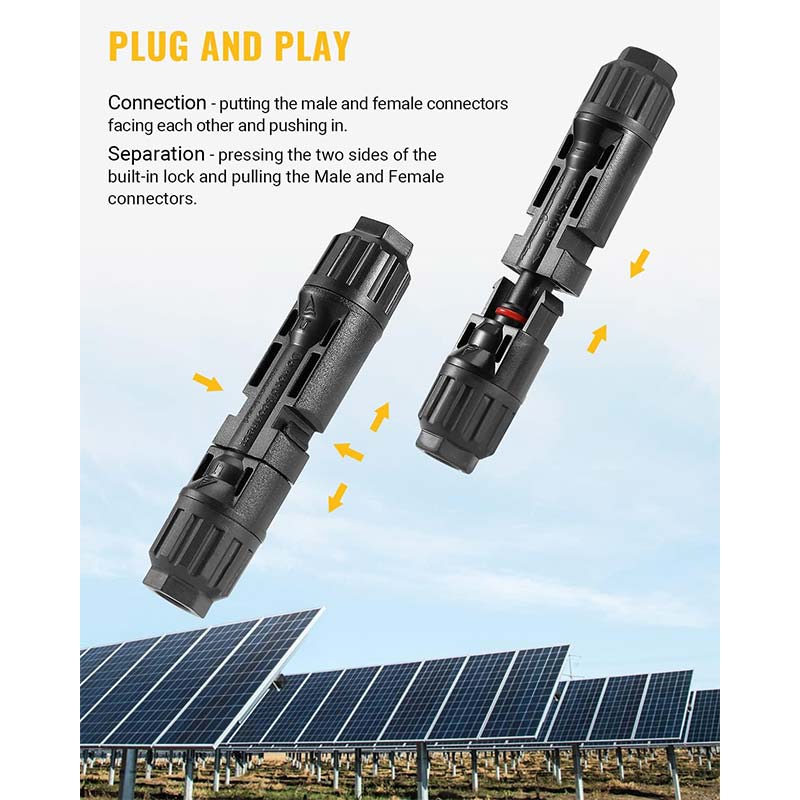

Plug and play
- Connection - putting the male and female connectors facing each other and pushing in.
- Separation - pressing the two sides of the built-in lock and pulling the male and female connectors.
![](http://www.bougerv.com/cdn/shop/files/6_fdddb323-8889-4a79-8398-240959538ffe_{width}x.png?v=1694411703)
![](http://www.bougerv.com/cdn/shop/files/6_fdddb323-8889-4a79-8398-240959538ffe_{width}x.png?v=1694411703)

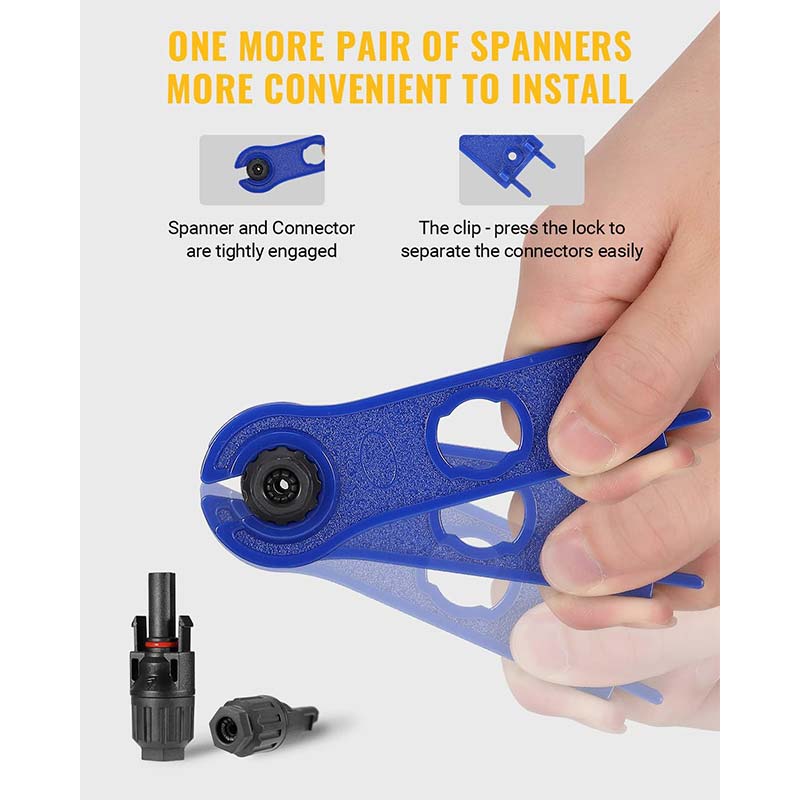

Fully adapted
- The cost-effective solar connector set includes two free solar spanners.
- The included spanners are fully adaptable to the connectors and easily tighten the connectors.
![](http://www.bougerv.com/cdn/shop/files/77_{width}x.png?v=1694398279)
![](http://www.bougerv.com/cdn/shop/files/77_{width}x.png?v=1694398279)

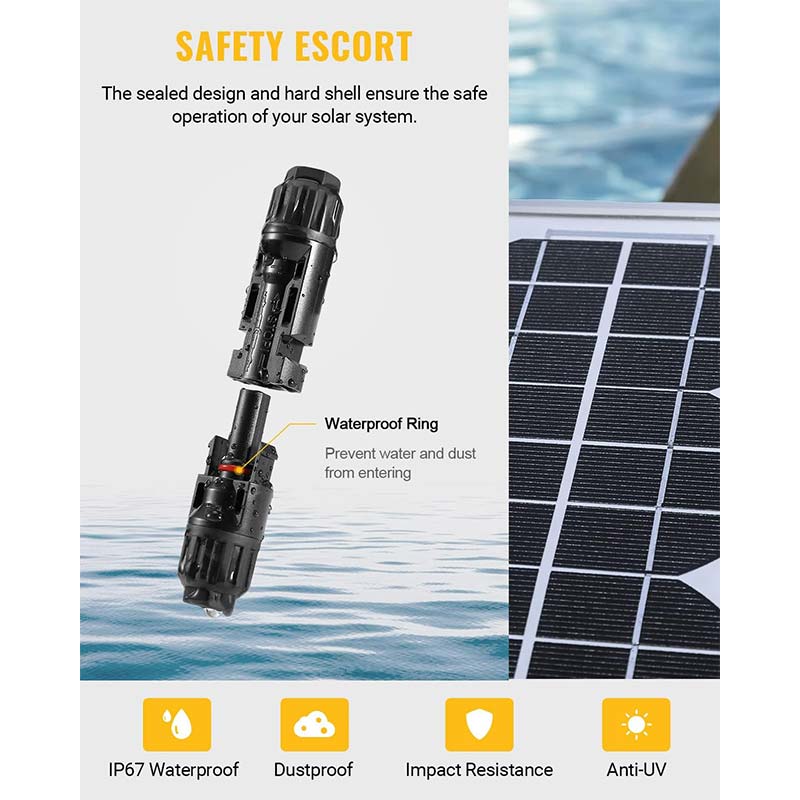

IP67 waterproof
- The waterproof ring ensures that water and dust will not enter the connector during long outdoor use.
- The built-in shrink ring tightly adheres to the solar line when tightening the connector, effectively preventing water from seeping in.
![](http://www.bougerv.com/cdn/shop/files/5_13b36365-c1f7-481d-8239-4ea41e8712bd_{width}x.png?v=1694411647)
![](http://www.bougerv.com/cdn/shop/files/5_13b36365-c1f7-481d-8239-4ea41e8712bd_{width}x.png?v=1694411647)
Plug and play
- Connection - putting the male and female connectors facing each other and pushing in.
- Separation - pressing the two sides of the built-in lock and pulling the male and female connectors.
![](http://www.bougerv.com/cdn/shop/files/6_fdddb323-8889-4a79-8398-240959538ffe_{width}x.png?v=1694411703)
![](http://www.bougerv.com/cdn/shop/files/6_fdddb323-8889-4a79-8398-240959538ffe_{width}x.png?v=1694411703)
Fully adapted
- The cost-effective solar connector set includes two free solar spanners.
- The included spanners are fully adaptable to the connectors and easily tighten the connectors.
![](http://www.bougerv.com/cdn/shop/files/77_{width}x.png?v=1694398279)
![](http://www.bougerv.com/cdn/shop/files/77_{width}x.png?v=1694398279)
IP67 waterproof
- The waterproof ring ensures that water and dust will not enter the connector during long outdoor use.
- The built-in shrink ring tightly adheres to the solar line when tightening the connector, effectively preventing water from seeping in.

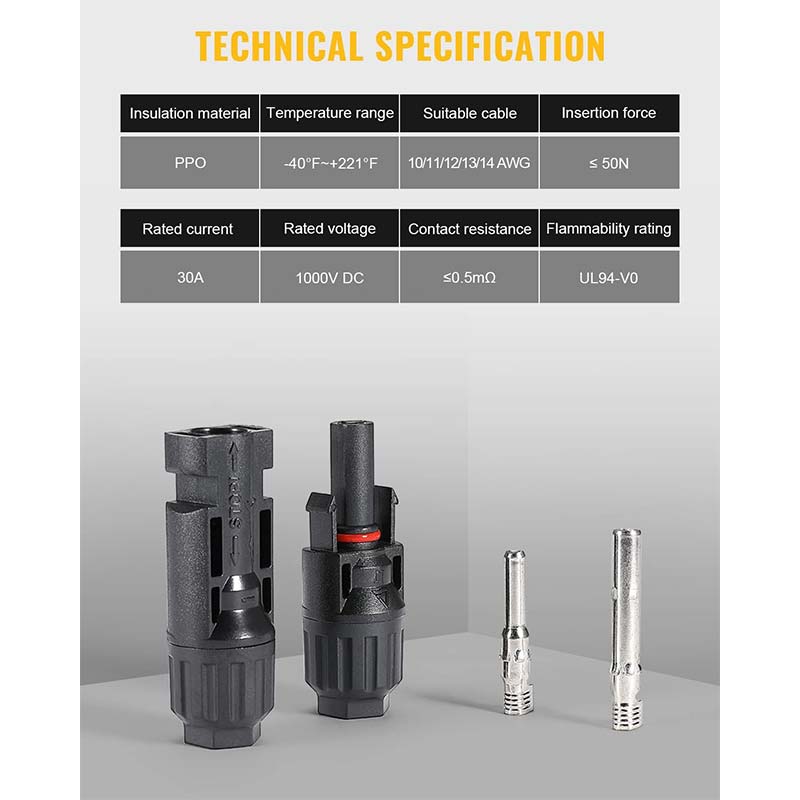

PRODUCT SPECIFICATIONS
SKU | IRV014-B021 | ||
---|---|---|---|
Rated current | 30A (2.5-4.0mm2) | Flammability rating | UL94-V0 |
Rated voltage | 1000V DC | Adapter Wire | OD 5mm-7mm |
Connector contact resistance | ≤0.5mΩ | Insertion force | less or equal to 50N |
Degree of waterproof | IP67 | Withdrawal force | over or equal to 50N |
Operating temperature range | -40℃~ +105℃ | Suitable cable | AWG 14/13/12/11/10 |

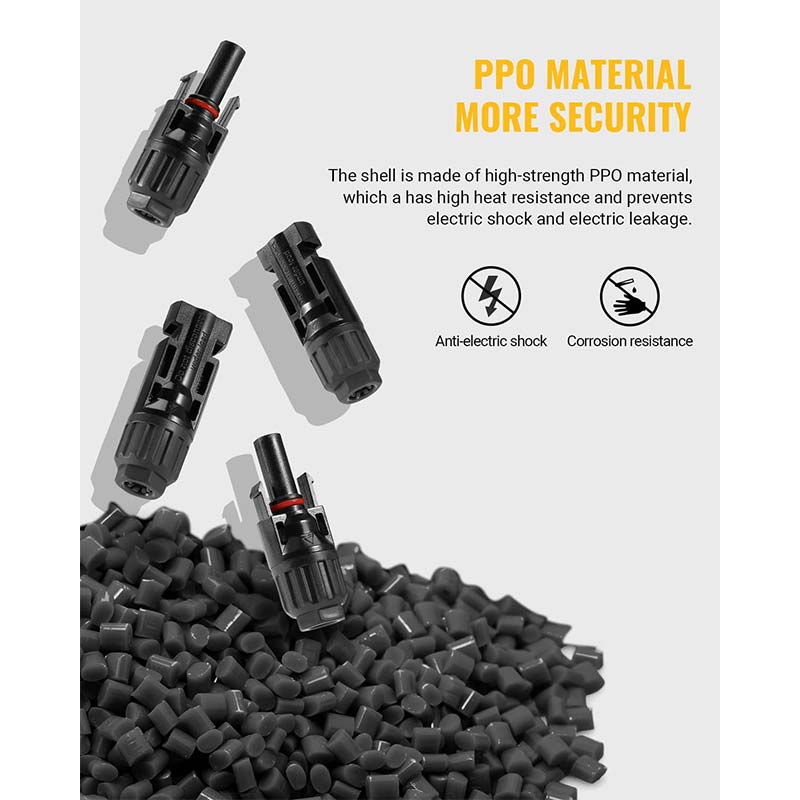

Connector conductor material | copper, Tin | Connector Insulation material | PPO or PBT |
SKU | IRV014-B021 |
---|---|
Rated current | 30A (2.5-4.0mm2) |
Rated voltage | 1000V DC |
Connector contact resistance | ≤0.5mΩ |
Degree of waterproof | IP67 |
Operating temperature range | -40℃~ +105℃ |
Connector conductor material | copper, Tin |
Flammability rating | UL94-V0 |
Adapter Wire | OD 5mm-7mm |
Insertion force | less or equal to 50N |
Withdrawal force | over or equal to 50N |
Suitable cable | AWG 14/13/12/11/10 |
Connector Insulation material | PPO or PBT |
