VALUE FOR MONEY: 22 pairs of solar panel connectors(Male & Female)+ 22 pairs of solar connector pins (Male & Female).In addition, we will present a pair of spanners to you in order to increase your efficiency.
CONDUCTOR PIN IS TINNED COPPER: It makes a rock-solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.

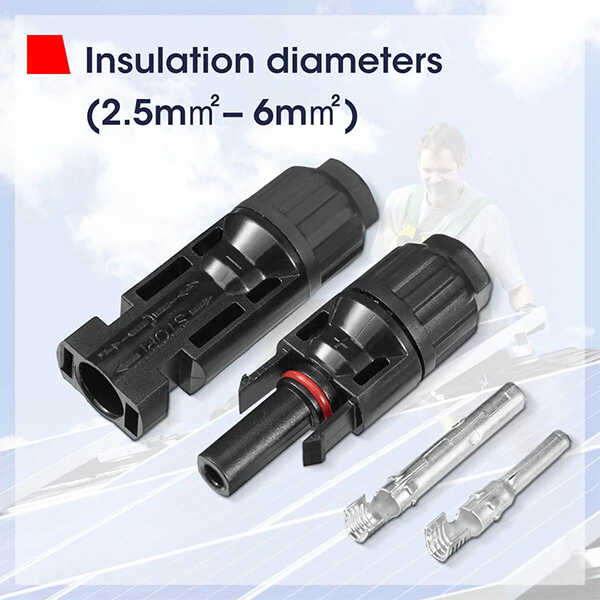

WIDE APPLICATIONS RANGE: Compatible with PV cables with different insulation diameters (13AWG--10 AWG), which can meet various specifications of solar cables on the market.
WATERPROOF DESIGN & EASY INSTALLATION :Waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. Quick & simple assembly processing and simple removal of plugs.

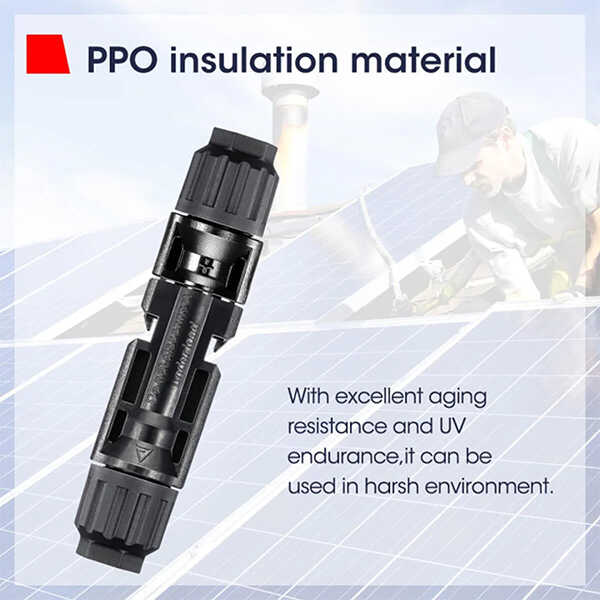

LONGER WORKING LIFE: PPO material with excellent aging resistance and UV endurance, survived rain, high force winds, and snow for more than 20 years! We provide an 18-months warranty for solar branch connectors, please contact us by Amazon when you have any problem during use.
Why would you choose the BougeRV Solar Panel Cable Connectors?
BougeRV Cable Connectors are made of the highest quality materials to ensure the long term durability, heavier and sturdier than other similar products in the market.
This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.

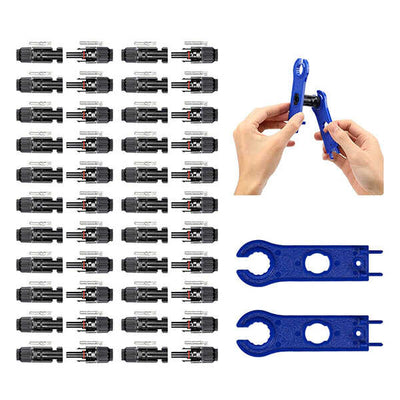

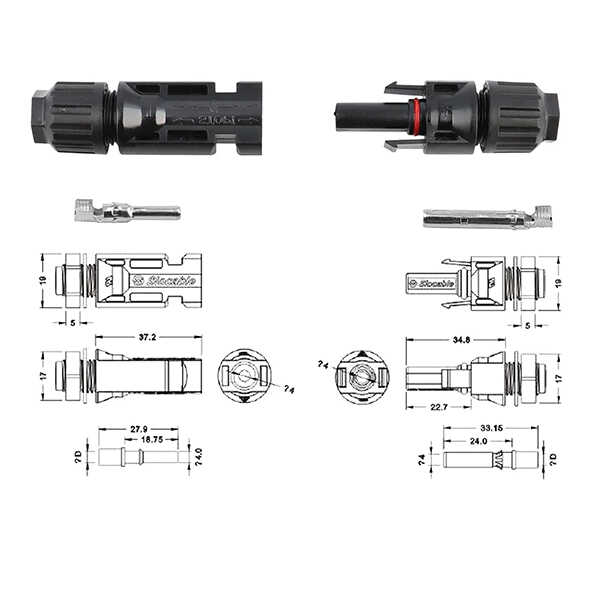

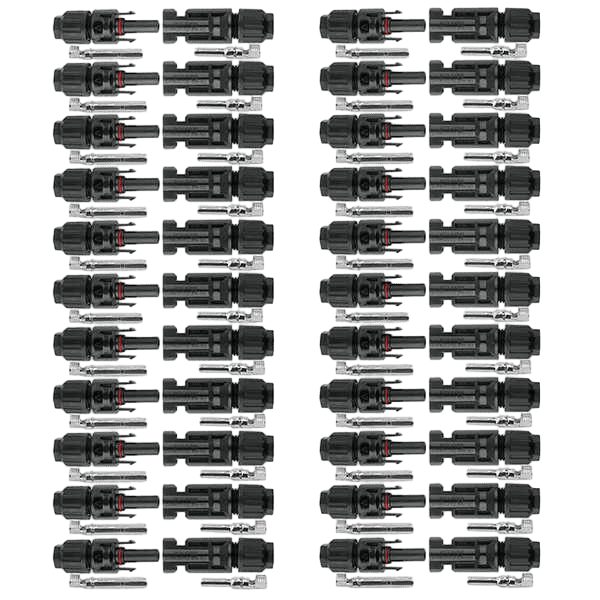

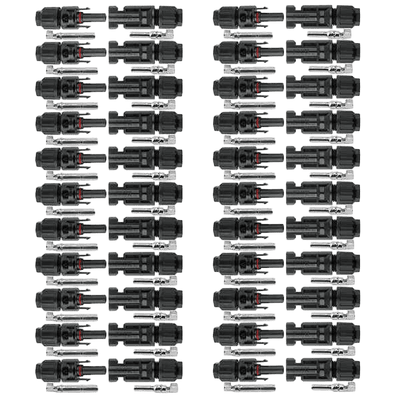

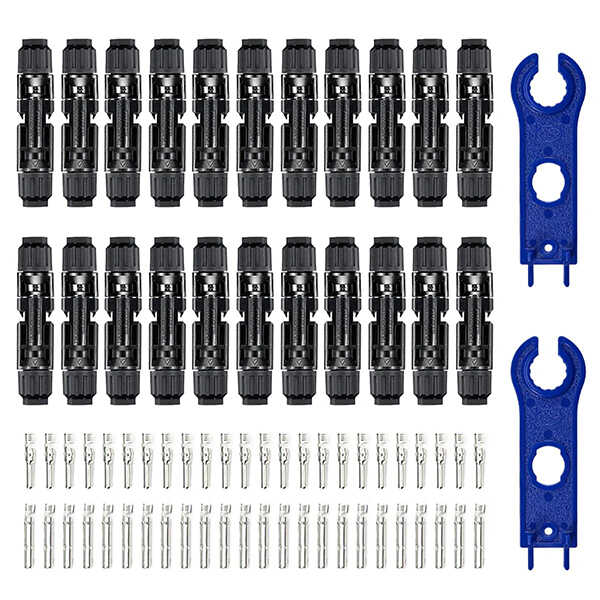

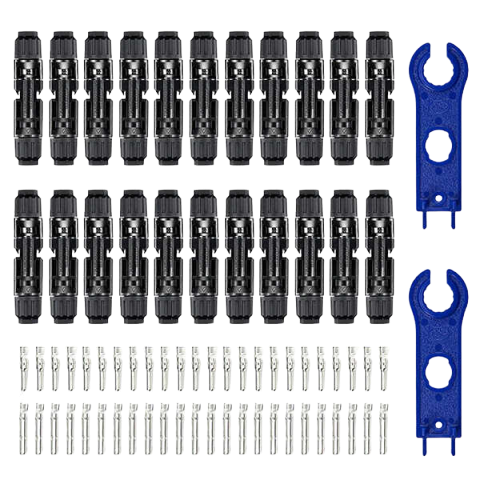

22 Pairs Solar Connectors Kits
Package includes:
22 × male solar connectors ( with solar connector pins )
22 × female solar connectors (with solar connector pins )
2 × solar connector spanners

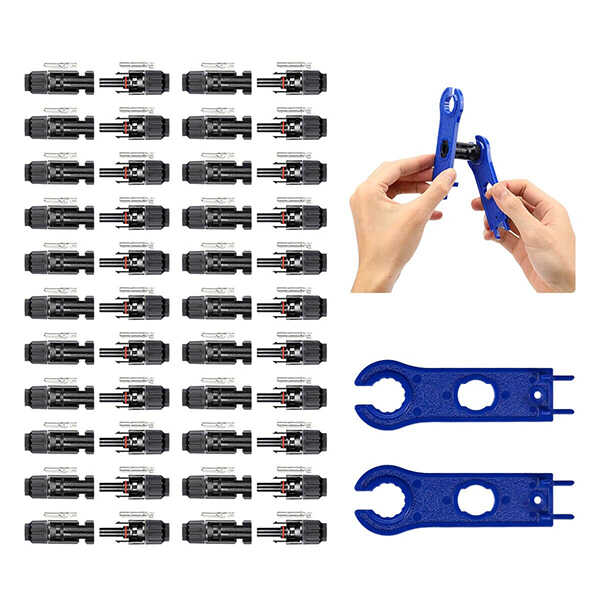

Comes with Solar Spanners
Rated current: 30A (2.5-4.0mm2)
Rated voltage: 1000V DC
Connector contact resistance:≤0.5mΩ
Degree of waterproof: IP67
Flammability rating: UL94-V0
Safety: II
Adapter Wire: OD 5mm-7mm
Insertion force: less or equal to 50N
Withdrawal force: over or equal to 50N
Operating temperature range: -40℃~ +105℃
Suitable cable: AWG 14/13/12/11/10
Connector conductor material: copper, Tin
Connector Insulation material: PPO or PBT
Plug and play
Connection - putting the male and female connectors facing each other and pushing in.
Separation - pressing the two sides of the built-in lock and pulling the male and female connectors.
Fully adapted
The cost-effective solar connector set includes two free solar spanners.
The included spanners are fully adaptable to the connectors and easily tighten the connectors.

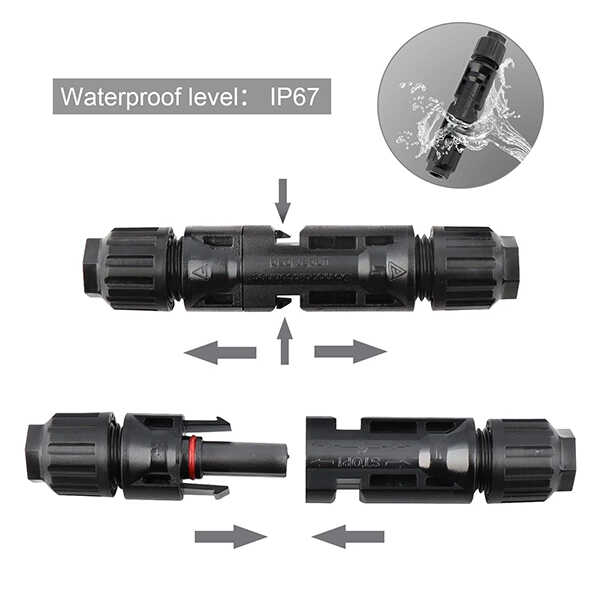

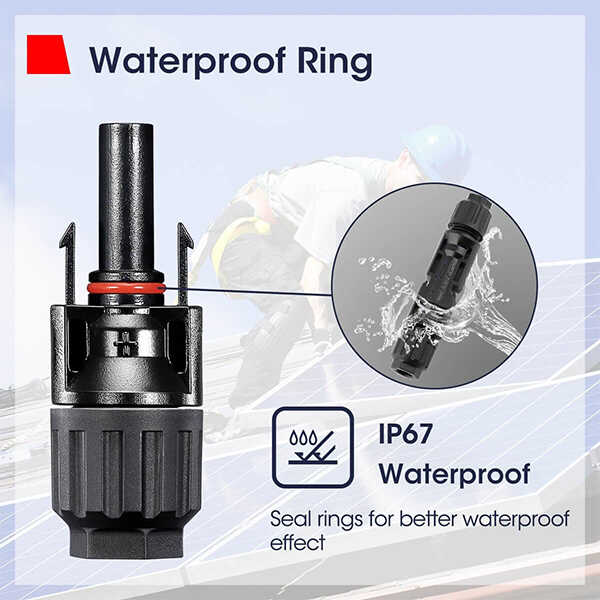

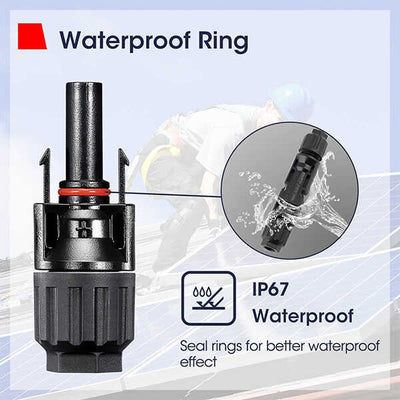

IP67 waterproof
The waterproof ring ensures that water and dust will not enter the connector during long outdoor use.
The built-in shrink ring tightly adheres to the solar line when tightening the connector, effectively preventing water from seeping in.
