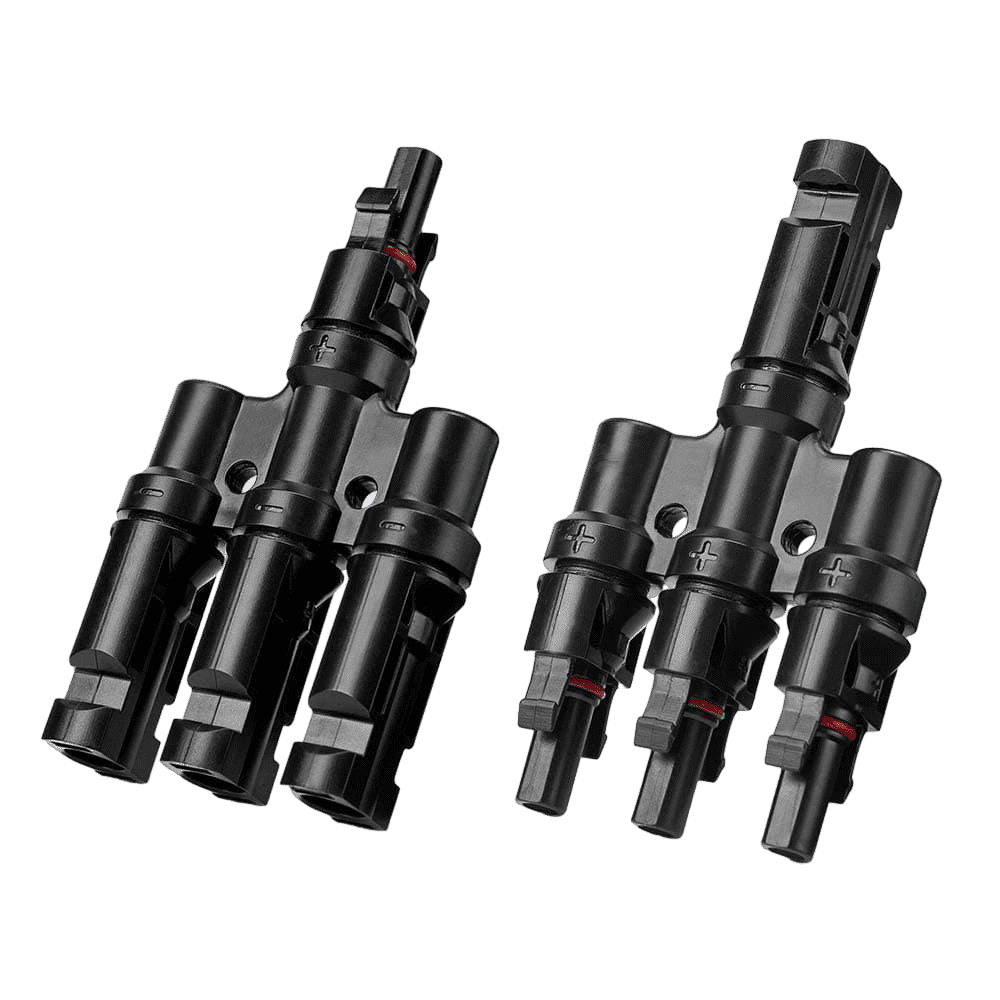

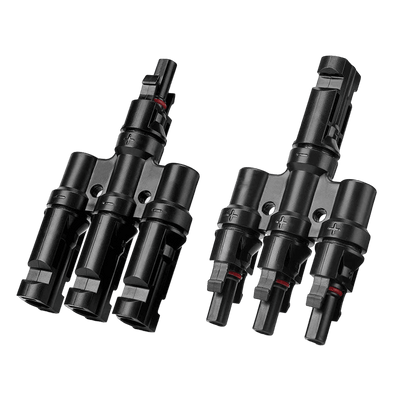

BougeRV Solar Branch Connectors Y Connector in Pair MMMF+FFFM for Parallel Connection Between Solar Panels


false false false false


Click picture to get code ↓
  • Solar Y branch connectors - 1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM), compatible with 14AWG--10AWG solar connectors
  • IP67 Waterproof - A waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. The stable self-locking system which is easy to lock and open.
  • High Security - TUV certified PPO material, good material makes sure the transmission in a stable situation. Contact Material: Copper, silver plated.
  • Parameter - Protection Class: Class II; Temperature Range: -40℉--190℉; Withstanding voltage: 1000V DC(TUV), 600V(UL); Flame Class: UL94-V0 or UL94-5VA
  • Warranty - BougeRV provides an 18-month warranty and friendly customer service.
solar Connector

Go green with BougeRV


  • Easy to install Lightweight and compact, portable, and easy to use; Good material make sure the transmission in a stable situation
  • High quality Made with the highest quality materials, heavier and sturdier than other similar products in the market
  • Solar Y branch Connectors have the characteristics of high-temperature resistance and waterproof and can be used for a long time in a complex outdoor environment.


Package Includes:

solar branch Connector

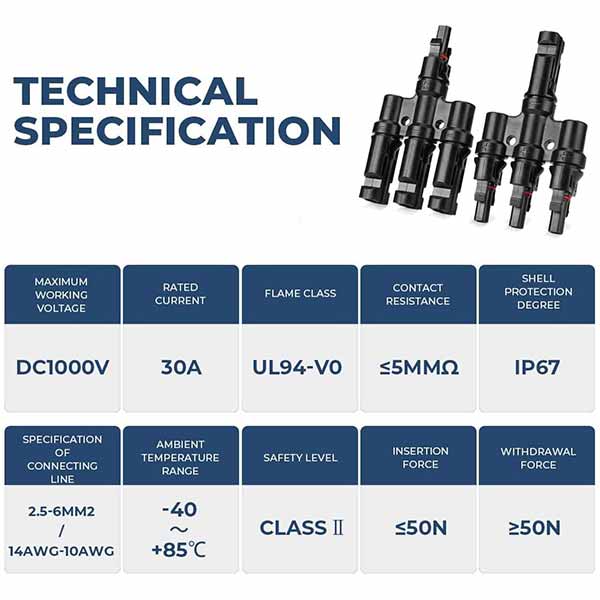

Withstanding Voltage: 1000V DC(TUV), 600V(UL)

Contact Resistance: 1m

Protection Class: Class II

Temperature: -40°F to +194°F

Uniting Force:147.51Ft·lb

Flame Class: UL94-V0 or UL94-5VA

solar Connector


2 pairs of branch connectors

1* MMMF Solar Branch Connectors

1* FFFM Solar Branch Connectors

  • Weight: 0.66 Pounds / 0.3 KG
  • Insulation Material: PC/PA
  • Contact Material: Copper, Silver Plated

solar branch Connector

Wide Applicability


  • Compatible with 14AWG--10AWG solar connectors.
  • Suitable for most PV products on the market.
  • TUV certified Hard plastic.
  • Quick and simple assembly processing
  • The stable self-locking system which is easy to lock and open.
  • Corrosion-resistant connectors for long-term usage.


solar Connector

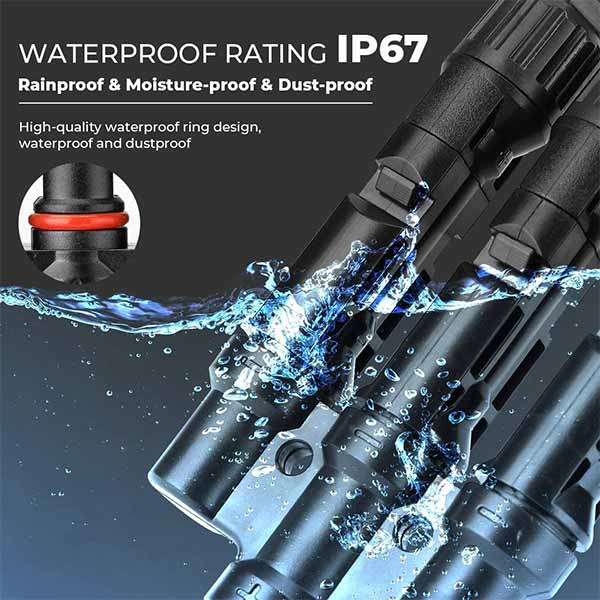

The design of the waterproof ring prevents water and dust from entering the connector and keeps inside dry and clean.


solar Connector

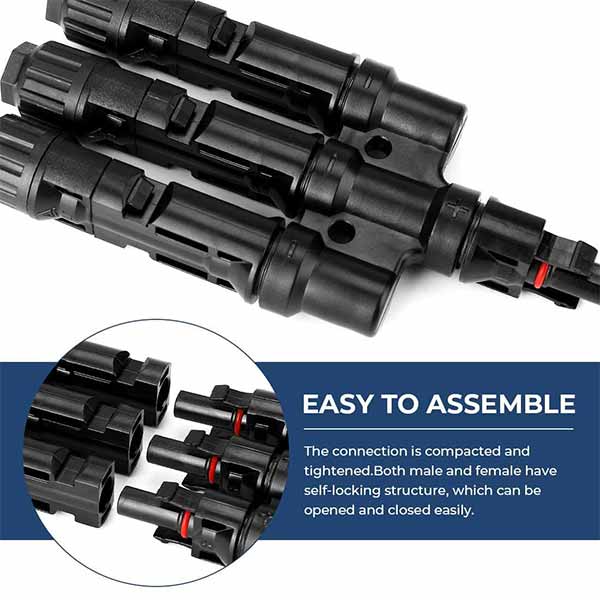

The built-in lock with fine workmanship makes the male and female connectors tightly connected to each other.


solar Connector

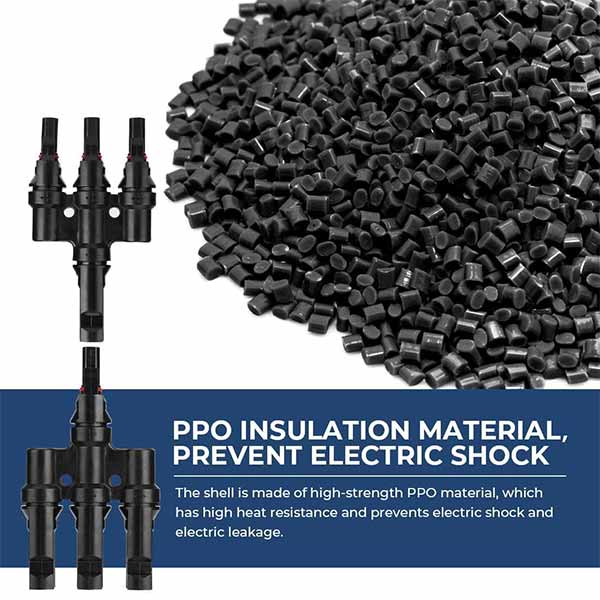

The shell is made of high-strength PPO material, which has a high heat resistance and prevents electric shock.
