Solar Branch Connectors Y Connector in Pair MMF+FFM Parallel Connection (2 Pairs)

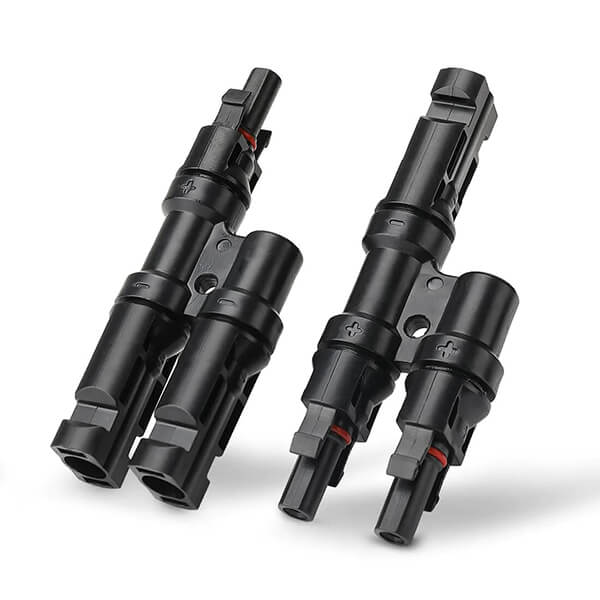

solar y branch connectors
Solar Branch Connectors Y Connector in Pair MMF+FFM Parallel Connection (2 Pairs)
Just the right size
Powerful features
PPO insulation material

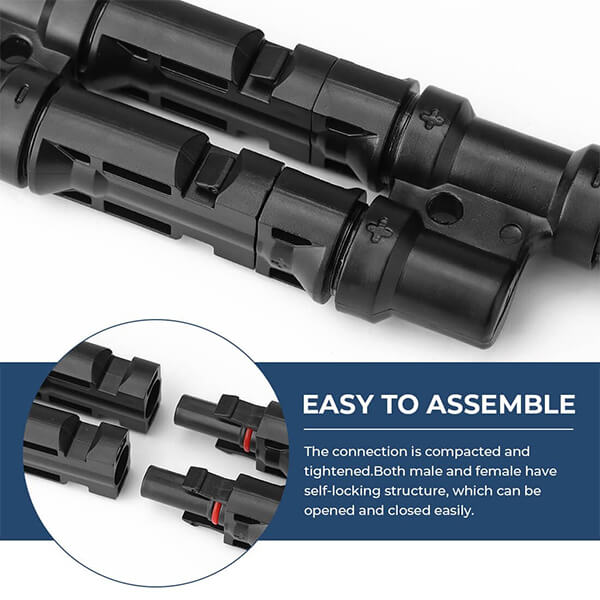

Easy to assemble
improved conductivity
IP67 Waterproof
Solar Branch Connectors Y Connector in Pair MMF+FFM Parallel Connection (2 Pairs)
solar y branch connectors
Solar Branch Connectors Y Connector in Pair MMF+FFM Parallel Connection (2 Pairs)
Just the right size
Powerful features
PPO insulation material
Easy to assemble
improved conductivity
IP67 Waterproof
PRODUCT

Solar Branch Connectors Y Connector in Pair MMF+FFM Parallel Connection (2 Pairs)

🔥Prime Day Encore Sale

Save $-12.99
$12.99

Limited Time Deal

/
These solar Y branch connectors are used to connect multiple solar panels in parallel. They come in a pair of one MMF and one FFM connector, making it easy to combine two or more solar panels together. The connectors are made of high-quality materials and have a waterproof rating of IP67, ensuring a safe and reliable connection for your solar system.
Read more » Fold up »
10

Pay With Ease:

Payments icons
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee

Reviews

You may also like

Technology&Features

  • 【Solar Y branch connectors】1 male to 2 female(M/FF) and 1 female to 2 male(F/MM), it is compatible with solar connectors in 10AWG to 14AWG, it could be used for connecting two solar panels in parallel.
  • [WATERPROOF AND DURABLE] An IP67 waterproof ring on the male connector is perfect that seal out water and dust to prevent it from corrosion. The connector is stable and safe with the built-in lock which is durable outdoors.
  • [HIGH SECURITY] The connector is certified by TÜV, made with PPO material, the contact is made with copper silver plated. Quality material makes sure that it can keep working stably from minus 40℉ to 190℉.
  • [EASY USE] Press your fingers to either side of the built-in lock on the male connector can disconnect the connector easily, without using another tool.

Package Includes:

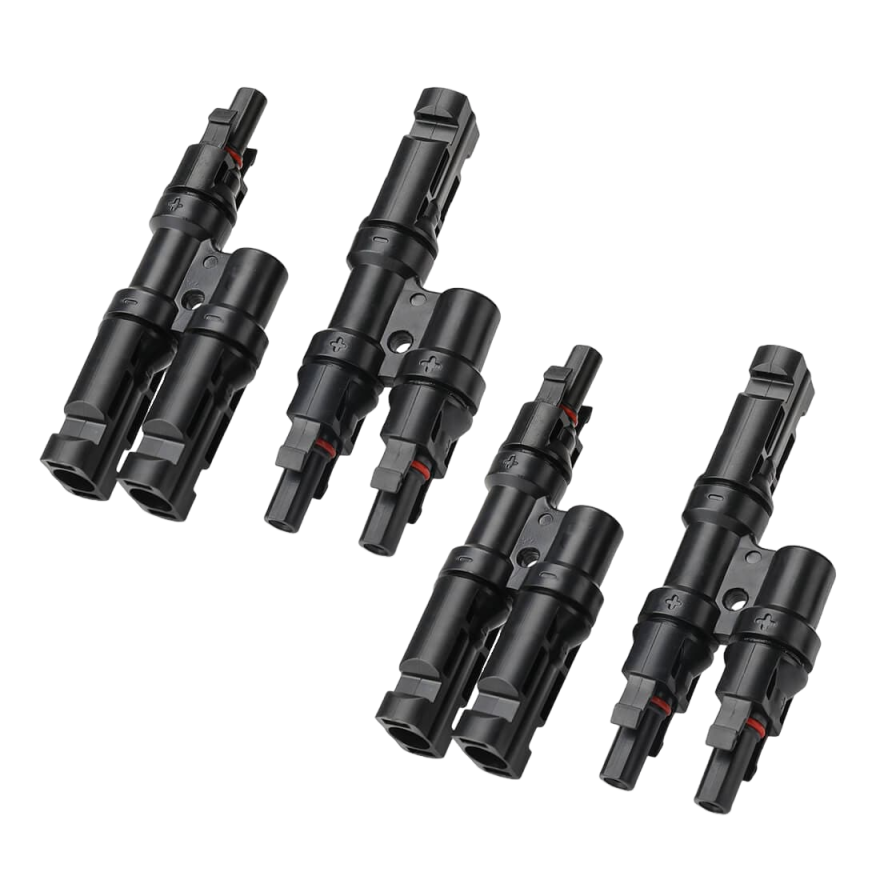

2 pairs of branch connectors
2* MMF Solar Branch Connectors
2* FFM Solar Branch Connectors

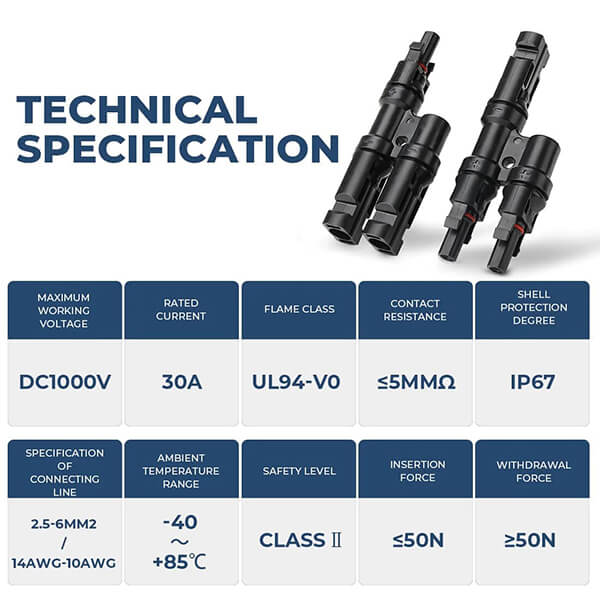

Specification:

Withstanding voltage: 1000V DC(TUV), 600V(UL)
Contact Resistance: 1m
Protection Class: Class II
Temperature: -40°F to +194°F
Uniting Force:147.51Ft·lb
Flame Class: UL94-V0 or UL94-5VA

Weight: 1.95 Pounds / 0.88 KG
Insulation Material: PC/PA
Contact Material: Copper, Silver Plated

Wide Applicability

Compatible with 14AWG--10AWG solar connectors.
Suitable for most PV products on the market.
CE and TUV certified Hard plastic.
Quick and simple assembly processing.
The stable self-locking system is easy to lock and open.
Corrosion-resistant connectors for long-term usage.

IP67 WATERPROOF

The design of the waterproof ring prevents water and dust from entering the connector and keeps inside dry and clean.

TIGHT CONNECTION

The built-in lock with fine workmanship makes the male and female connectors tightly connected to each other.

PPO PREMIUM MATERIAL

The shell is made of high-strength PPO material, which has a high heat resistance and prevents electric shock.
