Name: 2 Pairs Solar Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit
Brand: BougeRV
SKU: ISE021-B021
Price: 14.99 USD
Availability: InStock

2 Pairs Solar Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit

$14.99

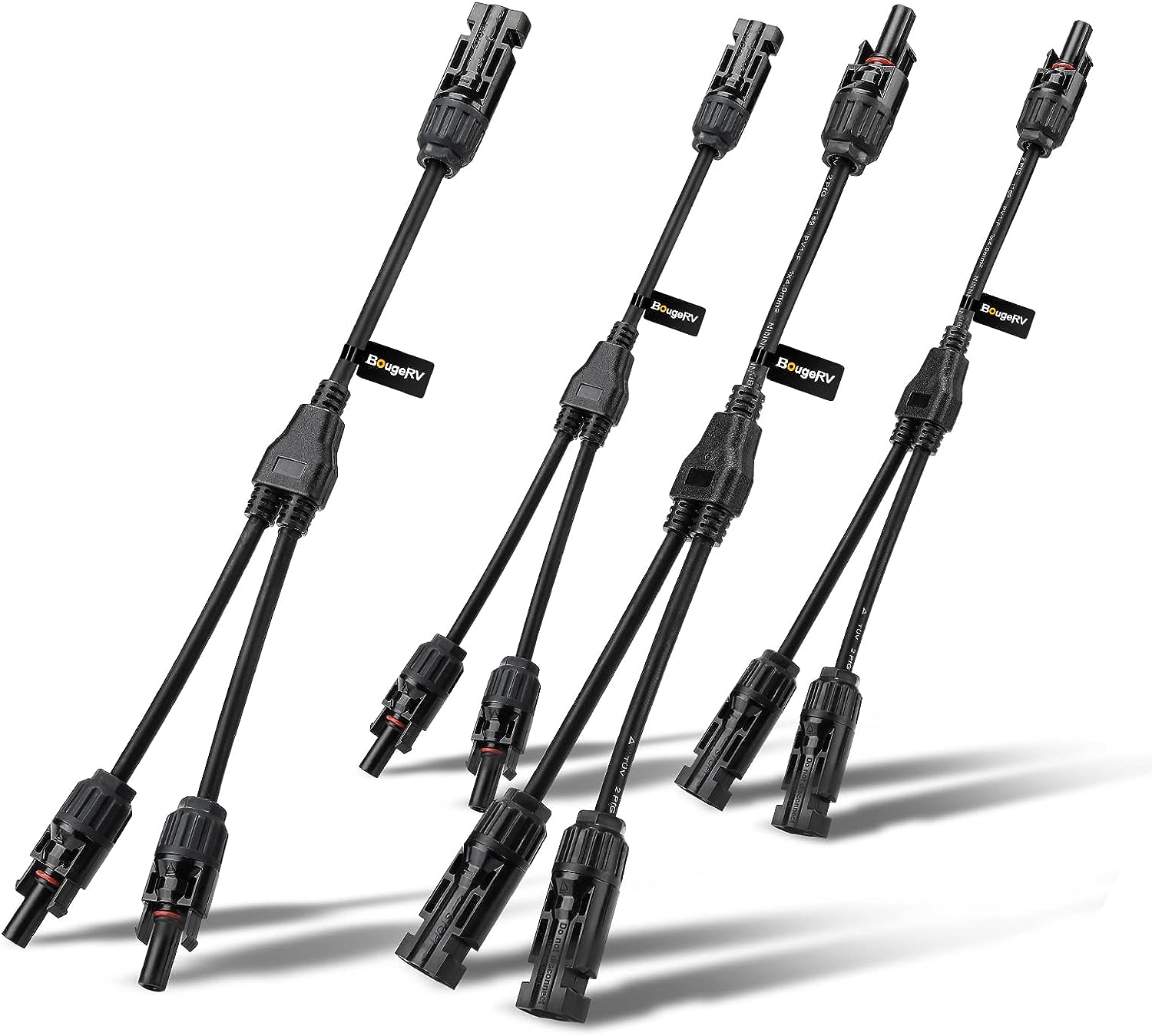

Y Branch parallel Connector (2 Pairs： 1 male to 2 female and 1 female to 2 male)
Main Technical Specification: -Rated Current:20A -Rated Voltage: DC1000V

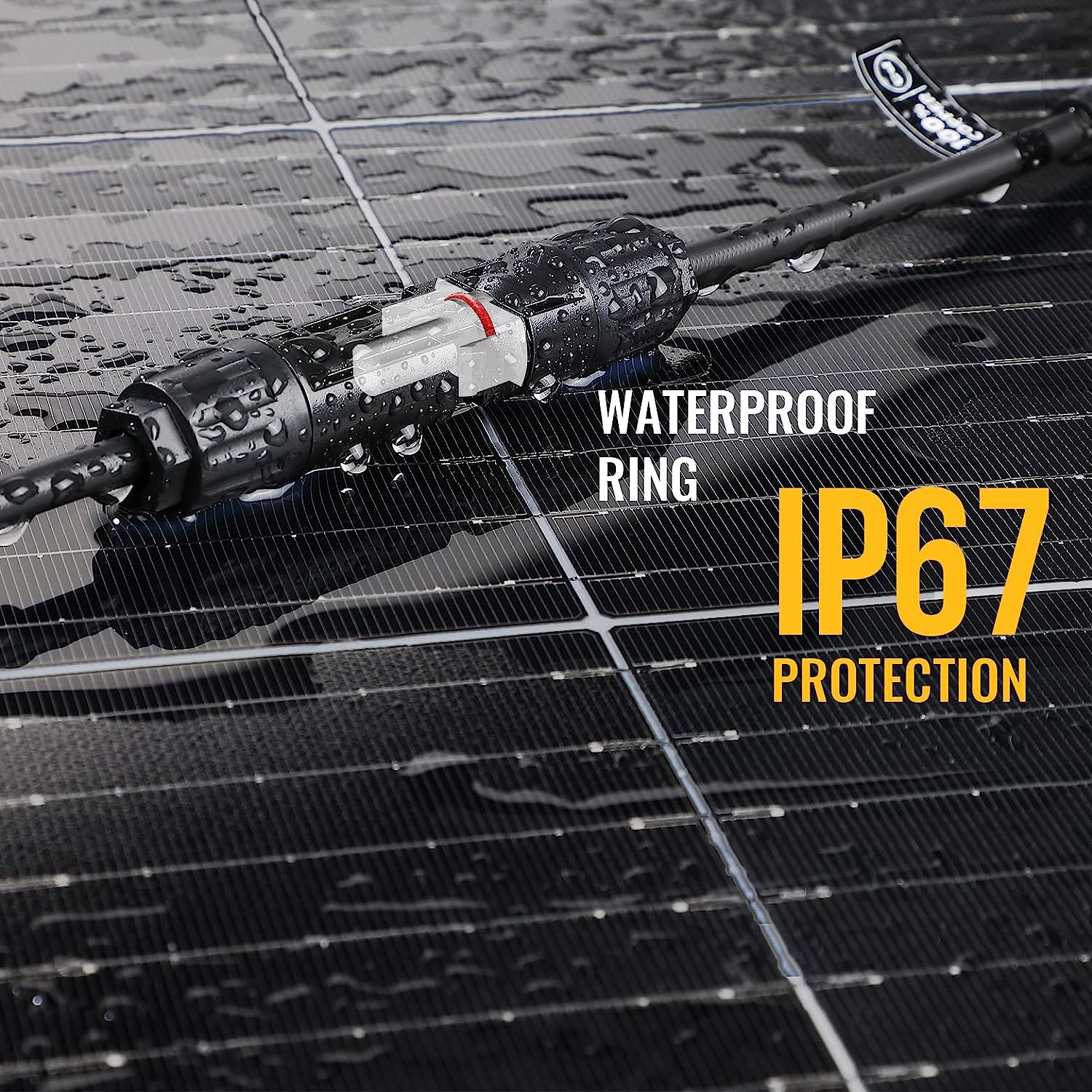

The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion
Suitable Single Core Cable Section: 14-10AWG (1.5mm² -- 6mm²)

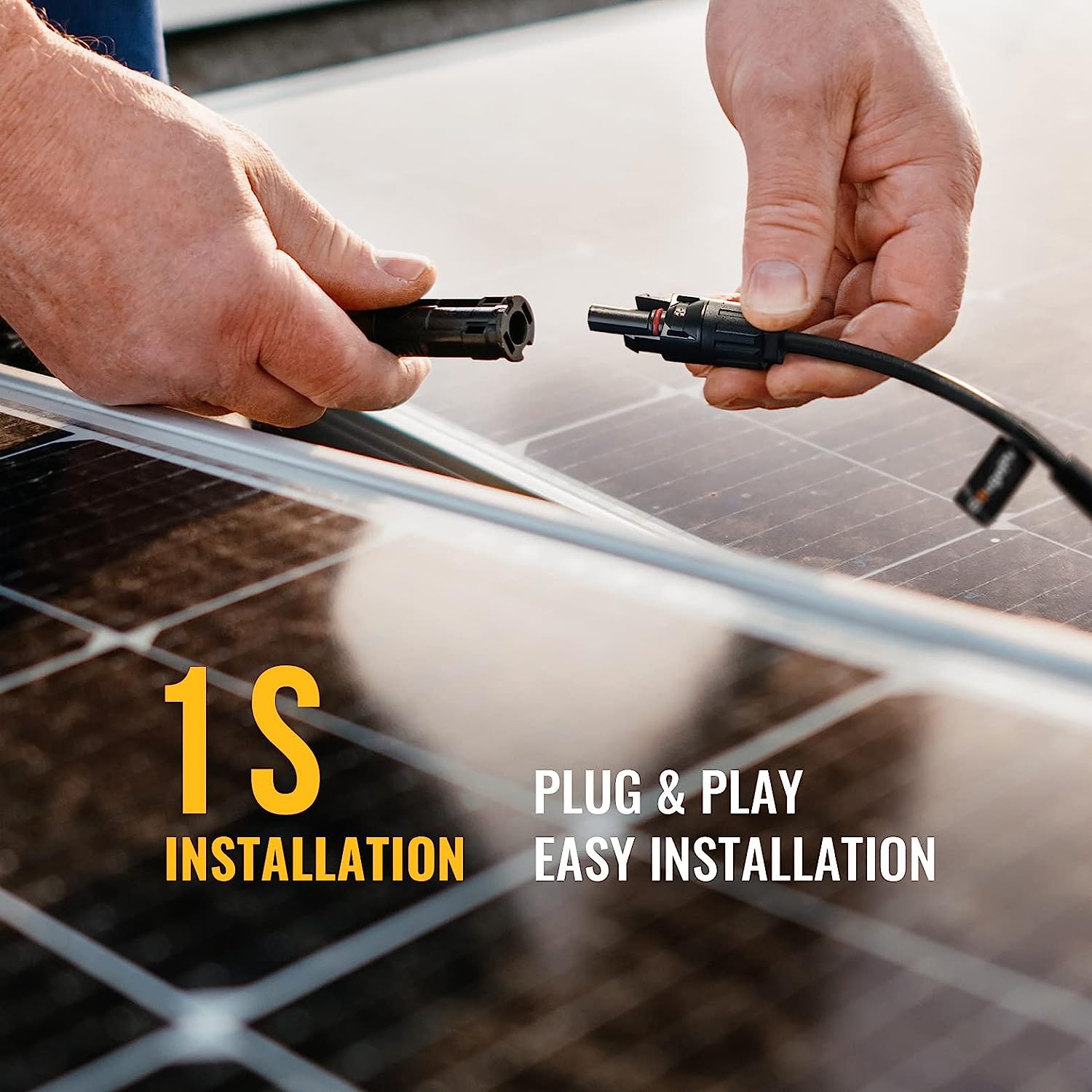

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

Read more » Fold up »

Quantity

Pay With Ease:

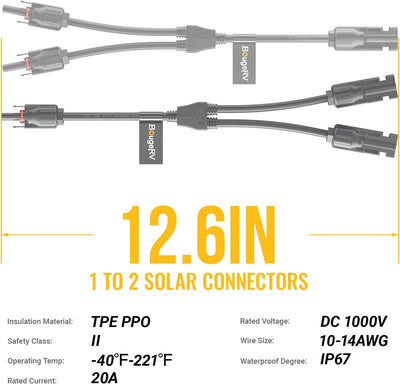

Solar Connectors Y Branch Parallel Adapter Cable(2 Pairs： 1 male to 2 female and 1 female to 2 male)

Main Technical Specification: -Rated Current:20A -Rated Voltage: DC1000V

The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion

Suitable Single Core Cable Section: 1.5mm² -- 6mm²

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

solar y branch connectors are IP67 Waterproof

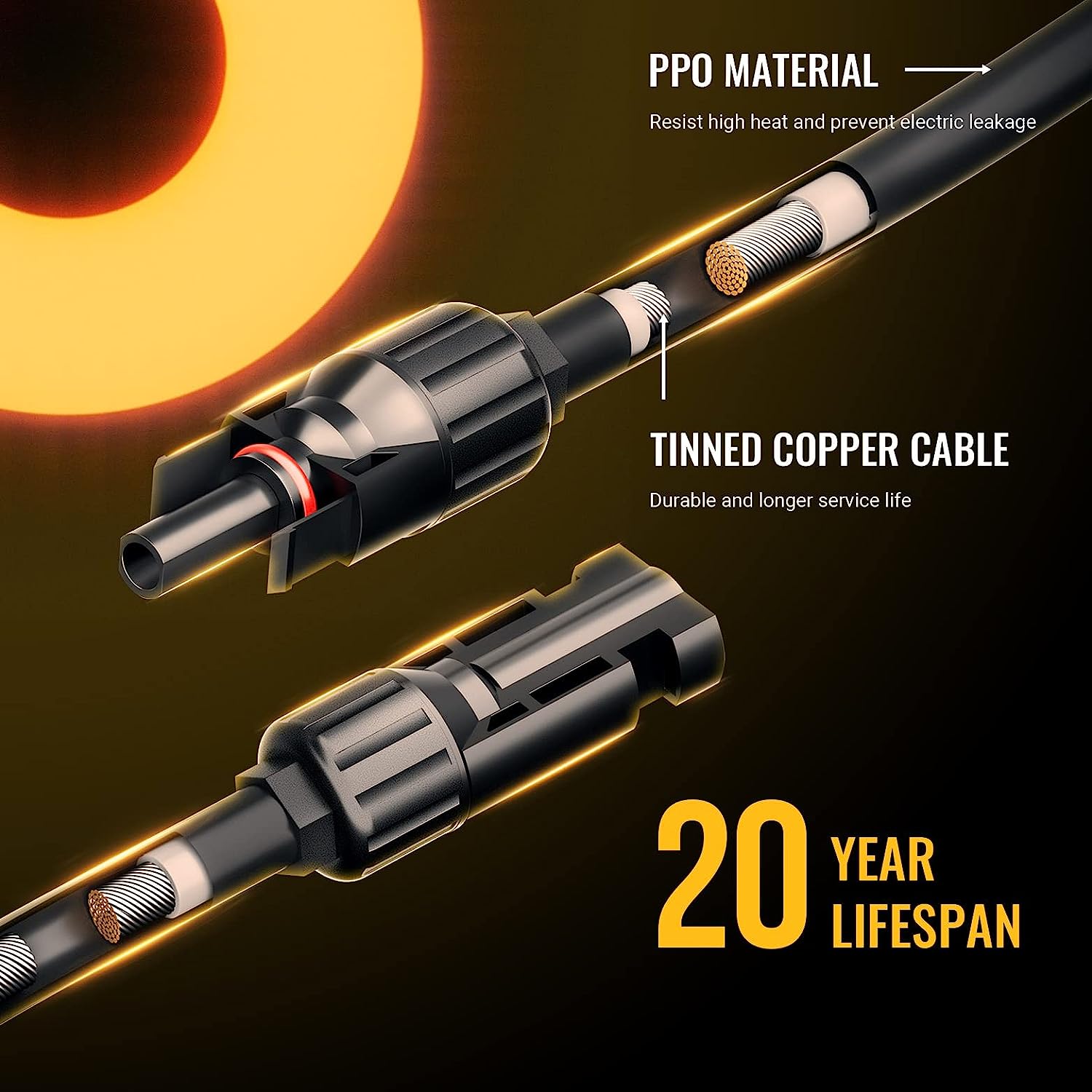

solar y branch connectors are PPO Insulation Material

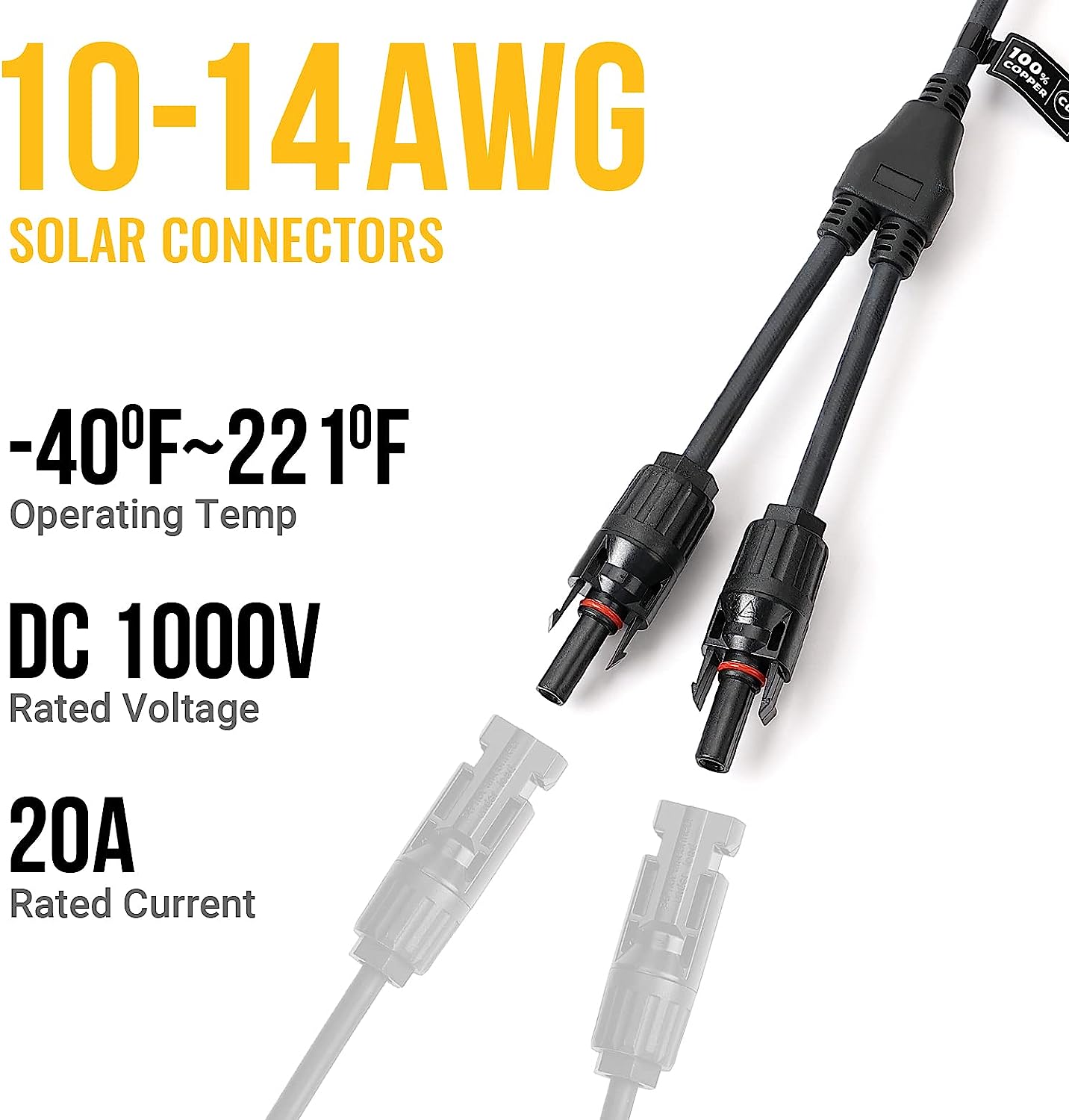

solar y branch connectors are Compatible with10/11/12/13/14 AWG

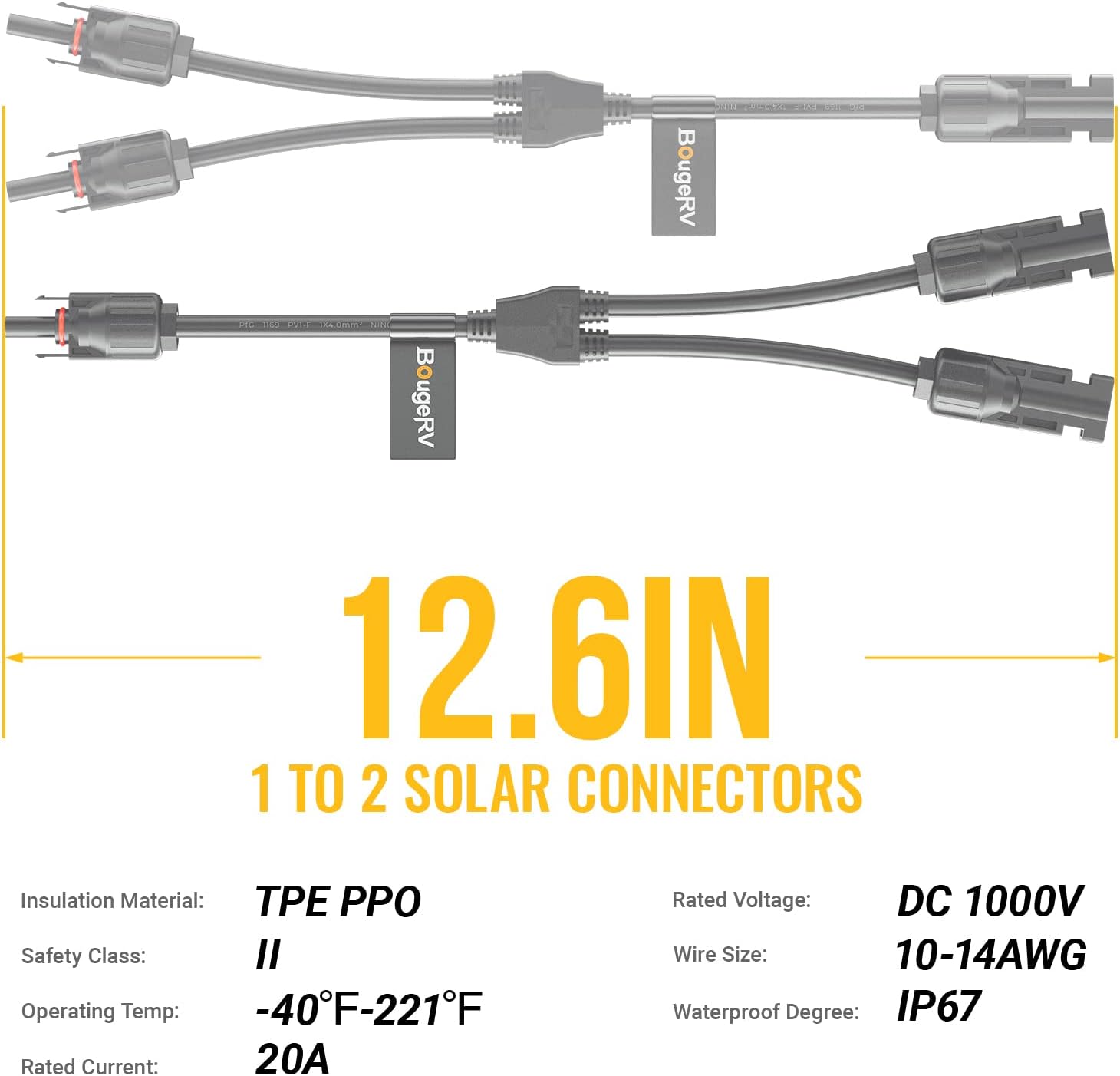

Insulation Material: PPO
Rated Current: 20A(4mm²）
Rated Voltage: DC1000V
Contact Resistance: ≤5mΩ
Insulation Resistance: >500mΩ
Operating Temperature range: -40℃ until+90℃
Degree of Protection: IP67
Flame Class: UL94-V0
Safety Degree: Ⅱ Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

Package included
2 Pair of Y Branch Solar Panel Cable Connectors

Product Specifications

SKU	ISE002-B021
Rated Current	20A(4mm²）	Rated Voltage	DC1000V
Contact Resistance	≤5mΩ	Insulation Resistance	>500mΩ
Operating Temperature range	-40℃ until+90℃	Degree of Protection	IP67
Flame Class	UL94-V0	Safety Degree	Ⅱ
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

SKU	ISE002-B021
Rated Current	20A(4mm²）
Contact Resistance	≤5mΩ
Operating Temperature range	-40℃ until+90℃
Flame Class	UL94-V0
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
Rated Voltage	DC1000V
Insulation Resistance	>500mΩ
Degree of Protection	IP67
Safety Degree	Ⅱ

2 Pairs Solar Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit
