BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V
BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V
BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V
BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V
BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V
BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V
FEATURES PRODUCT

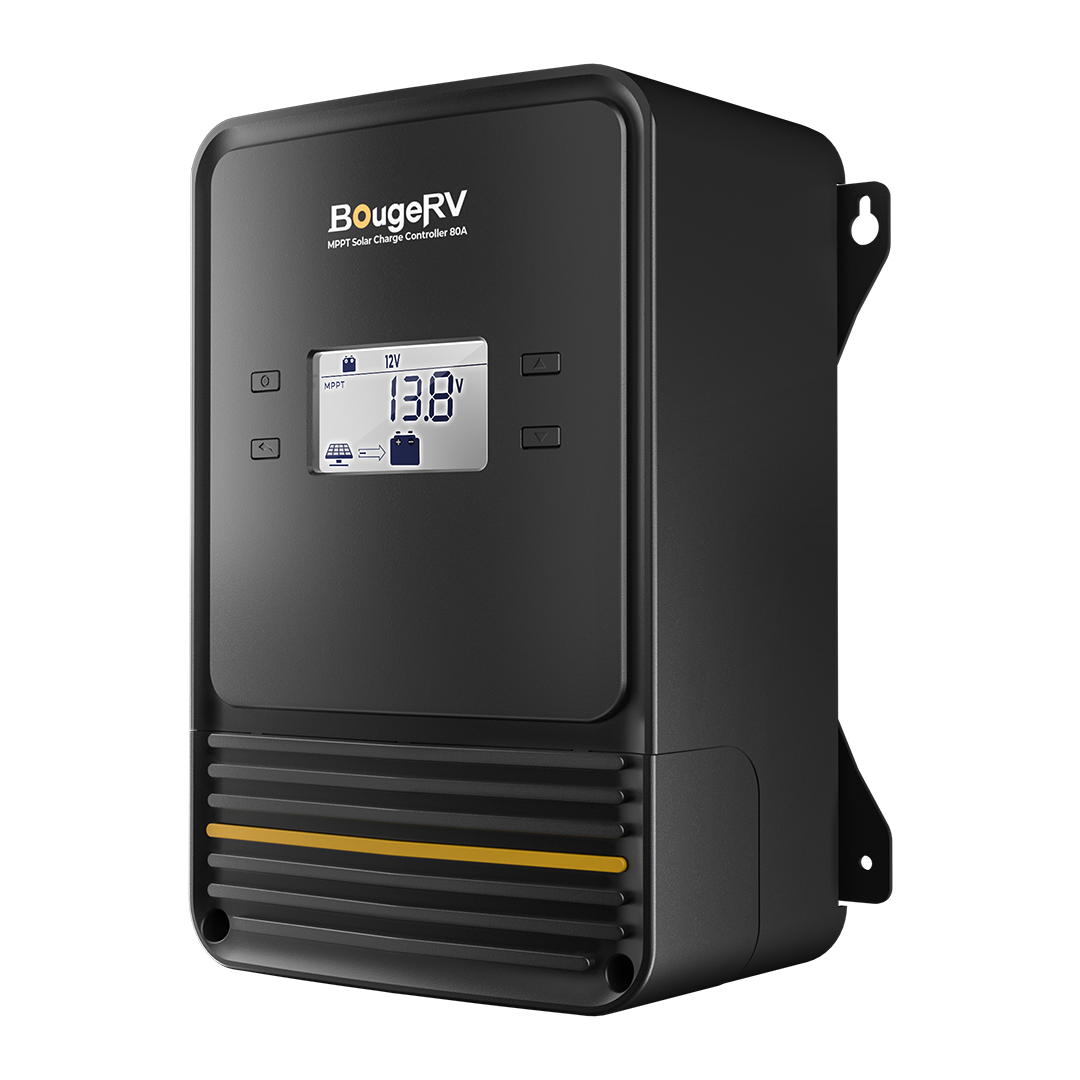

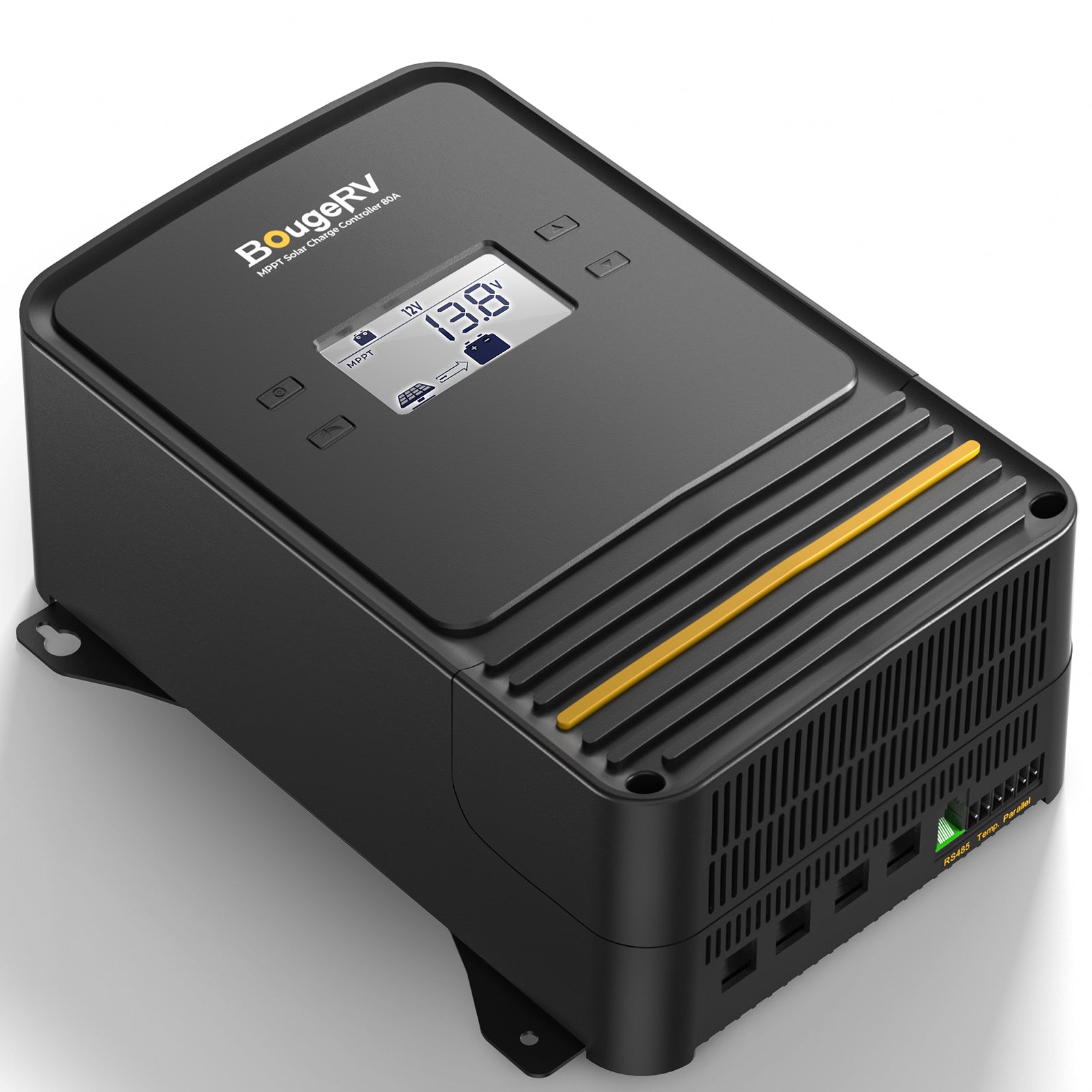

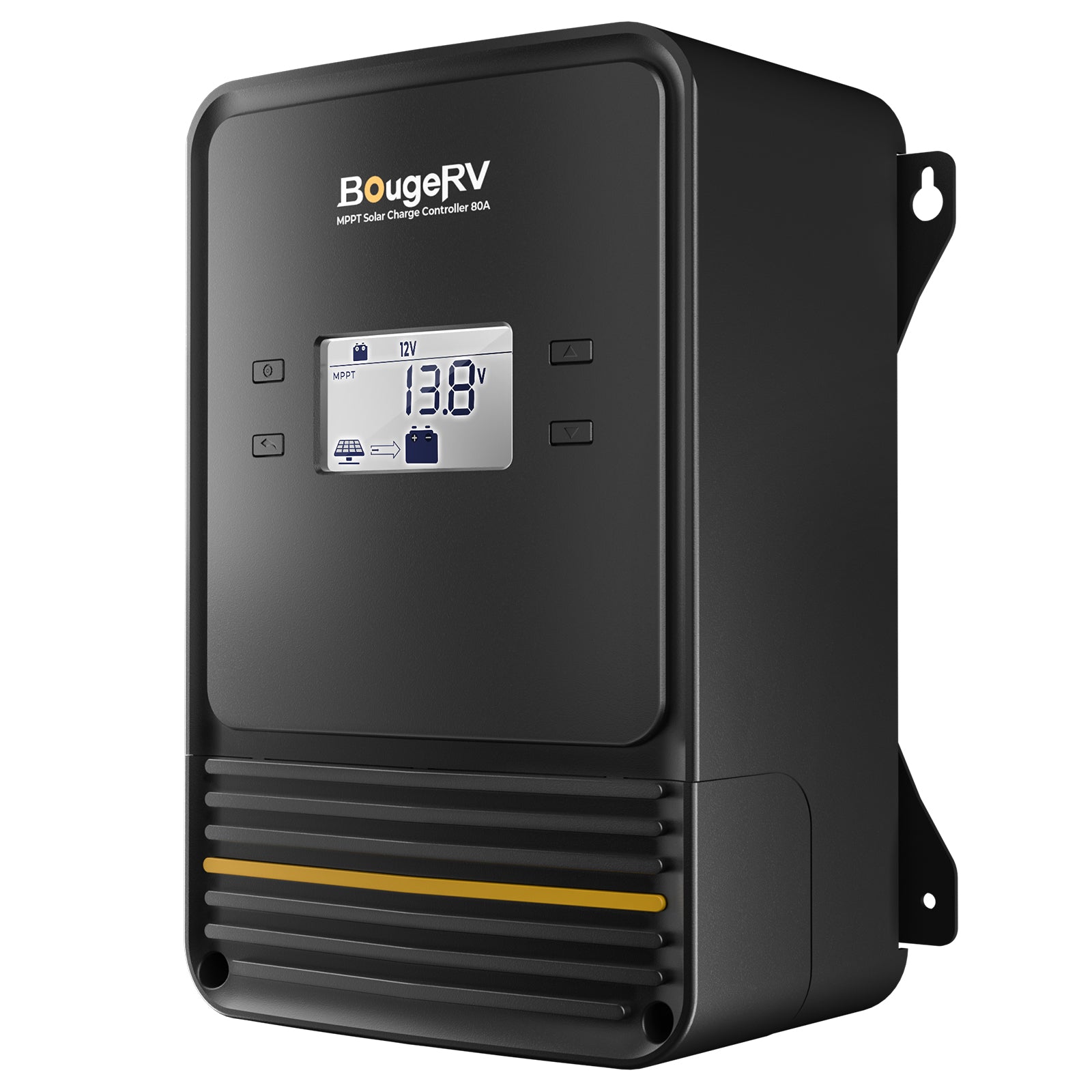

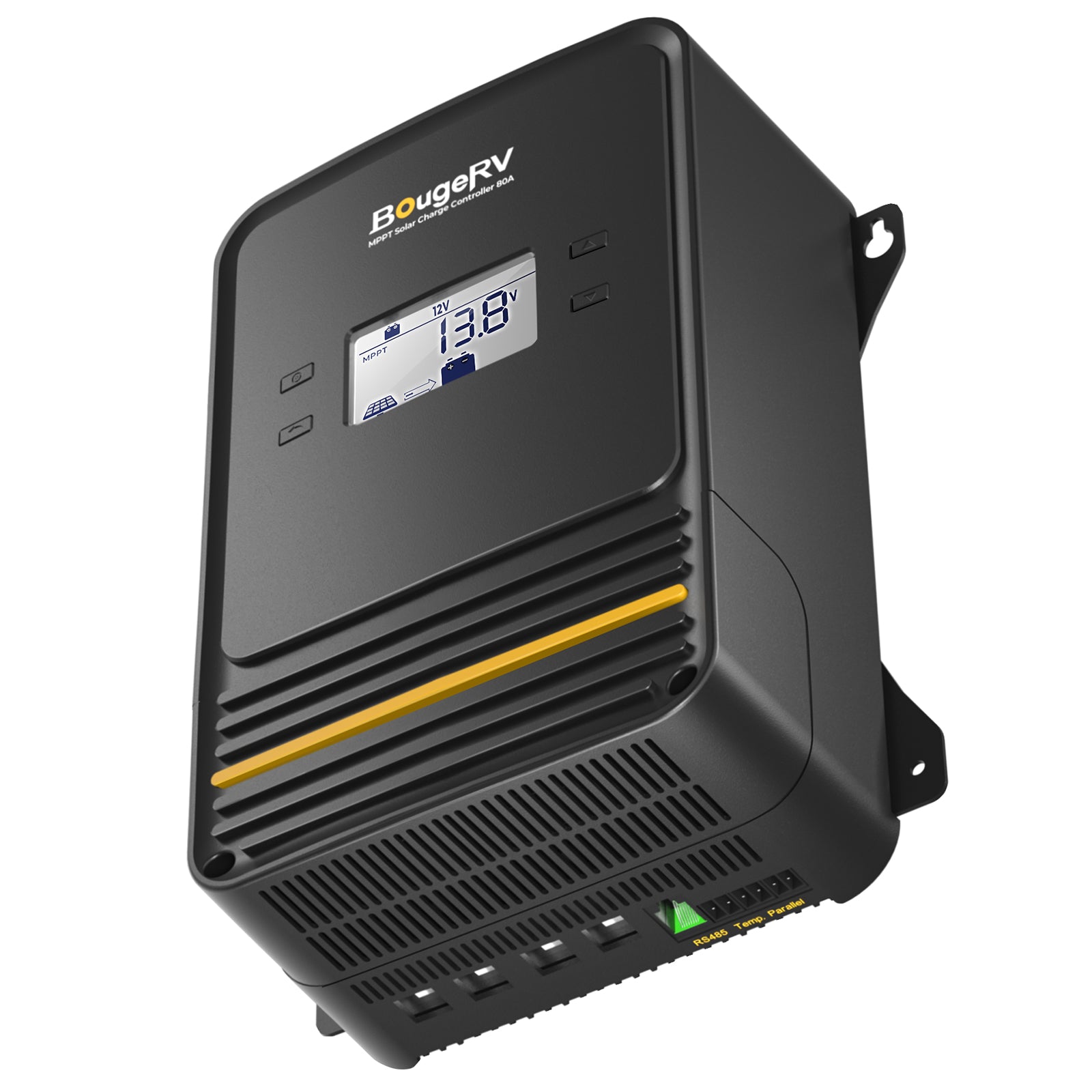

BougeRV 80Amp MPPT Solar Charge Controller 12V/24V/36V/48V

$299.99
/
Get the most out of your solar panels with the BougeRV 80A MPPT solar charge controller. This advanced controller features MPPT technology to ensure peak power generation, even in changing weather conditions. Works with 12V, 24V, 36V, and 48V battery systems, supporting various battery chemistries like LiFePO4, AGM, Gel, and more. Maximize your solar energy harvest and ensure a safe, reliable charging experience with the BougeRV 80A MPPT solar charge controller.
Read more » Fold up »
15

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews

HIGHLIGHTS

BATTERY COMPATIBILITY

Compatible with 12V/24V/36V/48V batteries, fit for LiFePO4, SLD, GEL, AGM, SLA, FLD batteries, it also supports auto-identify voltage for lead-acid battery. The 80A solar charge controller can activate your dormant battery or over-discharged battery. Comes with a temperature sensor, the controller supports lead-acid battery temperature compensation.

REMOTE APP CONTROL

Pairing the solar controller with your phone via ChargePro 2.0, which makes seeing output and history data a breeze, also allows the charge voltage, current, etc. to be set for different types of batteries. The remote app control provides 15 feet signal.

ACTIVE SHIELD

Certified by CE and RoHS. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backwards of current protections. BougeRV MPPT solar charge controller features with dual MOS circuit to prevent the reverse current and to reduce the heat in operation. Maintain your battery all the time.

INNOVATIVE AND EFFICIENT

Using the latest, fastest MPPT technology, BougeRV 80A MPPT solar controller features a conversion rate of up to 99% and peak conversion efficiency of 99%. Feature negative ground design, the 80amp MPPT solar panel regulator can be compatible with most RV or other vehicle systems. Features cooling fan and heating sink, the 80A solar charge controller can maintain full current output stably.

Product Specifications

SKU ISE234
System Wiring Grounded Negative Grounded
Battery System Voltage 12V/24V/36V/48V
Auto (FLD/GEL/SEL/USE)
Manual (LI/USE)
No-load Loss 12ma(12V), 10ma(24V), 8ma(36V), 6ma(48V)
Rated Solar Charge Current 80A
Max Solar Input Power 1200W/12V; 2400W/24V
3600W/36V ; 4800W/48V
Operating Temperature -25ºC ~ +45ºC
Fan-onTemperature > 45ºC
Storage Temperature -40ºC ~ +80ºC
IP Protection IP32
Net Weight 2.5kg
Communication Port RS485(RJ12) + BT
Support Parallel Support parallel (up to 9 units)
Operating Altitude ≤3000 meters
Controller Dimension(mm) 260*200*93
Max Solar Input Voltage ＜150Voc
SKU ISE234
System Wiring Grounded Negative Grounded
Battery System Voltage 12V/24V/36V/48V
Auto (FLD/GEL/SEL/USE)
Manual (LI/USE)
No-load Loss 12ma(12V), 10ma(24V), 8ma(36V), 6ma(48V)
Rated Solar Charge Current 80A
Max Solar Input Power 1200W/12V; 2400W/24V
3600W/36V ; 4800W/48V
Operating Temperature -25ºC ~ +45ºC
Fan-onTemperature > 45ºC
Storage Temperature -40ºC ~ +80ºC
IP Protection IP32
Net Weight 2.5kg
Communication Port RS485(RJ12) + BT
Support Parallel Support parallel (up to 9 units)
Operating Altitude ≤3000 meters
Controller Dimension(mm) 260*200*93
Max Solar Input Voltage ＜150Voc
SKU ISE234
System Wiring Grounded Negative Grounded
Battery System Voltage 12V/24V/36V/48V
Auto (FLD/GEL/SEL/USE)
Manual (LI/USE)
No-load Loss 12ma(12V), 10ma(24V), 8ma(36V), 6ma(48V)
Rated Solar Charge Current 80A
Max Solar Input Power 1200W/12V; 2400W/24V
3600W/36V ; 4800W/48V
Operating Temperature -25ºC ~ +45ºC
Fan-onTemperature > 45ºC
Storage Temperature -40ºC ~ +80ºC
IP Protection IP32
Net Weight 2.5kg
Communication Port RS485(RJ12) + BT
Support Parallel Support parallel (up to 9 units)
Operating Altitude ≤3000 meters
Controller Dimension(mm) 260*200*93
Max Solar Input Voltage ＜150Voc
