- Tech Specs

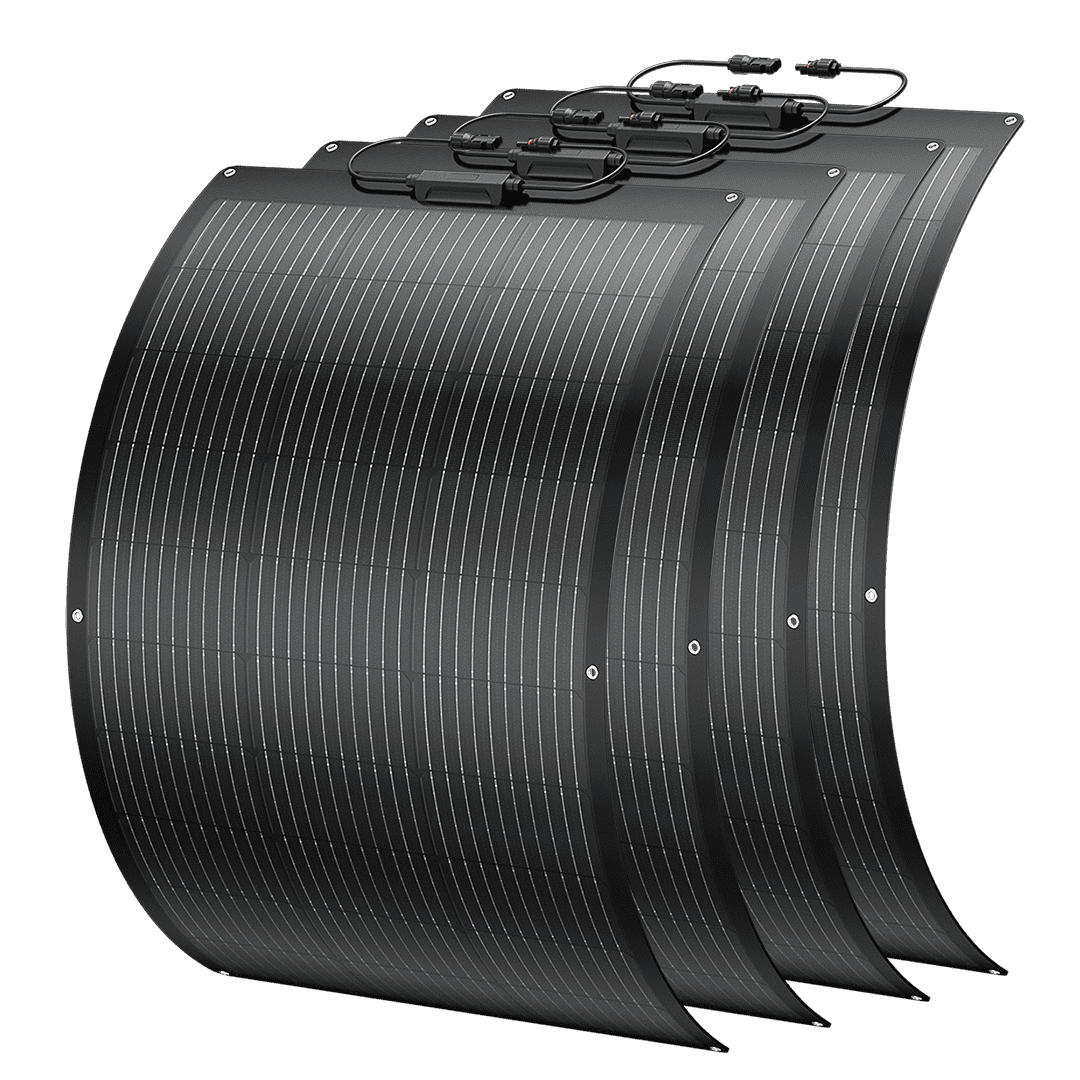

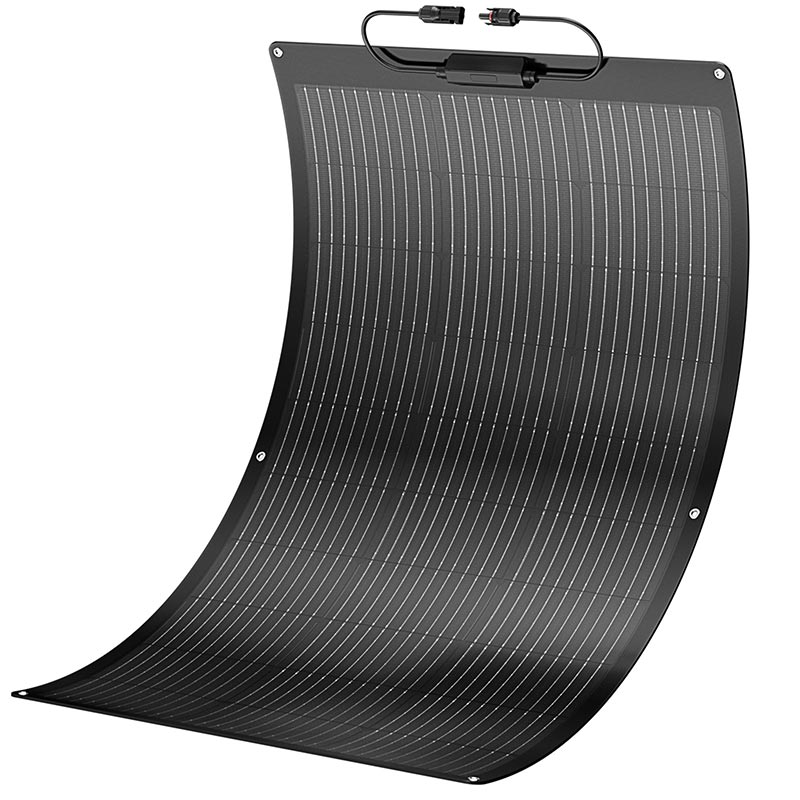

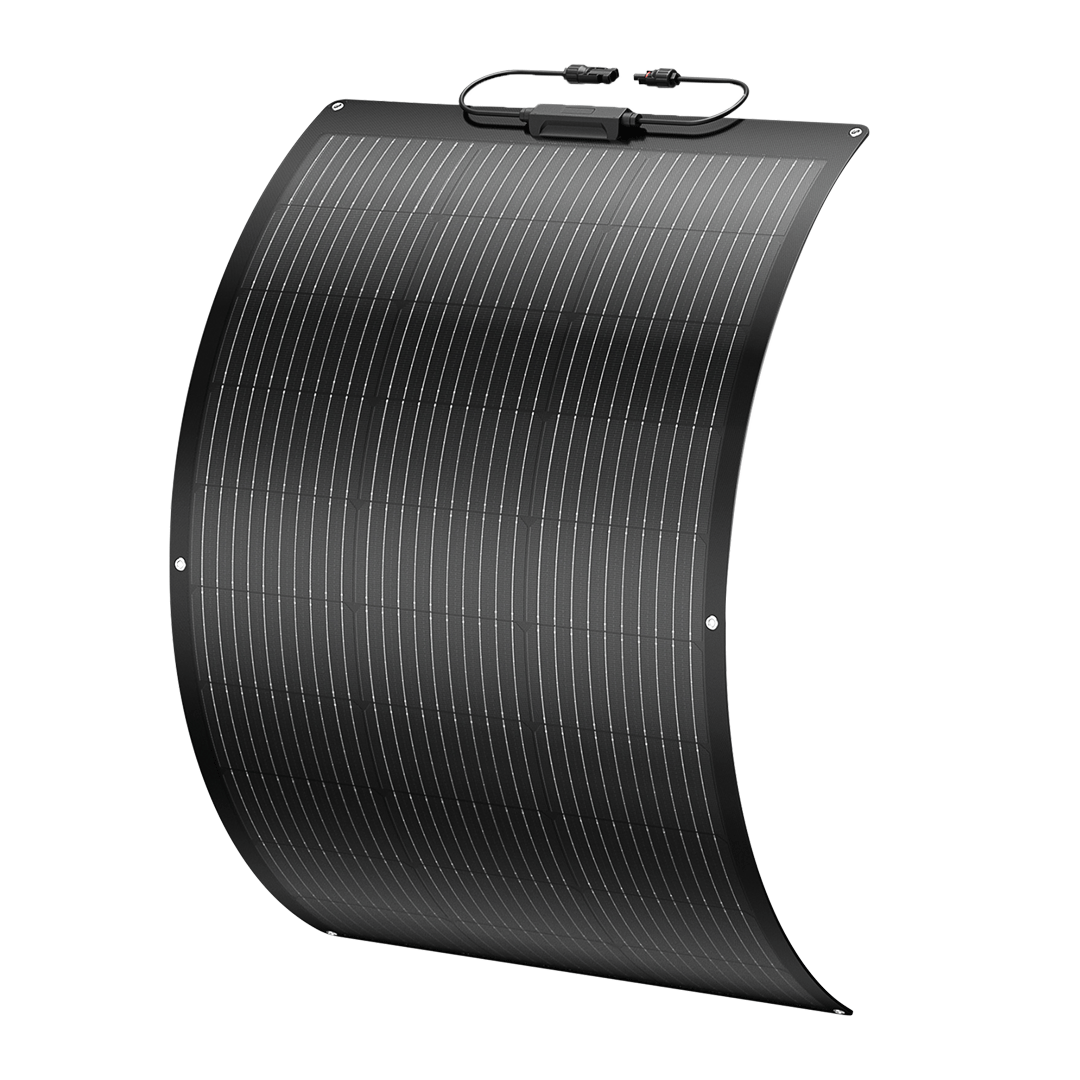

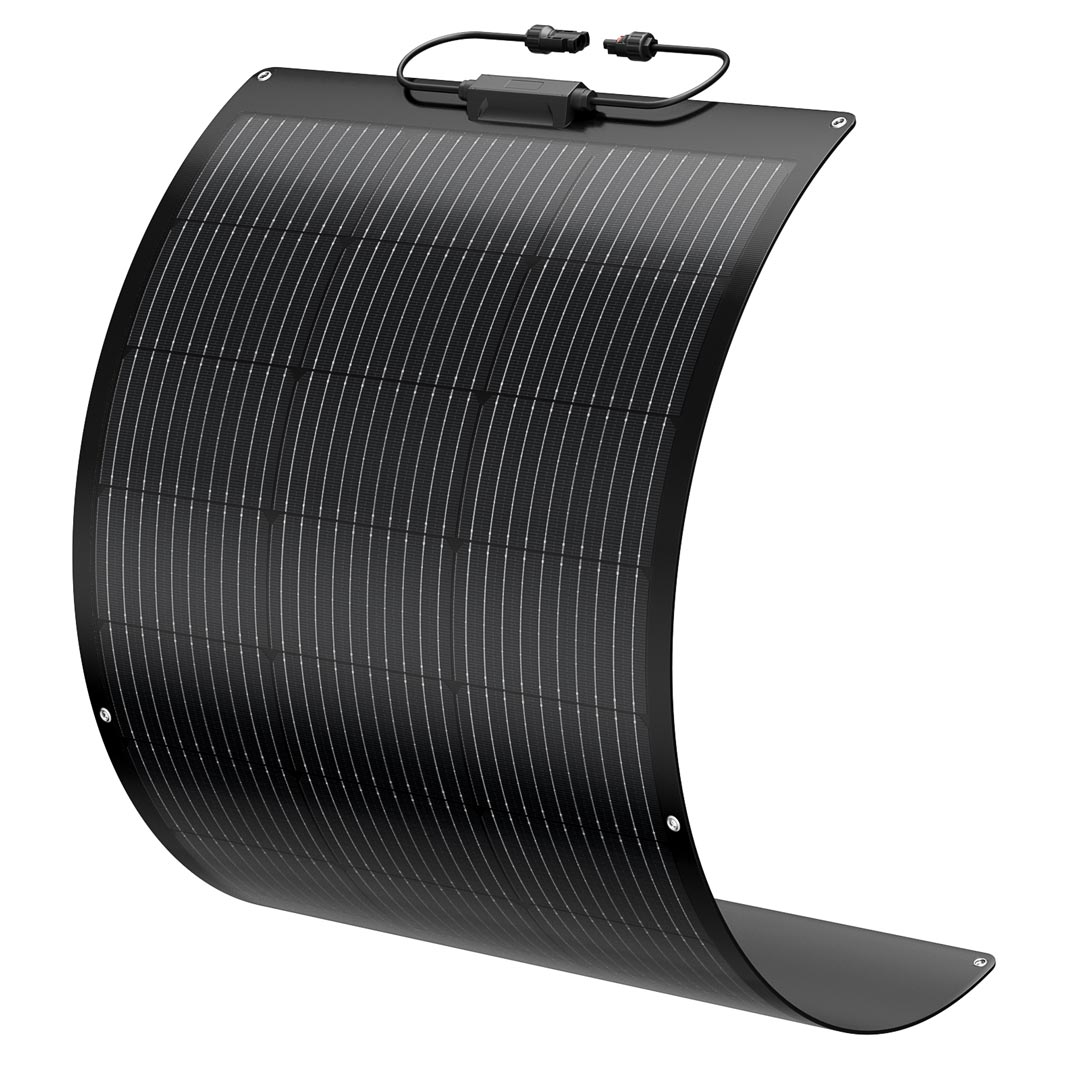

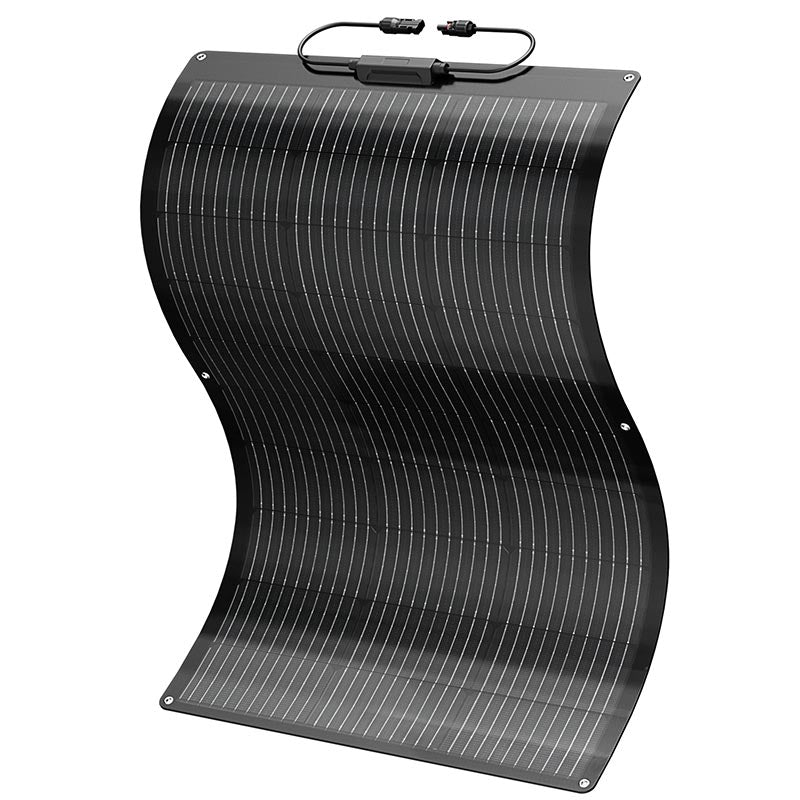

BougeRV innovative fiberglass curved solar panel, crafted from flexible fiberglass material, can bend up to 270 degrees for seamless integration on boats, RVs, Jeeps, and roofs. Outshining traditional monocrystalline silicon panels, it offers enhanced adaptability and diverse mounting options, broadening the potential for solar energy application.
BougeRV advanced fiberglass curved solar panel, weighing only 4 pounds, provides exceptional portability compared to traditional glass panels. Its lightweight design simplifies and accelerates installation, offering an easy replacement for conventional options.
BougeRV 2.1mm glass fiberglass curved solar panel boasts an ultra-slim profile as thin as two stacked coins, ensuring easy installation and a significant space-saving advantage, making it an ideal solution for cramped living spaces and vehicles.
BougeRV fiberglass curved solar panels are IP68 waterproof, ensuring durability and functionality even when fully submerged or exposed to extreme weather.
The BougeRV curved fiberglass solar panel is designed for durability, able to resist high wind (2400 Pa) and heavy snow (5400 Pa), with corrosion-resistant aluminum for an extended lifespan.
The BougeRV fiberglass curved solar panel features an efficient 10BB cell design, achieving a high conversion rate of up to 23%. Its design also minimizes shading on the cells, enhancing light absorption and potentially contributing to the panel's overall longevity.
|Max Power (Pmax)||100±5%W||Operating Temperature Limits||
-40℉ ~ +185℉
|Solar Cells Efficiency||23%||Series Fuse Rating||10A|
|Max. Power Voltage Vmp (V)||17.1±5%V||Temperature Coefficient Pmax||-0.39%/℃|
|Max. Power Current Imp (A)||5.85±5%A||Temperature Coefficient Voc||-0.33%/℃|
|Open Circuit Voltage Voc (V)||19.8±5%V||Temperature Coefficient Isc||0.06%/℃|
|Short Circuit Current (Isc)||6.16±5%A||Dimensions||39.6*23.7*0.08 inches|
|Performance Warranty||25 years||Weight||3.81 lbs|
|Warranty Description||10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.)||Product Type||Curved Solar Panels|
|Max Power (Pmax)||100±5%W|
|Solar Cells Efficiency||23%|
|Max. Power Voltage Vmp (V)||17.1±5%V|
|Max. Power Current Imp (A)||5.85±5%A|
|Open Circuit Voltage Voc (V)||19.8±5%V|
|Short Circuit Current (Isc)||6.16±5%A|
|Max. System Voltage||1000V DC|
|Warranty Description||10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.)|
|Operating Temperature Limits||-40℉ ~ +185℉|
|Performance Warranty||25 years|
|Temperature Coefficient Pmax||-0.39%/℃|
|Temperature Coefficient Voc||-0.33%/℃|
|Temperature Coefficient Isc||-0.06%/℃|
Yes, solar panels can be curved. These panels are designed to have a curved shape. They are perfect for boats, RVs, and roofs that lack the necessary flat surface for rigid solar array frames.
The decision to choose a curved solar panel or traditional solar panel depends on the specific requirements, budget, and personal preferences. The BougeRV 100W flexible solar panel, made of glass fiber, incorporates the advanced 10BB cell design and an extended lifespan for the panel.
The BougeRV 100W curved solar panel is made with high-quality 10BB cells, resulting in a remarkable 23% conversion rate, the highest in its class. This design feature not only extends the solar panel's lifespan but also enhances its efficiency.
