BougeRV 12V 600 Watt Solar Panel Kit

BougeRV 12V 600W High Watt Rigid Solar System Kit

$1,899.99 $2,299.99 Save $400.00

Free Premium Gift Box valued at $149.99, containing the following items:

1PC 20Ft 10AWG Solar Extension Cable
1PC 4AWG 2FT Battery to Inverter Cable
1PC 10AWG 8FT Controller to Battery Cable
1Pair Solar Connectors Y Branch Parallel Adapter Cable Wire
2Pair Solar Panel Mounting Z Bracket Mount Kits (For 2 Panels)
1PC BougeRV Solar Crimper Tool Kit

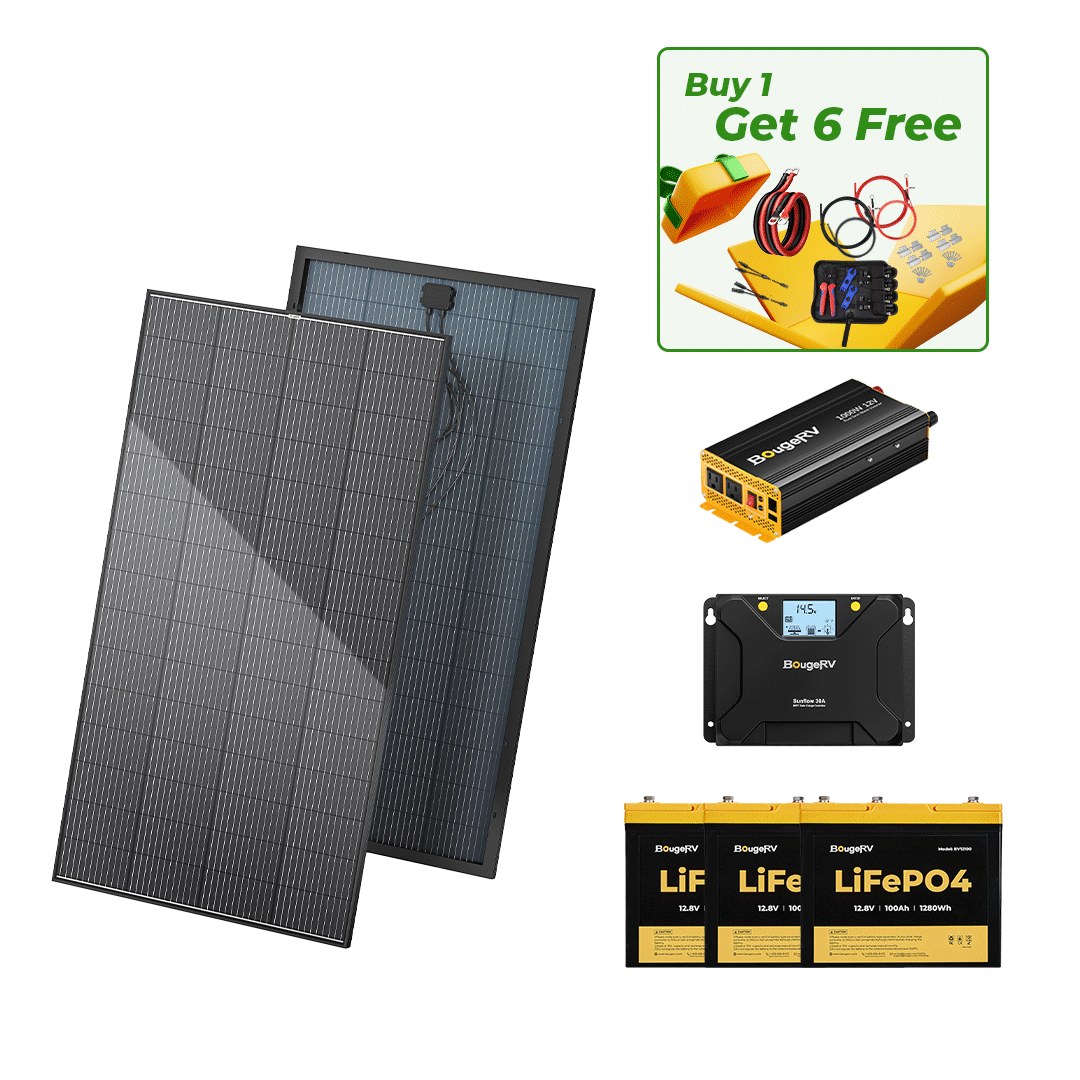

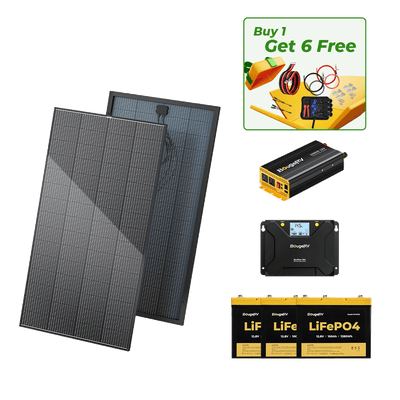

Package Included:

2PCS 300W 12V 12BB Mono Bifacial Solar Panel
1PC Sunflow 40A MPPT Solar Charge Controller 12V/24V
1PC 2000W 12V Pure Sine Wave Inverter with Bluetooth
3PC 12V 100Ah Group 24 LiFePO4 Battery

Package Included

2PCS 300W 12V 12BB Mono Bifacial Solar Panel
1PC Sunflow 40A MPPT Solar Charge Controller 12V/24V
1PC 2000W 12V Pure Sine Wave Inverter with Bluetooth
3PC 12V 100Ah Group 24 LiFePO4 Battery

Features

12BB Cell Design

BougeRV 300W solar panel uses the high-level 12BB cell design which has a 23% highest conversation rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V battery or charge a 24/48V battery by wiring several solar panels in series.

Compact size, more power.

The 300 watt bifacial solar panels don't need constant adjustment for sun direction as they can absorb sunlight no matter how the sun moves. For optimum installation, we recommend using a tilt mount bracket.

Made of Class A Solar Cell.

No visible defects and any microcracks, BougeRV 300 watts solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

Durable and Reliable Package

Our new package offers ultimate protection with an extra protective strip on all sides, L-brackets on all corners, and an extra thick foam pad on the back. Trust that your shipment will arrive safely with our new package.

User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

HIGHLIGHTS

FULLY COMPATIBLE WITH LiFePO4

BougeRV Sunflow 40A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

HIGH-EFFICIENCY CHARGE

BougeRV Sunflow 40 Amp MPPT controller can adjust the charge current from 0A to 40A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

ACTIVE SHIELD

Certified by CE and RoHS. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backwards of current protections. BougeRV MPPT solar charge controller features with dual MOS circuit to prevent the reverse current and to reduce the heat in operation. Maintain your battery all the time.

Group 24 Battery

Standard dimensions of L10.24" W6.61" H8.23". The BougeRV Group 24 12V 100Ah LiFePO4 battery offers an excellent balance of space and performance, providing sufficient ampere-hours to meet a variety of needs while greatly saving space.

Low-Temperature Protection

Provides low-temperature protection for battery charging. If the temperature falls below 32°F, it reduces or turns off current input and resumes charging at 35.6°F to ensure optimal battery health and extend battery life.

High Lifespan Cycles

The BougeRV 12V 100Ah LiFePO4 battery provides 4,000–15,000 recharge cycles and has a lifespan of more than 10 years under ideal conditions.

High Quality

Upgraded BMS:Provides overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection for the battery. The BMS ensures the safety of normal battery use by monitoring battery status and extending battery life
Progressive Choice:Only 24.25 lbs,lighter than 66 lbs of lead-acid batteries. Charge Cycle Count of LiFePo4 battery is 4000-15000, which is much higher than 200-500 of lead-acid battery. LiFePo4 battery also supports full charge and discharge(100% DOD)

Safety Expandable Battery Bank

Supporting up to 16 batteries in a series-parallel pack (4S4P), the maximum capacity of the battery can be up to 20480 Wh.

Fully 2000W Output

Fully 2000W output, all appliances under 2000W can be run. Equipped with 15A/20A outlets, making sure the BougeRV pure sine wave inverter can be run for a long time at 2000W.

Real-Time Remote Monitor

BougeRV pure sine wave inverter is with built-in Bluetooth communication function, users can monitor operating data of the battery and appliances in any time through the BougeRV APP. Bluetooth acceptance range is 18-20M ( barrier-free). Users can control the inverter via the 19.7 feet wired remote controller and can install it in RVs and houses for their needs.

Excellent Pure Sine Wave Inverter

The pure sine wave inverter provides pure power, with a low distortion rate (≤5%), ensuring proper operation of sensitive electronic equipment. Lower power consumption and high conversion efficiency. Pure sine wave inverters keep voltage and current at safe levels, which extends the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.

Lithium Battery Soft Startup Protection

With lithium battery soft startup protection function, the pure sine wave inverter is compatible better with lithium battery, preventing frequent disconnection. ( NOTE: If the surge current of inverter is greater than the over-discharge current of some lithium batteries, which will trigger the BMS protection function of these lithium batteries. Therefore, inverter will not work.)

Intelligent Temperature Control

With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently. Fan Cooling Startup: Temperature ≥113℉/ Output ≥50% (1000W).

Fully 2000W Output

Fully 2000W output, all appliances under 2000W can be run. Equipped with 15A/20A outlets, making sure the BougeRV pure sine wave inverter can be run for a long time at 2000W.

Real-Time Remote Monitor

BougeRV pure sine wave inverter is with built-in Bluetooth communication function, users can monitor operating data of the battery and appliances in any time through the BougeRV APP. Bluetooth acceptance range is 18-20M ( barrier-free). Users can control the inverter via the 19.7 feet wired remote controller and can install it in RVs and houses for their needs.

Excellent Pure Sine Wave Inverter

The pure sine wave inverter provides pure power, with a low distortion rate (≤5%), ensuring proper operation of sensitive electronic equipment. Lower power consumption and high conversion efficiency. Pure sine wave inverters keep voltage and current at safe levels, which extends the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.

Lithium Battery Soft Startup Protection

With lithium battery soft startup protection function, the pure sine wave inverter is compatible better with lithium battery, preventing frequent disconnection. ( NOTE: If the surge current of inverter is greater than the over-discharge current of some lithium batteries, which will trigger the BMS protection function of these lithium batteries. Therefore, inverter will not work.)

Intelligent Temperature Control

With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently. Fan Cooling Startup: Temperature ≥113℉/ Output ≥50% (1000W).

Product Specifications

SKU	ISE239
Maximum Power (W)	300±5% W
Open Circuit Voltage Voc (V)	40.7±5% V
Max Power Voltage Vmp (V)	34.8±5% V
Max Power Current Imp (A)	8.62±5% A
Short Circuit Current Isc (A)	9.64±5% A
Solar Cells Efficiency	23%
Warranty Description	10 years product warranty and 25-years power warranty
Product Dimension (IN)	64.57x34.65x1.38 inches
Net Weight (kg / lb)	35.31 lb
Application Class	Class A
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Series Fuse Rating	15A
Product Type	Solar Panel

SKU	ISE239
Maximum Power (W)	300±5% W
Open Circuit Voltage Voc (V)	40.7±5% V
Max Power Voltage Vmp (V)	34.8±5% V
Max Power Current Imp (A)	8.62±5% A
Short Circuit Current Isc (A)	9.64±5% A
Solar Cells Efficiency	23%
Warranty Description	10 years product warranty and 25-years power warranty
Product Dimension (IN)	64.57x34.65x1.38 inches
Net Weight (kg / lb)	35.31 lb
Application Class	Class A
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Series Fuse Rating	15A
Product Type	Solar Panel

SKU	ISE218
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	40 Amp	Grounding Type	Common Negative
Maximum PV Input Voltage	100V (95V protection, 90V recovery)	Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System	600W/12V; 1200W/24V	Protection Grade	IP34
Rated Load Current	20 Amp	Bluetooth Communication	built-in bluetooth
Charge Current Ajust Range	0 Amp to 40 Amp	Data Storage	Save the last 200 days of historical data
Battery Operate Voltage Range	8V to 32V	Dimension	8.94L6.26W2.95 inches
No Load Loss	≤10mA	Weight	3.95 lbs
Product Warranty	18-month	Product Type	Solar Charge Controller

SKU	ISE218
System Voltage	12V/24V
Rated Charging Current	40 Amp
Maximum PV Input Voltage	100V (95V protection, 90V recovery)
Maximum Input of PV System	600W/12V; 1200W/24V
Rated Load Current	20 Amp
Charge Current Ajust Range	0 Amp to 40 Amp
Battery Operate Voltage Range	8V to 32V
No Load Loss	≤10mA
Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type	Common Negative
Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Protection Grade	IP34
Bluetooth Communication	built-in bluetooth
Data Storage	Save the last 200 days of historical data
Dimension	8.94L6.26W2.95 inches
Weight	3.95 lbs
Product Warranty	18-month

SKU	ISE253
Rated Output Power	2000W
Peak power	4000W（1s）
Output voltage	110VAC/120VAC(default)
Output frequency	50/60 Hz(default)
Rated input voltage	12VDC
The input voltage ranges	10V-15.5VDC
Output waveform	Pure sine wave
Maximun output efficiency	＞90%
Full Load Efficiency	＞86%
Battery low voltage alarm	10.5VDC (±0.3V)
Over-discharge voltage	10VDC (±0.3V)
Overvoltage	15.5VDC (±0.3V)
Operating ambient temperature range	-40°F~185°F（-40°C~85°C）
Storage temperature range	-40°F~176°F（-40°C~80°C）
Noise	≤60dB
Communication Port	RS485+Inbuilt Bluetooth
Fan start-up temp	≥113℉（45℃）/≥50% load
USB port	18W*1（5V-3A,9V-2A,12V-1.5A）
Protection function	Input over-voltage/ over-discharge protection, output overload/short-circuit protection, and inverter overtemperature protection
Output harmonic component（THD）	<4%
Over-temperature protection recovery	≤158℉（70℃）
No-load Loss	＜0.7A
Over temperature protect	≥176℉（80℃）
Product size	17.596.653.98 in
Weight	8.6 lb

SKU	ISE253
Rated Output Power	2000W
Peak power	4000W（1s）
Output voltage	110VAC/120VAC(default)
Output frequency	50/60 Hz(default)
Rated input voltage	12VDC
The input voltage ranges	10V-15.5VDC
Output waveform	Pure sine wave
Maximun output efficiency	＞90%
Full Load Efficiency	＞86%
Battery low voltage alarm	10.5VDC (±0.3V)
Over-discharge voltage	10VDC (±0.3V)
Overvoltage	15.5VDC (±0.3V)
Operating ambient temperature range	-40°F~185°F（-40°C~85°C）
Storage temperature range	-40°F~176°F（-40°C~80°C）
Noise	≤60dB
Communication Port	RS485+Inbuilt Bluetooth
Fan start-up temp	≥113℉（45℃）/≥50% load
USB port	18W*1（5V-3A,9V-2A,12V-1.5A）
Protection function	Input over-voltage/ over-discharge protection, output overload/short-circuit protection, and inverter overtemperature protection
Output harmonic component（THD）	<4%
Over-temperature protection recovery	≤158℉（70℃）
No-load Loss	＜0.7A
Over temperature protect	≥176℉（80℃）
Product size	17.596.653.98 in
Weight	8.6 lb

SKU	ISE212N
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Charge Voltage	14.4~14.6V
Energy	1280Wh
Standard charge	20A (0.2C, recommend charge current)
Maximum charge	100A（1.0C）
Maximum Continuous Charge Current	100A (25°C, 77°F)
Maximum Continuous Discharge Current	100A (1C)
Maximum Discharge Current	330A (2.5s)
Over-Charging Protection Voltage	14.6V
Over-Charging Recovery Voltage	14.0V
Over-Discharging Protection Voltage	8.8V
Over-Discharging Protection Recovery Voltage	10.4V
Charge Temperature Range	0°C~65°C (32°F~149°F)
Discharge Temperature Range	-20°C~75°C (-4°F~167°F)
Cycle Life	4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection	0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging.
Short Term	-20°C~45°C (-4°F~113°F)
Long Term	10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack	48V(4S)
Maximum Parallel Current Of Battery Pack	400Ah(4P)
Charge Method	CC/CV
Item Demension	L10.24W6.61H8.23
Item Weight	24.25 lbs
Protection Rating	IP65
Product Warranty	5 Years

SKU	ISE212N
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Charge Voltage	14.4~14.6V
Energy	1280Wh
Standard charge	20A (0.2C, recommend charge current)
Maximum charge	100A（1.0C）
Maximum Continuous Charge Current	100A (25°C, 77°F)
Maximum Continuous Discharge Current	100A (1C)
Maximum Discharge Current	330A (2.5s)
Over-Charging Protection Voltage	14.6V
Over-Charging Recovery Voltage	14.0V
Over-Discharging Protection Voltage	8.8V
Over-Discharging Protection Recovery Voltage	10.4V
Charge Temperature Range	0°C~65°C (32°F~149°F)
Discharge Temperature Range	-20°C~75°C (-4°F~167°F)
Cycle Life	4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection	0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging.
Short Term	-20°C~45°C (-4°F~113°F)
Long Term	10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack	48V(4S)
Maximum Parallel Current Of Battery Pack	400Ah(4P)
Charge Method	CC/CV
Item Demension	L10.24W6.61H8.23
Item Weight	24.25 lbs
Protection Rating	IP65
Product Warranty	5 Years
