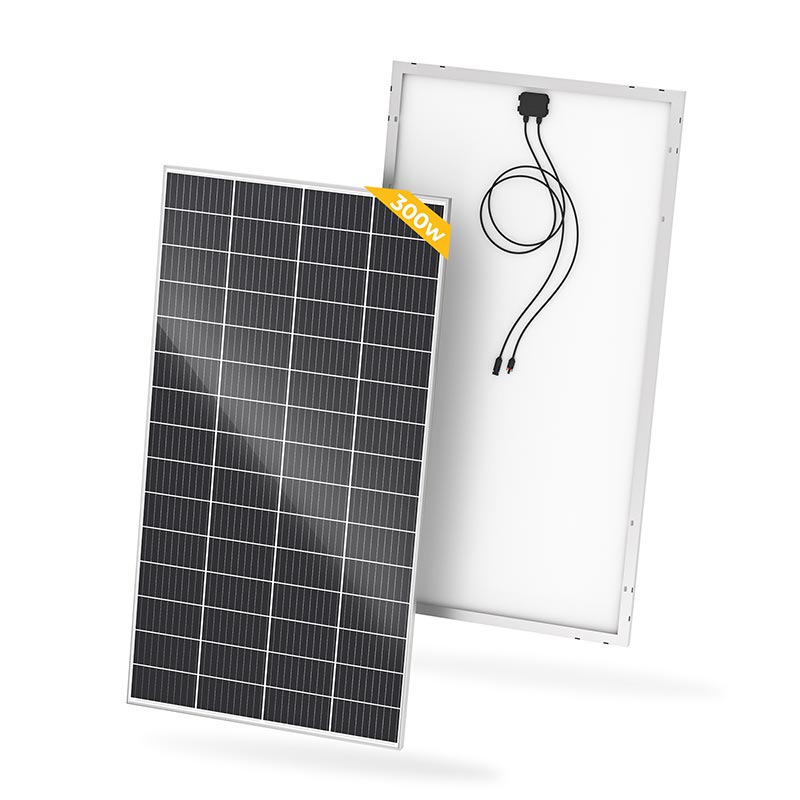

300W Solar Panel 12V 10BB
300W 12V 10BB Mono Solar Panel with 10BB Solar Cell
BougeRV 300W 12V 10BB Mono Solar Panel
BougeRV 300W 12V 10BB Mono Solar Panel
300W 12V 10BB Mono Solar Panel with A+Grade cell
300W 12V 10BB Mono Solar Panel with Durable and Reliable Package
300W 12V 10BB Mono Solar Panel with Compact Size, More Power
300W 12V 10BB Mono Solar Panel with Reliable in Any weather

BougeRV 300W 12V 10BB Mono Solar Panel

300 watt 10bb monocrystalline

$439.99 Regular price
/

BougeRV 300W 10BB solar panel is an exceptional choice for those looking for a high-performance solar panel. The 10BB cell design utilizes ten busbars to collect and transmit the electrical current generated by the solar cells, resulting in a significant boost in overall performance. This efficient solar panel is user-friendly, easy to install, and provides maximum output. The monocrystalline panels, 10BB cell design, and all-black design make this 300W 12v solar panel an exceptional choice for you.
Read more » Fold up »

15

Pay With Ease:

Payments icons
  • Features
  • Tech Specs
  • Reviews
  • FAQ

Features

10bb 300w solar panel
10bb 300w solar panel

HIGHLIGHTS

BougeRV 300 watt solar panel 10BB design
BougeRV 300 watt solar panel 10BB design

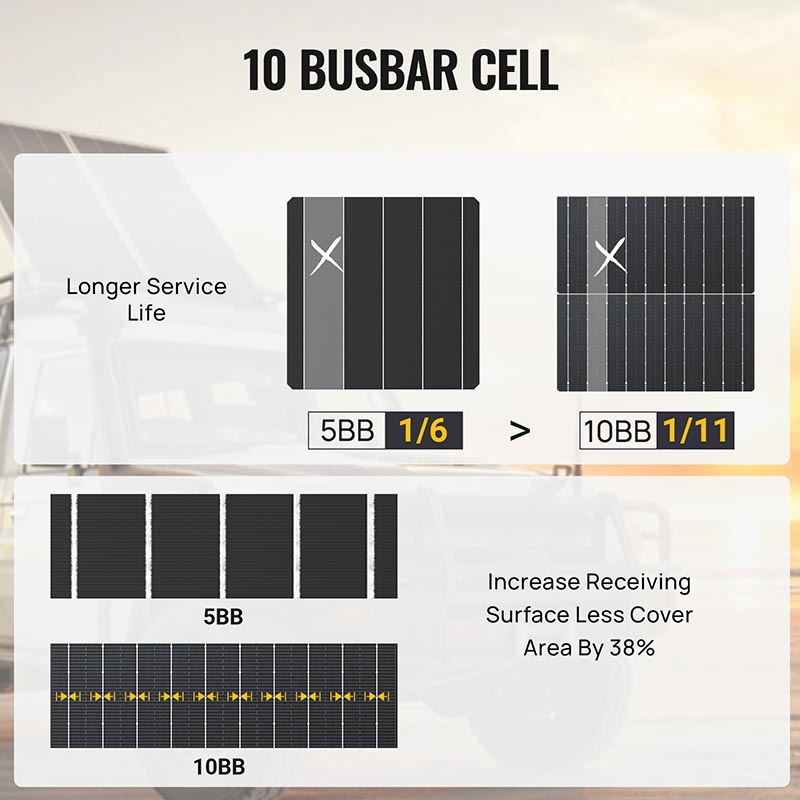

10BB Cell Design

BougeRV 300W solar panel uses the high-level 10BB cell design which has a 23% highest conversion rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V/24 battery or charge a 48V battery by wiring several solar panels in series.

BougeRV 300 watt solar panel saves space
BougeRV 300 watt solar panel saves space
Compact size, more power.

Compared to three 100 watts solar panels, BougeRV 300 watts solar panels could save 11% space and reduce the loss of connection. Allows you to install more solar panels on the roof of the RV to expand a larger system to meet your daily needs.

300 watt solar panels with A+ class solar cell
300 watt solar panels with A+ class solar cell
Made of Class A Solar Cell.

No visible defects and any microcracks, BougeRV 400 watts solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

10BB 300 watt solar panel with durable and reliable package
10BB 300 watt solar panel with durable and reliable package
Durable and Reliable Package

Our new package offers ultimate protection with an extra protective strip on all sides, L-brackets on all corners, and an extra thick foam pad on the back. Trust that your shipment will arrive safely with our new package.

10BB  300W solar panel IP67 rated waterproof
10BB  300W solar panel IP67 rated waterproof

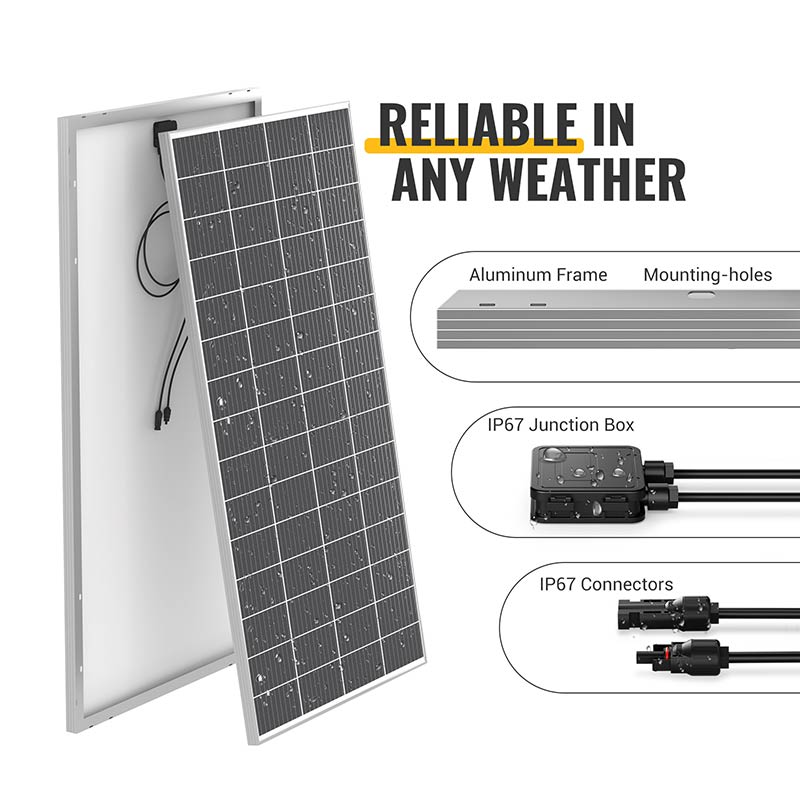

User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

MULTIPURPOSE USE

400w 10BB solar panel with one-stop solar solutions 400w 10BB solar panel with one-stop solar solutions
400w 10BB solar panel with all size of the rigid solar panels 400w 10BB solar panel with all size of the rigid solar panels
300W 10BB SOLAR PANEL OF POWER PER DAY 300W 10BB SOLAR PANEL OF POWER PER DAY
Bifacial 100W 12V 9BB Mono Solar Panel with Recommedation
Bifacial 100W 12V 9BB Mono Solar Panel with Recommedation

Product Specifications

SKU ISE162 Model 300W SOLAR PANEL
Maximum Power (W) 300±3% W Product Dimension (IN) 64.6 x 34.6 x 1.4 inches
Open Circuit Voltage Voc (V) 20.8±3% V Net Weight (kg / lb) 16.1kg / 35.6lb
Max Power Voltage Vmp (V) 17.5±3% V Application Class Class A
Max Power Current Imp (A) 17.14±3% A Max Static Load (front) 2400 Pa
Short Circuit Current Isc (A) 18.85±3% A Max Static Load (back) 2400pa
Solar Cells Efficiency 23% Series Fuse Rating 20A
Warranty Description 12 years product warranty and 25-years power warranty Product Type Solar Panel
SKU ISE162 Model 300W SOLAR PANEL
Maximum Power (W) 300±3% W Product Dimension (IN) 64.6 x 34.6 x 1.4 inches
Open Circuit Voltage Voc (V) 20.8±3% V Net Weight (kg / lb) 16.1kg / 35.6lb
Max Power Voltage Vmp (V) 17.5±3% V Application Class Class A
Max Power Current Imp (A) 17.14±3% A Max Static Load (front) 2400 Pa
Short Circuit Current Isc (A) 18.85±3% A Max Static Load (back) 2400pa
Solar Cells Efficiency 23% Series Fuse Rating 20A
Warranty Description 12 years product warranty and 25-years power warranty Product Type Solar Panel
SKU ISE162
Maximum Power (W) 300±3% W
Open Circuit Voltage Voc (V) 20.8±3% V
Max Power Voltage Vmp (V) 17.5±3% V
Max Power Current Imp (A) 17.14±3% A
Short Circuit Current Isc (A) 18.85±3% A
Solar Cells Efficiency 23%
Warranty Description 18-month product warranty and 12 years power warranty
Product Dimension (IN) 64.6 x 34.6 x 1.4 inches
Net Weight (kg / lb) 16.1kg / 35.6lb
Application Class Class A
Max Static Load (front) 2400 Pa
Max Static Load (back) 2400pa
Series Fuse Rating 20A
Product Type Solar Panel

User Manual

Reviews

FAQ

Under optimal sunlight conditions, a 300 watt solar panel can produce 300 watts of power in one hour, so it will generate nearly 2.4 kWh each day, provided it gets sunlight for 8 hours. But the actual output can vary based on factors such as the angle of the sun, temperature and more.

The number of batteries you need for a 300 watt solar panel depends on the battery capacity and the amount of energy you use. To draw 1000W, a 300 watt solar panel requires at least a battery with a capacity of 100ah.

The price of a 300 watt solar panel can vary greatly depending on the brand and quality. At BougeRV, you can buy a high-performance 300 watt solar panel at the price of $429.

The number of amps a 300-watt solar panel produces depends on the voltage. If you use the most common solar panel voltage of 12 volts as an example, it may generate approximately 16 amps at 12 volts.
