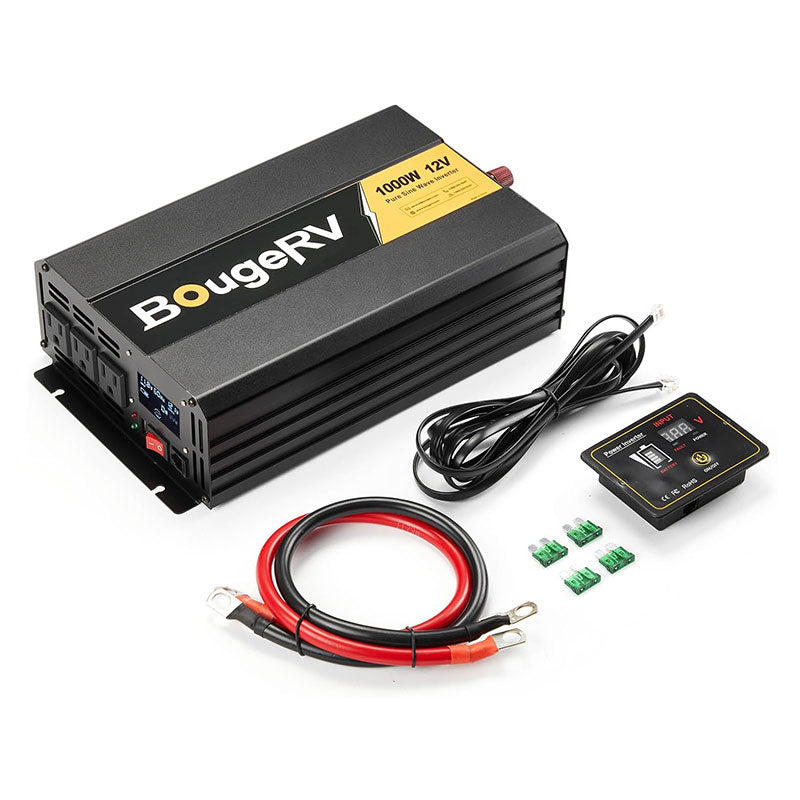

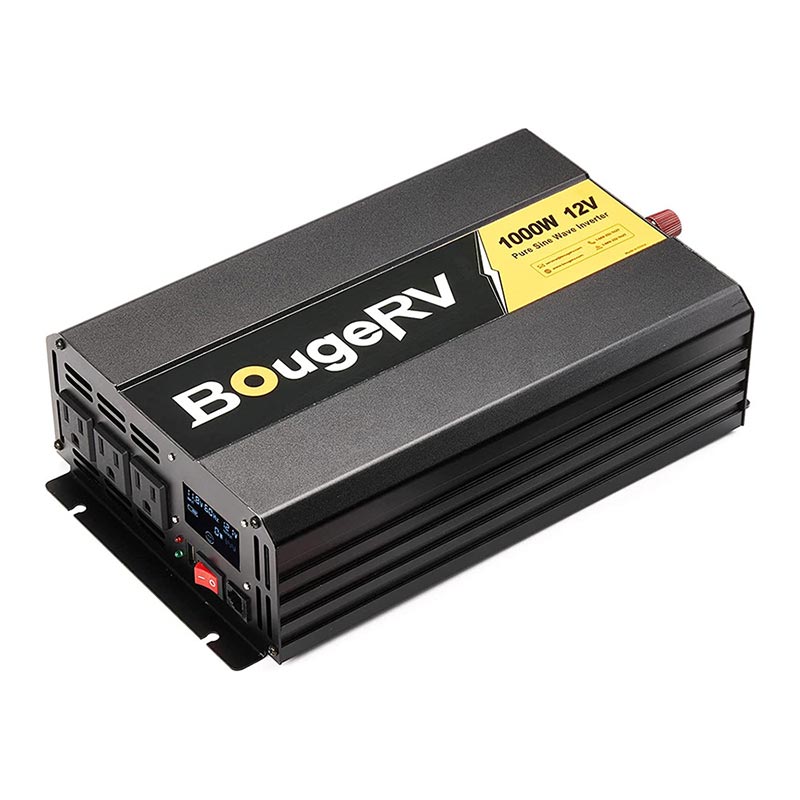

1000W 12V Pure Sine Wave Inverter

Name: 1000W 12V Pure Sine Wave Inverter
Brand: BougeRV
SKU: ISE173
Price: 159.99 USD
Availability: InStock

(2)

$159.99

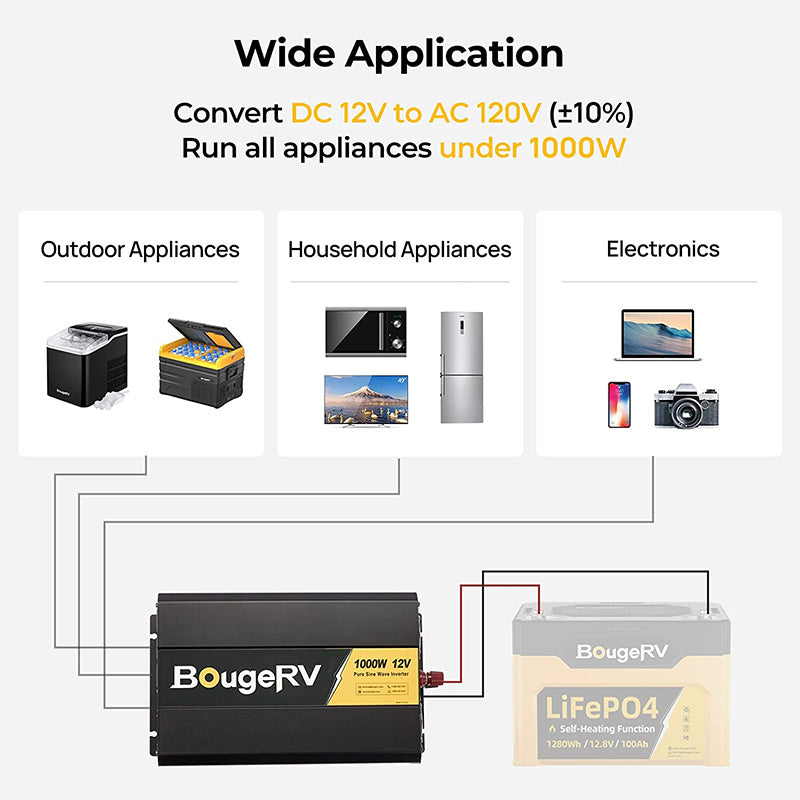

With its pure power output and low distortion rate, the 1000w 12v pure wave inverter is the perfect choice for those seeking reliable and efficient power conversion. Its high conversion efficiency and low power consumption ensure optimal performance, while its pure sine wave output keeps voltage and current at safe levels, extending the life of appliances. The inverter also features an LCD digital display screen, allowing you to monitor operating data in real-time. With 7 multiple protection functions and a wired remote controller, this inverter offers safety and convenience. With a 2-year warranty, the BougeRV pure sine wave inverter is a reliable and durable choice for any power needs.

HIGHLIGHTS

Pure Sine Wave Inverter

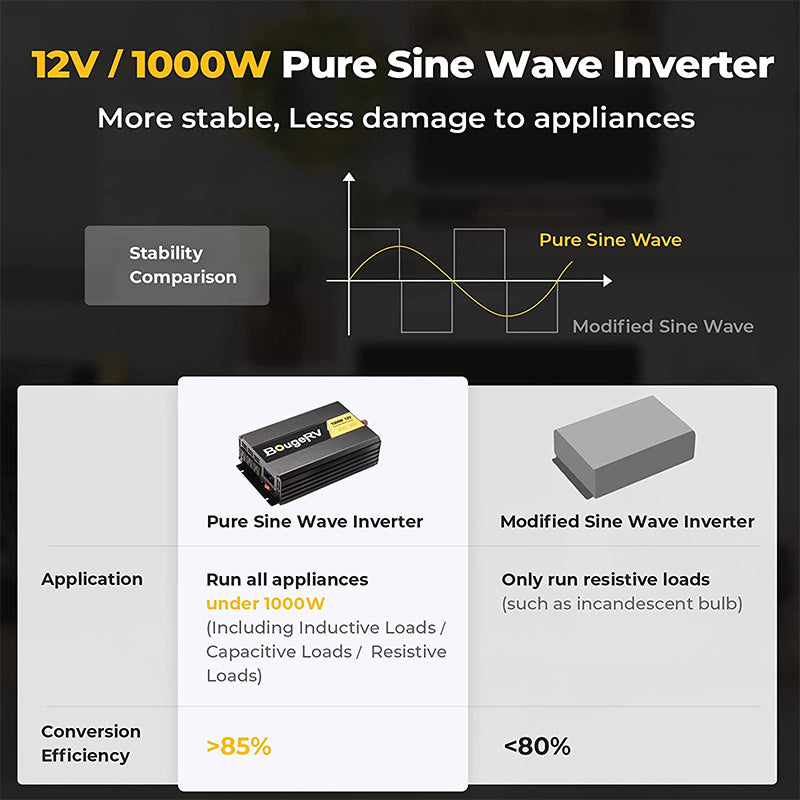

The pure sine wave inverter provides pure power, with low distortion rate (≤3%), lower power consumption and high conversion efficiency (>85%). Pure sine wave inverters keep voltage and current at safe levels, which is extending the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.

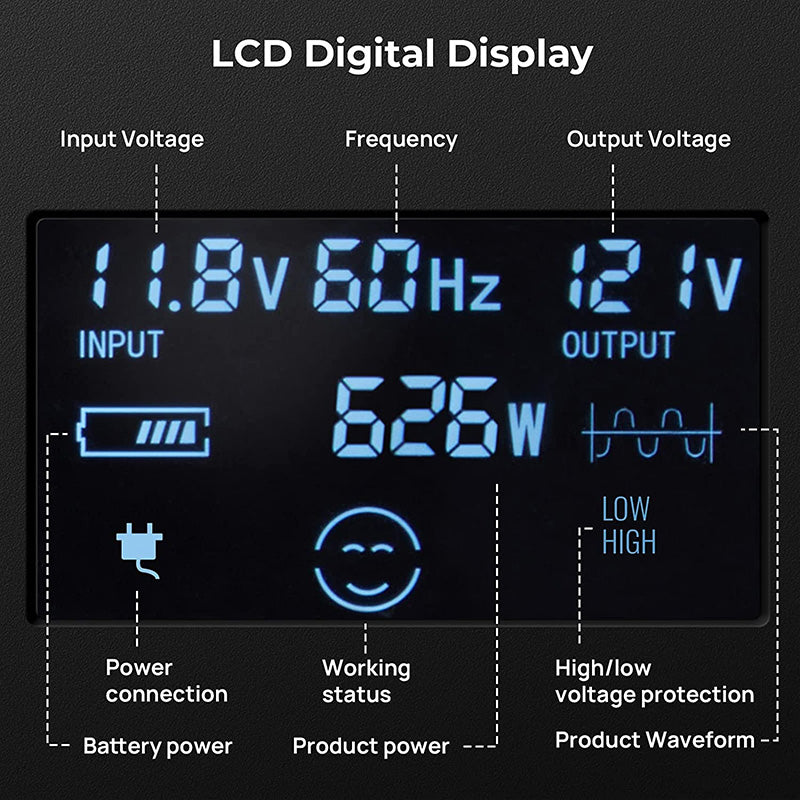

LCD Digital Display Screen

Using BougeRV solar inverter, user can monitor operating data of applicances in real-time. Let users know the situation of applicance cclearly, which includs: input and output voltage, frequency, battery power, output power wattage, output waveform, inverter working status and other data.

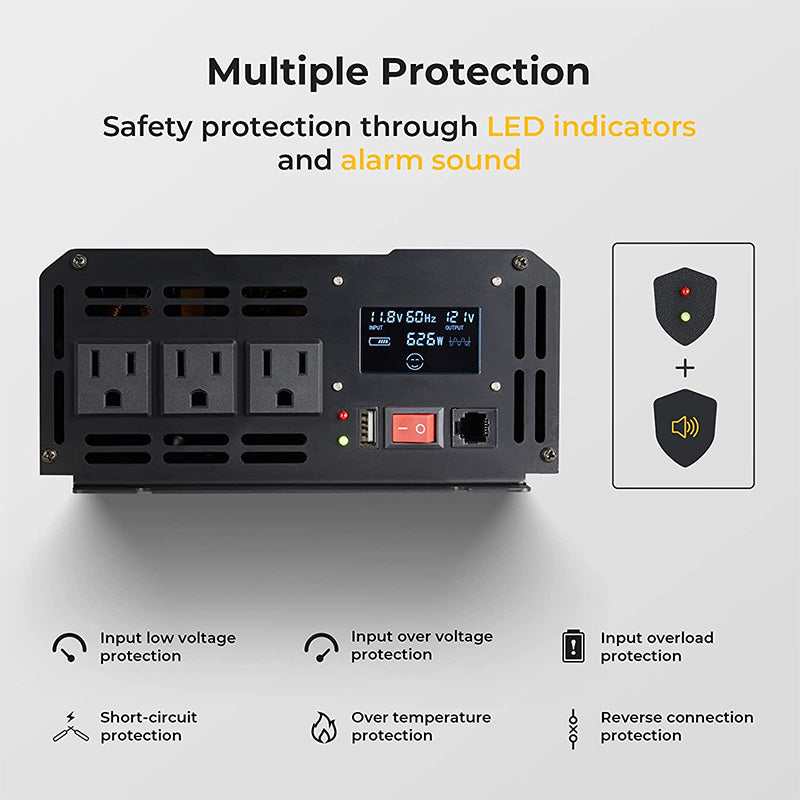

Safe and Reliable

7 multiple protection function: Input low voltage protection, Input over voltage protection, Input overload protection, Short-circuit protection, Over temperature protection, Reverse connection protection. Always monitor and protect circuit safety through LED indicator and alarm sound.

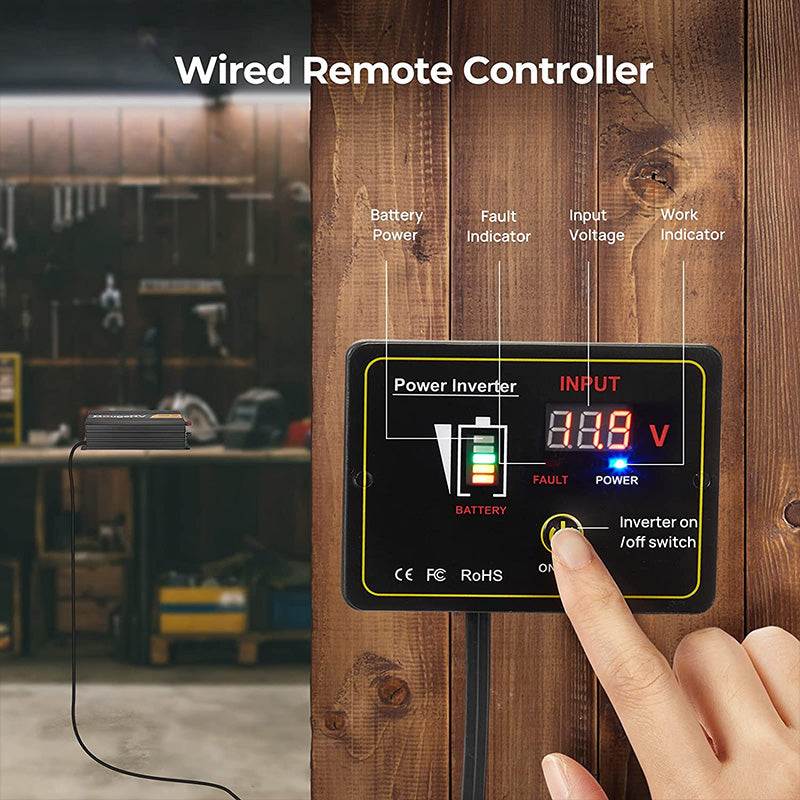

Wired Remote Controller

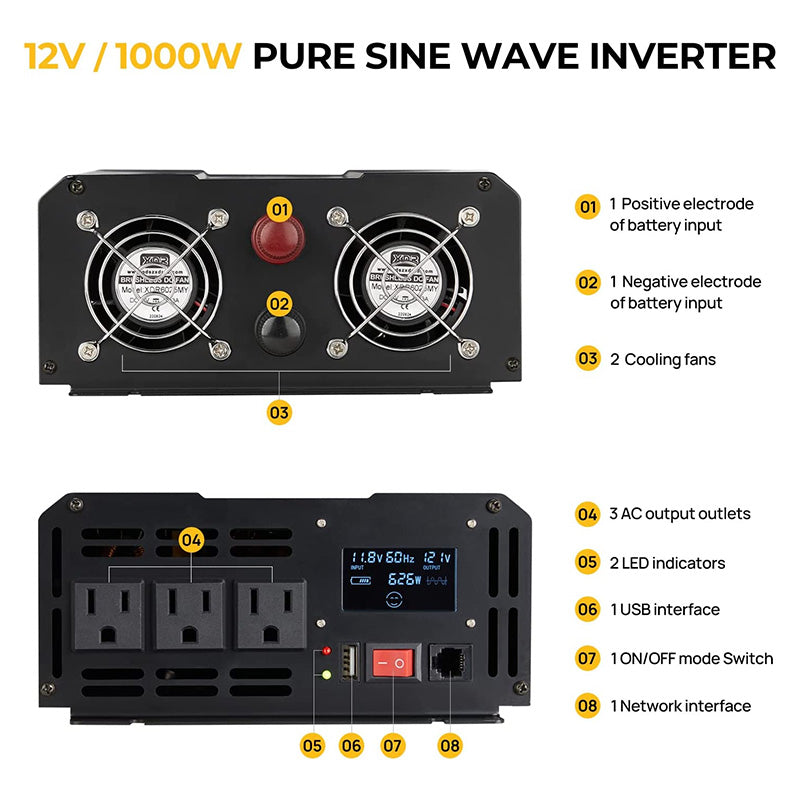

User can controll the inverter via the 3M wired remote controller and can install it in RVs and houses for their need. There are multiple output ports on the BougeRV pure sine wave inverter: a 5V/2.1A USB interface, 3 AC output outlets, a network interface.BougeRV pure sine wave inverter comes with an 2-year warranty that commences from the date of purchase.

Intelligent Temperature Control

With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently, which will open at high working temperature, and close at nomal temperature.

Product Specifications

SKU	ISE173
Rated power	1000W
Surge power	2000W
Input voltage	DC 12V
Rated output voltage	AC 120V±10%
Output frequency	60Hz ± 0.5%
Output waveform	Pure sine wave
Rated output efficiency	＞85%
Over voltage shutting	≥16V
Low voltage shutting	≤9.5V
Over temperature shutting	>176℉
Operating ambient temperature	-4°F - 140°F

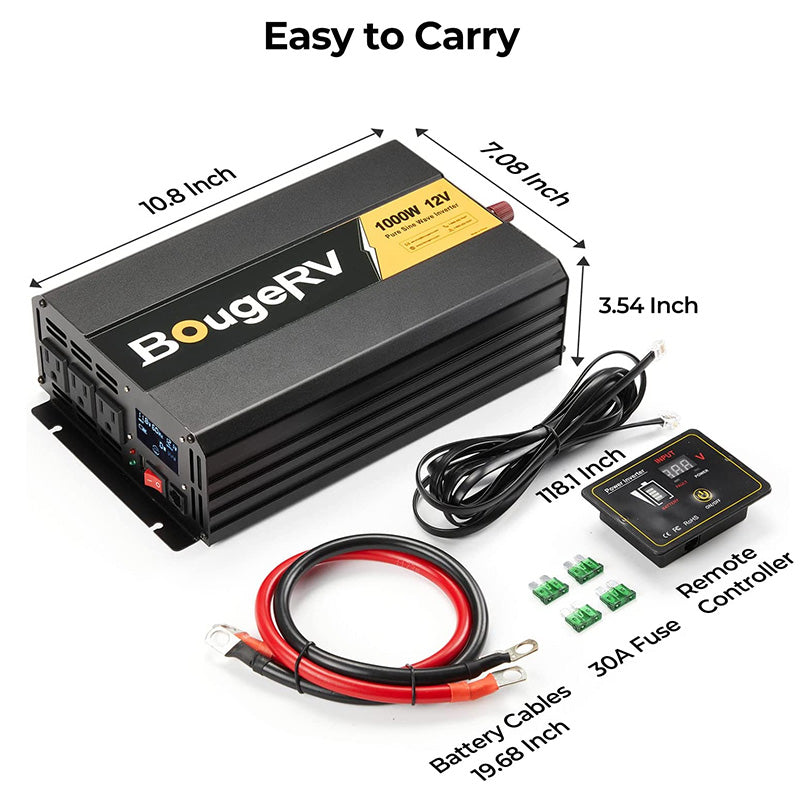

Product Dimensions	10.8"L x 7.08"W x 3.54"H
Warranty Description	18 months
Product type	Power Inverters

SKU	ISE173
Rated power	1000W
Surge power	2000W
Input voltage	DC 12V
Rated output voltage	AC 120V±10%
Output frequency	60Hz ± 0.5%
Output waveform	Pure sine wave
Rated output efficiency	＞85%
Over voltage shutting	≥16V
Low voltage shutting	≤9.5V
Over temperature shutting	>176℉
Operating ambient temperature	-4°F - 140°F
Product Dimensions	10.8"L x 7.08"W x 3.54"H
Warranty Description	18 months
Product type	Power Inverters

SKU	ISE173
Rated power	1000W
Surge power	2000W
Input voltage	DC 12V
Rated output voltage	AC 120V±10%
Output frequency	60Hz ± 0.5%
Output waveform	Pure sine wave
Rated output efficiency	＞85%
Over voltage shutting	≥16V
Low voltage shutting	≤9.5V
Over temperature shutting	>176℉
Operating ambient temperature	-4°F - 140°F
Product Dimensions	10.8"L x 7.08"W x 3.54"H
Warranty Description	18 months

User Manual

Reviews

FAQ

1.The appliances power shall not be greater than rated power of inverter.

2.The battery should be 12V.

3.Red to positive pole, black to negative pole.

4.This inverter can not be parallel connected.

5.Do not extend the inverter power cable.

No. This inverter can only work with a 12V battery system.

No. The BougeRV DC 12V to AC 120V inverter can only convert DC power to AC power.
