BougeRV 400W N-Type ShadePower Solar Panel Kit

400W Complete Off-Grid Power System for RVs & Outdoor Living

For Travel Trailer For ClassB 400 watt Off-Grid Power Cabin Power Solution

Early Prime Day Sale

Save $360.00
$1,239.99

Limited Time Deal

$1,599.99
/

BougeRV 400W N-Type ShadePower Solar Kit is a complete off-grid solar power system designed for RV, camping, cabin, and emergency backup power. It features rigid N-Type ShadePower solar panels, MPPT charge controller, LiFePO4 battery storage, and a 2000W pure sine wave inverter with Bluetooth monitoring for stable and reliable off-grid electricity.

Read more » Fold up »

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Package
  • Reviews

How Much Can a Solar Kit Power?

Choosing the right solar kit depends on your energy needs, appliance usage, and daily sunlight conditions. From lightweight setups to full off-grid systems, understanding wattage and runtime helps you build a more efficient and reliable solar solution.

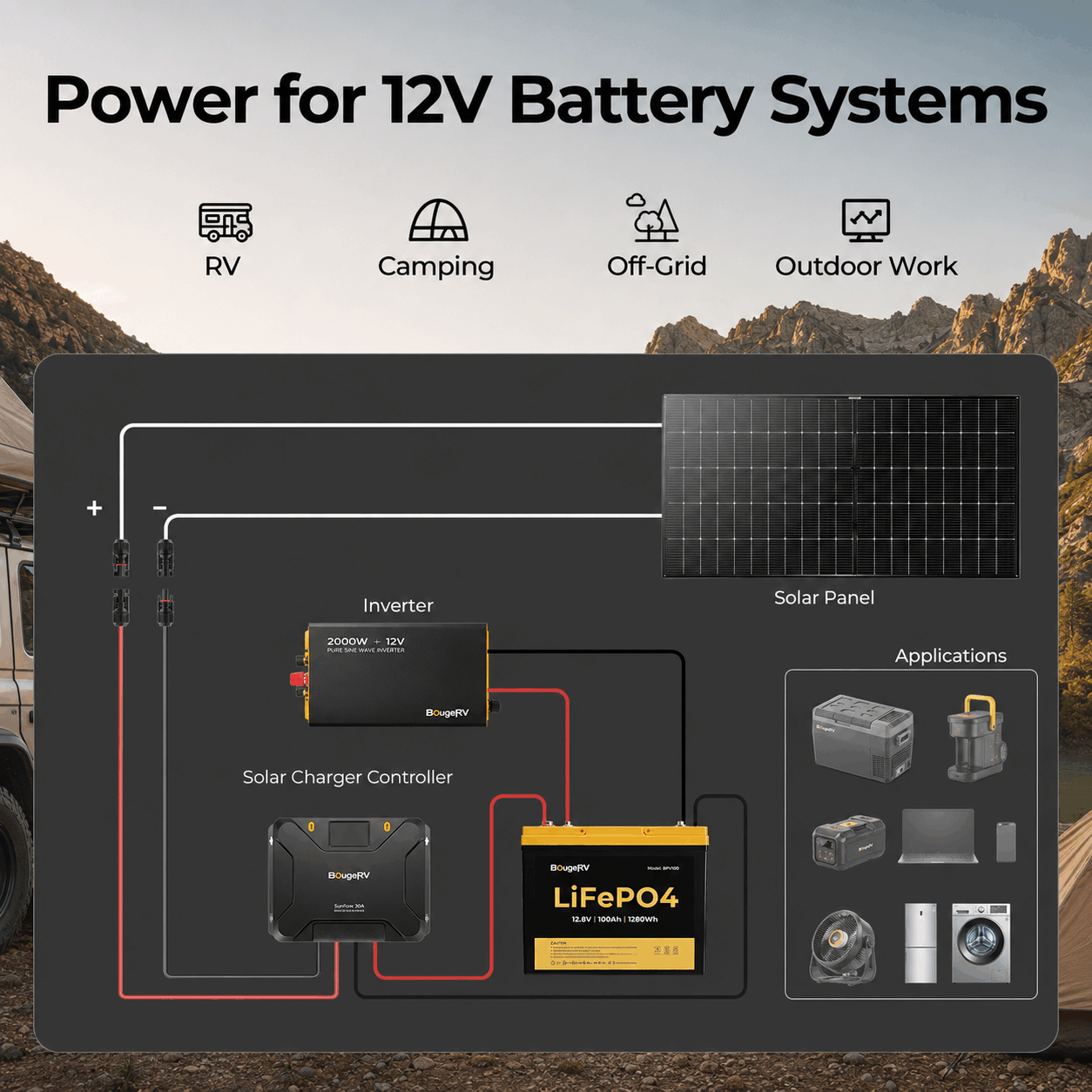

Step-by-Step Solar System Setup

Follow a clear step-by-step connection process—from solar panels to controller, battery, and inverter—to safely generate and use power. Designed for easy integration and smooth installation.

Features

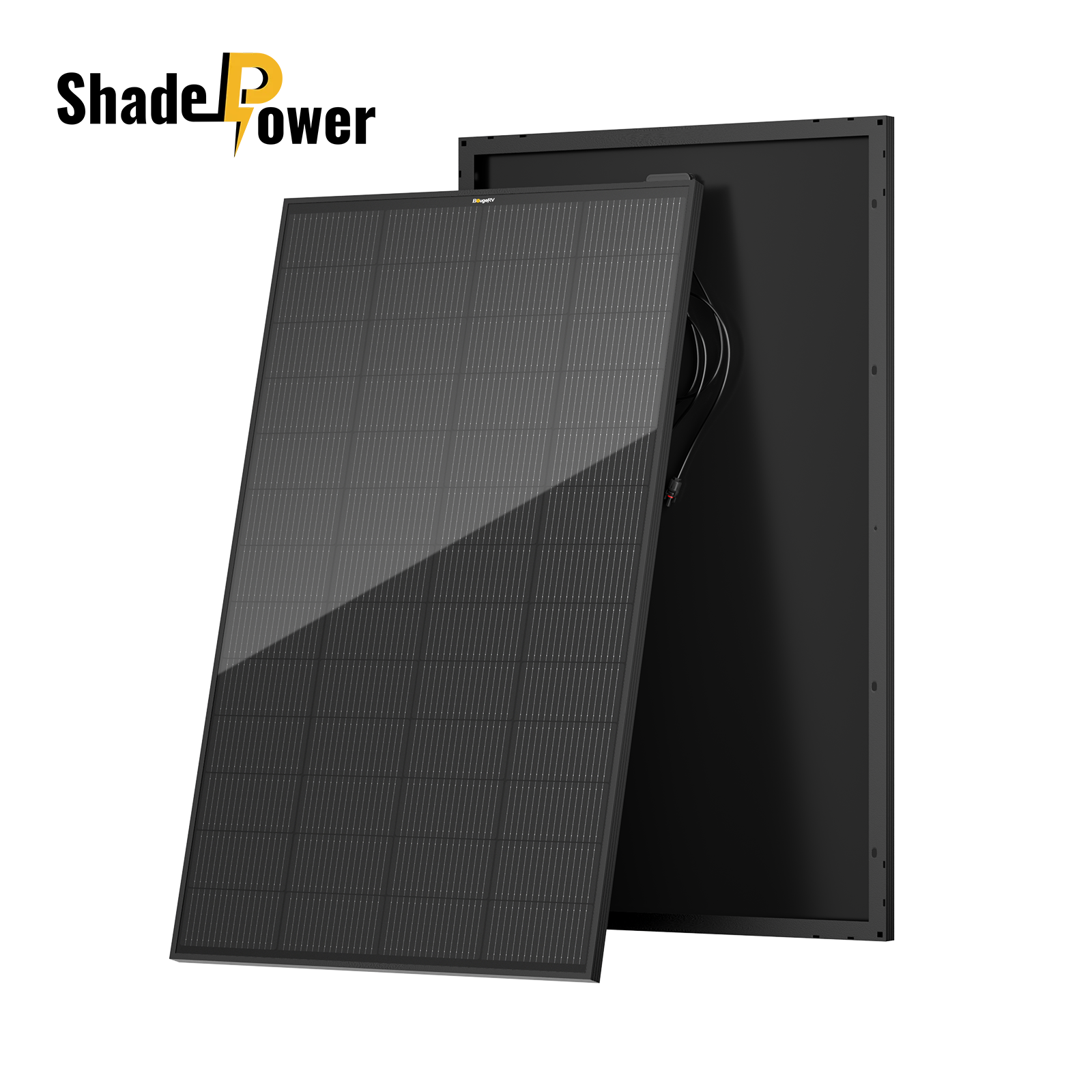

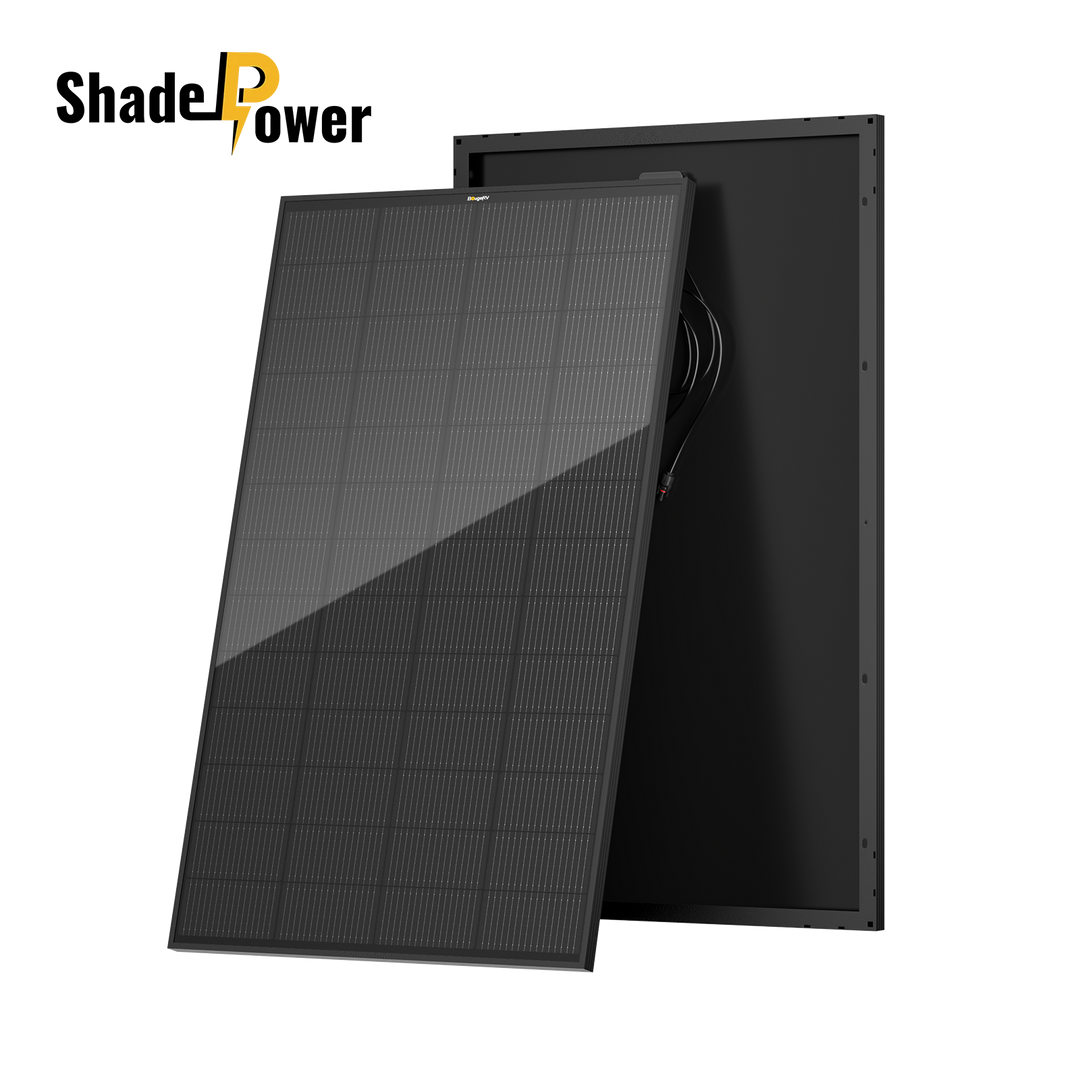

BougeRV 200W N-Type ShadePower Solar Panel

BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

BougeRV 2000W 12V Pure Sine Wave Inverter

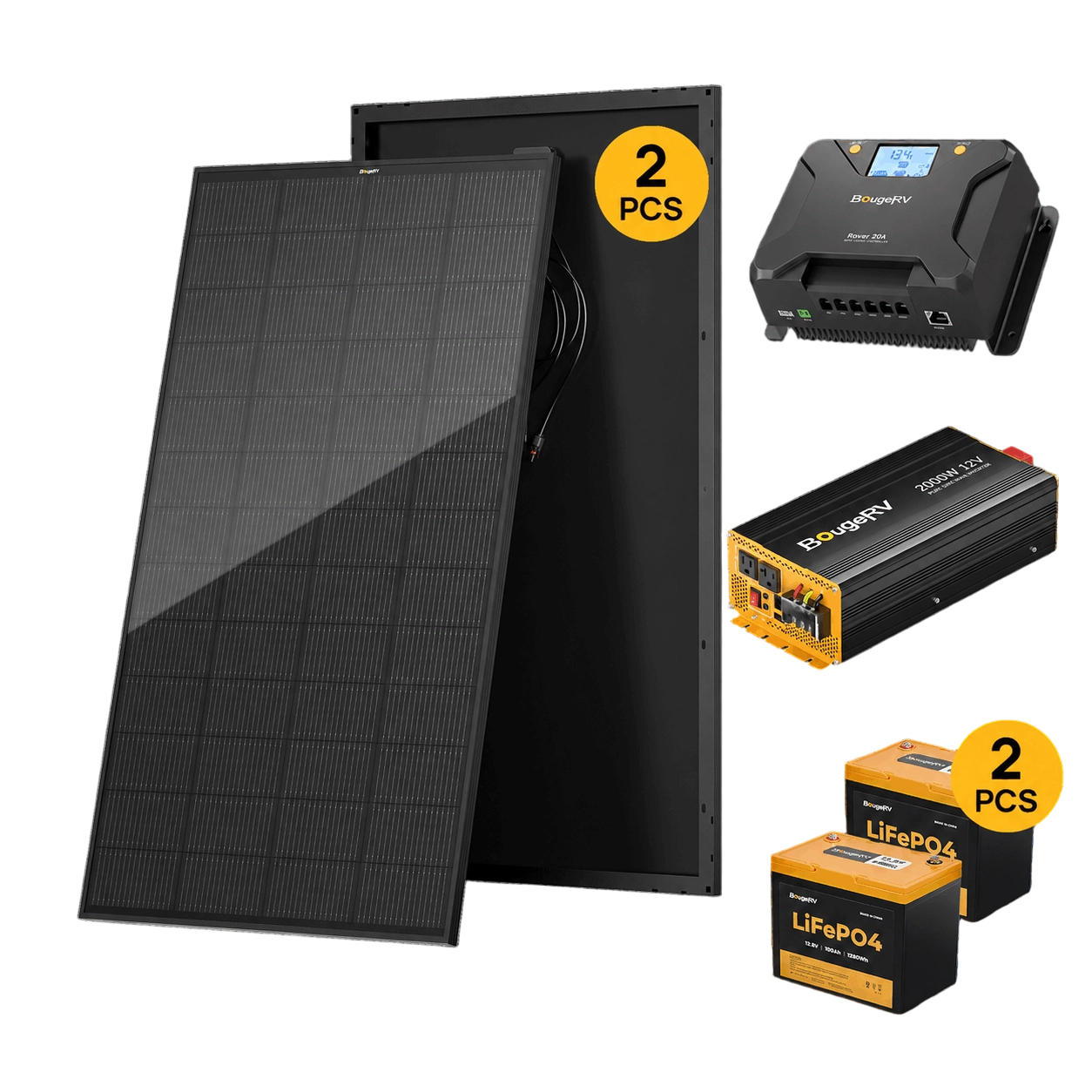

What's in the Box

SP005-BK*2

👉User Manual

ISE218-BK

👉User Manual

ISE212N*2

👉User Manual

SI001-BK-LYTYB1

👉User Manual

Product Specifications

SKU SP005-BK
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V)
31V±5%
 Temperature Coefficient Pmax -0.32%/K
Max. Power Current Imp (A)
6.45A±5%
 Temperature Coefficient Voc -0.25%/K
Open Circuit Voltage Voc (V)
36.4V±5%
 Temperature Coefficient Isc +0.045%/K
Short Circuit Current (Isc)
6.77A±5%
 Dimensions
50.2 x 30.3 x 1.2in
Material & Workmanship Warranty 10 Years Weight
23.4lb
Linear power output warranty 30 Years Product Type N-Type Solar Panels
SKU SP005-BK
Max Power (Pmax) 200±5%W

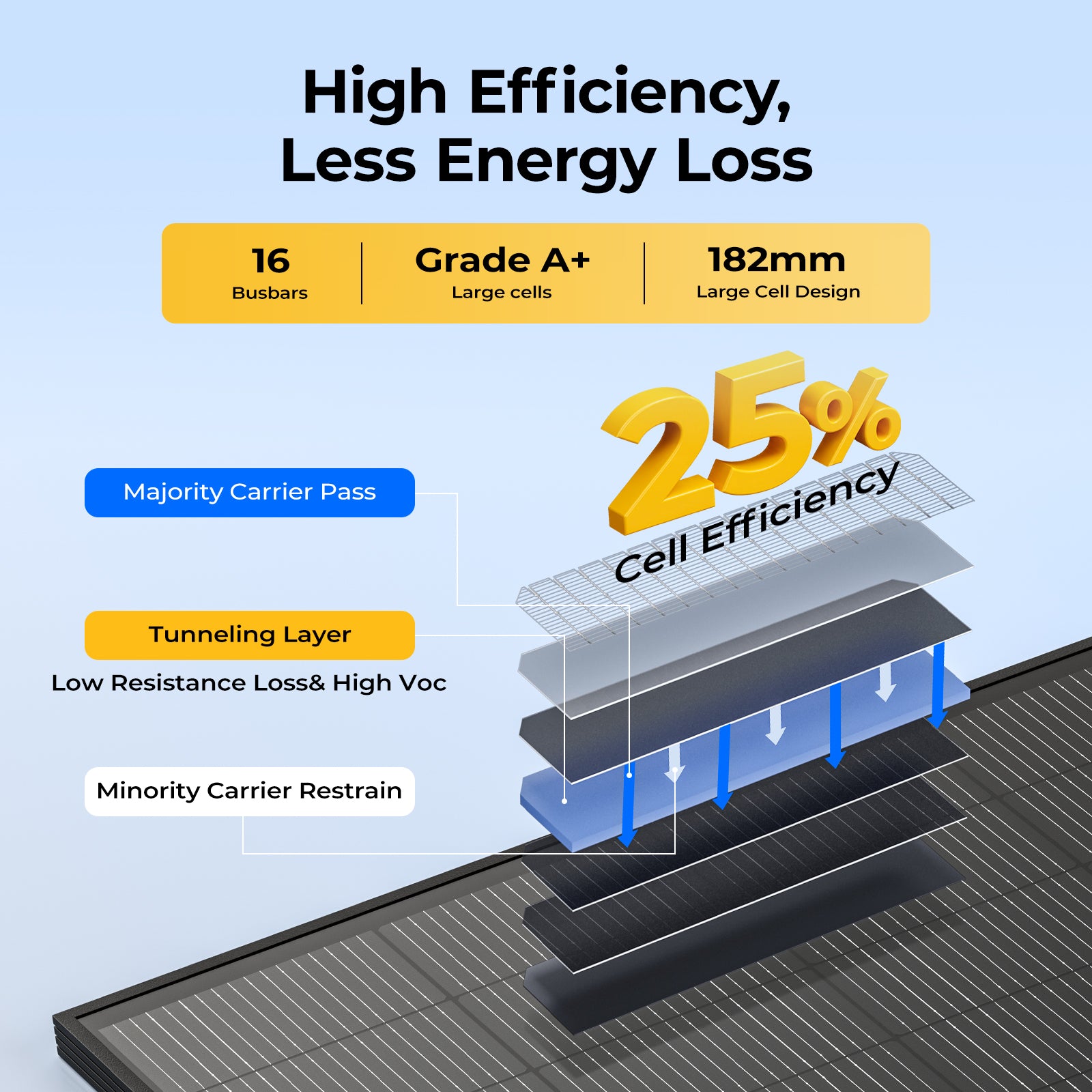

Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V)
31V±5%
Max. Power Current Imp (A)
6.45A±5%
Open Circuit Voltage Voc (V)
36.4V±5%
Short Circuit Current (Isc)
6.77A±5%
Material & Workmanship Warranty 10 Years
Linear power output warranty 30 Years
Operating Temperature Limits -40℉ ~ +185℉
Series Fuse Rating 15 A
Temperature Coefficient Pmax -0.32%/K
Temperature Coefficient Voc -0.25%/K
Temperature Coefficient Isc +0.045%/℃

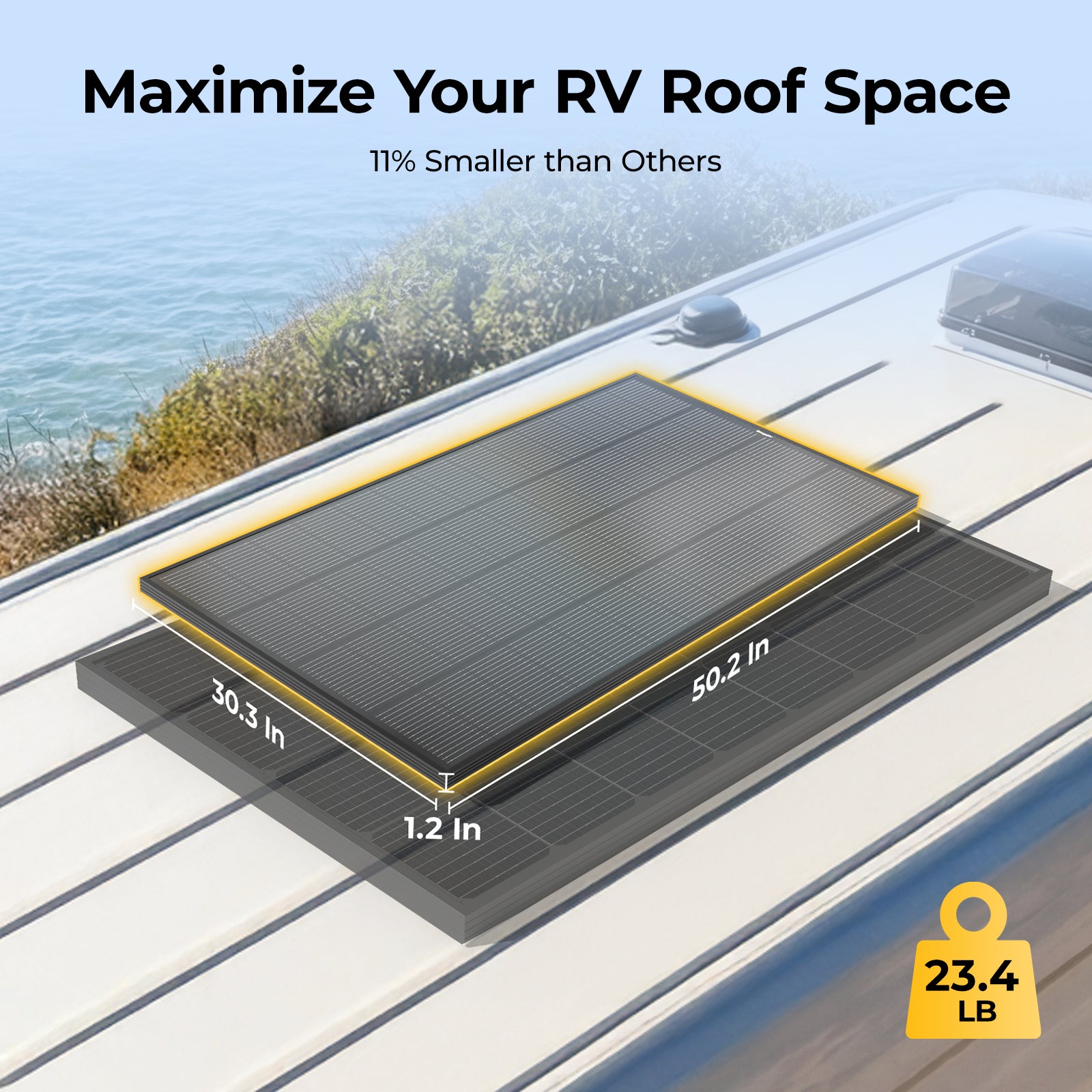

Dimensions
50.2 x 30.3 x 1.2in
Weight 23.4 lb
SKU ISE218

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 40 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 600W/12V; 1200W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 40 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 8.94L*6.26W*2.95 inches
No Load Loss ≤10mA Weight 3.95 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE218
System Voltage 12V/24V
Rated Charging Current 40 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 600W/12V; 1200W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 40 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 8.94L*6.26W*2.95 inches
Weight 3.95 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs

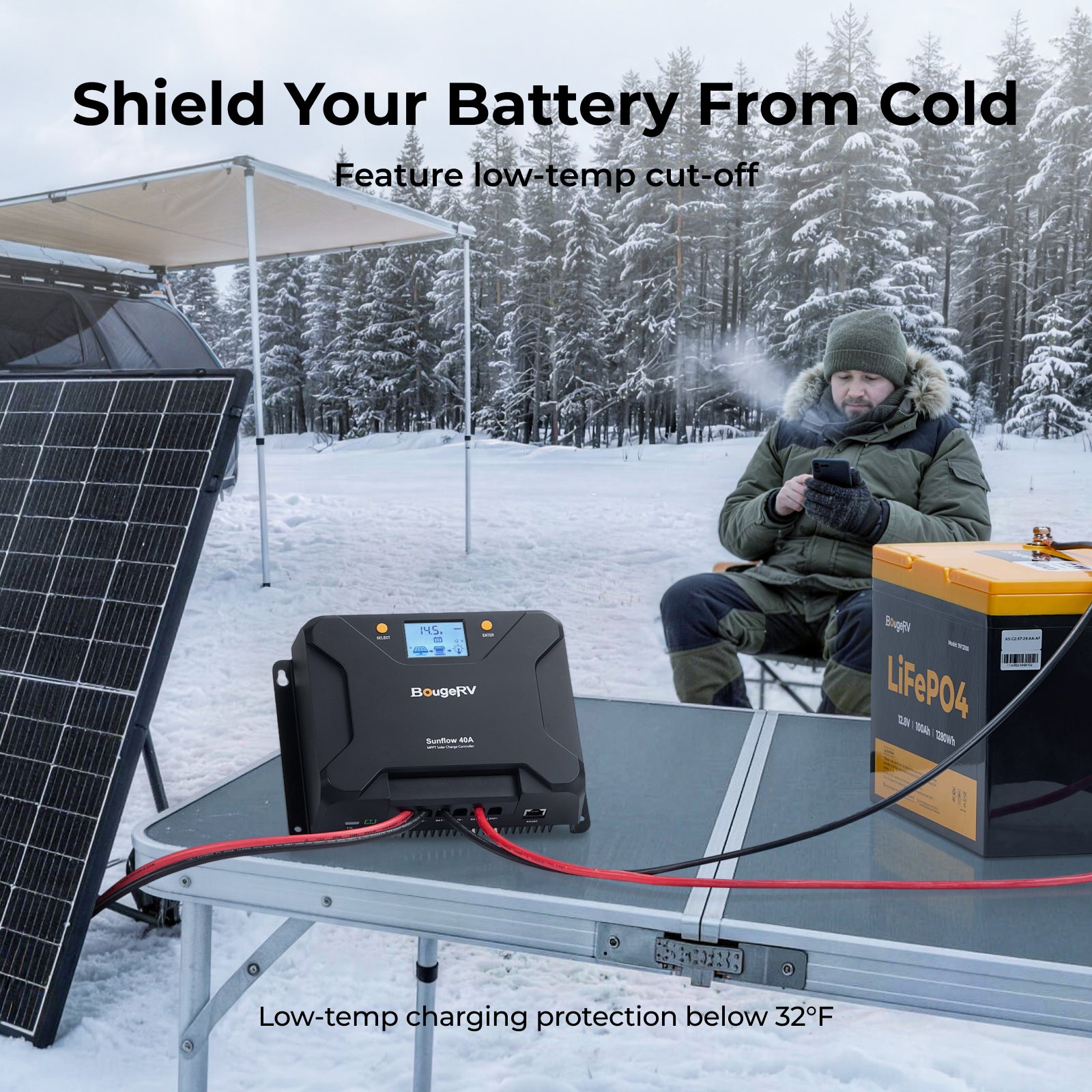

Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYB1
Model 12V 2000W Operating ambient temperature range 14°F~104°F（-10°C~40°C）
Product size 14.96*7.4*3.94 in Weight 8.4 lbs
Noise ≤60dB
Rated Output Power 2000W Overload power 2300W
Peak power 4000W (1s)
Output voltage 120VAC (default)
Output frequency 50/60 Hz (default)
Rated input voltage 12VDC
The input voltage ranges 10V-15.5VDC
Output waveform Pure sine wave Output harmonic component (THD) <5%
Maximum output efficiency ＞90%
Full Load Efficiency ＞85% No-load Loss ＜0.9A
          Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm 10.5VDC (±0.3V) Over-discharge voltage 10VDC (±0.3V)
Overvoltage 15.5VDC (±0.3V) Over temperature protect ≥167°F（75°C）
Over-temperature protection recovery ≤131°F（55°C） Fan start-up temp ≥113℉ (45℃) / ≥40% load
  Communication Port RS485 (Remote Control) Bluetooth (APP)
  USB port 18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
Basic & Physical
SKUSI001-BK-LYTYB1
Model12V 2000W
Operating ambient temperature range14°F~104°F（-10°C~40°C）
Product size14.96*7.4*3.94 in
Weight8.4 lbs
Noise≤60dB
Electrical Specifications
Rated Output Power2000W
Overload power2300W
Peak power4000W (1s)
Output voltage120VAC (default)
Output frequency50/60 Hz (default)
Rated input voltage12VDC
The input voltage ranges10V-15.5VDC
Output waveformPure sine wave
Output harmonic component (THD)<5%
Efficiency & No-load Loss
Maximum output efficiency＞90%
Full Load Efficiency＞85%
No-load Loss＜0.9A
Protection Features
Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm10.5VDC (±0.3V)
Over-discharge voltage10VDC (±0.3V)
Overvoltage15.5VDC (±0.3V)
Over temperature protect≥167°F（75°C）
Over-temperature protection recovery≤131°F（55°C）
Fan start-up temp≥113℉ (45℃) / ≥40% load
Interface & Communication
Communication PortRS485 (Remote Control) Bluetooth (APP)
USB port18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)

Reviews

You may also like

FAQs

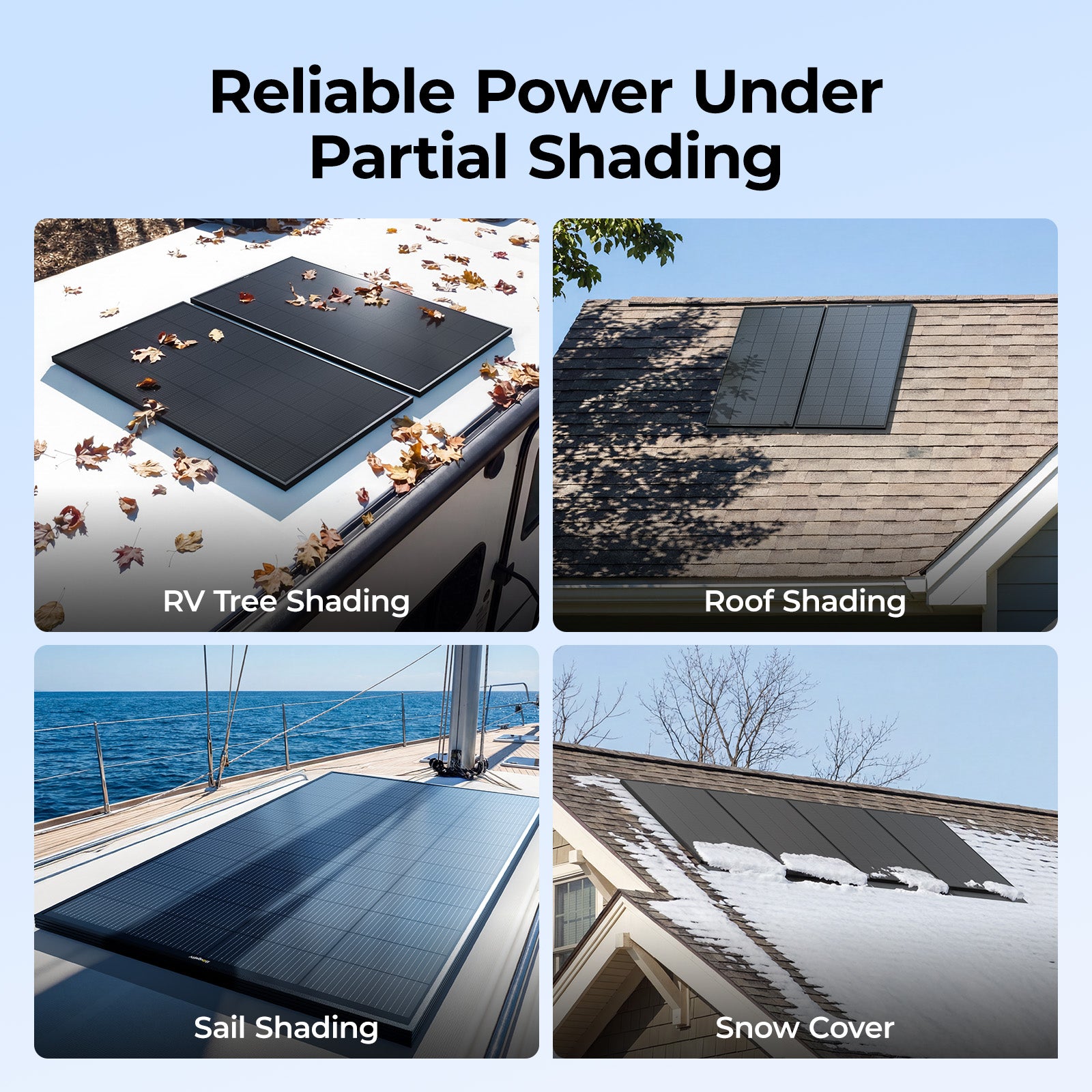

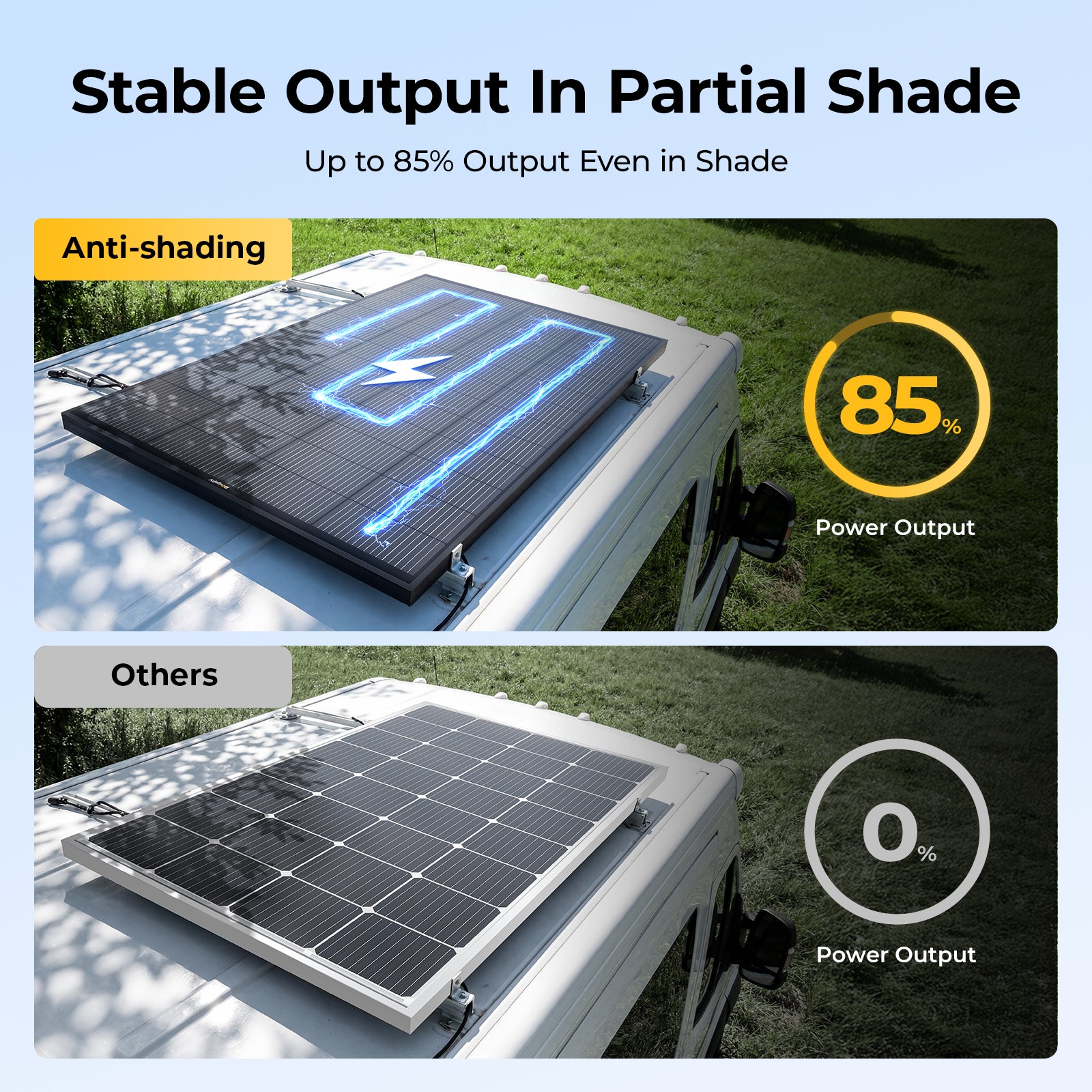

Shading—whether from a leaf, bird droppings, or nearby objects—can drastically reduce the output of traditional solar panels, sometimes bringing power generation close to zero.

Equipped with 24 bypass diodes, the BougeRV 200W N-Type ShadePower solar panel allows electricity to flow around shaded cells, minimizing energy loss and preventing hotspots.

As a result, it can still deliver up to 85% of its output in partial shade, where conventional panels would struggle to produce meaningful power.

Standard panels often experience bottlenecks when even a small section is shaded. ShadePower technology improves current bypass efficiency, reducing overall system degradation under uneven lighting.

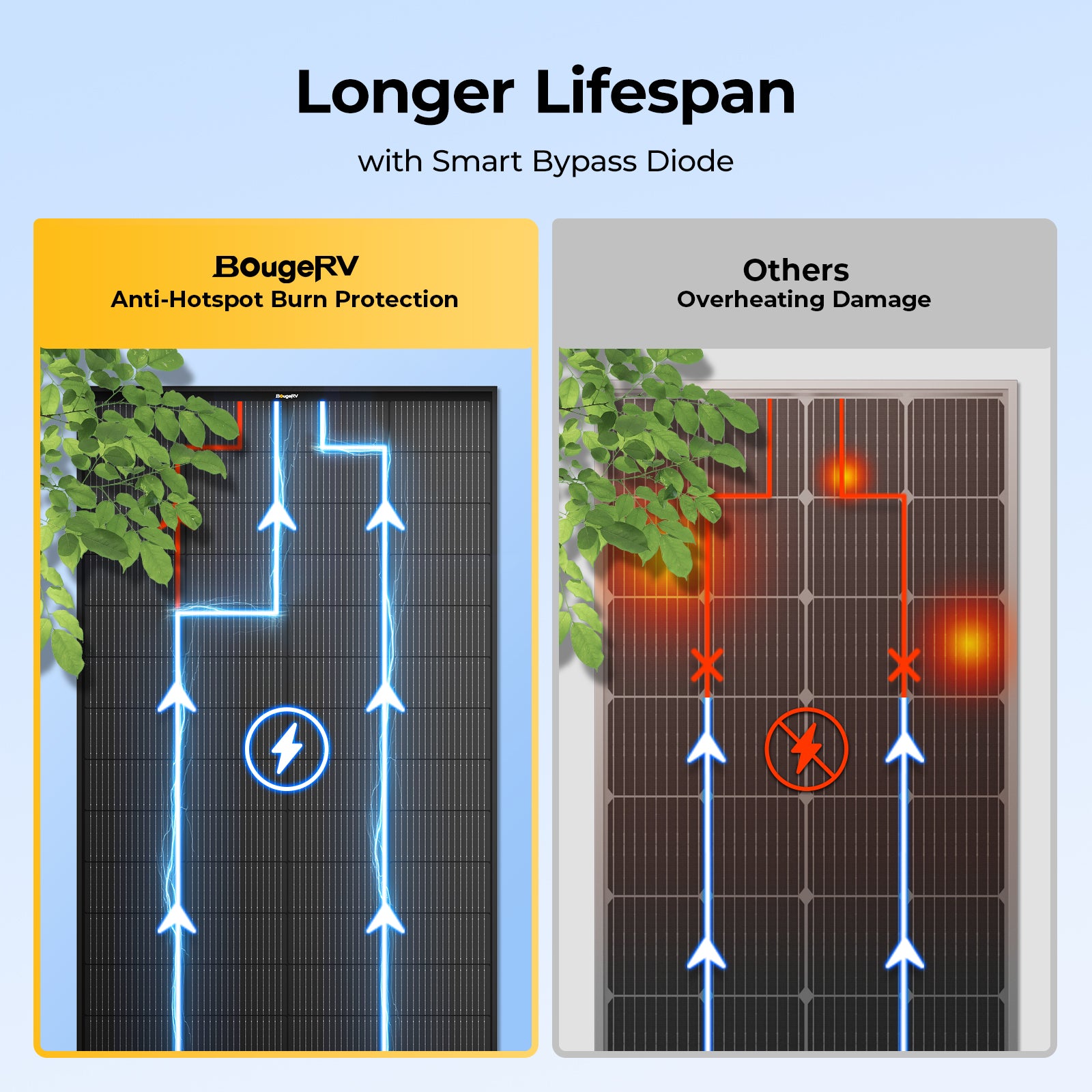

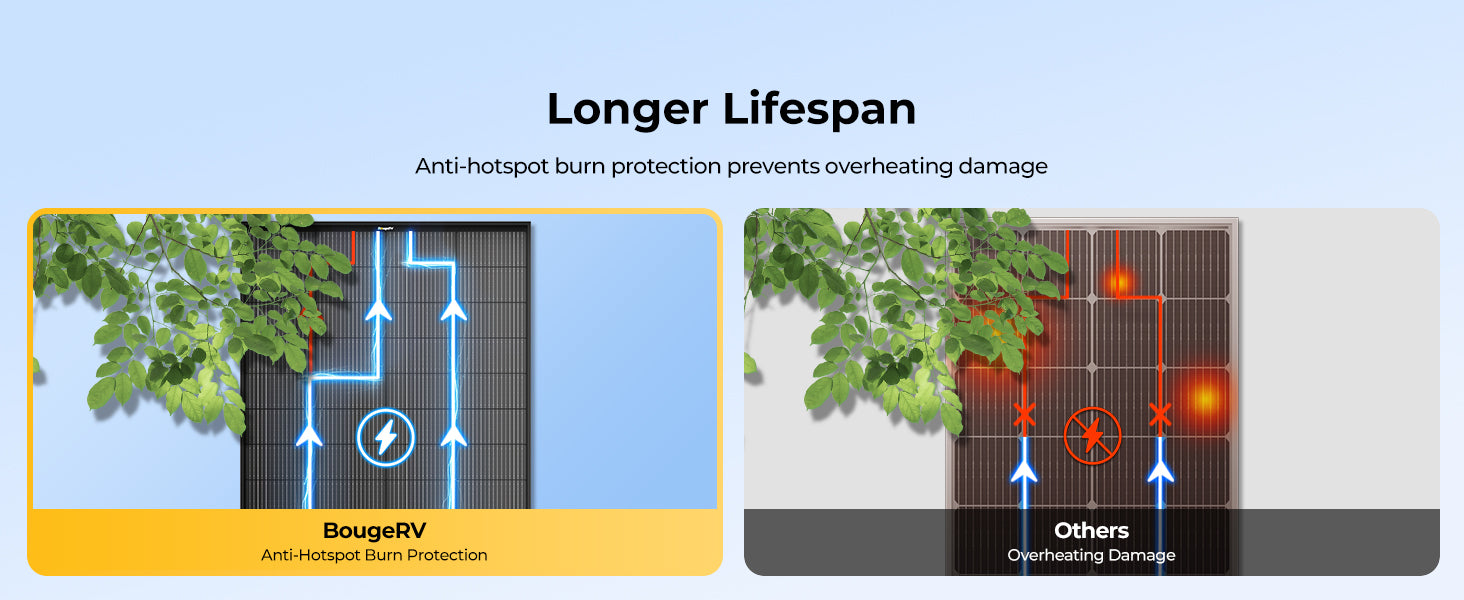

No. The panel includes Anti-Hotspot Protection, which prevents localized overheating by bypassing blocked current paths, improving long-term cell safety.

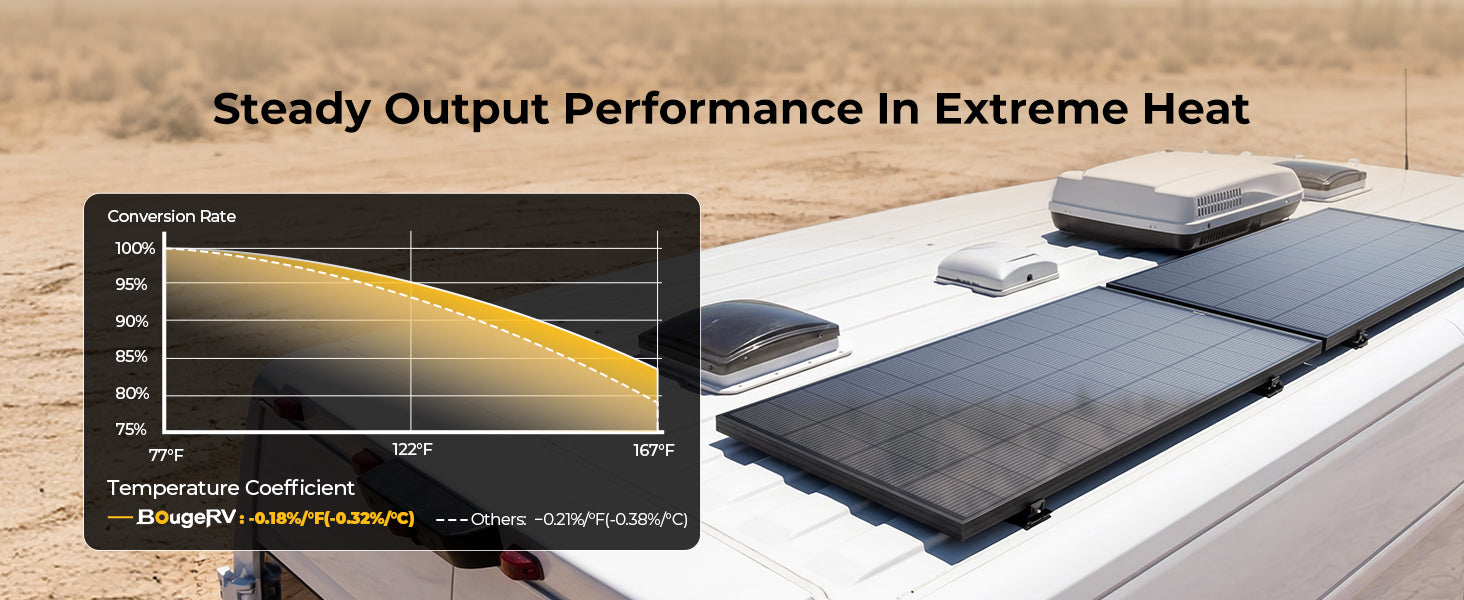

The N-type cells are optimized for high-temperature environments, with a low temperature coefficient of -0.32%/°C, ensuring better wattage retention during heatwaves.

Yes. The system is modular and can be expanded by adding additional compatible panels, depending on your solar controller and setup.

It is suitable for off-grid applications such as RV camping, overlanding, small appliances, battery charging systems, and portable power stations.
