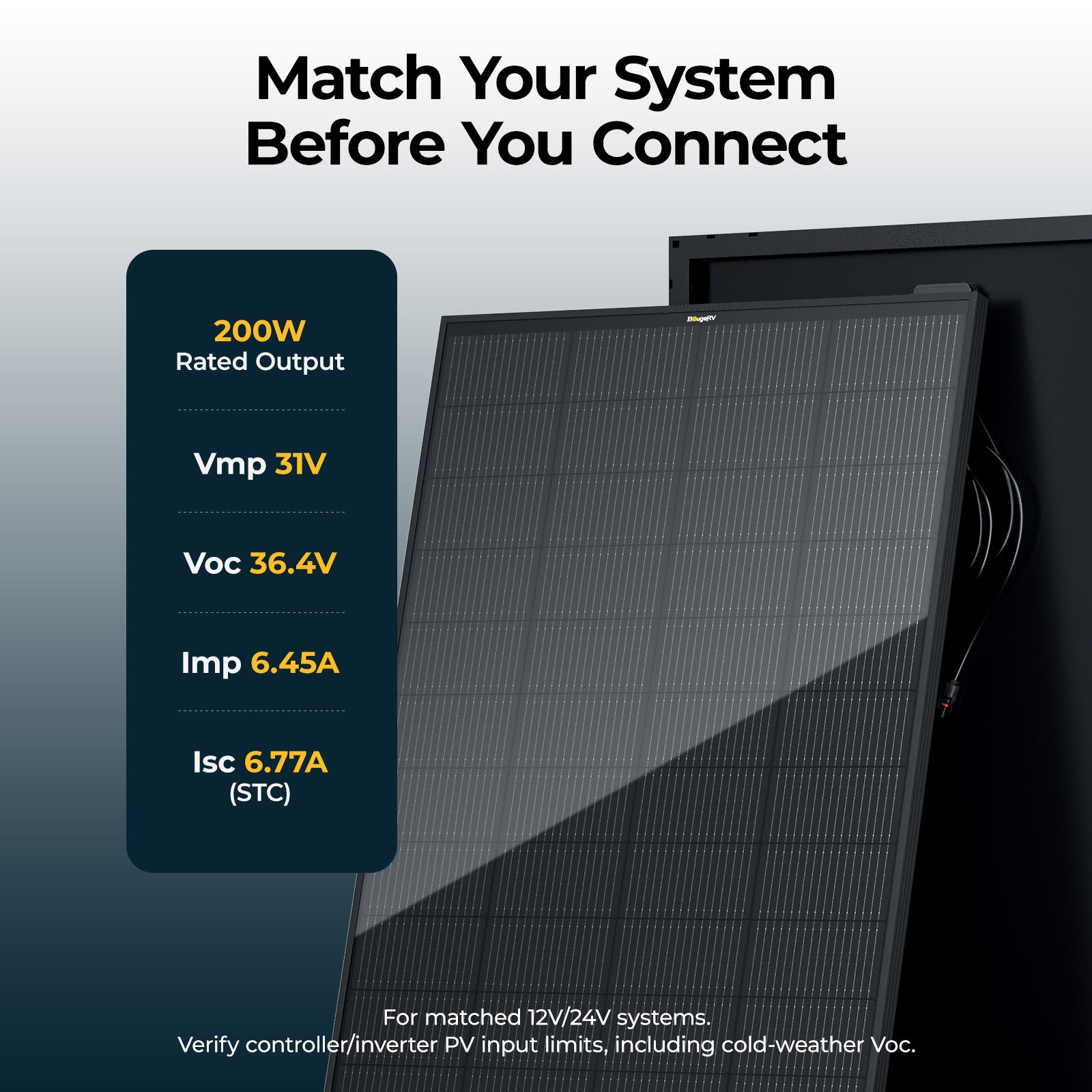

BougeRV SP005-BK 200W N-Type ShadePower rigid solar panel electrical specifications including 31V Vmp, 36.4V Voc, 6.45A Imp and 6.77A Isc at STC

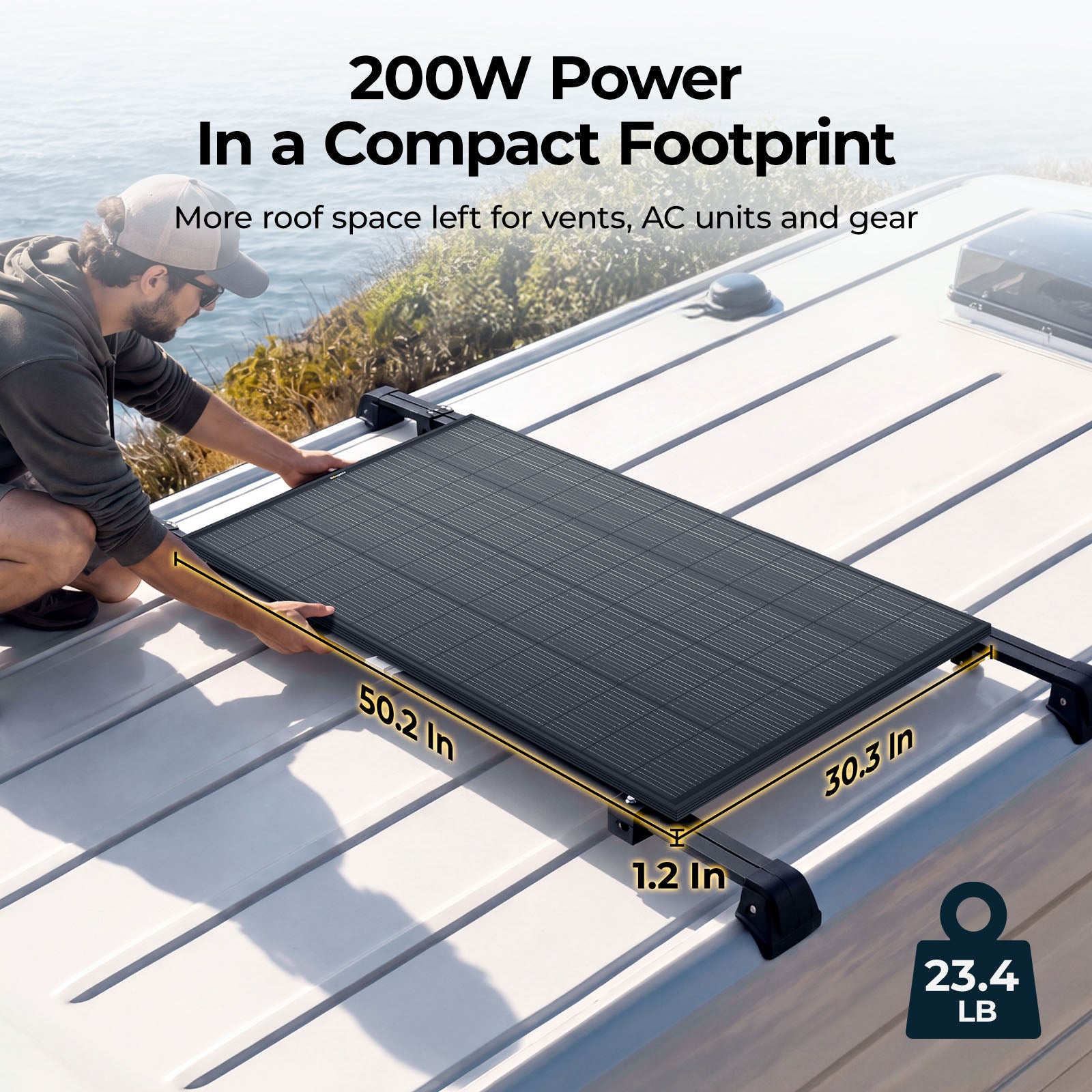

BougeRV 200W N-Type ShadePower rigid solar panel with a compact 50.2 x 30.3 x 1.2 inch design, leaving more roof space for vents, AC units and gear

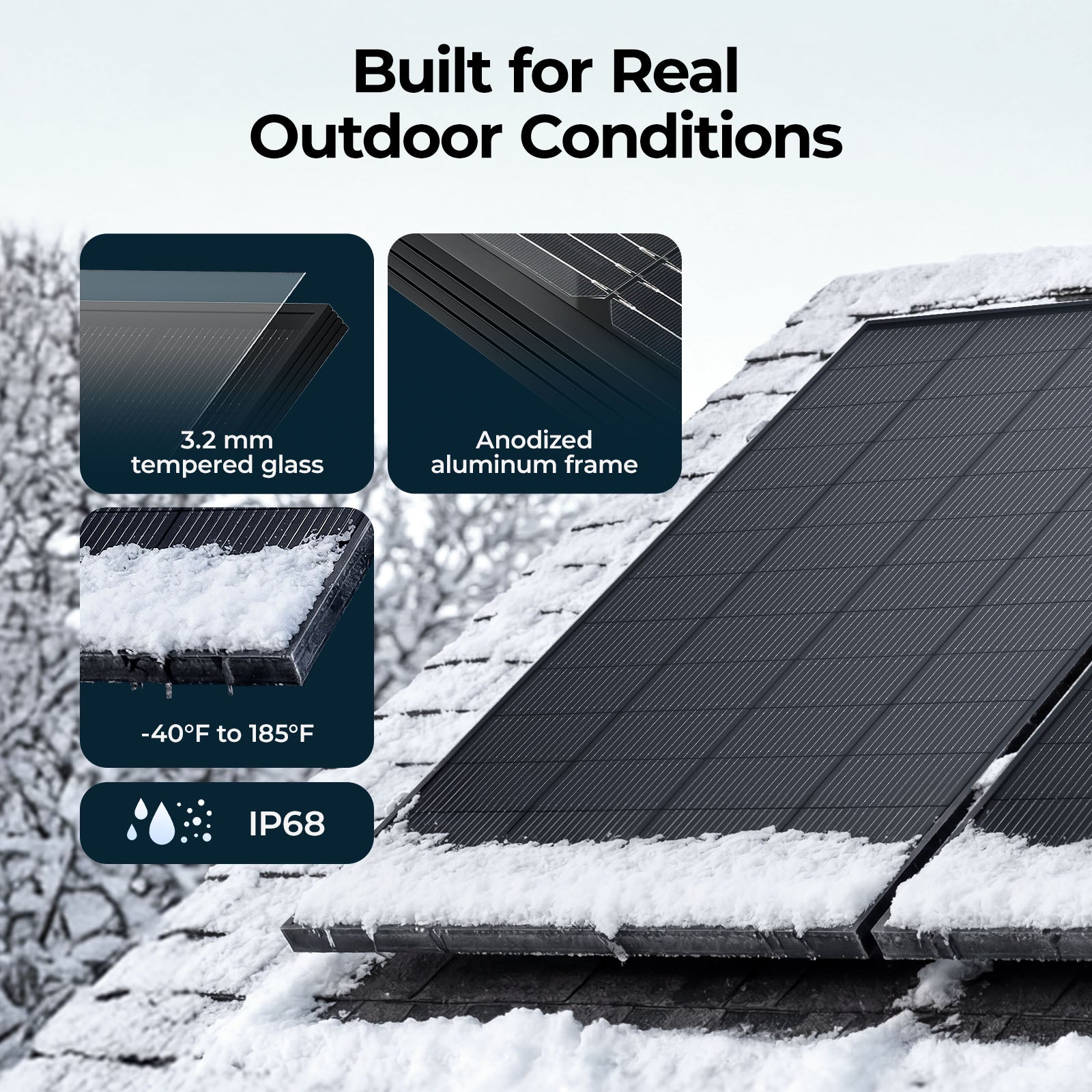

BougeRV 200W N-Type ShadePower rigid solar panel with 3.2 mm tempered glass, anodized aluminum frame, -40°F to 185°F operating temperature and IP68 protection

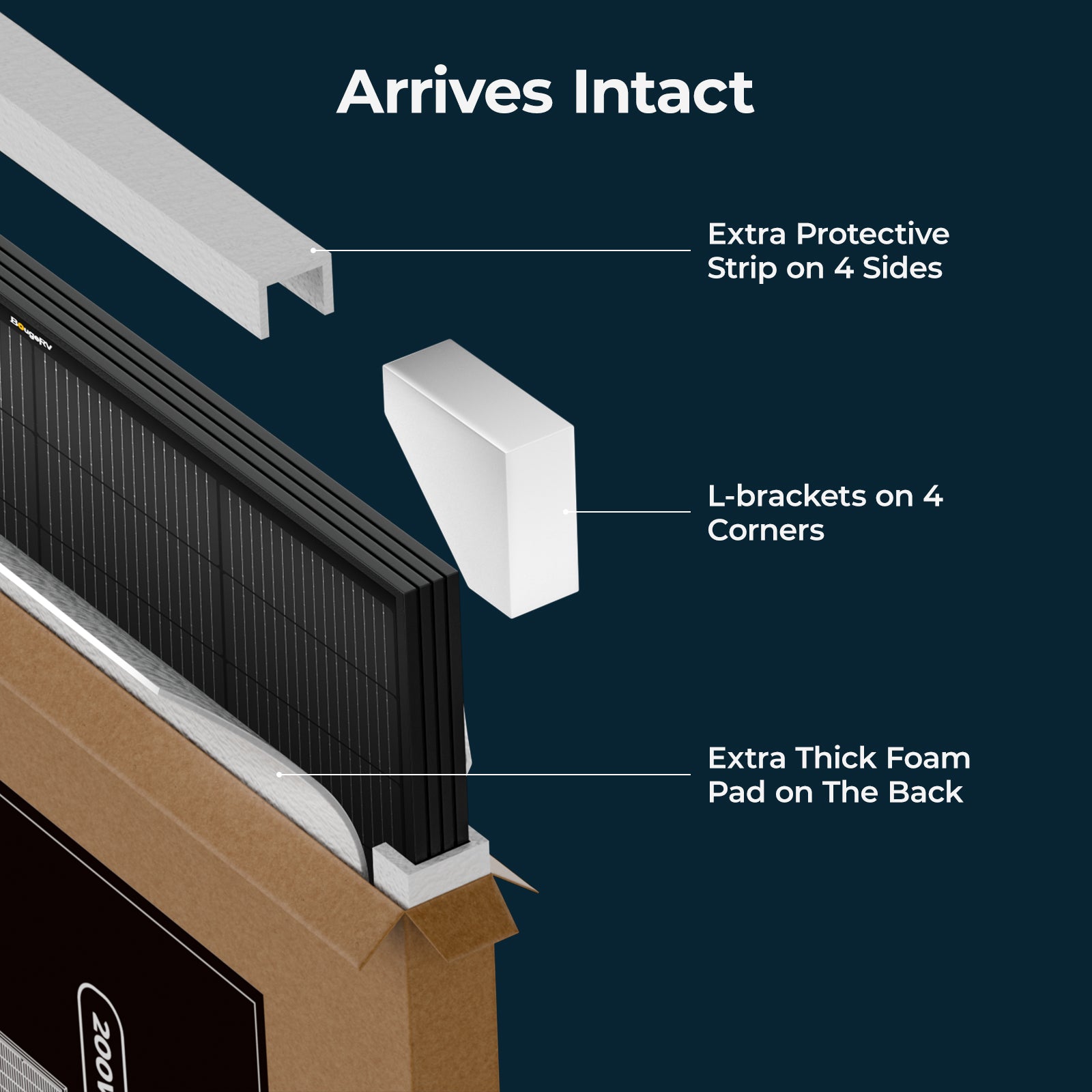

BougeRV 200W N-Type solar panel with reinforced packaging, four-side protective strips, corner L-brackets and extra-thick foam padding
BougeRV MPPT solar charge controller with low-temperature charging protection below 32°F
BougeRV MPPT solar charge controller compatible with 12V and 24V LiFePO4 battery systems
BougeRV MPPT solar charge controller with 99.5% tracking efficiency and 99% conversion efficiency
BougeRV MPPT solar charge controller with 33 ft remote control range and offline operation without internet
BougeRV MPPT solar charge controller with adjustable charging current for different battery sizes
BougeRV MPPT solar charge controller with eight intelligent safety protections for stable off-grid operation
BougeRV MPPT solar charge controller with eight intelligent safety protections for stable off-grid operation
BougeRV 12V 100Ah LiFePO4 battery compared with lead acid battery for RV and off-grid power
BougeRV 12V 100Ah Group 24 LiFePO4 battery with compact size and lightweight design
BougeRV 12V 100Ah LiFePO4 battery with six BMS protection functions
BougeRV 12V 100Ah LiFePO4 battery with low temperature charging protection below 32°F
BougeRV 2000W 12V inverter with 2000W continuous output and 4000W peak power
BougeRV 2000W 12V pure sine wave inverter providing clean low THD power for sensitive electronics
BougeRV 2000W 12V inverter with multiple protection features for safe and reliable off-grid power
BougeRV 2000W 12V pure sine wave inverter with automatic fan cooling for stable operation
BougeRV 2000W 12V inverter with Bluetooth app and 19.7-foot remote control panel
BougeRV 2000W 12V pure sine wave inverter package and included accessories
BougeRV 200W N-Type ShadePower rigid solar panel kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 200W N-Type ShadePower rigid solar panel kit
BougeRV 200W N-Type Shade-Power Solar Panel with 25% Efficiency
BougeRV 200W N-Type Shade-Power Solar Panel for RV roof
200W N-Type ShadePower rigid solar panel with smart bypass diodes to prevent hotspot overheating and extend panel lifespan
BougeRV SP005-BK 200W N-Type ShadePower rigid solar panel electrical specifications including 31V Vmp, 36.4V Voc, 6.45A Imp and 6.77A Isc at STC
BougeRV 200W N-Type ShadePower rigid solar panel with a compact 50.2 x 30.3 x 1.2 inch design, leaving more roof space for vents, AC units and gear
BougeRV 200W N-Type ShadePower rigid solar panel with 3.2 mm tempered glass, anodized aluminum frame, -40°F to 185°F operating temperature and IP68 protection

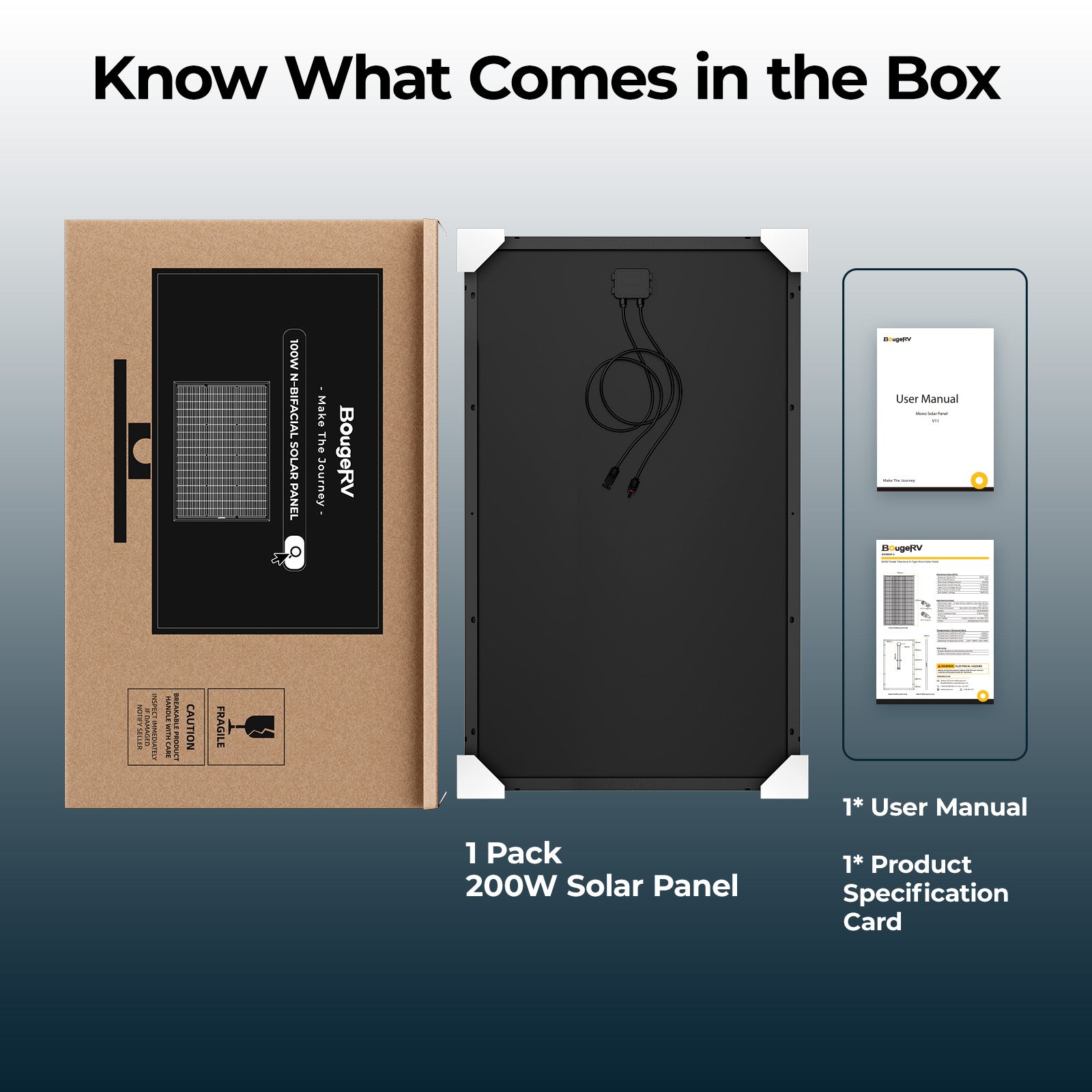

BougeRV 200W N-Type solar panel with reinforced packaging, four-side protective strips, corner L-brackets and extra-thick foam padding
BougeRV MPPT solar charge controller with low-temperature charging protection below 32°F
BougeRV MPPT solar charge controller compatible with 12V and 24V LiFePO4 battery systems
BougeRV MPPT solar charge controller with 99.5% tracking efficiency and 99% conversion efficiency
BougeRV MPPT solar charge controller with 33 ft remote control range and offline operation without internet
BougeRV MPPT solar charge controller with adjustable charging current for different battery sizes
BougeRV MPPT solar charge controller with eight intelligent safety protections for stable off-grid operation
BougeRV MPPT solar charge controller with eight intelligent safety protections for stable off-grid operation
BougeRV 12V 100Ah LiFePO4 battery compared with lead acid battery for RV and off-grid power
BougeRV 12V 100Ah Group 24 LiFePO4 battery with compact size and lightweight design
BougeRV 12V 100Ah LiFePO4 battery with six BMS protection functions
BougeRV 12V 100Ah LiFePO4 battery with low temperature charging protection below 32°F
BougeRV 2000W 12V inverter with 2000W continuous output and 4000W peak power
BougeRV 2000W 12V pure sine wave inverter providing clean low THD power for sensitive electronics
BougeRV 2000W 12V inverter with multiple protection features for safe and reliable off-grid power
BougeRV 2000W 12V pure sine wave inverter with automatic fan cooling for stable operation
BougeRV 2000W 12V inverter with Bluetooth app and 19.7-foot remote control panel

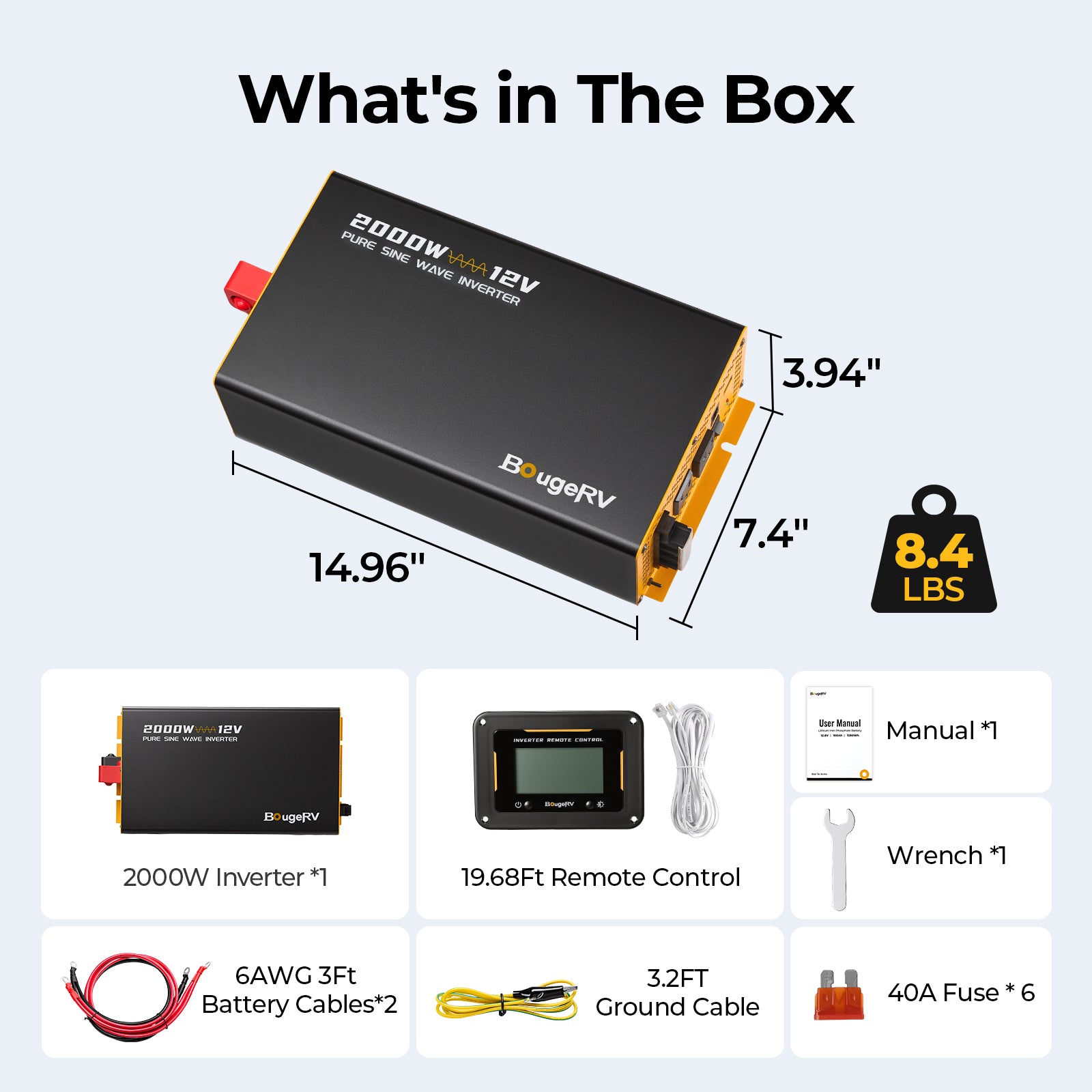

BougeRV 2000W 12V pure sine wave inverter package and included accessories
BougeRV 200W N-Type ShadePower rigid solar panel kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
BougeRV 12V 200W ShadePower Rigid Solar System Kit
FEATURES PRODUCT

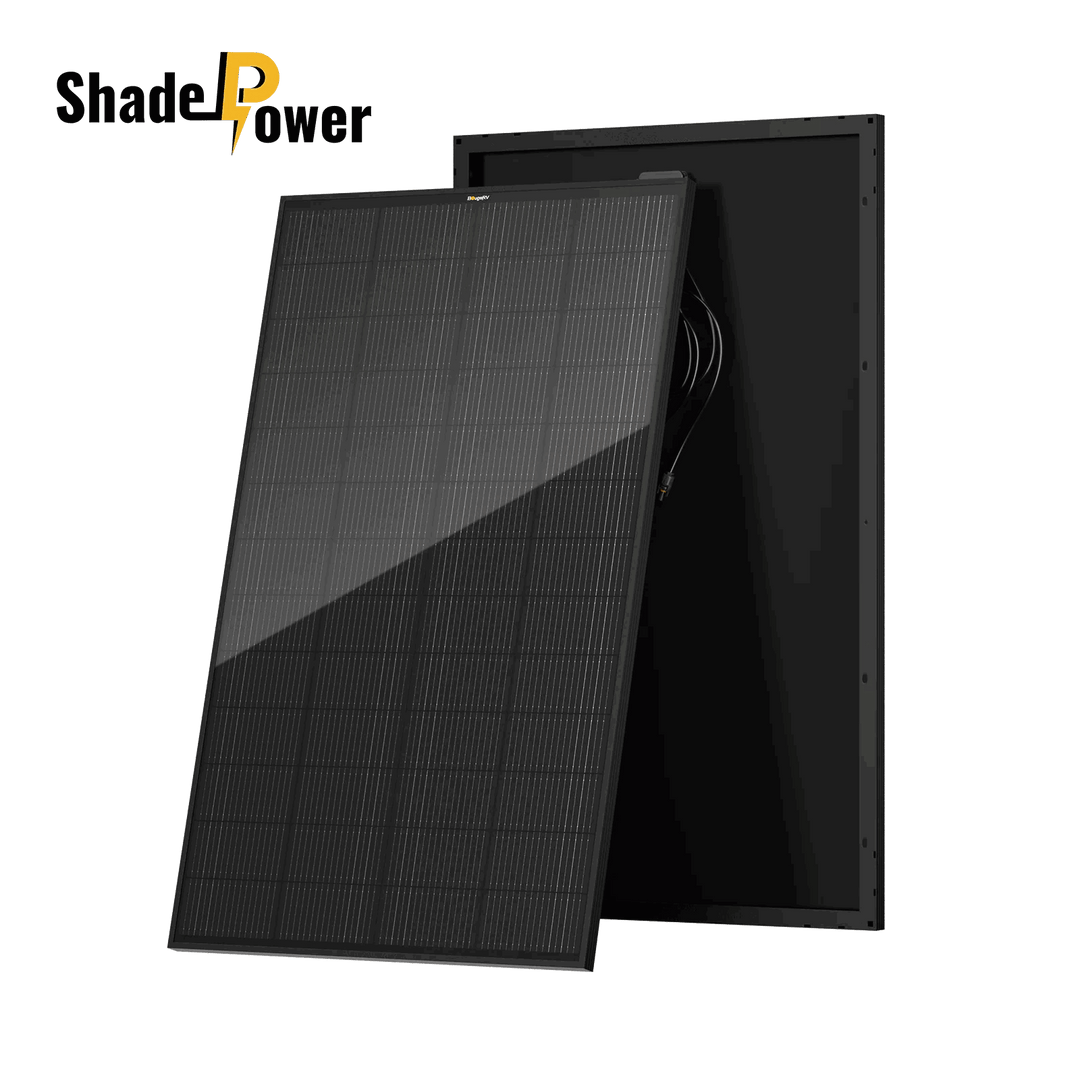

BougeRV 12V 200W ShadePower Rigid Solar System Kit

N-Type Solar Kit ShadePower Kit 200W Solar Kit 12V Off-Grid All-in-One 200W Kit

🏷️Early Prime Deal

Save $290.00
$729.99

30-Day Price Guarantee

$1,019.99
/

Get started with solar power using a complete 200W 12V solution. The BougeRV 200W N-Type ShadePower Solar Panel Kit delivers 25% efficiency and 24 bypass diodes for improved performance under partial shade. Durable tempered glass, an anodized aluminum frame, and IP68 protection make it a dependable choice for RVs, camping, and 12V off-grid power.

Read more » Fold up »

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews

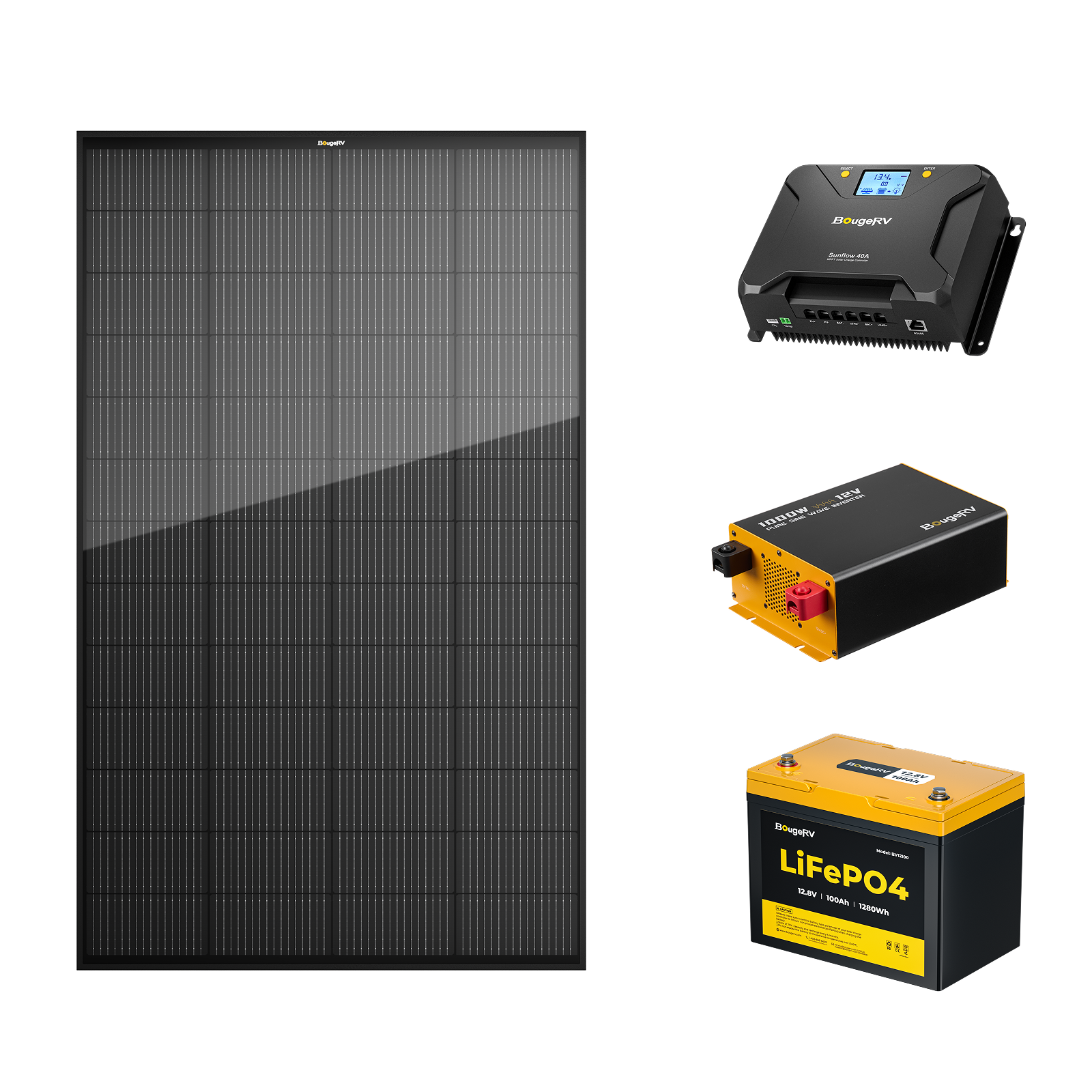

Your Complete 12V Solar Power Solution

Harness solar energy, store it in your battery, and power your everyday essentials with one complete system.

BougeRV 12V solar kit with solar panels, charge controller, battery, inverter, and powered appliances
BougeRV 12V solar kit with solar panels, charge controller, battery, inverter, and powered appliances

How Much Can a Solar Kit Power?

Compare 200W, 400W, 600W, and 800W kits to find the right power for your needs.

BougeRV 200W 12V solar kit powering a fan, fridge, coffee maker, and lights
BougeRV 400W 12V solar kit powering multiple outdoor appliances
BougeRV 600W 12V solar kit for off-grid power and everyday appliances
BougeRV 800W 12V solar kit powering multiple high-use appliances

Step-by-Step Solar System Setup

See how solar energy flows from the panels to your battery and appliances in a simple 12V system.


Step-by-step diagram showing how to connect a BougeRV 12V solar panel, charge controller, battery, inverter, and appliances
Step-by-step diagram showing how to connect a BougeRV 12V solar panel, charge controller, battery, inverter, and appliances

Product Features

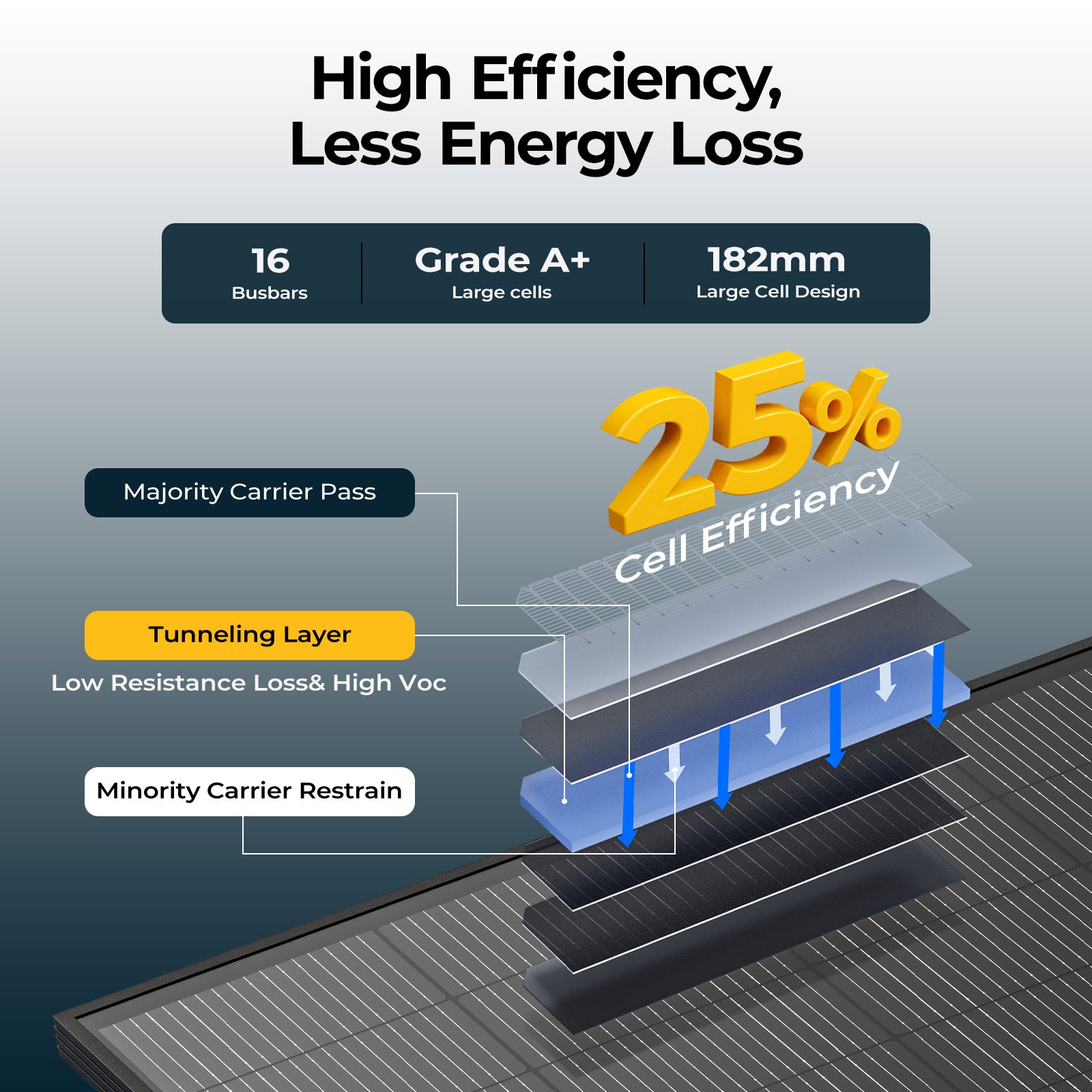

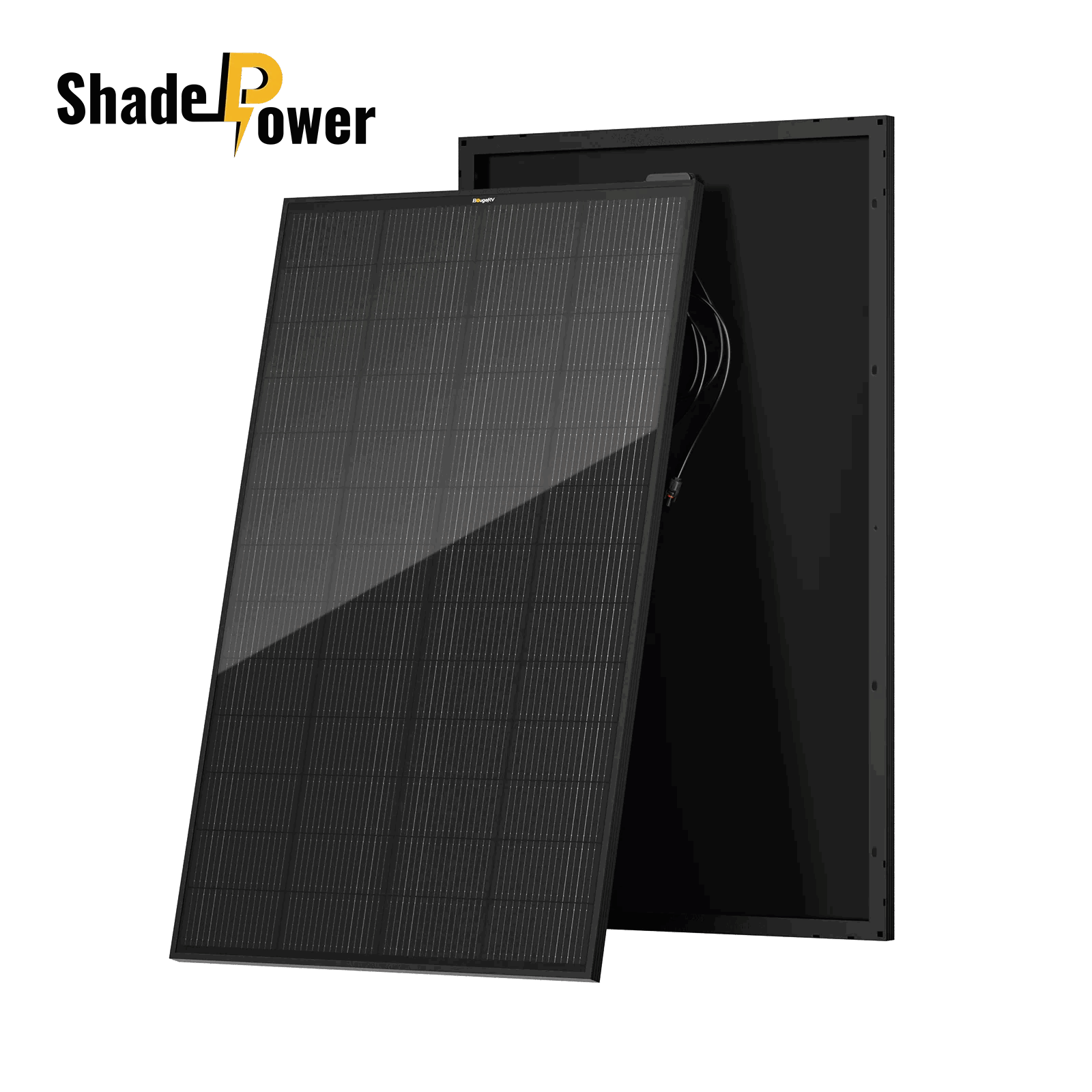

BougeRV 200W N-Type ShadePower Solar Panel

This 200W N-Type solar panel with advanced anti-hotspot technology is designed to bypass blocked current and prevent localized overheating. It protects every cell from damage and ensures long-term system safety for off-grid solar setups.

With advanced anti-shading solar panel technology, this N-Type solar module maintains up to 85% energy output even in partial shading conditions, ensuring stable performance where traditional solar panels fail.

Snow or frost won’t stop your energy supply. Thanks to its anti-shading current bypass design, this 200W N-Type 16BB rigid solar panel continues generating electricity even with partial snow coverage, making it a dependable choice for winter off-grid solar systems and cold-weather RV applications.

Engineered for extreme climates, our N-type cells thrive in peak summer. With an optimized -0.32%/°C temperature coefficient, our rigid solar panel retains more wattage during heatwaves than standard alternatives. Ideal for desert camping and tropical off-grid systems.

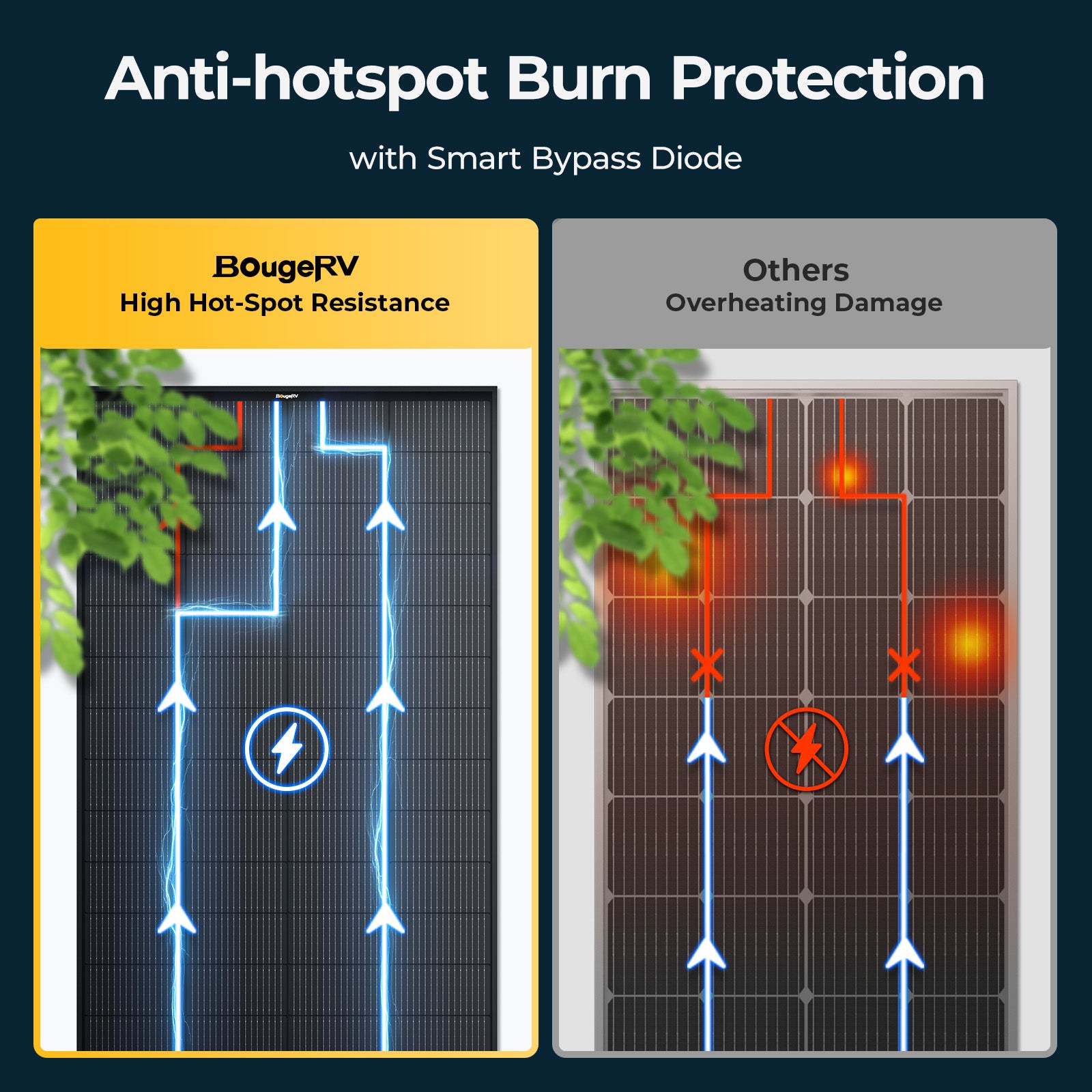

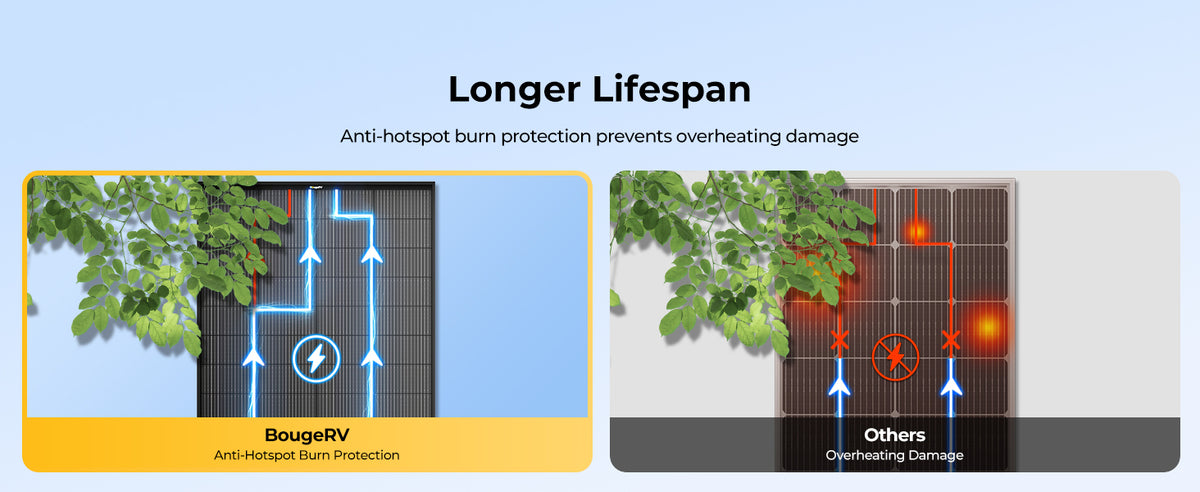

Anti hotspot technology in 200W N-Type solar panel preventing localized overheating

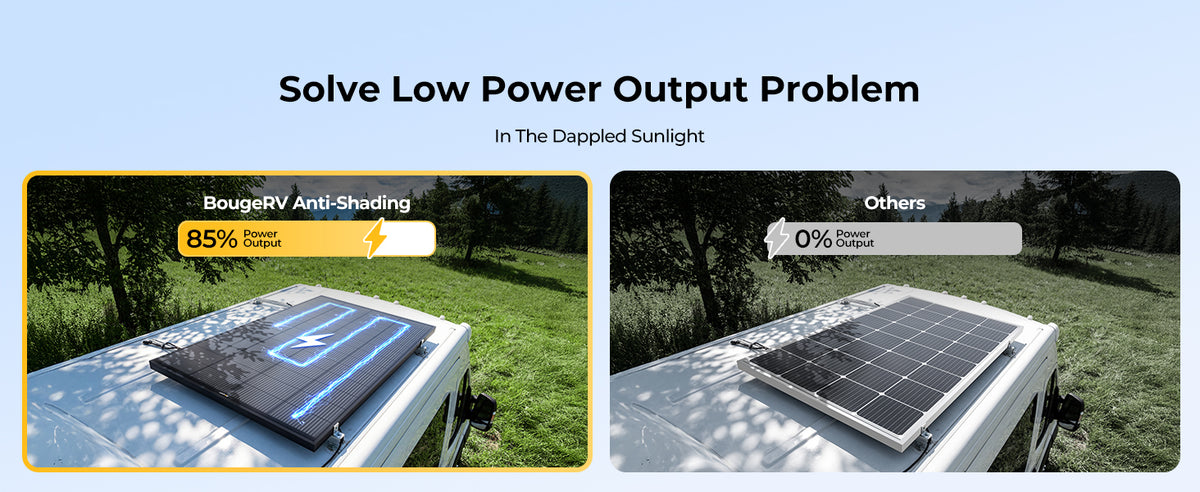

BougeRV 200W N-Type solar panel maintaining up to 85 percent output in partial shade using anti-shading technology
BougeRV 200W N-Type solar panel generating power under snow coverage with winter resistant off-grid solar performance

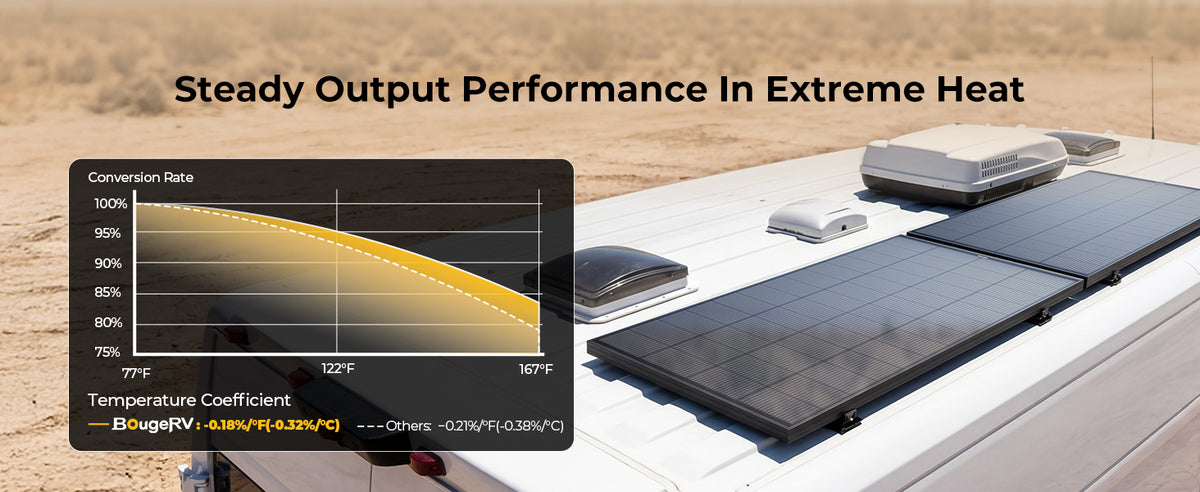

BougeRV 200W N-Type solar panel operating in high temperature desert environment with stable power output

BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V

Built for demanding outdoor conditions, this MPPT solar charge controller maintains reliable charging performance in high and low temperatures. When temperatures drop below 32°F (0°C), built-in low-temperature protection automatically stops lithium battery charging to help protect battery life and system stability—whether you're camping, traveling, or living off-grid.

Built-in protection continuously monitors your solar charging system against common electrical risks, including over-temperature, over-voltage, over-discharge, short circuit, reverse connection, overload, and input power issues. Multiple safeguards help keep your battery and solar system stable in demanding outdoor conditions.

With up to 99.5% tracking efficiency and 99% conversion efficiency, this MPPT controller helps maximize the solar energy captured from your panels. Less energy wasted means more usable power for your battery and more reliable energy when you're off the grid.

Stay connected to your solar system wherever you are. With a 33 ft remote control range, you can monitor system status and adjust charging settings without WiFi or cellular service. Convenient for RVs, camper vans, and remote off-grid locations.

Different battery capacities require different charging levels. Adjustable charging current lets you fine-tune the MPPT solar charge controller to match your battery and solar setup, helping deliver controlled charging while reducing the risk of overcurrent.

BougeRV MPPT solar charge controller with low-temperature battery protection below 32°F for RV and off-grid solar systems
BougeRV MPPT solar charge controller with eight intelligent protection functions for safe off-grid solar charging
BougeRV high-efficiency MPPT solar charge controller with 99.5% tracking efficiency and 99% conversion efficiency
BougeRV MPPT solar charge controller with 33 ft Bluetooth control and offline operation without internet
BougeRV MPPT solar charge controller with adjustable charging current for different battery capacities

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

The battery management system monitors battery conditions and protects against overvoltage, undervoltage, overcurrent, short circuits, overheating, and low-temperature charging. Six protection functions help keep the battery operating safely and reliably.

Provides low-temperature protection for battery charging. If the temperature falls below 32°F, it reduces or turns off current input and resumes charging at 35.6°F to ensure optimal battery health and extend battery life.

At only 24.25 lbs. Standard dimensions of L10.24" W6.61" H8.23". The BougeRV Group 24 12V 100Ah LiFePO4 battery offers an excellent balance of space and performance, providing sufficient ampere-hours to meet a variety of needs while greatly saving space.

Rated for 4000 cycles at 25°C, 0.2C, and 100% DOD, with a lifespan of up to 10 years under appropriate use. Deep-cycle performance provides more usable energy across repeated charge and discharge cycles.

BougeRV 12V 100Ah LiFePO4 battery with BMS overvoltage undervoltage overcurrent short circuit and temperature protection
BougeRV 12V 100Ah LiFePO4 battery with low temperature charging protection below 32°F
BougeRV 12V 100Ah Group 24 LiFePO4 battery with compact dimensions and 24.25 lb weight
BougeRV 12V 100Ah LiFePO4 battery with 4000 cycle life 100% DOD and 10 year lifespan

BougeRV 2000W 12V Pure Sine Wave Inverter

Deliver stable 2000W continuous power for your RV, campsite, or off-grid setup, with 4000W peak power to handle demanding startup loads

Deliver clean and stable AC power with low THD, making it suitable for sensitive electronics, appliances, and everyday devices.

Built-in protection continuously monitors the system to help safeguard against low voltage, over-voltage, overload, overheating, short circuits, and ground faults.

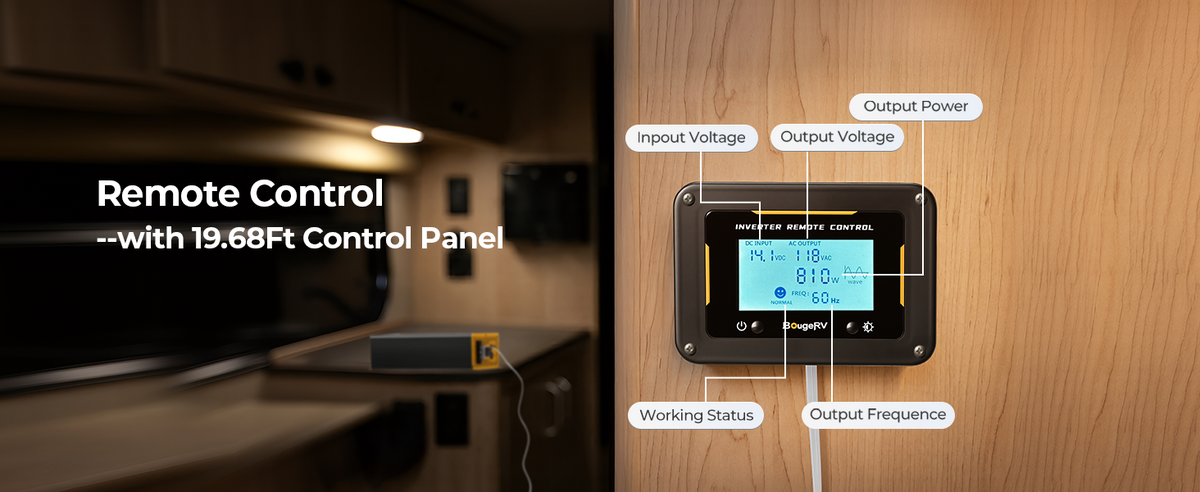

Use the included 19.68-ft wired control panel to monitor and manage your inverter conveniently from a distance.

The built-in cooling fan automatically activates under high temperature or heavy load conditions, helping maintain stable performance during extended use.

BougeRV 2000W 12V pure sine wave inverter with 2000W continuous output and 4000W peak power
BougeRV 2000W 12V pure sine wave inverter delivering clean low THD power for sensitive electronics
BougeRV 2000W 12V inverter with six-layer protection for safe and reliable power
BougeRV 2000W 12V inverter with 19.68-foot wired remote control panel for convenient power monitoring
BougeRV 12V pure sine wave inverter with automatic fan cooling for stable operation

What's in the Box

200W N-Type ShadePower Solar Panel

👉User Manual

40A MPPT Solar Controller

👉User Manual

100Ah LiFePO4 Battery

👉User Manual

12V 2000W Inverter

👉User Manual

Product Specifications

SKU SP005-BK
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V)
31V±5%
 Temperature Coefficient Pmax -0.32%/K
Max. Power Current Imp (A)
6.45A±5%
 Temperature Coefficient Voc -0.25%/K
Open Circuit Voltage Voc (V)
36.4V±5%
 Temperature Coefficient Isc +0.045%/K
Short Circuit Current (Isc)
6.77A±5%
 Dimensions
50.2 x 30.3 x 1.2in
Material & Workmanship Warranty 10 Years Weight
23.4lb
Linear power output warranty 30 Years Product Type N-Type Solar Panels
SKU SP005-BK
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V)
31V±5%
Max. Power Current Imp (A)
6.45A±5%
Open Circuit Voltage Voc (V)
36.4V±5%
Short Circuit Current (Isc)
6.77A±5%
Material & Workmanship Warranty 10 Years
Linear power output warranty 30 Years
Operating Temperature Limits -40℉ ~ +185℉
Series Fuse Rating 15 A
Temperature Coefficient Pmax -0.32%/K
Temperature Coefficient Voc -0.25%/K
Temperature Coefficient Isc +0.045%/℃
Dimensions
50.2 x 30.3 x 1.2in
Weight 23.4 lb
SKU ISE218

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 40 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 600W/12V; 1200W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 40 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 8.94L*6.26W*2.95 inches
No Load Loss ≤10mA Weight 3.95 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE218
System Voltage 12V/24V
Rated Charging Current 40 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 600W/12V; 1200W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 40 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 8.94L*6.26W*2.95 inches
Weight 3.95 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYB1
Model 12V 2000W Operating ambient temperature range 14°F~104°F（-10°C~40°C）
Product size 14.96*7.4*3.94 in Weight 8.4 lbs
Noise ≤60dB
Rated Output Power 2000W Overload power 2300W
Peak power 4000W (1s)
Output voltage 120VAC (default)
Output frequency 50/60 Hz (default)
Rated input voltage 12VDC
The input voltage ranges 10V-15.5VDC
Output waveform Pure sine wave Output harmonic component (THD) <5%
Maximum output efficiency ＞90%
Full Load Efficiency ＞85% No-load Loss ＜0.9A
          Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm 10.5VDC (±0.3V) Over-discharge voltage 10VDC (±0.3V)
Overvoltage 15.5VDC (±0.3V) Over temperature protect ≥167°F（75°C）
Over-temperature protection recovery ≤131°F（55°C） Fan start-up temp ≥113℉ (45℃) / ≥40% load
  Communication Port RS485 (Remote Control) Bluetooth (APP)
  USB port 18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
Basic & Physical
SKUSI001-BK-LYTYB1
Model12V 2000W
Operating ambient temperature range14°F~104°F（-10°C~40°C）
Product size14.96*7.4*3.94 in
Weight8.4 lbs
Noise≤60dB
Electrical Specifications
Rated Output Power2000W
Overload power2300W
Peak power4000W (1s)
Output voltage120VAC (default)
Output frequency50/60 Hz (default)
Rated input voltage12VDC
The input voltage ranges10V-15.5VDC
Output waveformPure sine wave
Output harmonic component (THD)<5%
Efficiency & No-load Loss
Maximum output efficiency＞90%
Full Load Efficiency＞85%
No-load Loss＜0.9A
Protection Features
Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm10.5VDC (±0.3V)
Over-discharge voltage10VDC (±0.3V)
Overvoltage15.5VDC (±0.3V)
Over temperature protect≥167°F（75°C）
Over-temperature protection recovery≤131°F（55°C）
Fan start-up temp≥113℉ (45℃) / ≥40% load
Interface & Communication
Communication PortRS485 (Remote Control) Bluetooth (APP)
USB port18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)

Reviews

You may also like
