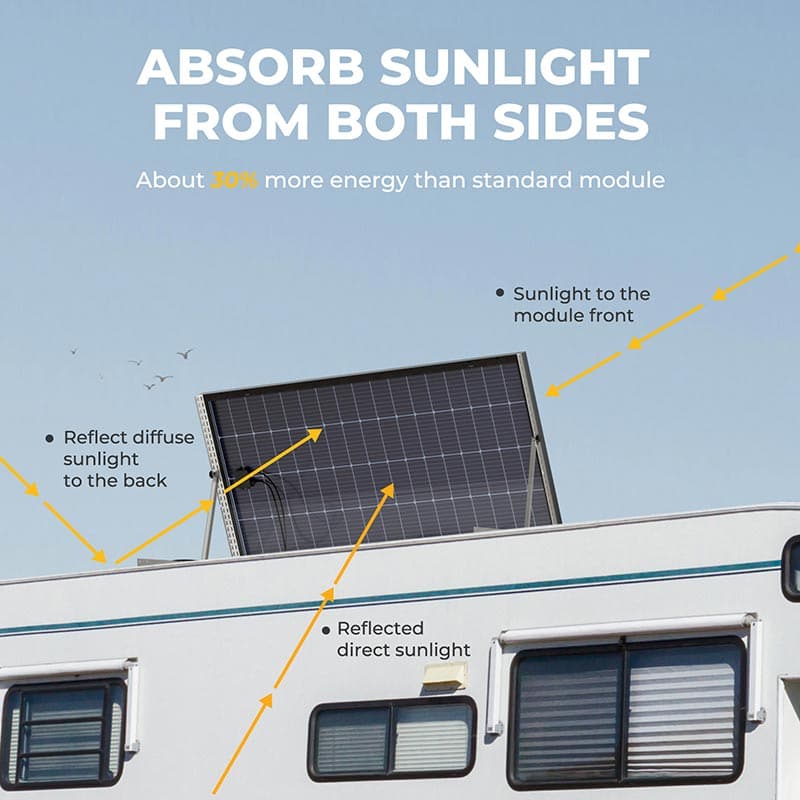

BougeRV bifacial solar panels offer an astounding 30% increase in output compared to standard models, thanks to their unique transparent backside. This enables the panel to absorb solar energy from both sides, utilizing direct sunlight, refracted sunlight, and diffuse sunlight.
These solar panels don't need constant adjustment for sun direction as they can absorb sunlight no matter how the sun moves. For optimum installation, we recommend using a tilt mount bracket.
Whether installed near a swimming pool, a sandy area, or a glass roof place, these solar panels perform better due to increased sunlight reflection. The sturdy aluminum material withstands varying outdoor environments, enhancing durability.
The corrosion-resistant aluminum frame of the 200-watt BougeRV bifacial panel blends well with black roofs, offering a sleek and unobtrusive look.
The high-level 9BB cell design ensures a 23% highest conversion rate, enabling more power generation and long-lasting service. By wiring several solar panels together, you can charge a 12V battery or even a 24/48V battery.
Despite being about 8% smaller than other 200W solar panels, the BougeRV 200W Bifacial 9BB Mono Solar Panel delivers equal, if not more power. Its larger surface by 48% allows for 100% more power, making it perfect for limited spaces like roofs of RVs/VANs/Trailers.
|SKU||ISE206||Model||200W SOLAR PANEL|
|Maximum Power (W)||200±3% W||Product Dimension (IN)||58.46x27.76x1.38 inches|
|Open Circuit Voltage Voc (V)||22.5±3% V||Net Weight (kg / lbs)||11kg / 24lb|
|Max Power Voltage Vmp (V)||19.1±3% V||Application Class||Class A|
|Max Power Current Imp (A)||10.99±3% A||Max Static Load (front)||2400 Pa|
|Short Circuit Current Isc (A)||12.21±3% A||Max Static Load (back)||2400pa|
|Solar Cells Efficiency||23%||Series Fuse Rating||15A|
|Product Certification /Standard||CE,ETL||Product Type||Solar Panel|
|Product Warranty||10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.)||Performance Warranty||25 years|
|Maximum Power (W)||200±3% W|
|Product Dimension (IN)||58.46x27.76x1.38 inches|
|Open Circuit Voltage Voc (V)||22.5±3% V|
|Net Weight (kg / lbs)||11kg / 24lb|
|Max Power Voltage Vmp (V)||19.1±3% V|
|Application Class||Class A|
|Max Power Current Imp (A)||10.99±3% A|
|Max Static Load (front)||2400 Pa|
|Short Circuit Current Isc (A)||12.21±3% A|
|Max Static Load (back)||2400pa|
|Solar Cells Efficiency||23%|
|Series Fuse Rating||15A|
|Product Certification /Standard||CE,ETL|
|Product Warranty||10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.)|
|Performance Warranty||25 years|
A1: If you order two panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.
A2: Unfortunately, the 200 watt solar panel does not come with a Y-branch parallel connector. However, you can search for "Solar Y Branch Connector 1 to 3" on our website if you need one.
A3: Yes, the IP67 connector is waterproof.
