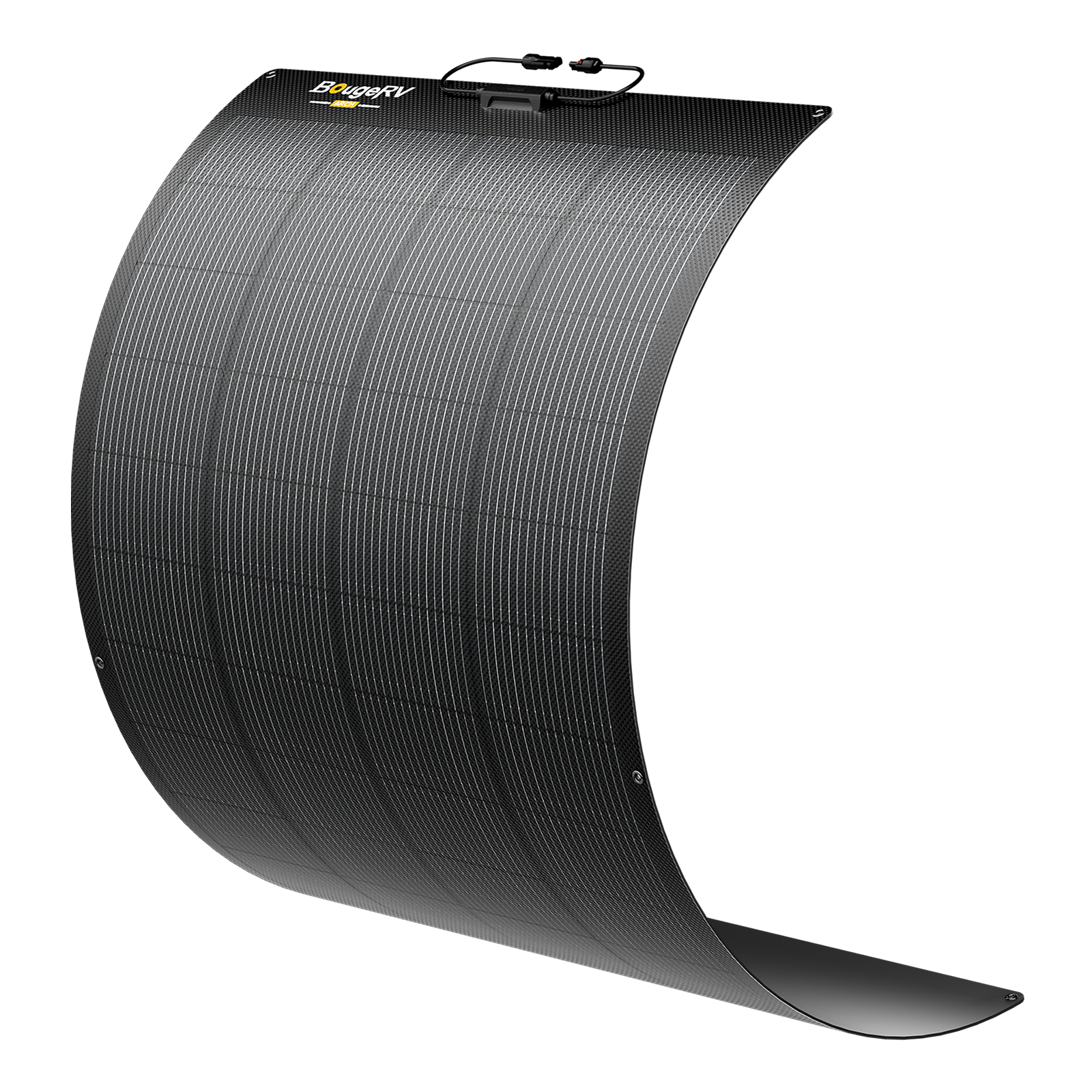

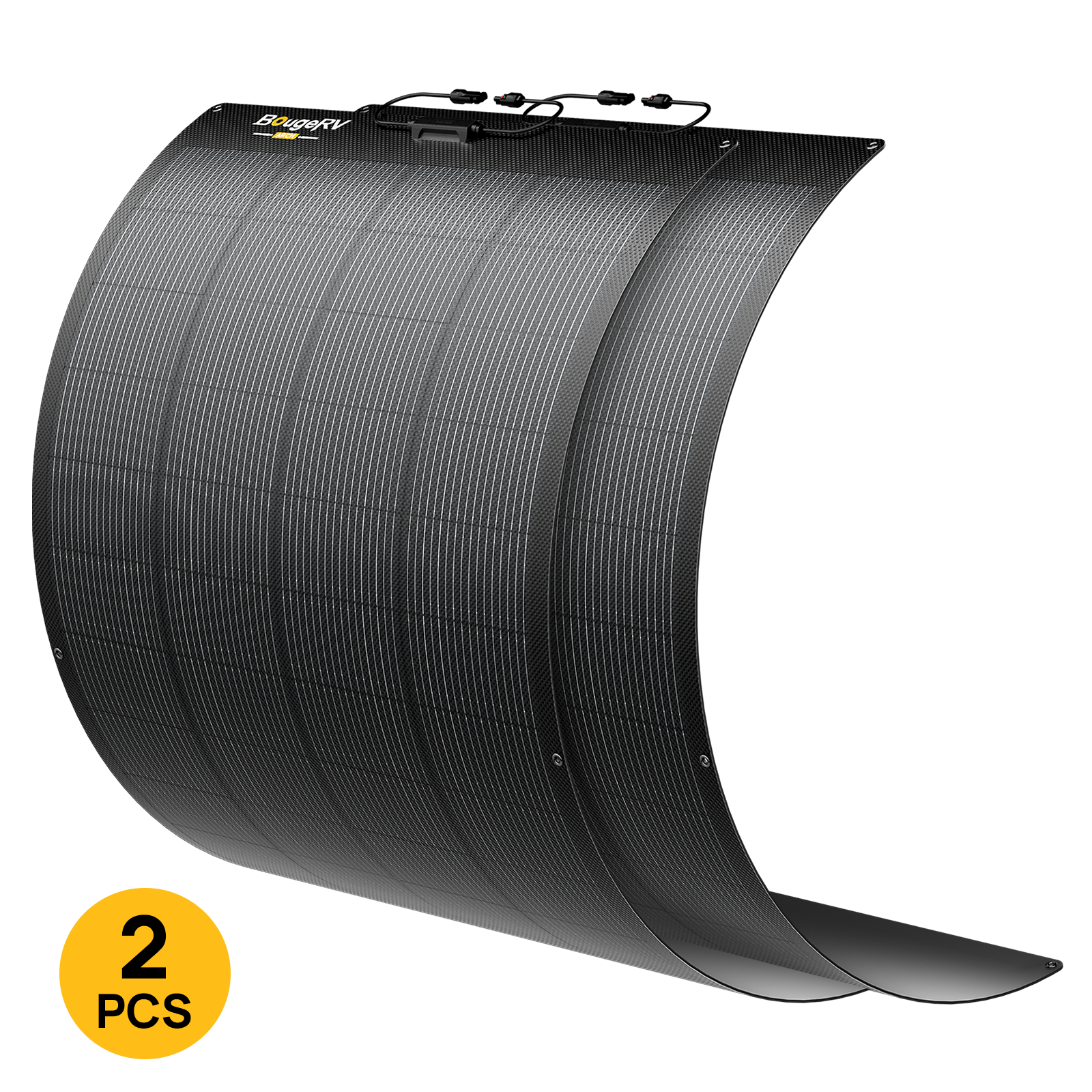

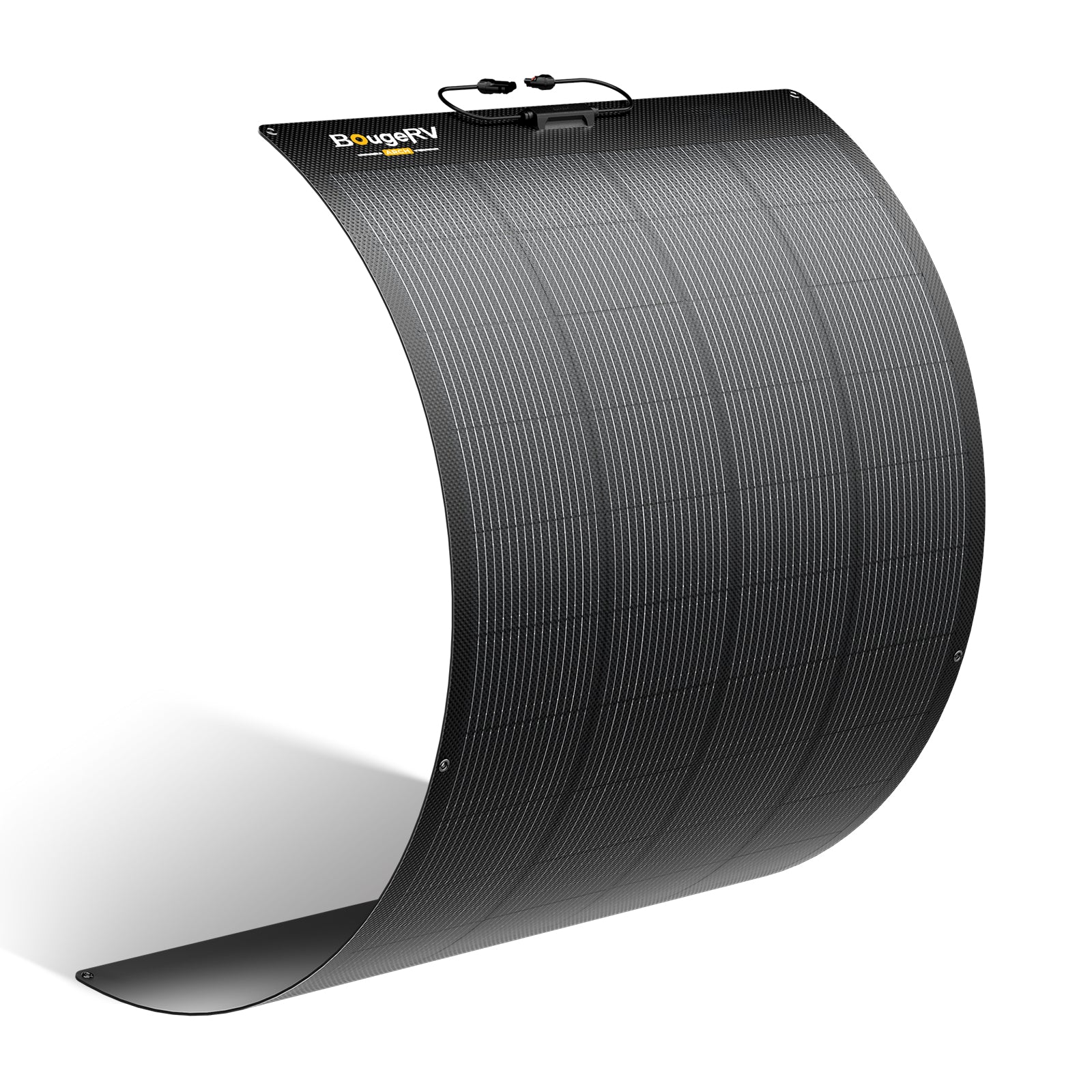

BougeRV Arch Plus 200W N-Type Fiberglass Flexible Solar Panel – the smart upgrade over the standard Arch. Featuring N-Type TOPCon cells (25% efficiency) and 16BB busbars, it delivers higher energy output and long-term reliability. Compact, lightweight, and bendable up to 270°, it installs easily on RVs, boats, or curved surfaces.

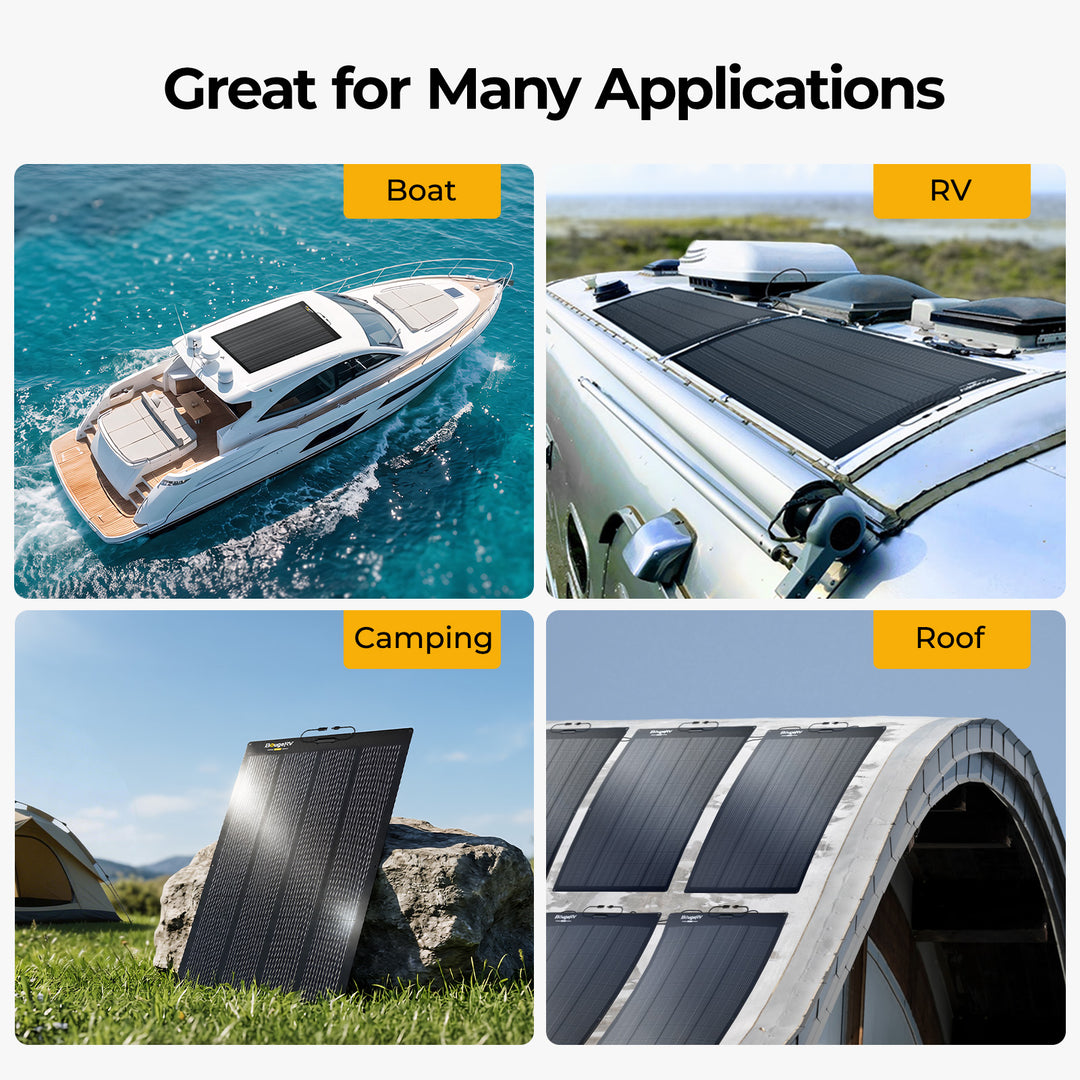

MULTIPURPOSE USE

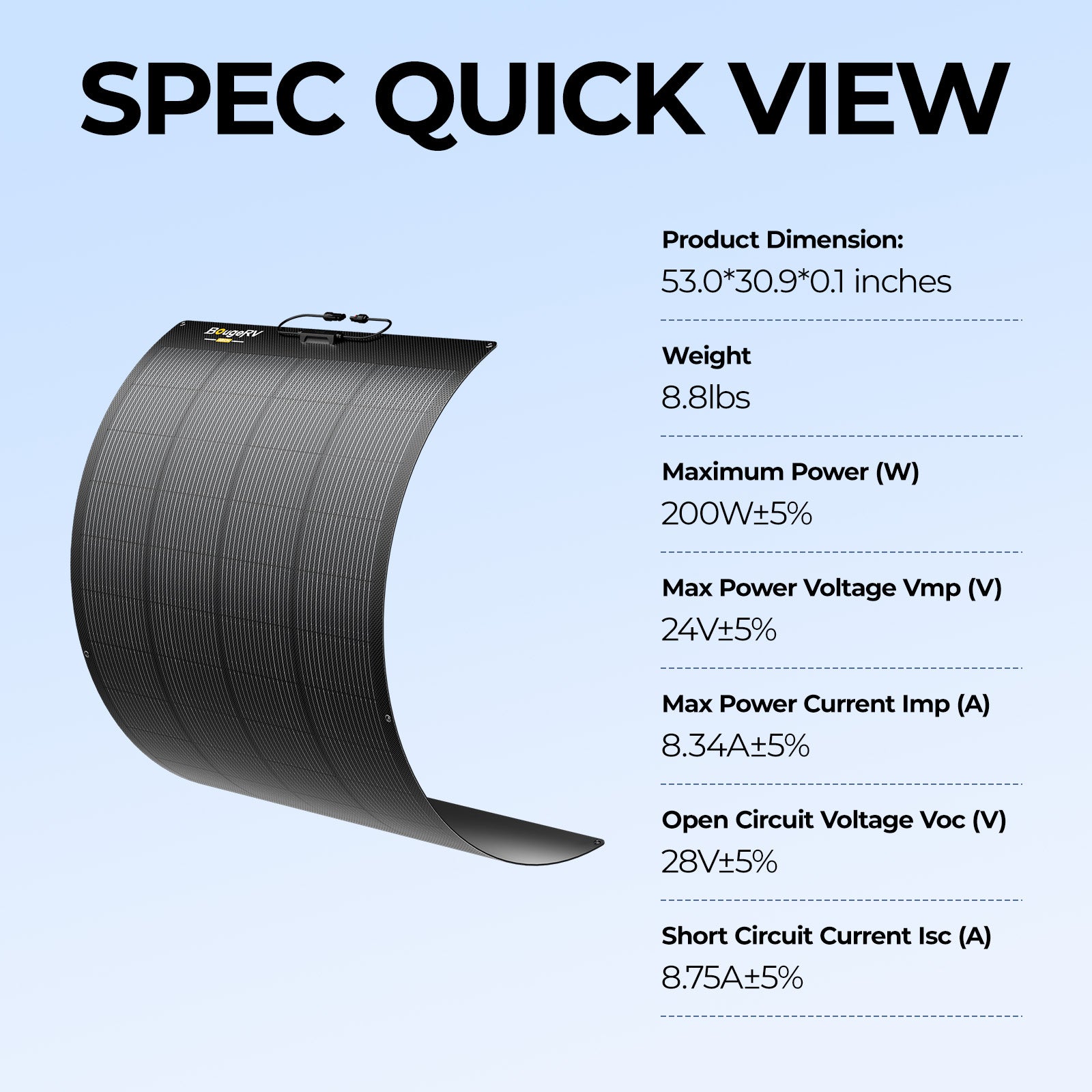

Product Specifications
| SKU | ISE230N | Version | Upgrade |
|---|---|---|---|
| Max Power (Pmax) | 200±5%W | Operating Temperature Limits |
-40℉ ~ +185℉ |
| Solar Cells Efficiency | 25% | Series Fuse Rating | 15A |
| Max. Power Voltage Vmp (V) | 24±5% V | Temperature Coefficient Pmax | -0.35%/K |
| Max. Power Current Imp (A) | 8.34±5% A | Temperature Coefficient Voc | -0.3%/K |
| Open Circuit Voltage Voc (V) | 28±5% V | Temperature Coefficient Isc | +0.048%/K |
| Short Circuit Current (Isc) | 8.75±5% A | Dimensions | 53.0*30.9*0.1 inches |
| Power output warranty | 25 years 80% output warranty | Weight | 8.8 lbs |
| Material & workmanship warranty | 5 Years | Product Type | Curved Solar Panels |
| SKU | ISE230N |
|---|---|
| Max Power (Pmax) | 200±5%W |
| Solar Cells Efficiency | 25% |
| Max. Power Voltage Vmp (V) | 24V±5% |
| Max. Power Current Imp (A) | 8.34A±5% |
| Open Circuit Voltage Voc (V) | 28V±5% |
| Short Circuit Current (Isc) | 8.75A±5% |
| Max. System Voltage | 1000V DC |
| Material & workmanship warranty | 5 Years |
| Operating Temperature Limits | -40℉ ~ +185℉ |
| Power output warranty | 25 year 80% output warranty |
| Temperature Coefficient Pmax | -0.35%/K |
| Temperature Coefficient Voc | -0.3%/K |
| Temperature Coefficient Isc | -0.048%/K |

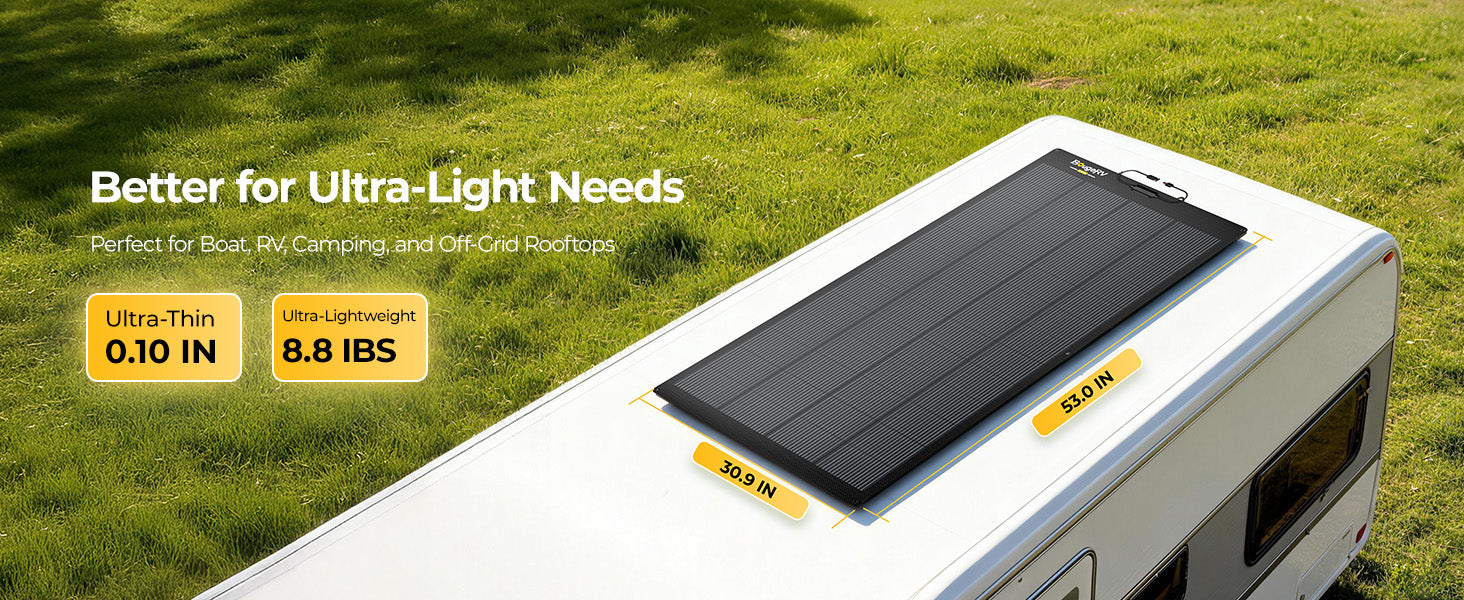

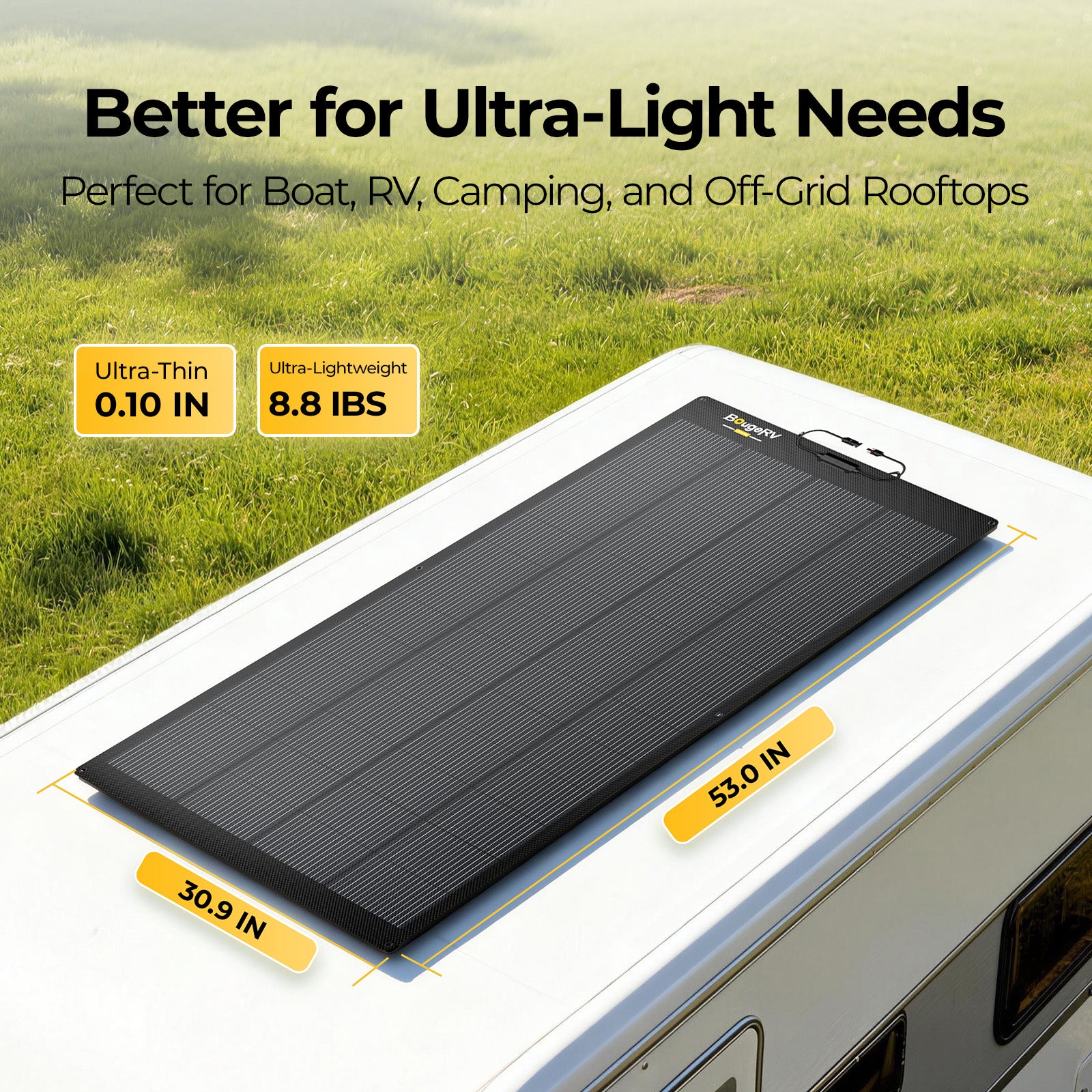

| Dimensions | 53.0*30.9*0.1 inches |
| Weight | 8.8lbs |
User Manual
Reviews
FAQs

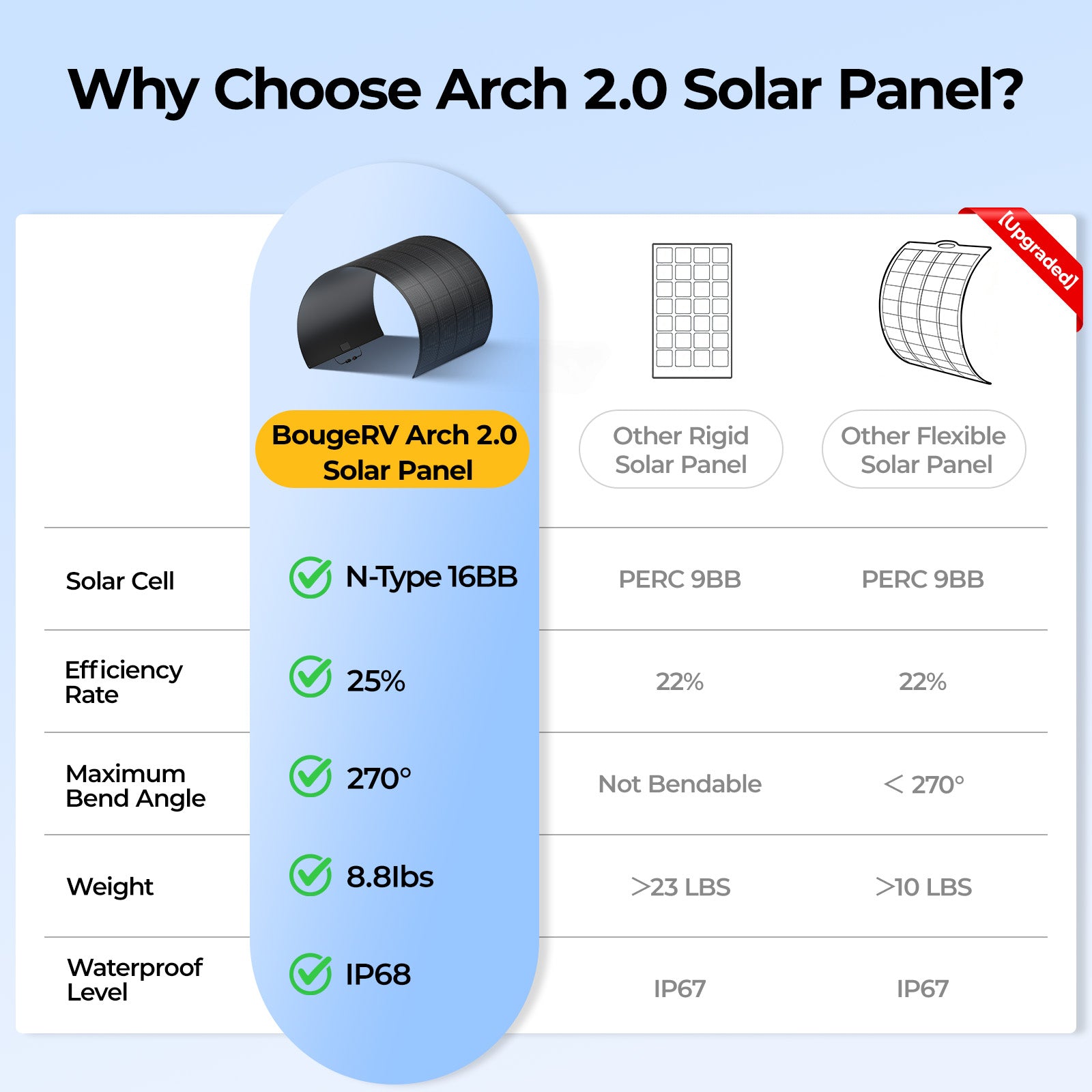

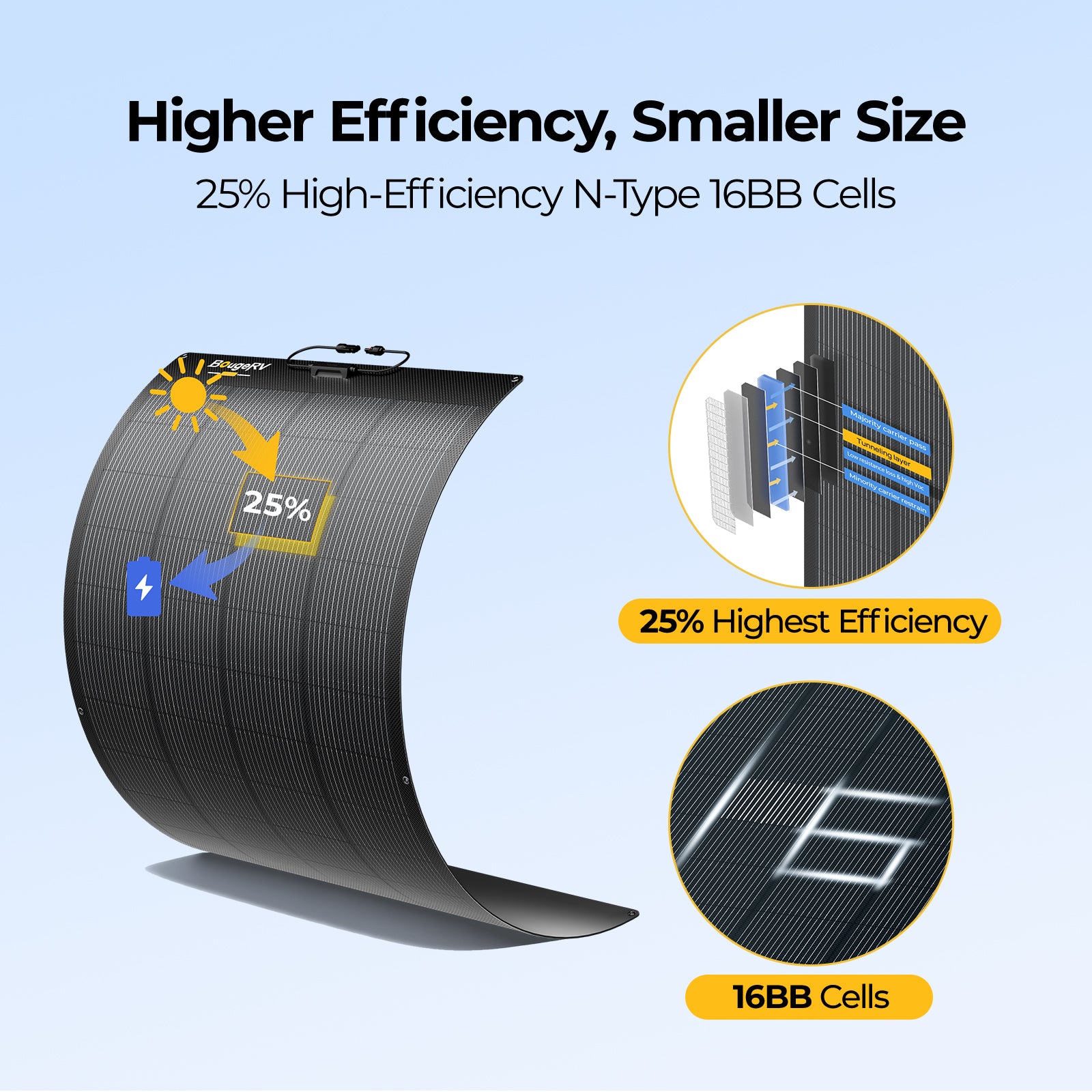

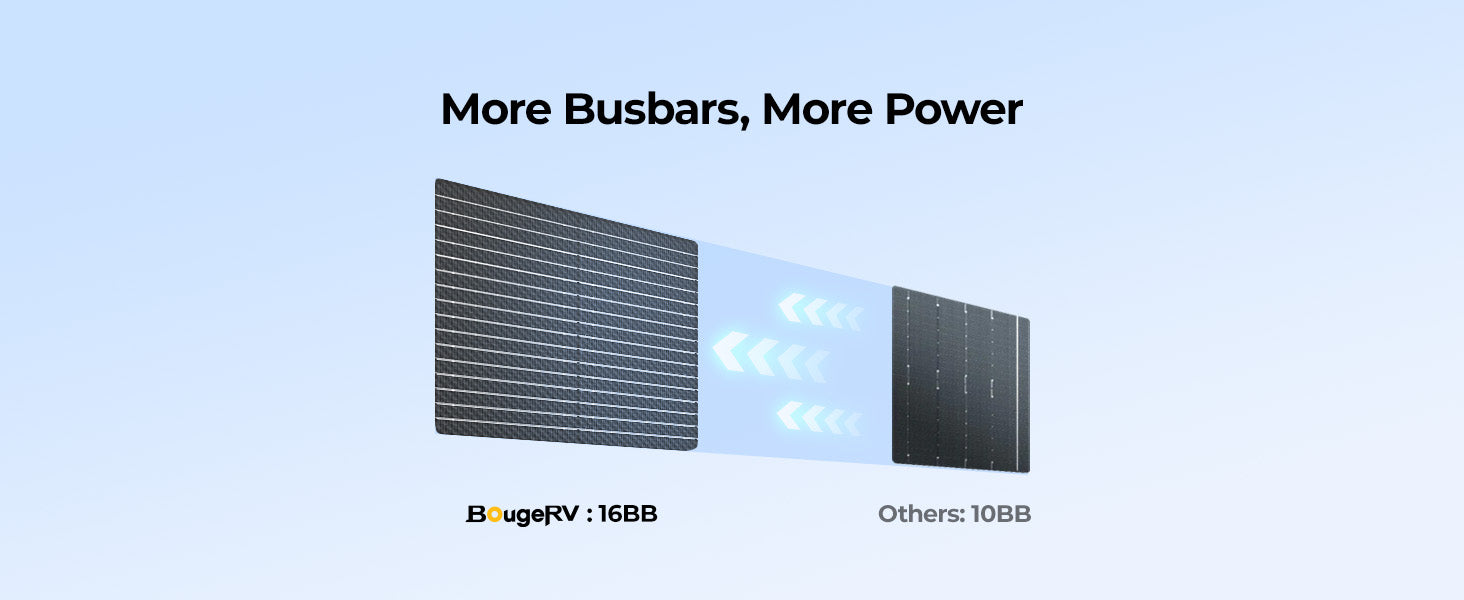

Arch Plus features N-Type TOPCon cells with 25% efficiency and 16BB busbars, delivering higher energy output and durability than standard Arch panels.

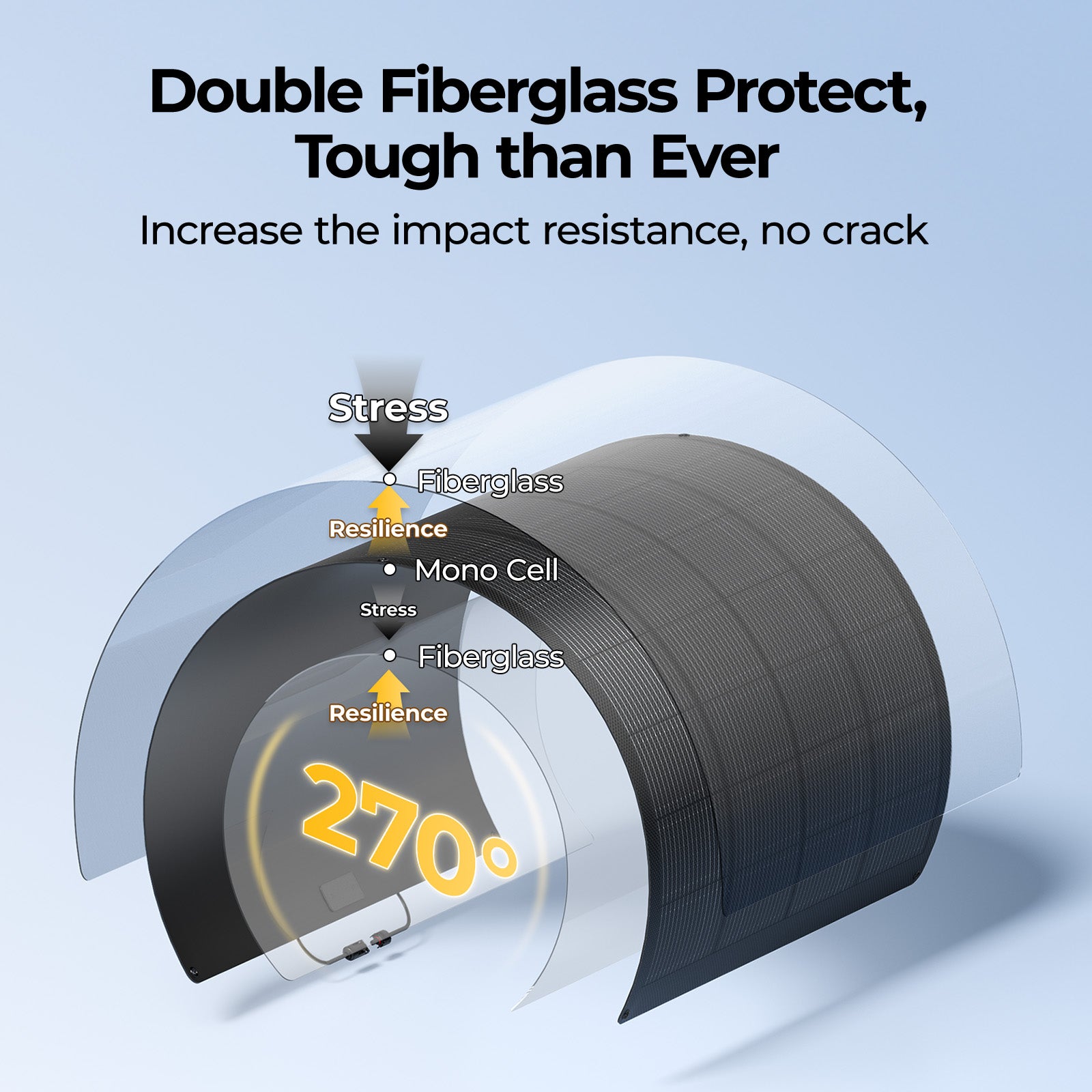

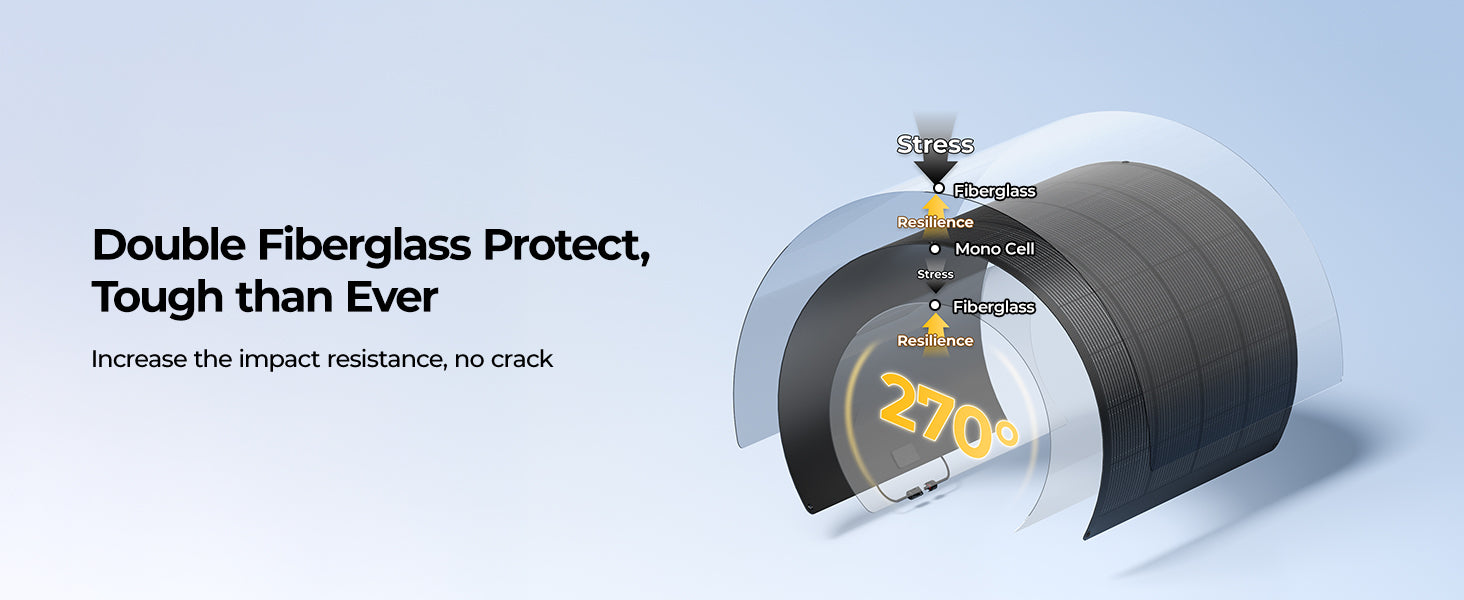

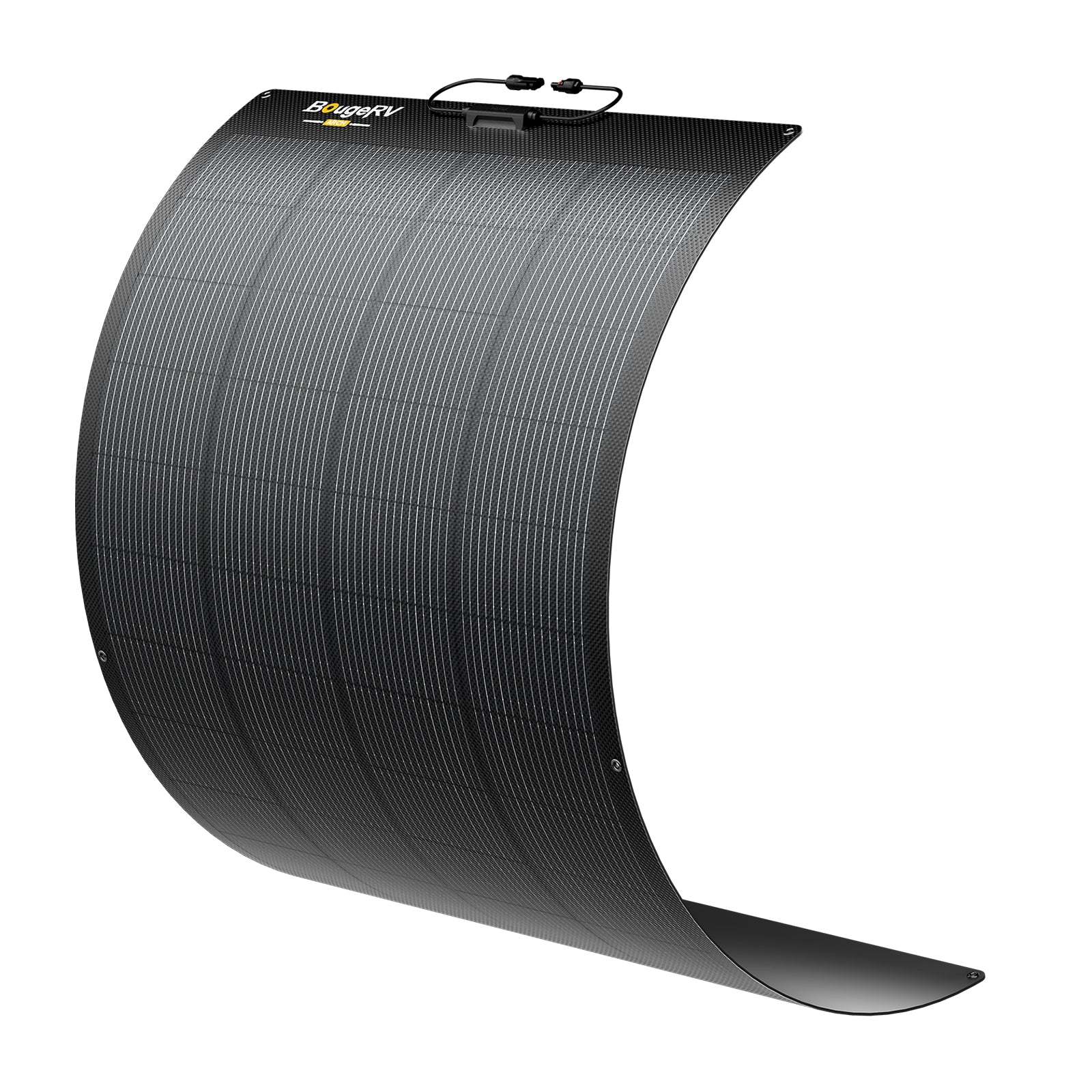

Yes, it is flexible up to 270°, making it perfect for curved surfaces like RV roofs, boats, or vans.

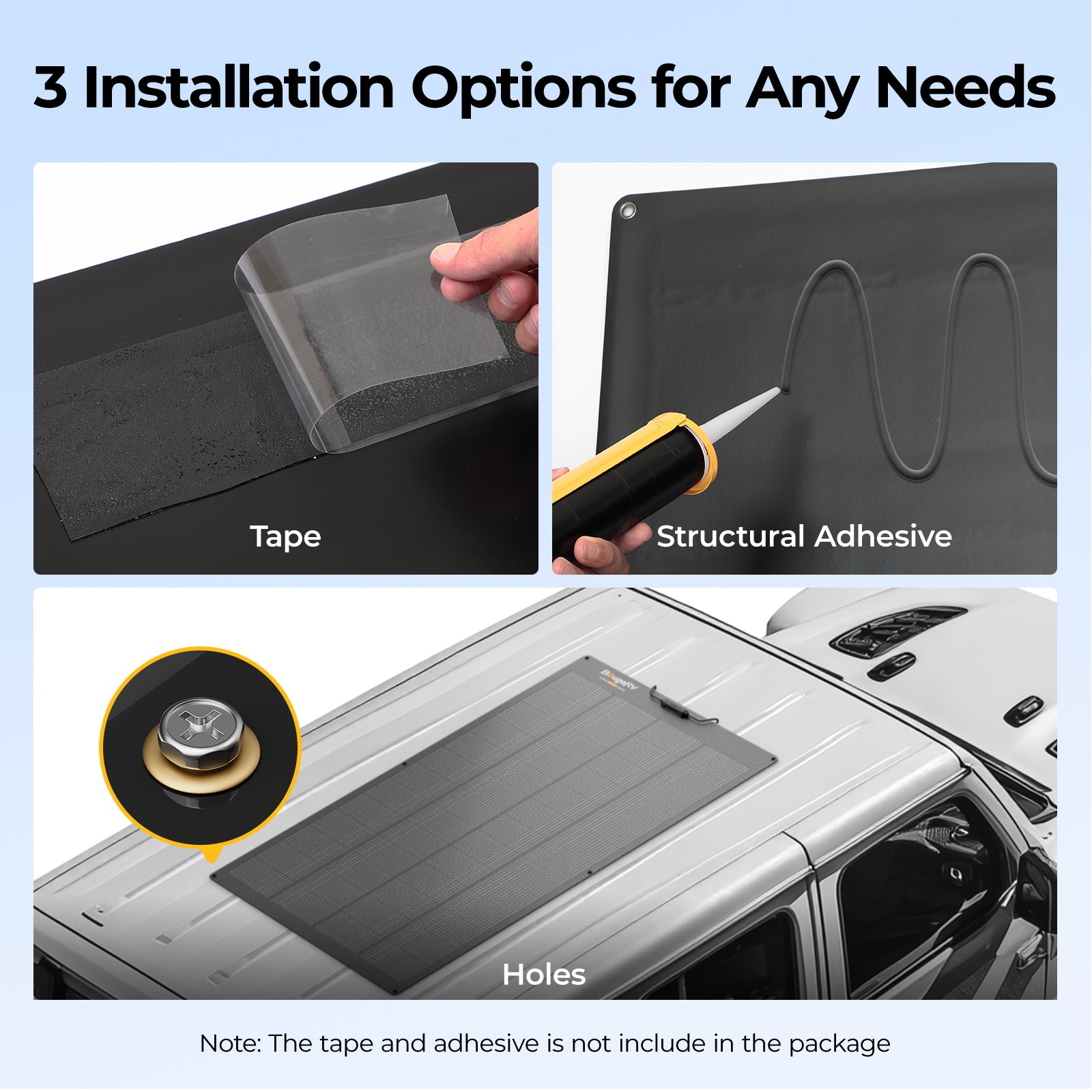

The panel is lightweight and compact, with a simple mounting system designed for fast, hassle-free installation.

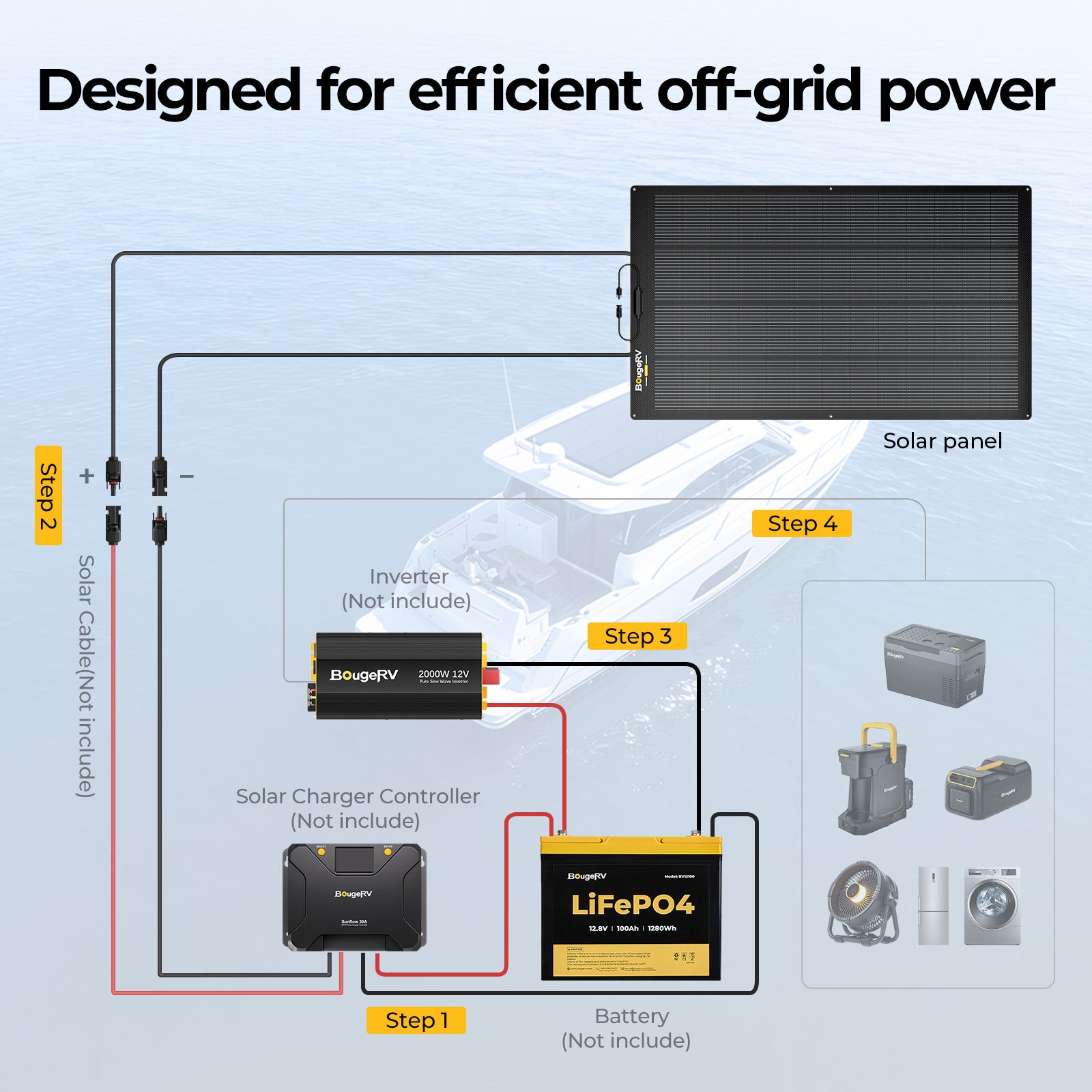

Yes! With an open-circuit voltage (Voc) of 28V±5%, Arch Plus is compatible with most 24V off-grid systems, especially when paired with an MPPT charge controller for optimal charging efficiency.
No, it is not recommended. Arch ordinary panels (Voc 20.1V±5%) and Arch Plus panels (Voc 28V±5%) have significantly different voltages. Connecting them in series or parallel will reduce charging efficiency and can prevent proper system performance. For best results, use panels of the same model.
