BougeRV 12V 600 Watt Solar Panel Kit

BougeRV MPPT solar charge controller with low-temperature charging protection below 32°F

BougeRV MPPT solar charge controller compatible with 12V and 24V LiFePO4 battery systems

BougeRV MPPT solar charge controller with 99.5% tracking efficiency and 99% conversion efficiency

BougeRV MPPT solar charge controller with 33 ft remote control range and offline operation without internet

BougeRV MPPT solar charge controller with adjustable charging current for different battery sizes

BougeRV MPPT solar charge controller with eight intelligent safety protections for stable off-grid operation

BougeRV 12V 100Ah LiFePO4 battery compared with lead acid battery for RV and off-grid power

BougeRV 12V 100Ah Group 24 LiFePO4 battery with compact size and lightweight design

BougeRV 12V 100Ah LiFePO4 battery with six BMS protection functions

BougeRV 12V 100Ah LiFePO4 battery with low temperature charging protection below 32°F

BougeRV 2000W 12V inverter with 2000W continuous output and 4000W peak power

BougeRV 2000W 12V pure sine wave inverter providing clean low THD power for sensitive electronics

BougeRV 2000W 12V inverter with multiple protection features for safe and reliable off-grid power

BougeRV 2000W 12V pure sine wave inverter with automatic fan cooling for stable operation

BougeRV 2000W 12V inverter with Bluetooth app and 19.7-foot remote control panel

FEATURES PRODUCT

(24)

🏷️Early Prime Deal

Save $1,550.00

$1,659.99

30-Day Price Guarantee

$3,209.99

BougeRV 600W N-Type Bifacial Solar Kit: Maximize Off-Grid Power for RVs & Cabins

Powered by advanced N-Type technology, this high-efficiency system captures sunlight from both sides, ensuring you never run out of juice—even in challenging environments like snow, sand, or rooftops. Whether you’re living the van life, powering a remote cabin, or preparing for an emergency, this all-in-one kit delivers more energy in a smaller footprint.

25% More Energy Yield: Dual-side power generation means you get extra energy from reflected light. Perfect for those cloudy days or low-sun angles.
Space-Saving Efficiency: Two 300W high-output panels provide a full 600W system, requiring less roof space and fewer mounting brackets than traditional low-wattage setups.
Superior N-Type Technology: Experience better performance in high temperatures and slower power degradation over time compared to standard P-type panels.
Plug-and-Play Integration: Includes a high-performance MPPT Charge Controller, LiFePO4 battery compatibility, and a Pure Sine Wave Inverter for a seamless, "no-headache" installation.

From powering heavy-duty tools at a remote worksite to keeping your fridge running during a week-long boondocking trip, BougeRV provides the reliability you need to stay off the grid longer.

All-in-One Solar Battery System Powering RV Fridge, AC, Fan & Lights

Solar

Controller

Battery

Inverter

AC Output

Fridge

Cooling

Air Conditioner

Cooling

Fan

Ventilation

Coffee

Brew

Light

Lighting

Water Heater

Shower

How Much Can a Solar Kit Power?

Choosing the right solar kit depends on your energy needs, appliance usage, and daily sunlight conditions. From lightweight setups to full off-grid systems, understanding wattage and runtime helps you build a more efficient and reliable solar solution.

Step-by-Step Solar System Setup

Follow a clear step-by-step connection process—from solar panels to controller, battery, and inverter—to safely generate and use power. Designed for easy integration and smooth installation.

Step-by-step diagram showing how to connect a BougeRV 12V solar panel, charge controller, battery, inverter, and appliances

PRODUCT Features

BougeRV 300 Watt N-Type Rigid Bifacial 16BB Mono Solar Panel

BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

BougeRV 2000W 12V Pure Sine Wave Inverter

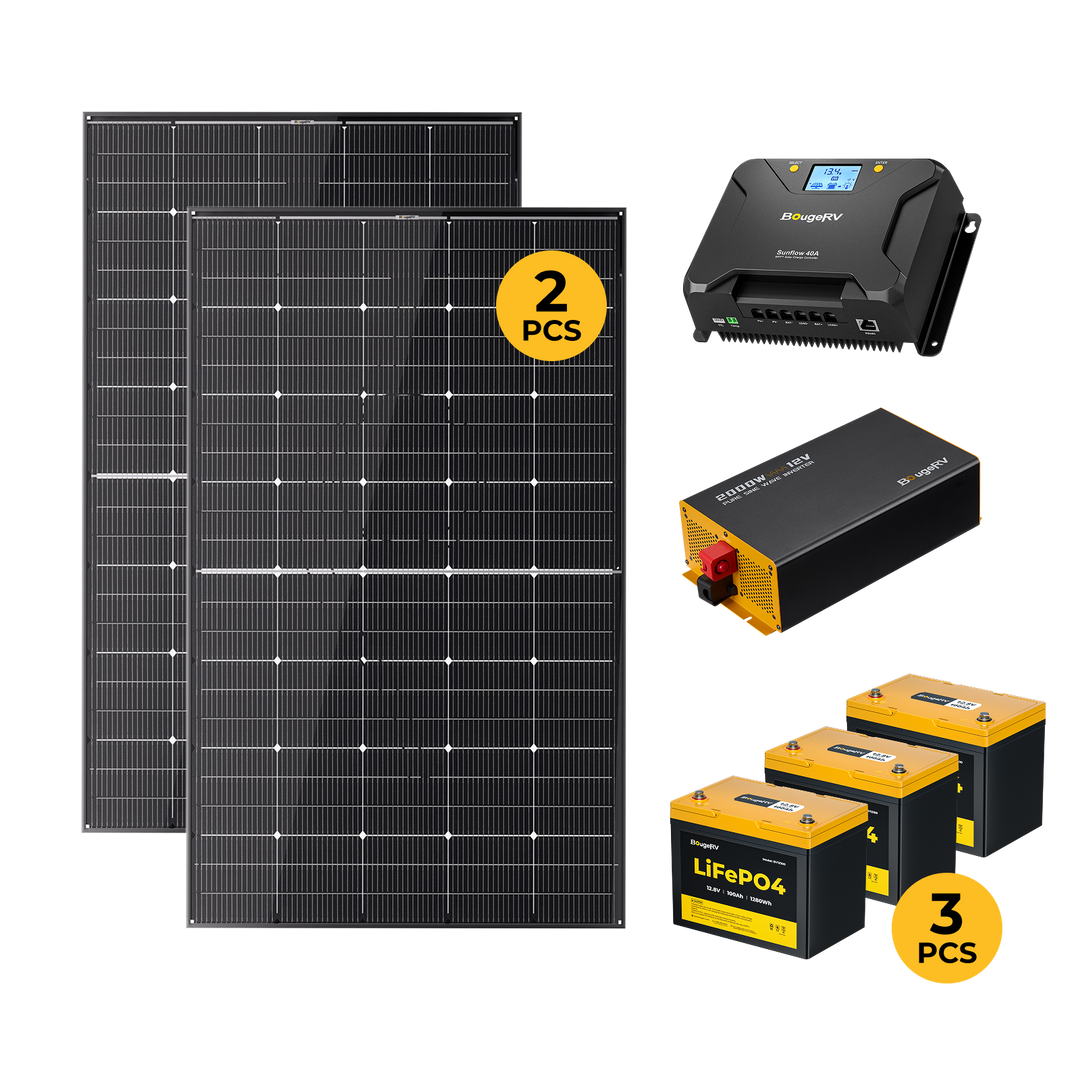

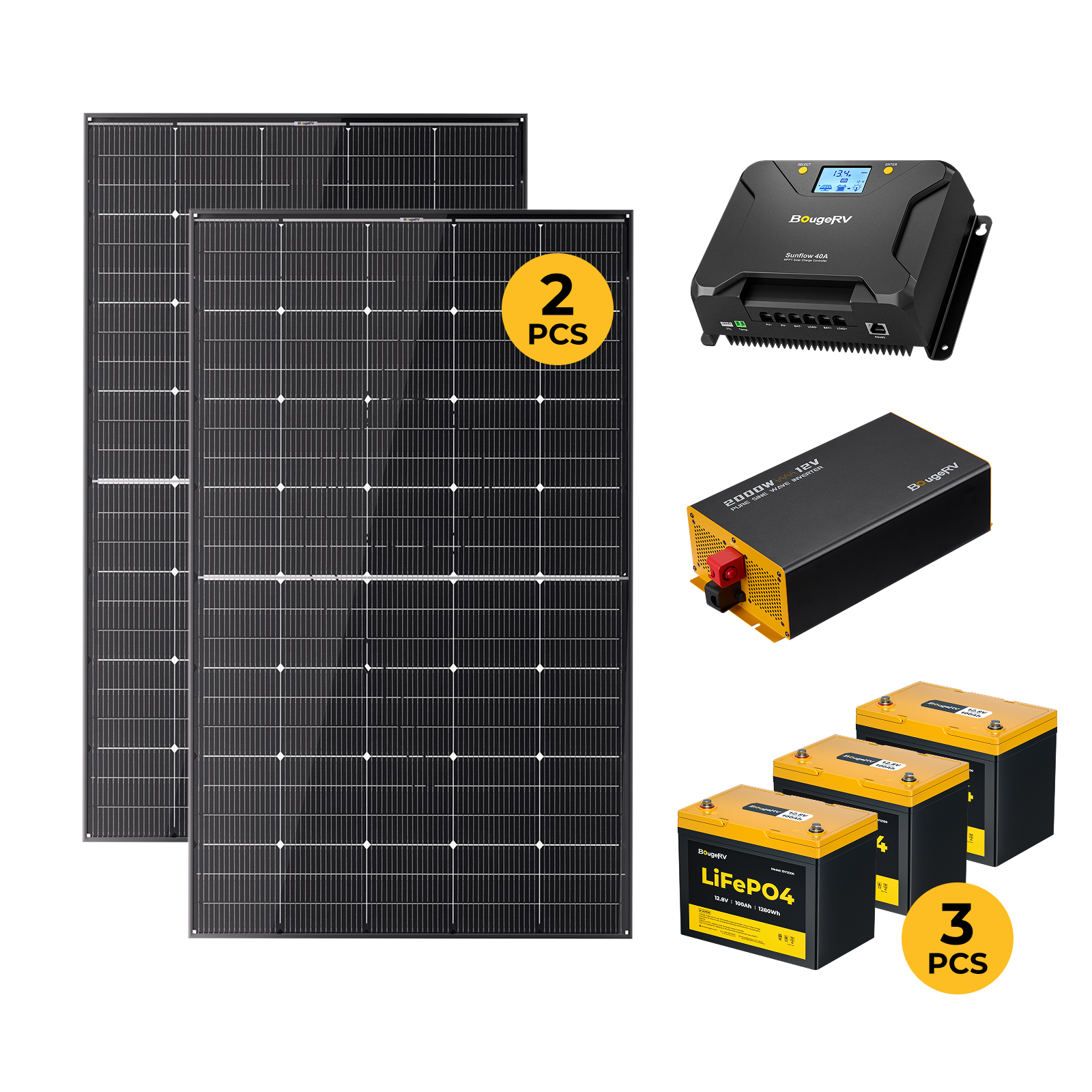

What's in the Box

300 Watt N-Type Rigid Bifacial Solar Panel*2

👉User Manual

40A MPPT Solar Controller

👉User Manual

12V 100Ah LiFePO4 Battery*3

👉User Manual

12V 2000W Inverter

👉User Manual

Product Specifications

SKU	ISE239N
Maximum Power (W)	300±5% W
Open Circuit Voltage Voc (V)	44.2±5% V
Max Power Voltage Vmp (V)	37.6±5% V
Max Power Current Imp (A)	8.13±5% A
Short Circuit Current Isc (A)	8.9±5% A
Solar Cells Efficiency	25%
Warranty Description	10 years Material & workmanship warranty 30 years Linear power output warranty
Product Dimension (IN)	61.3x37.4x1.4 in
Net Weight (kg / lb)	32.8 lb
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Max Series Fuse Rating	20A
Product Type	Solar Panel

SKU	ISE239N
Maximum Power (W)	300±5% W
Open Circuit Voltage Voc (V)	44.2±5% V
Max Power Voltage Vmp (V)	37.6±5% V
Max Power Current Imp (A)	8.13±5% A
Short Circuit Current Isc (A)	8.9±5% A
Solar Cells Efficiency	25%
Warranty Description	10 years Material & workmanship warranty 30 years Linear power output warranty
Product Dimension (IN)	61.3x37.4x1.4 in
Net Weight (kg / lb)	32.8 lb
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Max Series Fuse Rating	20A
Product Type	Solar Panel

SKU	ISE218
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	40 Amp	Grounding Type	Common Negative
Maximum PV Input Voltage	100V (95V protection, 90V recovery)	Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System	600W/12V; 1200W/24V	Protection Grade	IP34
Rated Load Current	20 Amp	Bluetooth Communication	built-in bluetooth
Charge Current Ajust Range	0 Amp to 40 Amp	Data Storage	Save the last 200 days of historical data
Battery Operate Voltage Range	8V to 32V	Dimension	8.94L6.26W2.95 inches
No Load Loss	≤10mA	Weight	3.95 lbs
Product Warranty	18-month	Product Type	Solar Charge Controller

SKU	ISE218
System Voltage	12V/24V
Rated Charging Current	40 Amp
Maximum PV Input Voltage	100V (95V protection, 90V recovery)
Maximum Input of PV System	600W/12V; 1200W/24V
Rated Load Current	20 Amp
Charge Current Ajust Range	0 Amp to 40 Amp
Battery Operate Voltage Range	8V to 32V
No Load Loss	≤10mA
Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type	Common Negative
Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Protection Grade	IP34
Bluetooth Communication	built-in bluetooth
Data Storage	Save the last 200 days of historical data
Dimension	8.94L6.26W2.95 inches
Weight	3.95 lbs
Product Warranty	18-month

Battery Specification Table

SKU	ISE212N
Nominal Voltage	12.8V	Nominal Capacity	100Ah
Charge Voltage	14.4~14.6V	Energy	1280Wh
Standard charge	20A (0.2C, recommend charge current)	Over-Charging Protection Voltage	14.6V
Maximum charge	100A（1.0C）	Over-Charging Recovery Voltage	14.0V
Maximum Continuous Charge Current	100A (25°C, 77°F)	Over-Discharging Protection Voltage	8.8V
Maximum Continuous Discharge Current	100A (1C)	Over-Discharging Protection Recovery Voltage	10.4V
Maximum Discharge Current	330A (2.5s)	Charge Temperature Range	0°C~65°C (32°F~149°F)
Cycle Life	4000 times (25°C, 0.2C, 100%DOD）	Discharge Temperature Range	-20°C~75°C (-4°F~167°F)
Short Term	-20°C~45°C (-4°F~113°F)	Maximum Series Voltage Of Battery Pack	48V(4S)
Long Term	10°C~35°C (50°F~95°F) —	Maximum Parallel Current Of Battery Pack	400Ah(4P)
Charge Method	CC/CV	Item Demension	L10.24W6.61H8.23
Protection Rating	IP65	Item Weight	24.25 lbs
Low Temperature Charging Protection	0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging.	Product Warranty	5 Years

SKU	ISE212N
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Charge Voltage	14.4~14.6V
Energy	1280Wh
Standard charge	20A (0.2C, recommend charge current)
Maximum charge	100A（1C）
Maximum Continuous Charge Current	100A (25°C, 77°F)
Maximum Continuous Discharge Current	100A (1C)
Maximum Discharge Current	330A (2.5s)
Over-Charging Protection Voltage	14.6V
Over-Charging Recovery Voltage	14.0V
Over-Discharging Protection Voltage	8.8V
Over-Discharging Protection Recovery Voltage	10.4V
Charge Temperature Range	0°C~65°C (32°F~149°F)
Discharge Temperature Range	-20°C~75°C (-4°F~167°F)
Cycle Life	4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection	0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging.
Short Term	-20°C~45°C (-4°F~113°F)
Long Term	10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack	48V(4S)
Maximum Parallel Current Of Battery Pack	400Ah(4P)
Charge Method	CC/CV
Item Demension	L10.24W6.61H8.23
Item Weight	24.25 lbs
Protection Rating	IP65
Product Warranty	5 Years

SKU	SI001-BK-LYTYB1
Model	12V 2000W	Operating ambient temperature range	14°F~104°F（-10°C~40°C）
Product size	14.967.43.94 in	Weight	8.4 lbs
Noise	≤60dB

Rated Output Power	2000W	Overload power	2300W
Peak power	4000W (1s)
Output voltage	120VAC (default)
Output frequency	50/60 Hz (default)
Rated input voltage	12VDC
The input voltage ranges	10V-15.5VDC
Output waveform	Pure sine wave	Output harmonic component (THD)	<5%

Maximum output efficiency	＞90%
Full Load Efficiency	＞85%	No-load Loss	＜0.9A

Protection function	1 Input over-voltage 2 Over-discharge protection 3 Output overload 4 Short-circuit protection 5 Inverter overtemperature protection 6 Ground fault circuit protection
Battery low voltage alarm	10.5VDC (±0.3V)	Over-discharge voltage	10VDC (±0.3V)
Overvoltage	15.5VDC (±0.3V)	Over temperature protect	≥167°F（75°C）
Over-temperature protection recovery	≤131°F（55°C）	Fan start-up temp	≥113℉ (45℃) / ≥40% load

Communication Port	RS485 (Remote Control) Bluetooth (APP)
USB port	18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)

Basic & Physical

SKU	SI001-BK-LYTYB1
Model	12V 2000W
Operating ambient temperature range	14°F~104°F（-10°C~40°C）
Product size	14.967.43.94 in
Weight	8.4 lbs
Noise	≤60dB

Electrical Specifications

Rated Output Power	2000W
Overload power	2300W
Peak power	4000W (1s)
Output voltage	120VAC (default)
Output frequency	50/60 Hz (default)
Rated input voltage	12VDC
The input voltage ranges	10V-15.5VDC
Output waveform	Pure sine wave
Output harmonic component (THD)	<5%

Efficiency & No-load Loss

Maximum output efficiency	＞90%
Full Load Efficiency	＞85%
No-load Loss	＜0.9A

Protection Features

Protection function	1 Input over-voltage 2 Over-discharge protection 3 Output overload 4 Short-circuit protection 5 Inverter overtemperature protection 6 Ground fault circuit protection
Battery low voltage alarm	10.5VDC (±0.3V)
Over-discharge voltage	10VDC (±0.3V)
Overvoltage	15.5VDC (±0.3V)
Over temperature protect	≥167°F（75°C）
Over-temperature protection recovery	≤131°F（55°C）
Fan start-up temp	≥113℉ (45℃) / ≥40% load

Interface & Communication

Communication Port	RS485 (Remote Control) Bluetooth (APP)
USB port	18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
