PRODUCT

BougeRV 400W 12V/24V 10BB Mono Solar Panel

400 watt 10bb monocrystalline

$579.99 Regular price
/

BougeRV 400W 10BB solar panel is an exceptional choice for those looking for a high-performance solar panel. The 10BB cell design utilizes ten busbars to collect and transmit the electrical current generated by the solar cells, resulting in a significant boost in overall performance. This is an efficient 400 watt solar panel that is user-friendly, easy to install and provides maximum output. The monocrystalline panels, 10BB cell design, and all-black design make 400W 10BB solar panel an exceptional choice for you.
Read more » Fold up »


Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews
  • FAQ

Features

10BB 400W solar panel-1
10BB 400W solar panel

HIGHLIGHTS

400w 10BB solar panel with 10bb solar cell
400w 10BB solar panel with 10bb solar cell

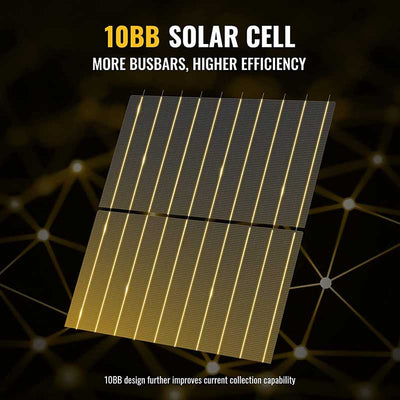

10BB Cell Design

BougeRV 400W solar panel uses the high-level 10BB cell design which has a 23% highest conversion rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V/24 battery or charge a 48V battery by wiring several solar panels in series.

400w 10BB solar panel with outstanding all-black design
400w 10BB solar panel with outstanding all-black design
All Black Design

BougeRV 400 watts solar panel features a black corrosion-resistant aluminum frame. All-black style solar panel is more suitable for your black roof, and it is integrated without being obtrusive.

300 watt solar panels with A+ class solar cell
300 watt solar panels with A+ class solar cell
Made of Class A Solar Cell.

No visible defects and any microcracks, BougeRV 400 watts solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

300W 10BB MONO solar panel with save11% roof space and less connection
300W 10BB MONO solar panel with save11% roof space and less connection
Compact size, more power.

Compared to two 200 watts solar panels, BougeRV 400 watts solar panels could save 10% space and reduce the loss of connection. Allows you to install more solar panels on the roof of the RV to expand a larger system to meet your daily needs.

400w 10BB solar panel with easy installation
400w 10BB solar panel with easy installation
User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

10BB 300 watt solar panel with durable and reliable package
10BB 300 watt solar panel with durable and reliable package
Durable and Reliable Package

Our new package offers ultimate protection with an extra protective strip on all sides, L-brackets on all corners, and an extra thick foam pad on the back. Trust that your shipment will arrive safely with our new package.

400w 10BB solar panel with one-stop solar solutions 400w 10BB solar panel with one-stop solar solutions
400w 10BB solar panel with all size of the rigid solar panels 400w 10BB solar panel with all size of the rigid solar panels
400w 10BB solar panel 400w 10BB solar panel
Bifacial 100W 12V 9BB Mono Solar Panel with Recommedation
Bifacial 100W 12V 9BB Mono Solar Panel with Recommedation

Product Specifications

SKU ISE187 Model 400W SOLAR PANEL
Maximum Power (W) 400±5% W Product Dimension (IN) 67.9 x 44.7 x 1.4 inches
Open Circuit Voltage Voc (V) 37.07±5% V Net Weight (kg / lb) 27.62kg / 60.9lb
Max Power Voltage Vmp (V) 31.01±5% V Application Class Class A
Max Power Current Imp (A) 12.90±5% A Max Static Load (front) 2400 Pa
Short Circuit Current Isc (A) 13.79±5% A Max Static Load (back) 2400pa
Solar Cells Efficiency 23% Series Fuse Rating 25A
Warranty Description 10 years product warranty and 25-years power warranty Product Type Solar Panel
SKU ISE187 Model 400W SOLAR PANEL
Maximum Power (W) 400±5% W Product Dimension (IN) 67.9 x 44.7 x 1.4 inches
Open Circuit Voltage Voc (V) 37.07±5% V Net Weight (kg / lb) 27.62kg / 60.9lb
Max Power Voltage Vmp (V) 31.01±5% V Application Class Class A
Max Power Current Imp (A) 12.90±5% A Max Static Load (front) 2400 Pa
Short Circuit Current Isc (A) 13.79±5% A Max Static Load (back) 2400pa
Solar Cells Efficiency 23% Series Fuse Rating 25A
Warranty Description 10 years product warranty and 25-years power warranty Product Type Solar Panel
SKU ISE187
Maximum Power (W) 400±5% W
Open Circuit Voltage Voc (V) 37.07±5% V
Max Power Voltage Vmp (V) 31.01±5% V
Max Power Current Imp (A) 12.90±5% A
Short Circuit Current Isc (A) 13.79±5% A
Solar Cells Efficiency 23%±5%
Warranty Description

10 years product warranty and

25-years power warranty

Product Dimension (IN) 67.9 x 44.7 x 1.4 inches
Net Weight (kg / lb) 27.62kg / 60.9lb
Application Class Class A
Max Static Load (front) 2400 Pa
Max Static Load (back) 2400pa
Series Fuse Rating 25A
Product Type Solar Panel

User Manual

Reviews

FAQ

The power generation of solar panels is related to geographical location, climate, debris and shade, panel angle, and orientation. You can use the following calculation to determine how much electricity your solar panel can produce in a day:

Rated Power of Solar Panel (W) x Average Peak Sun Hours (H) = Daily Power (Wh)

Assuming you live in a place with an average peak sun hours of 5 hours, and the rated power of the solar panel is 400 watts. Calculating according to the above formula, the daily output of the solar panel is 2kWh.

Most devices and small appliances can be powered by a single 400-watt solar panel. You can use our 10bb 400 watt solar panel on laptops, smartphones, televisions, blenders, lights, fridges, etc.

First of all, you need to know the capacity of the battery, assuming that the battery capacity is 100Ah, then the energy required for a full charge is:

100Ah × 12V = 1200Wh

As for the 400-watt solar panel, then the time required for a full charge is:

1200Wh ÷ 400W = 3 hours

Therefore, it takes 3 hours to charge a 100Ah 12V battery. Taking into account factors such as light intensity and temperature, the actual charging time will increase.

You can calculate how many kWh a 400W solar panel can produce by the following formula:

W × H= Wh

Under the condition that the peak sun hours are 5, then a 400 watt solar panel can produce 2kWh.
