BougeRV 12V 200W TOPCon Rigid Solar System Kit

Durable glass panels with premium efficiency for stable everyday RV power.

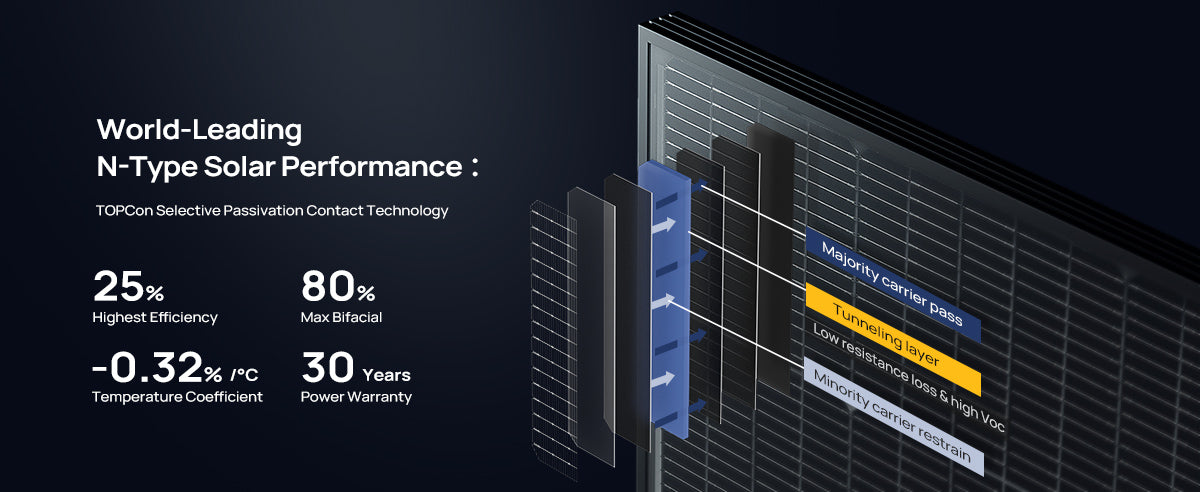

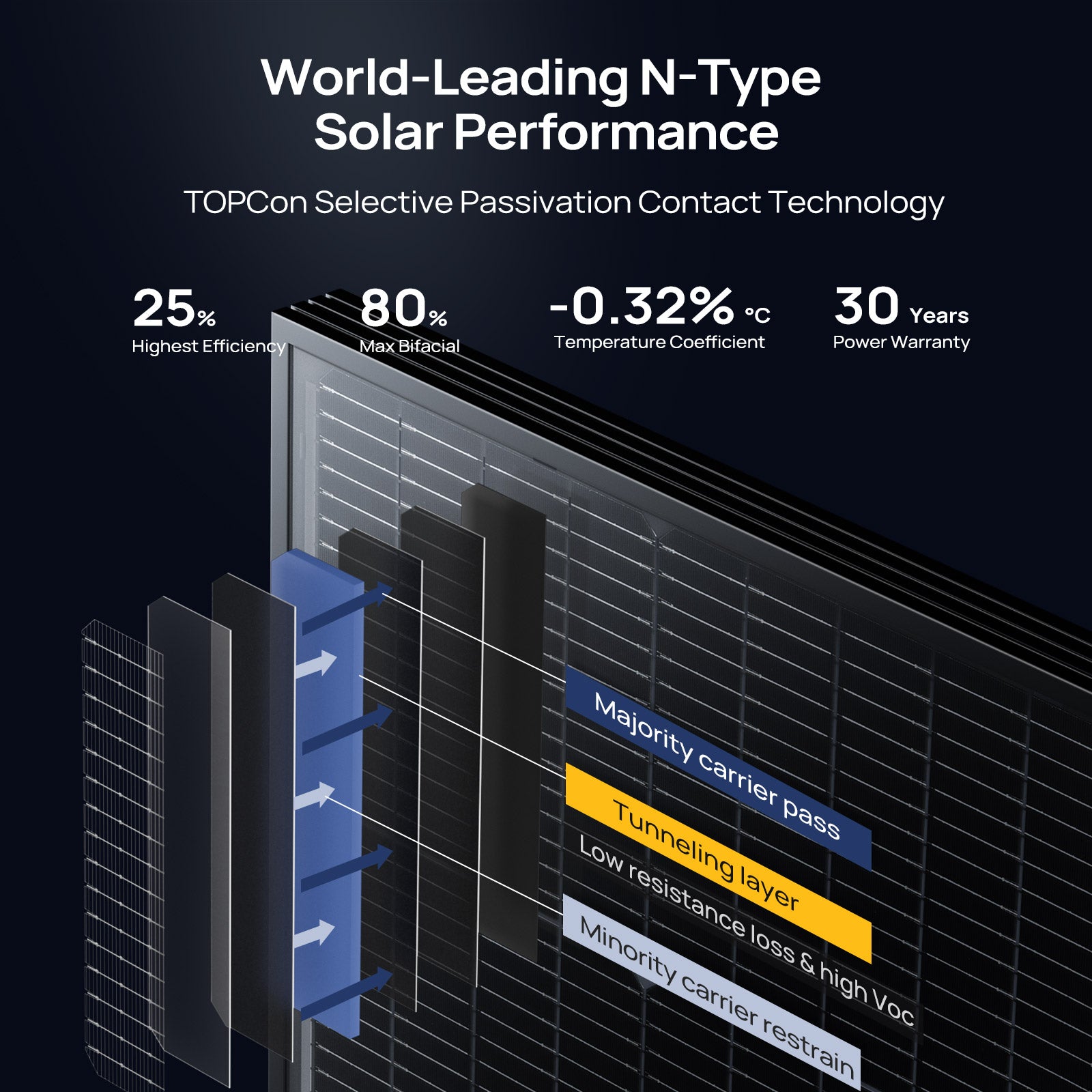

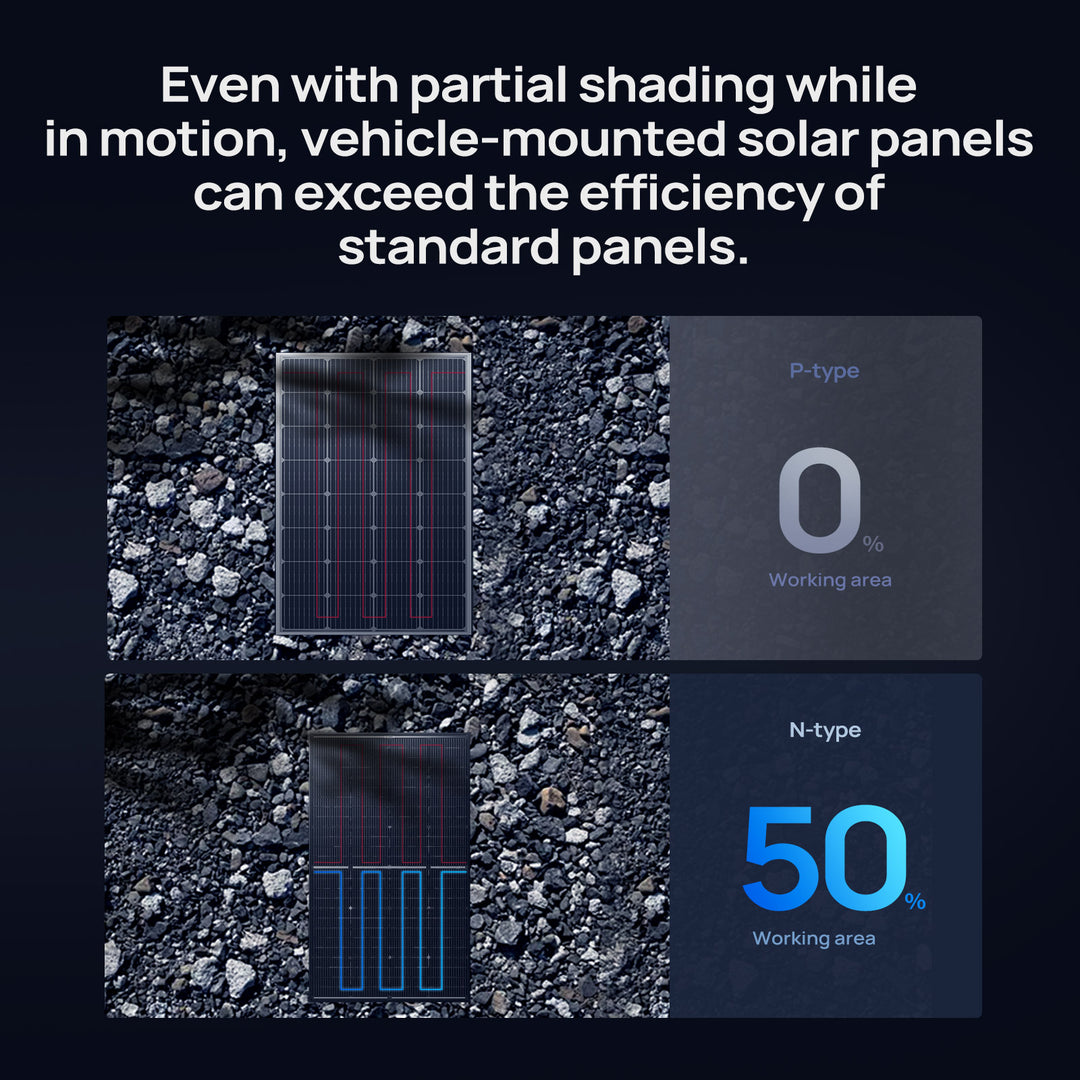

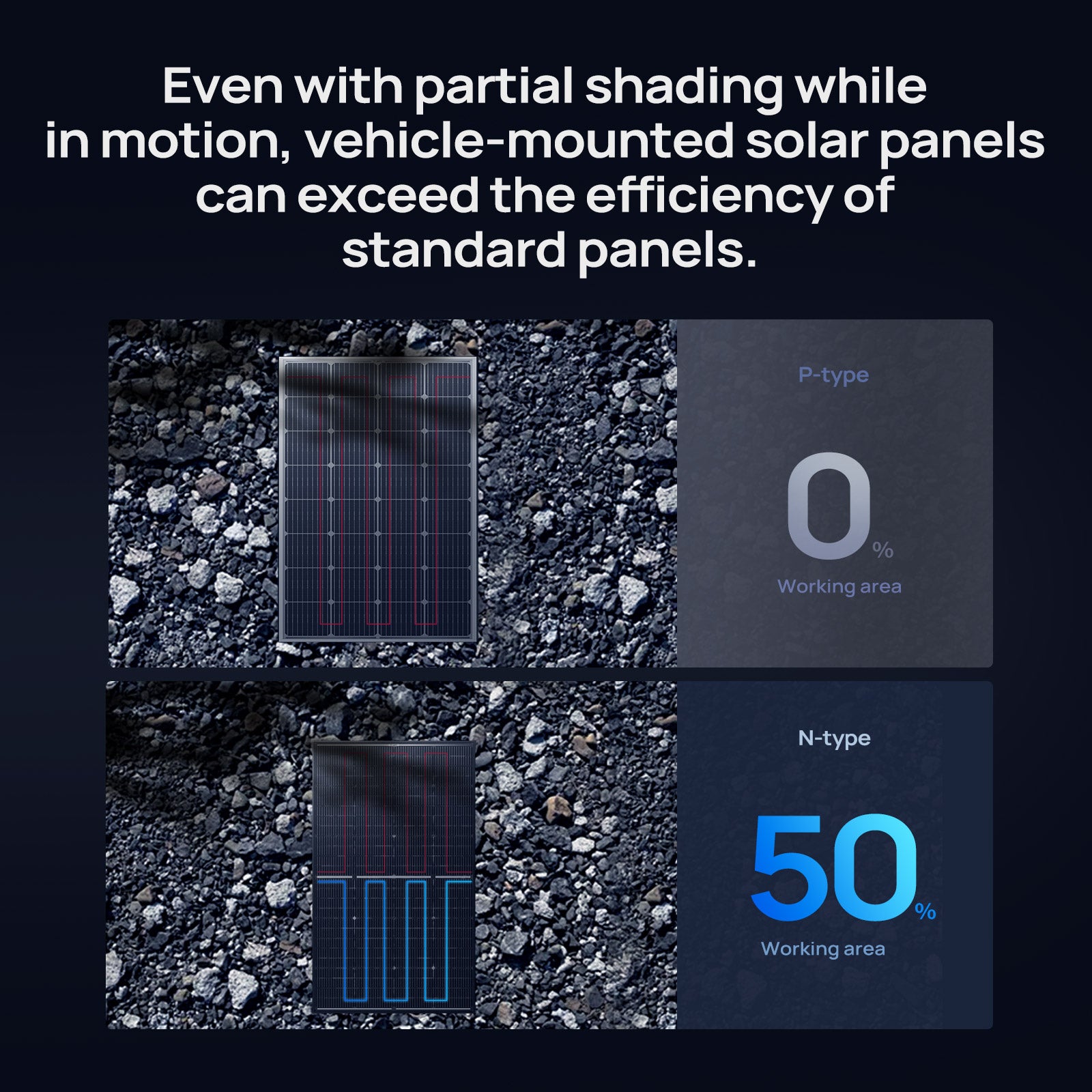

200W Power N-Type TOPCon High Efficiency Long Lasting

🎂 9th Anniversary Sale

Save $400.00
$599.99

Limited Time Deal

$999.99
/

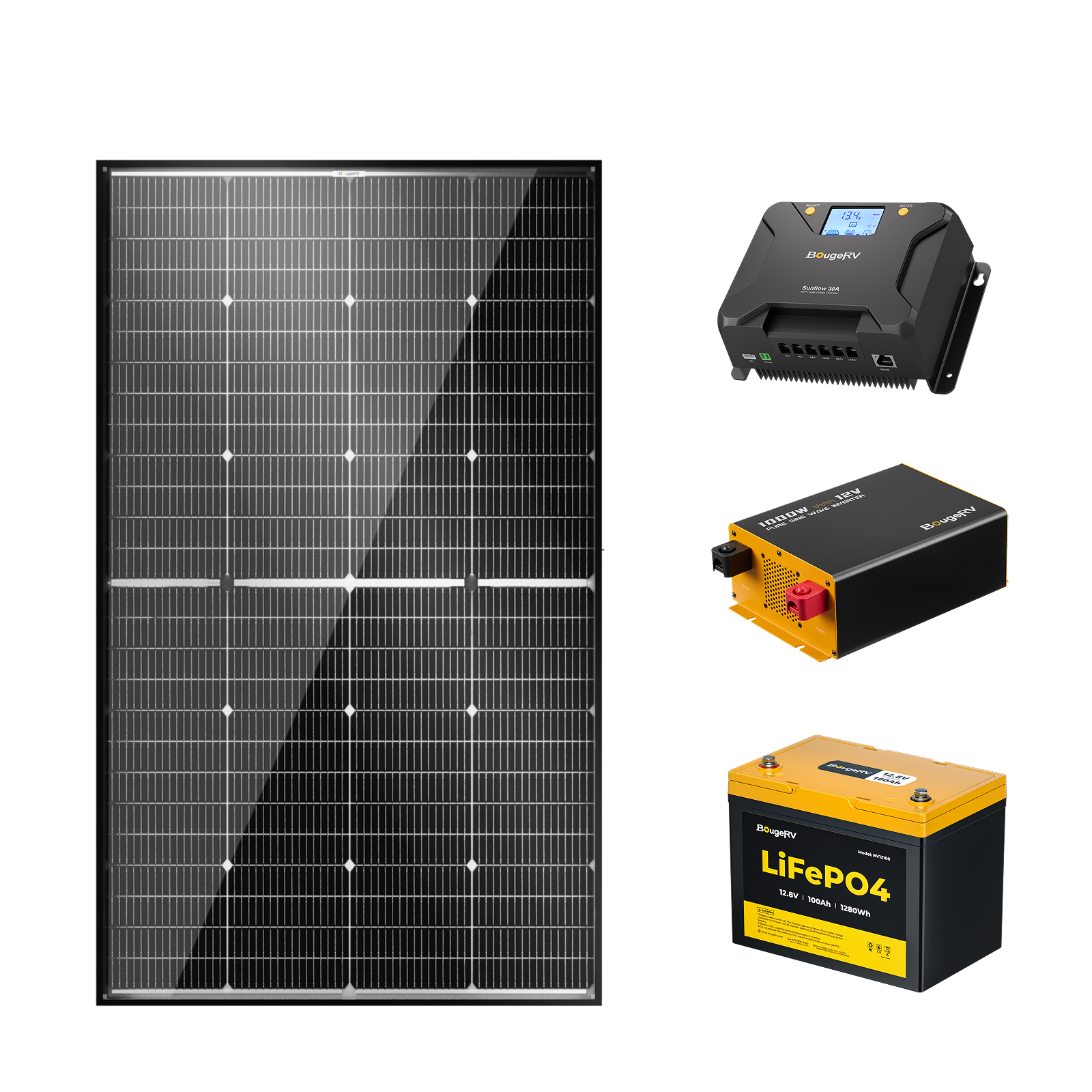

Package Included:

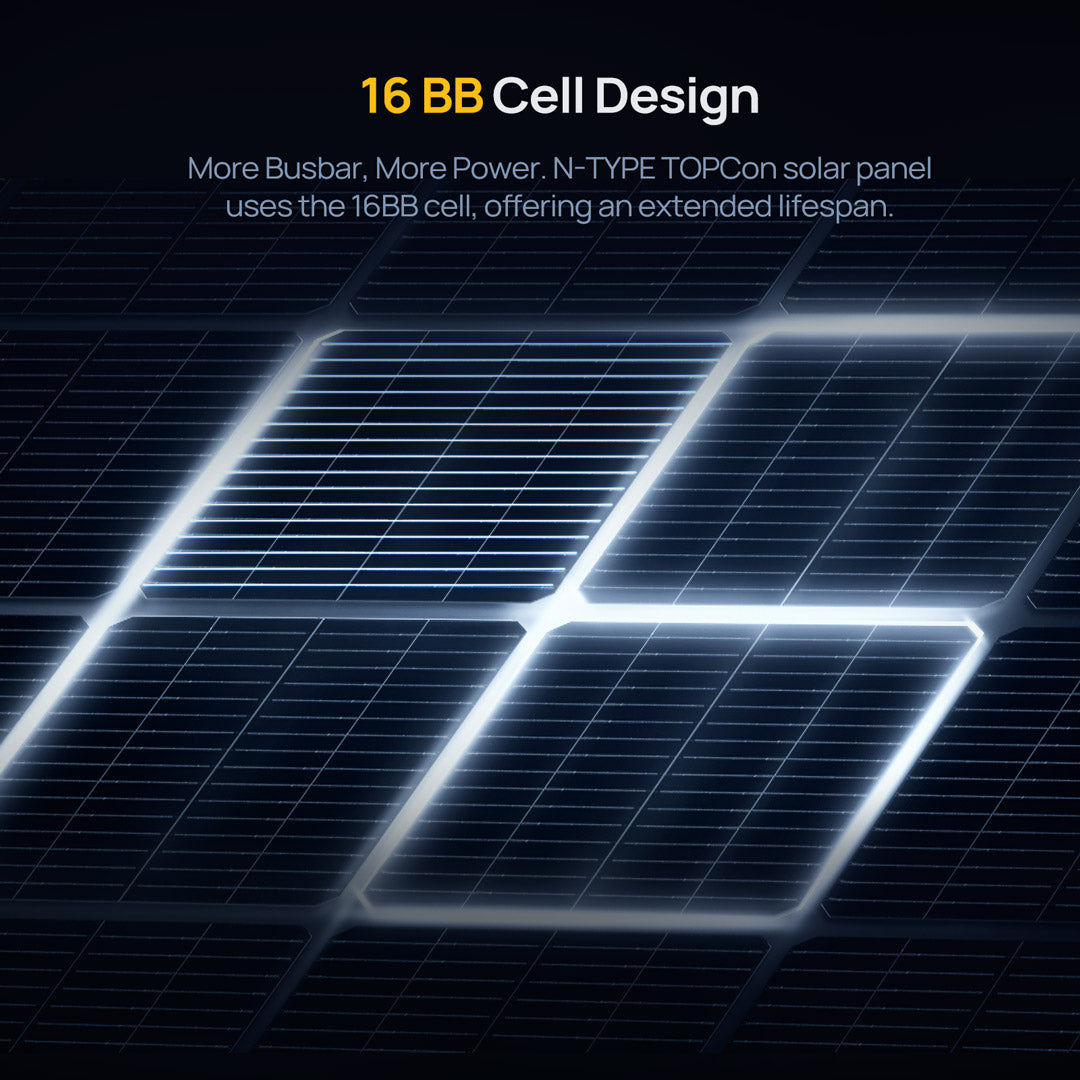

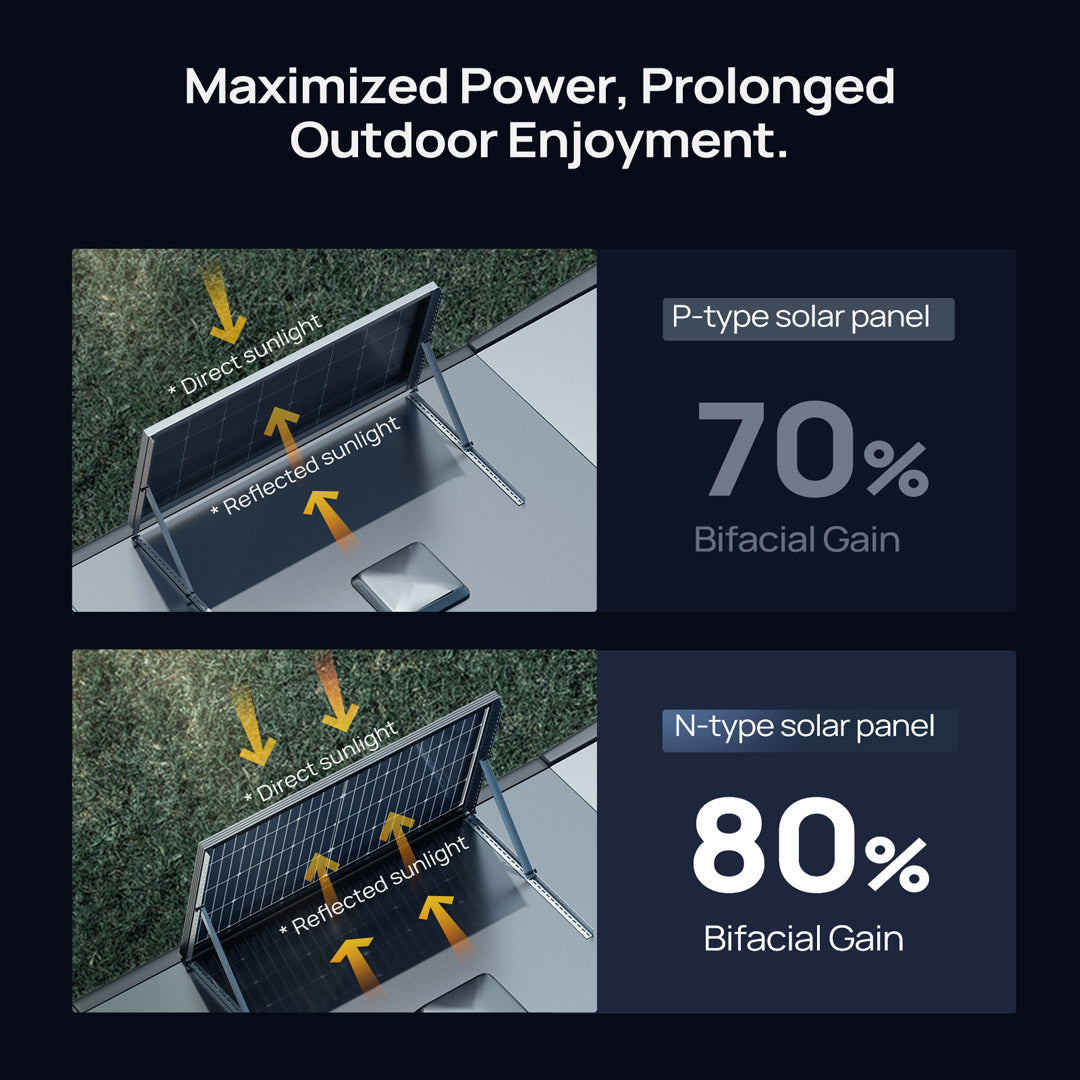

  • 1PC BougeRV 16BB N-Type 200 Watt Bifacial Solar Panel
  • 1PC BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V
  • 1PC 12V 100Ah Group 24 LiFePO4 Battery
  • 1PC 1000W 12V Pure Sine Wave Inverter
Read more » Fold up »
Solar Panel ×1
Battery ×1
Fan
6–10H
Fridge
18–24H
Coffee Maker
5–6 Cups
Light
6–8H

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews
200W Solar
MPPT Controller
12V Battery
Inverter
Your Off-Grid Essentials
Portable Fridge
Keep Food Fresh
Camping Fan
Stay Cool Longer
Coffee Maker
Brew 5-8 Cups
LED Light
Light Up Your Camp
Laptop
Work Off-Grid
Phone Charging
Stay Connected

How Much Can a Solar Kit Power?

Choosing the right solar kit depends on your energy needs, appliance usage, and daily sunlight conditions. From lightweight setups to full off-grid systems, understanding wattage and runtime helps you build a more efficient and reliable solar solution.

Step-by-Step Solar System Setup

Follow a clear step-by-step connection process—from solar panels to controller, battery, and inverter—to safely generate and use power. Designed for easy integration and smooth installation.

Features

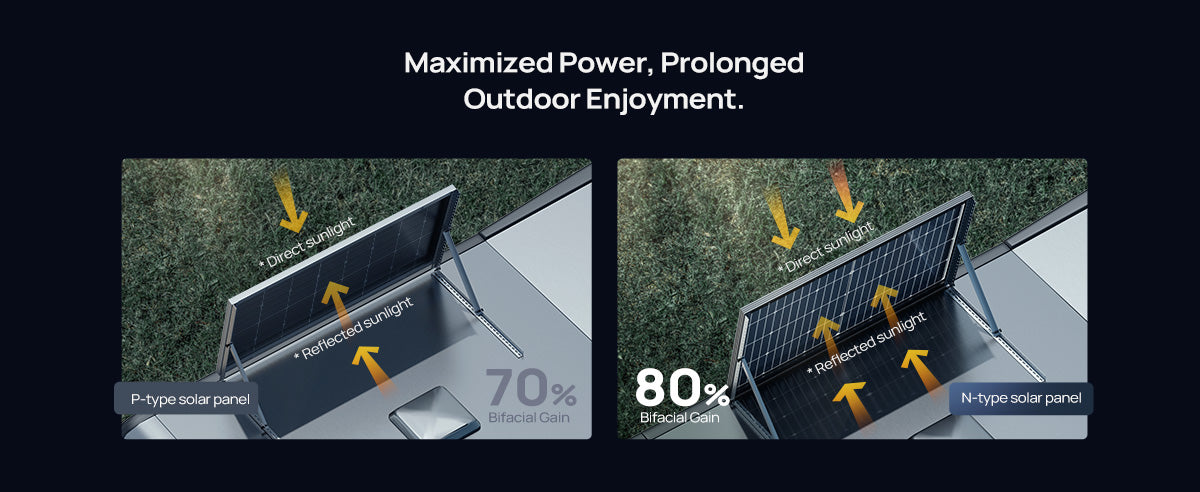

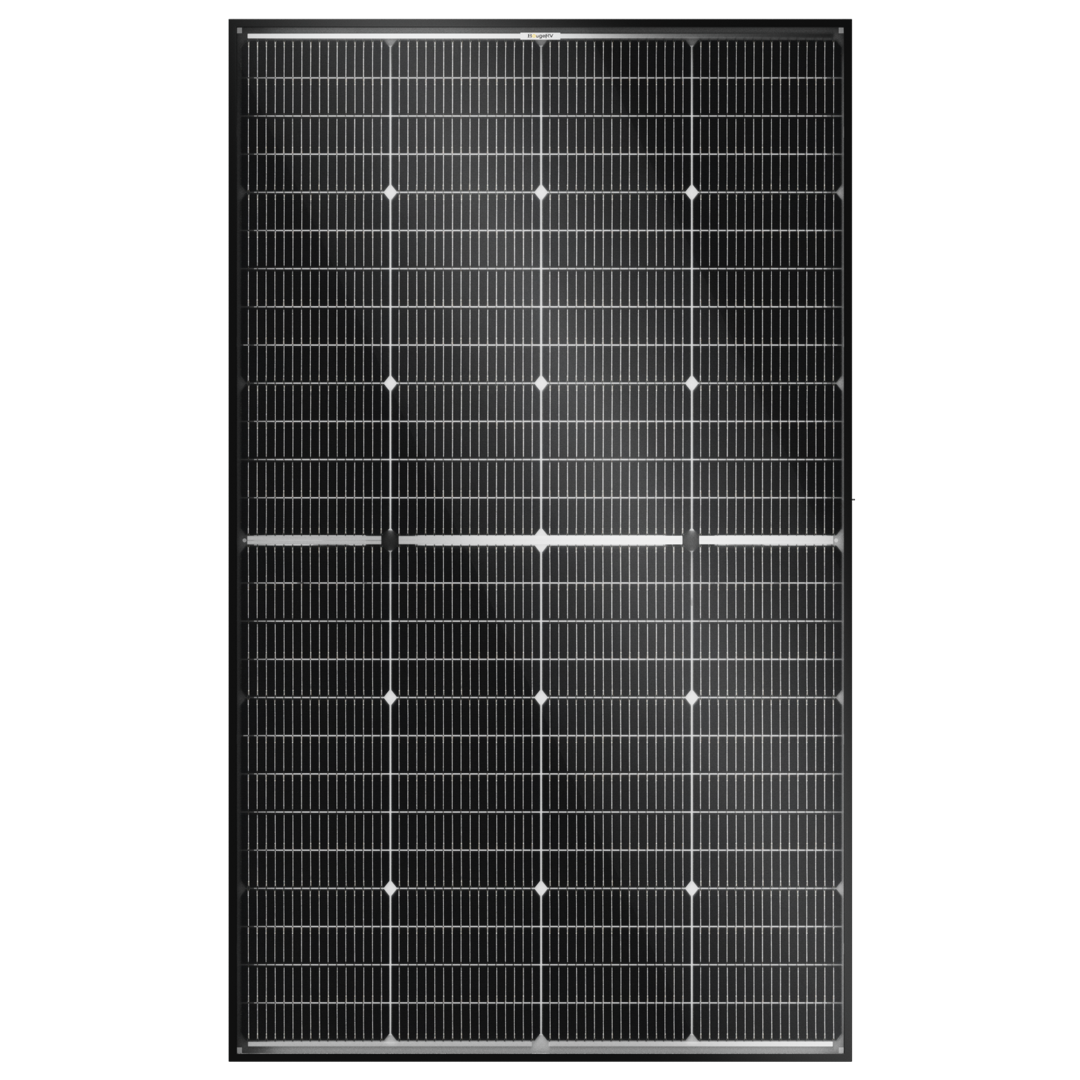

BougeRV 24V 200 Watt Bifacial 16BB Solar Panel

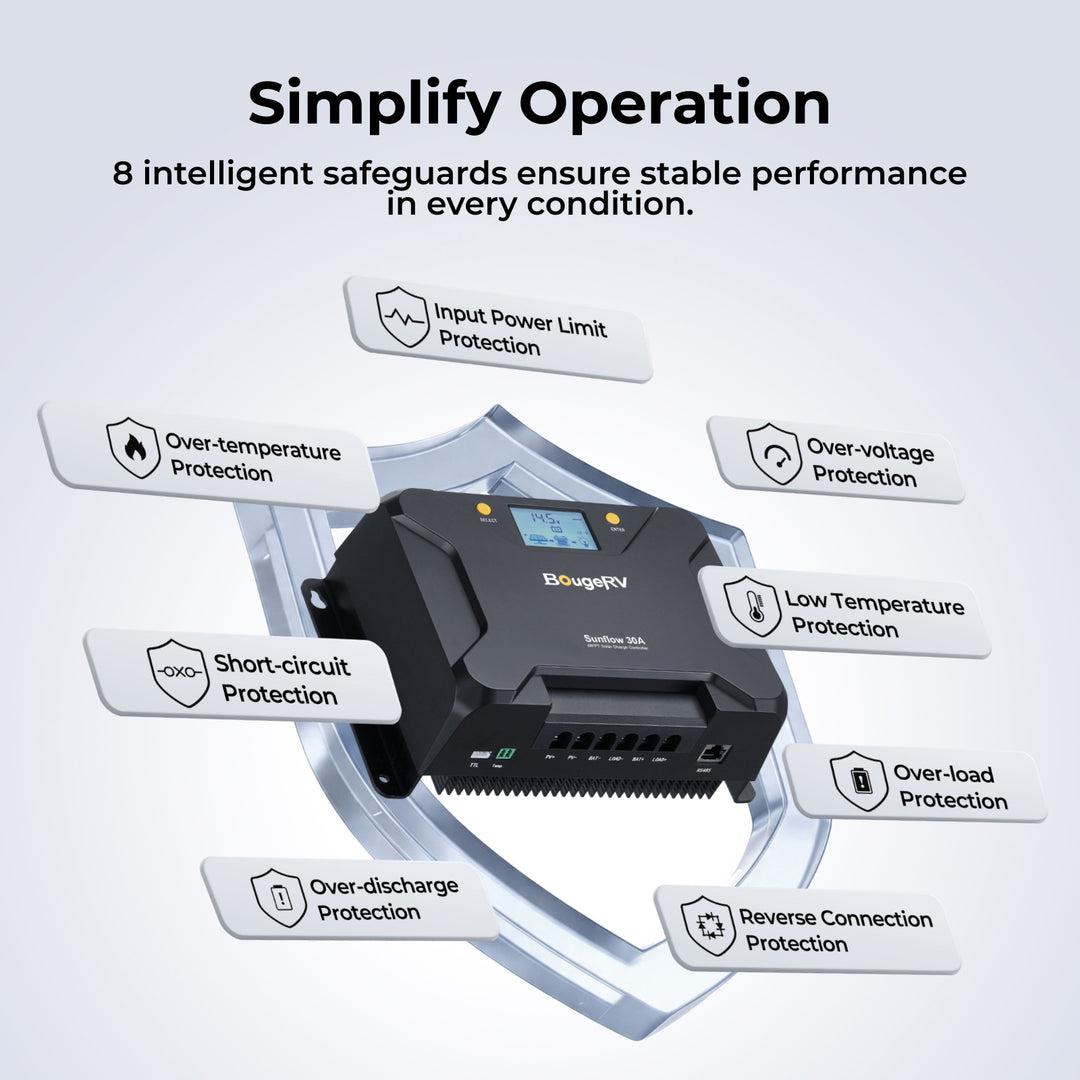

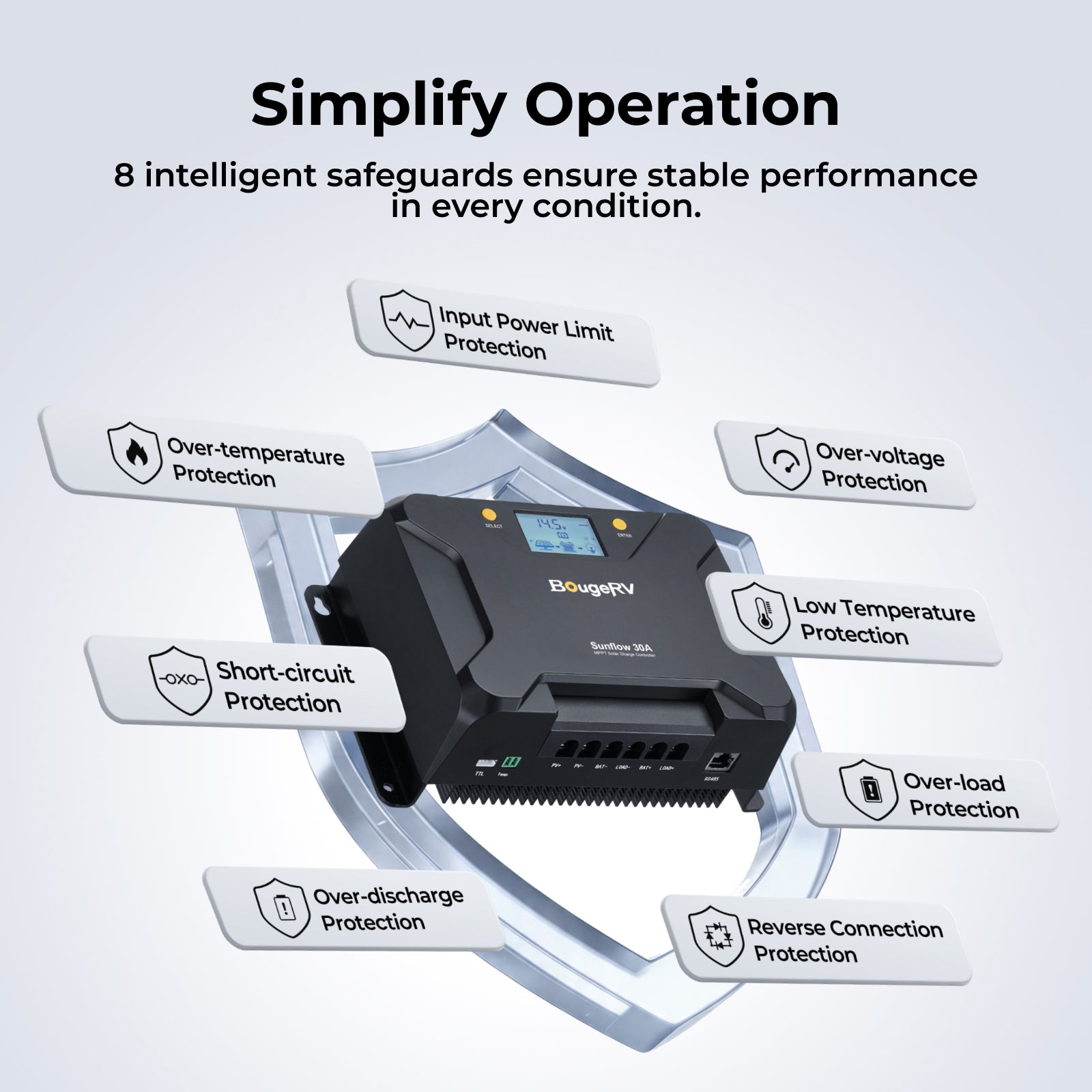

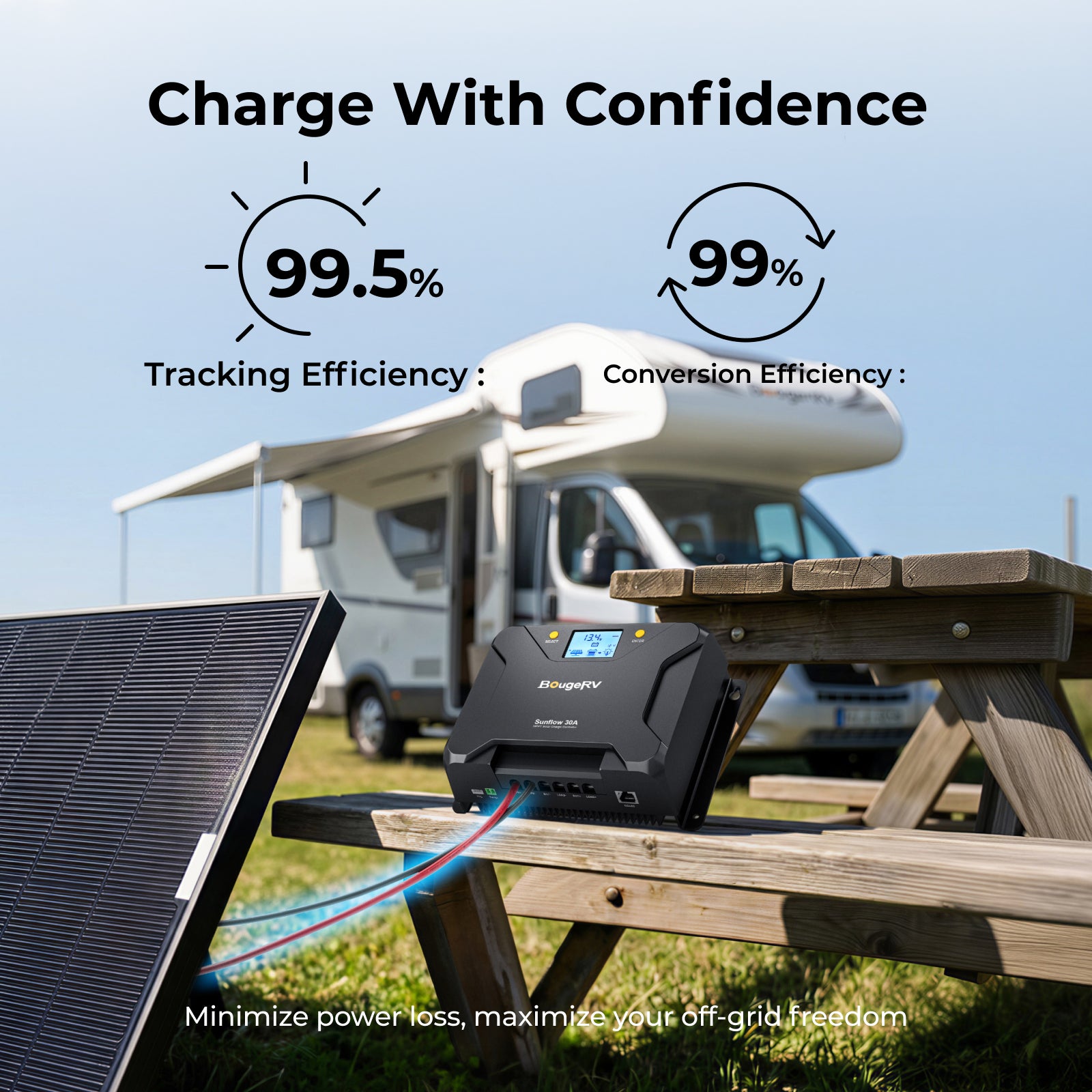

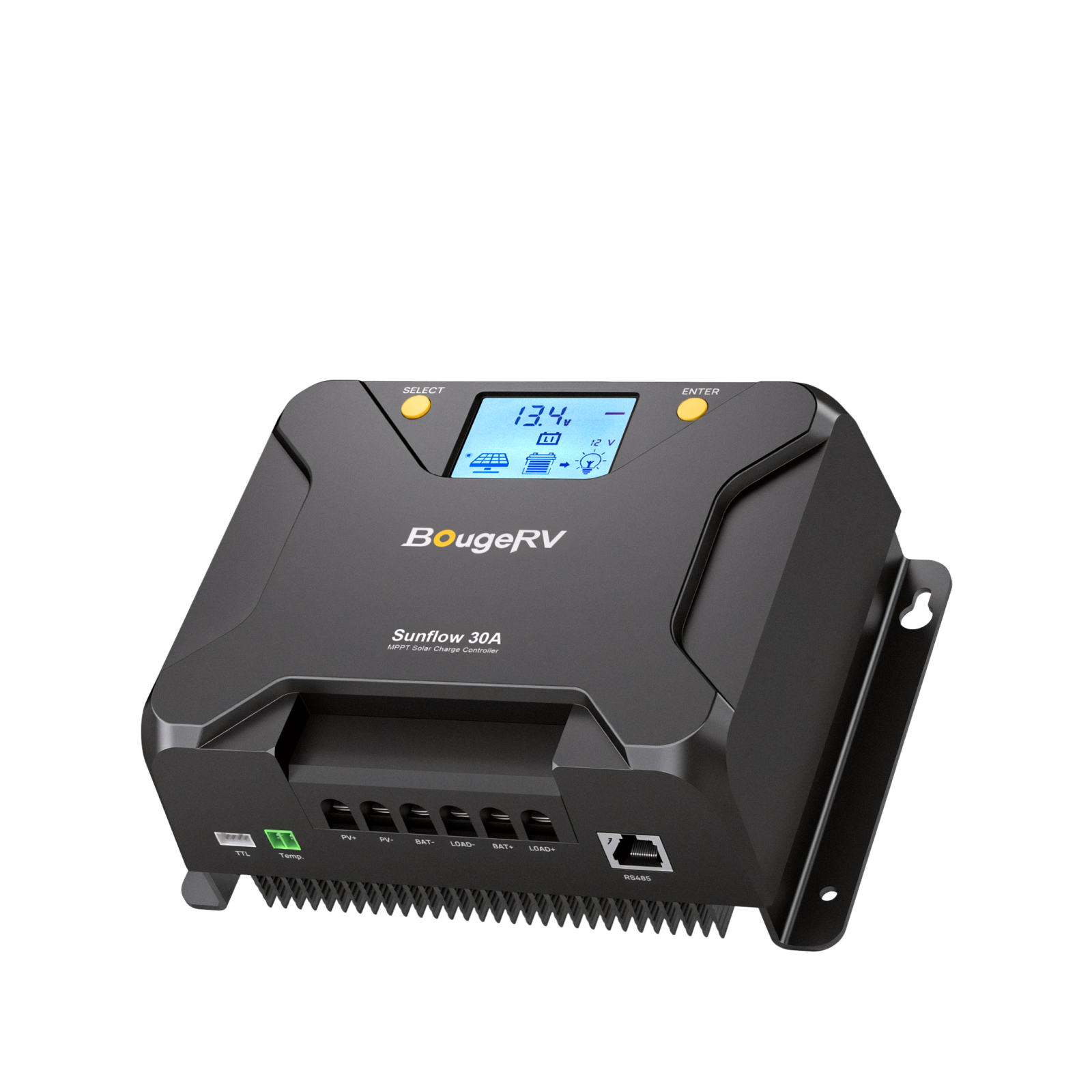

BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V

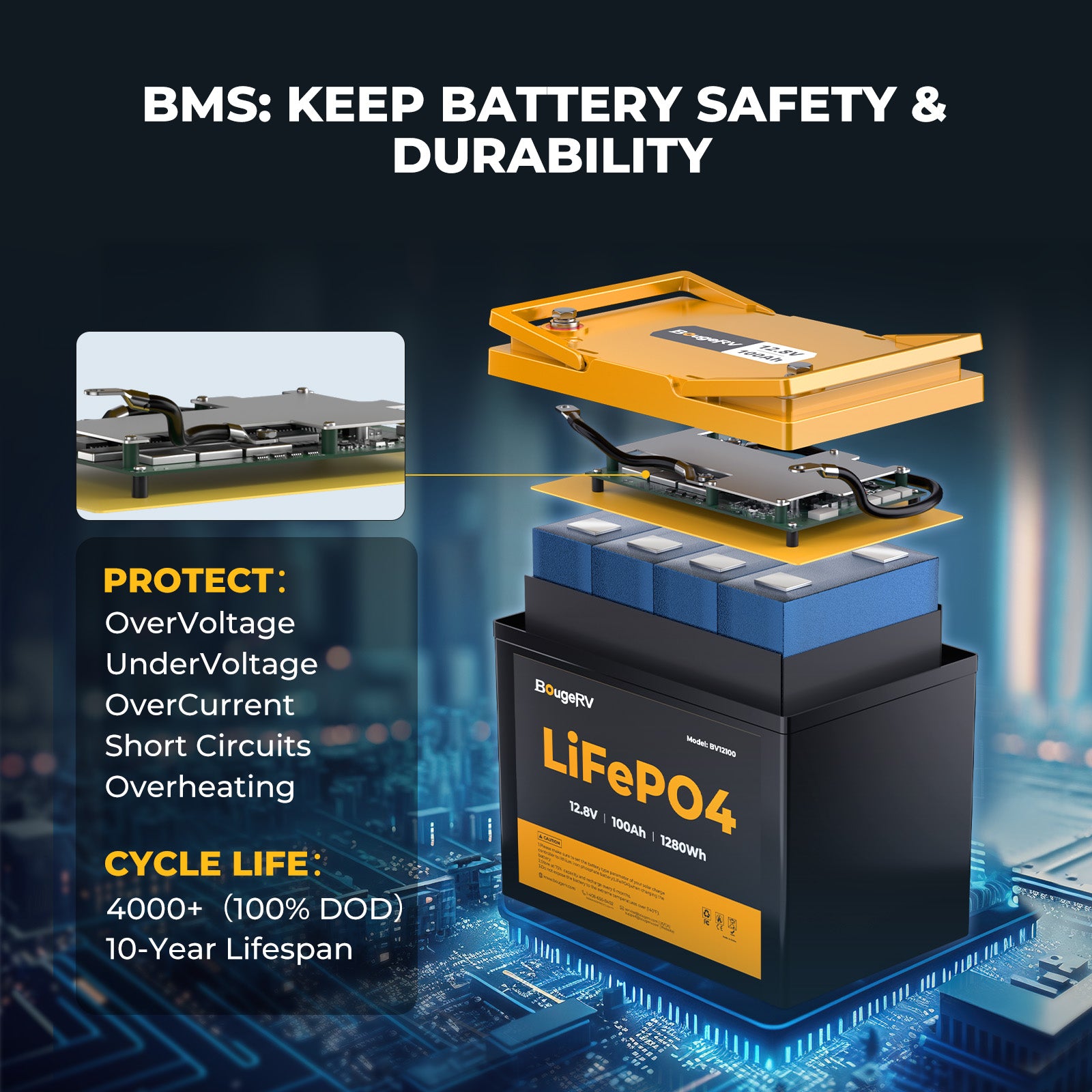

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

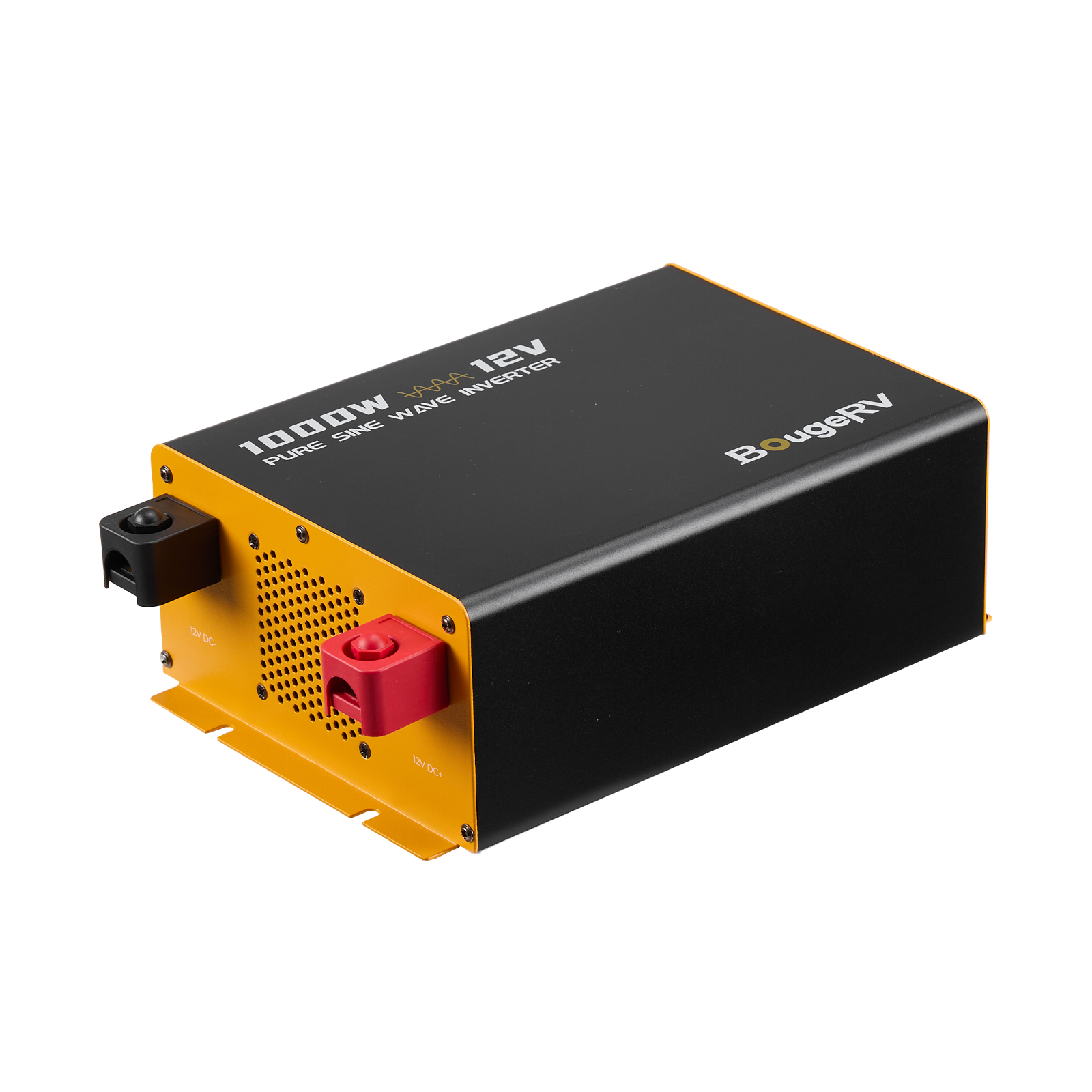

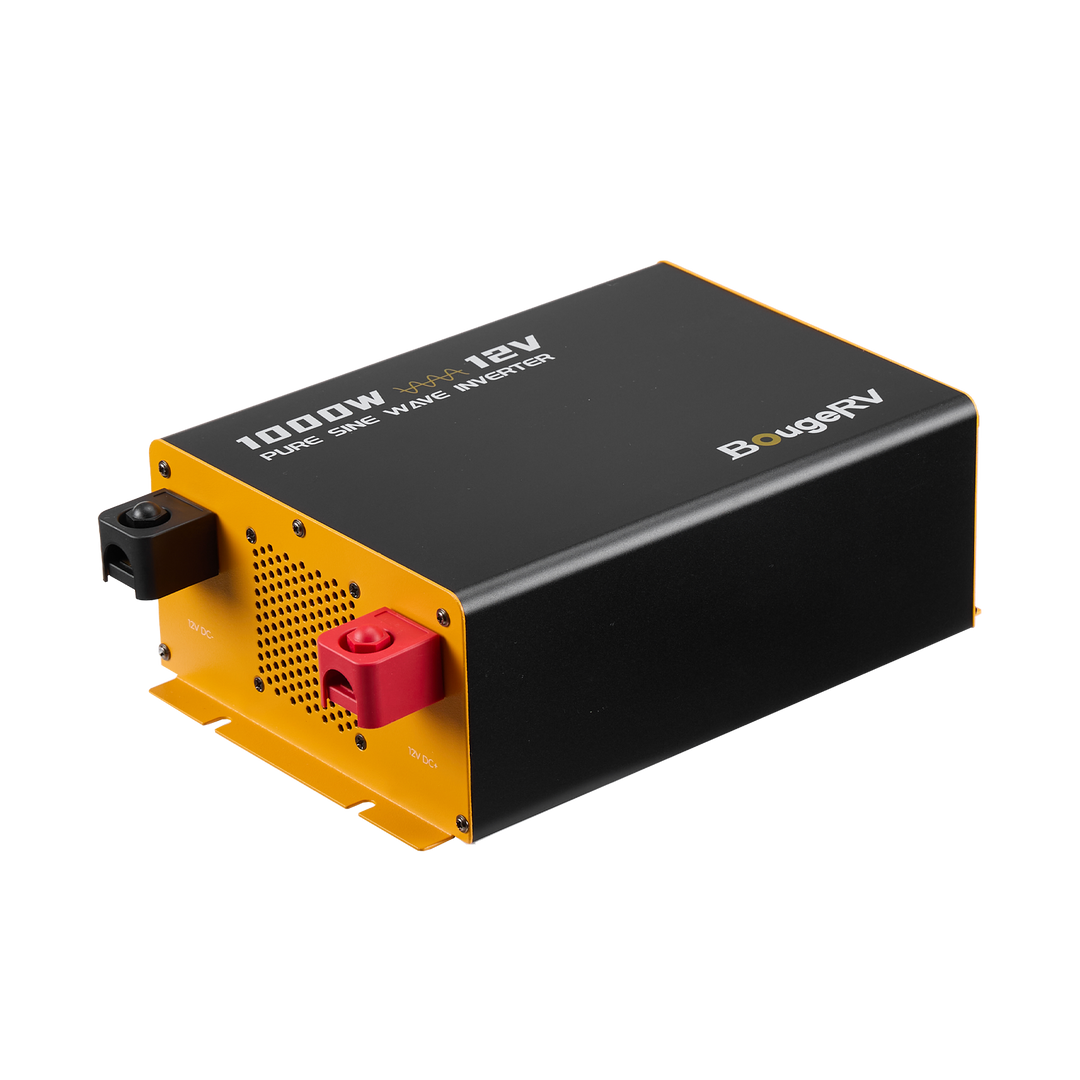

BougeRV 1000W 12V Pure Sine Wave Inverter

What's in the Box

24V 200W Bifacial Solar Panel

👉User Manual

30A MPPT Solar Controller

👉User Manual

100Ah LiFePO4 Battery

👉User Manual

1000W 12V Inverter

👉User Manual

Product Specifications

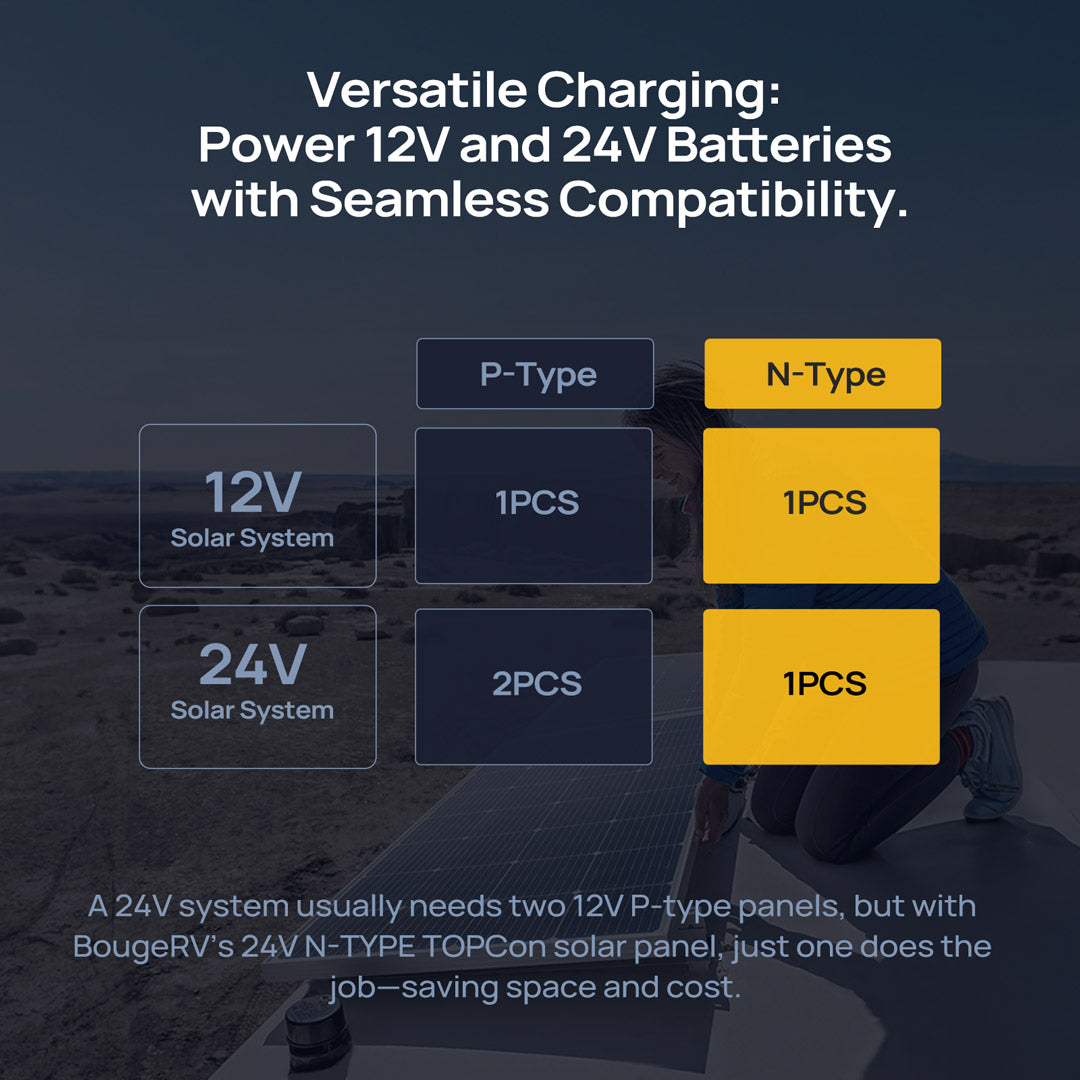

Specification High-Voltage Version (24V)
SKU ISE237
Open Circuit Voltage (Voc) 36.4V ±5%
Max Power Voltage (Vmp) 31.7V ±5%
Max Power Current (Imp) 6.3A ±5%
Short Circuit Current (Isc) 6.6A ±5%

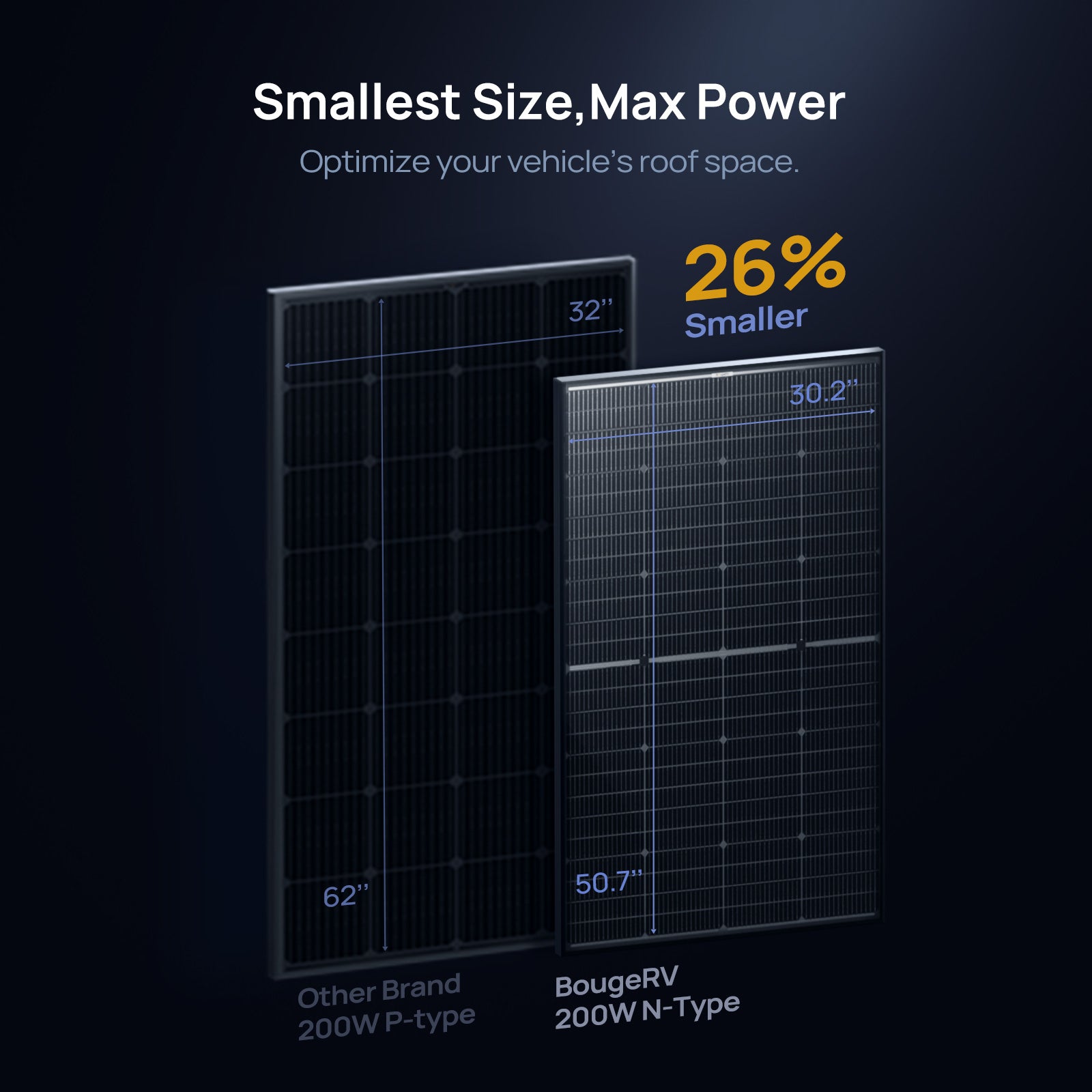

Dimensions 50.67 × 30.20 × 1.38 in
Weight 22.5 lb
Efficiency 25%
Product Warranty 10 Years
Performance Warranty 30 Years
Max Load 2400 Pa (front/back)
Fuse 15A
Class Class A
SKU ISE217

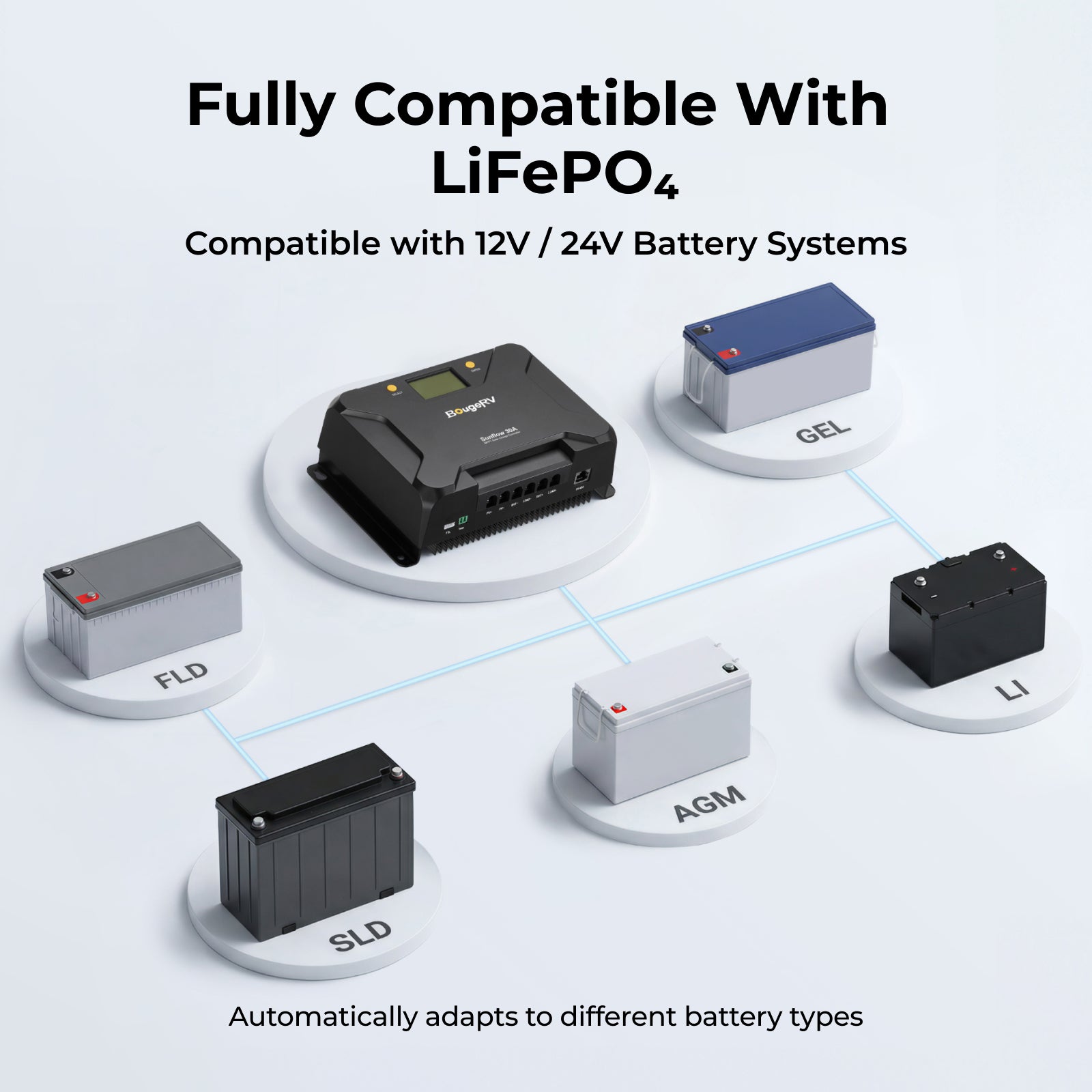

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 30 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 450W/12V; 900W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth

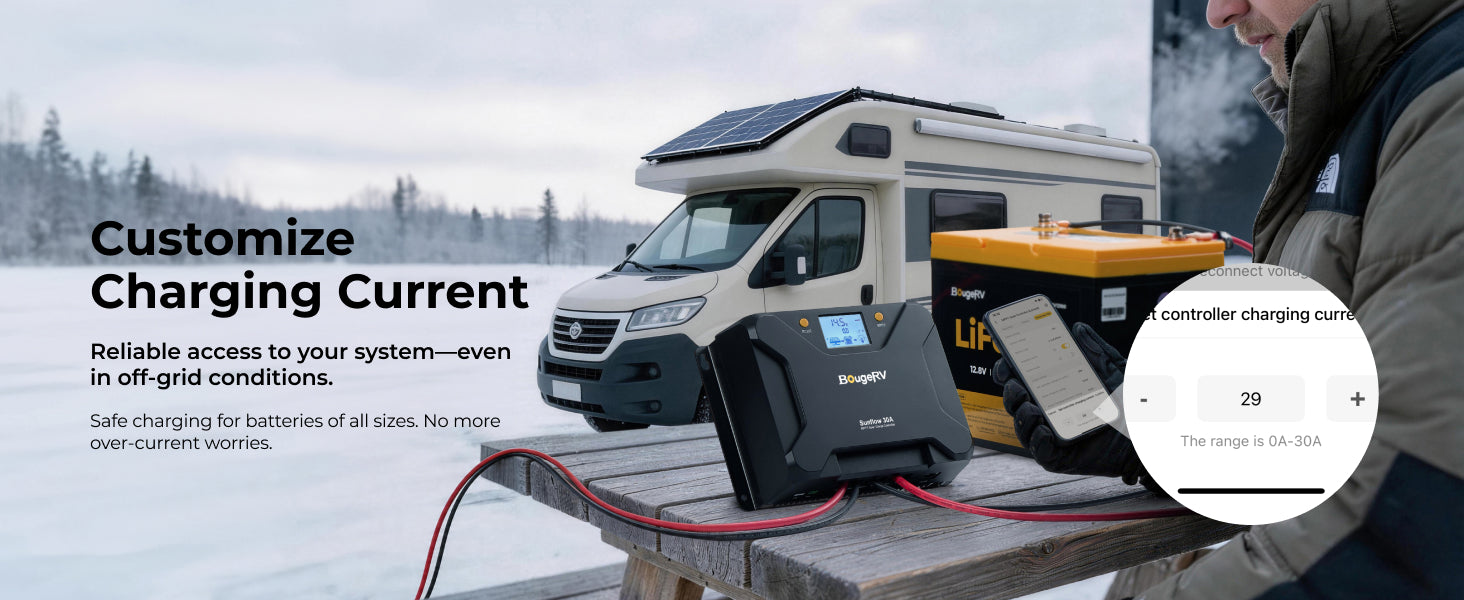

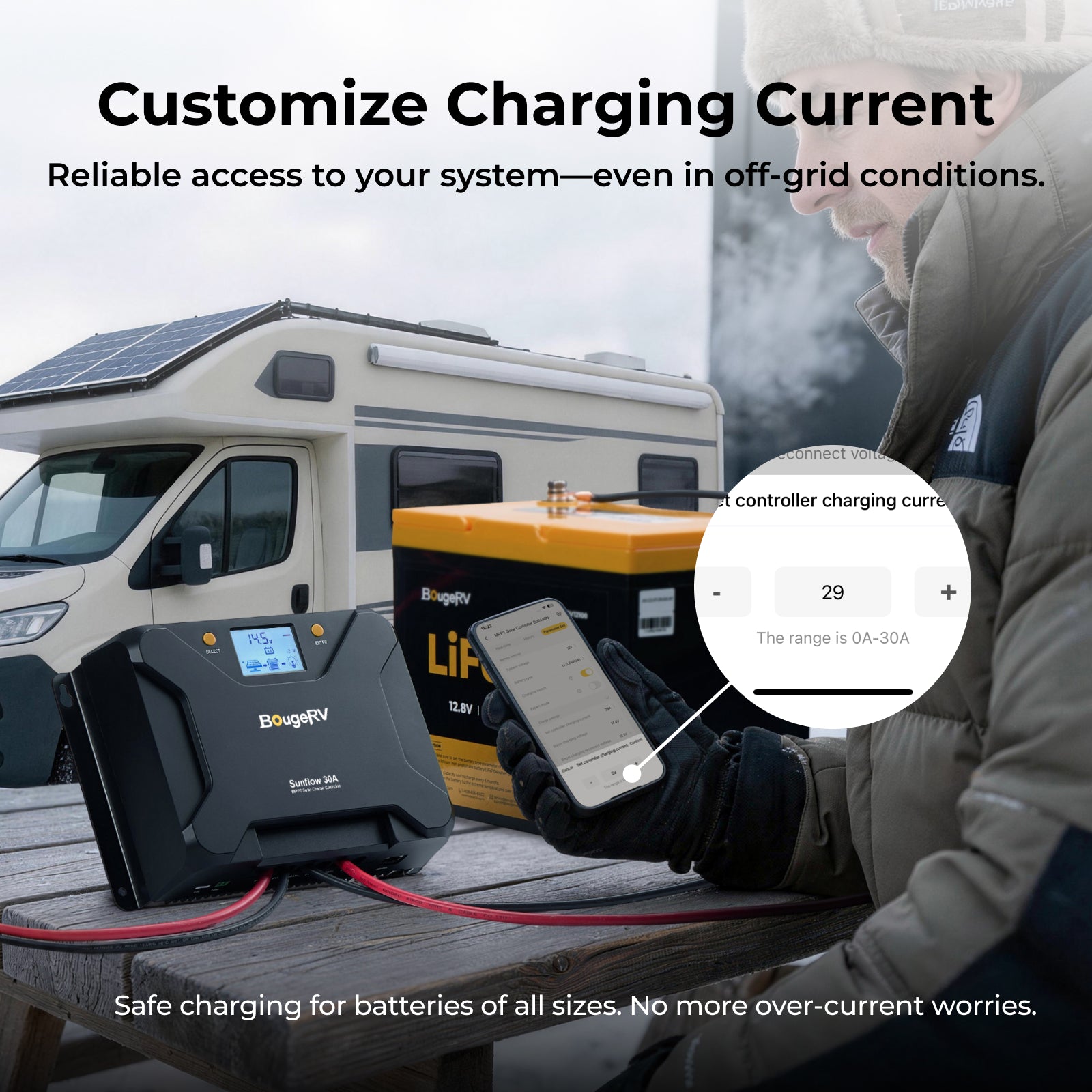

Charge Current Ajust Range 0 Amp to 30 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 7.28L*5.23W*2.95H inches
No Load Loss ≤10mA Weight 2.37 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE217
System Voltage 12V/24V
Rated Charging Current 30 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 450W/12V; 900W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 30 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative

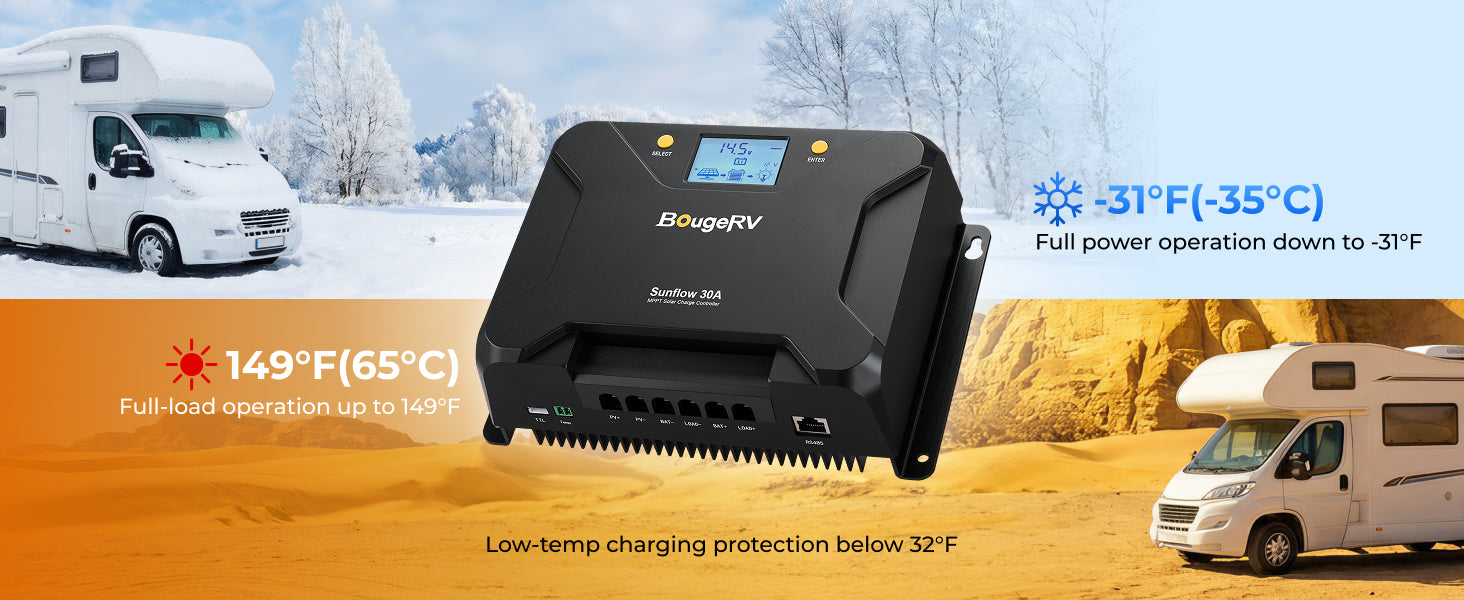

Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34

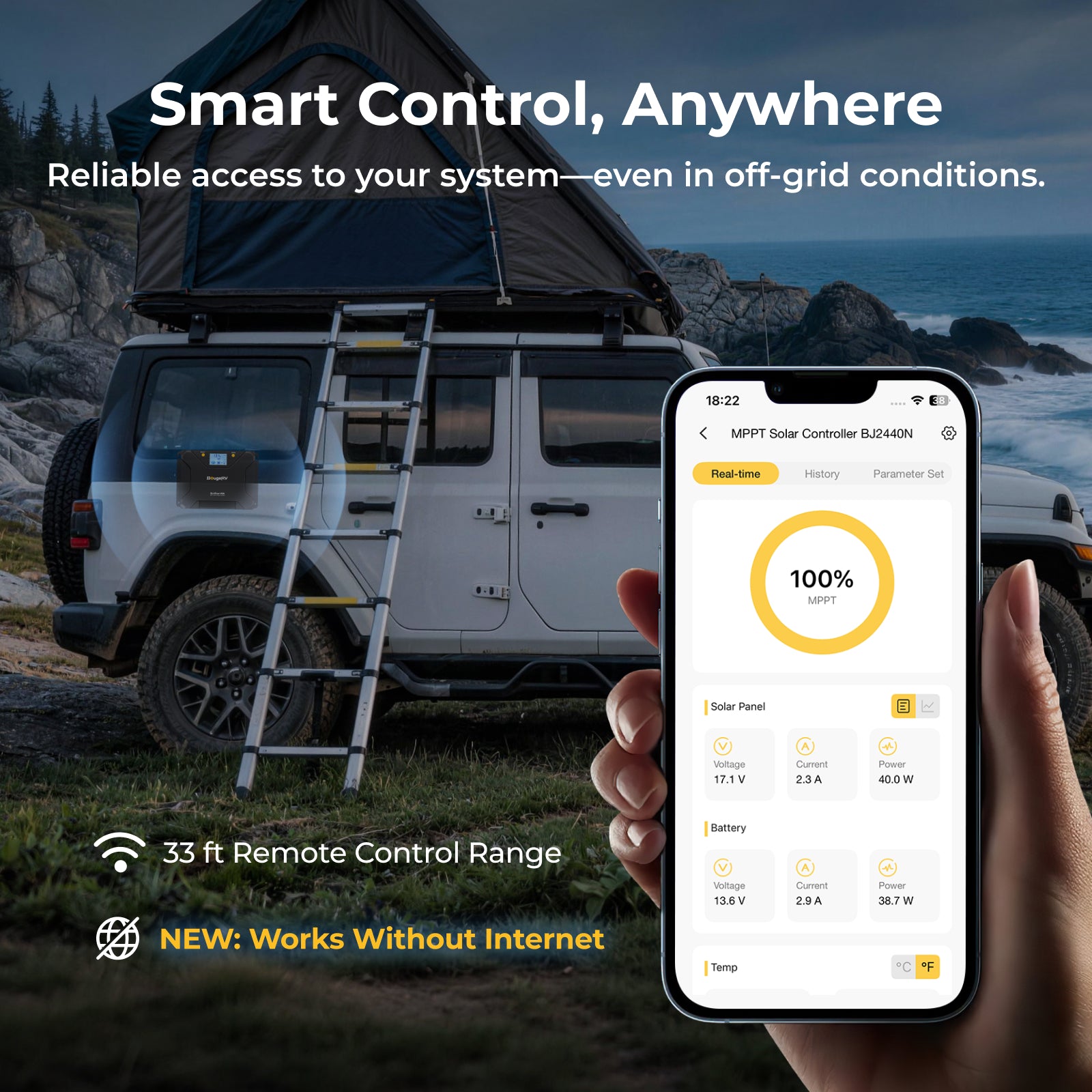

Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 7.28L*5.23W*2.95H inches
Weight 2.37 lbs
Product Warranty 18-month

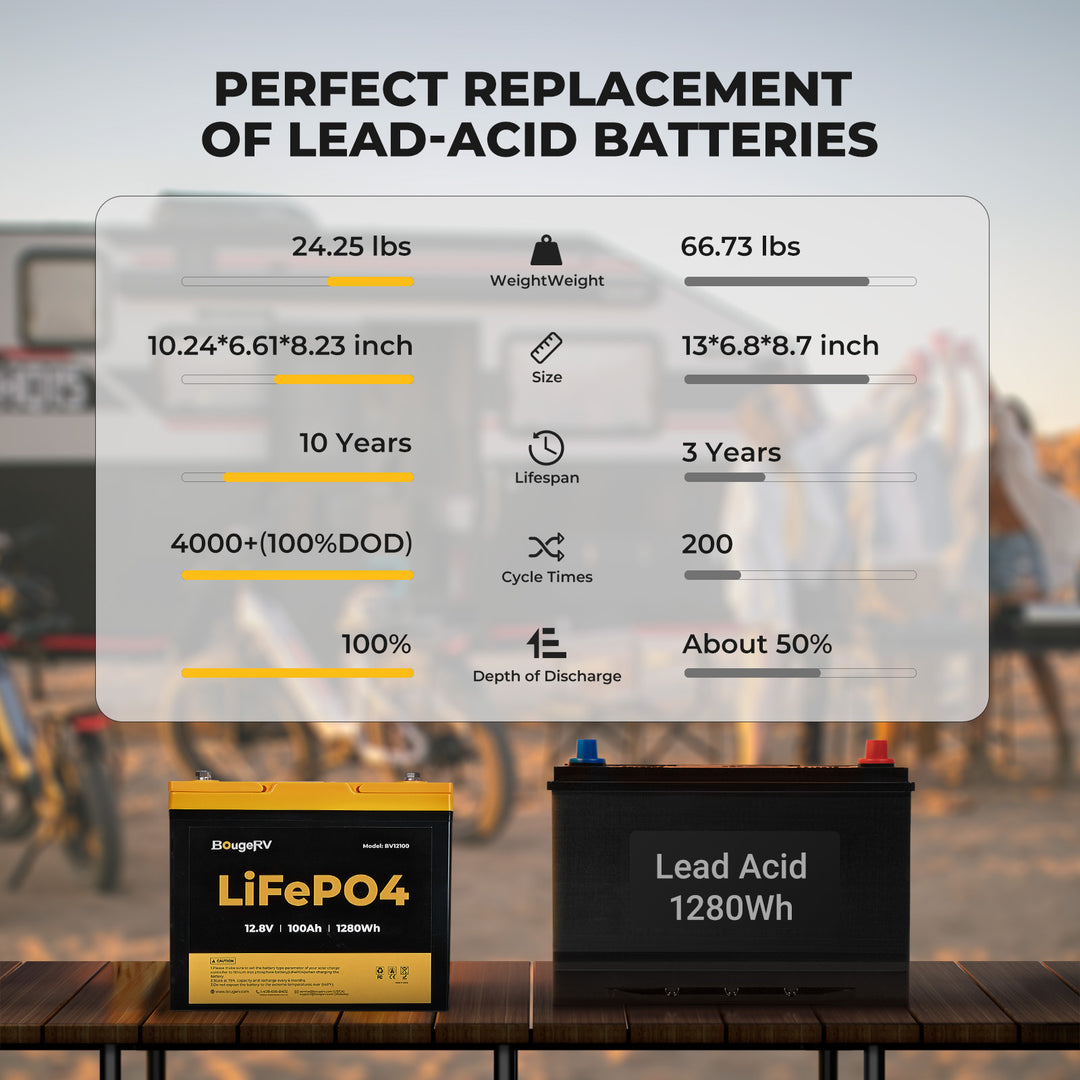

Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)

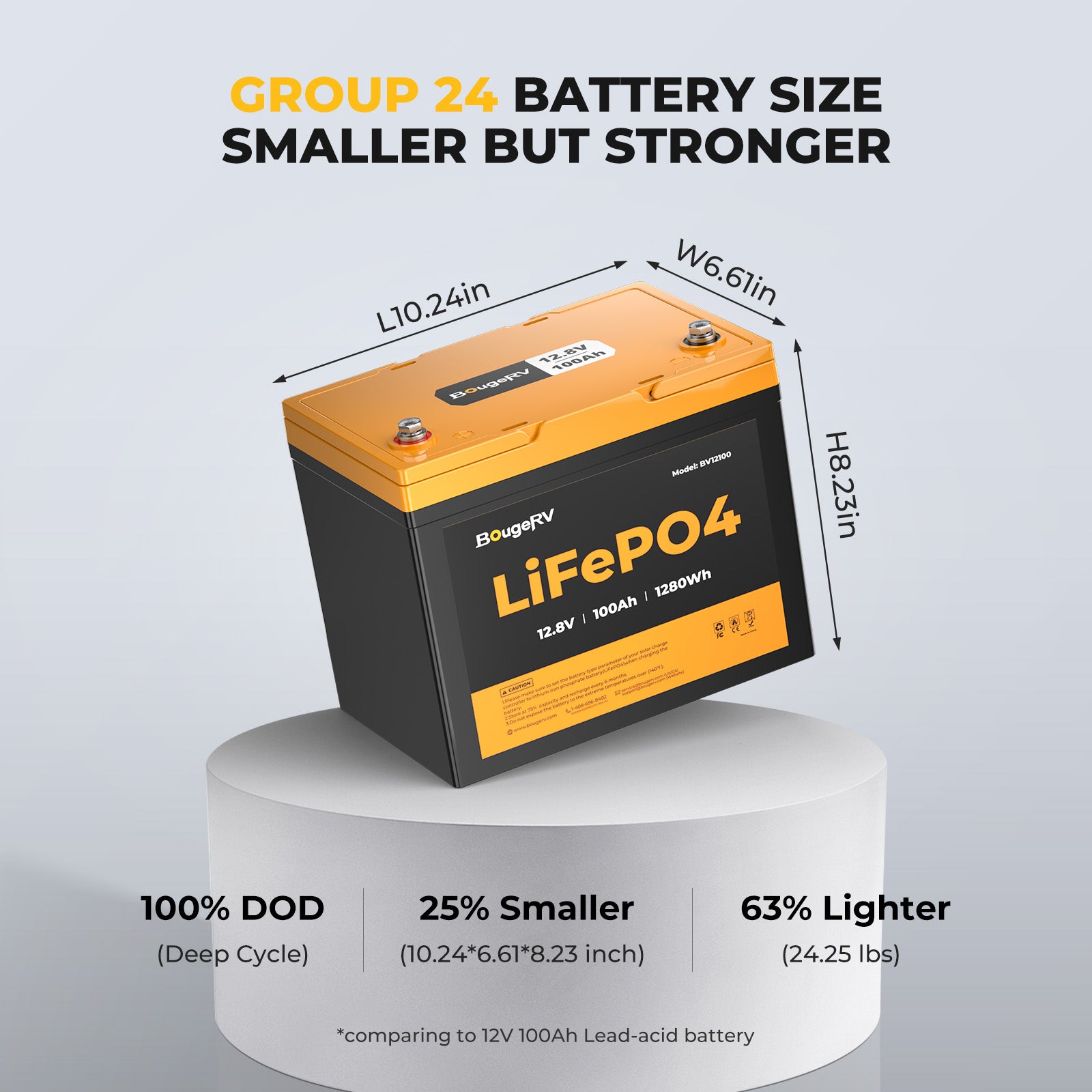

Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs

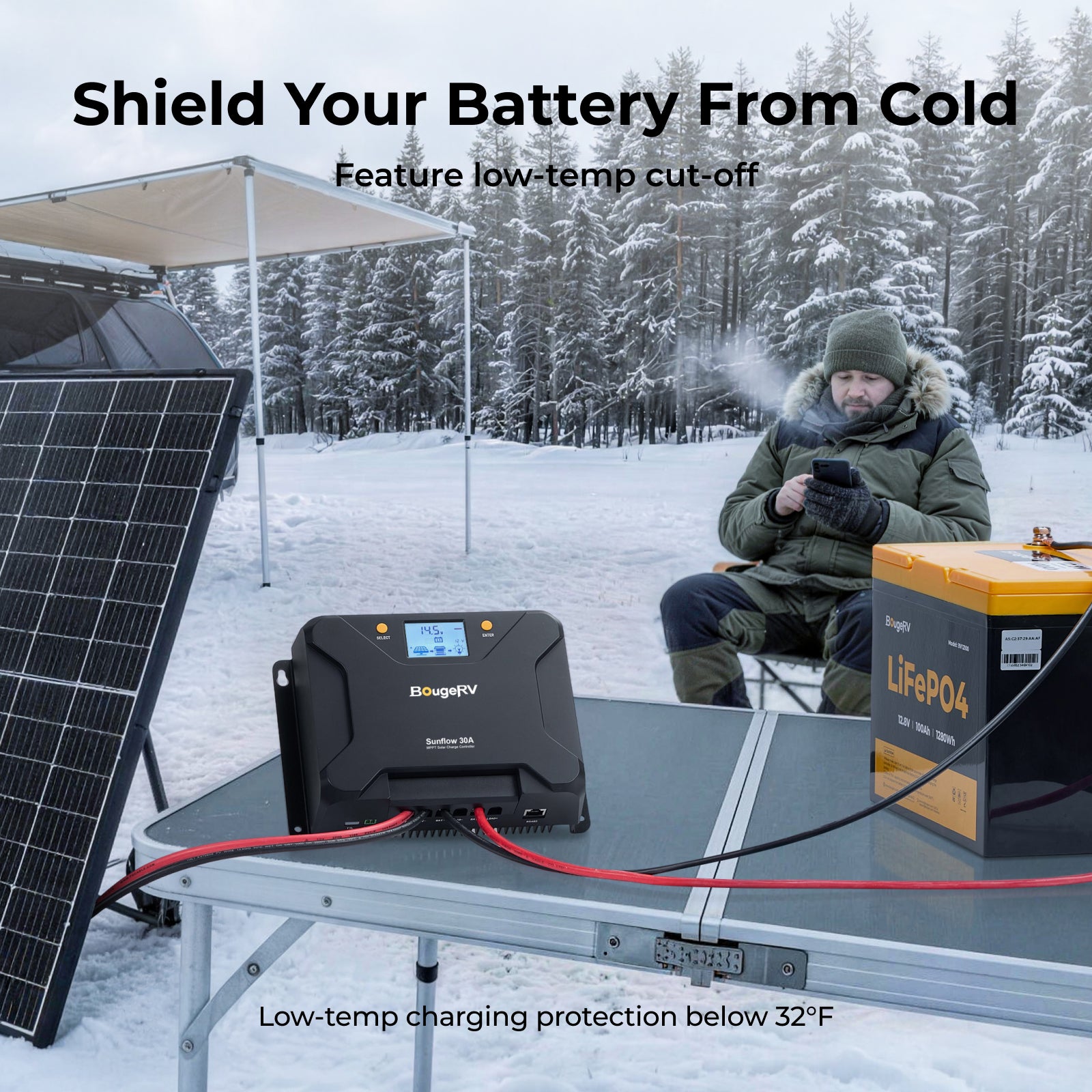

Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
Product Information
SKU SI001-BK-LYTYA1 Model 12V 1000W
Operating Ambient Temperature Range 14°F~104°F (-10°C~40°C) Noise ≤60dB
Product Size 13.78 × 7.4 × 3.94 in Weight 5.95 lbs
Output Performance

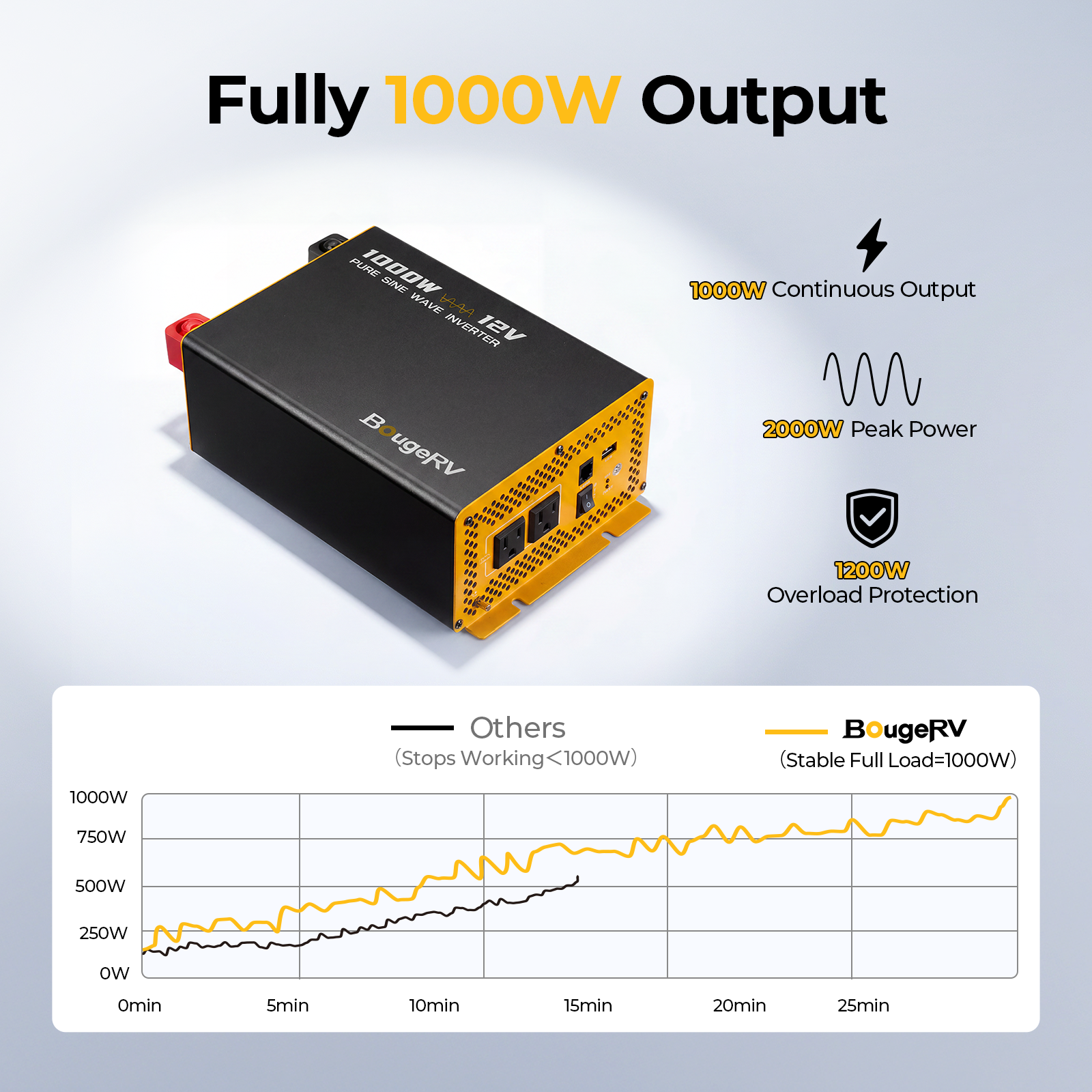

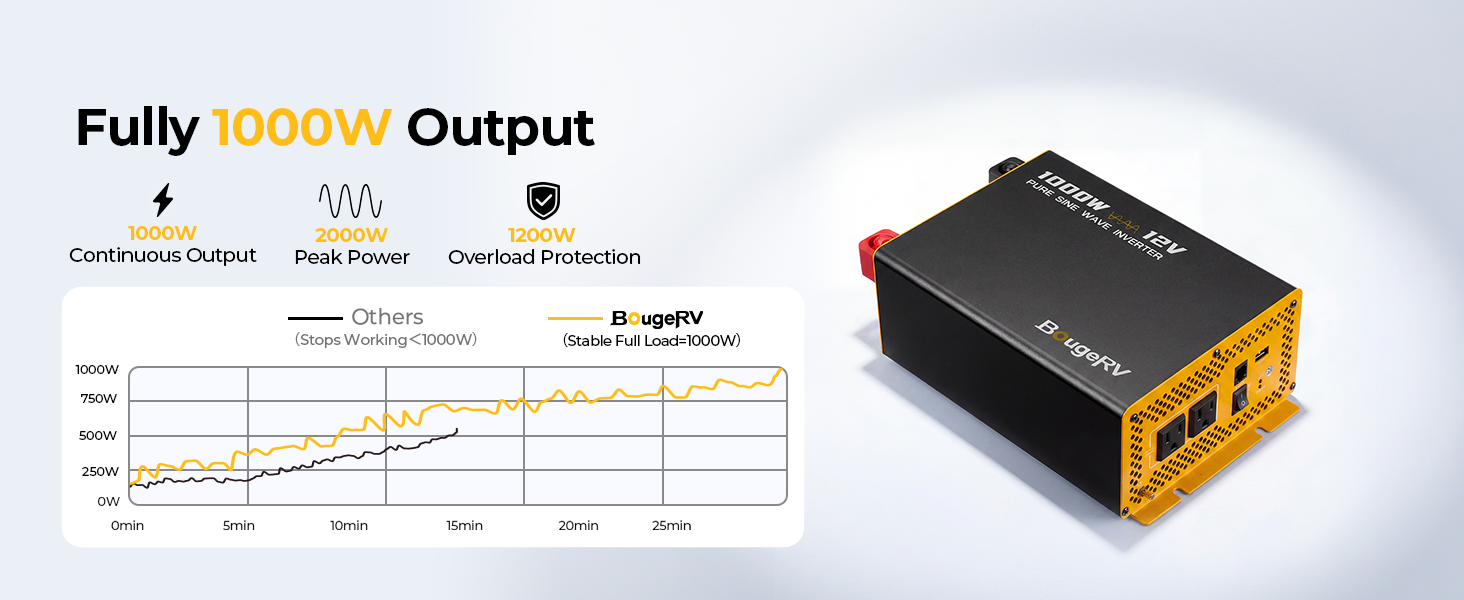

Rated Output Power 1000W Overload Power 1200W
Peak Power 2000W (1s) Output Voltage 120VAC (default)
Rated Input Voltage 12VDC Input Voltage Range 10V-15.5VDC

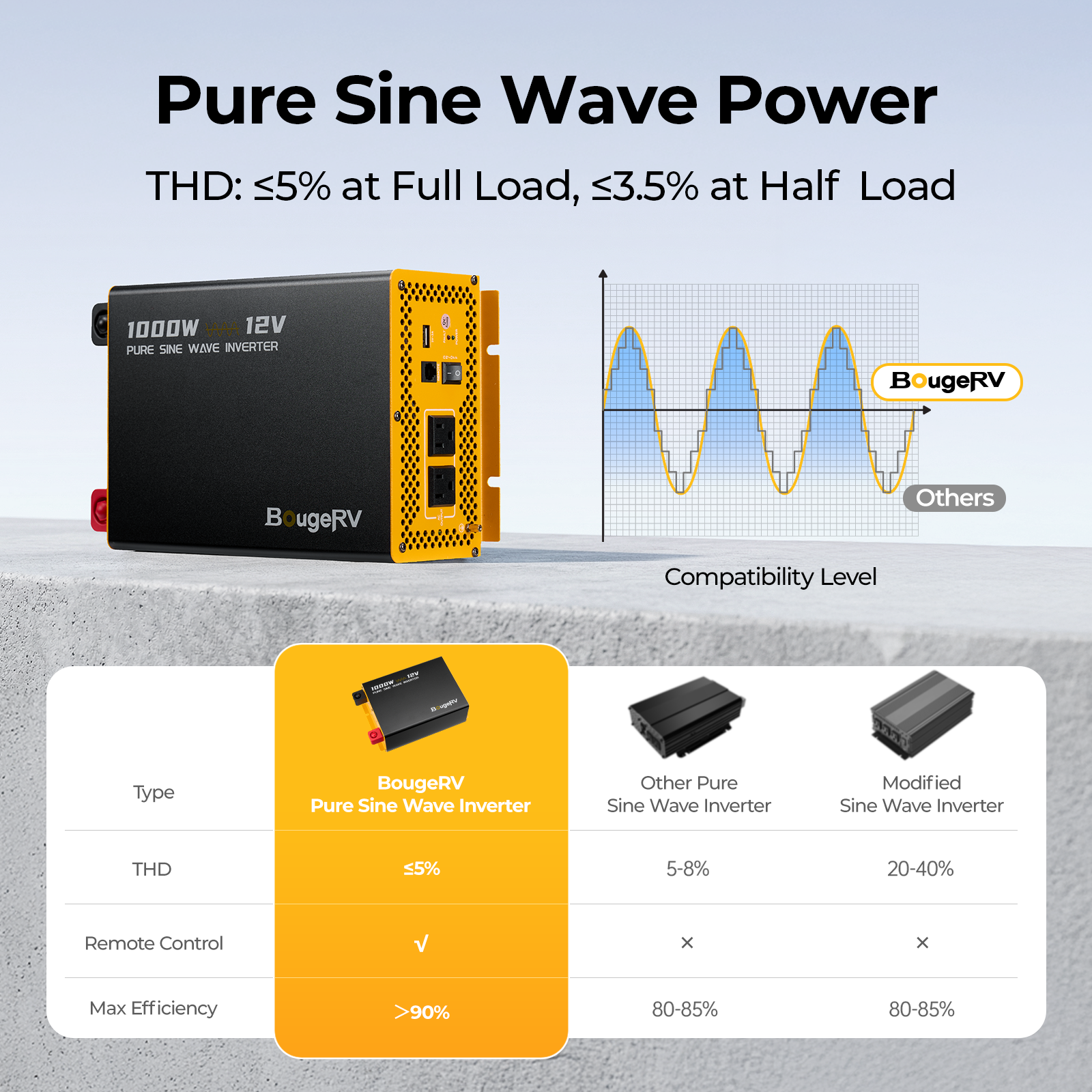

Output Frequency 50/60Hz (default) Output Waveform Pure Sine Wave

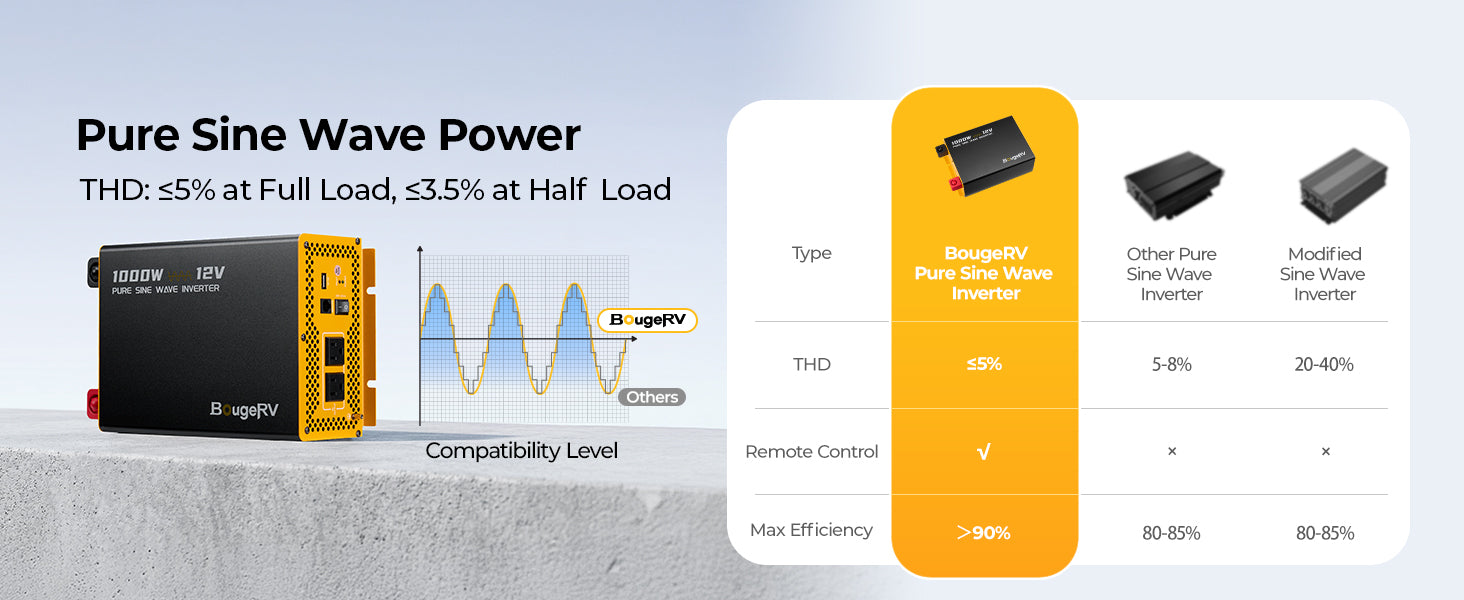

Output Harmonic Component (THD) <5% Maximum Output Efficiency >90%
Full Load Efficiency >85% No-load Loss ≤0.6A

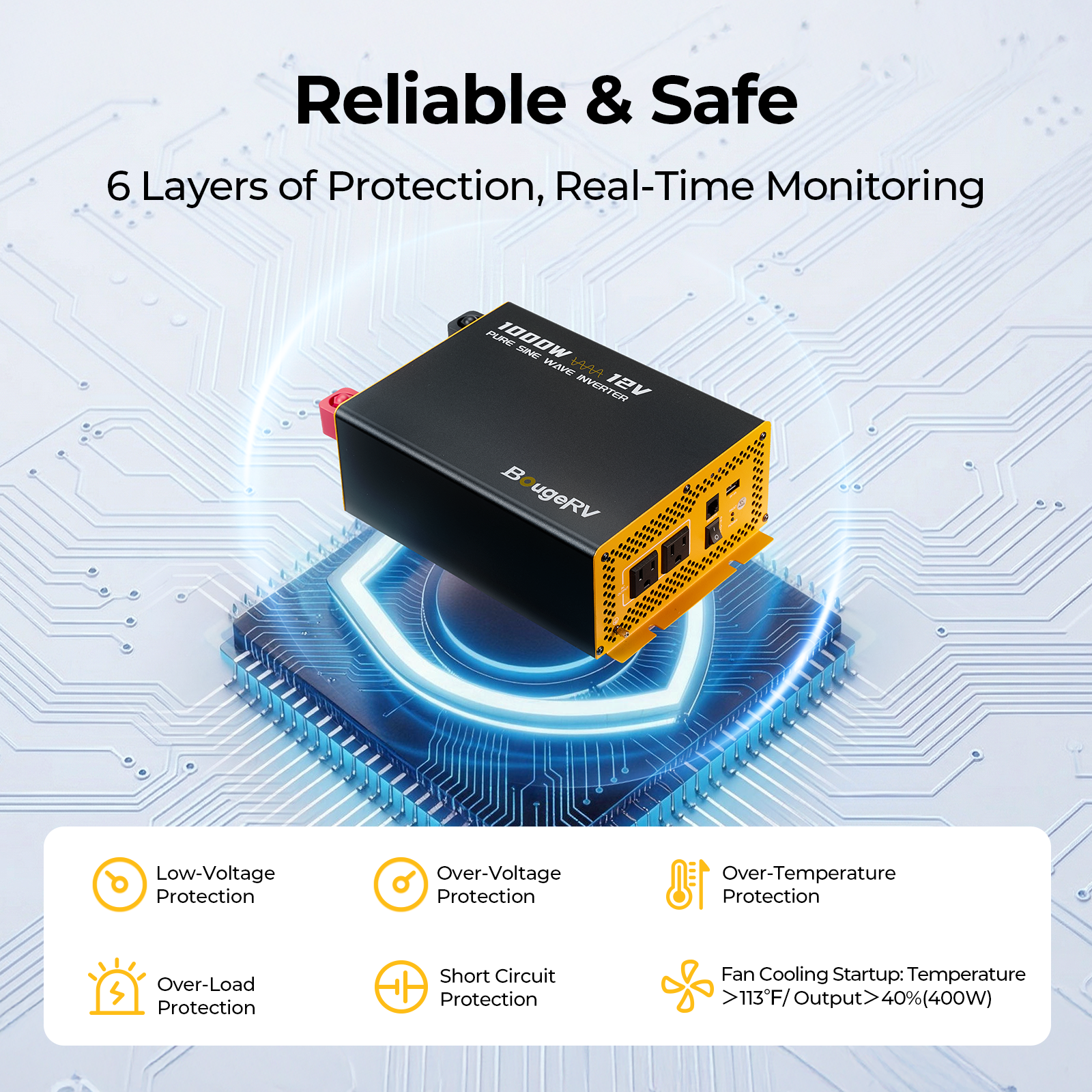

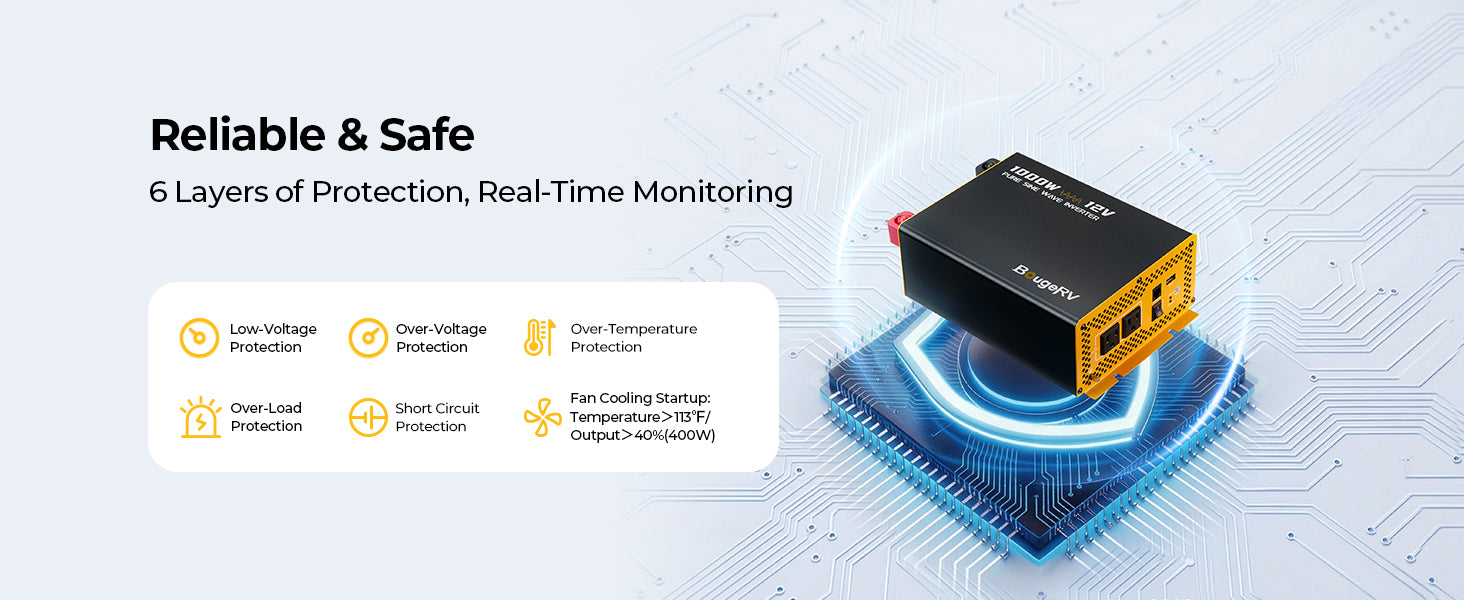

Protection Functions
Protection Function 1. Input Over-voltage Protection
2. Over-discharge Protection
3. Output Overload Protection
4. Short-circuit Protection
5. Inverter Over-temperature Protection
6. Ground Fault Circuit Protection
Battery Low Voltage Alarm 10.5VDC (±0.3V) Over-discharge Voltage 10VDC (±0.3V)
Overvoltage 15.5VDC (±0.3V) Over-temperature Protection ≥167°F (75°C)

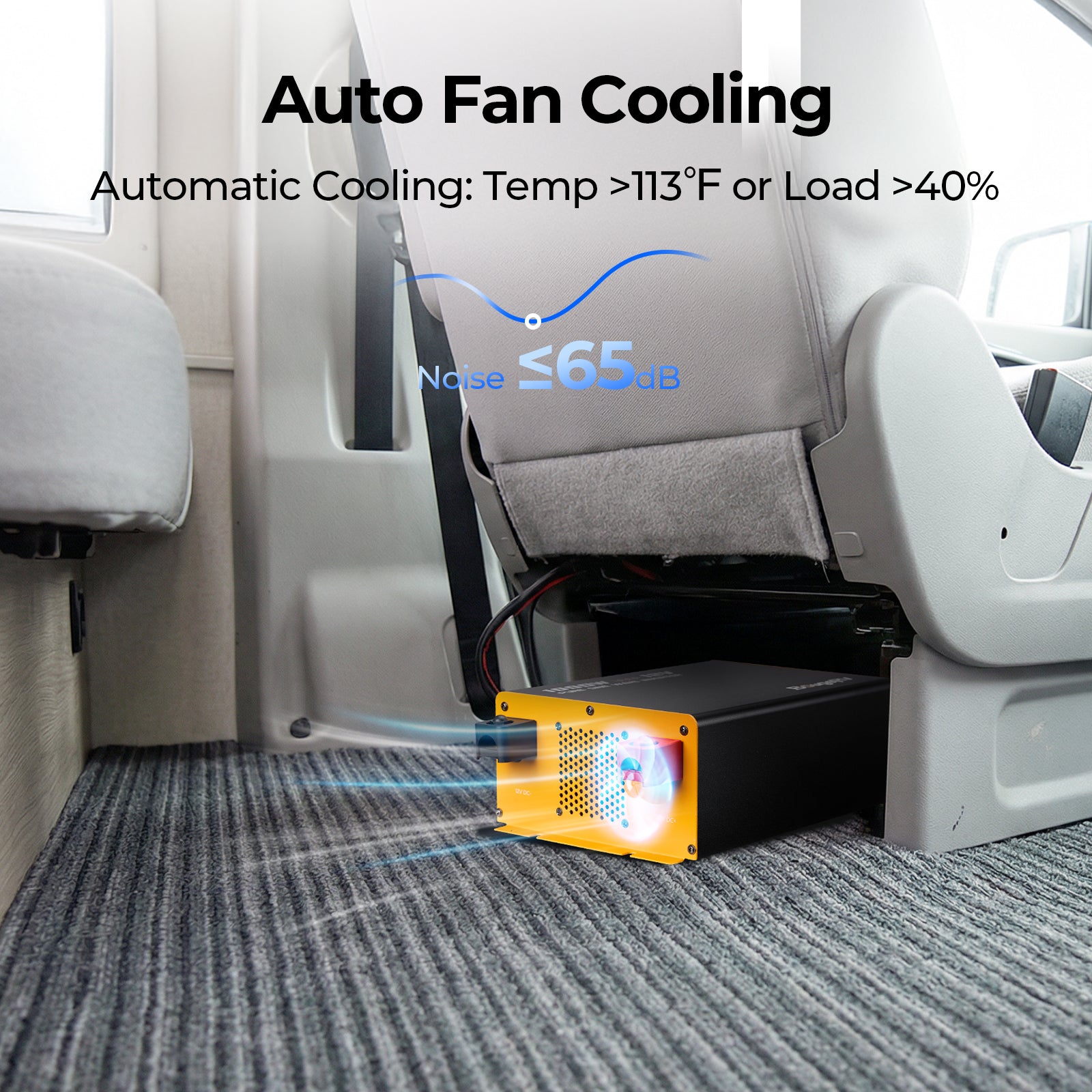

Over-temperature Protection Recovery ≤131°F (55°C) Fan Start-up Temperature ≥113°F (45°C) / ≥40% Load
Communication & Ports

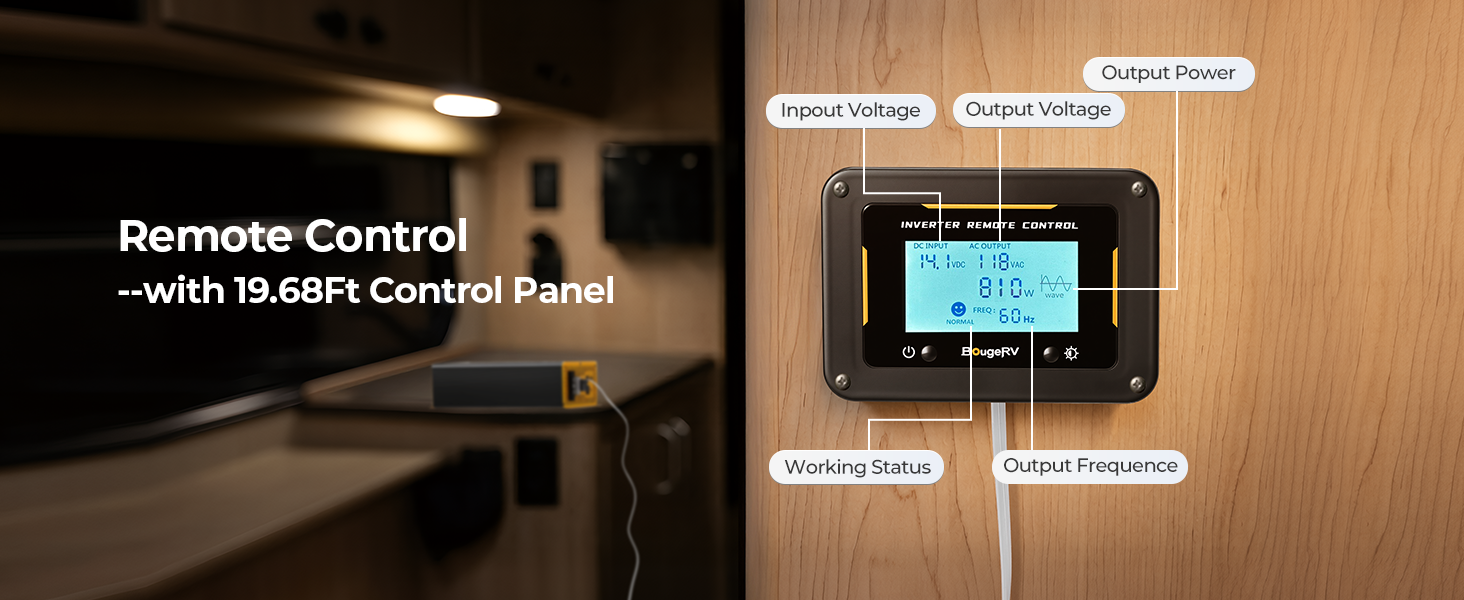

Communication Port RS485 (Remote Control) / Bluetooth (APP)
USB Port 18W × 1 (5V-3.4A, 9V-2A, 12V-1.5A)
SKU SI001-BK-LYTYA1 Model 12V 1000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 13.78 × 7.4 × 3.94 in Weight 5.95 lbs
Rated Power 1000W Overload Power 1200W
Peak Power 2000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss ≤0.6A
Protection Functions Input over-voltage, over-discharge, overload, short-circuit, over-temperature, ground fault protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% load
Communication RS485 / Bluetooth APP USB Port 18W (5V/9V/12V)
