BougeRV 12V 200W Arch2.0 Flexible Solar System Kit

200W Power N-Type TOPCon Flexible Panel RV & Van Use

🏷️Early Prime Deal

Save $260.00
$669.99

30-Day Price Guarantee

$929.99
/

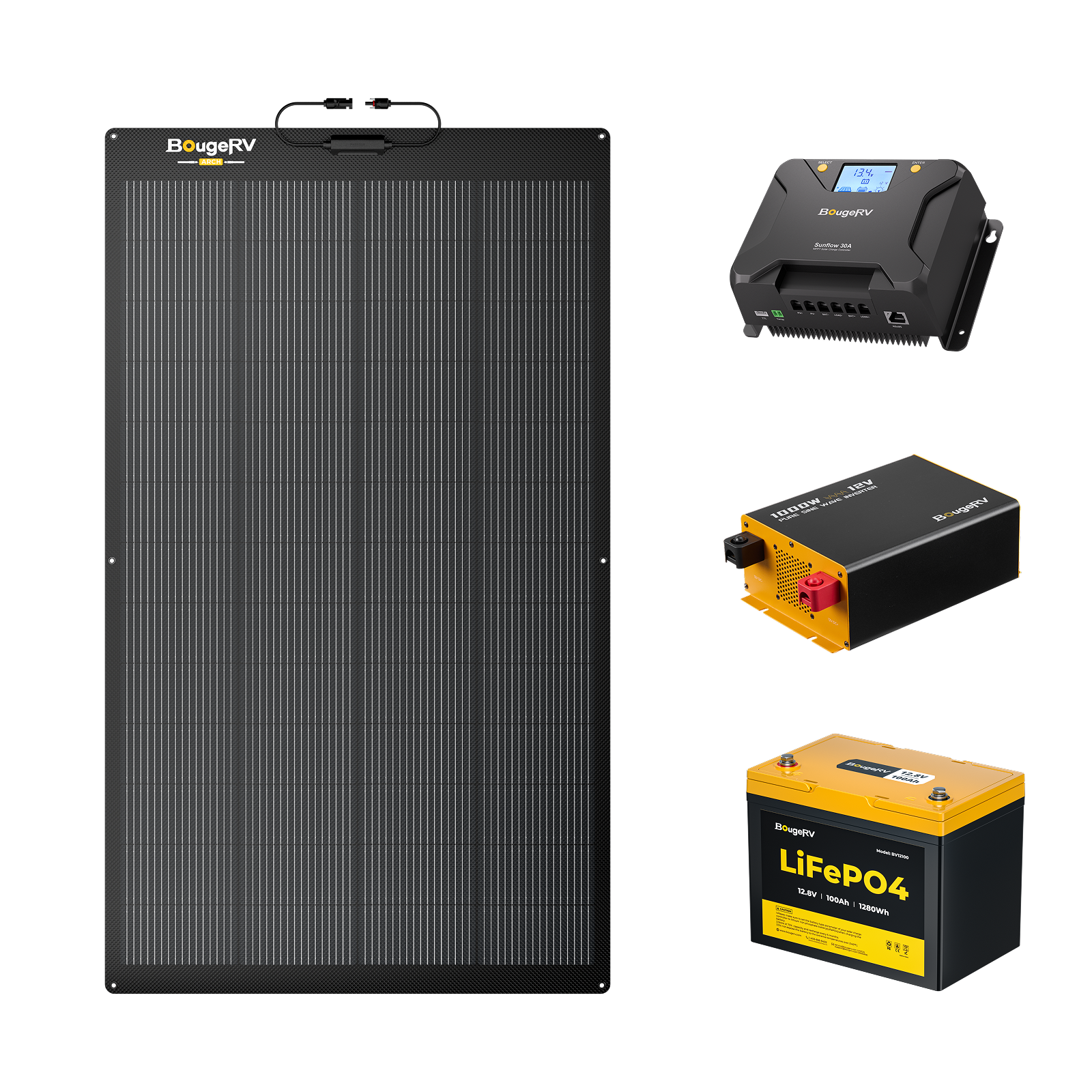

Package Included:

  • 1PC Arch2.0 200 Watt Fiberglass Curved Solar Panel
  • 1PC BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V
  • 1PC 12V 100Ah Group 24 LiFePO4 Battery
  • 1PC 1000W 12V Pure Sine Wave Inverter with Bluetooth
Read more » Fold up »
How The System Works
BougeRV Solar Panel
Solar Panel ×1
BougeRV Battery
Battery ×1
What You Can Power
Fan
Fan
6–10 H
Estimated Runtime
Portable Fridge
Fridge
18–24 H
Estimated Runtime
Coffee Maker
Coffee Maker
5–6
Cups
Camping Light
Light
6–8 H
Estimated Runtime
*Estimated runtime based on typical usage. Actual results may vary depending on power consumption, conditions, and available solar input.

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews

Your Complete 12V Solar Power Solution

Harness solar energy, store it in your battery, and power your everyday essentials with one complete system.

BougeRV 12V solar kit with solar panels, charge controller, battery, inverter, and powered appliances
BougeRV 12V solar kit with solar panels, charge controller, battery, inverter, and powered appliances

How Much Can a Solar Kit Power?

Compare 200W, 400W, 600W, and 800W kits to find the right power for your needs.

BougeRV 200W 12V solar kit powering a fan, fridge, coffee maker, and lights
BougeRV 400W 12V solar kit powering multiple outdoor appliances
BougeRV 600W 12V solar kit for off-grid power and everyday appliances
BougeRV 800W 12V solar kit powering multiple high-use appliances

Step-by-Step Solar System Setup

See how solar energy flows from the panels to your battery and appliances in a simple 12V system

Step-by-step diagram showing how to connect a BougeRV 12V solar panel, charge controller, battery, inverter, and appliances
Step-by-step diagram showing how to connect a BougeRV 12V solar panel, charge controller, battery, inverter, and appliances

Product Features

BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel

Arch 2.0 200W flexible solar panel upgrades to advanced N-type cells, reaching up to 25% efficiency—higher than traditional P-type panels that typically stay around 23% or less. That means more power from the same sunlight, especially when space is limited on your RV or rooftop.

We’ve moved from standard 10 busbars to a refined 16BB design. This upgrade improves current flow across the panel, reducing energy loss and delivering more consistent performance throughout the day—whether you're charging on the road or off-grid.

Designed for real-world use, this panel keeps things efficient without adding bulk. At just 8.8 lbs and sized at 53.3 × 30.9 inches, it's easy to carry, mount, and integrate into your setup—perfect for RVs, campers, and off-grid systems.

Arch 2.0 doesn’t just produce more—it performs better when it matters. With an additional ~3W output and an improved temperature coefficient of -0.39%/°C, it minimizes power loss in high temperatures. So even under strong summer sun, you still get reliable energy when you need it most.

N-Type TOPCon solar panel with 25% high efficiency cells
16BB N-Type flexible solar panel stable high power output
lightweight flexible solar panel for RV camping and outdoor use
high performance solar panel working efficiently in hot weather

BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V

Built for demanding outdoor conditions, this MPPT solar charge controller maintains reliable charging performance in high and low temperatures. When temperatures drop below 32°F (0°C), built-in low-temperature protection automatically stops lithium battery charging to help protect battery life and system stability—whether you're camping, traveling, or living off-grid.

Built-in protection continuously monitors your solar charging system against common electrical risks, including over-temperature, over-voltage, over-discharge, short circuit, reverse connection, overload, and input power issues. Multiple safeguards help keep your battery and solar system stable in demanding outdoor conditions.

With up to 99.5% tracking efficiency and 99% conversion efficiency, this MPPT controller helps maximize the solar energy captured from your panels. Less energy wasted means more usable power for your battery and more reliable energy when you're off the grid.

Stay connected to your solar system wherever you are. With a 33 ft remote control range, you can monitor system status and adjust charging settings without WiFi or cellular service. Convenient for RVs, camper vans, and remote off-grid locations.

Different battery capacities require different charging levels. Adjustable charging current lets you fine-tune the MPPT solar charge controller to match your battery and solar setup, helping deliver controlled charging while reducing the risk of overcurrent.

BougeRV MPPT solar charge controller with low-temperature battery protection below 32°F for RV and off-grid solar systems
BougeRV MPPT solar charge controller with eight intelligent protection functions for safe off-grid solar charging
BougeRV high-efficiency MPPT solar charge controller with 99.5% tracking efficiency and 99% conversion efficiency
BougeRV MPPT solar charge controller with 33 ft Bluetooth control and offline operation without internet
BougeRV MPPT solar charge controller with adjustable charging current for different battery capacities

BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery

The battery management system monitors battery conditions and protects against overvoltage, undervoltage, overcurrent, short circuits, overheating, and low-temperature charging. Six protection functions help keep the battery operating safely and reliably.

Provides low-temperature protection for battery charging. If the temperature falls below 32°F, it reduces or turns off current input and resumes charging at 35.6°F to ensure optimal battery health and extend battery life.

At only 24.25 lbs. Standard dimensions of L10.24" W6.61" H8.23". The BougeRV Group 24 12V 100Ah LiFePO4 battery offers an excellent balance of space and performance, providing sufficient ampere-hours to meet a variety of needs while greatly saving space.

Rated for 4000 cycles at 25°C, 0.2C, and 100% DOD, with a lifespan of up to 10 years under appropriate use. Deep-cycle performance provides more usable energy across repeated charge and discharge cycles.

BougeRV 12V 100Ah LiFePO4 battery with BMS overvoltage undervoltage overcurrent short circuit and temperature protection
BougeRV 12V 100Ah LiFePO4 battery with low temperature charging protection below 32°F
BougeRV 12V 100Ah Group 24 LiFePO4 battery with compact dimensions and 24.25 lb weight
BougeRV 12V 100Ah LiFePO4 battery with 4000 cycle life 100% DOD and 10 year lifespan

BougeRV 1000W 12V Pure Sine Wave Inverter

Deliver stable 1000W continuous power for your RV, campsite, or off-grid setup, with 4000W peak power to handle demanding startup loads.

Deliver clean and stable AC power with low THD, making it suitable for sensitive electronics, appliances, and everyday devices.

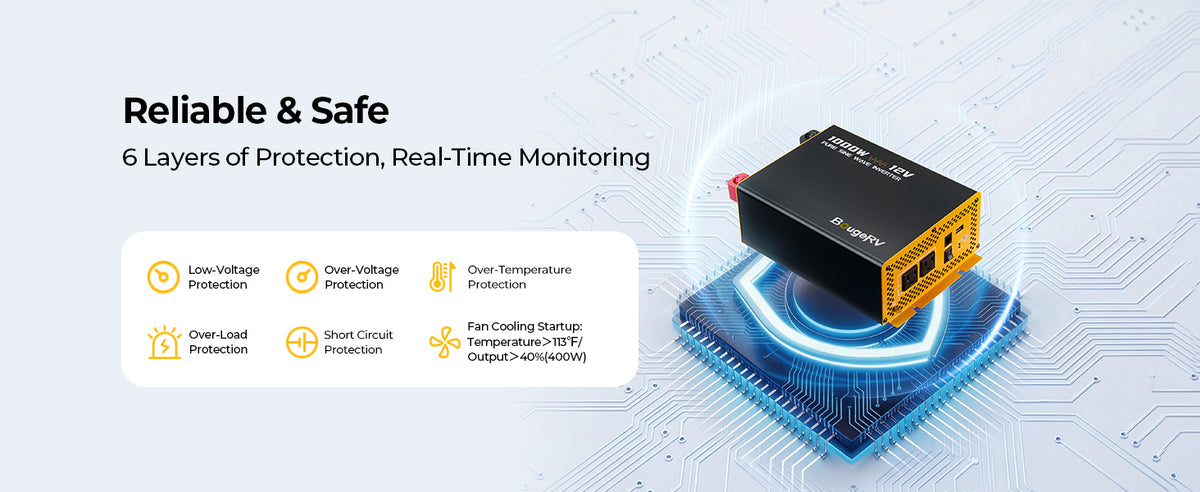

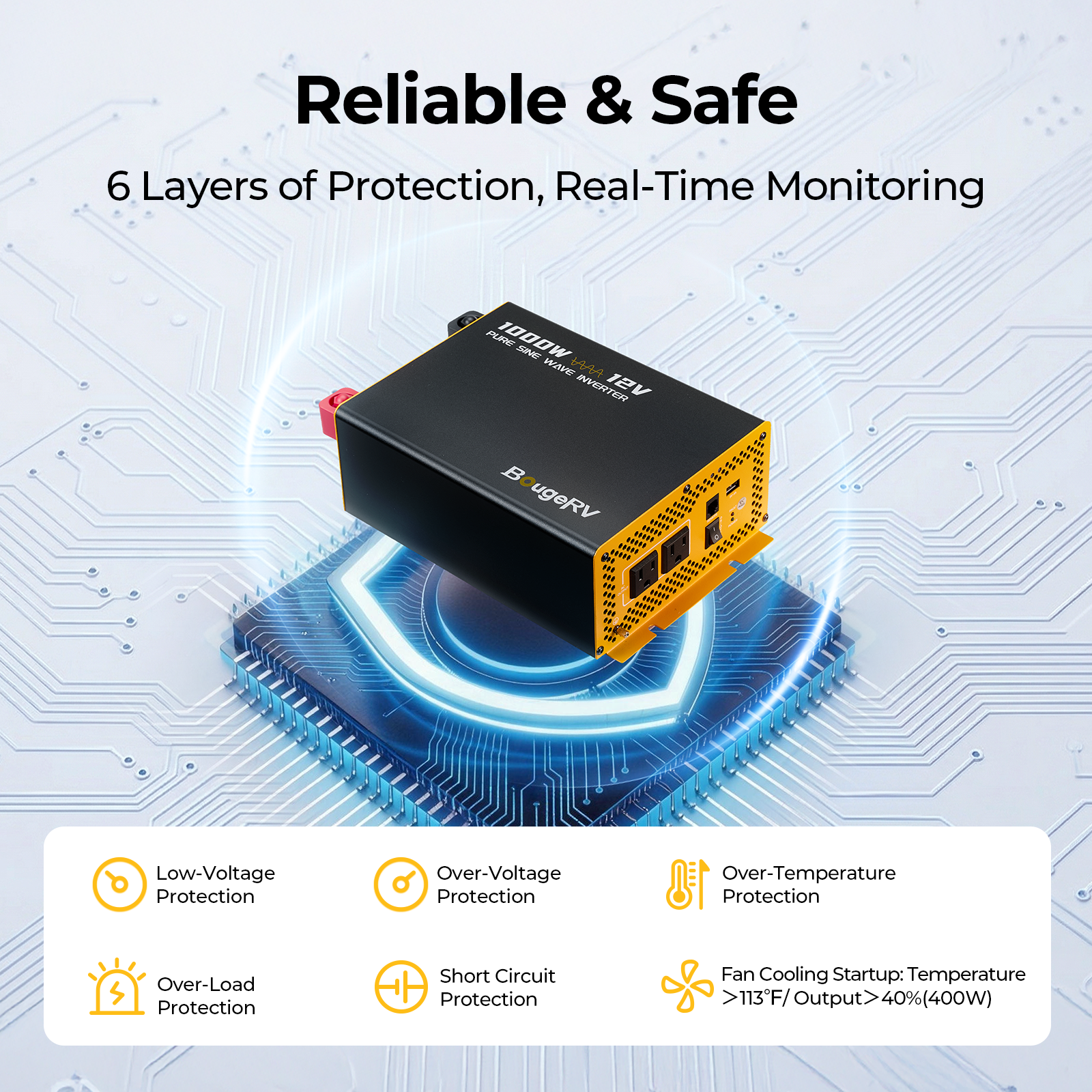

Built-in protection continuously monitors the system to help safeguard against low voltage, over-voltage, overload, overheating, short circuits, and ground faults.

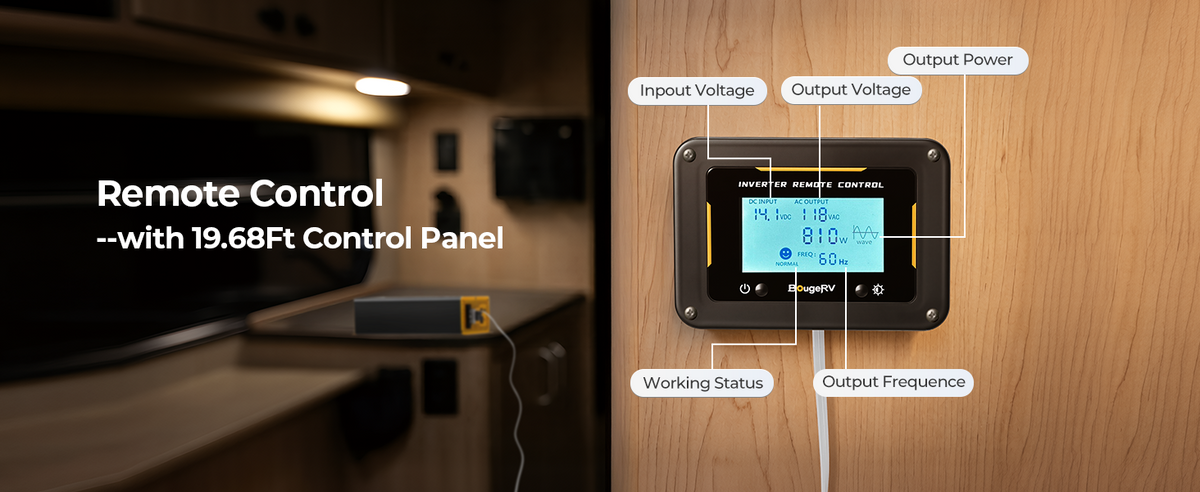

Use the included 19.68-ft wired control panel to monitor and manage your inverter conveniently from a distance.

The built-in cooling fan automatically activates under high temperature or heavy load conditions, helping maintain stable performance during extended use.

BougeRV 1000W 12V pure sine wave inverter with 1000W continuous output and 2000W peak power
BougeRV 1000W 12V pure sine wave inverter delivering clean low THD power for sensitive electronics
BougeRV 1000W 12V inverter with six-layer protection for safe and reliable power
BougeRV 1000W 12V inverter with 19.68-foot wired remote control panel for convenient power monitoring
BougeRV 12V pure sine wave inverter with automatic fan cooling for stable operation

What's in the Box

Arch2.0 200W Solar Panel*1

👉User Manual

30A MPPT Solar Controller

👉User Manual

100Ah LiFePO4 Battery*1

👉User Manual

12V 1000W Inverter

👉User Manual

Product Specifications

SKU ISE230N Version Upgrade
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 24±5% V Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 8.34±5% A Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 28±5% V Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 8.75±5% A Dimensions 53.0*30.9*0.1 inches
Power output warranty 25 years 80% output warranty Weight 8.8 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU ISE230N
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 24V±5%
Max. Power Current Imp (A) 8.34A±5%
Open Circuit Voltage Voc (V) 28V±5%
Short Circuit Current (Isc) 8.75A±5%
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53.0*30.9*0.1 inches
Weight 8.8lbs
SKU ISE217

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 30 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 450W/12V; 900W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 30 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 7.28L*5.23W*2.95H inches
No Load Loss ≤10mA Weight 2.37 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE217
System Voltage 12V/24V
Rated Charging Current 30 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 450W/12V; 900W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 30 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 7.28L*5.23W*2.95H inches
Weight 2.37 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYA1 Model 12V 1000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 13.78 × 7.4 × 3.94 in Weight 5.95 lbs
Rated Power 1000W Overload Power 1200W
Peak Power 2000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss ≤0.6A
Protection Functions Input over-voltage, over-discharge, overload, short-circuit, over-temperature, ground fault protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% load
Communication RS485 / Bluetooth APP USB Port 18W (5V/9V/12V)
SKU SI001-BK-LYTYA1 Model 12V 1000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 13.78 × 7.4 × 3.94 in Weight 5.95 lbs
Rated Power 1000W Overload Power 1200W
Peak Power 2000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss ≤0.6A
Protection Functions Input over-voltage, over-discharge, overload, short-circuit, over-temperature, ground fault protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% load
Communication RS485 / Bluetooth APP USB Port 18W (5V/9V/12V)
