10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors
10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors

10Ft 10AWG Solar Extension Cable and 1 Pair of Solar Y Branch Parallel Connectors

$14.99
/

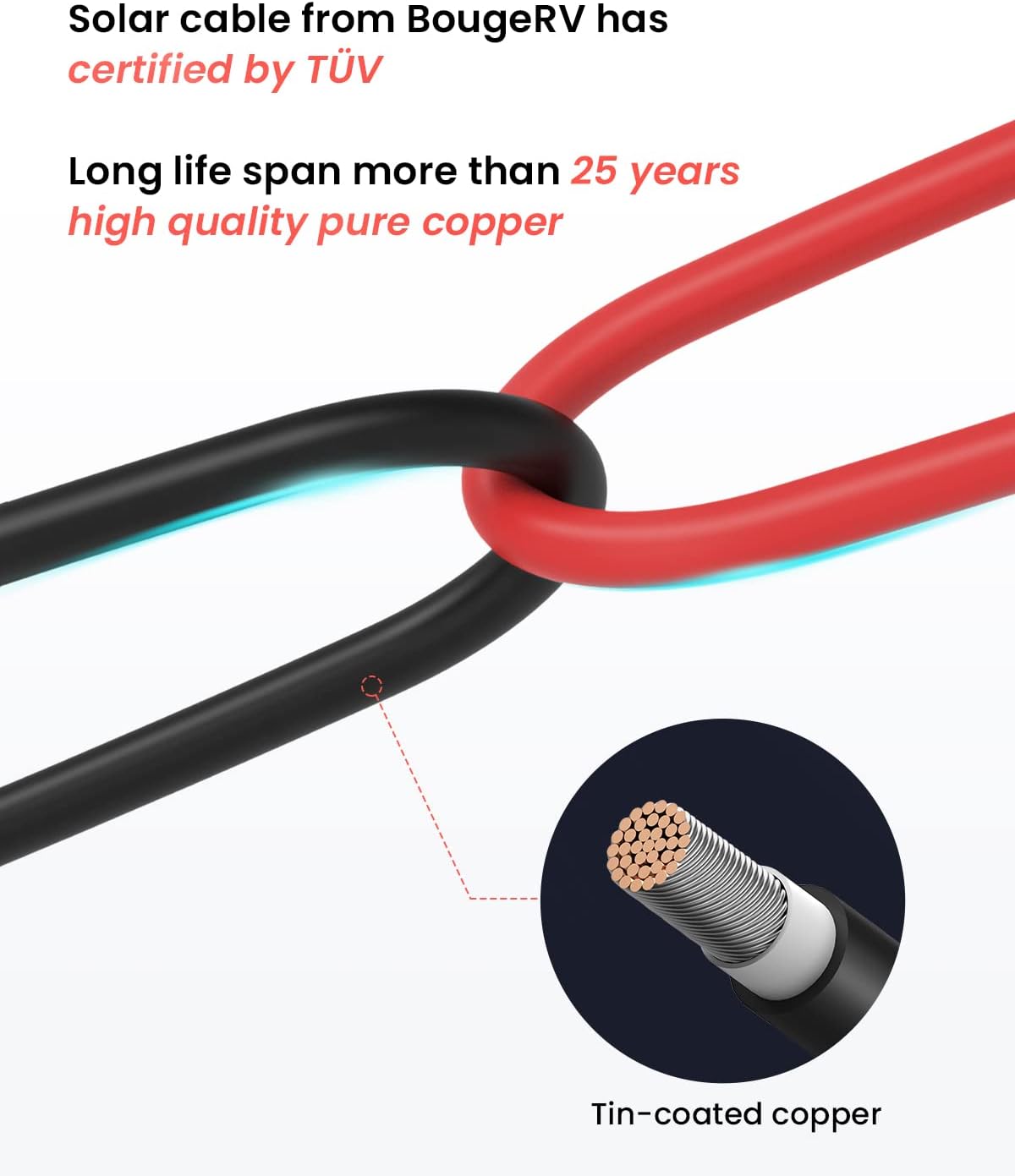

  • SOLID CONNECTIONS: Made with tin-coated pure cooper, shielding with dual thick insulation, the tinned coated pure cooper cable is good electrical conductivity, compared with bare copper wire, its corrosion resistance, oxidation performance is stronger, can greatly extend the service life of cables.
  • WATERPROOF CONNECTION: Featuring with IP67 waterproof solar connector, this solar extension cable is no issues with snow, sleet, and rain including heavy snow dumping down. The connector is stable and safe with the built-in lock which is durable in outdoors environment.
  • QUICK AND EASY CONNECTION: One end has the connectors installed and the other end is plain in case you are hooking up to a controller. This solar extension cable can help you to position my solar panels with ease and flexibility.

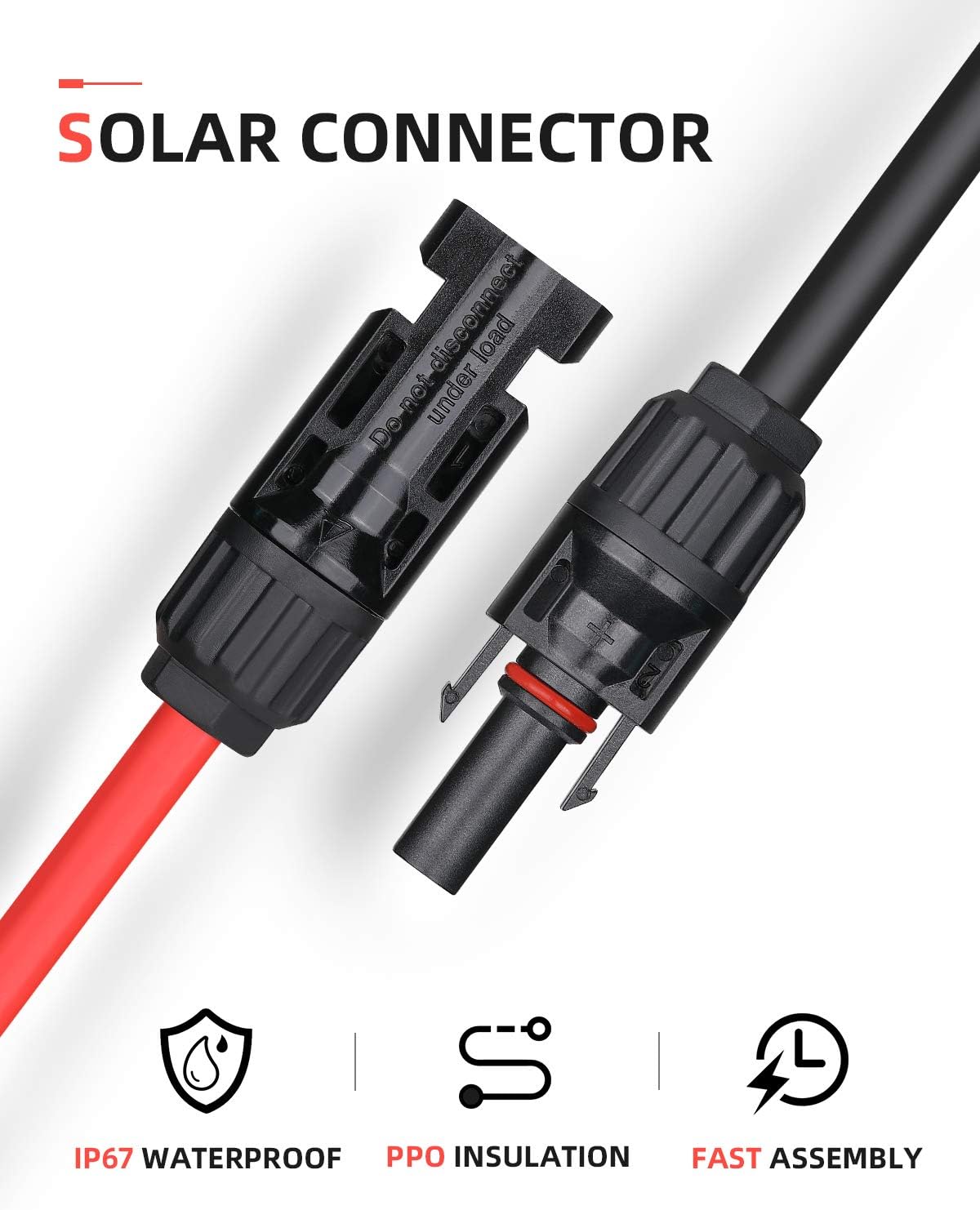

  • HIGH SECURITY: The connector is certified by TÜV, made with PPO material, the contact is made with Copper silver plated. Quality material makes sure that it can keep working stably from -40℉ to 190℉.

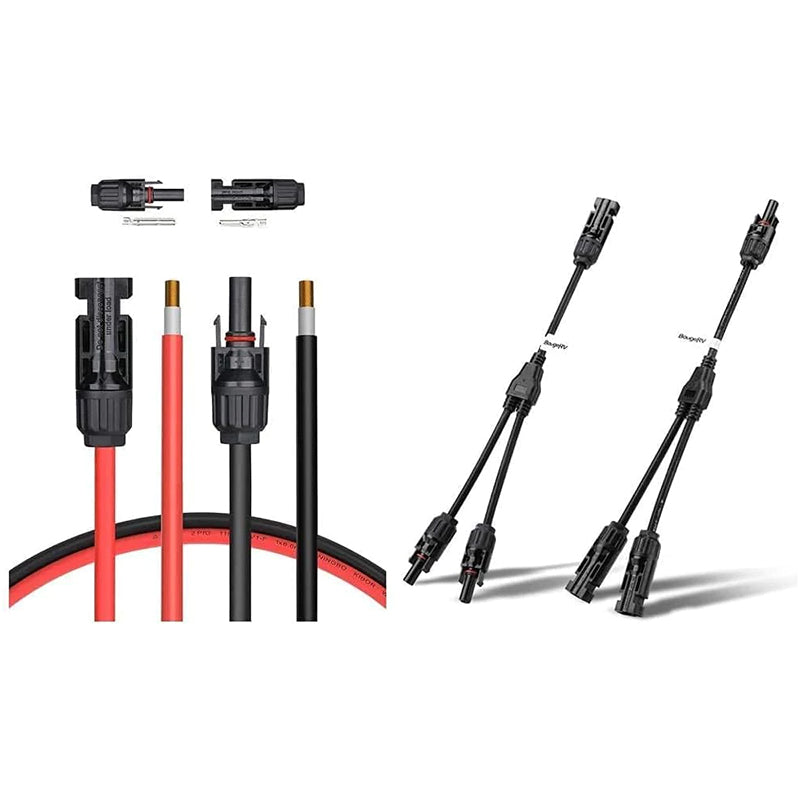

  • WHAT YOU GET: A pair of 10awg 10 feet solar extension cable, 1 pair extra solar connector and 1 pair of 12awg solar y branch connector (F/MM&M/FF). BougeRV is dedicated to provide customers with high quality product through constant improvement and also promise an 18 months warranty of each product.
Read more » Fold up »
15

Pay With Ease:

Payments icons
  • Features
  • Tech Specs
  • Reviews
solar y branch connectors
solar y branch connectors

Solar Connectors Y Branch Parallel Adapter Cable(2 Pairs： 1 male to 2 female and 1 female to 2 male)

Main Technical Specification: -Rated Current:20A -Rated Voltage: DC1000V

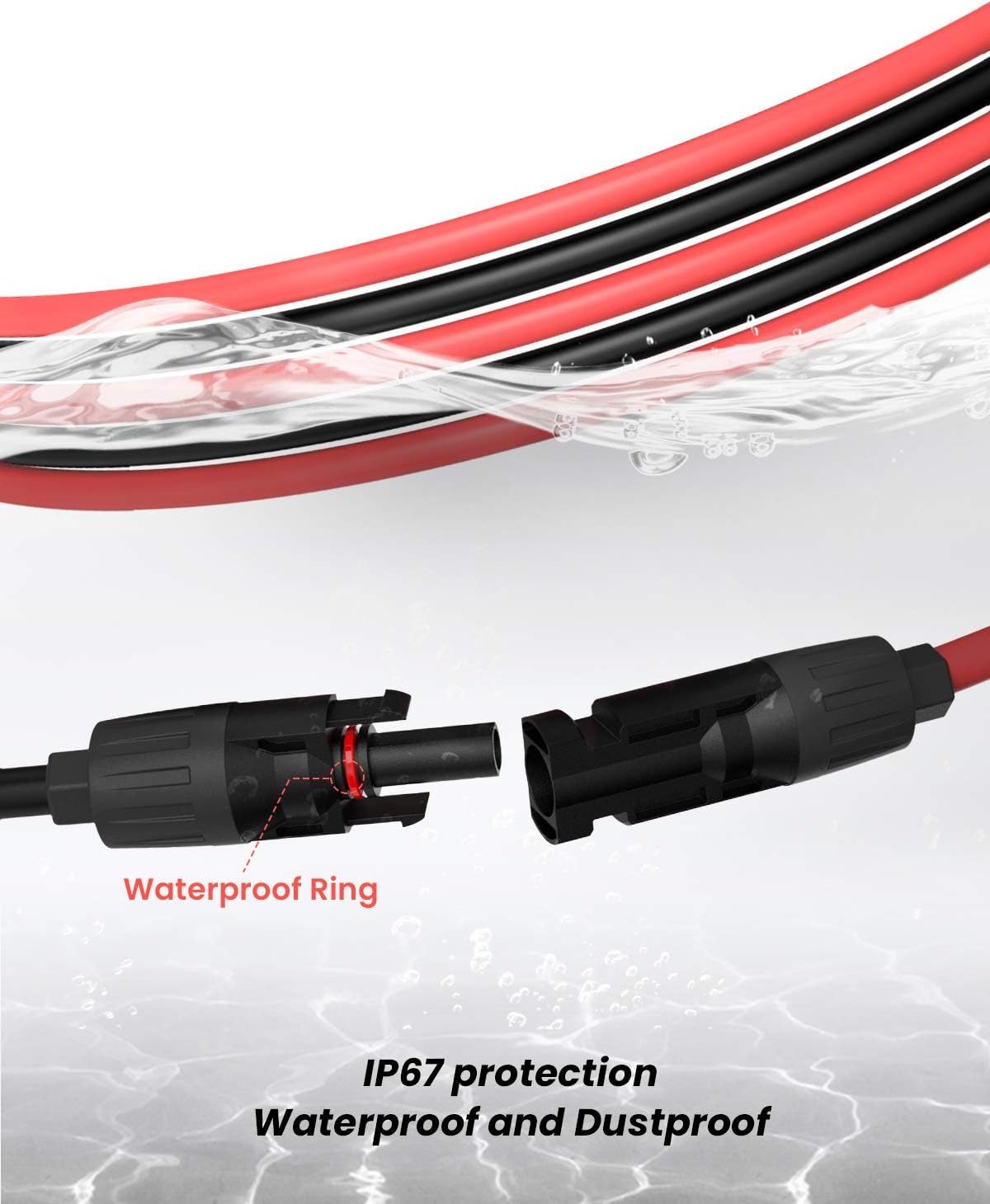

The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion

Suitable Single Core Cable Section: 1.5mm² -- 6mm²

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

solar y branch connectors are IP67 Waterproof
solar y branch connectors are IP67 Waterproof
solar y branch connectors are PPO Insulation Material
solar y branch connectors are PPO Insulation Material
solar y branch connectors are Compatible with10/11/12/13/14 AWG
solar y branch connectors are Compatible with1011121314 AWG
solar y branch connectors are IP67 Waterproof
solar y branch connectors are IP67 Waterproof
solar y branch connectors are PPO Insulation Material
solar y branch connectors are PPO Insulation Material
solar y branch connectors are Compatible with10/11/12/13/14 AWG
solar y branch connectors are Compatible with1011121314 AWG
Suitable Single Core Cable
Suitable Single Core Cable

Insulation Material: PPO
Rated Current: 20A(4mm²）
Rated Voltage: DC1000V
Contact Resistance: ≤5mΩ
Insulation Resistance: >500mΩ
Operating Temperature range: -40℃ until+90℃
Degree of Protection: IP67
Flame Class: UL94-V0

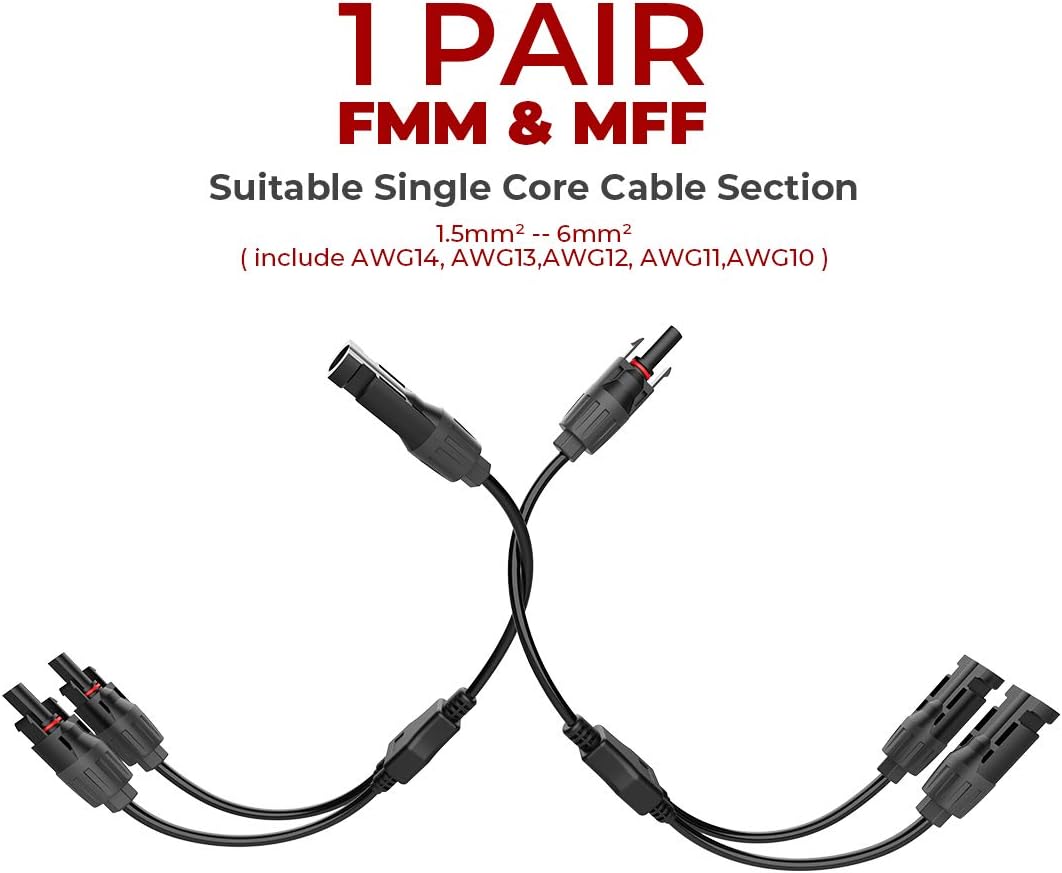

Safety Degree: Ⅱ Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

Package included
2 Pair of Y Branch Solar Panel Cable Connectors

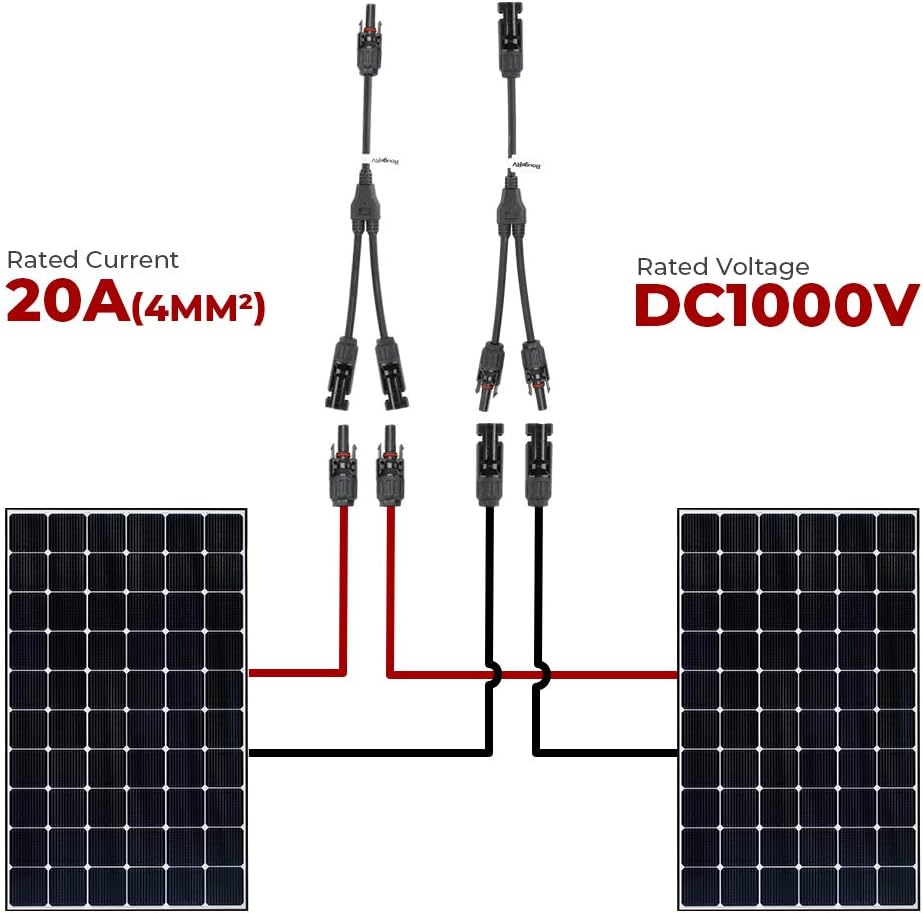

Application of solar Y-branch connector
Application of solar Y-branch connector

Product Specifications

SKUISE002-B021
Rated Current20A(4mm²）Rated VoltageDC1000V
Contact Resistance≤5mΩInsulation Resistance>500mΩ
Operating Temperature range-40℃ until+90℃Degree of ProtectionIP67
Flame ClassUL94-V0Safety DegreeⅡ
Suitable Single Core Cable Section1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
SKU ISE002-B021
Rated Current 20A(4mm²）
Contact Resistance ≤5mΩ
Operating Temperature range -40℃ until+90℃
Flame Class UL94-V0
Suitable Single Core Cable Section 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
Rated Voltage DC1000V
Insulation Resistance >500mΩ
Degree of Protection IP67
Safety Degree Ⅱ
