BougeRV Kit Solar Rígido Premium TOPCon de 12V y 800W

Paneles de alta eficiencia tipo N de 16BB para vehículos recreativos y sistemas fuera de la red

RV solar setup van life solar cabin off-grid system N-Type

🎉Independence Day Sale

Save $730.00
$2,069.99

Limited Time Deal

$2,799.99
/
🌡️ Combata el calor del verano | Venta relámpago solar 10% de descuento

--

Days

:

--

Hours

:

--

Minutes

:

--

Seconds

Impulse sus aventuras con el kit de sistema solar BougeRV 800W 12V, diseñado para una energía confiable fuera de la red dondequiera que vaya. Con dos paneles solares rígidos de 400W con celdas avanzadas 16BB tipo N, ofrece mayor eficiencia, mejor rendimiento con poca luz y mayor durabilidad que los paneles tradicionales.

Perfecto para vehículos recreativos, furgonetas, caravanas y cabañas fuera de la red, este kit solar completo proporciona energía estable de 12V para hacer funcionar lo esencial, cargar baterías y respaldar una vida prolongada al aire libre. Ya sea que esté practicando overlanding, acampando o buscando independencia energética, está diseñado para funcionar en condiciones del mundo real.

Fácil de instalar y diseñado para una confiabilidad a largo plazo, el sistema maximiza la producción de energía, incluso con sombra parcial o clima cambiante. Una solución confiable para energía limpia y sostenible en la carretera o fuera de la red.

Actualice su configuración solar hoy y disfrute de una energía eficiente y portátil, en cualquier momento y en cualquier lugar.

Read more » Fold up »
10

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee

  • Características

  • En la caja

  • Especificaciones técnicas

  • Reseñas

Sistema de batería solar todo en uno que alimenta el frigorífico, el aire acondicionado, el ventilador y las luces de una autocaravana.

Solar
Controller
Battery
Inverter
AC Output
Fridge
Cooling
Air Conditioner
Cooling
Fan
Ventilation
Coffee
Brew
Light
Lighting
Water Heater
Shower

¿Cuánta energía puede generar un kit solar?

Elegir el kit solar adecuado depende de tus necesidades energéticas, el uso de electrodomésticos y las condiciones diarias de luz solar. Desde configuraciones ligeras hasta sistemas completos fuera de la red, comprender la potencia y el tiempo de funcionamiento te ayuda a construir una solución solar más eficiente y fiable.

Características del producto

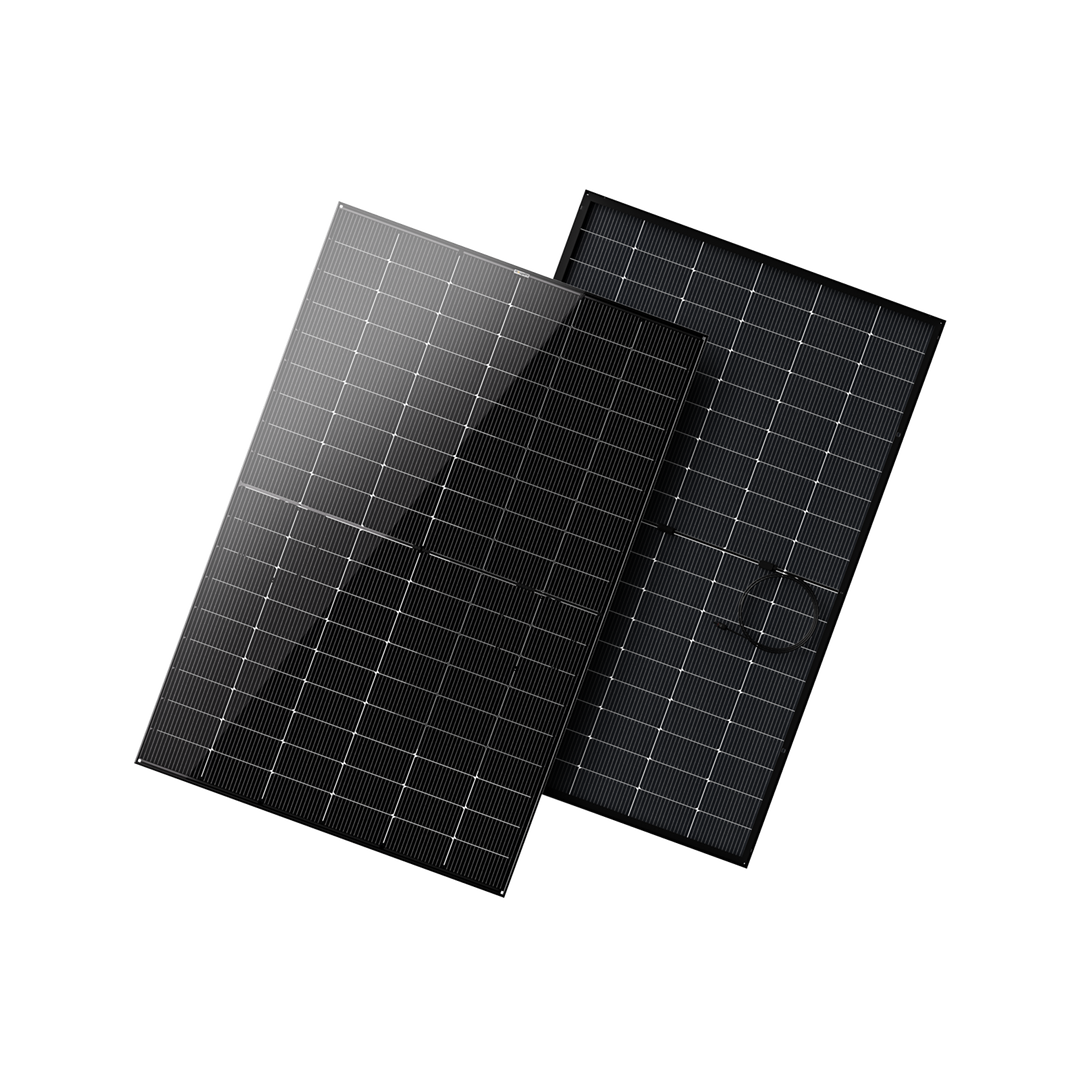

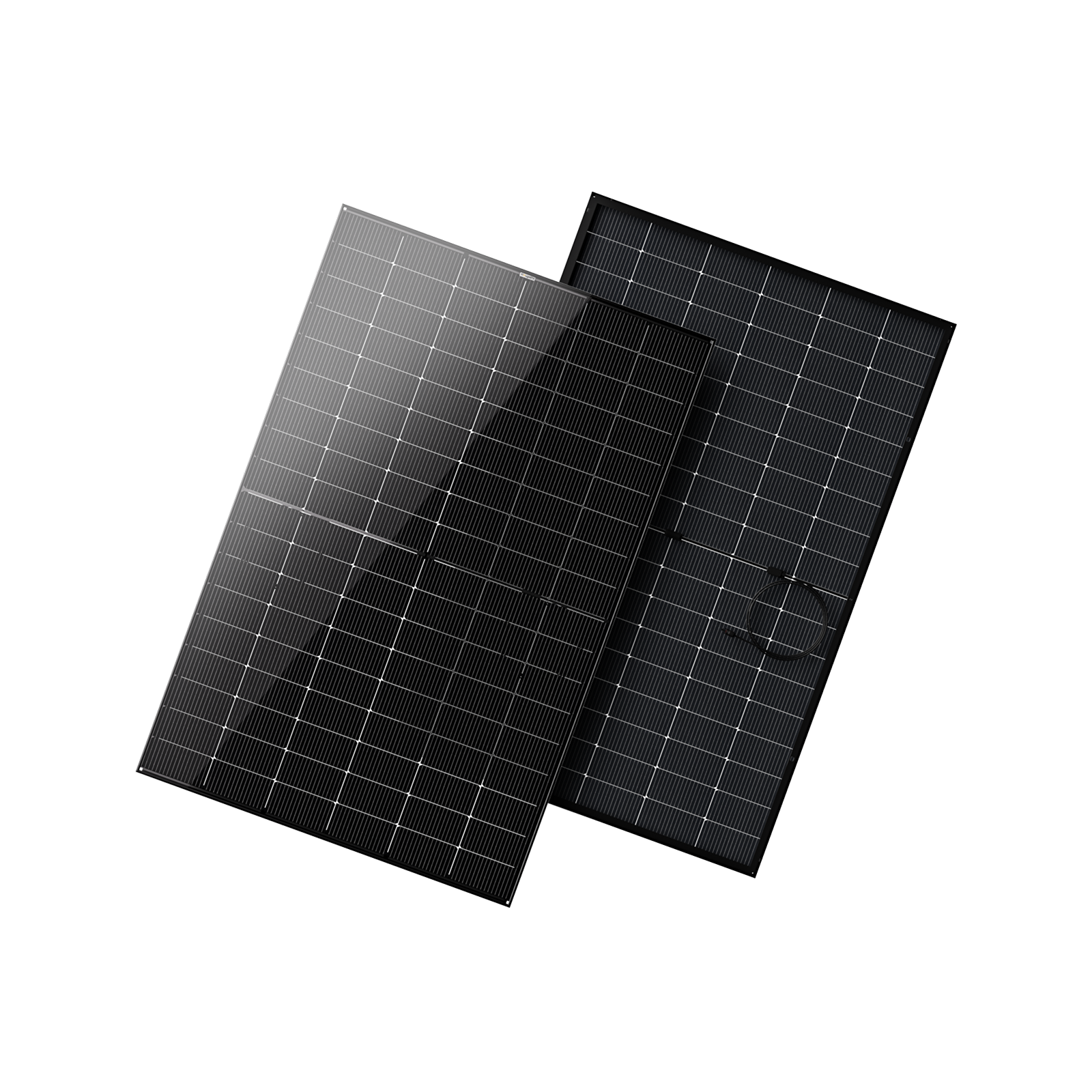

Panel Solar Mono Bifacial Rígido Tipo N de 400 W y 16BB de BougeRV

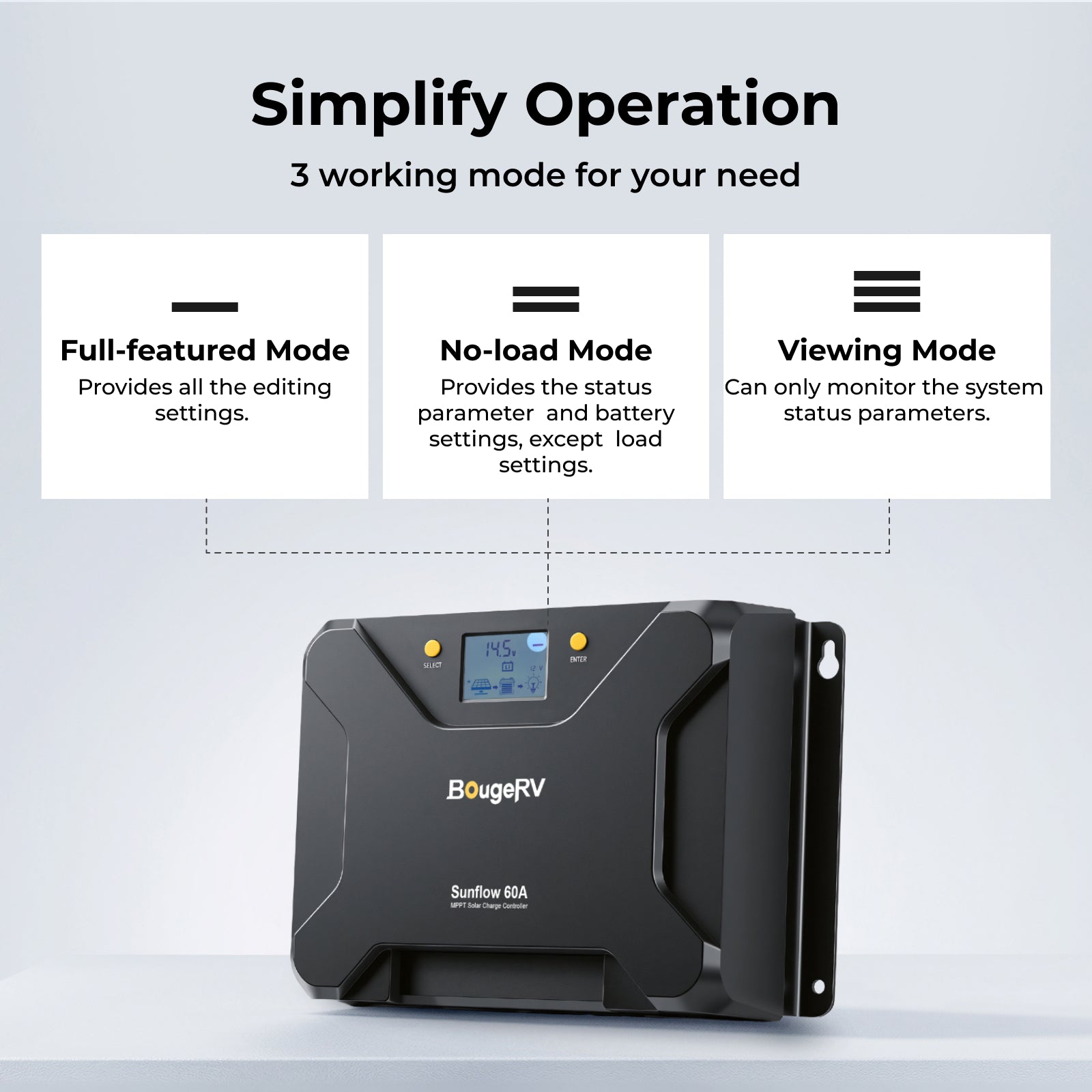

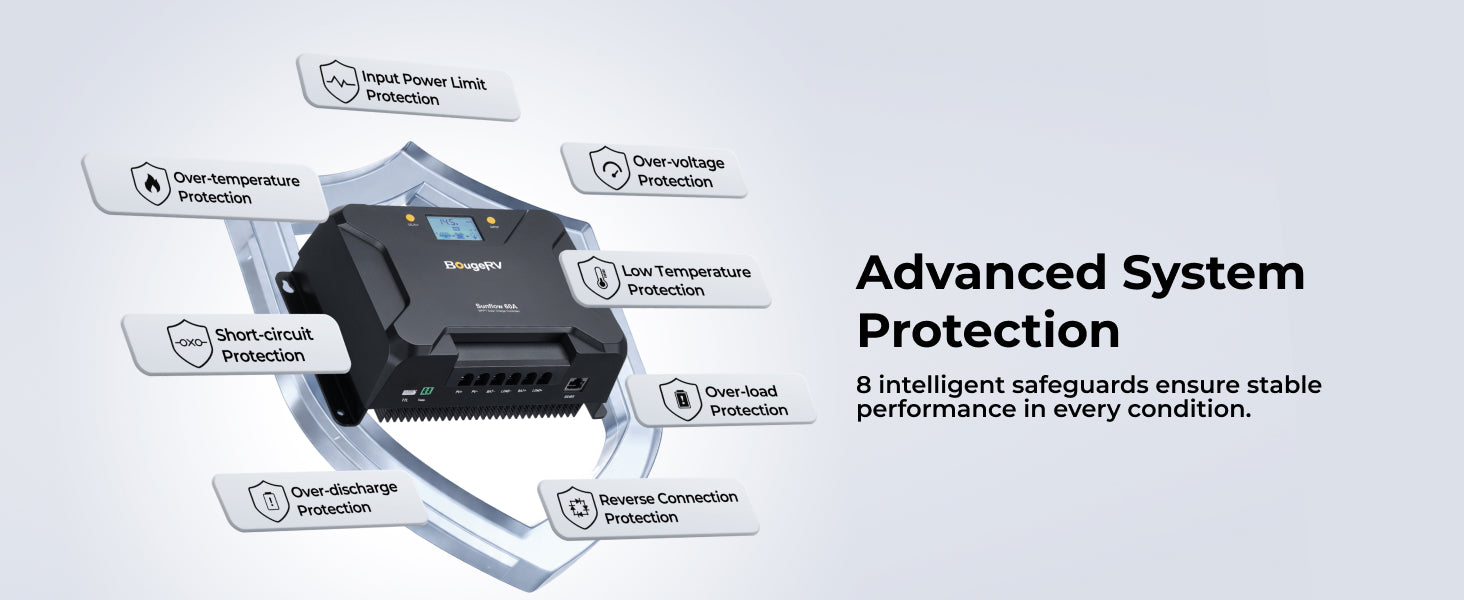

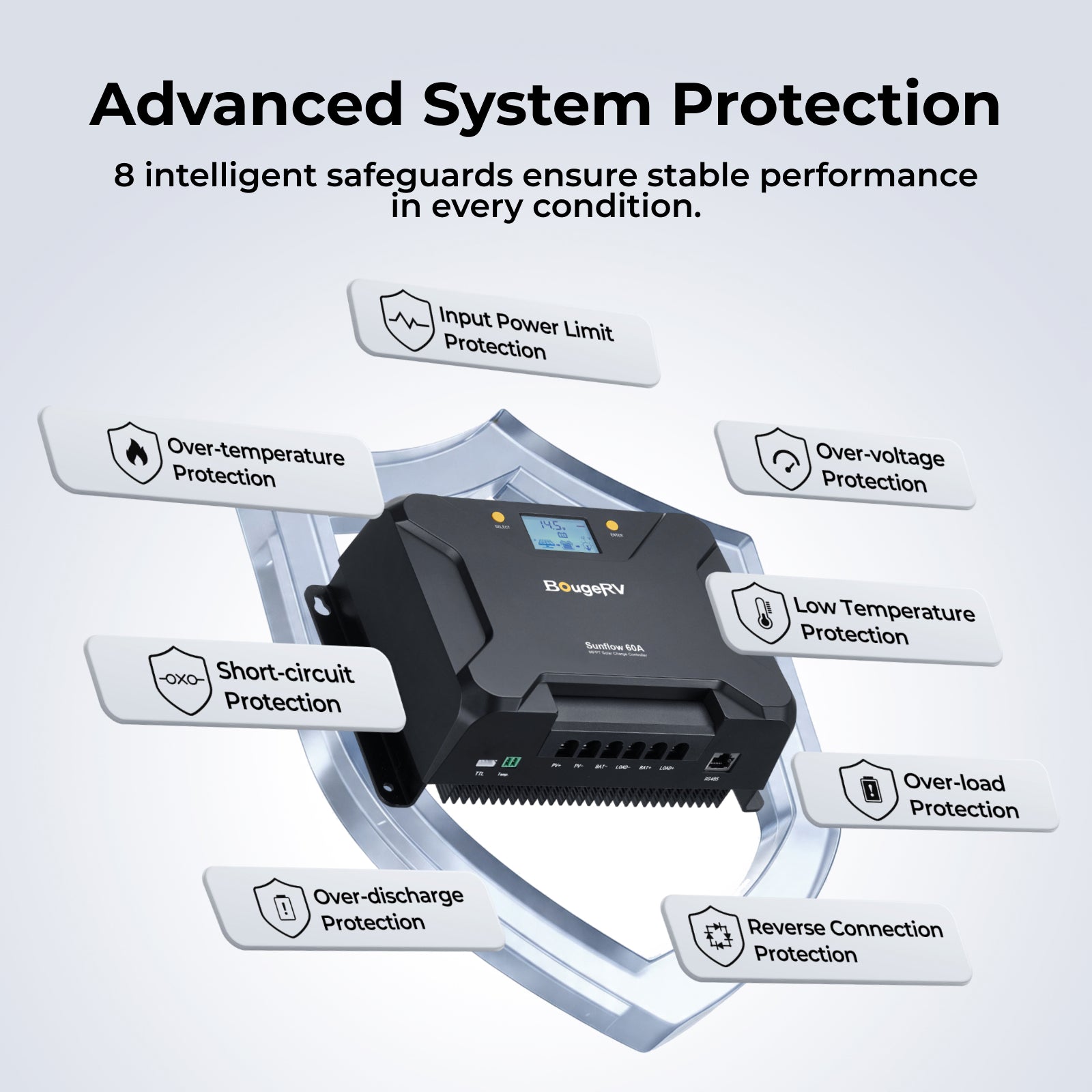

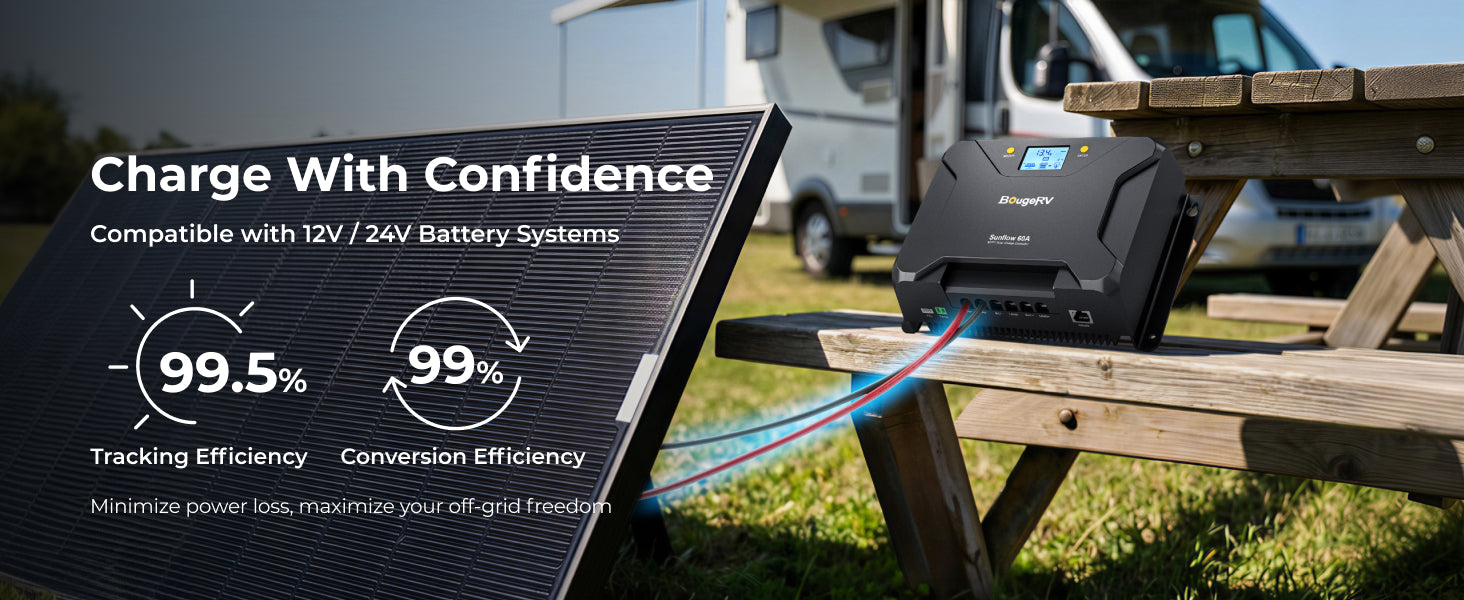

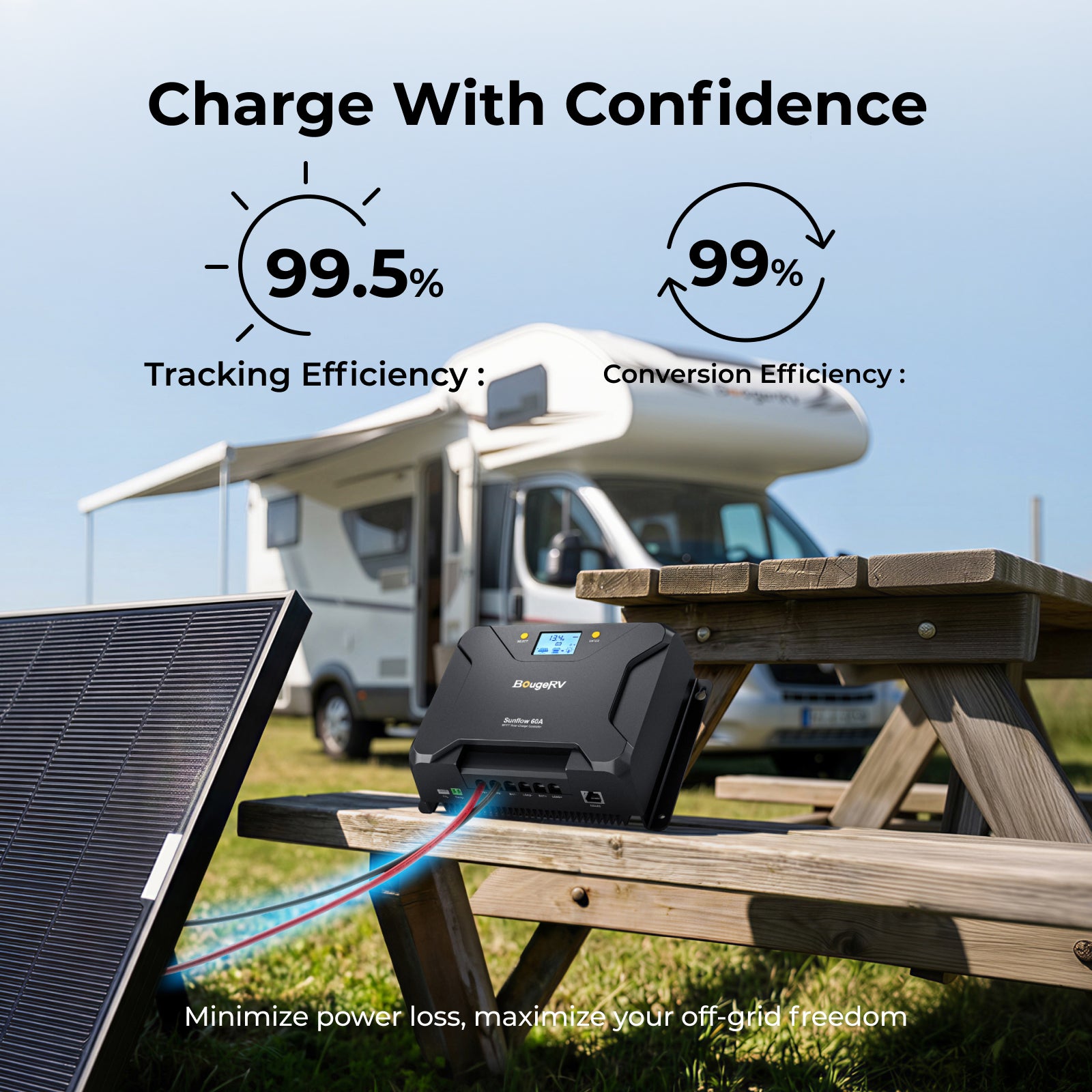

Controlador de carga solar MPPT BougeRV Sunflow 60A 12V/24V

Inversor de onda sinusoidal pura BougeRV 3000W 12V con Bluetooth

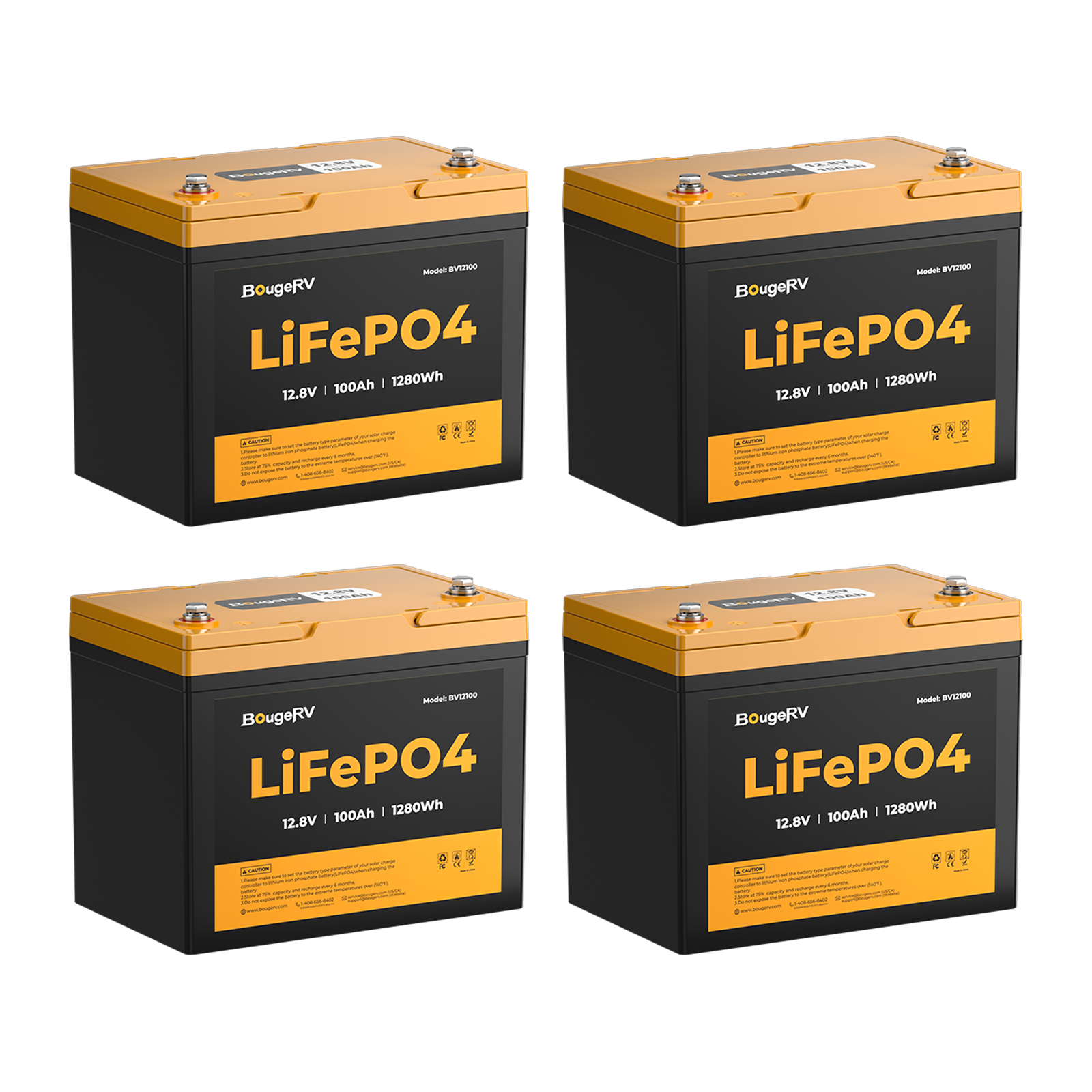

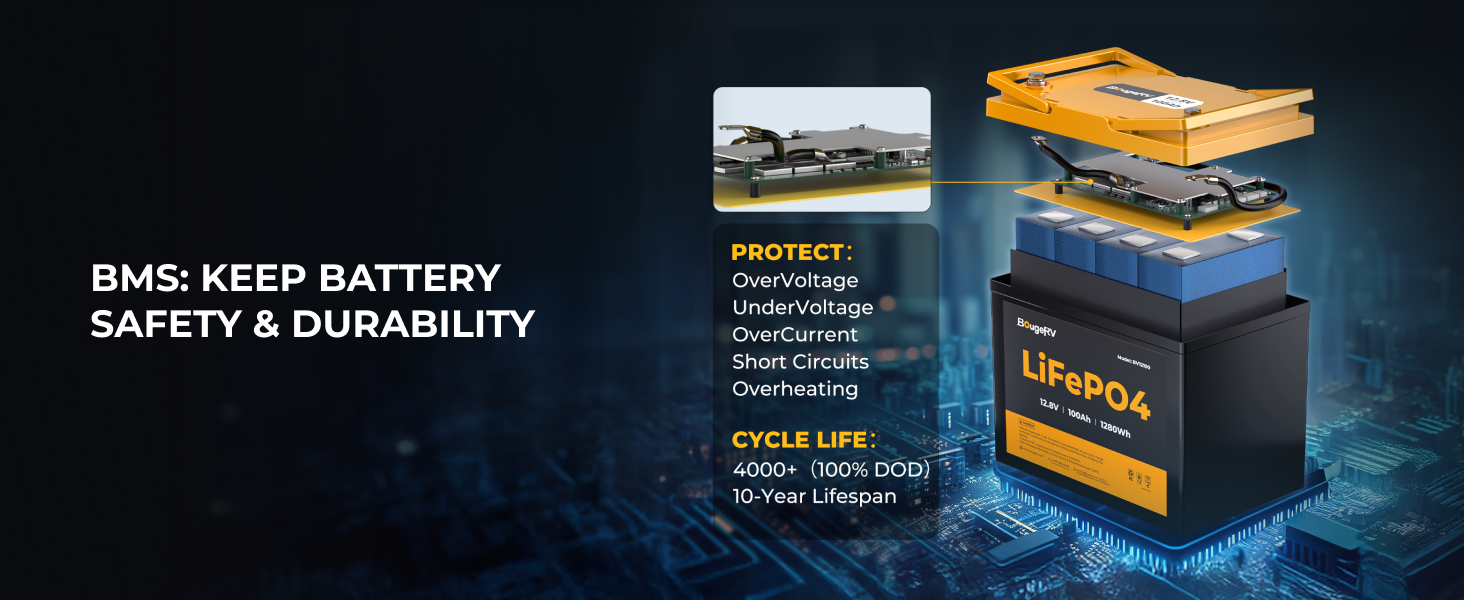

Batería solar BougeRV 12V 100Ah Grupo 24 LiFePO4

Descarga del manual de usuario

ISE240N[400W*2PCS]

Manual de usuario👈

ISE219-BK[60A]

Manual de usuario👈

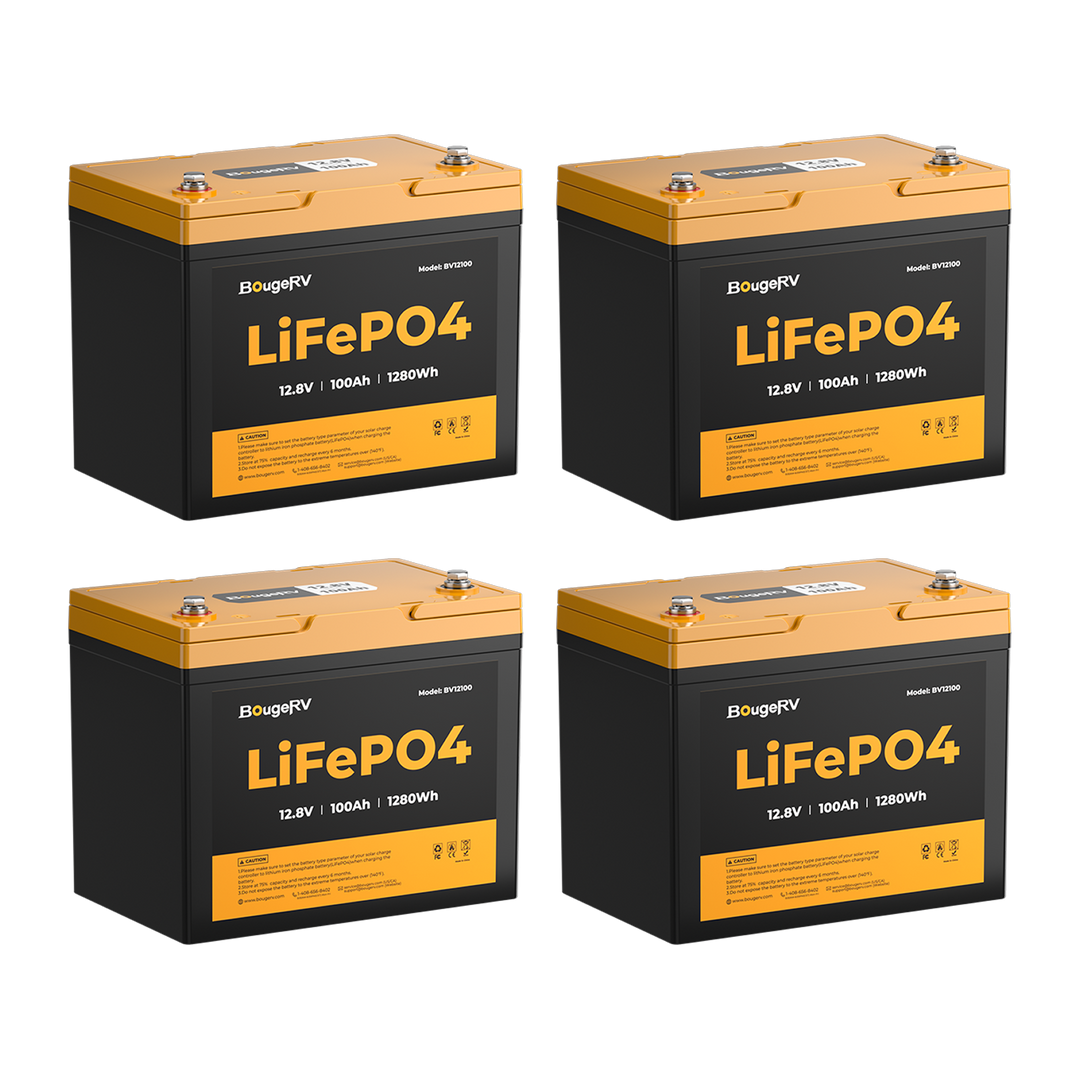

ISE212N*[Batería de 100Ah*4PCS]

Manual de usuario👈

SI001-BK-LYTYC1[3000W]

Manual de usuario👈

Especificaciones del producto

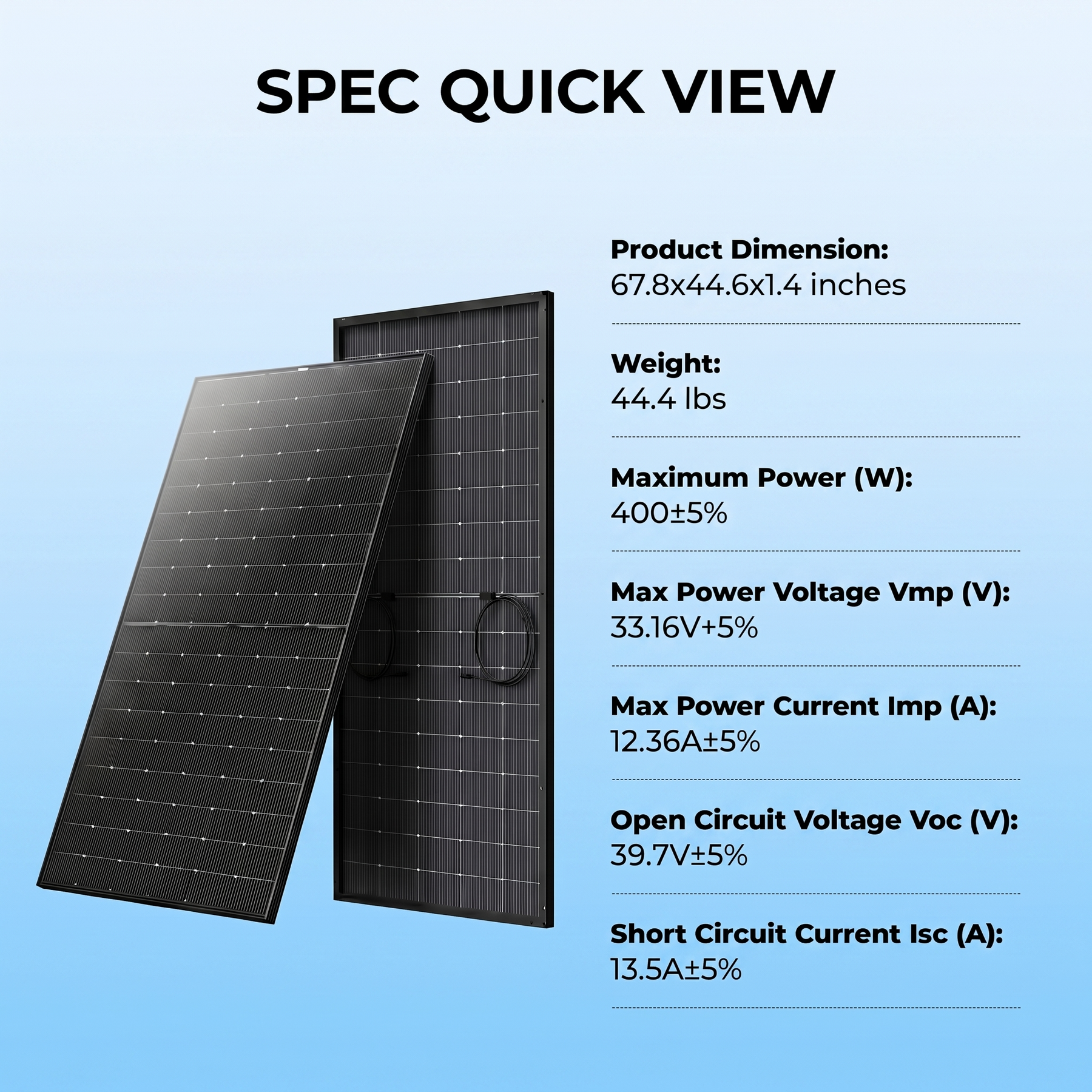

SKU ISE240N
Max Power (Pmax) 400±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 20A
Max. Power Voltage Vmp (V) 33.16V+5%
 Temperature Coefficient Pmax -0.32%/K
Max. Power Current Imp (A) 12.36A±5% Temperature Coefficient Voc -0.25%/K
Open Circuit Voltage Voc (V) 39.7V±5% Temperature Coefficient Isc +0.045%/K
Short Circuit Current (Isc) 13.5A±5% Dimensions 67.8x44.6x1.4in
Material & Workmanship Warranty 10 Years Weight 44.4 lb
Linear power output warranty 30 Years Product Type N-Type Solar Panels
SKU ISE240N
Max Power (Pmax) 400±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 33.16V+5%
Max. Power Current Imp (A) 12.36A±5%
Open Circuit Voltage Voc (V) 39.7V±5%
Short Circuit Current (Isc) 13.5A±5%
Material & Workmanship Warranty 10 Years
Linear power output warranty 30 Years
Operating Temperature Limits -40℉ ~ +185℉
Series Fuse Rating 20 A

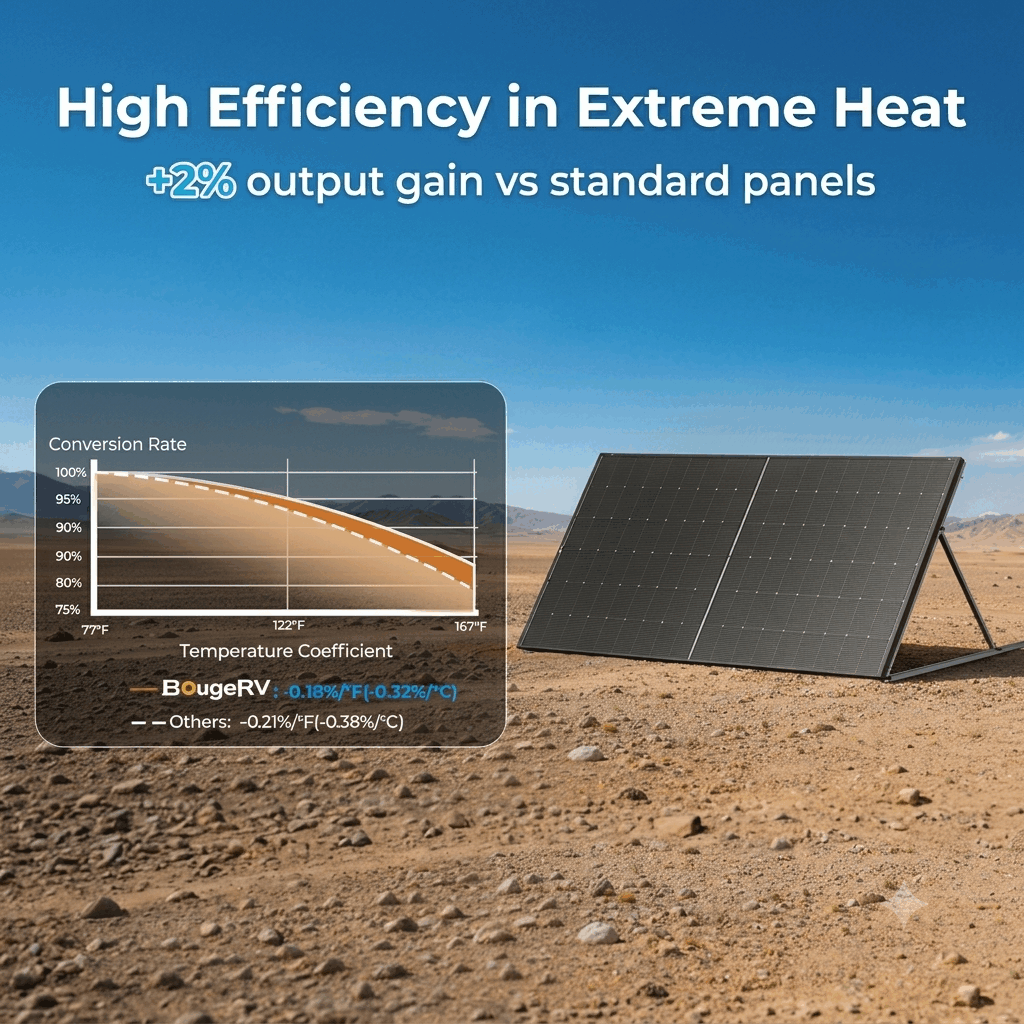

Temperature Coefficient Pmax -0.32%/K
Temperature Coefficient Voc -0.25%/K
Temperature Coefficient Isc +0.045%/℃
Dimensions 67.8x44.6x1.4in
Weight 44.4 lb
SKU ISE219

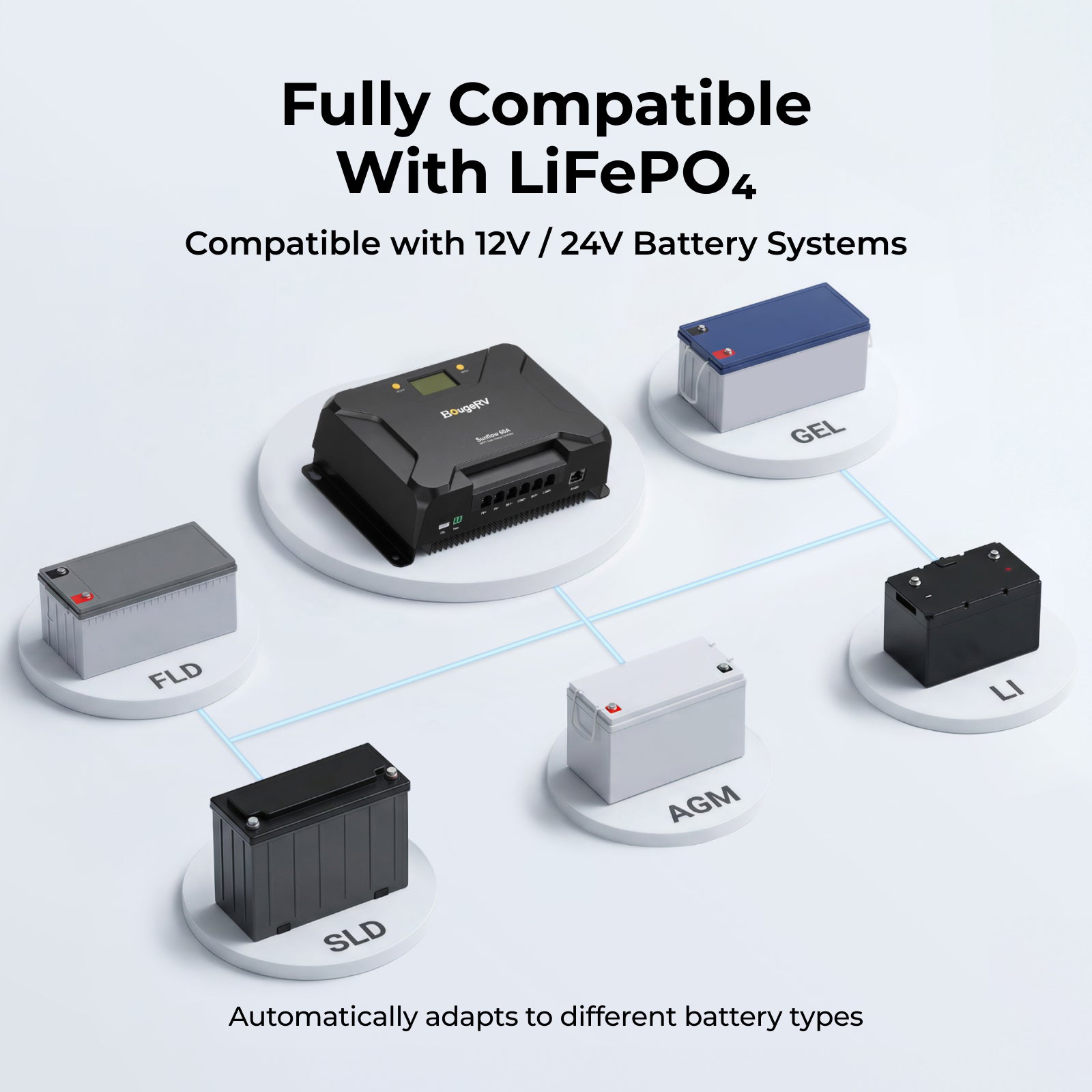

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 60 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 900W/12V; 1800W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth

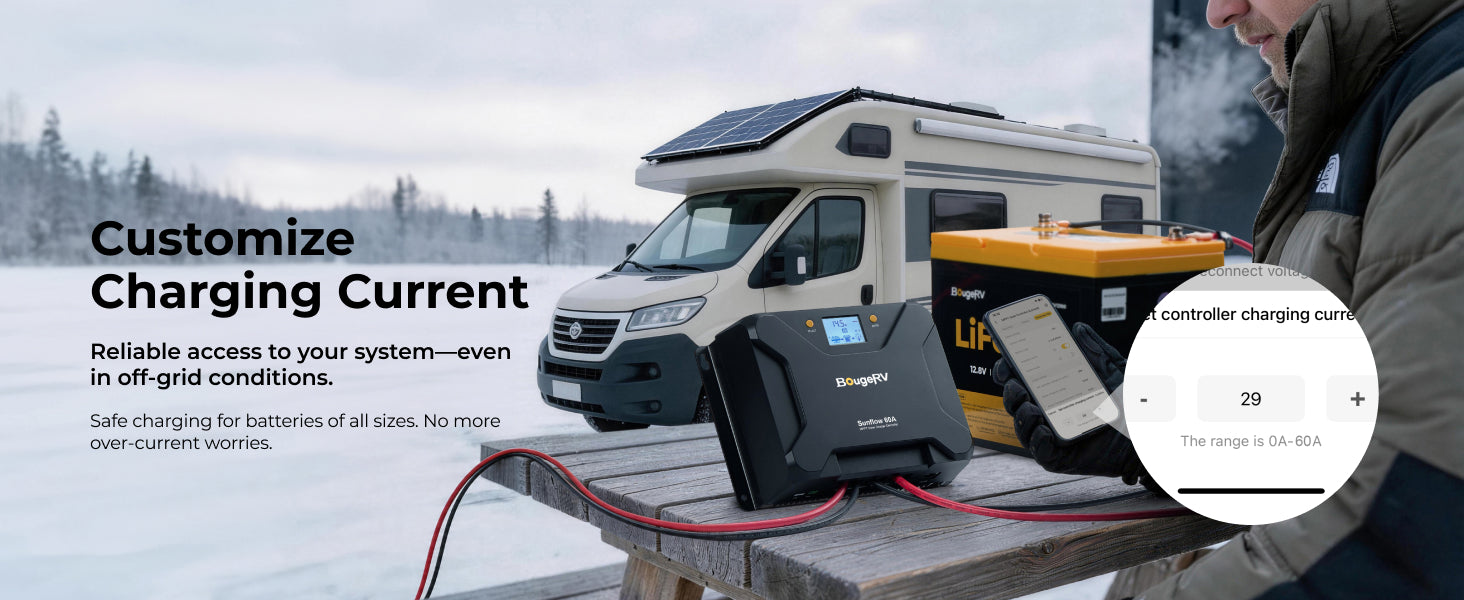

Charge Current Ajust Range 0 Amp to 60 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 10.35L*7.32W*3.35J inches
No Load Loss ≤10mA Weight 5.52 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE219
System Voltage 12V/24V
Rated Charging Current 60 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 900W/12V; 1800W/24V
Rated Load Current 20 Amp

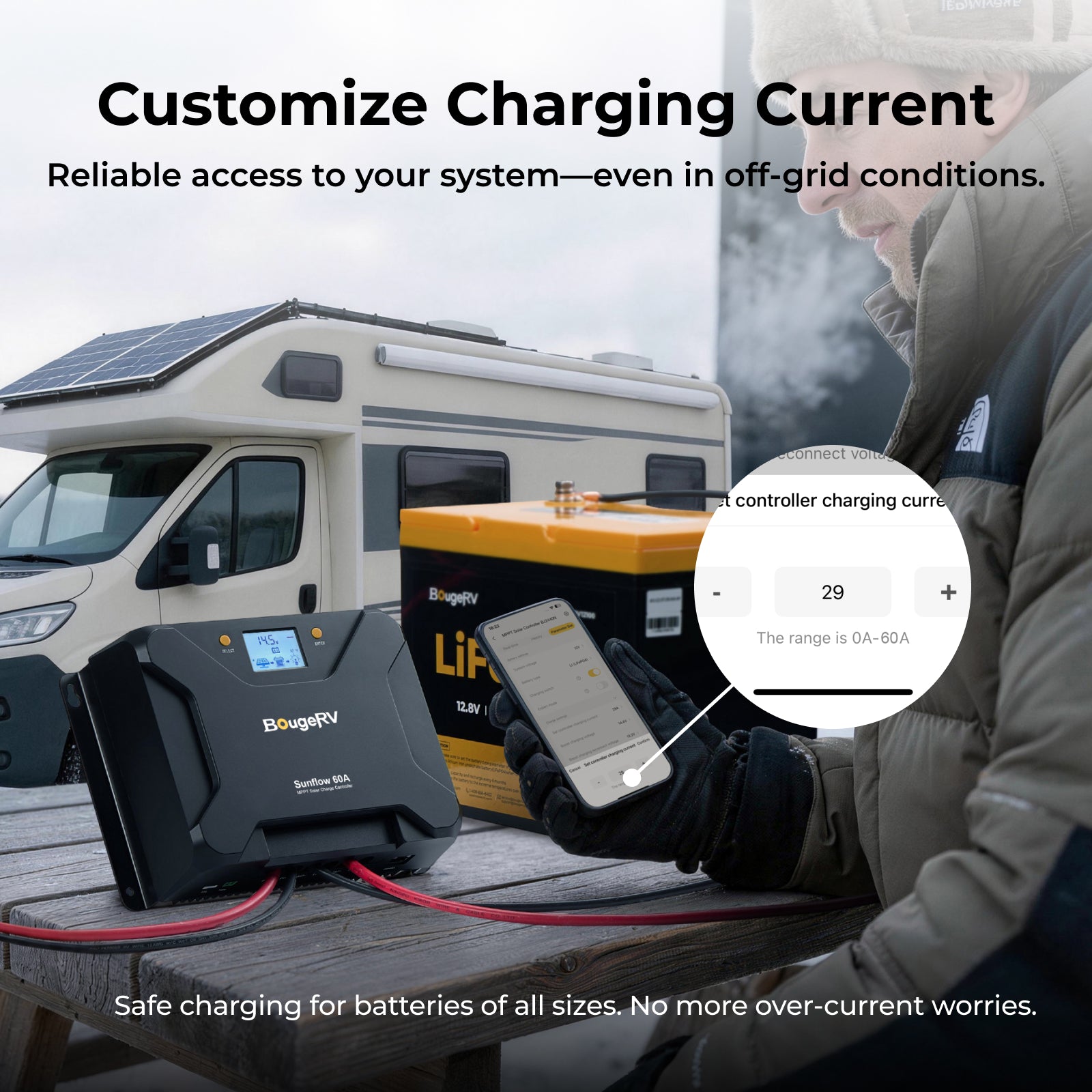

Charge Current Ajust Range 0 Amp to 60 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative

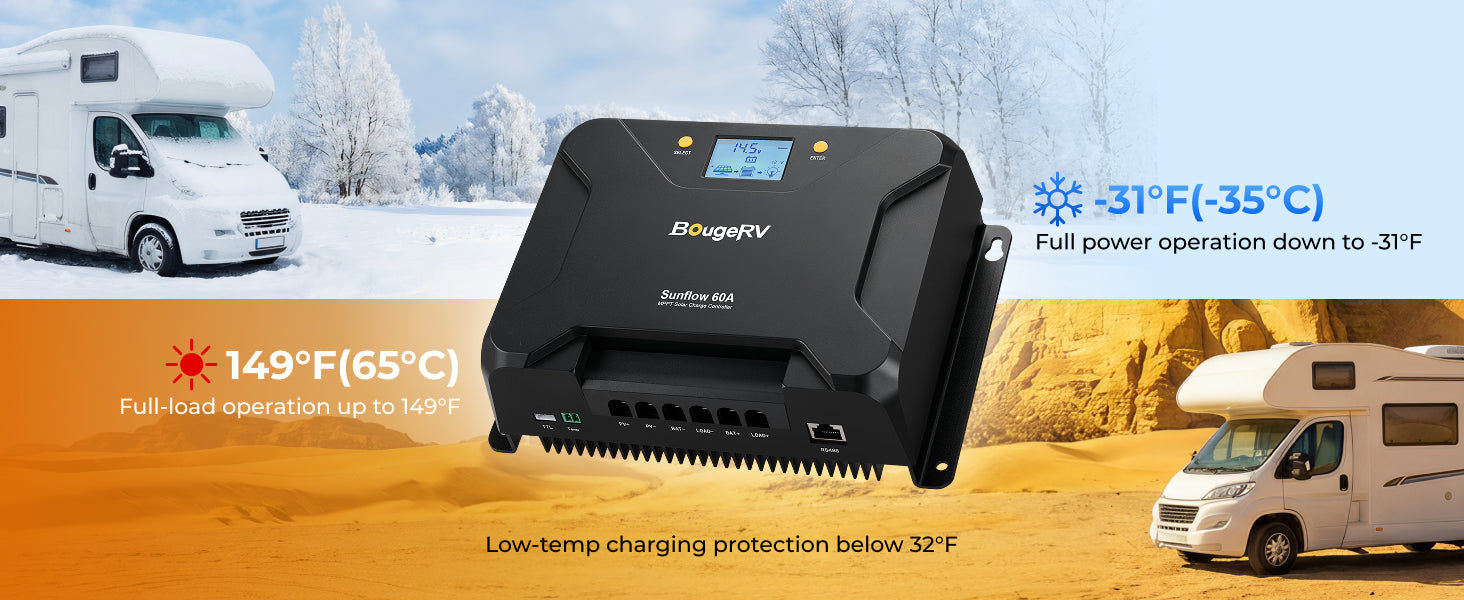

Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34

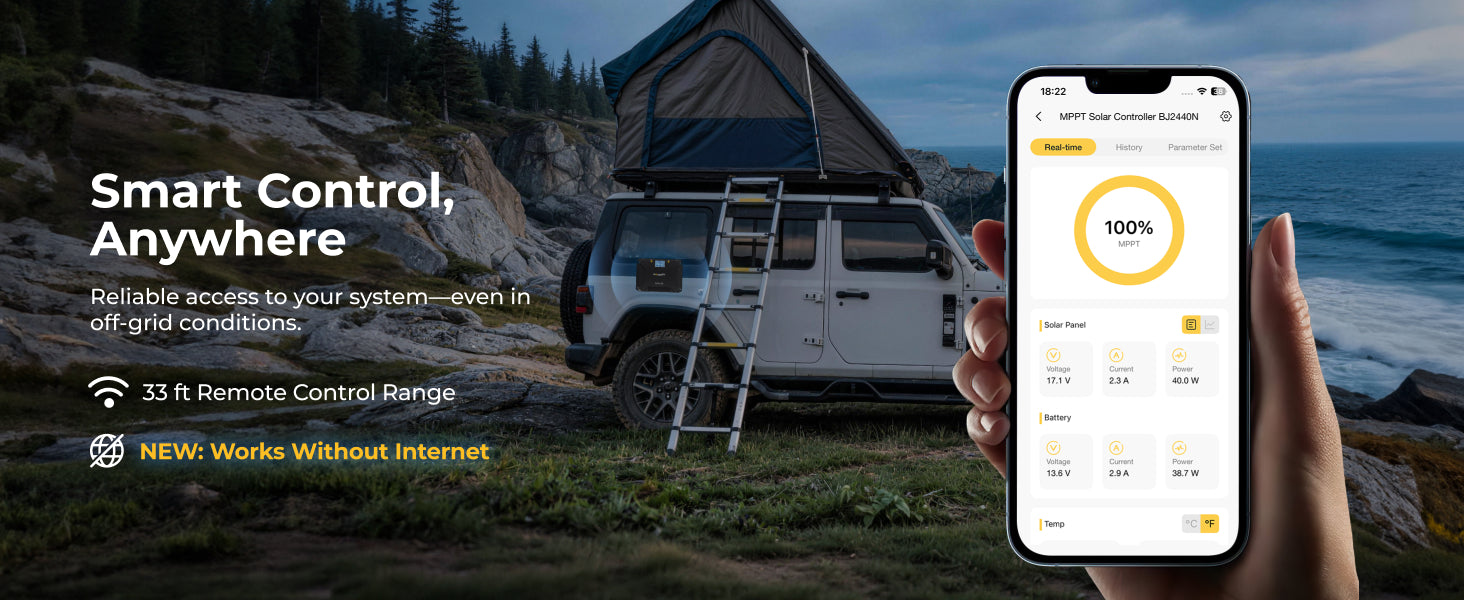

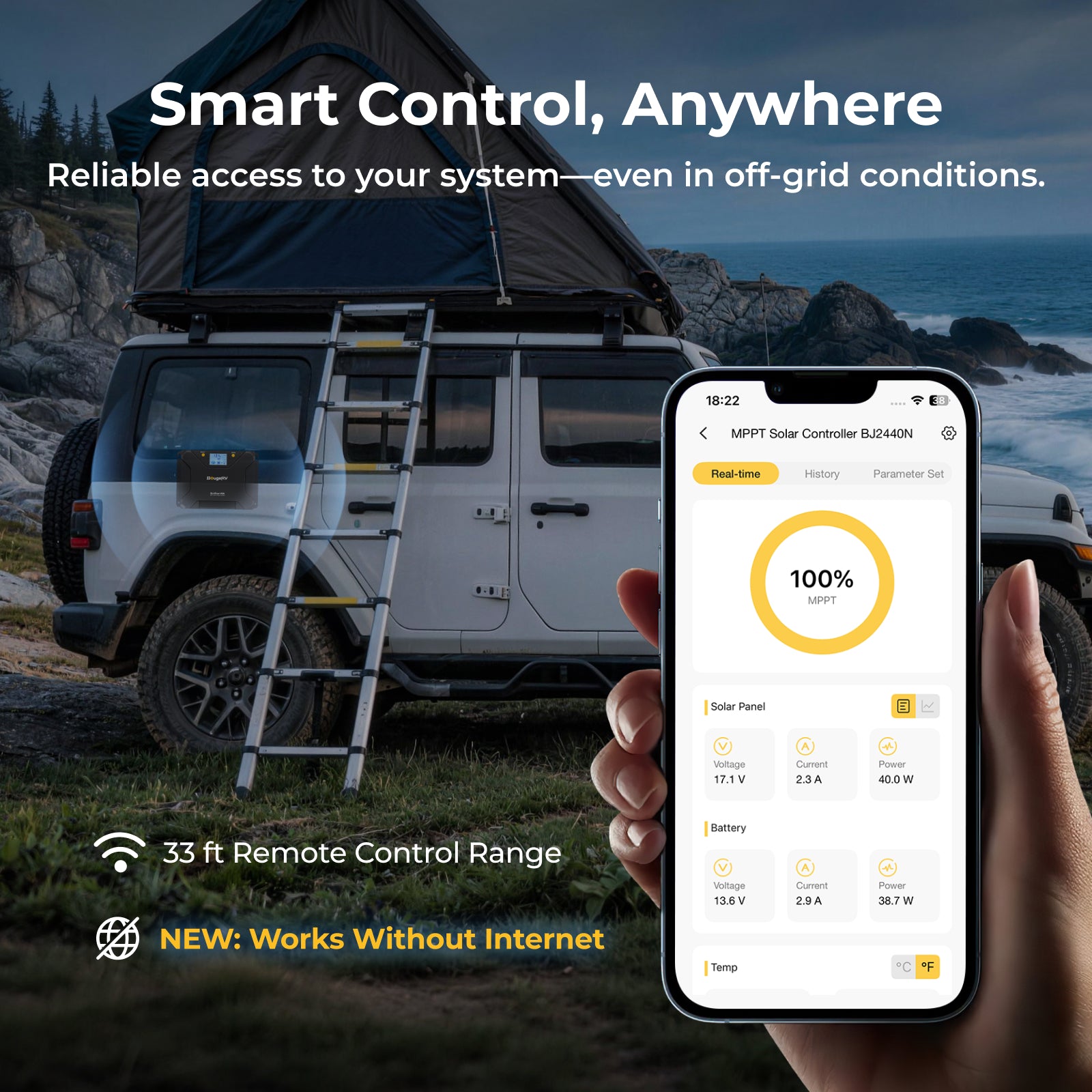

Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 10.35L*7.32W*3.35J inches
Weight 5.52 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs

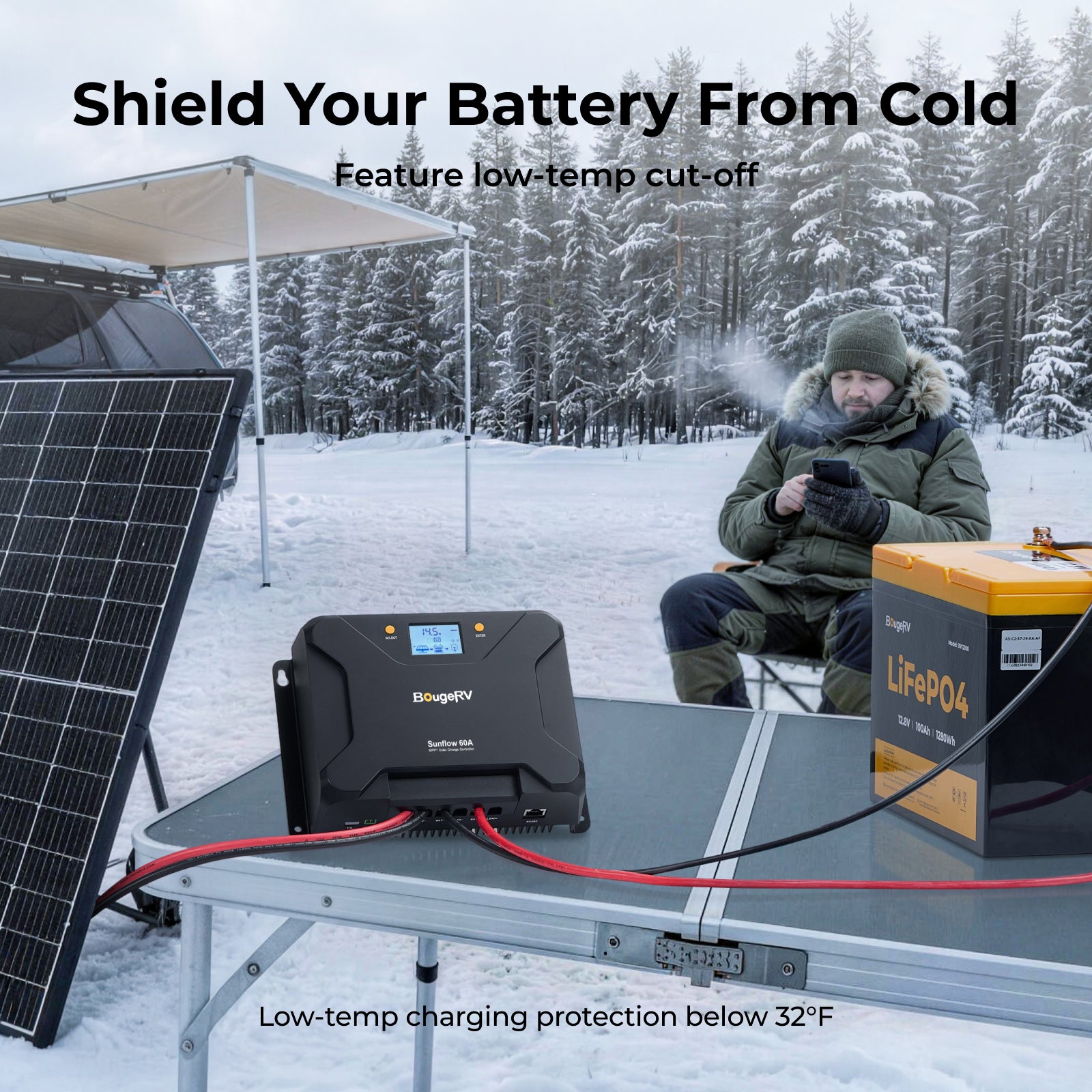

Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1.0C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYC1 Model 12V 3000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 17.12 × 9.37 × 3.94 in Weight 12.79 lbs
Rated Power 3000W Overload Power 3200W
Peak Power 6000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss <0.9A
Protection 1. Input Over-voltage
2. Over-discharge Protection
3. Output Overload
4. Short Circuit Protection
5. Over-temperature Protection
6. Ground Fault Protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)

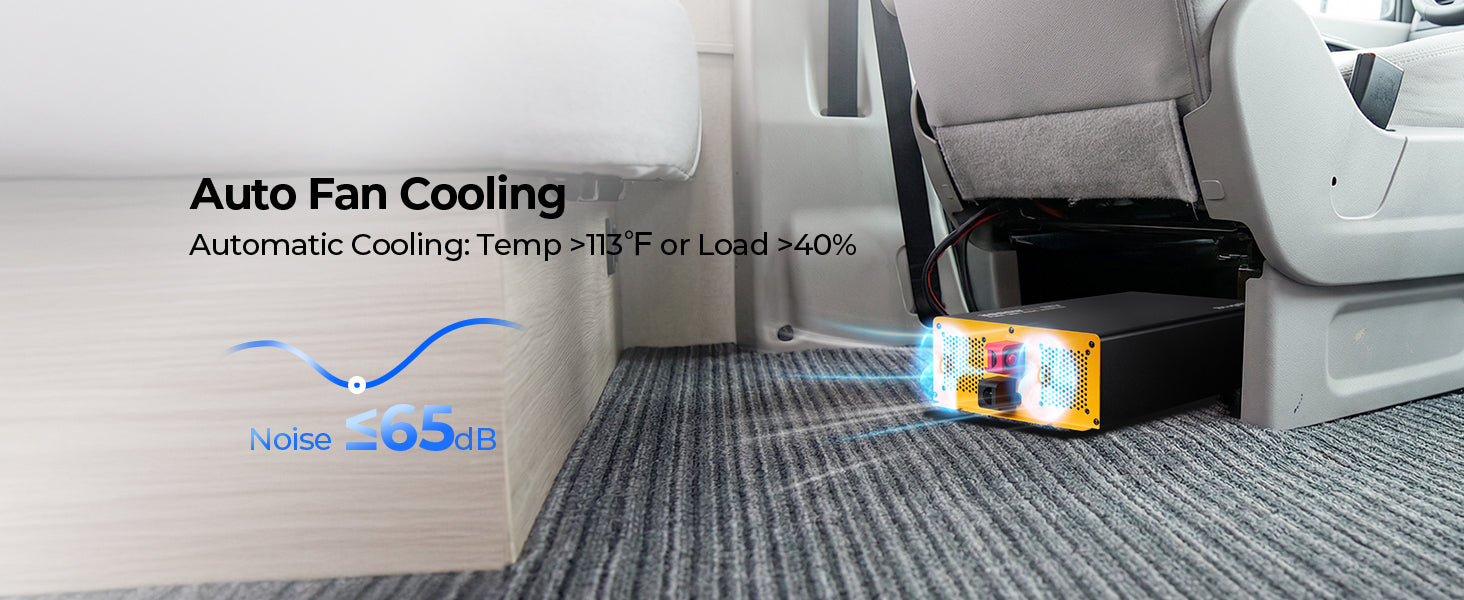

Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% Load

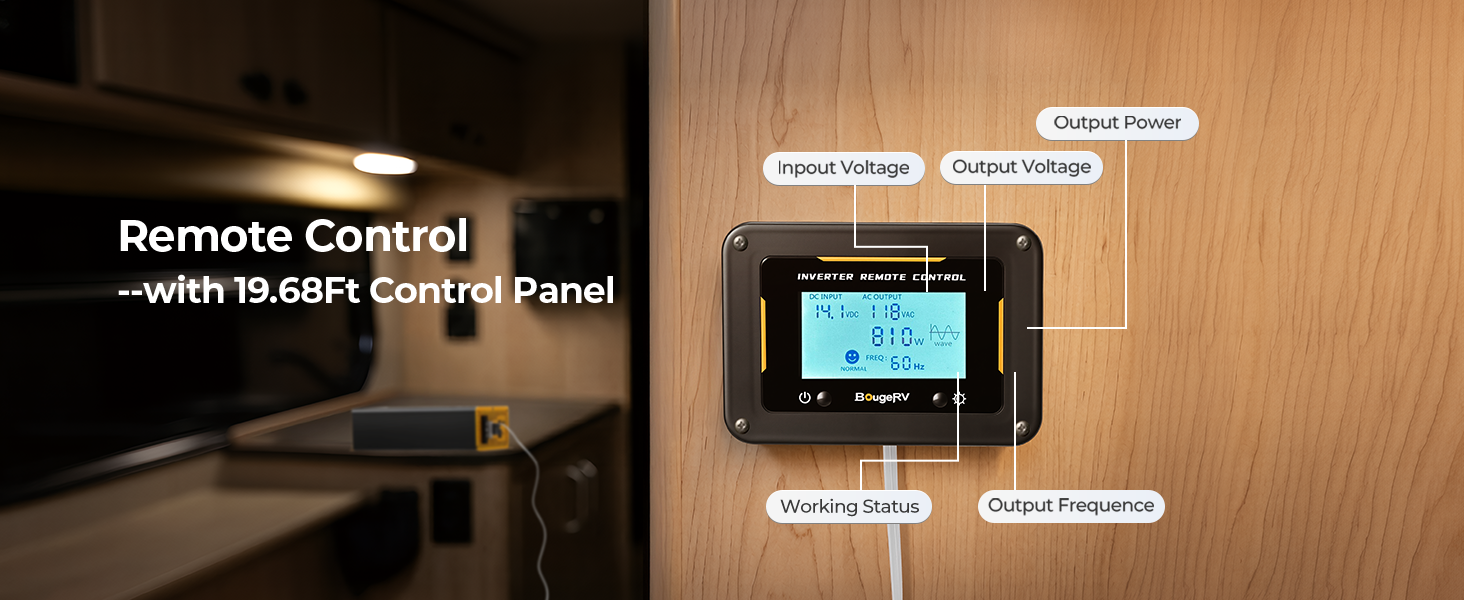

Communication RS485 / Bluetooth USB Port 18W (5V/9V/12V)
SKU SI001-BK-LYTYC1 Model 12V 3000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 17.12 × 9.37 × 3.94 in Weight 12.79 lbs
Rated Power 3000W Overload Power 3200W
Peak Power 6000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss <0.9A
Protection 1. Input Over-voltage
2. Over-discharge Protection
3. Output Overload
4. Short Circuit Protection
5. Over-temperature Protection
6. Ground Fault Protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% Load
Communication RS485 / Bluetooth USB Port 18W (5V/9V/12V)
