Kit Solar Flexible BougeRV 12V 800W ShadePower Arch Pro

Whole-System Power Solution Whole-System Solution 800W Solar Output All-in-One Solar Kit Off-grid solar system for Tiny House

🎉Independence Day Sale

Save $820.00
$2,199.99

Limited Time Deal

$3,019.99
/
🌡️ Combata el calor del verano | Venta relámpago solar 10% de descuento

--

Days

:

--

Hours

:

--

Minutes

:

--

Seconds

Sistema de energía solar de 800W para vida fuera de la red, casas rodantes y energía de respaldo

El BougeRV 800W Arch Pro es un sistema completo de energía solar fuera de la red diseñado para un uso energético confiable y a largo plazo. Con 800 vatios de paneles solares de alta eficiencia ☀️, un inversor de 3000W ⚡️ y un controlador de carga MPPT inteligente 🧠, este sistema proporciona energía estable para una amplia gama de aplicaciones.

Ideal para cabañas fuera de la red 🏠, casas pequeñas, casas rodantes 🚐, furgonetas y respaldo de emergencia 🆘, es compatible con electrodomésticos esenciales como refrigeradores, aires acondicionados, herramientas eléctricas y dispositivos electrónicos. La avanzada tecnología de celdas solares Topcon mejora la conversión de energía y garantiza un mejor rendimiento en condiciones de poca luz, mientras que el diseño duradero del panel soporta climas adversos y entornos de transporte 🌧️.

Este kit solar plug-and-play 🔌 ayuda a reducir la dependencia de los generadores y disminuye los costos de energía a largo plazo 💰. Ya sea que esté construyendo una configuración fuera de la red, mejorando su sistema solar de RV o preparándose para cortes de energía, el sistema BougeRV 800W proporciona una solución energética confiable y eficiente.

Read more » Fold up »
10

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee

  • Características

  • Especificaciones técnicas

  • Reseñas

¿Cuánta energía puede generar un kit solar?

Elegir el kit solar adecuado depende de tus necesidades energéticas, el uso de tus electrodomésticos y las condiciones diarias de luz solar. Desde configuraciones ligeras hasta sistemas totalmente autónomos, comprender la potencia y el tiempo de funcionamiento te ayuda a construir una solución solar más eficiente y fiable.

Características

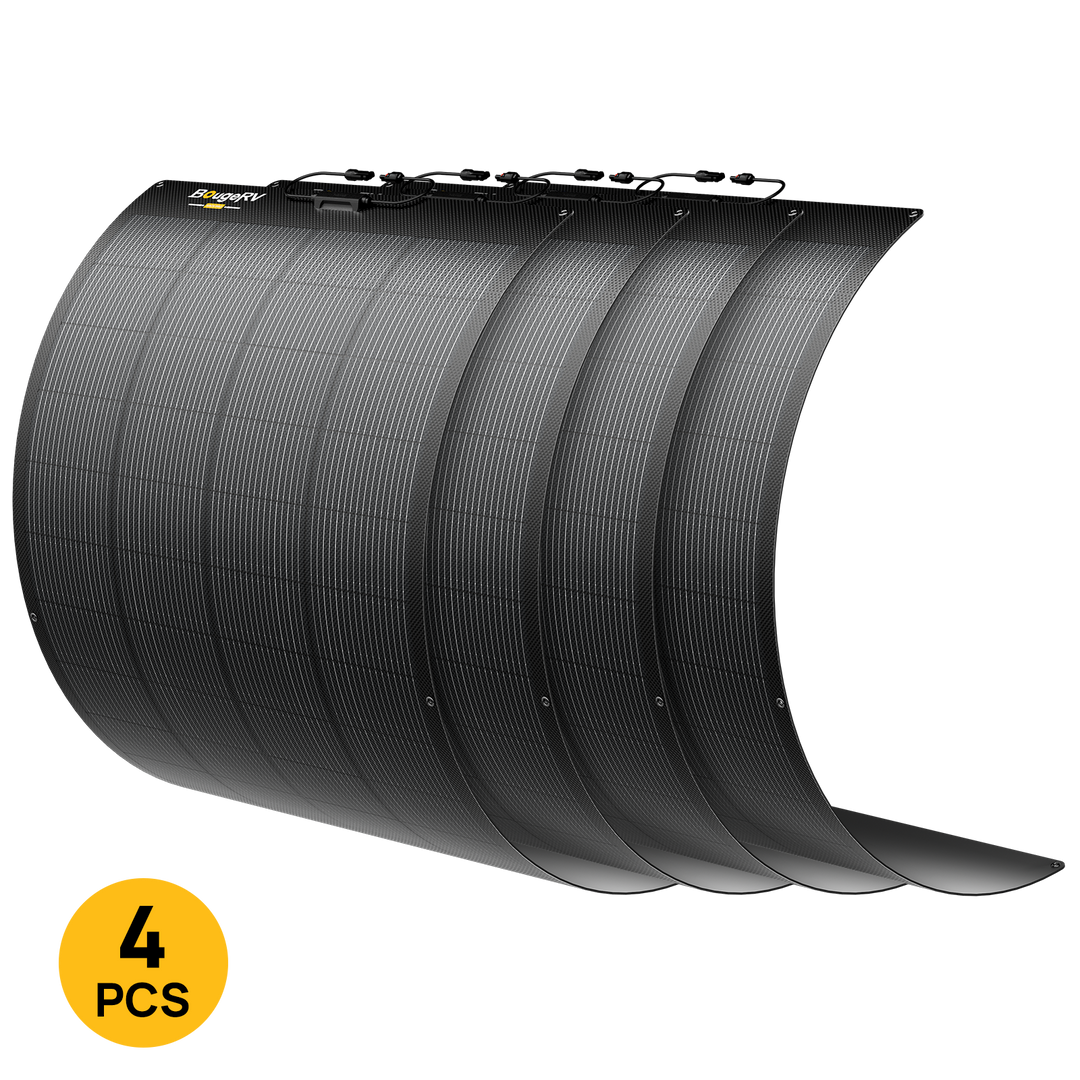

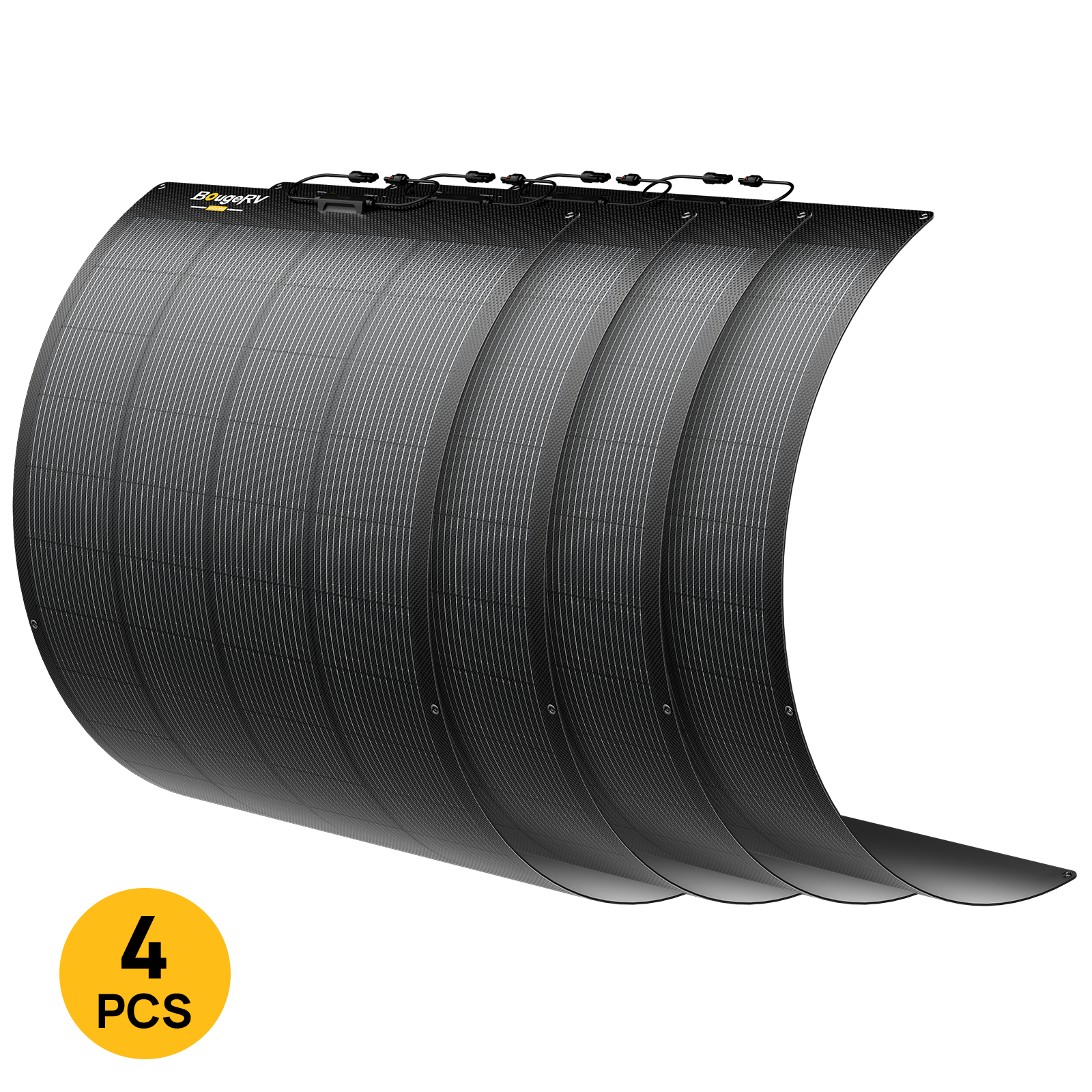

Panel solar flexible BougeRV Arch Pro 200W N-Type TOPCon

Controlador de carga solar BougeRV Sunflow 60A MPPT 12V/24V

Batería solar de litio ferrofosfato (LiFePO4) BougeRV 12 V 100 Ah, grupo 24

Inversor de onda sinusoidal pura BougeRV de 3000 W y 12 V con Bluetooth

¿Qué hay en la caja?

SP004*4

👉Manual de Usuario

ISE219-BK

👉Manual de Usuario

ISE212N*4

👉Manual de Usuario

SI001-BK-LYTYC1

👉Manual de usuario

Especificaciones del producto

SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 31.1±5%V
Max. Power Current Imp (A) 6.43±5%A
Open Circuit Voltage Voc (V) 36.4±5%V
Short Circuit Current (Isc) 6.7±5%A
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53*31*0.1inches
Weight 7.9 lbs
SKU ISE219

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 60 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 900W/12V; 1800W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 60 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 10.35L*7.32W*3.35J inches
No Load Loss ≤10mA Weight 5.52 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE219
System Voltage 12V/24V
Rated Charging Current 60 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 900W/12V; 1800W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 60 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 10.35L*7.32W*3.35J inches
Weight 5.52 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1.0C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYC1 Model 12V 3000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 17.12 × 9.37 × 3.94 in Weight 12.79 lbs
Rated Power 3000W Overload Power 3200W
Peak Power 6000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss <0.9A
Protection 1. Input Over-voltage
2. Over-discharge Protection
3. Output Overload
4. Short Circuit Protection
5. Over-temperature Protection
6. Ground Fault Protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% Load
Communication RS485 / Bluetooth USB Port 18W (5V/9V/12V)
SKU SI001-BK-LYTYC1 Model 12V 3000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 17.12 × 9.37 × 3.94 in Weight 12.79 lbs
Rated Power 3000W Overload Power 3200W
Peak Power 6000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss <0.9A
Protection 1. Input Over-voltage
2. Over-discharge Protection
3. Output Overload
4. Short Circuit Protection
5. Over-temperature Protection
6. Ground Fault Protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% Load
Communication RS485 / Bluetooth USB Port 18W (5V/9V/12V)
