FEATURES PRODUCT

Kit de sistema solar flexible BougeRV 12V 200W ShadePower Arch Pro

Camping Power Kit RV Starter Kit 200 watt kit Portable Off-Grid Power All-in-One 200W Kit

🎉Independence Day Sale

Save $240.00
$799.99

Limited Time Deal

$1,039.99
/
🌡️ Combata el calor del verano | Venta relámpago solar 10% de descuento

--

Days

:

--

Hours

:

--

Minutes

:

--

Seconds

El kit solar ArchPro de 200W es una solución de energía autónoma compacta y ligera diseñada para camping, viajes en autocaravana y uso de respaldo en emergencias. Construido con tecnología solar flexible TOPCon de tipo N de alta eficiencia, este sistema proporciona una solución fiable de nivel de entrada para generar y almacenar energía solar en entornos exteriores.

El kit incluye paneles solares flexibles Arch Pro de 200W, un controlador de carga solar MPPT Sunflow de 40A, un sistema de batería LiFePO4 de 12V y un inversor de onda sinusoidal pura de 2000W para una salida de CA estable. Juntos, estos componentes forman una configuración de energía solar simple pero completa que captura la luz solar, almacena energía de manera eficiente y suministra energía para dispositivos esenciales.

Diseñado para ser portátil y fácil de usar, el sistema es ideal para aplicaciones exteriores ligeras como cargar dispositivos móviles, alimentar pequeños electrodomésticos y satisfacer las necesidades energéticas básicas de camping o viaje. Su estructura compacta y su integración fácil de usar lo convierten en una opción ideal para los usuarios que inician su viaje hacia la energía autónoma.

Ya sea para viajes de camping de fin de semana, elementos esenciales para autocaravanas o preparación para emergencias, el kit solar ArchPro de 200W proporciona energía solar fiable y accesible donde la necesite.

Read more » Fold up »
Solar System Flow
Solar Panels ×1
Battery ×1
Fan
6–10H
Comfort cooling load
Fridge
18–24H
Continuous refrigeration
Battery Powered
Coffee Maker
5–6 Cups
Per full battery charge
Camping Light
6–8H
Night lighting use
10

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee

  • Características

  • Especificaciones técnicas

  • Reseñas

¿Cuánta energía puede generar un kit solar?

Elegir el kit solar adecuado depende de tus necesidades energéticas, el uso de tus electrodomésticos y las condiciones diarias de luz solar. Desde configuraciones ligeras hasta sistemas completos fuera de la red, comprender la potencia y el tiempo de funcionamiento te ayuda a construir una solución solar más eficiente y confiable.

Configuración paso a paso del sistema solar

Siga un proceso de conexión claro y paso a paso, desde los paneles solares hasta el controlador, la batería y el inversor, para generar y usar energía de forma segura. Diseñado para una fácil integración y una instalación sin problemas.

Características

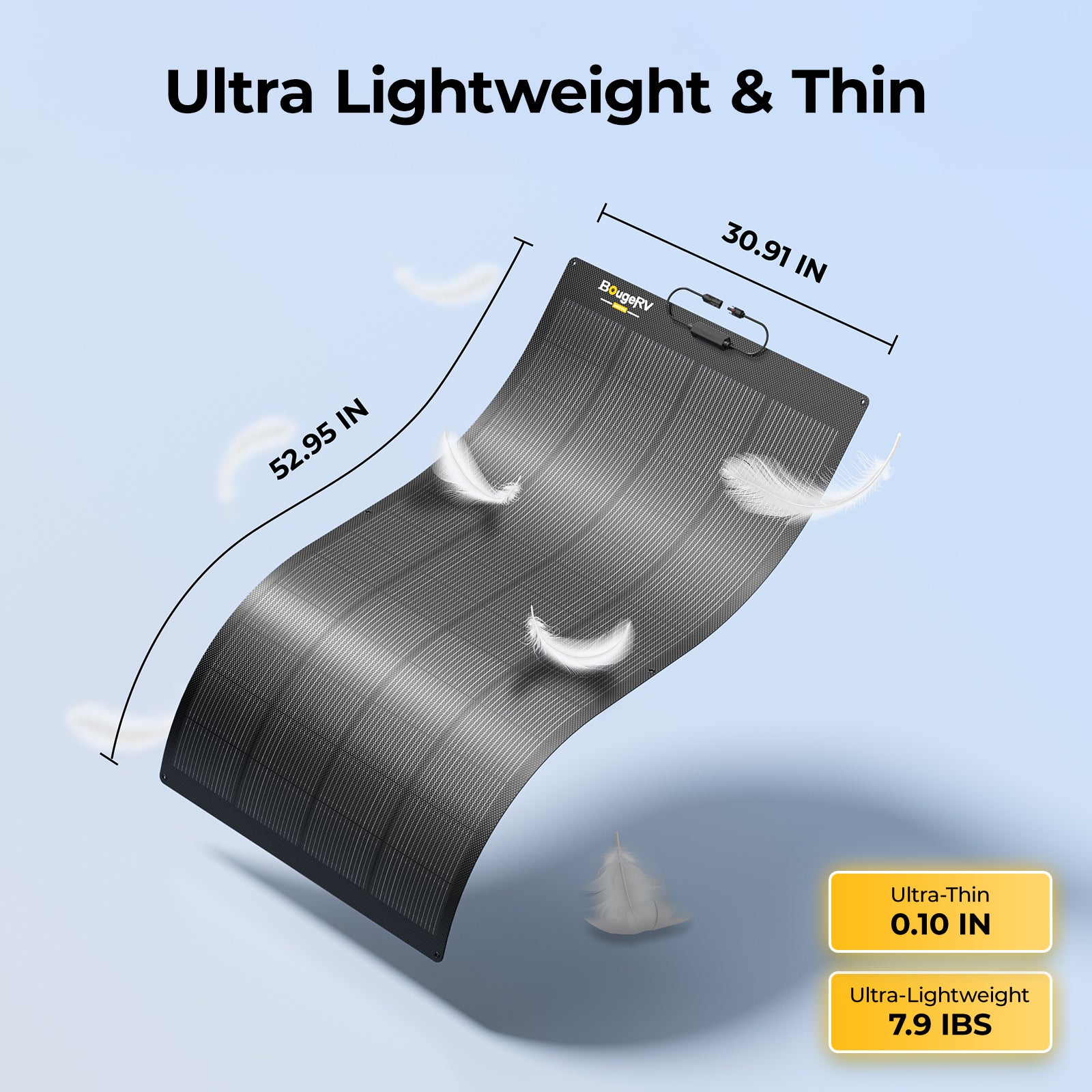

Panel solar flexible BougeRV Arch Pro 200W N-Type TOPCon (compatible con 12V/24V)

Controlador de Carga Solar MPPT BougeRV Sunflow 40A 12V/24V

Batería solar LiFePO4 BougeRV 12V 100Ah Grupo 24

Inversor de onda sinusoidal pura BougeRV 2000W 12V

¿Qué hay en la caja?

SP004 Panel Solar

👉Manual de usuario

Controlador ISE218-BK

👉 Manual de usuario

Batería ISE212N

👉Manual de usuario

Inversor SI001-BK-LYTYB1

👉Manual de usuario

Especificaciones del producto

SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 31.1±5%V
Max. Power Current Imp (A) 6.43±5%A
Open Circuit Voltage Voc (V) 36.4±5%V
Short Circuit Current (Isc) 6.7±5%A
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53*31*0.1inches
Weight 7.9 lbs
SKU ISE218

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 40 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 600W/12V; 1200W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 40 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 8.94L*6.26W*2.95 inches
No Load Loss ≤10mA Weight 3.95 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE218
System Voltage 12V/24V
Rated Charging Current 40 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 600W/12V; 1200W/24V
Rated Load Current 20 Amp
Charge Current Ajust Range 0 Amp to 40 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative
Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34
Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 8.94L*6.26W*2.95 inches
Weight 3.95 lbs
Product Warranty 18-month
Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)
Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years
SKU SI001-BK-LYTYB1
Model 12V 2000W Operating ambient temperature range 14°F~104°F（-10°C~40°C）
Product size 14.96*7.4*3.94 in Weight 8.4 lbs
Noise ≤60dB
Rated Output Power 2000W Overload power 2300W
Peak power 4000W (1s)
Output voltage 120VAC (default)
Output frequency 50/60 Hz (default)
Rated input voltage 12VDC
The input voltage ranges 10V-15.5VDC
Output waveform Pure sine wave Output harmonic component (THD) <5%
Maximum output efficiency ＞90%
Full Load Efficiency ＞85% No-load Loss ＜0.9A
          Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm 10.5VDC (±0.3V) Over-discharge voltage 10VDC (±0.3V)
Overvoltage 15.5VDC (±0.3V) Over temperature protect ≥167°F（75°C）
Over-temperature protection recovery ≤131°F（55°C） Fan start-up temp ≥113℉ (45℃) / ≥40% load
  Communication Port RS485 (Remote Control) Bluetooth (APP)
  USB port 18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
Basic & Physical
SKUSI001-BK-LYTYB1
Model12V 2000W
Operating ambient temperature range14°F~104°F（-10°C~40°C）
Product size14.96*7.4*3.94 in
Weight8.4 lbs
Noise≤60dB
Electrical Specifications
Rated Output Power2000W
Overload power2300W
Peak power4000W (1s)
Output voltage120VAC (default)
Output frequency50/60 Hz (default)
Rated input voltage12VDC
The input voltage ranges10V-15.5VDC
Output waveformPure sine wave
Output harmonic component (THD)<5%
Efficiency & No-load Loss
Maximum output efficiency＞90%
Full Load Efficiency＞85%
No-load Loss＜0.9A
Protection Features
Protection function 1 Input over-voltage
2 Over-discharge protection
3 Output overload
4 Short-circuit protection
5 Inverter overtemperature protection
6 Ground fault circuit protection
Battery low voltage alarm10.5VDC (±0.3V)
Over-discharge voltage10VDC (±0.3V)
Overvoltage15.5VDC (±0.3V)
Over temperature protect≥167°F（75°C）
Over-temperature protection recovery≤131°F（55°C）
Fan start-up temp≥113℉ (45℃) / ≥40% load
Interface & Communication
Communication PortRS485 (Remote Control) Bluetooth (APP)
USB port18W*1 (5V-3.4A, 9V-2A, 12V-1.5A)
