Kit de sistema solar flexible BougeRV 12V 200W Arch2.0

For Travel Trailer For ClassB 200 watt

🎉Independence Day Sale

Save $220.00
$709.99

Limited Time Deal

$929.99
/
🌡️ Combata el calor del verano | Venta relámpago solar 10% de descuento

--

Days

:

--

Hours

:

--

Minutes

:

--

Seconds

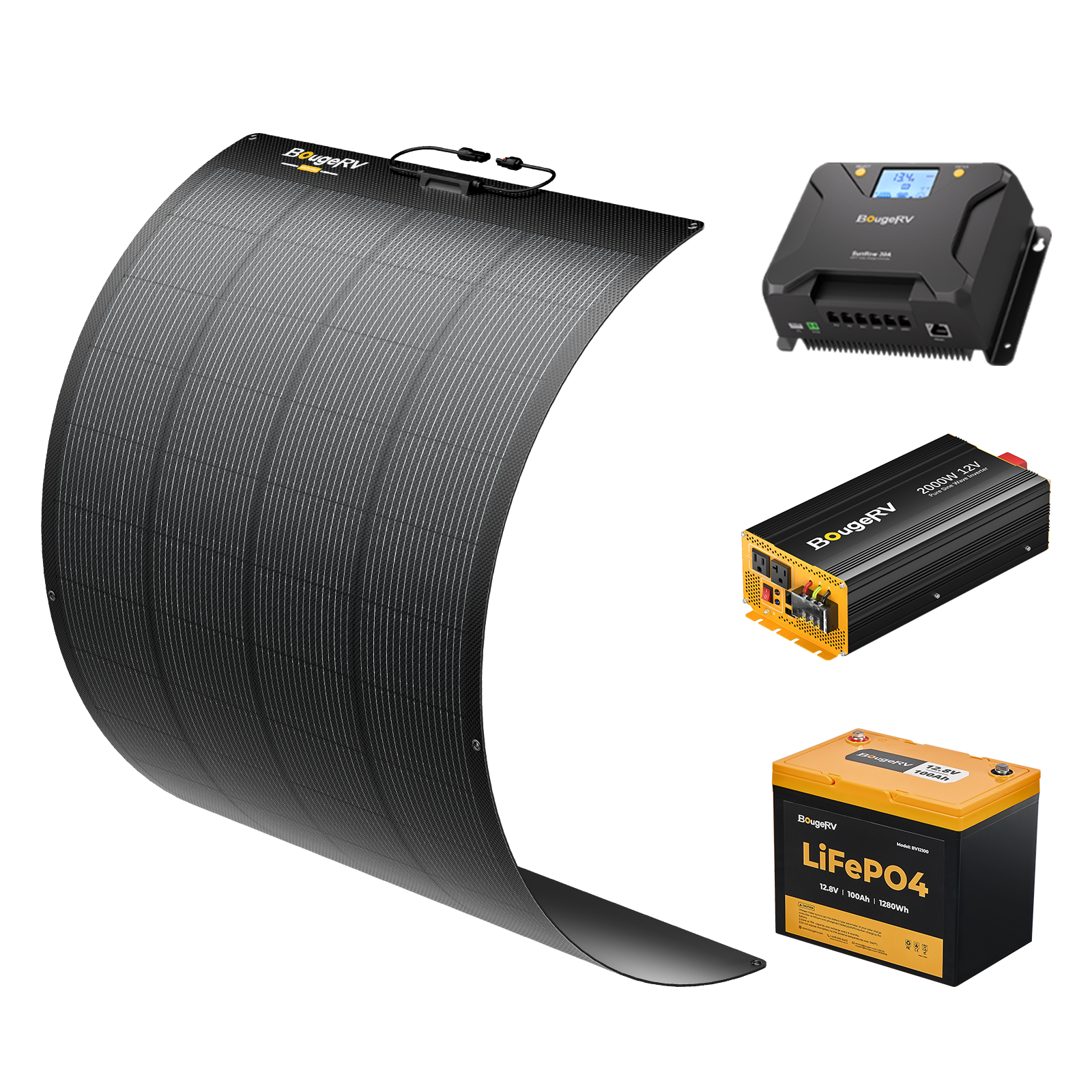

Paquete Incluido:

  • 1PC Panel Solar Curvo de Fibra de Vidrio Arch2.0 de 200 Watts
  • 1PC Controlador de Carga Solar MPPT BougeRV Sunflow 30A 12V/24V
  • 1PC Batería LiFePO4 de 12V 100Ah Grupo 24
  • 1PC Inversor de Onda Pura de 1000W 12V con Bluetooth
Read more » Fold up »
Solar System Flow
Solar Panels ×1
Battery ×1
Fan
6–10H
Comfort cooling load
Fridge
18–24H
Continuous refrigeration
Battery Powered
Coffee Maker
5–6 Cups
Per full battery charge
Camping Light
6–8H
Night lighting use
10

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee

  • Características

  • Especificaciones técnicas

  • Reseñas

¿Cuánta energía puede generar un kit solar?

Elegir el kit solar adecuado depende de sus necesidades energéticas, el uso de sus electrodomésticos y las condiciones diarias de luz solar. Desde configuraciones ligeras hasta sistemas completos fuera de la red, comprender la potencia y el tiempo de funcionamiento le ayuda a construir una solución solar más eficiente y fiable.

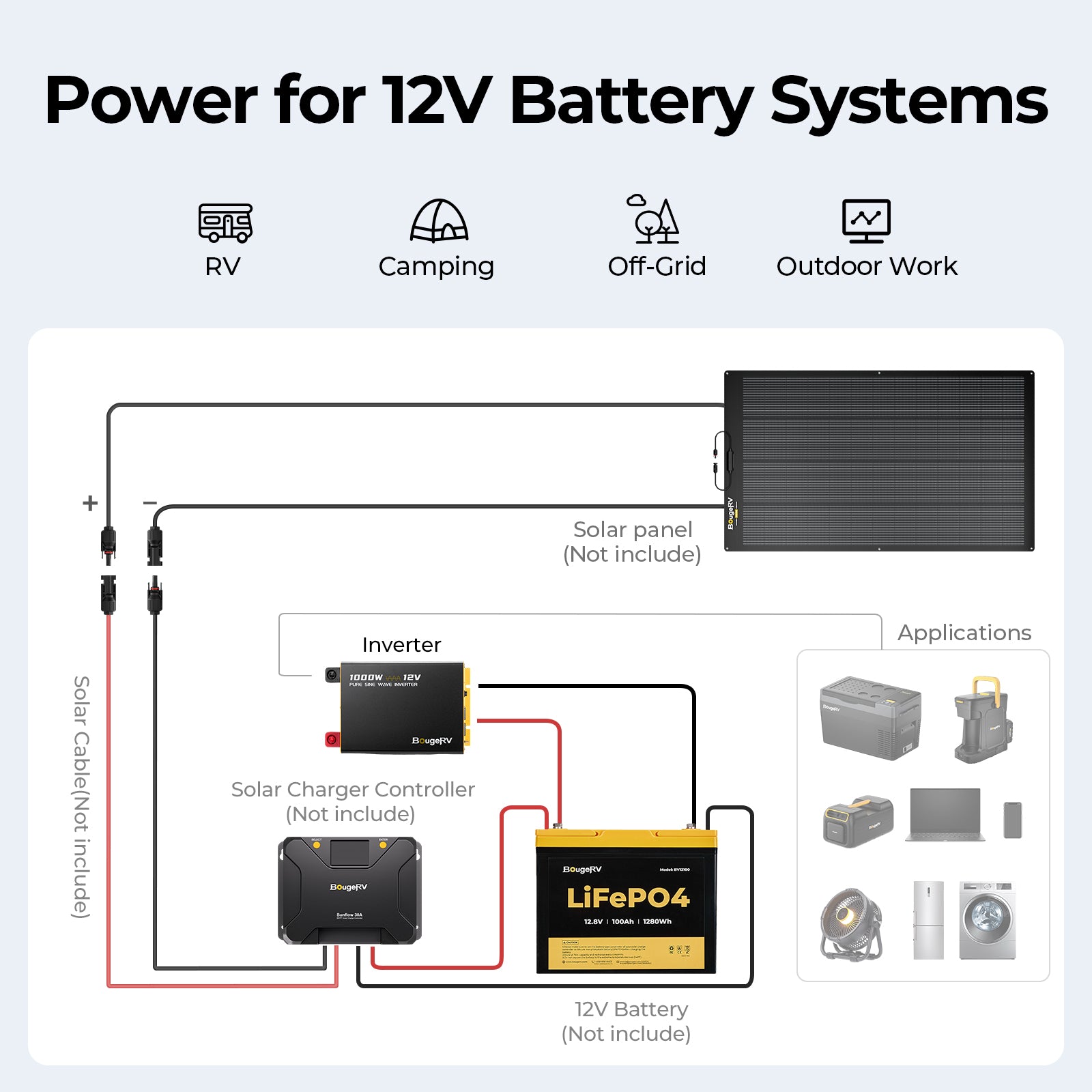

Configuración del Sistema Solar paso a paso

Siga un proceso de conexión claro paso a paso —desde los paneles solares hasta el controlador, la batería y el inversor— para generar y utilizar energía de forma segura. Diseñado para una fácil integración y una instalación sin problemas.

Características

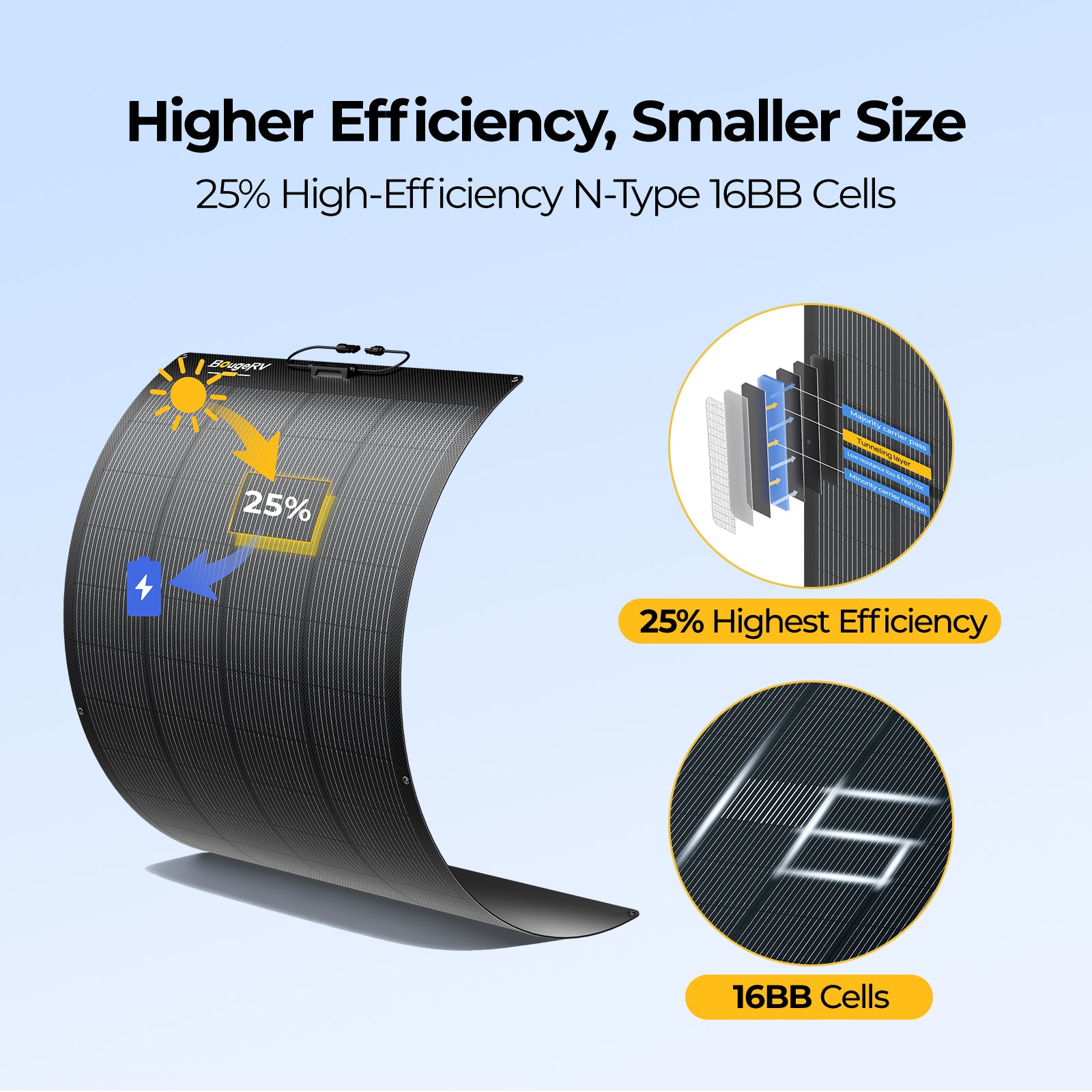

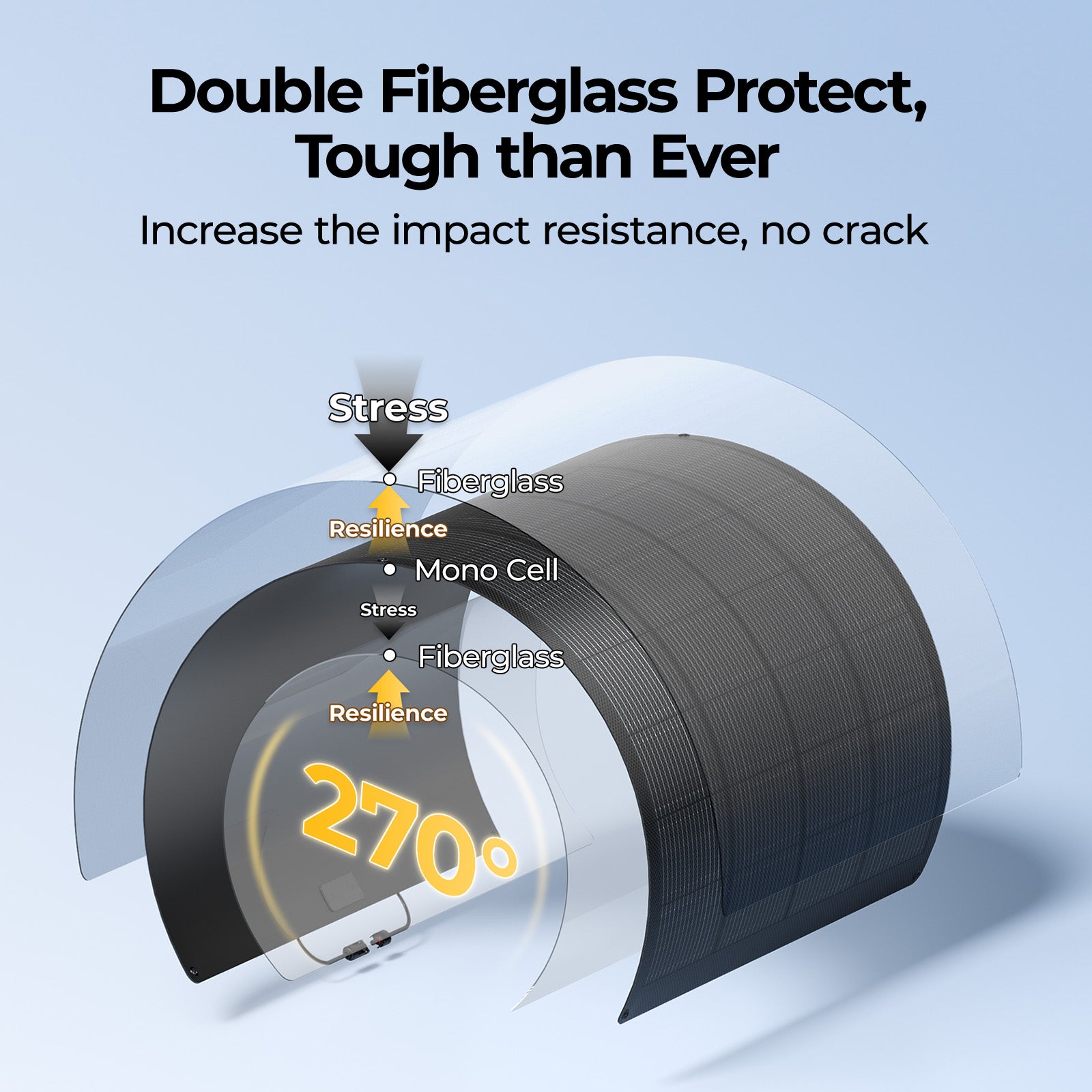

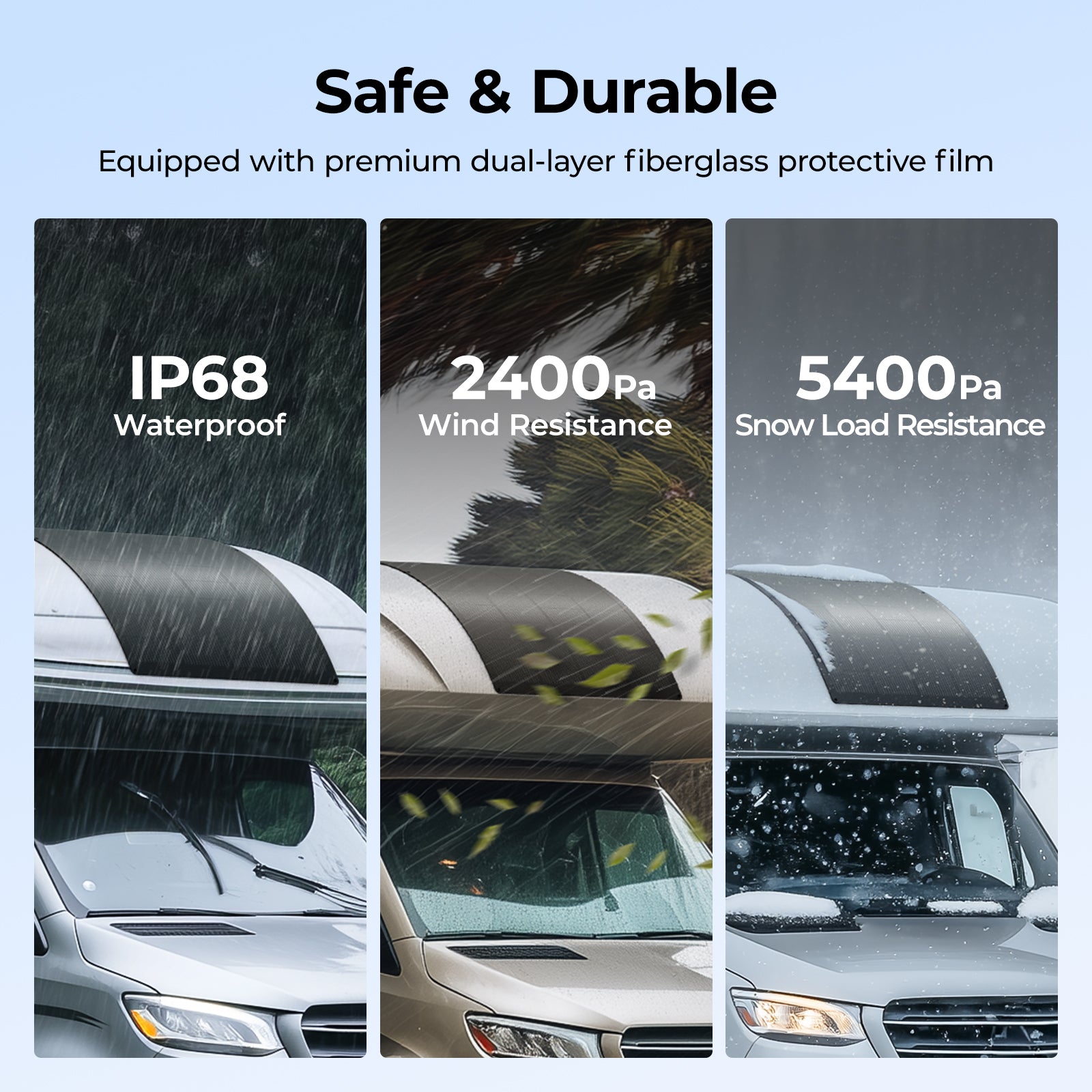

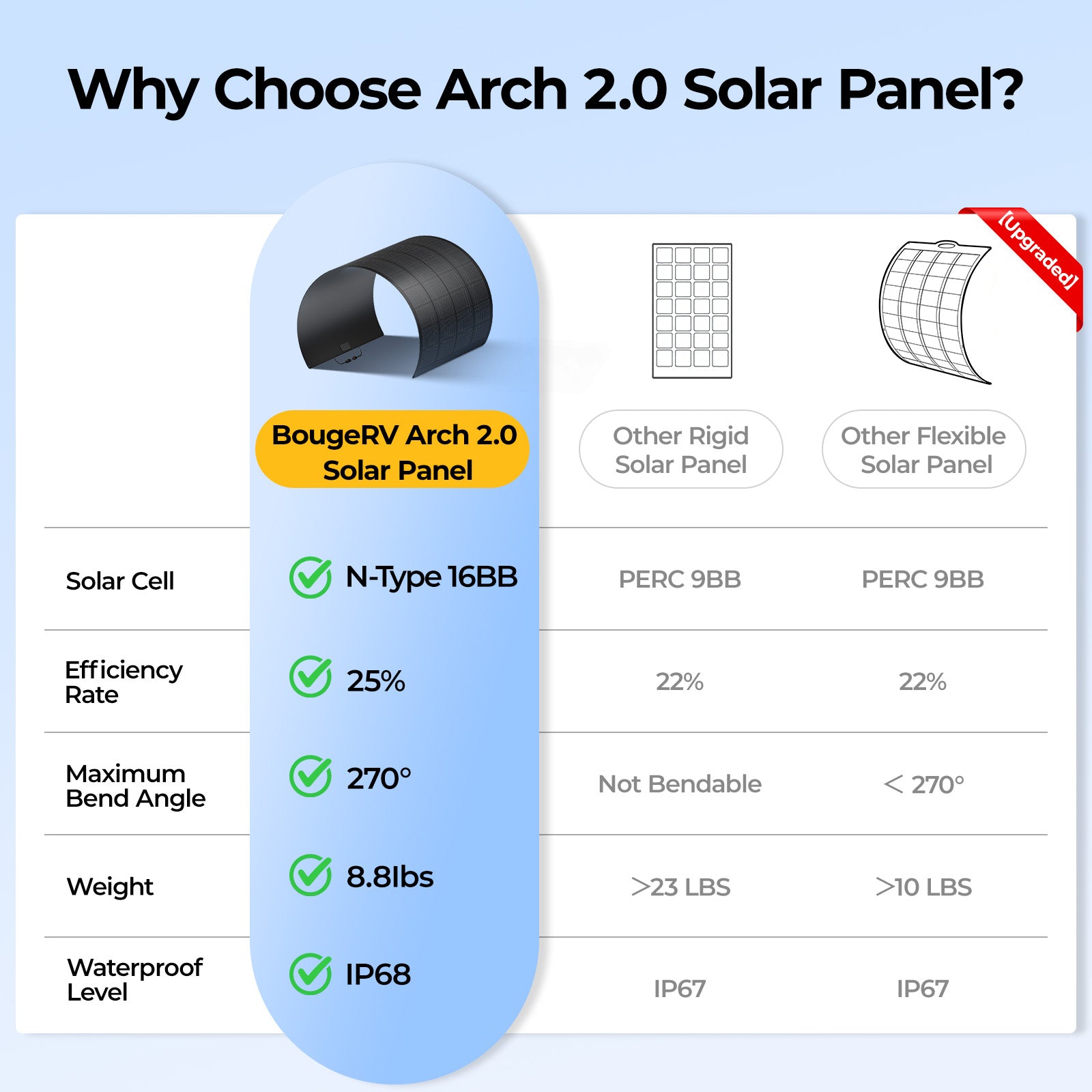

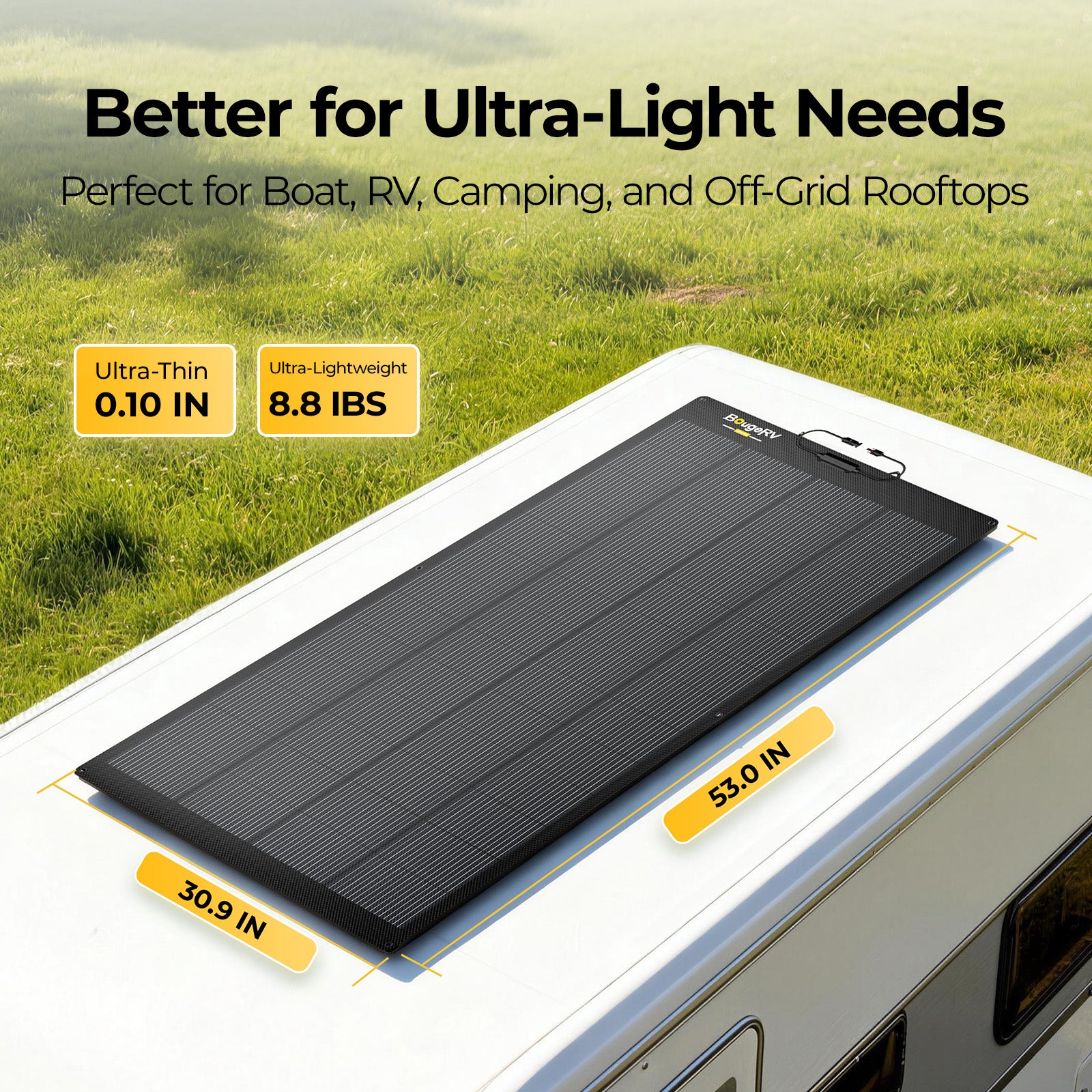

Panel solar flexible de fibra de vidrio tipo N BougeRV Arch 2.0 200W

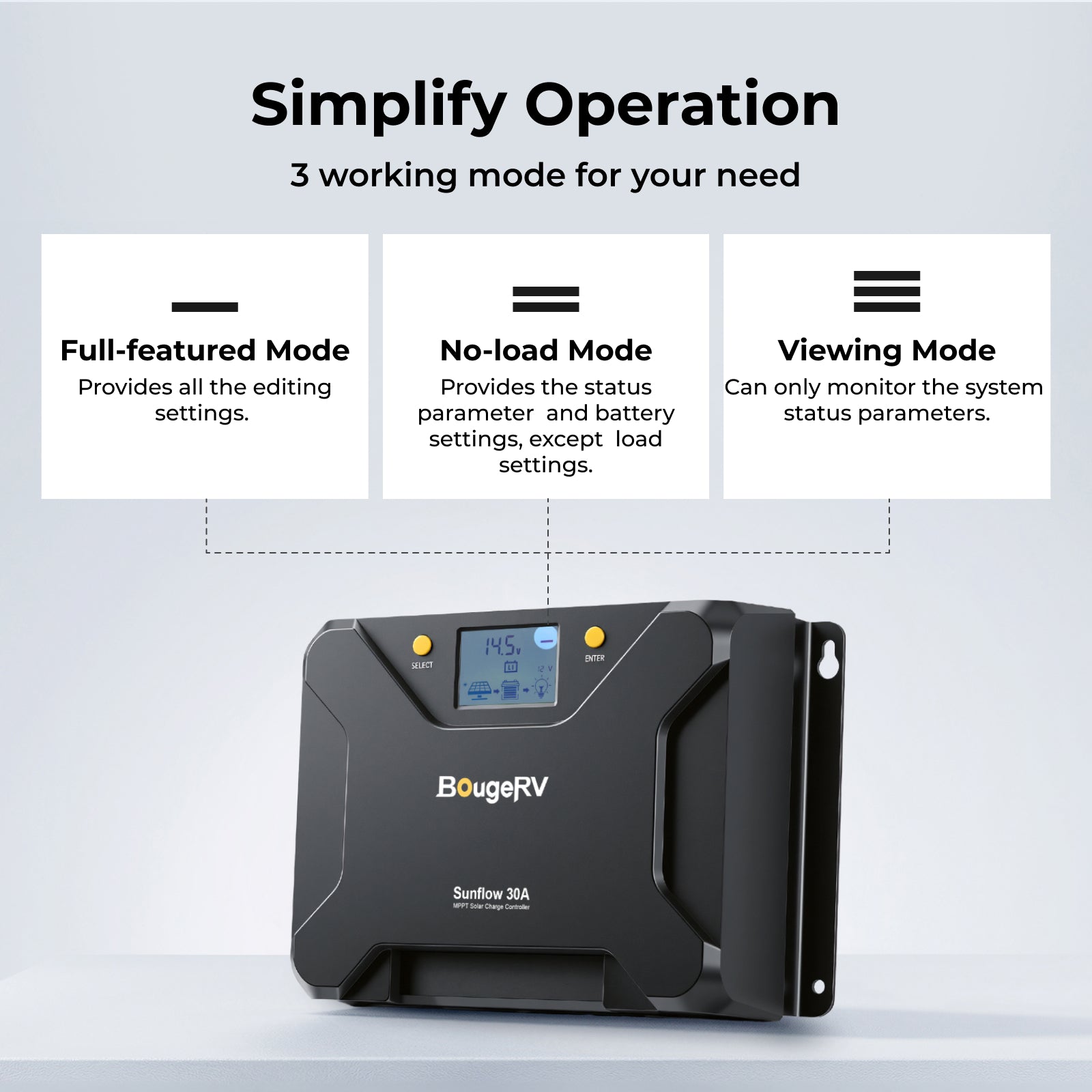

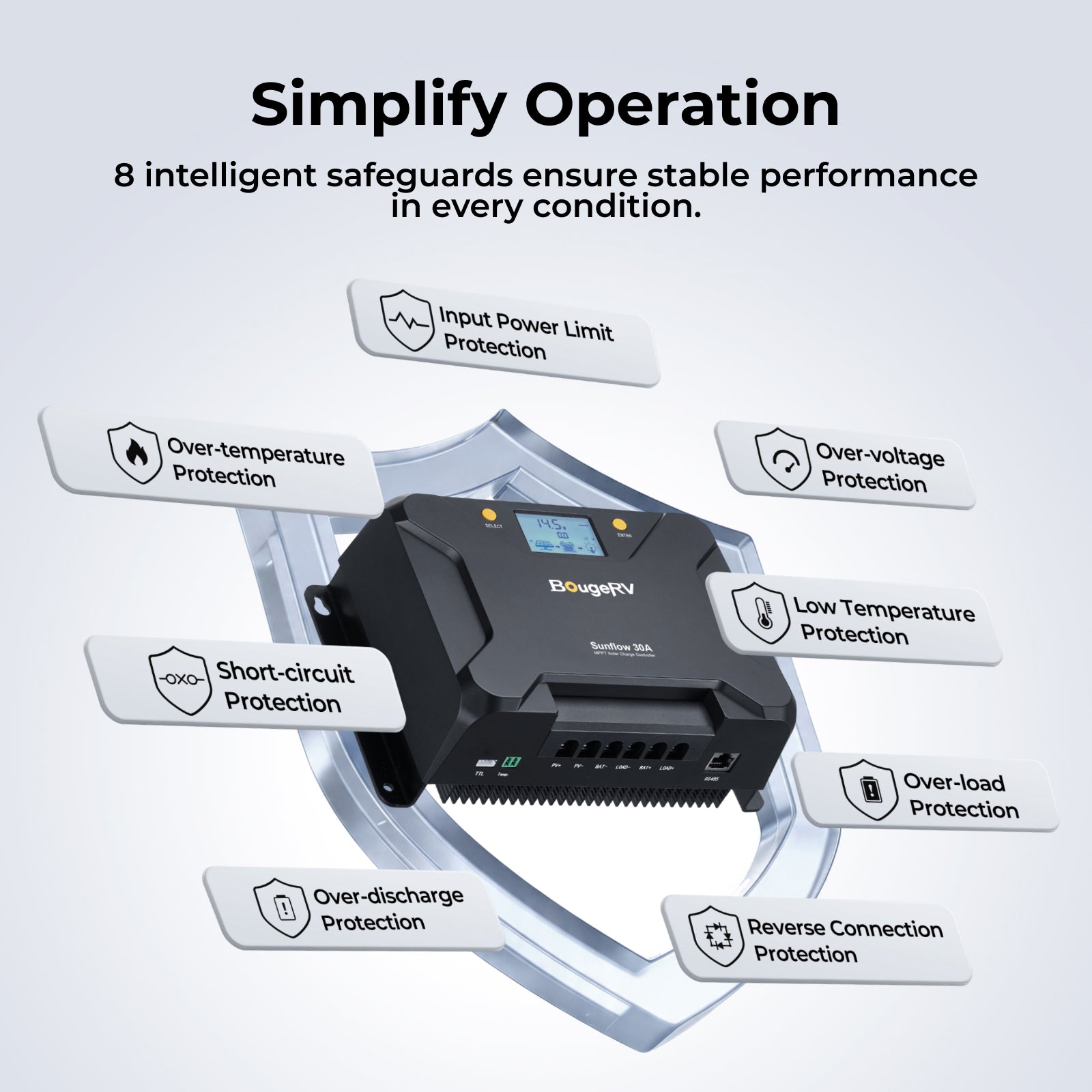

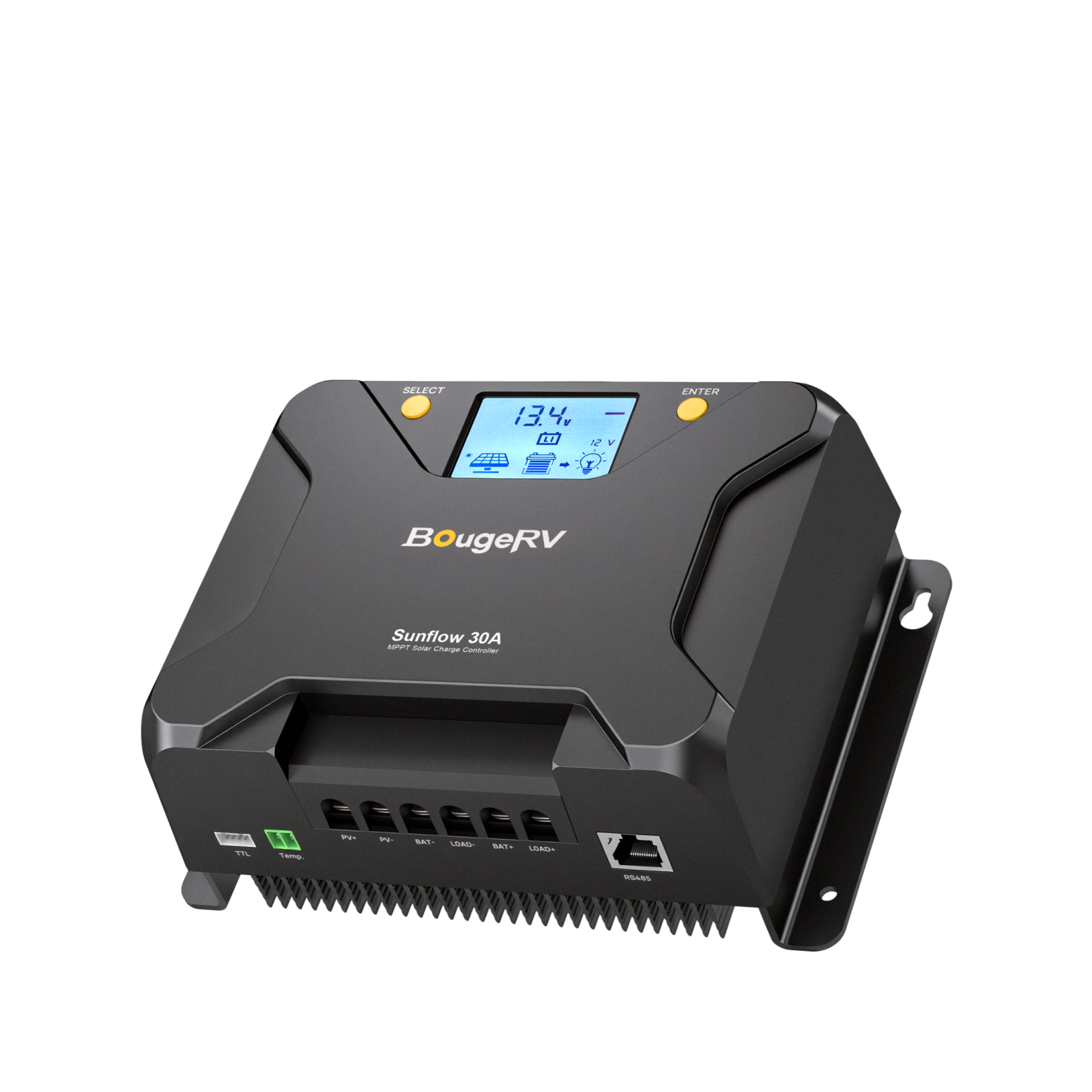

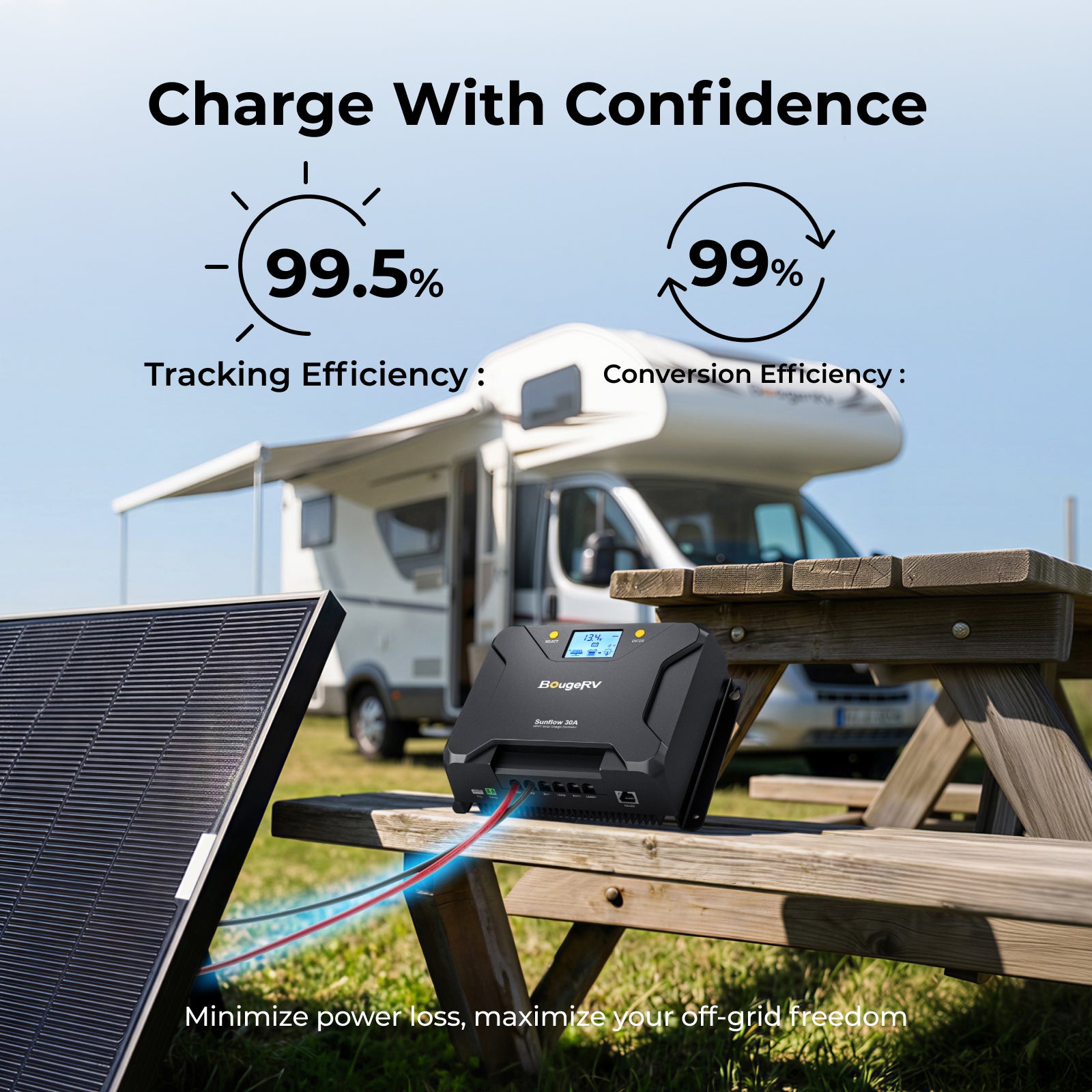

Controlador de carga solar BougeRV Sunflow 30A MPPT 12V/24V

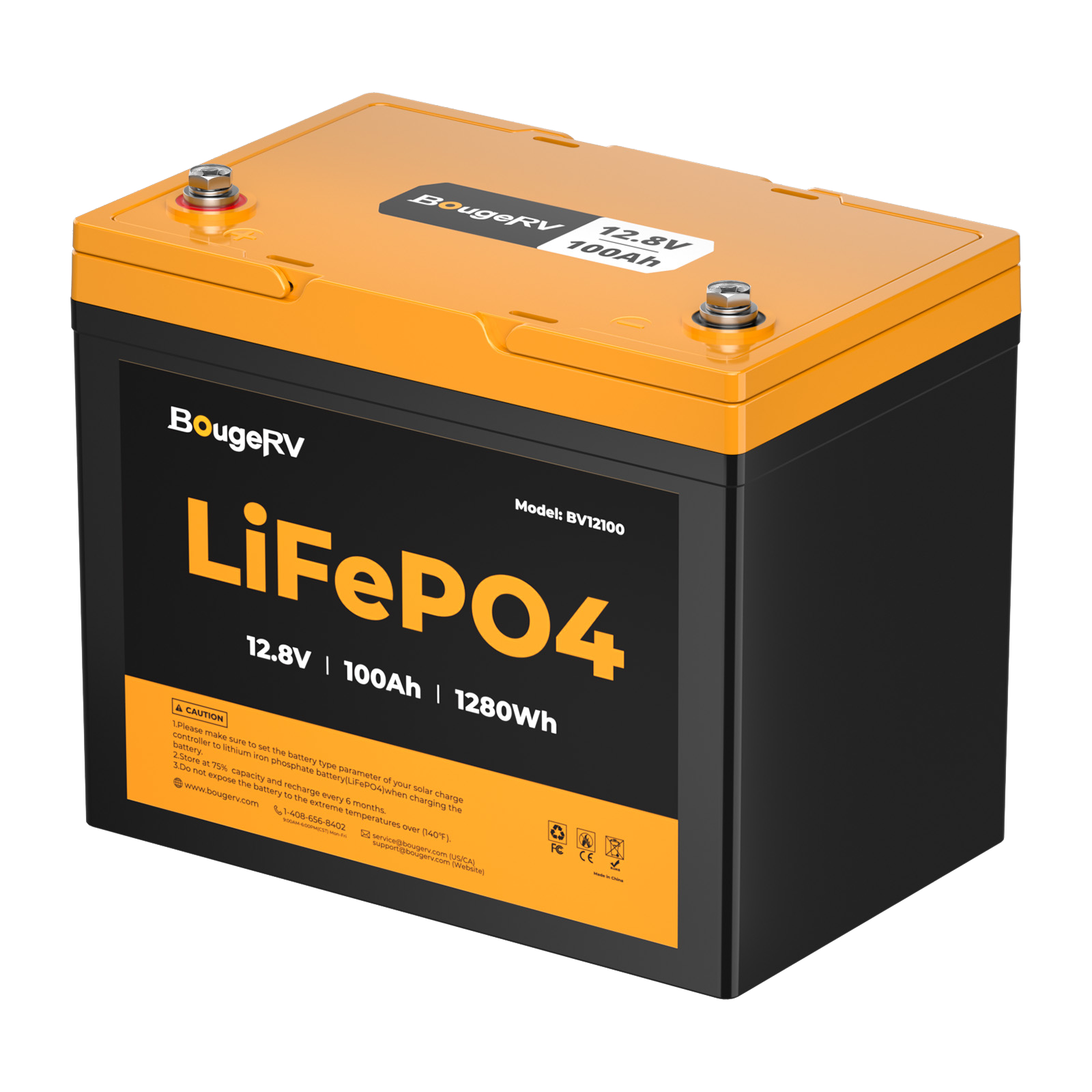

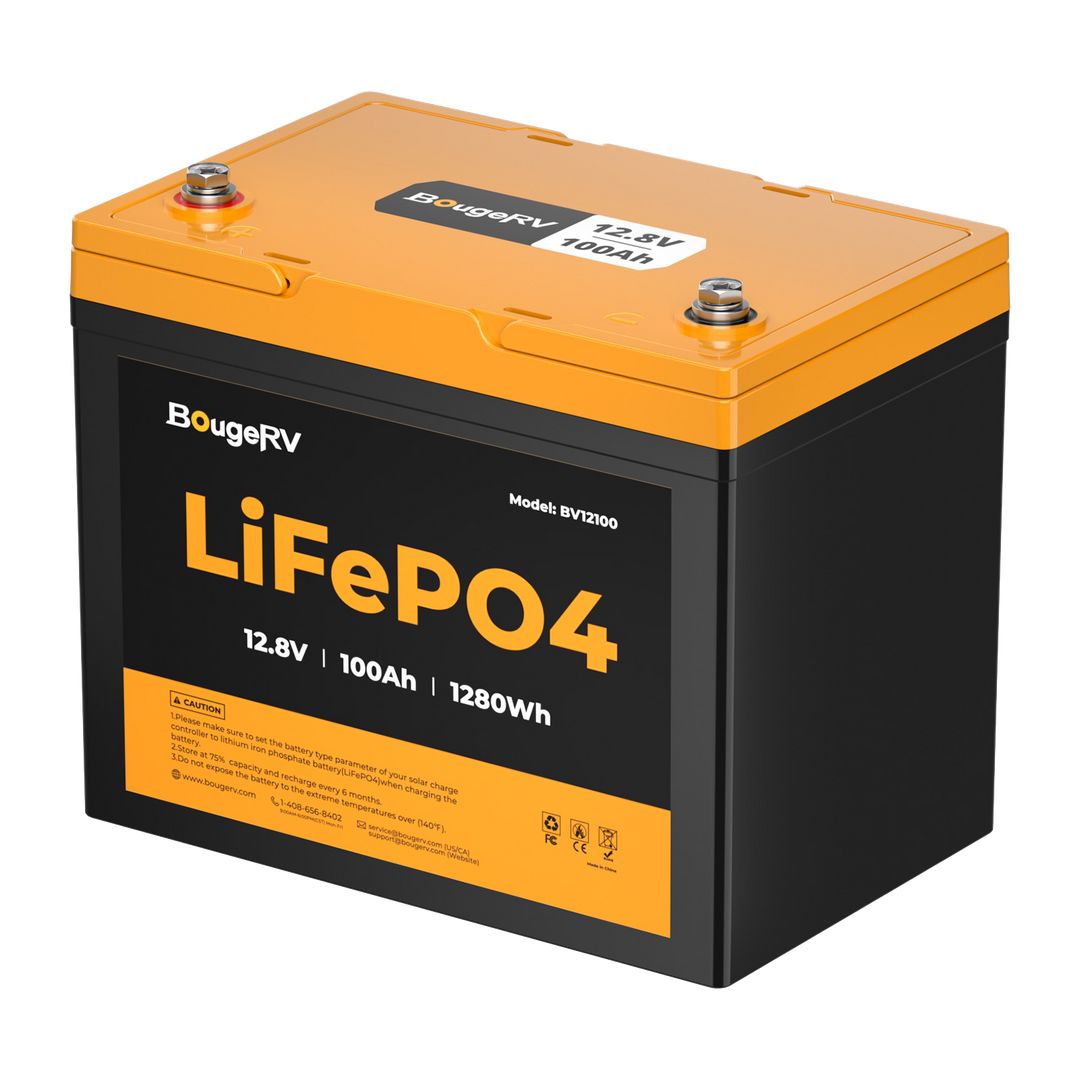

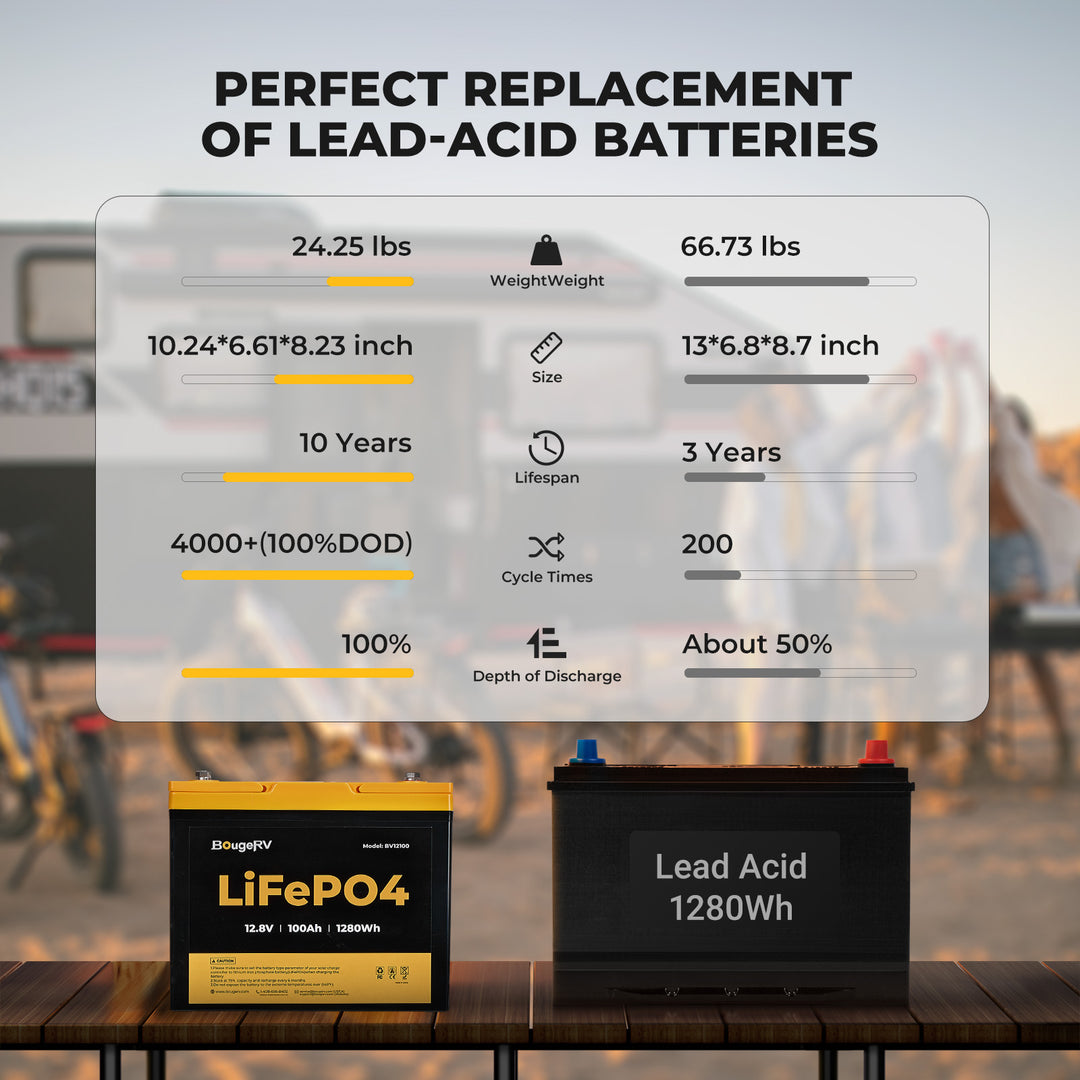

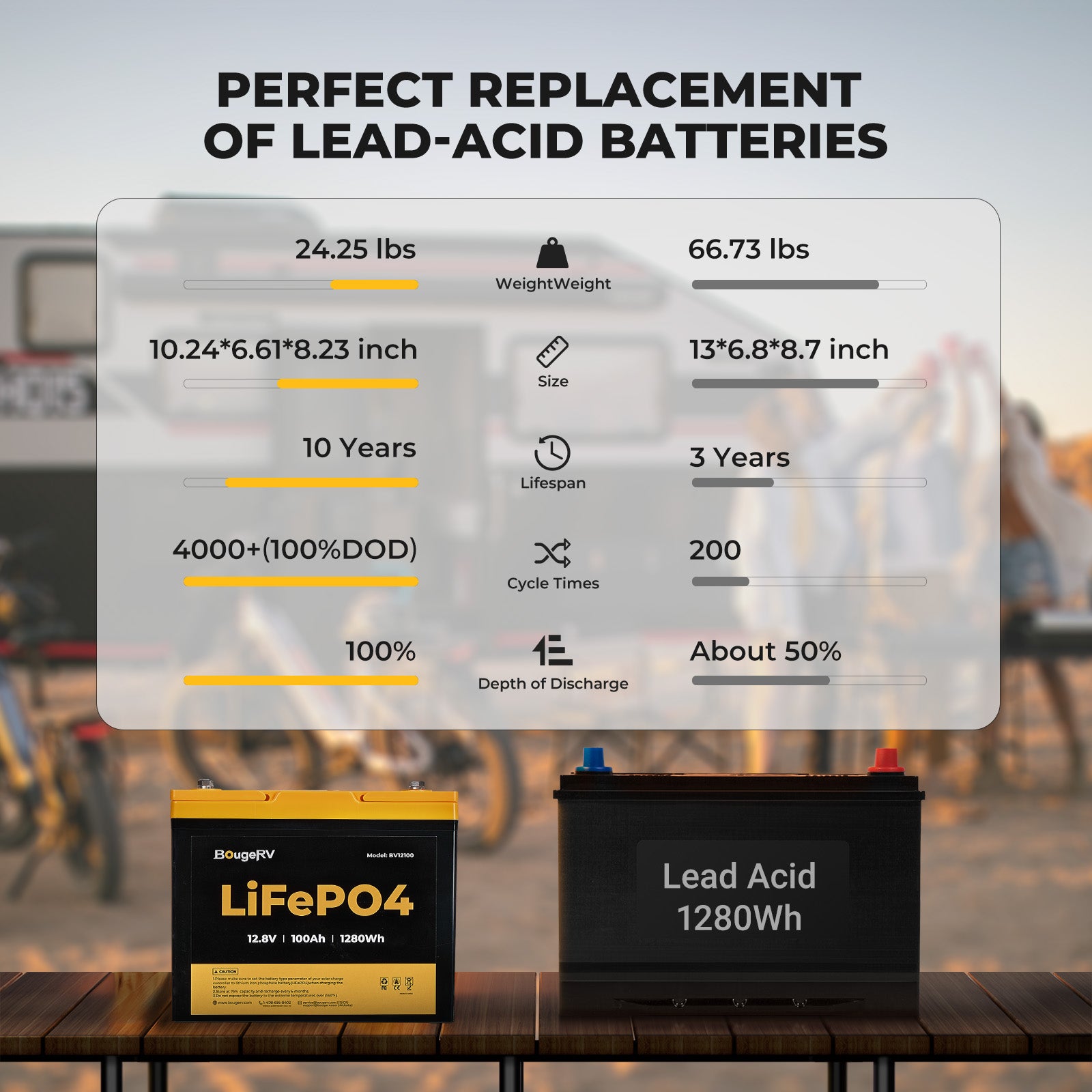

Batería LiFePO4 solar BougeRV 12V 100Ah Grupo 24

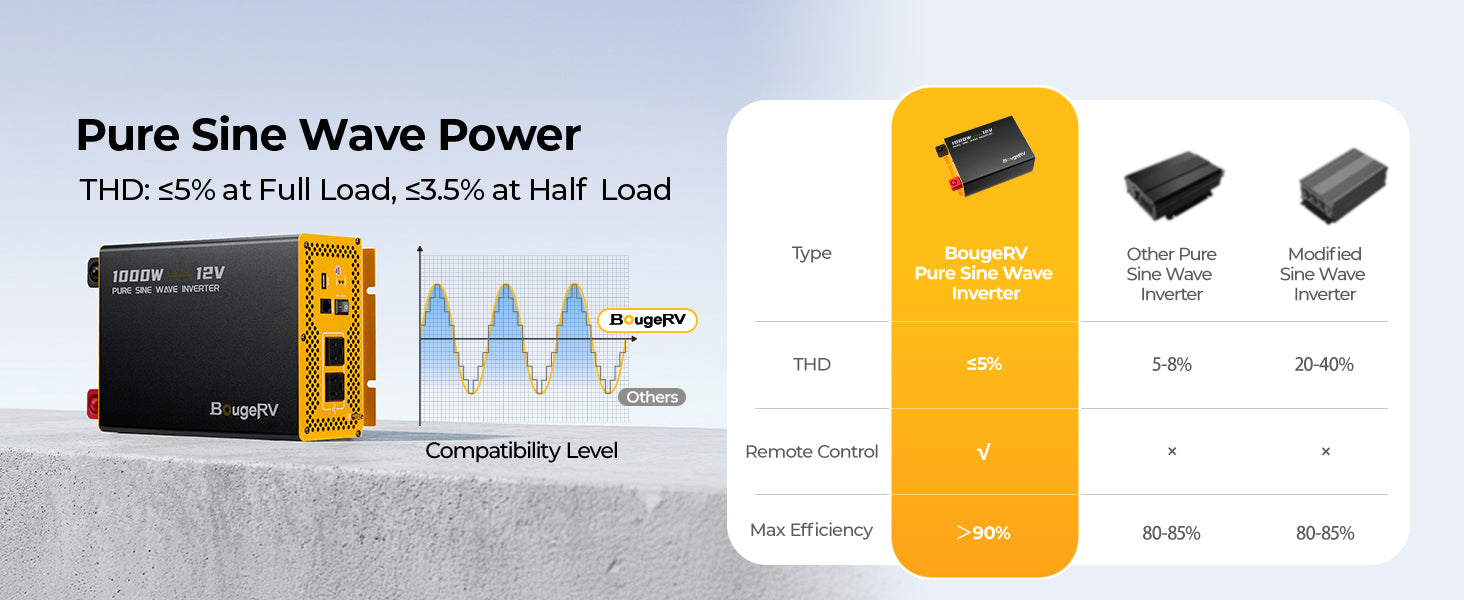

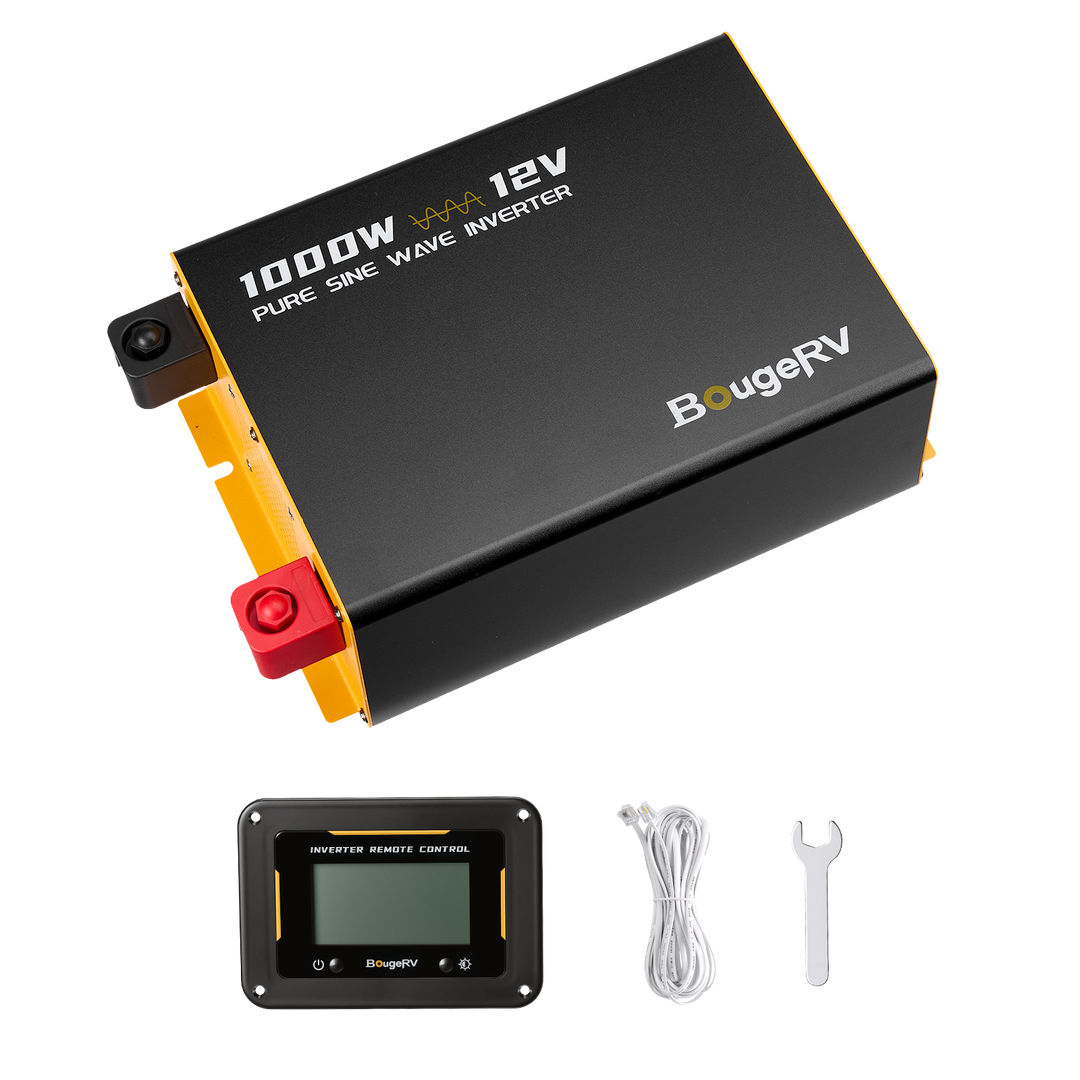

Inversor de onda sinusoidal pura BougeRV de 1000W y 12V

¿Qué hay en la caja?

ISE230N*1

👉Manual de Usuario

ISE217-BK

👉Manual del usuario

ISE212N*1

👉Manual de usuario

SI001-BK-LYTYA1

👉Manual de usuario

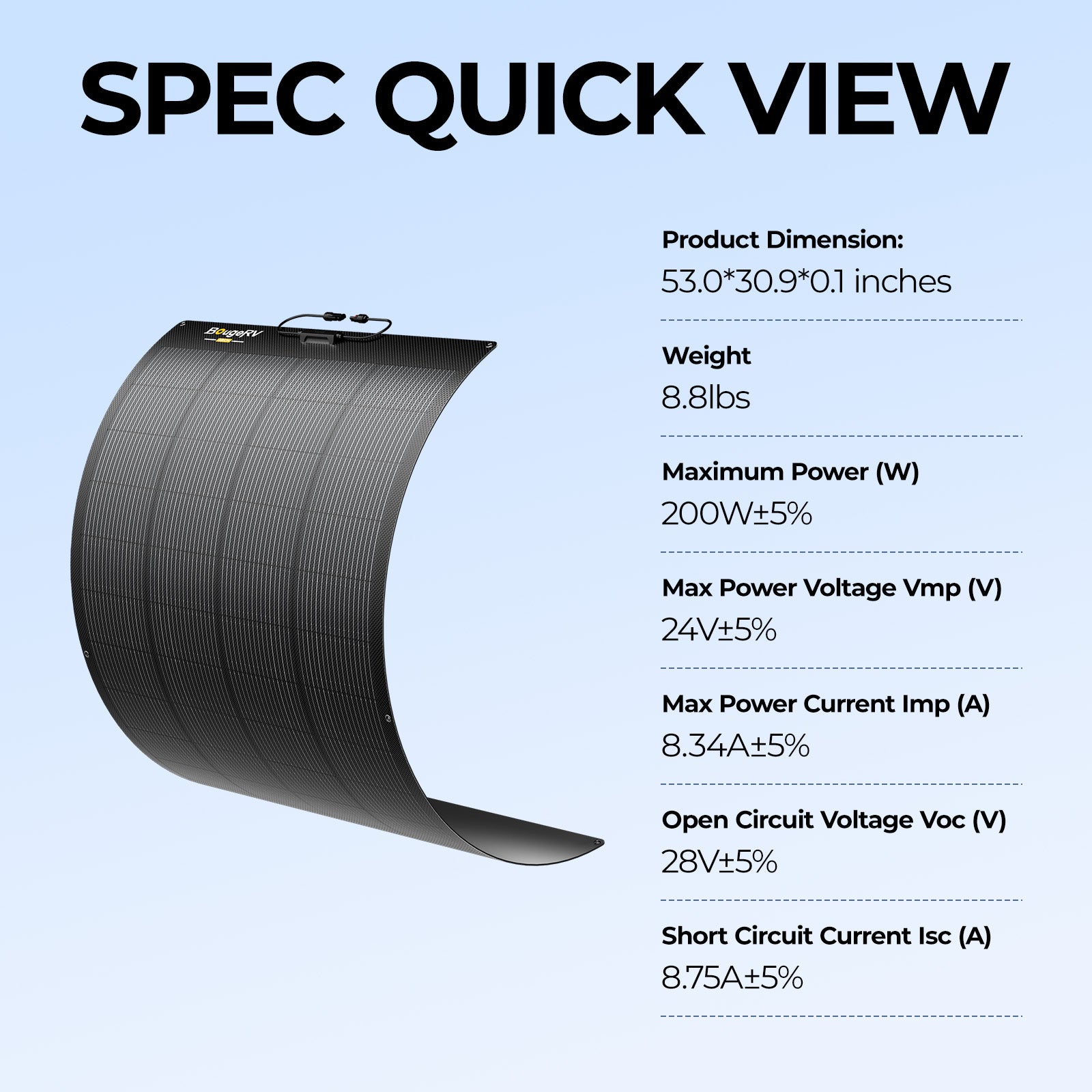

Especificaciones del producto

SKU ISE230N Version Upgrade
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 24±5% V Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 8.34±5% A Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 28±5% V Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 8.75±5% A Dimensions 53.0*30.9*0.1 inches
Power output warranty 25 years 80% output warranty Weight 8.8 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU ISE230N
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 24V±5%
Max. Power Current Imp (A) 8.34A±5%
Open Circuit Voltage Voc (V) 28V±5%
Short Circuit Current (Isc) 8.75A±5%
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53.0*30.9*0.1 inches
Weight 8.8lbs

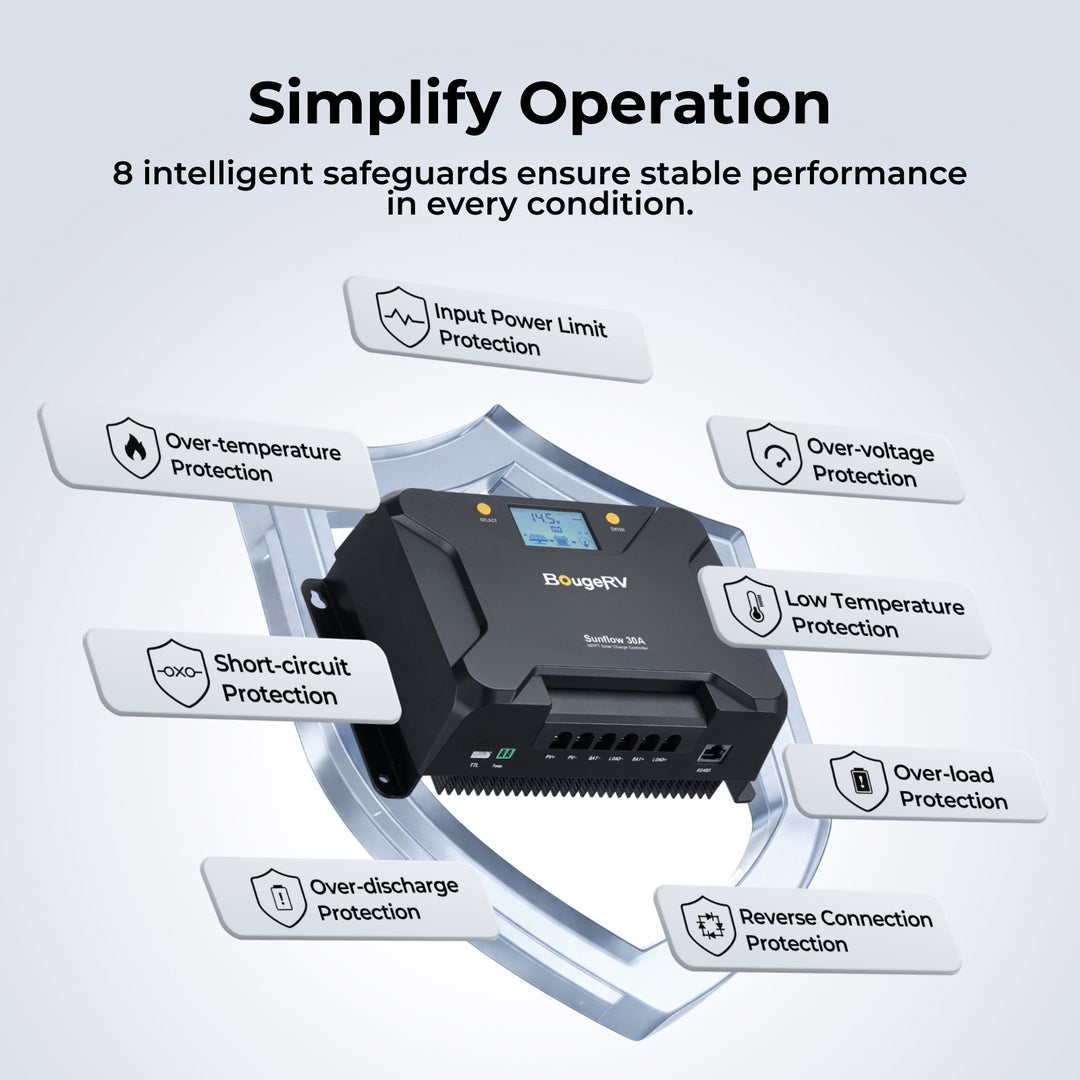

SKU ISE217

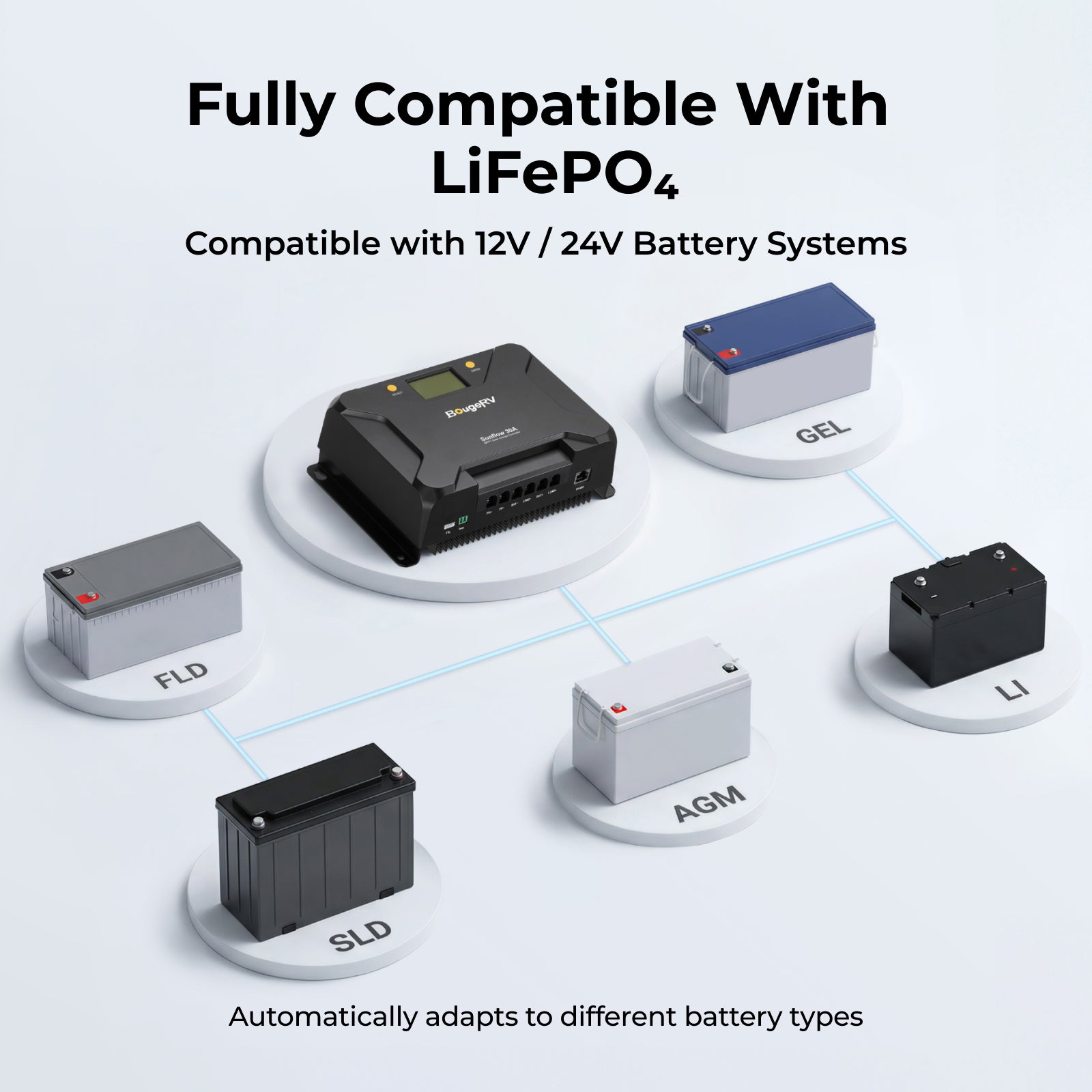

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 30 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 450W/12V; 900W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 30 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 7.28L*5.23W*2.95H inches
No Load Loss ≤10mA Weight 2.37 lbs
Product Warranty 18-month Product Type Solar Charge Controller
SKU ISE217
System Voltage 12V/24V
Rated Charging Current 30 Amp
Maximum PV Input Voltage 100V (95V protection, 90V recovery)
Maximum Input of PV System 450W/12V; 900W/24V
Rated Load Current 20 Amp

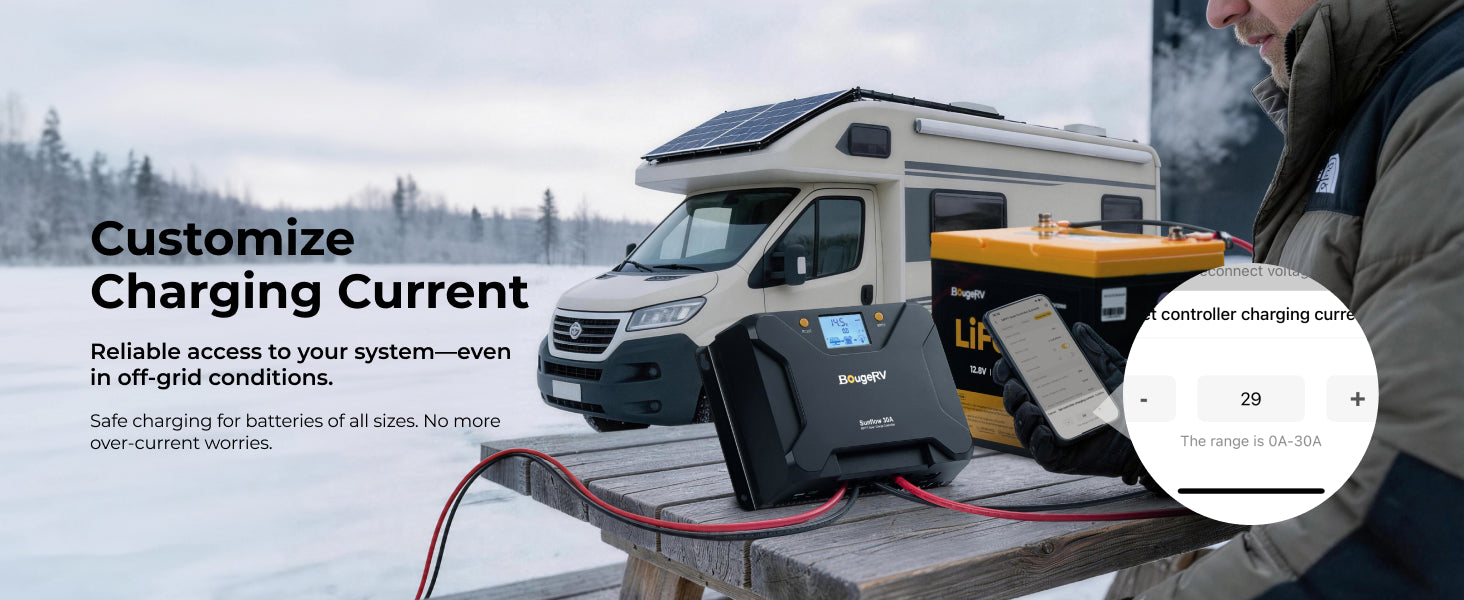

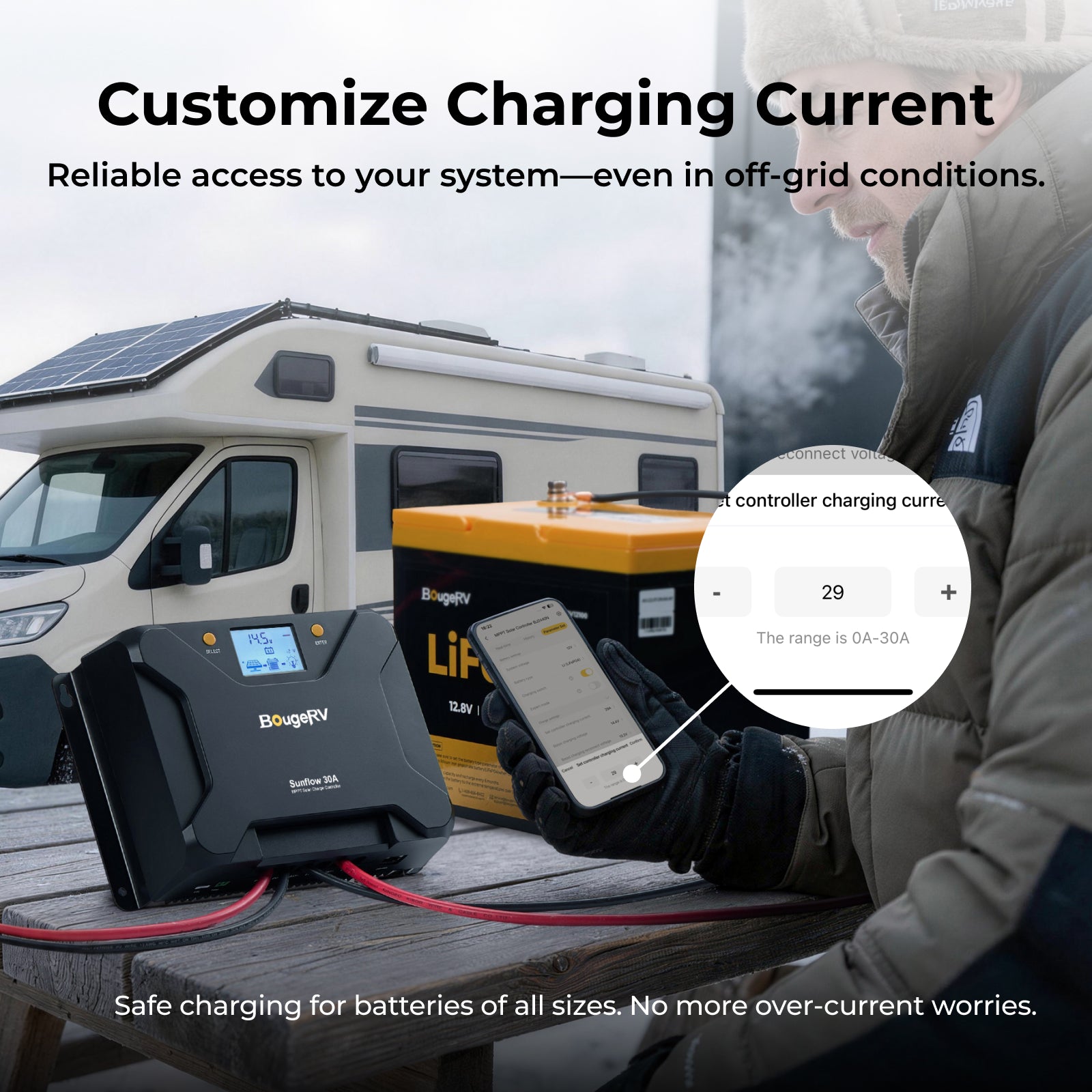

Charge Current Ajust Range 0 Amp to 30 Amp
Battery Operate Voltage Range 8V to 32V
No Load Loss ≤10mA
Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type Common Negative

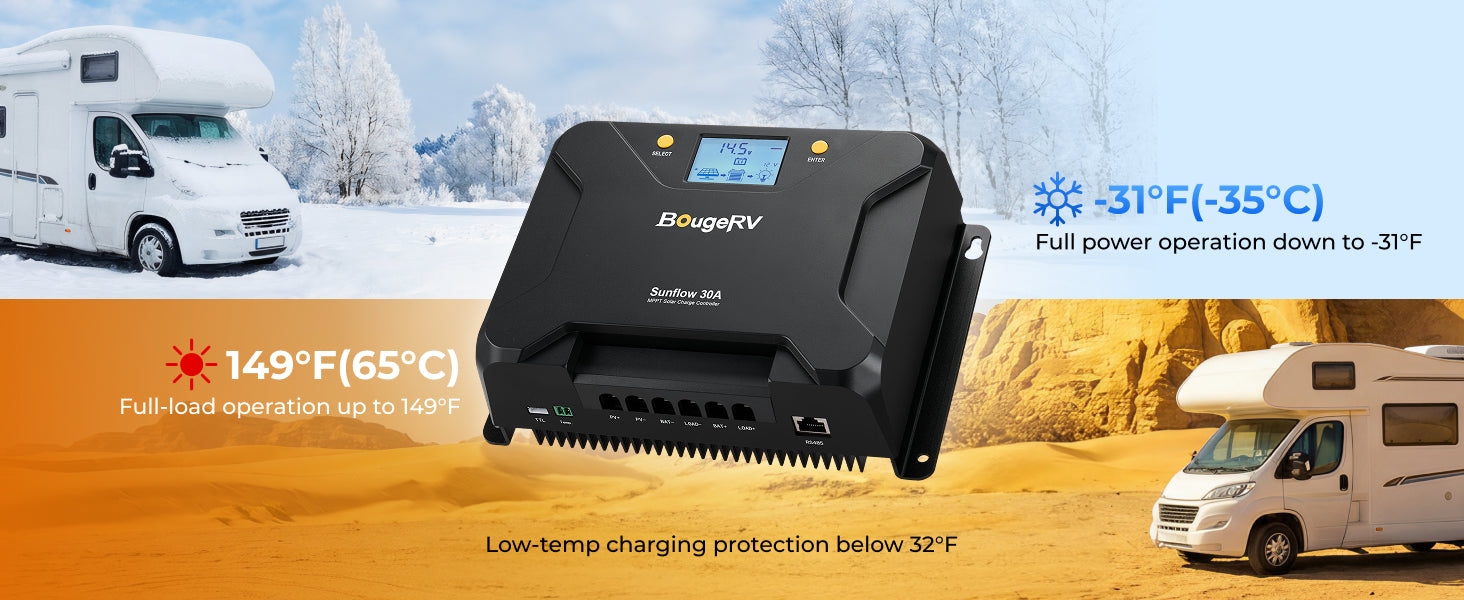

Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Protection Grade IP34

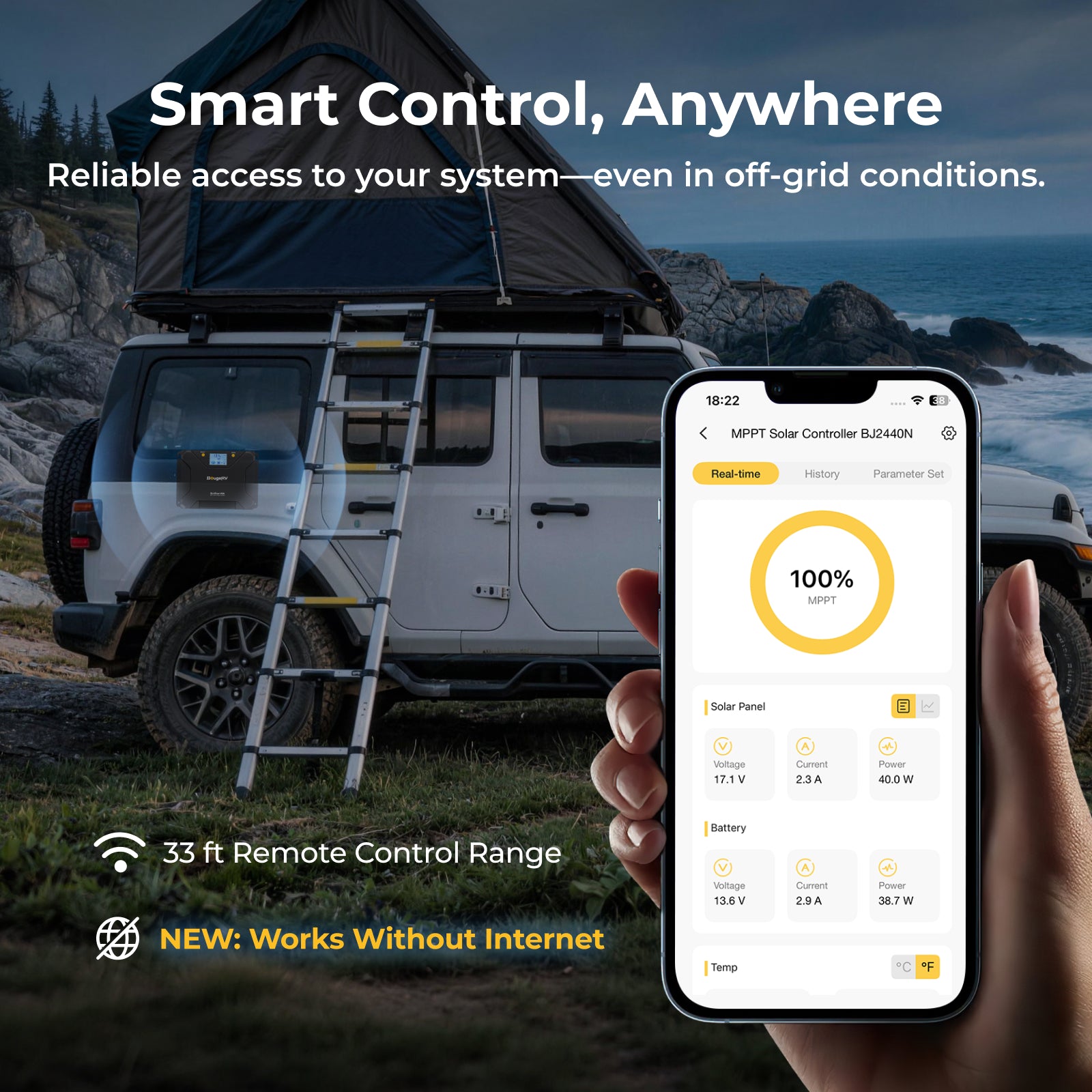

Bluetooth Communication built-in bluetooth
Data Storage Save the last 200 days of historical data
Dimension 7.28L*5.23W*2.95H inches
Weight 2.37 lbs
Product Warranty 18-month

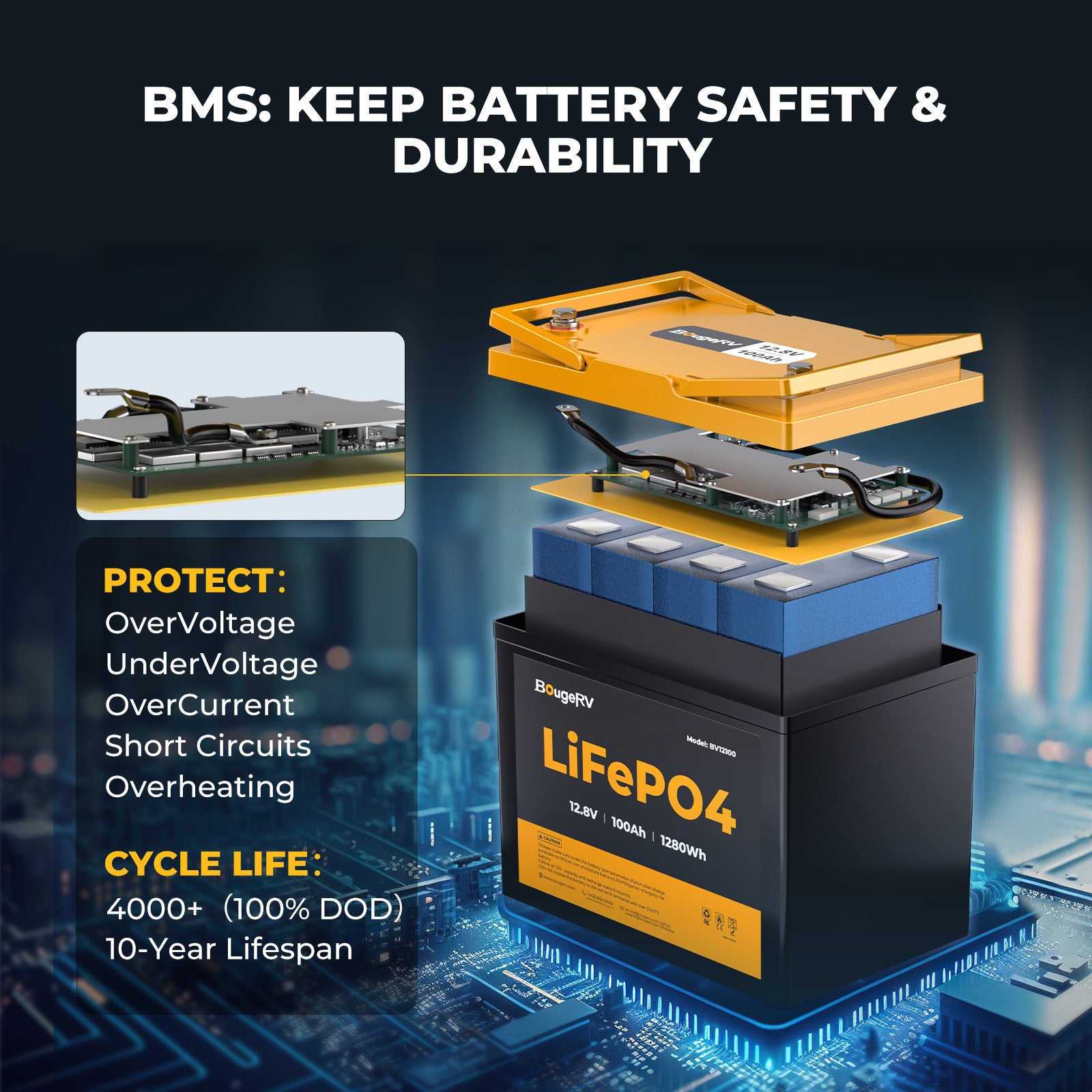

Battery Specification Table
SKU ISE212N
Nominal Voltage 12.8V Nominal Capacity

100Ah
Charge Voltage 14.4~14.6V Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
 Over-Charging Protection Voltage  14.6V
Maximum charge 100A（1.0C） Over-Charging Recovery Voltage
14.0V
Maximum Continuous Charge Current 100A (25°C, 77°F) Over-Discharging Protection Voltage 8.8V
Maximum Continuous Discharge Current 100A (1C) Over-Discharging Protection Recovery Voltage 10.4V
Maximum Discharge Current

330A (2.5s)
 Charge Temperature Range 0°C~65°C (32°F~149°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD） Discharge Temperature Range -20°C~75°C (-4°F~167°F)
Short Term -20°C~45°C (-4°F~113°F) Maximum Series Voltage Of Battery Pack 48V(4S)
Long Term

10°C~35°C (50°F~95°F)
—		 Maximum Parallel Current Of Battery Pack 400Ah(4P)

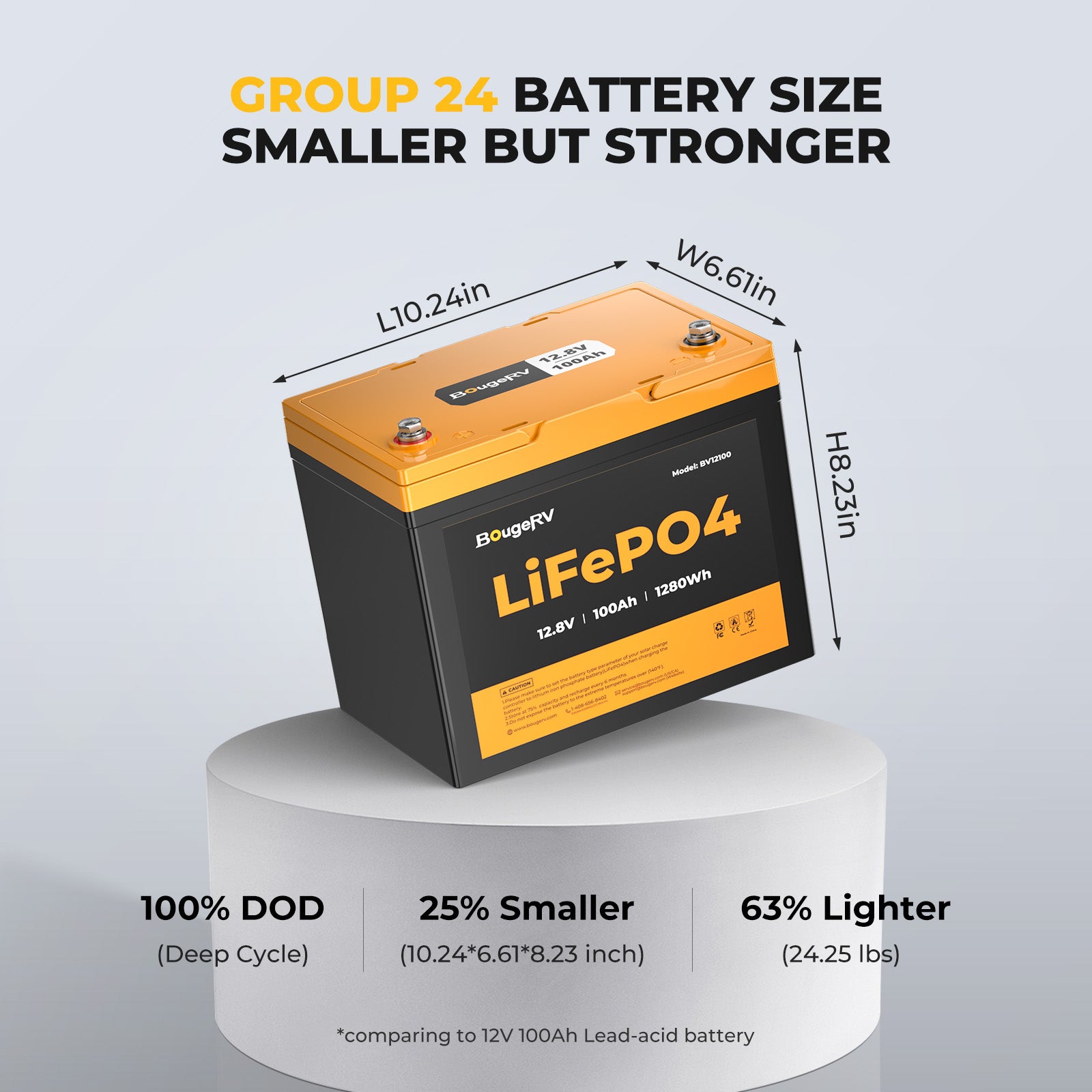

Charge Method CC/CV Item Demension L10.24*W6.61*H8.23
Protection Rating IP65 Item Weight 24.25 lbs

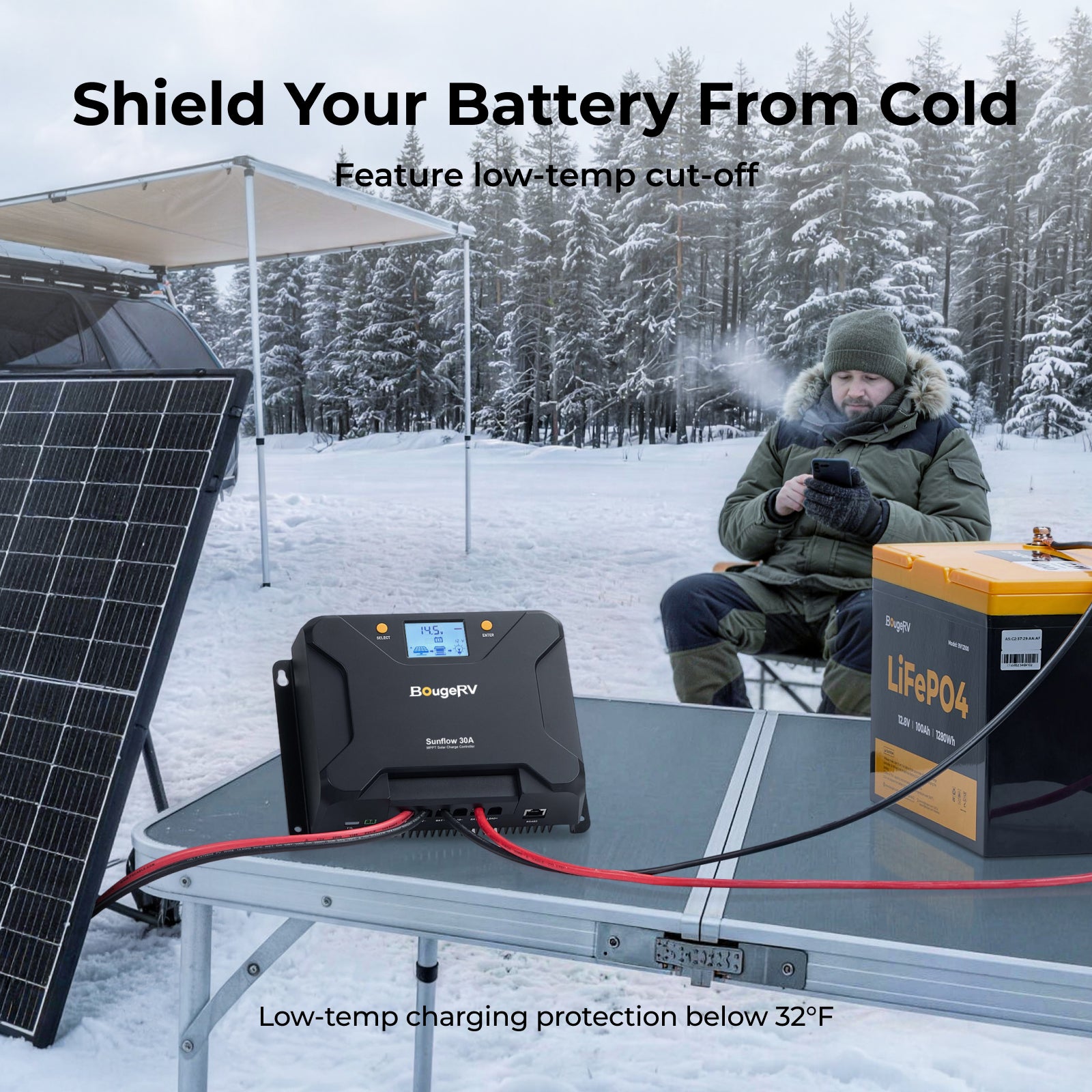

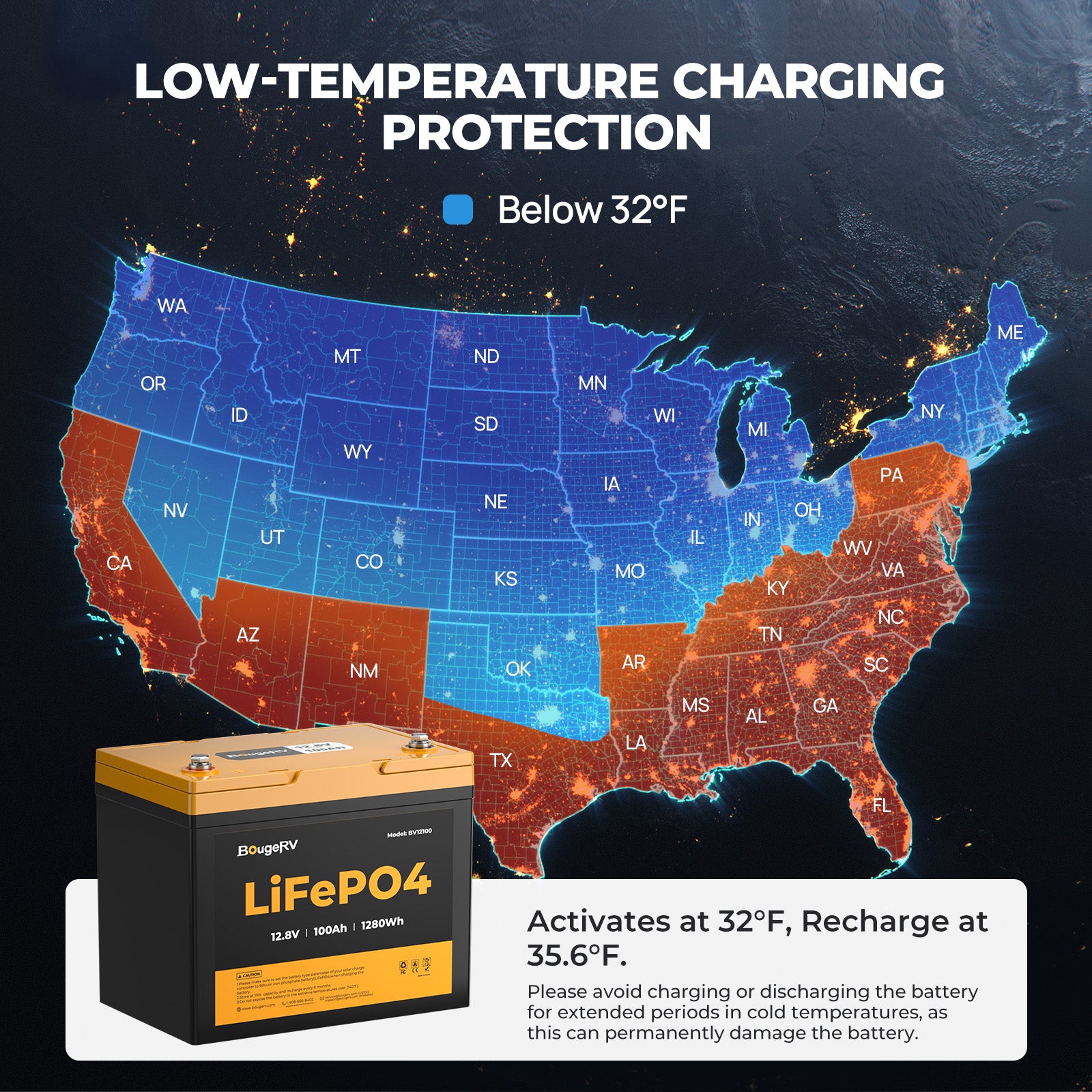

Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
 Product Warranty 5 Years
SKU
 ISE212N
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Charge Voltage
14.4~14.6V
Energy 1280Wh
Standard charge 20A (0.2C, recommend charge current)
Maximum charge
 100A（1C）
Maximum Continuous Charge Current
100A (25°C, 77°F)
Maximum Continuous Discharge Current
100A (1C)
Maximum Discharge Current
330A (2.5s)
Over-Charging Protection Voltage
14.6V
Over-Charging Recovery Voltage
14.0V
Over-Discharging Protection Voltage
8.8V
Over-Discharging Protection Recovery Voltage
10.4V
Charge Temperature Range
0°C~65°C (32°F~149°F)
Discharge Temperature Range
-20°C~75°C (-4°F~167°F)
Cycle Life 4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
Short Term
-20°C~45°C (-4°F~113°F)
Long Term
10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack
48V(4S)
Maximum Parallel Current Of Battery Pack
400Ah(4P)
Charge Method
CC/CV
Item Demension
L10.24*W6.61*H8.23
Item Weight 24.25 lbs
Protection Rating
IP65
Product Warranty 5 Years

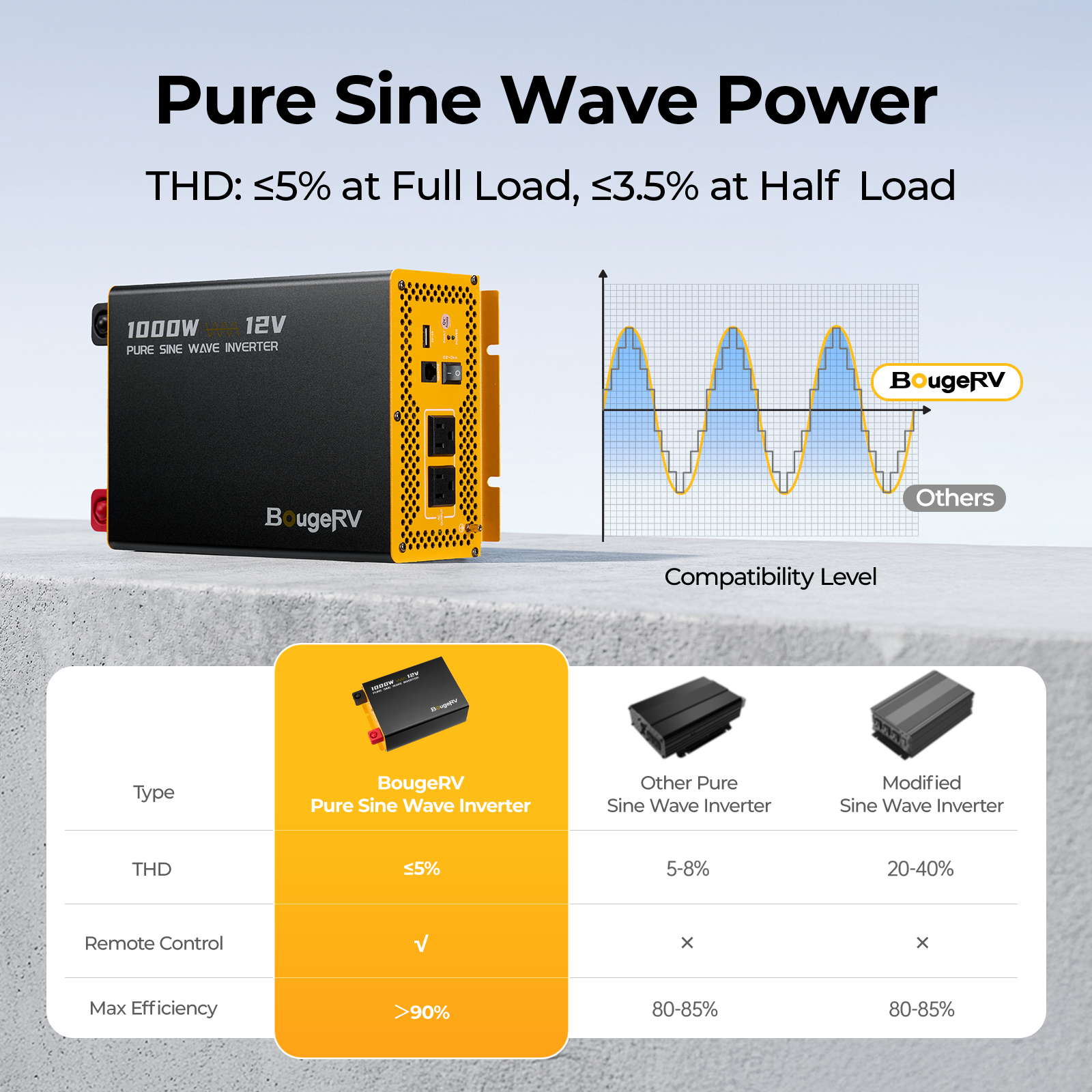

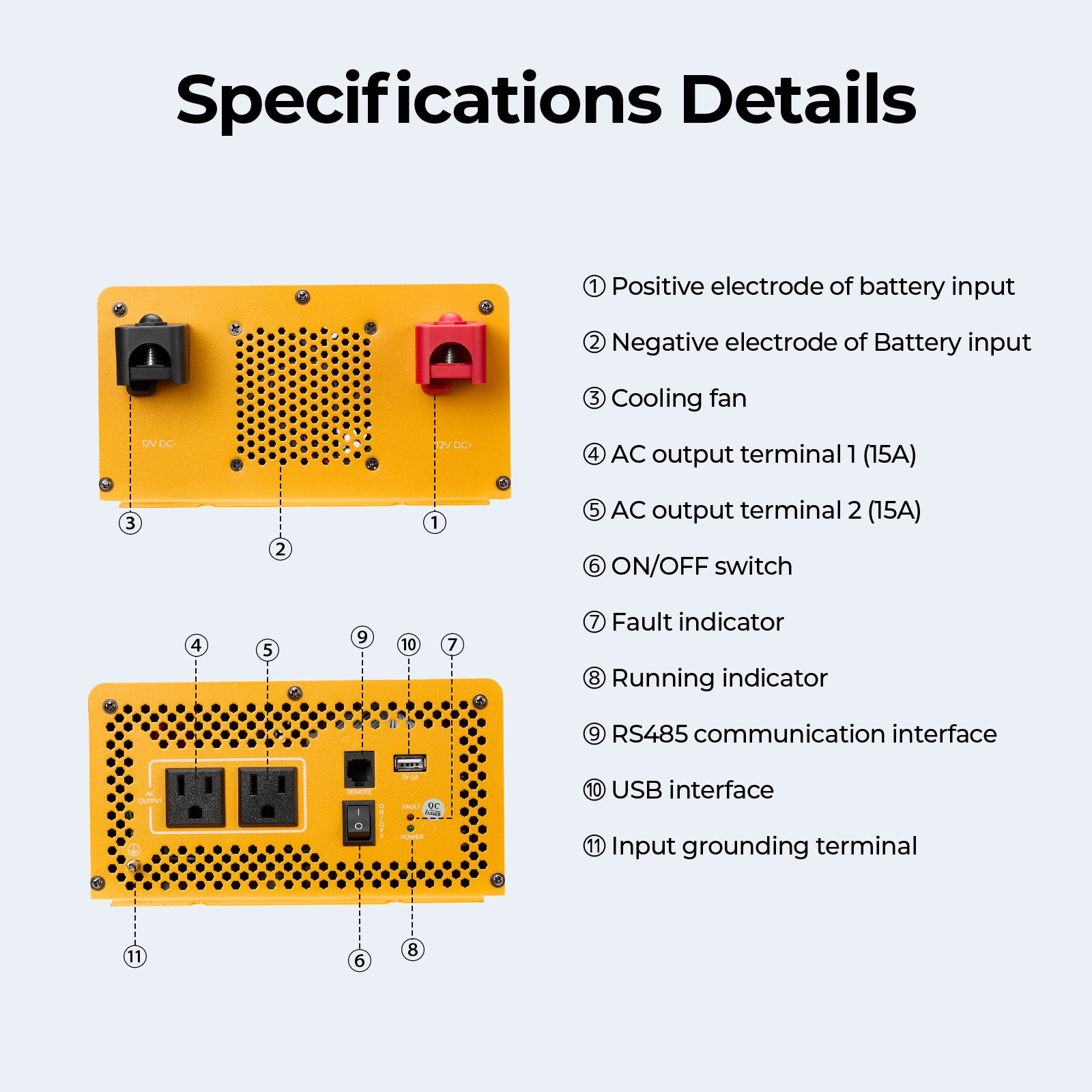

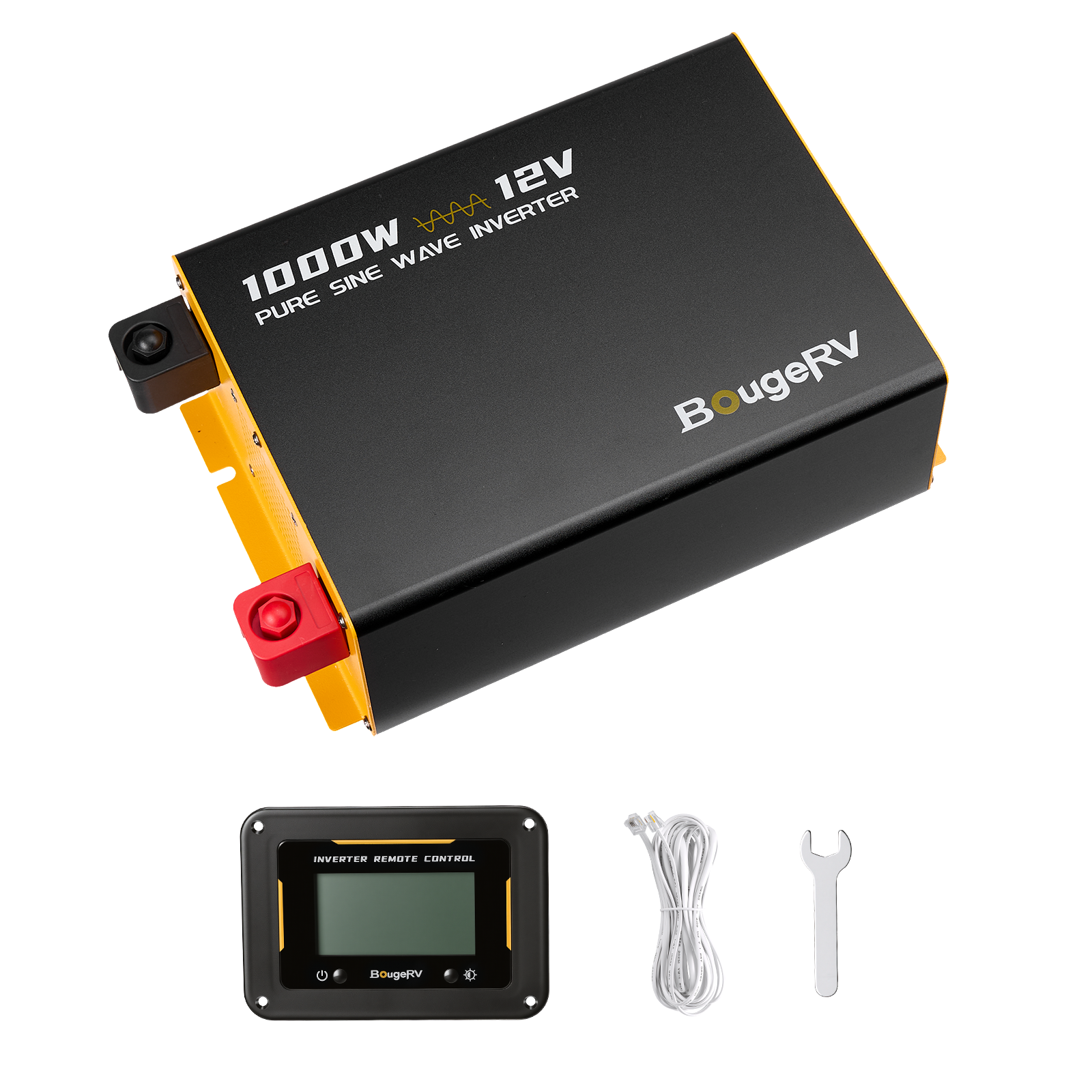

SKU SI001-BK-LYTYA1 Model 12V 1000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB

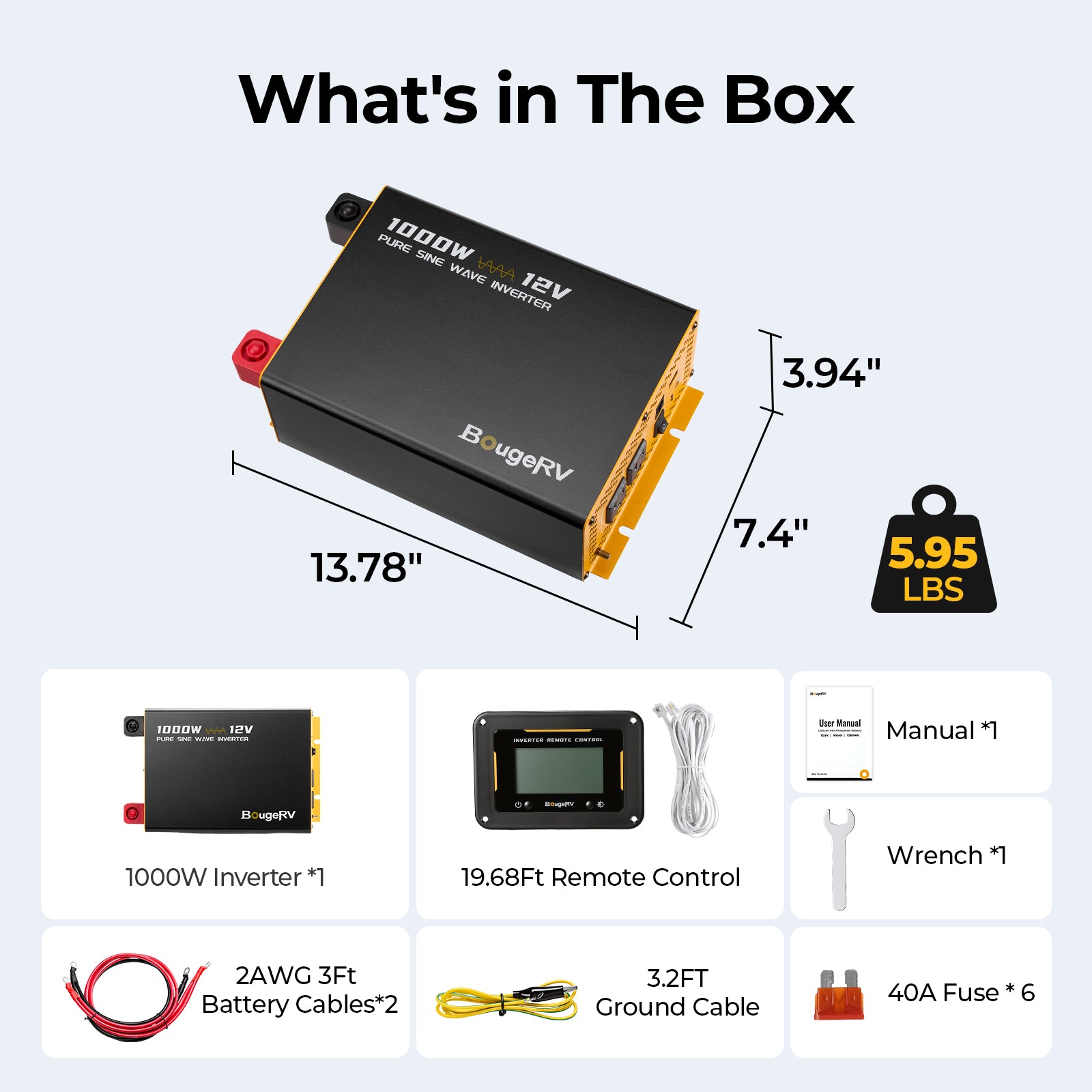

Product Size 13.78 × 7.4 × 3.94 in Weight 5.95 lbs

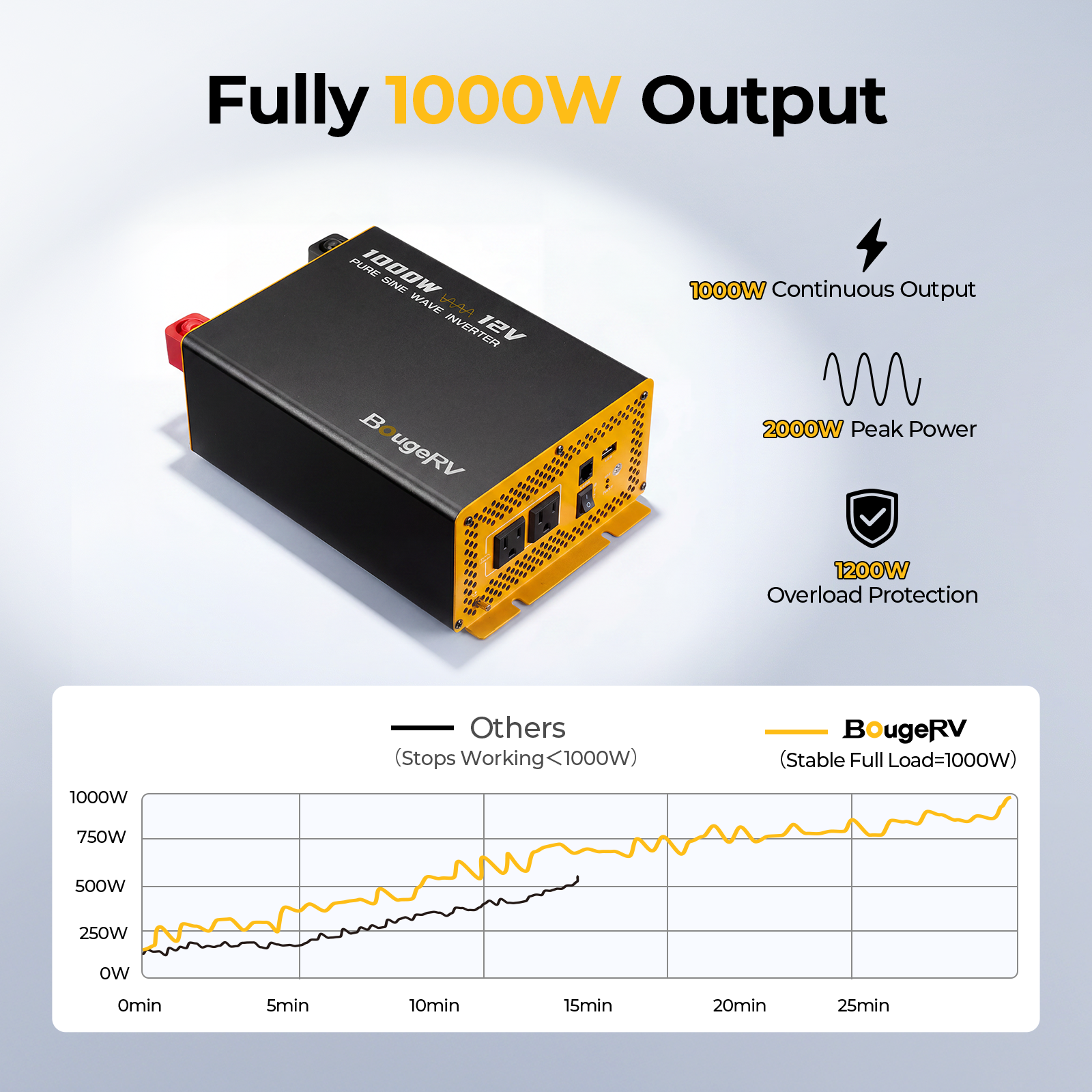

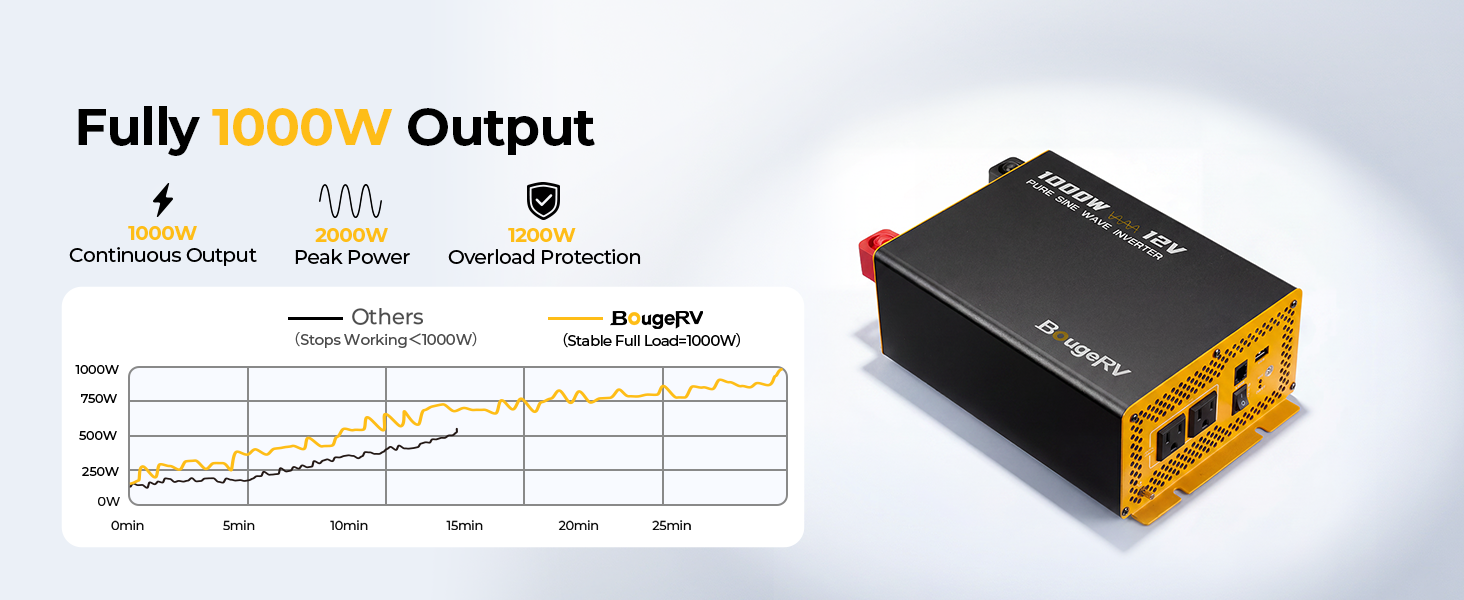

Rated Power 1000W Overload Power 1200W
Peak Power 2000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss ≤0.6A

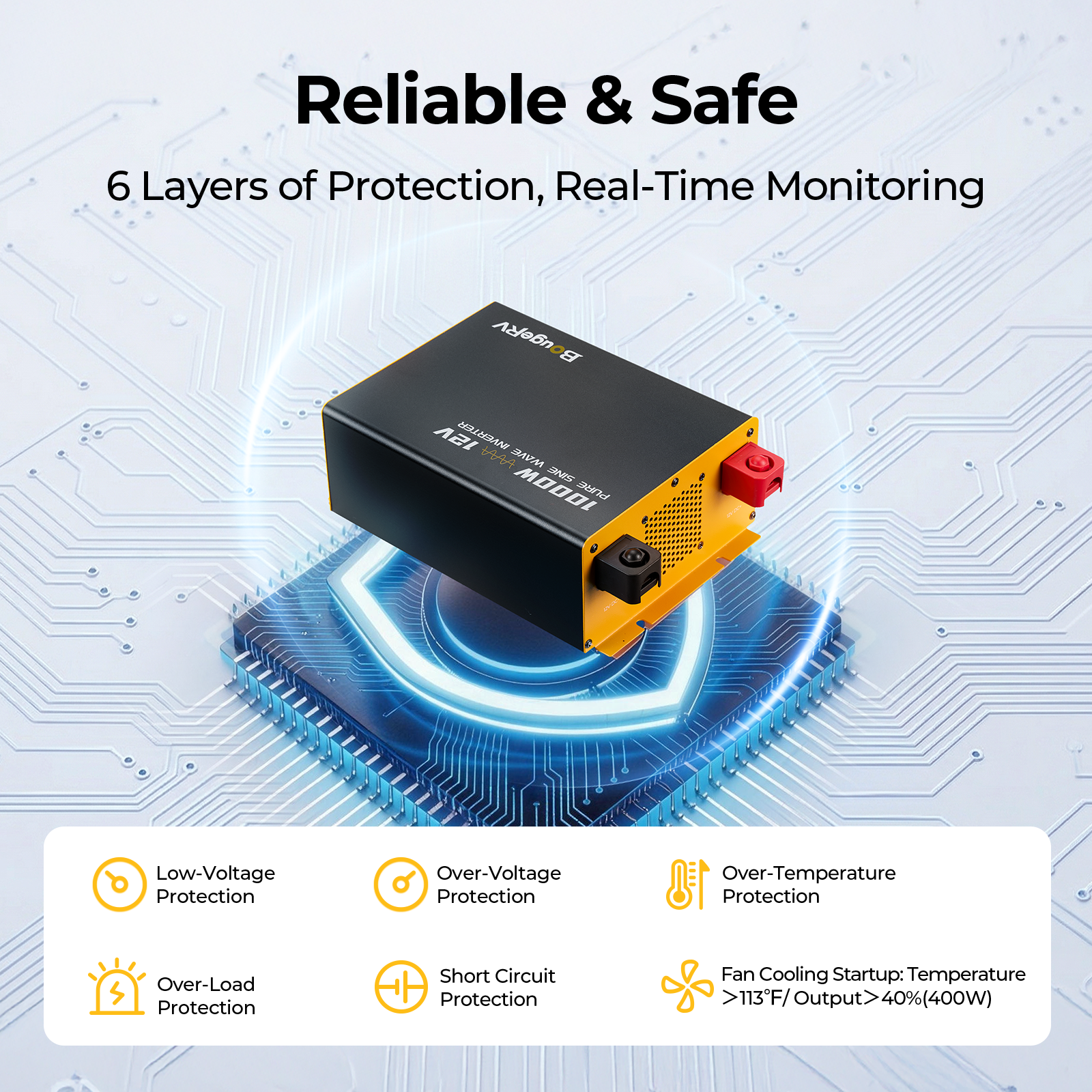

Protection Functions Input over-voltage, over-discharge, overload, short-circuit, over-temperature, ground fault protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)

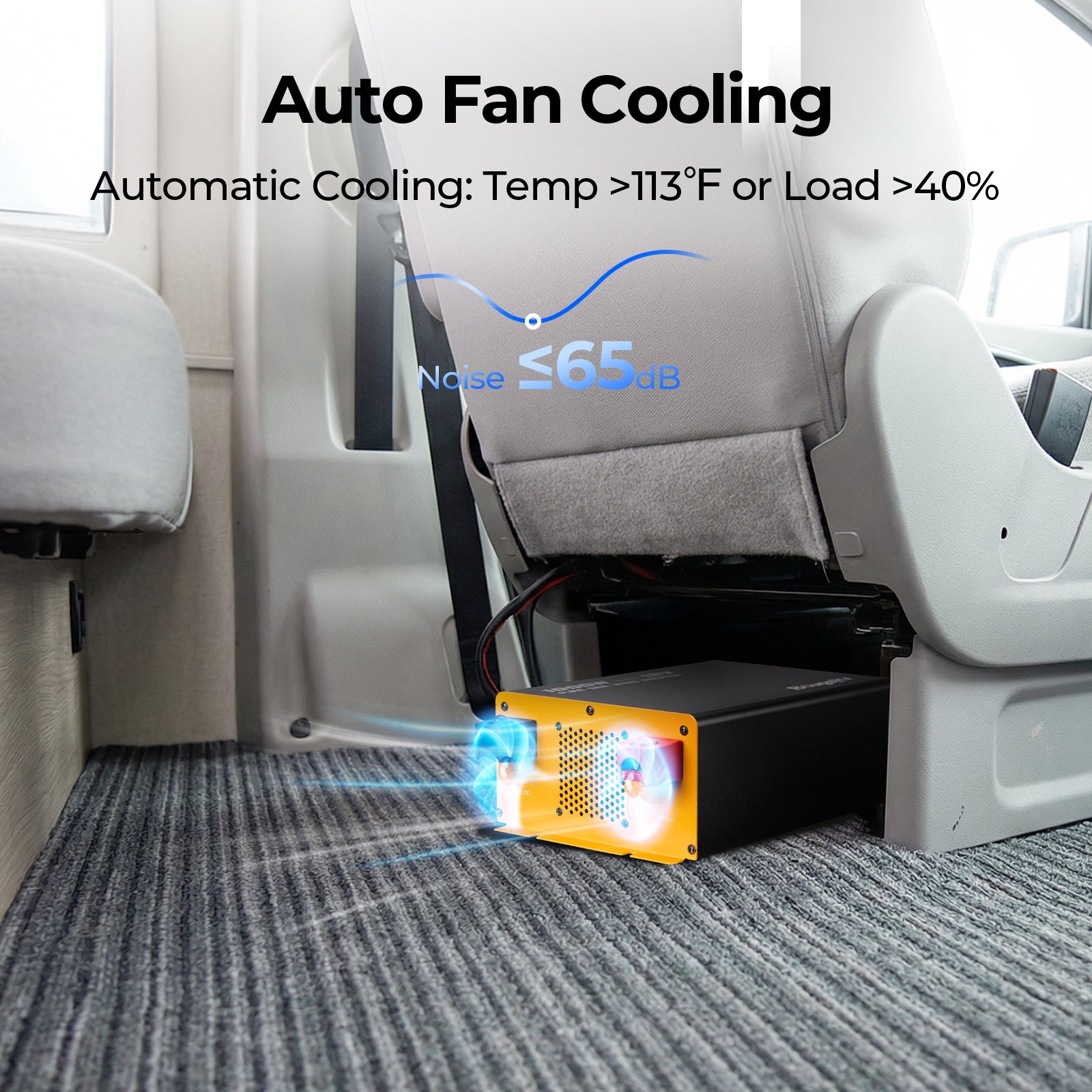

Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% load
Communication RS485 / Bluetooth APP USB Port 18W (5V/9V/12V)
SKU SI001-BK-LYTYA1 Model 12V 1000W
Operating Temp 14°F–104°F (-10°C–40°C) Noise ≤60dB
Product Size 13.78 × 7.4 × 3.94 in Weight 5.95 lbs
Rated Power 1000W Overload Power 1200W
Peak Power 2000W (1s) Output Voltage 120VAC
Output Frequency 50/60Hz Input Voltage 12VDC
Input Voltage Range 10V–15.5VDC Waveform Pure Sine Wave
THD <5% Max Efficiency >90%
Full Load Efficiency >85% No-load Loss ≤0.6A
Protection Functions Input over-voltage, over-discharge, overload, short-circuit, over-temperature, ground fault protection
Low Voltage Alarm 10.5V (±0.3V) Over-discharge 10V (±0.3V)
Overvoltage 15.5V (±0.3V) Over-temp Protect ≥167°F (75°C)
Recovery Temp ≤131°F (55°C) Fan Start ≥113°F (45°C) / ≥40% load
Communication RS485 / Bluetooth APP USB Port 18W (5V/9V/12V)
