Name: BougeRV Solar Panel Parallel Connectors 1 to 5 Solar Cable Wire
Brand: BougeRV
SKU: ISE155
Price: 38.99 USD
Availability: InStock

BougeRV Solar Panel Parallel Connectors 1 to 5 Solar Cable Wire

$38.99

BougeRV provides an exceptional solution for streamlining the wiring process and enhancing the efficiency of solar panel installations with their innovative 5 to 1 MC4 Connector. This connector is specifically designed to seamlessly integrate with MC4 solar cables, ensuring a dependable and secure connection throughout the system. By employing the 5 to 1 configuration, BougeRV's MC4 Connector empowers users to conveniently link up to five solar panels to a single output point. This remarkable feature significantly reduces the number of cables and connections needed, simplifying the overall installation process and optimizing the system's performance.

Features

HIGHLIGHTS

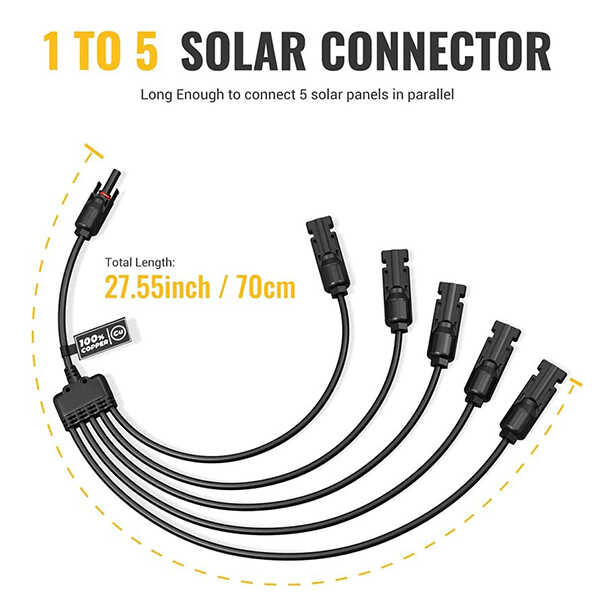

【Solar Y Connectors】Rated Current: 30A, Rated Voltage: DC1000V. It can connect 5 solar panels in parallel, with 1 male to 5 female(M/FFFFF) and 1 female to 5 male(F/MMMMM) solar connectors.
【Easy Installation】There is a built - in lock in each male connector, you just need to press your fingers to the two sides of the built-in lock on the male connector, then you can connect or disconnect the connector easily, without using other tool. The connection will work stably with this built-in lock.
【Wide Compatibility】This solar connector is suitable for most conventional solar connectors, which is also compatible with solar cable from 10AWG to 14AWG.
【IP67 Waterproof】The solar panel connector is waterproof and dust-proof with the waterproof ring in the male connector. Made with high-quality PPO material, solar y branch connector is resistant to the aging and UV, which can work stably from -40℉ to 221℉. It is safe and durable to work outdoors.
【Warranty】BougeRV is dedicated to provide customers with high quality product through constantly improvement and also promise an 18 months warranty of each product.

Product Specifications

SKU	ISE155	-	-
Rated Current	30A	Rated Voltage	DC1000V
Contact Resistance	≤0.2mΩ	Insulation Resistance	>500mΩ
Operating Temperature range	-40℉ until+221℉	Degree of Protection	IP67
Flame Class	UL94-V0	Safety Degree	Ⅱ
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

SKU	ISE155	-	-
Rated Current	30A	Rated Voltage	DC1000V
Contact Resistance	≤0.2mΩ	Insulation Resistance	>500mΩ
Operating Temperature range	-40℉ until+221℉	Degree of Protection	IP67
Flame Class	UL94-V0	Safety Degree	Ⅱ
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

SKU	ISE155
Rated Current	30A
Contact Resistance	≤0.2mΩ
Operating Temperature range	-40℉ until+221℉
Flame Class	UL94-V0
Suitable Single Core Cable Section	1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
Rated Voltage	DC1000V
Insulation Resistance	>500mΩ
Degree of Protection	IP67
Safety Degree	Ⅱ
