Li 30Amp 12V/24V PWM Solar Charge Controller (Negative Ground)

(3)
$39.99
/
The BougeRV Li 30 AMP PWM Solar Charge Controller is a top-notch device that regulates voltage and current from solar panels to batteries. Its PWM charging technology is perfect for lithium batteries, providing stable and efficient charging. Easy to install and use, this compact, durable controller boasts a real-time monitoring display. Trust BougeRV for all your solar power needs with the Li 30 AMP PWM Solar Charge Controller.
Read more » Fold up »
15

Pay With Ease:

Payments icons
  • Features
  • Tech Specs
  • Reviews
ground designed
ground designed

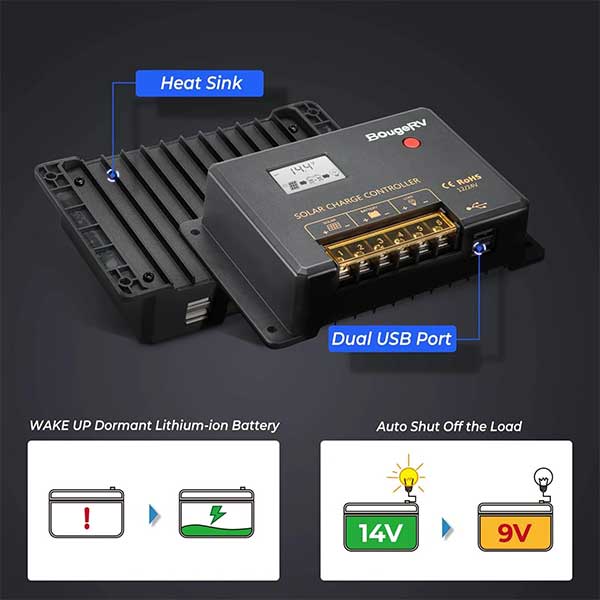

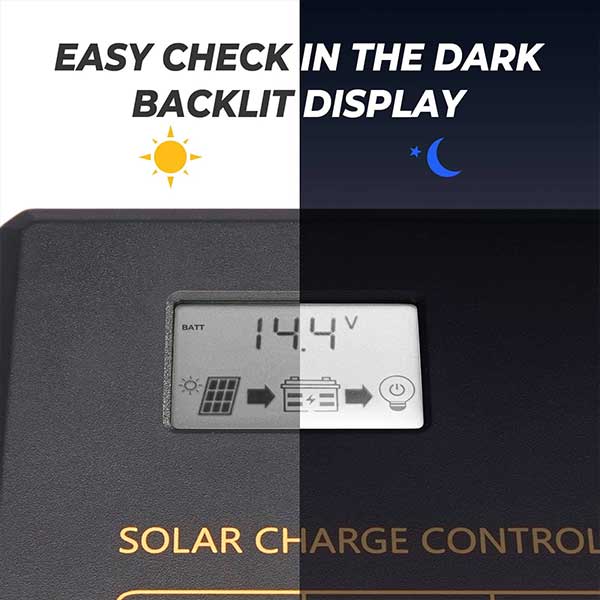

Introducing BougeRV's new version 30A PWM Solar Charge Controller - now with a negative ground design for compatibility with a wider range of vehicle systems. Say goodbye to polarity worries! With its backlit display, easily check parameters in real-time, even in the dark. Get a clear view of the PV and battery status with real-time values cycled on the main interface. This solar panel regulator is compatible with 12V/24V batteries (SLD, FLD, GEL, LiFePO4, ternary lithium battery, and LTO battery). It is also auto resettable after protected shut-off and able to wake up dormant lithium batteries after setting to Li battery type. Thanks to its 32 Bit High-Speed Master Chip, tracing power is faster and more accurate than ever before. And in case of any issues, the error code is helpful for quick and clear problem resolution.

UPGRADE 2.0 PWM CONTROLLER
UPGRADE 2.0 PWM CONTROLLER
Intelligent Solar Regulator
Intelligent Solar Regulator
BOAT SOLAR SYSTEM
BOAT SOLAR SYSTEM
INTELLIGENT SOLAR REGULATOR

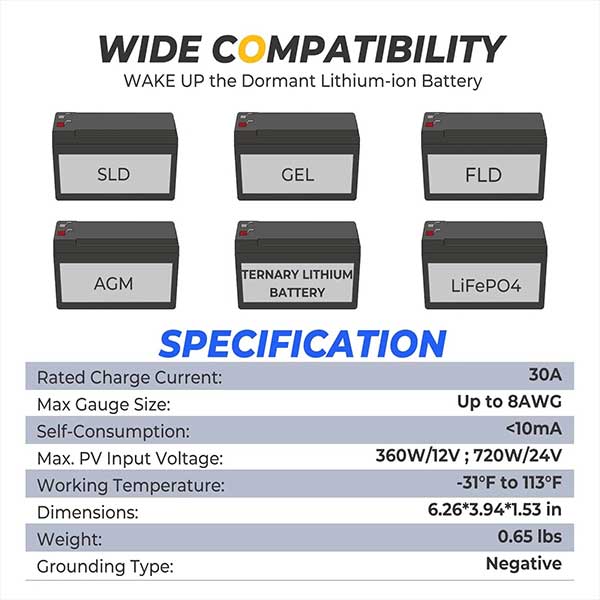

Li 30 Amp Pwm Solar Charge Controller is compatible with 12V/24V batteries, including SLD, FLD, GEL, LiFePO4, ternary lithium, and LTO batteries. It features an auto resettable function after protected shut-off and can wake up dormant lithium batteries after setting to Li battery type. The 32-bit high-speed master chip ensures fast and accurate power tracing, while error codes provide a quick and clear way to check and fix problems.

HOME SOLAR SYSTEM
HOME SOLAR SYSTEM
CUSTOM YOUR SYSTEM

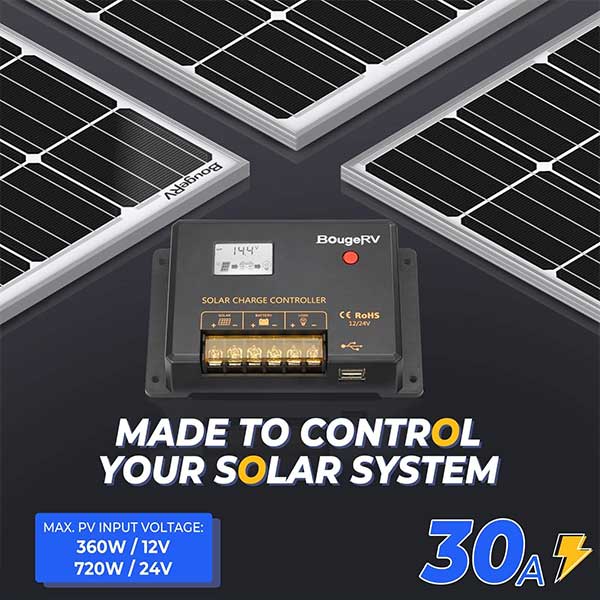

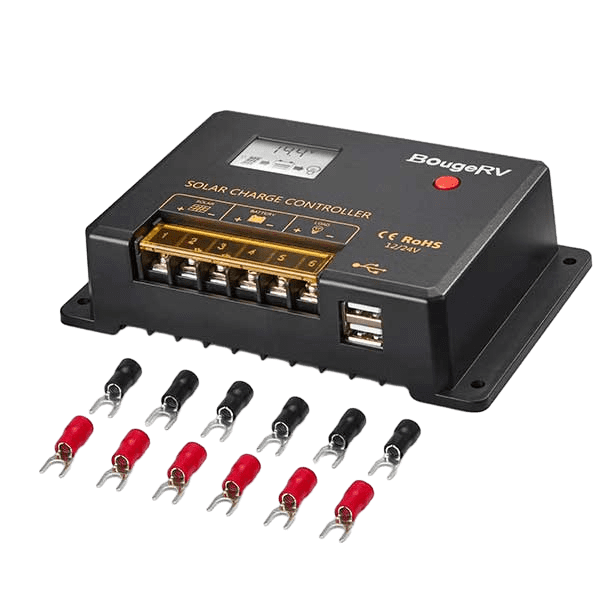

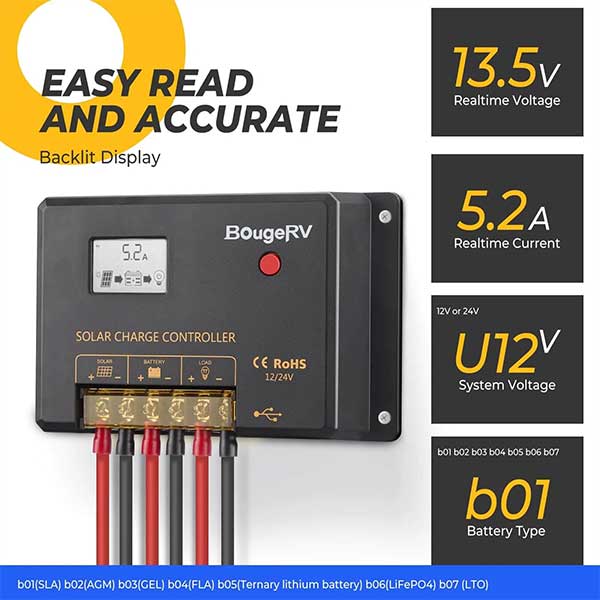

With adjustable parameters such as battery type and load operating mode, Li 30 Amp Pwm Solar Charge Controller allows you to design a tailored system. Real-time updates on input and output are displayed on the LCD screen. Dual USB ports with a maximum current of 2A allow for powering devices such as iPhones, iPads, and Android phones. The product includes 12 spade terminals to make wiring neater and safer, eliminating concerns about short circuits caused by copper wire branches contact.

Li 30 amp pwm solar charge controller
Li 30 amp pwm solar charge controller
RV SOLAR SYSTEM

Li 30 Amp Pwm Solar Charge Controller is designed with a negative ground, making it compatible with vehicle systems like RVs and travel trailers.

Li 30amp pwm solar charge controller
Li 30amp pwm solar charge controller
BOAT SOLAR SYSTEM

Please note that while this Li 30 Amp Pwm Solar Charge Controller is not waterproof, it can still be used on boats as long as it is kept in a dry location.

RV SOLAR SYSTEM
RV SOLAR SYSTEM
HOME SOLAR SYSTEM

Li 30 Amp Pwm Solar Charge Controller is user-friendly and easy to set up, making it a great choice for home solar systems.

Li 30 amp pwm solar charge controller
Li 30 amp pwm solar charge controller
RV SOLAR SYSTEM

Li 30 Amp Pwm Solar Charge Controller is designed with a negative ground, making it compatible with vehicle systems like RVs and travel trailers.

Li 30amp pwm solar charge controller
Li 30amp pwm solar charge controller
BOAT SOLAR SYSTEM

Please note that while this Li 30 Amp Pwm Solar Charge Controller is not waterproof, it can still be used on boats as long as it is kept in a dry location.

RV SOLAR SYSTEM
RV SOLAR SYSTEM
HOME SOLAR SYSTEM

Li 30 Amp Pwm Solar Charge Controller is user-friendly and easy to set up, making it a great choice for home solar systems.

Product Specifications

SKUISE105
System voltage12V/24VRated charge current30A
Rated discharge current30AMaximum PV input voltage<50V
Backlight display time15s off without operationNo-load loss<8mA
The maximum allowable voltage of battery terminal<32VWorking temperature-31°F～140°F
USB output5V/2ATemperature compensation-3mV/°C/2V
Light control delay1 minuteProtection levelIP32
Altitude≤3000mNet weight290g
 0.64 lbs/10.23 ounces
Dimensions159×100×39(mm)
6.26*3.94*1.53 inches
Installation size147×80(mm)
Installation apertureφ4.5(mm)
SKU ISE105
System voltage 12V/24V
Rated discharge current 30A
Backlight display time 15s off without operation
The maximum allowable voltage of battery terminal <32V
USB output 5V/2A
Light control delay 1 minute
Altitude ≤3000m
Dimensions 159×100×39(mm)
6.26*3.94*1.53 inches
Installation aperture φ4.5(mm)
Rated charge current 30A
Maximum PV input voltage <50V
No-load loss <8mA
Working temperature -31°F～140°F
Temperature compensation -3mV/°C/2V
Protection level IP32
Net weight 290g
 0.64 lbs/10.23 ounces
Installation size 147×80(mm)
