- Tech Specs

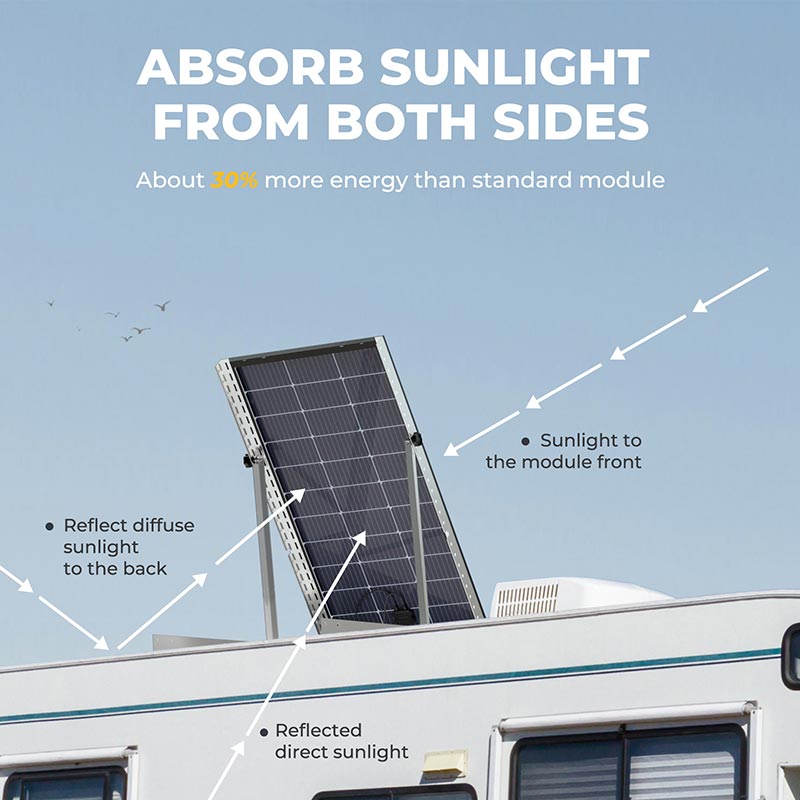

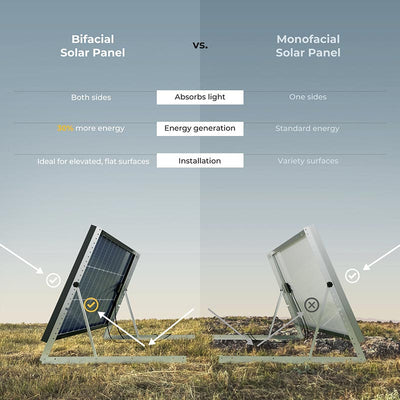

BougeRV bifacial solar panels offer an astounding 30% increase in output compared to standard models, thanks to their unique transparent backside. This enables the panel to absorb solar energy from both sides, utilizing direct sunlight, refracted sunlight, and diffuse sunlight.
These solar panels don't need constant adjustment for sun direction as they can absorb sunlight no matter how the sun moves. For optimum installation, we recommend using a tilt mount bracket.
Whether installed near a swimming pool, a sandy area, or a glass roof place, these solar panels perform better due to increased sunlight reflection. The sturdy aluminum material withstands varying outdoor environments, enhancing durability.

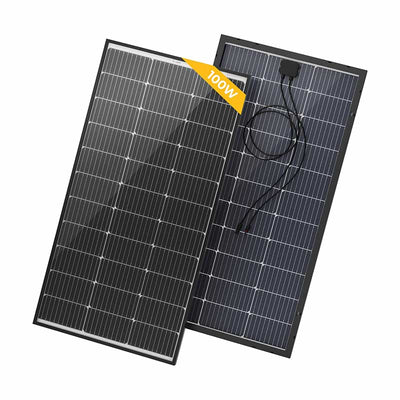

The corrosion-resistant aluminum frame of the 100-watt BougeRV panel blends well with black roofs, offering a sleek and unobtrusive look.
The high-level 9BB cell design ensures a 23% highest conversion rate, enabling more power generation and long-lasting service. By wiring several solar panels together, you can charge a 12V battery or even a 24/48V battery.
Despite being about 8% smaller than other 100W solar panels, the BougeRV 100W Bifacial 9BB Mono Solar Panel delivers equal, if not more power. Its larger surface by 48% allows for 100% more power, making it perfect for limited spaces like roofs of RVs/VANs/Trailers.
|SKU||ISE205||Product Type||Solar Panel|
|Model:||100W Bifacial Solar Panel||Weight:||16.97 lbs(7.7 kg)|
|Peak Power Pm (W):||100±3% W||Product diameter:||39.17 x 21.26 x 1.38 inches|
|Open circuit voltage Voc (V):||21.4±3% V||Net Weight (kg / lb)||6kg / 13.2lb|
|Max Power Voltage Vmp (V)||18.15±3% V||Application Class||Class A|
|Short Circuit Current Isc (A)||6.11±3%||Max Static Load (back)||2400pa|
|Solar Cells Efficiency||21.9%||Series Fuse Rating||10A|
|Product Warranty||10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.)||Performance Warranty||25 years|
|Model:||100W SOLAR PANEL|
|Peak Power Pm (W):||100±3% W|
|Open circuit voltage Voc (V):||21.4±3% V|
|Max Power Voltage Vmp (V)||18.15±3% V|
|Short Circuit Current Isc (A)||6.11±3%|
|Solar Cells Efficiency||21.9%|
|Weight||16.97 lbs(7.7 kg)|
|Product diameter||39.17 x 21.26 x 1.38 inches|
|Net Weight (kg / lb)||6kg / 13.2lbs|
|Application Class||Class A|
|Max Static Load (back)||2400pa|
|Series Fuse Rating||10A|
|Product Warranty||10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.)|
|Performance Warranty||25 years|
A1: At BougeRV, we offer professional technical services to help you build your ideal DIY solar system. Simply send us your needs and the parameter information or instructions of your purchased accessories directly to our email at email@example.com.
A2: If you have any issues with your purchase, please send us relevant pictures to our after-sales mailbox at firstname.lastname@example.org immediately and don't forget to include your order number. We will reply to you in chronological order as soon as possible.
A3: The output power of solar panels can be affected by factors such as light intensity, light angle, and shadow occlusion. To ensure optimal performance, make sure to adjust the angle of illumination to prevent shadows, and regularly clean any obstructions on the solar panel, such as bird droppings, dust, and garbage. Such obstructions can significantly reduce or even completely prevent the solar panel from outputting power.
A4: Yes, BougeRV solar panels with MC4 connectors are suitable for most portable power stations on the market. If you have any questions about compatibility with a specific model, please don't hesitate to contact us for more information.
