features

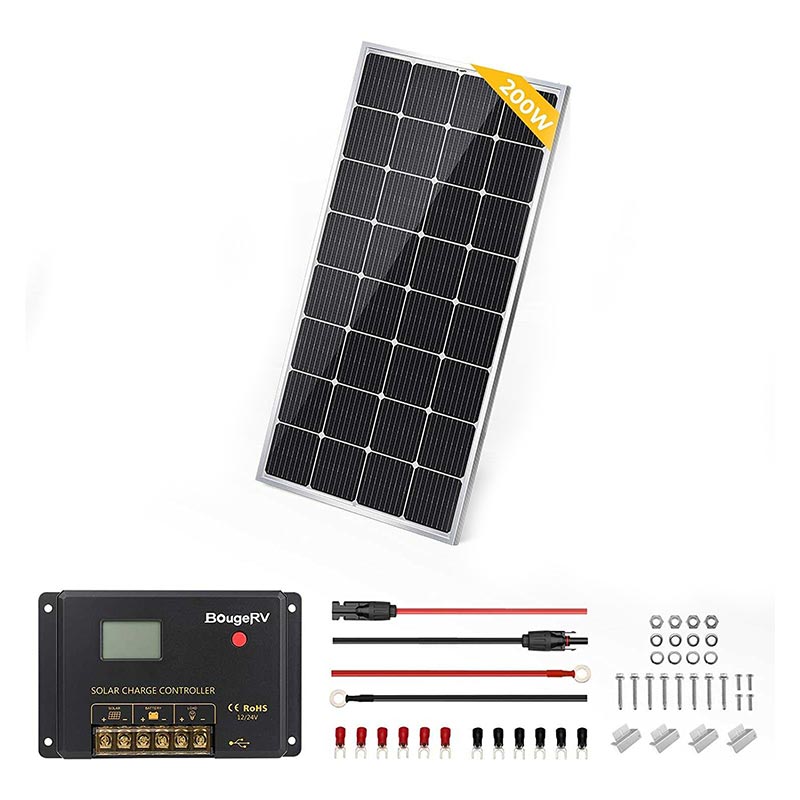

1. 200W 12V 9BB Mono Solar Panel
2. Li 30Amp 12V/24V PWM Solar Charge Controller
3. Solar Extension Cable with Extra Free Connectors(20Ft 10AWG)
4. Solar Panel Mounting Z Bracket Mount Kits Supporting
5. 8ft 10 AWG Wire Copper Tray Cable


200W 12V 9BB Mono Solar Panel

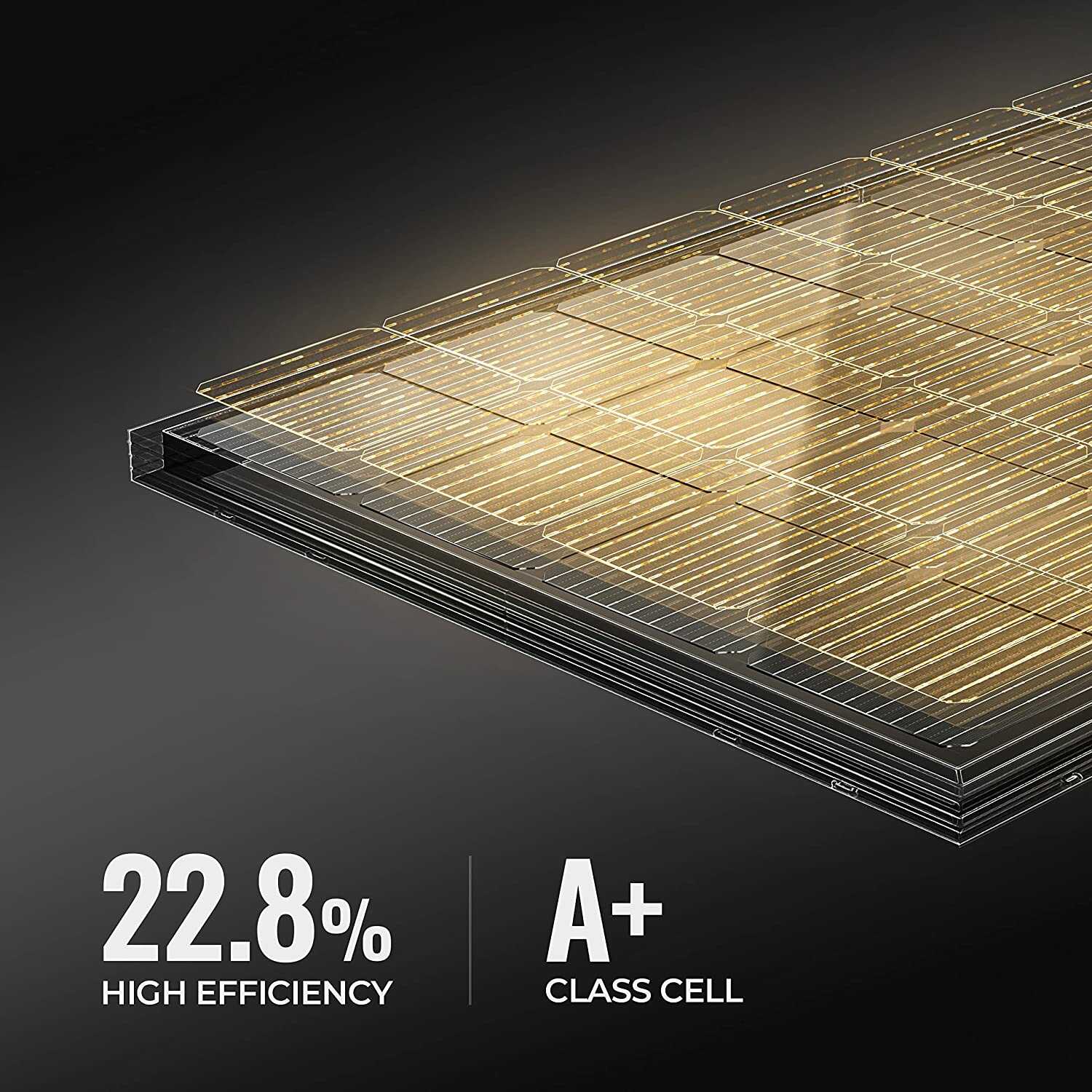

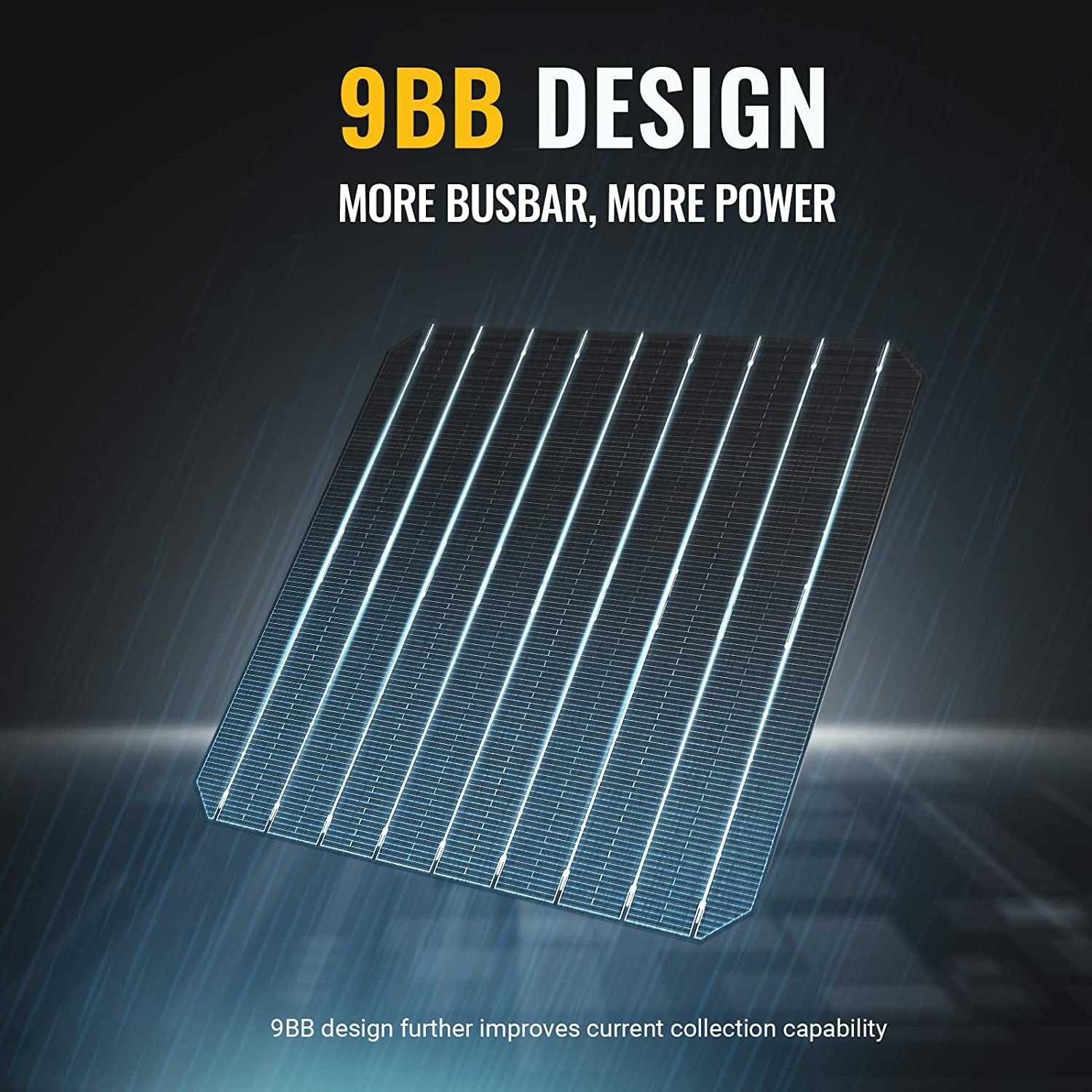

Unmatched Conversion Efficiency: Our 9BB cell design boasts the highest conversion rate of 22.8%, ensuring maximum power output and longer service life and allowing you to charge 12V, 24V or 48V batteries by wiring multiple panels in series. Plus, a thinner ribbon reduces the covered area by 22%.
More Power in a Compact Design: Our 200W 9BB mono solar panel is approximately 8% smaller than others, yet generates more power. Compared to 100W panels, it's about 48% larger but produces 200% more power, giving you more power in limited space on your RV, van or trailer roof.
Learn more about our solar panel
Product Introduction

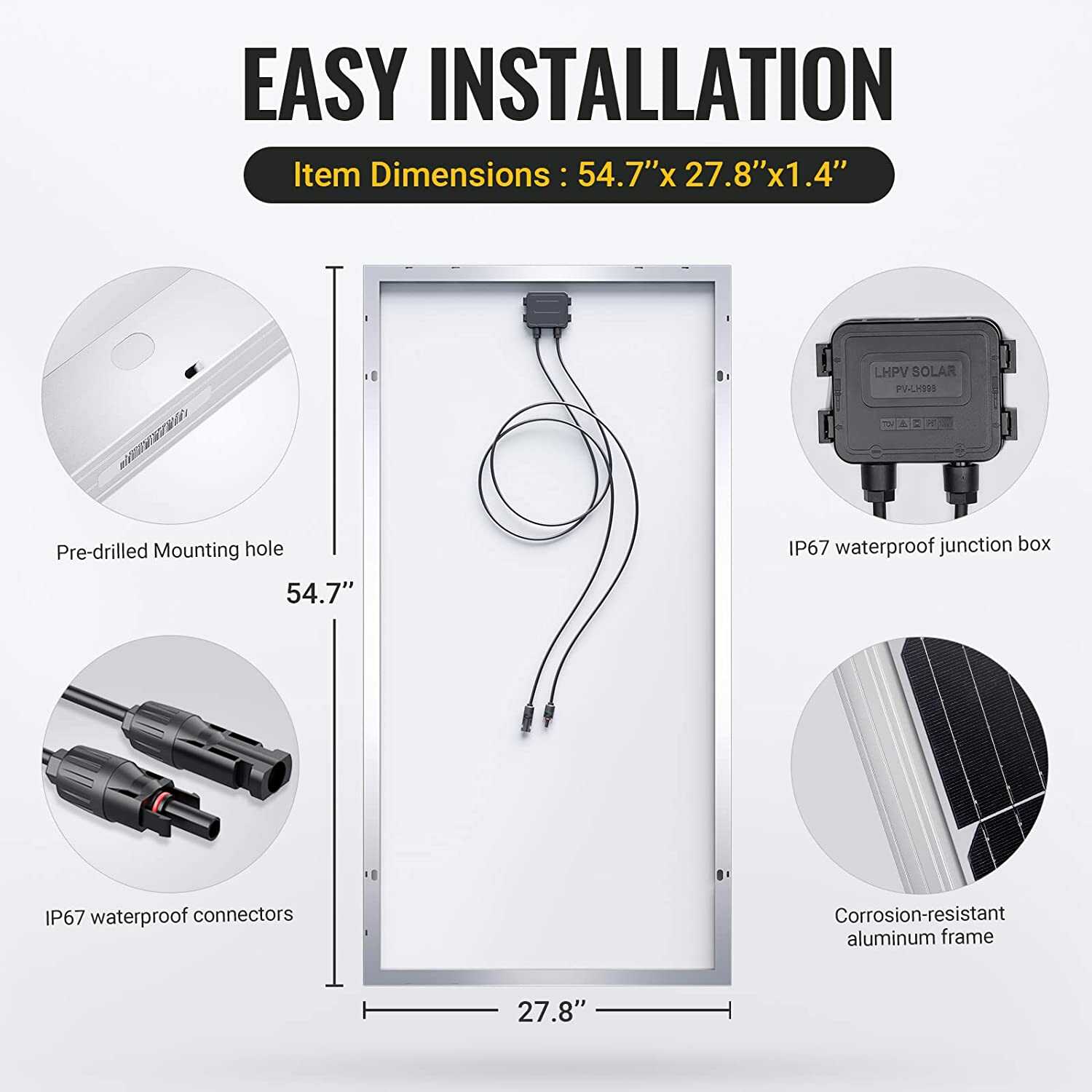

Compact Design & Weather-resistance. Withstand high wind (2400 Pa) and snow loads (5400 Pa), suitable for cold and complex outdoor environments.

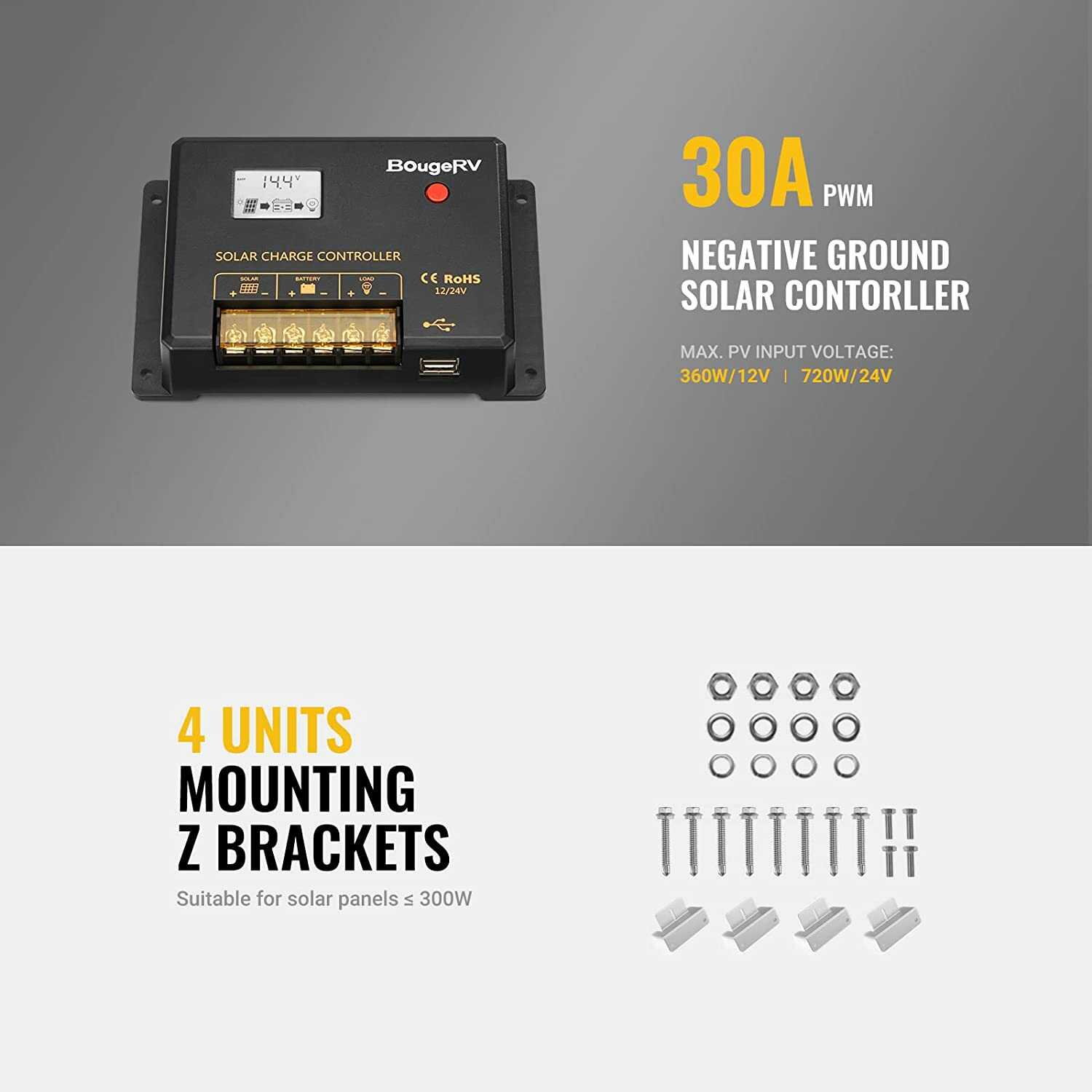

*System Current &Voltage: 30A,12V / 24V
*Max. PV Input Power: 360W / 720W
*Max. PV Input Voltage: < 50V
*Max Gauge Size: Up to 8AWG

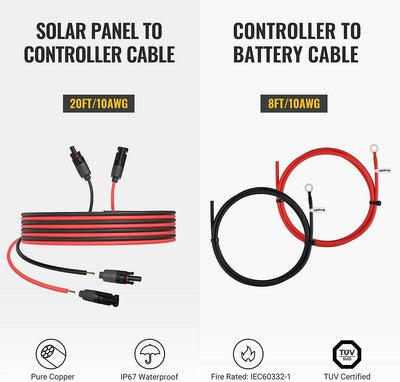

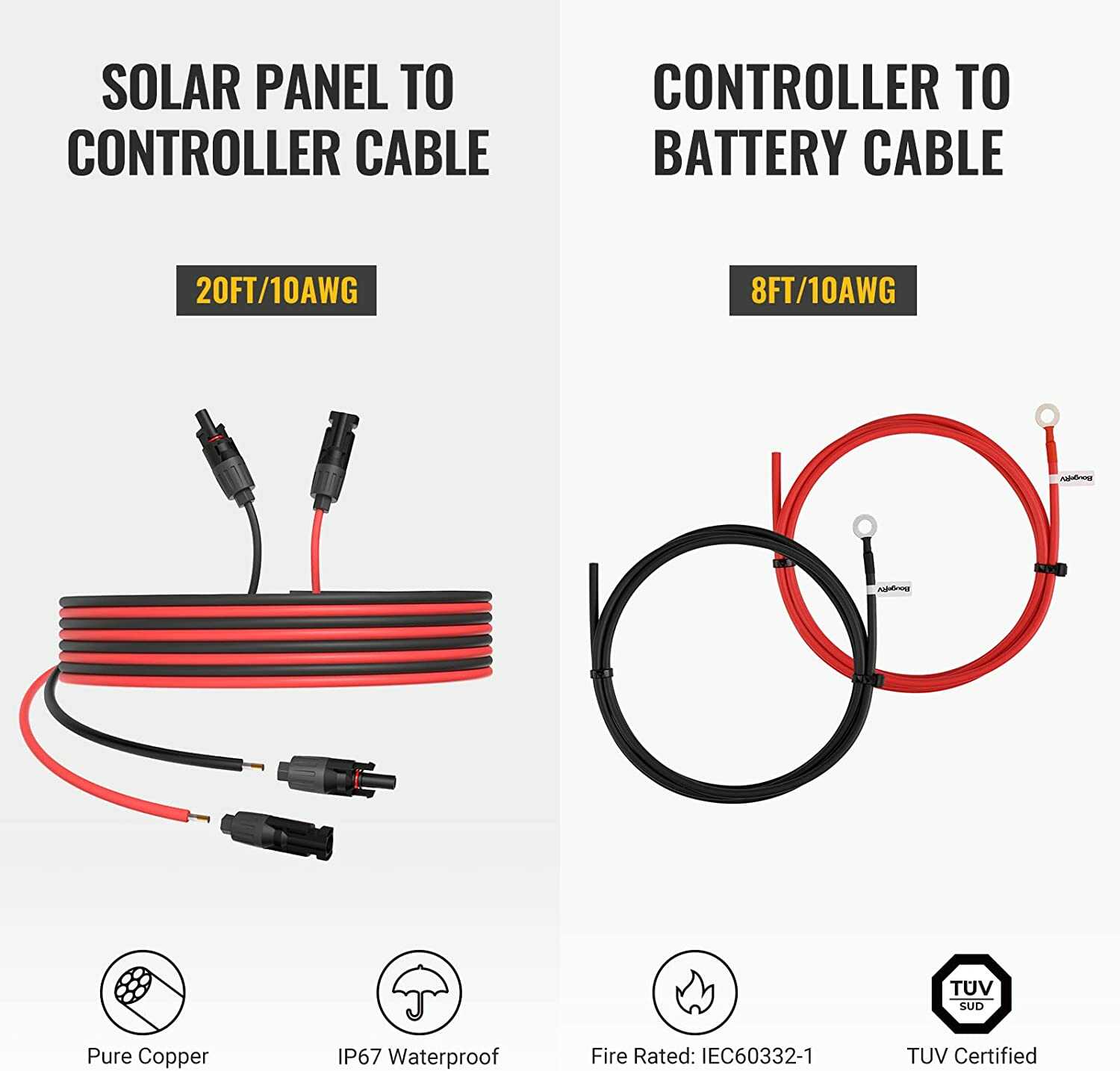

1 Pair of 20FT/10AWG solar to controller cable +
1 Pair of 8FT/10AWG solar to controller cable
-Rating Voltage: 600W / 1000V


-1 set x Z Bracket (FourPcs a set),4x M6-16 Hex Cap Bolt
-4 x M6 Split Lock Washer,4 x M6 HexagonalNut
-8 x M6 Flat Washer,8 x #11 Self-Drilling Cap Bolt


Compact Design & Weather-resistance. Withstand high wind (2400 Pa) and snow loads (5400 Pa), suitable for cold and complex outdoor environments.


*System Current &Voltage: 30A,12V / 24V
*Max. PV Input Power: 360W / 720W
*Max. PV Input Voltage: < 50V
*Max Gauge Size: Up to 8AWG


1 Pair of 20FT/10AWG solar to controller cable +
1 Pair of 8FT/10AWG solar to controller cable
-Rating Voltage: 600W / 1000V


-1 set x Z Bracket (FourPcs a set),4x M6-16 Hex Cap Bolt
-4 x M6 Split Lock Washer,4 x M6 HexagonalNut
-8 x M6 Flat Washer,8 x #11 Self-Drilling Cap Bolt


Product Specifications
SKU | ISE114(ISE124) |
---|---|
Peak Power Pm (W): 200W | Solar Cell: Monocrystalline & 9BB Cell |
Open circuit voltage Voc (V): 23.4V | Package diameter: 59.45* 27.56* 2.56 in |
Max.power voltage Vmp (V): 19.8V | Product diameter: 58.27* 26.38* 1.38 in |
Short circuit current Isc (A): 11.17A | Net Weight : 29.54 lbs(13.4 kg) |
Max.power current Imp (A): 10.10A | Warranty: 18 Months |
Solar cells Efficciency: 22.5% |
SKU | ISE114(ISE124) |
---|---|
Peak Power Pm (W): 200W | Solar Cell: Monocrystalline & 9BB Cell |
Open circuit voltage Voc (V): 23.4V | Package diameter: 59.45* 27.56* 2.56 in |
Max.power voltage Vmp (V): 19.8V | Product diameter: 58.27* 26.38* 1.38 in |
Short circuit current Isc (A): 11.17A | Net Weight : 29.54 lbs(13.4 kg) |
Max.power current Imp (A): 10.10A | Warranty: 18 Months |
Solar cells Efficciency: 22.5% |
SKU | ISE105 |
---|---|
Nominal Voltage: 12V/24V | Rated Charge Current: 30A |
Max. PV Input Voltage: 50 VDC | Operating Temperature: -31 °F to 140 °F |
Common Ground: Positive Ground | Dimensions: 6.26*3.94*1.53 in. |
Weight: 0.64 lbs/10.24 ounces | Backlight display time: 15s off without operation |
Compatible Battery Types: SLD(lead-acid battery), FLD Battery, Gel Battery,Lithium-ion Battery, LiFePO4, Ternary Lithium Battery | No-load loss: <8mA |
The maximum allowable voltage of battery terminal: <32V | Light control delay: 1 minute |
SKU | ISE105 |
---|---|
Nominal Voltage: 12V/24V | Rated Charge Current: 30A |
Max. PV Input Voltage: 50 VDC | Operating Temperature: -31 °F to 140 °F |
Common Ground: Positive Ground | Dimensions: 6.26*3.94*1.53 in. |
Weight: 0.64 lbs/10.24 ounces | Backlight display time: 15s off without operation |
Compatible Battery Types: SLD(lead-acid battery), FLD Battery, Gel Battery,Lithium-ion Battery, LiFePO4, Ternary Lithium Battery | No-load loss: <8mA |
The maximum allowable voltage of battery terminal: <32V | Light control delay: 1 minute |
